Mobile Printer MobiPrint MP-GT5S
|
|
| CURRENT PRICE |
| 171.41 € |
Net |
| 210.84 € |
Gross |
|
|
|
Brand MobiPrint is a new distribution in Mobilator. Under this brand we are selling portable mini printer manufactured by companies who have achieved recognition of clients due to high quality of products in the segment of high-tech.
|
.jpg)
|
|
|

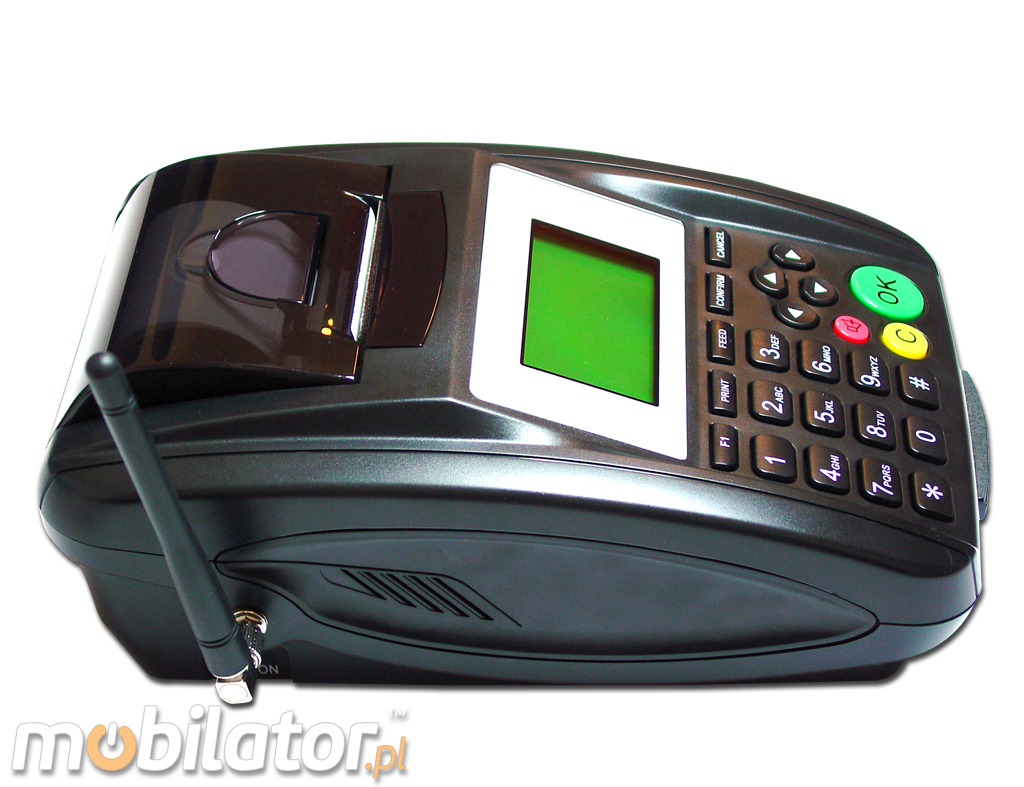

Portable Mobile Printer series MobiPrint is a lightweight device used to print receipts, invoices or labels in places where it is not possible to use large desktop printers. Depending on the client's needs - printers are available with different wireless interfaces (depending on model): Bluetooth and WiFi and wired USB and RS232.
.jpg)
|
|
MobiPrint MP-GT5S |
Printing Method
|
Thermal-line dot method |
Resolution
|
8 dots/mm, 480 dot line/sec
|
|
Display |
128 x 64 pixels |
|
Communication |
GSM /GPRS
|
|
Dimensions |
240 mm x 140 mm x 90 mm |
Weight
|
1200g |
|
Other |
None
|
|
The detailed specification of the configuration available in the "Technical data"
|
|
|

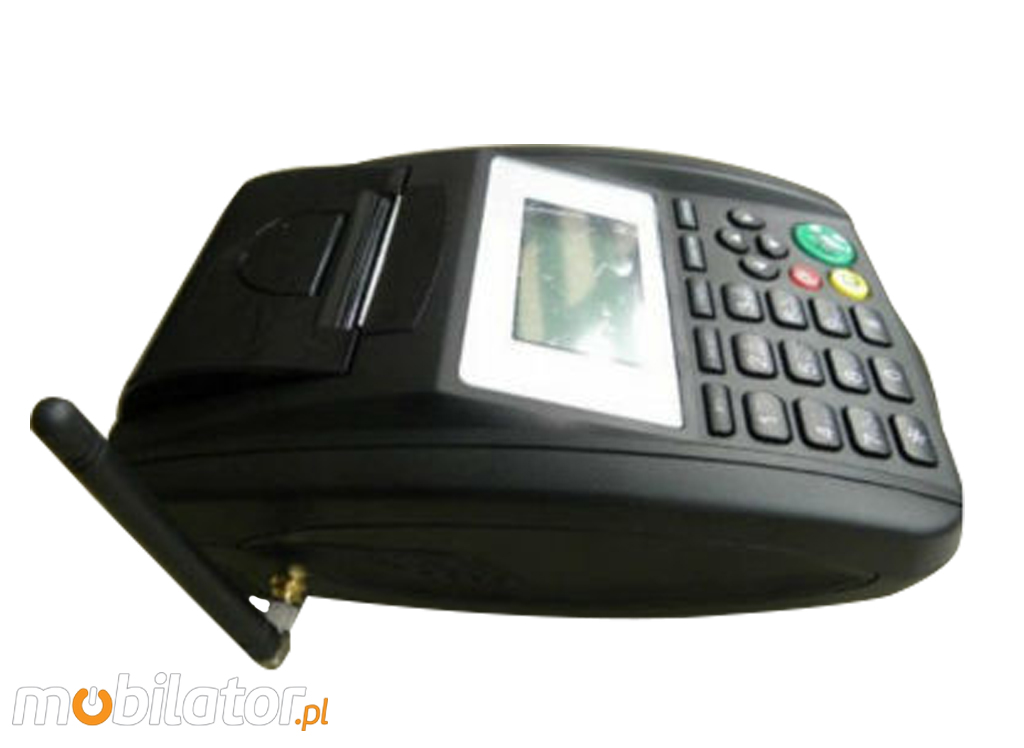

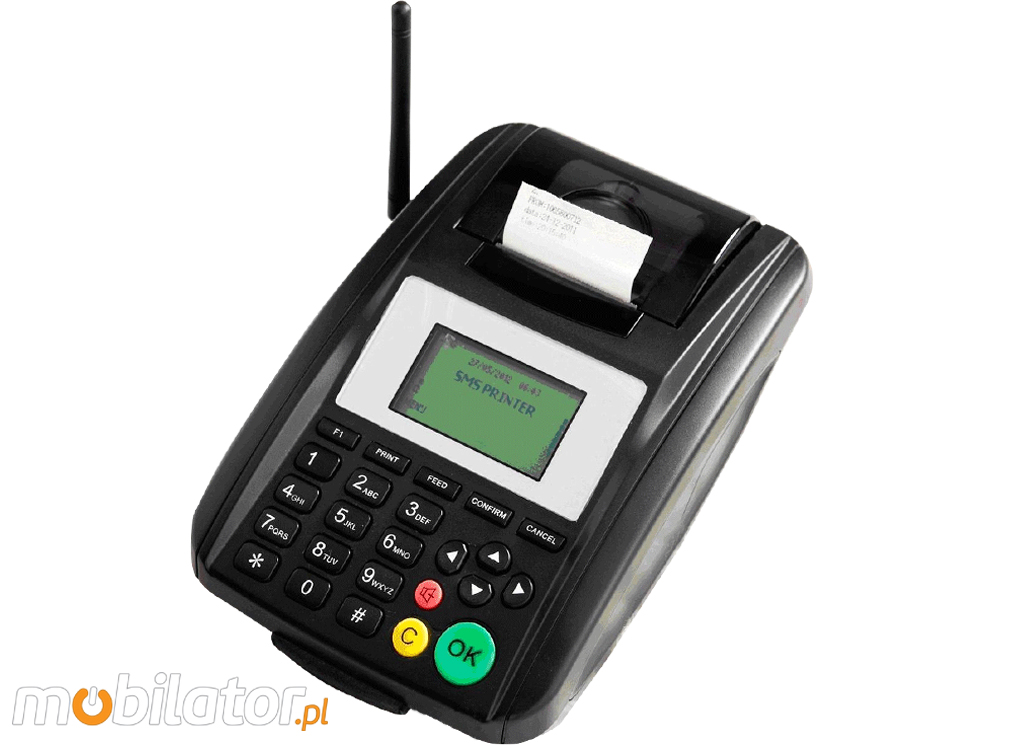

Modern, wireless (GSM/GPRS) thermal printer MobiPrint MP-GT5S BT was designed with users in mind, for which it is necessary to print invoices, receipts or labels in places where there is no access to the electricity grid, transportation and mobile commerce, at events, etc.
 Portable printers MOBIPRINT MP-GT5S has a simple paper loading, ease of use, print quality, fast printing, printing on thermal paper roll. These properties make the lightweight portable printers are used in a variety of mobile applications.
Thermal Printer - MOBIPRINT MP-GT5S through GSM / GPRS module (which ensures proper communication) is compatible with mobile devices, data collectors and computers running under different operating systems having GSM module (see the text "Communication" - below).
.jpg)

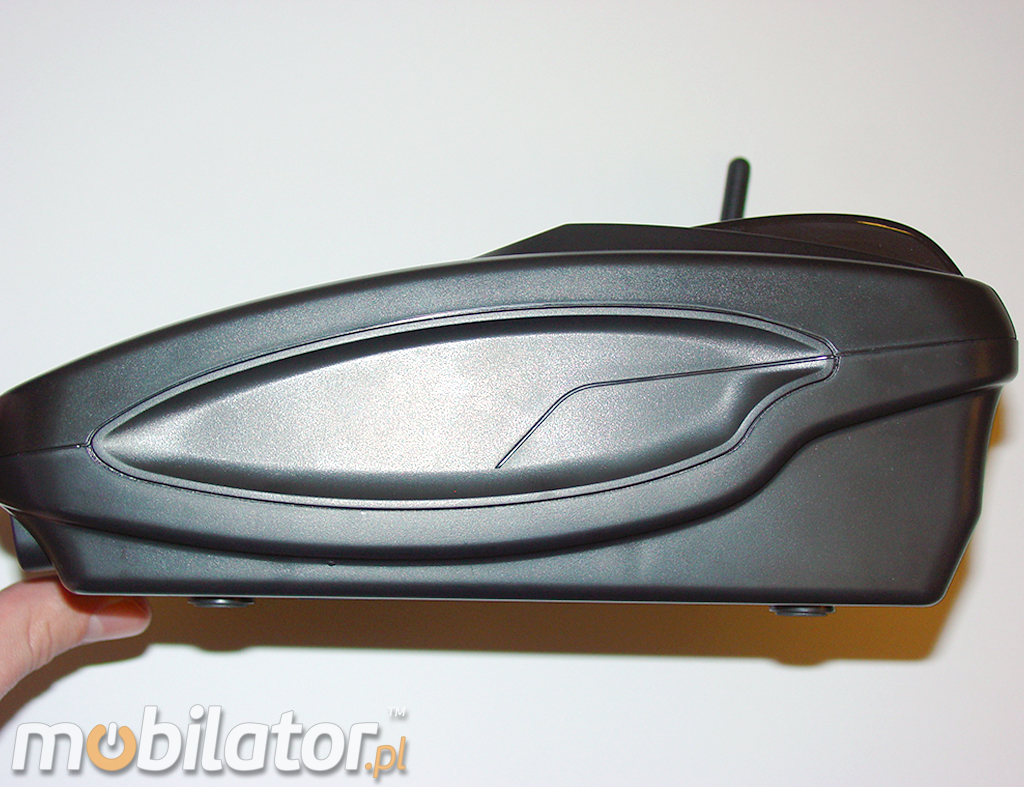

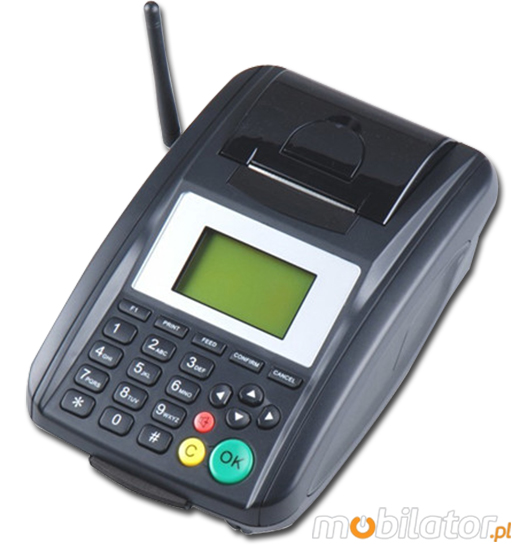

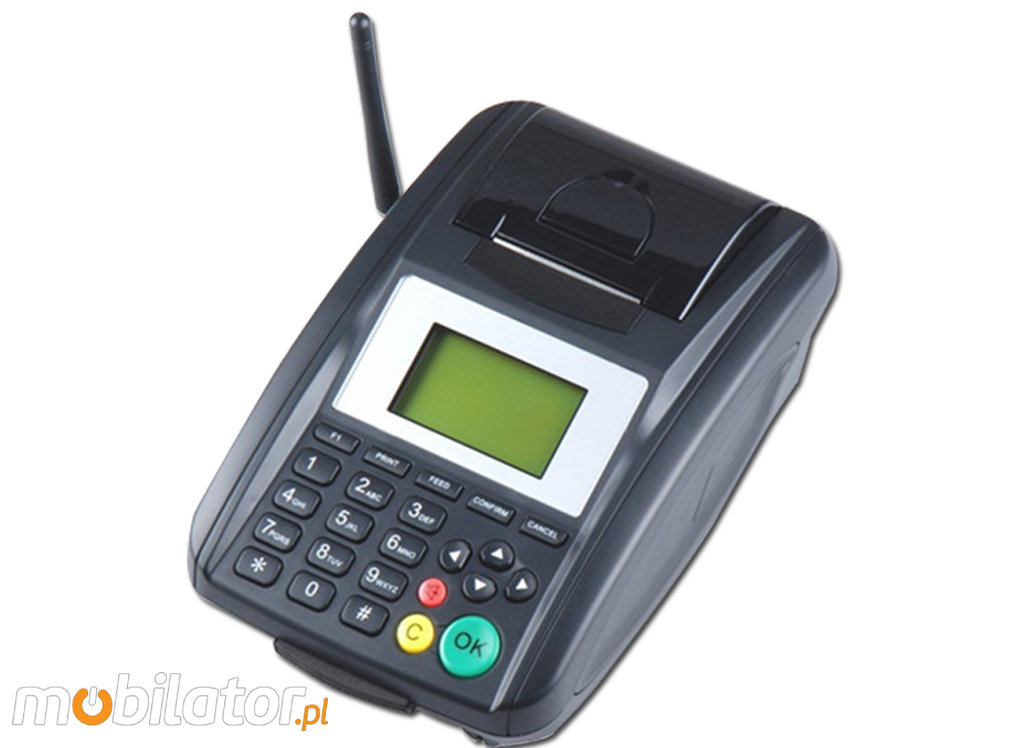

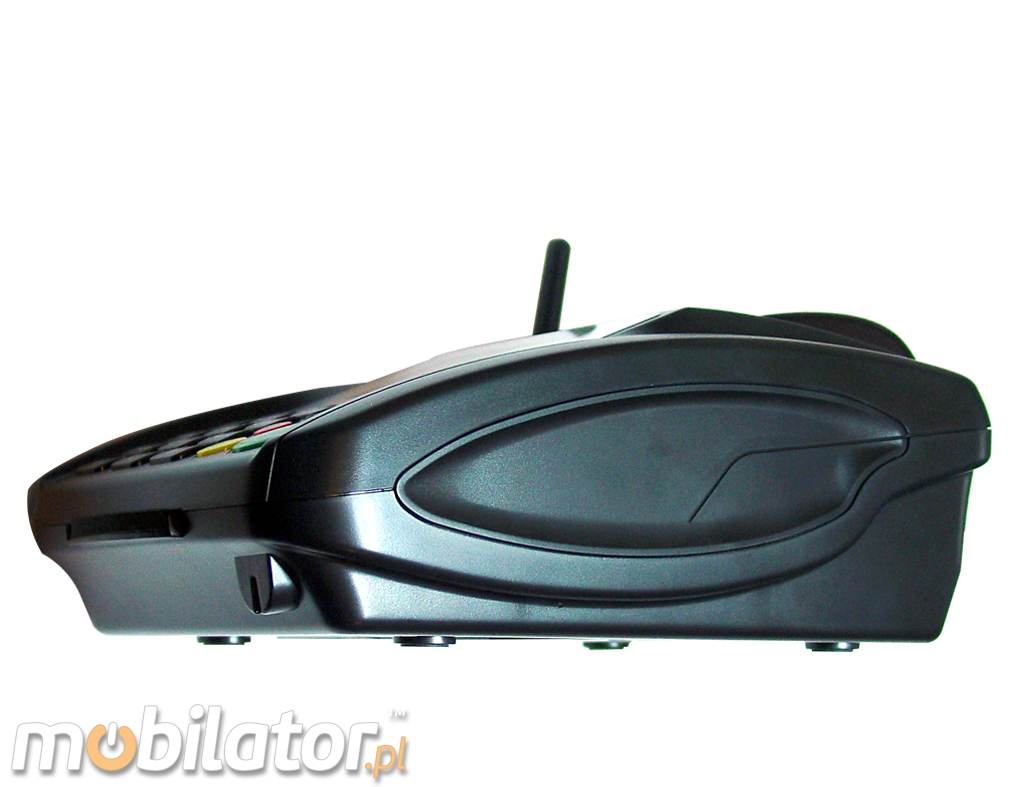

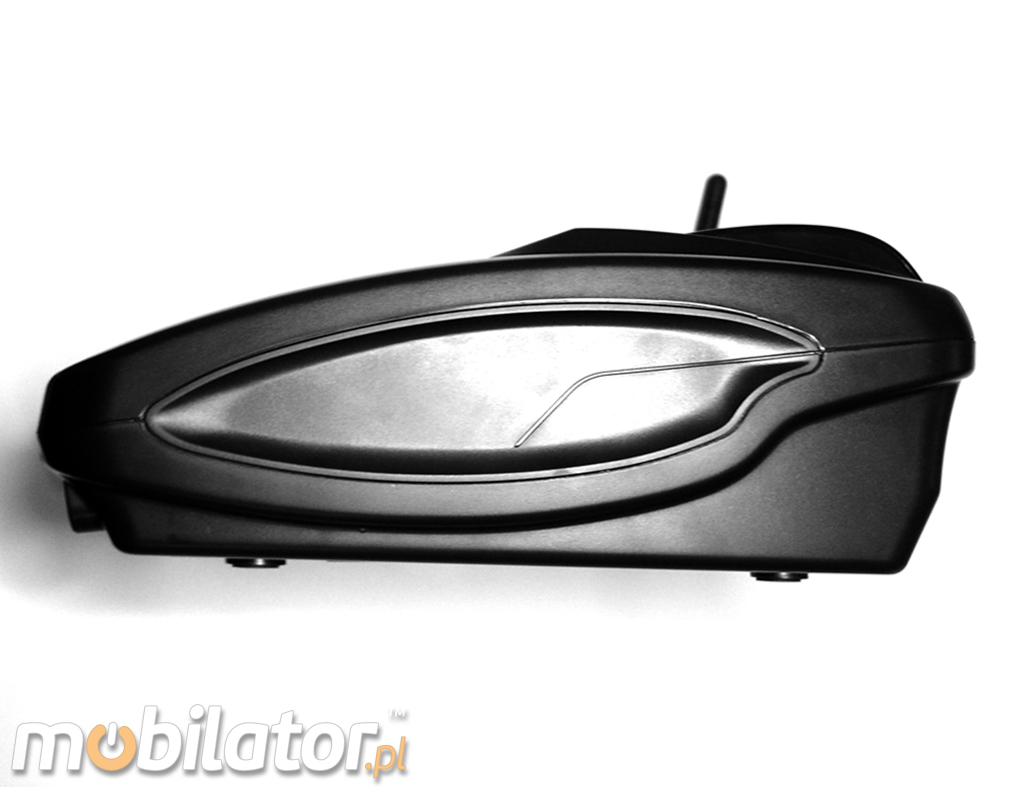

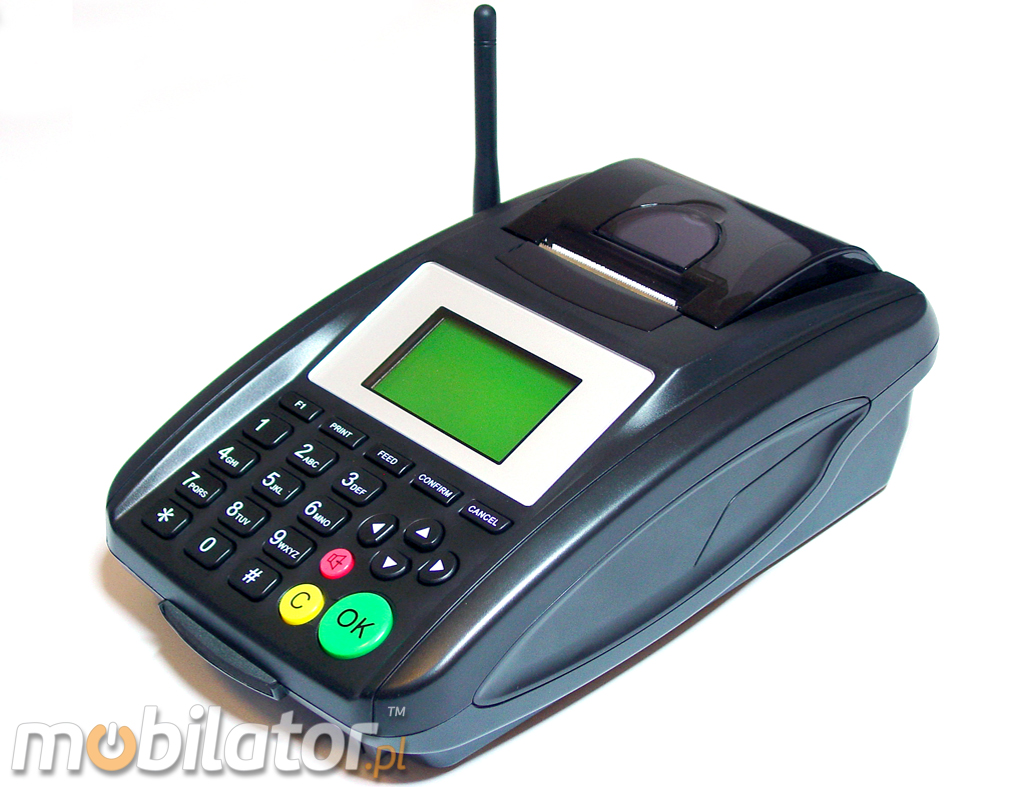

.jpg) A new generation of mini printer surprises his appearance. This ergonomic, compact and extremely lightweight thermal printer dimensions (240 mm x 140 mm x 90 mm) and weight 1,2kg, allows complete mobility.
.jpg)

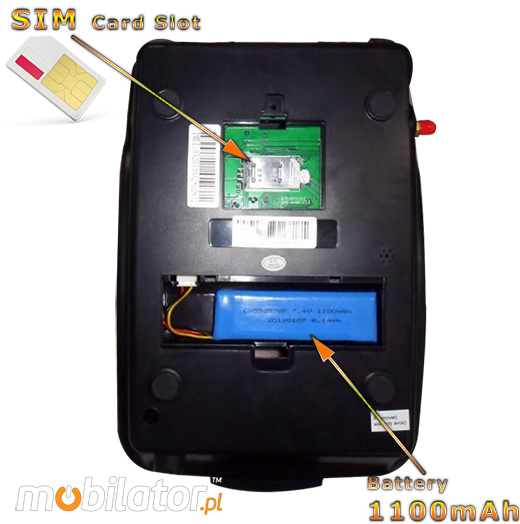

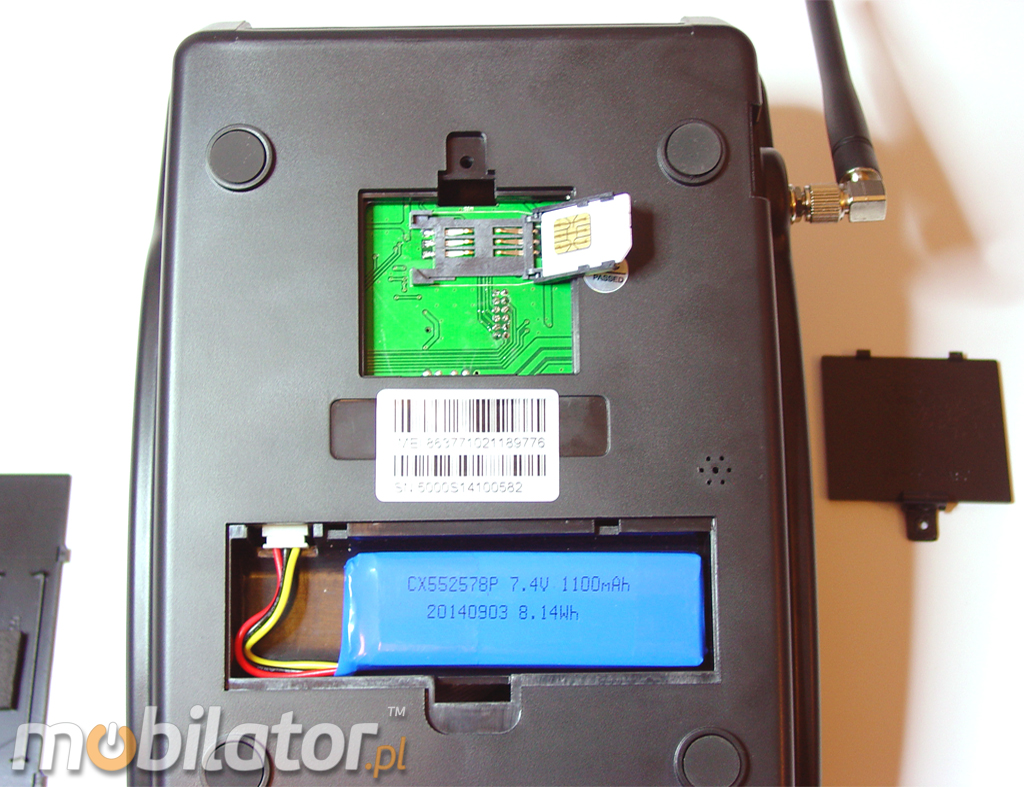

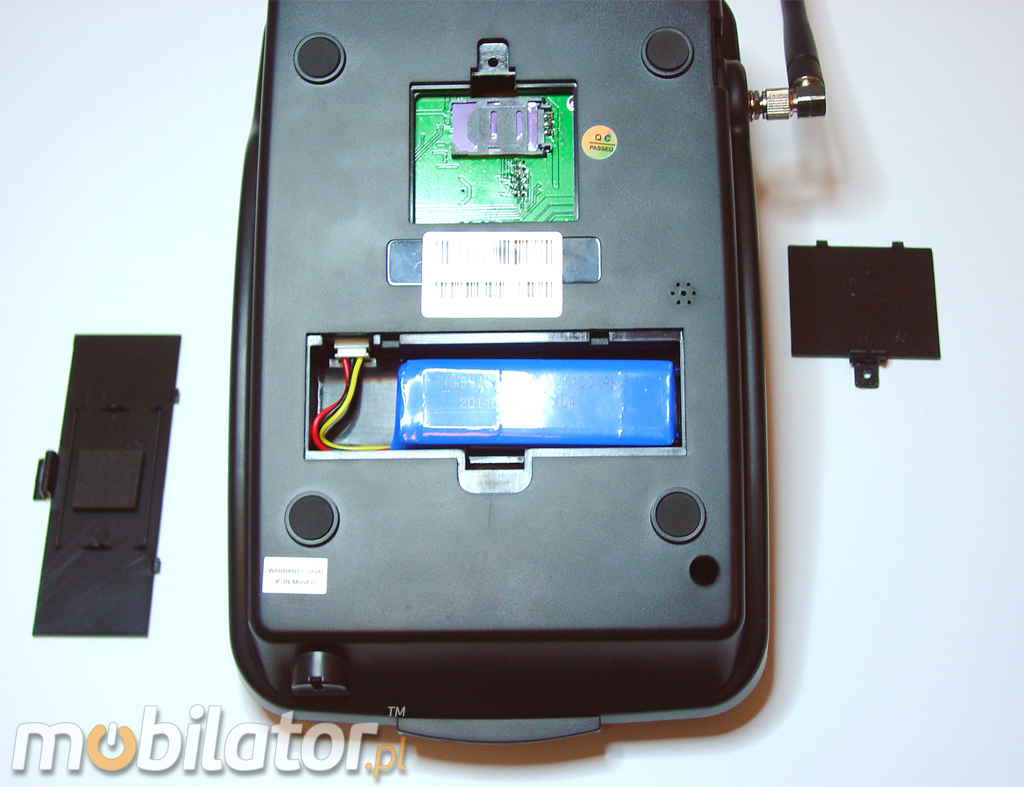

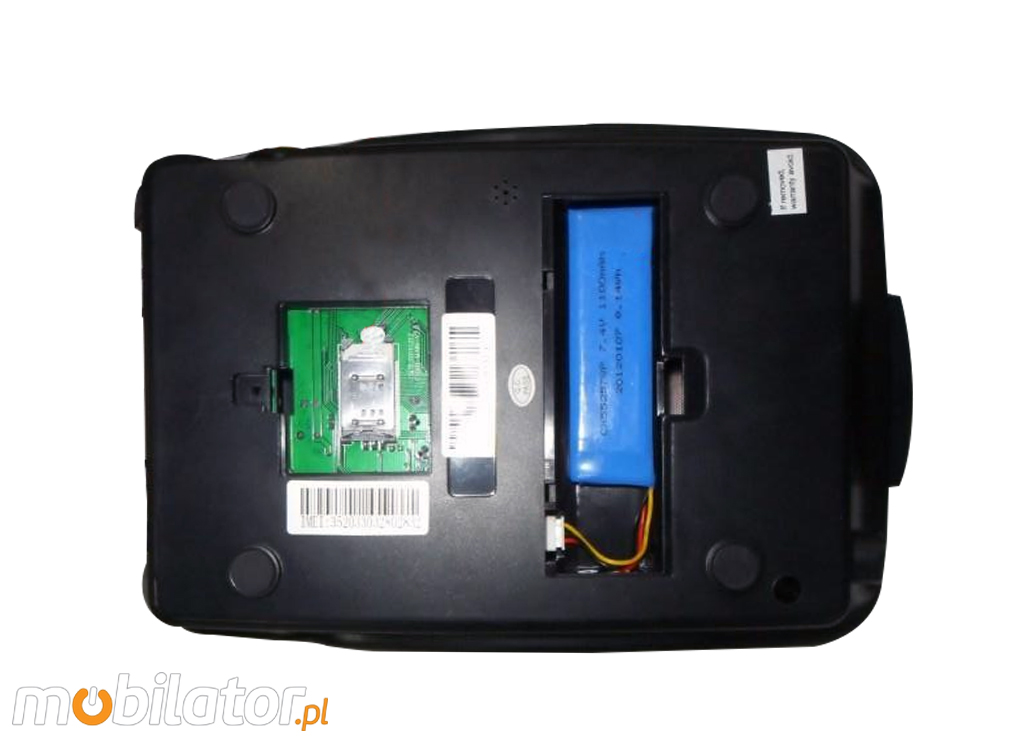

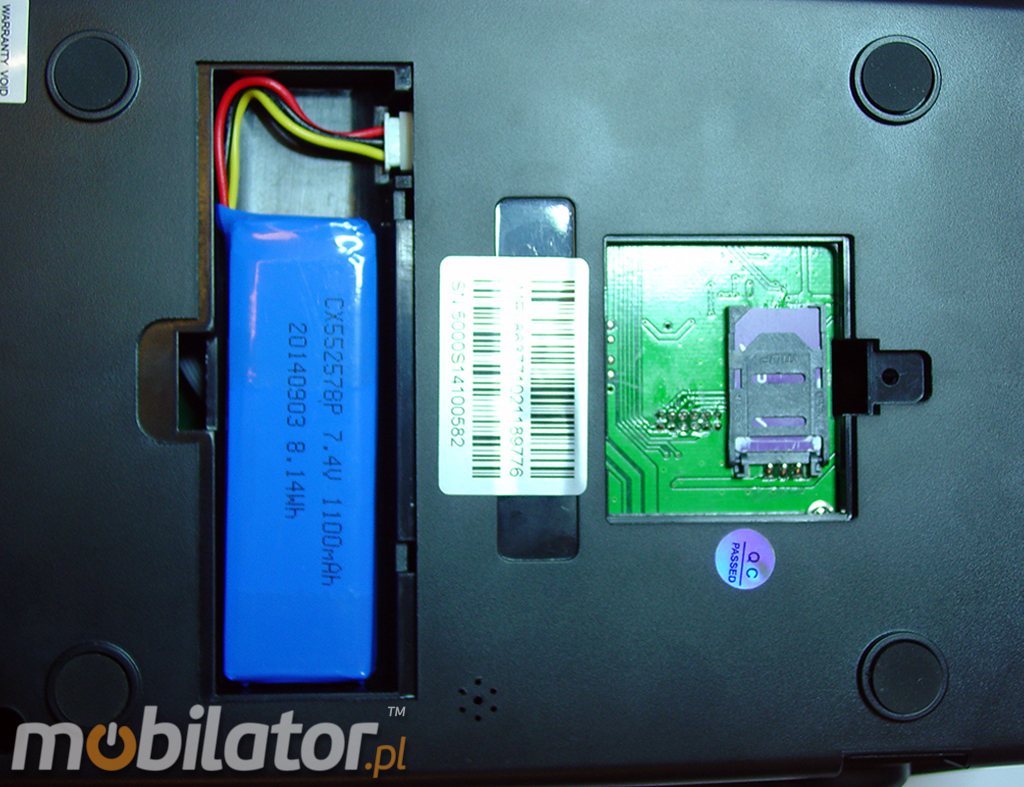

MobiPRINT MP-GT5S is equipped with a Li-Ion battery with sufficient capacity - 1100mAh. Can be used for more than 72 hours in idle mode by battery supplied.

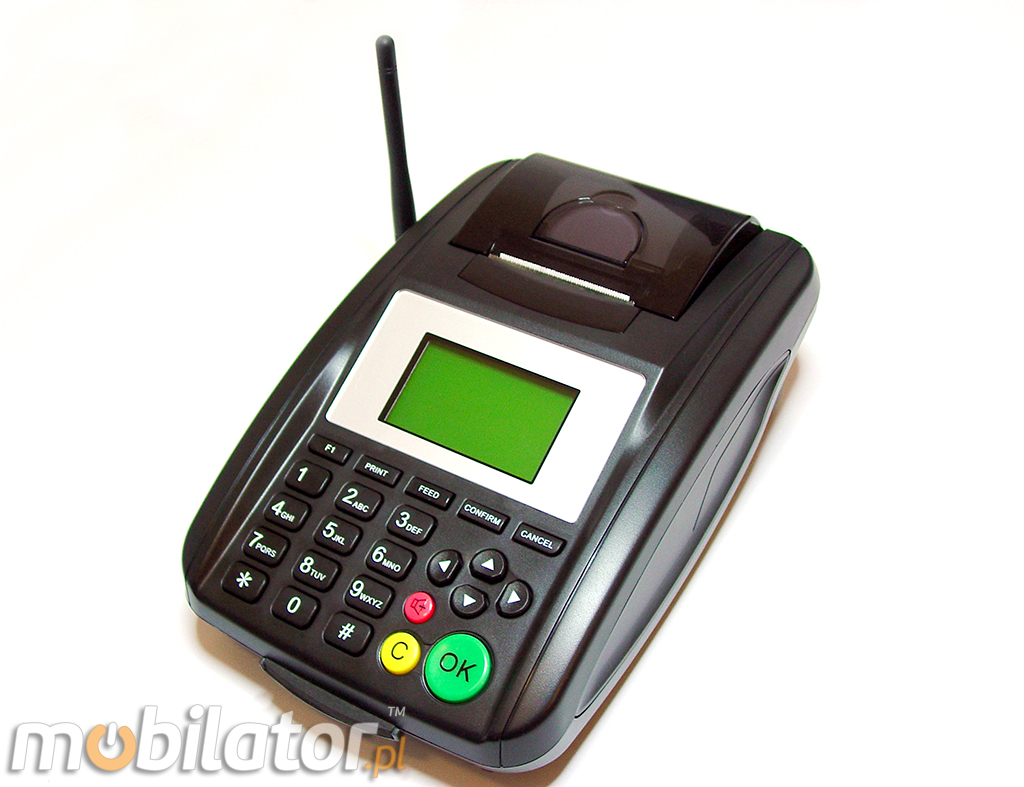

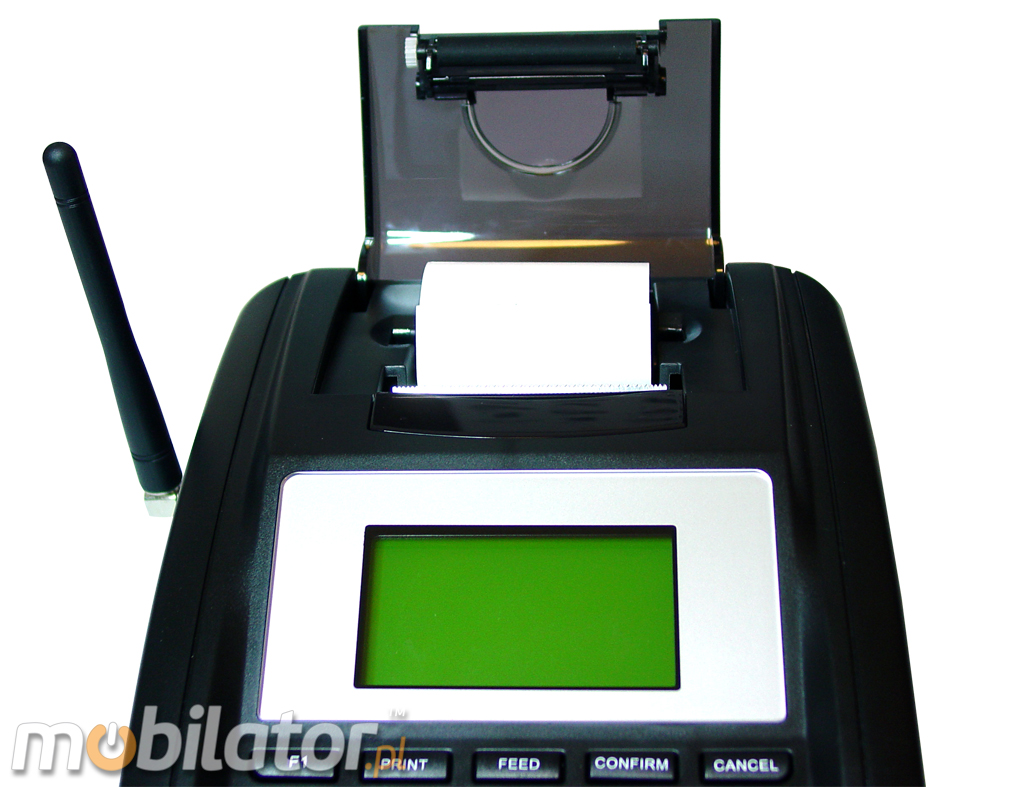

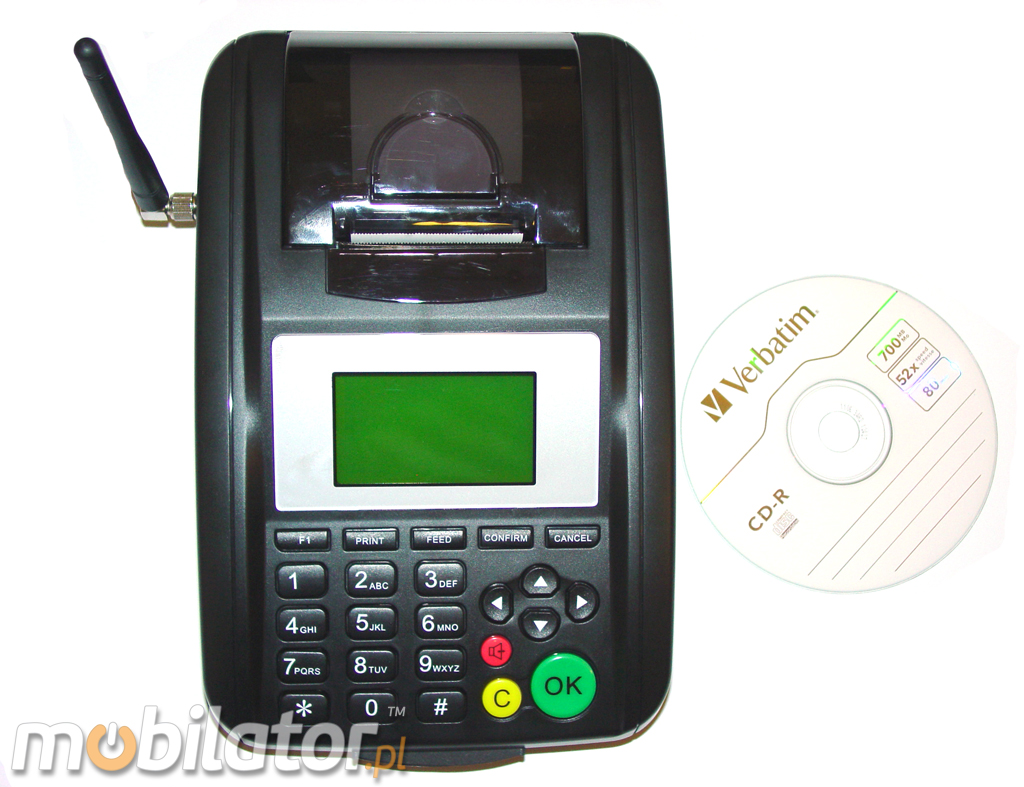

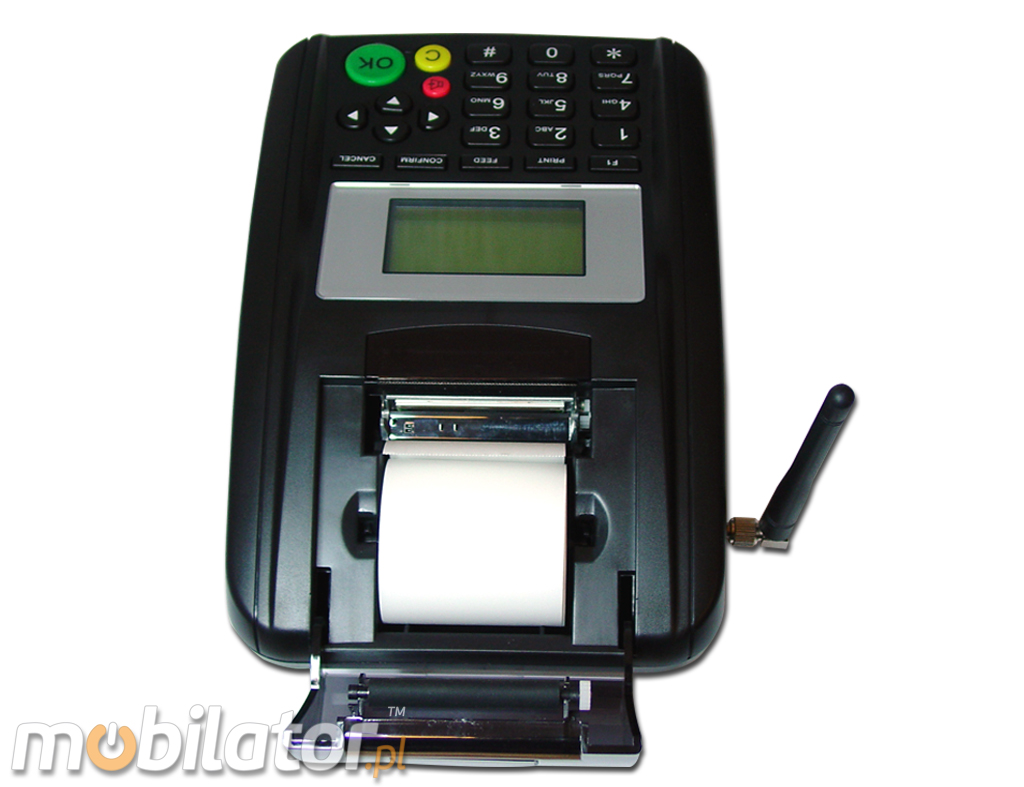

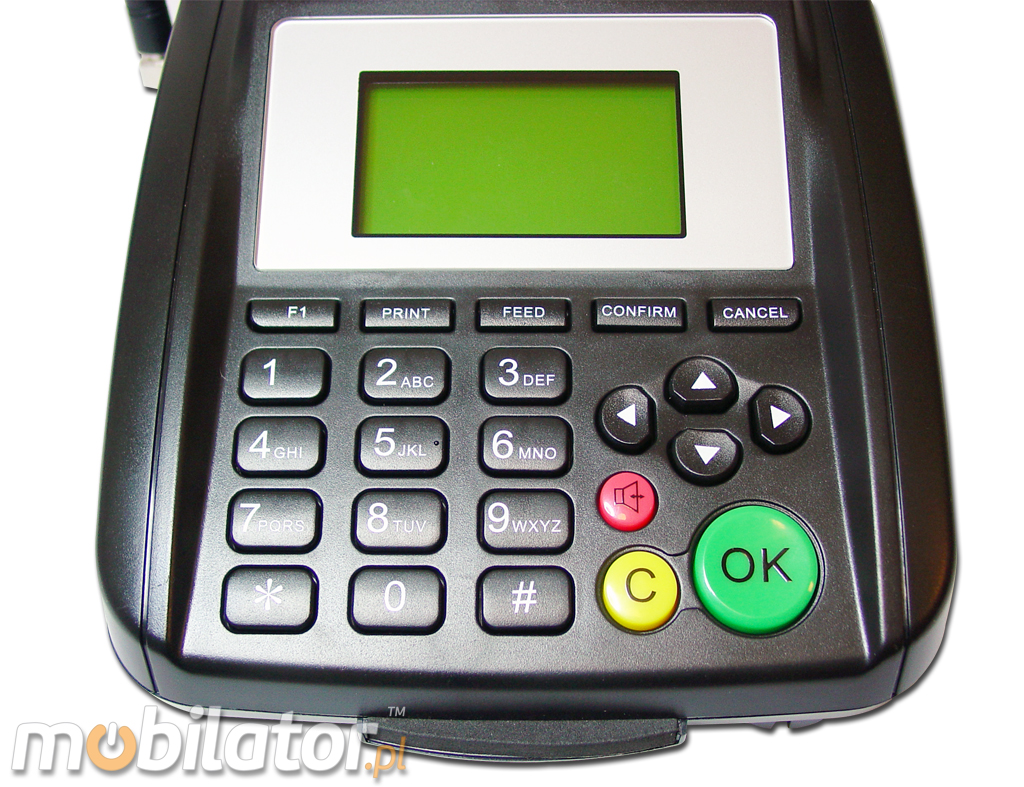

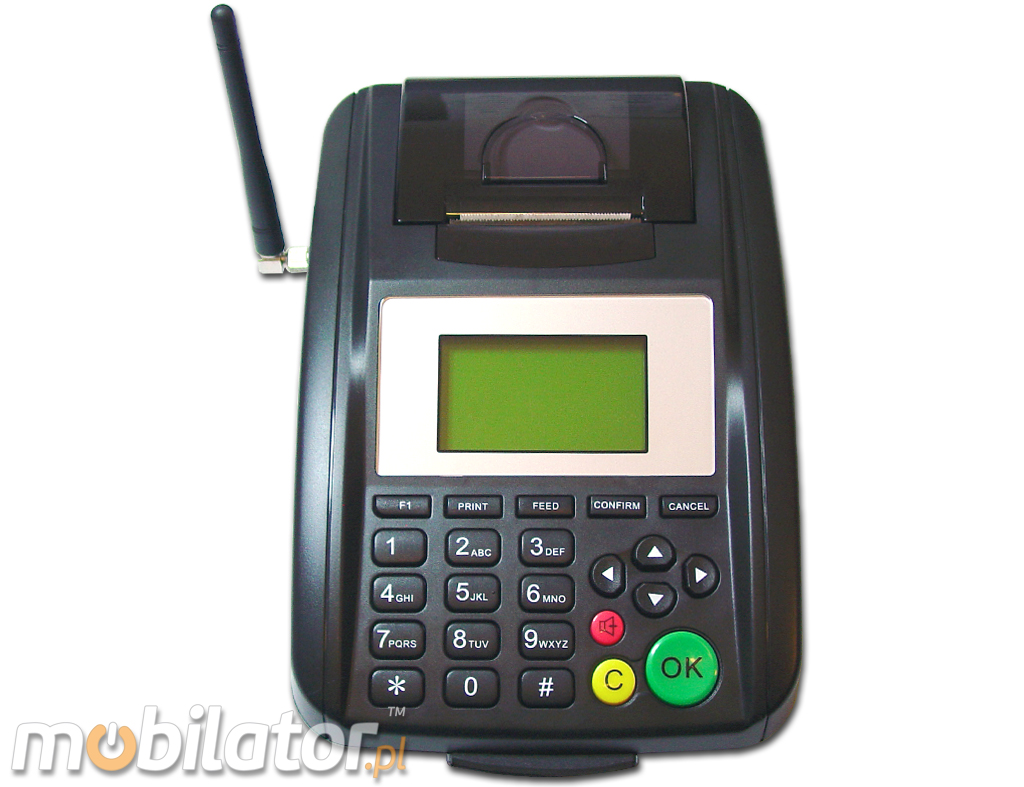

Easy loading paper roll "Drop-In & Print", high print quality, fast printing (up to 70mm/s), printing on thermal paper rolls of a width of 58mm makes the printer is applicable in a variety of mobile applications. Mini printer stand also: front panel, on which is placed a display and keyboard. This multiplicity of functions makes the printer is user-friendly and ideal for field use with wireless GSM module.
The printer is easy to use, among other things due to the use of very high-quality mechanism for easy paper loading. The printer is operating in a wide range of temperatures and humidity. The small dimensions allow you to use the printer in a confined work area, providing high-quality prints.
|
.jpg) Designed to be fitted device for various applications, wireless (GSM / GPRS) mobile printer can be compatible with all GSM urzadzniami having .. Users can send SMS to the printer in real time with PCs or mobile devices.

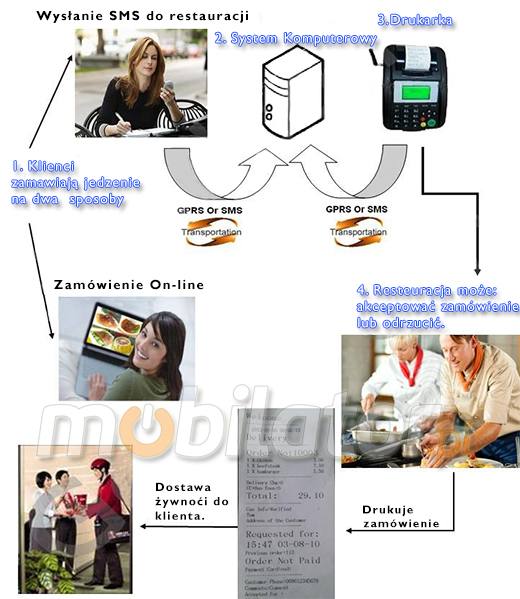

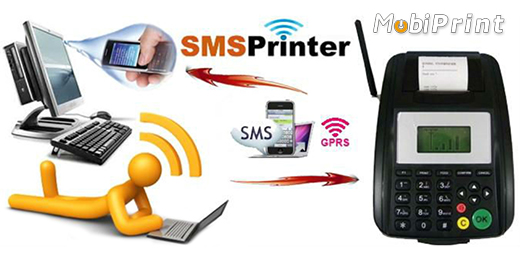

For a printer company MobiPRINT dostarczone software which allows you to dostodowaæ to different needs. Below is an example of the use of GSM printer.
|
|
.jpg)
Two way communication:
(1) For GSM (SMS) mode, it is easier operation.
customers make order via mobile phone. When the printer receives orders, it will print it out automatically. User of printer can select to confirm or reject orders, entering the delivery time (for accepted orders) or reject reasons (for rejected orders). Then the orders will be sent back to customers.
Besides, you can also install a GSM modem. Customer places their order via sms. Then, server will forward order to the SMS Printer located in restaurant kitchen. Restaurant acknowledges/prints order and specifies optional delivery time. Customer receives acknowledgement of order and expected delivery time.
(2) For GPRS, it requires that you have your own website platform, including the IP, port, filepath, callback URL.
Setting some parameters (e.g. ip addr, port, filepath, callback url.) in printer, then printer will communicate with sever.To identify each device from sever, u also have to set some other parameters, such as: RES ID, login web username, login web password, etc.
As per the setting GPRS auto check interval, the printer will query the sever at regular time(according to the setting in that parameter). If sever gets order, the server will response printer to download it. When the order comes, the ringtone prompts, and order can automatically be printed out. The printer will then ask the user to confirm/reject the order., After that, the terminal wil send back the confirmation of the order via GPRS connection to the website server in order to update the website database with the order status.
|
|
|
|
|
Application
For MobiPrint MP-GT5S manufacturer recommends widely use in situations where it is necessary to the need for rapid and mobile print a receipt or confirmation of the purchased goods in trade, logistics, transport, freight forwarding, industrial sector, financial and public sectors.
|
|
Pharmacy
The printer is ideally suited for use in pharmacies, for printing the valuation of drugs for physicians to print prescriptions, referrals, orders, etc. It can be used as a portable printer (home visits) and to cooperate with the medical laboratory apparatus and measuring devices and control print graphs.
|
|
Trade
The device is used for high speed printing of receipts, confirmations and invoices. Certainly will be applied in all kinds of commercial networks, resteurants hotels, etc.
|
|
|
|
Magazine
Mini printer allows for quick and wireless printing with confirmation of receipt of goods from the warehouse.
|
|
Logistics and transport
Little Printer will find all kinds of application also in transport.
|
|
|
Move the printer allows you to send her the necessary data from your computer to print. We offer the highest quality devices work flawlessly even in harsh industrial environments.
MobiPrint MP-GT5S
|
GSM parameters
|
RF transmit frequency: RF: GSM850 824-849MHz E-GSM900 880-915MHz DCS1800 1710-1785MHz PCS1900 1850-1910MHz
Frequency stability: <2.5ppm
Receiver sensitivity: < -104dBm
GSM protocol: ETSI GSM Phase 2+
Transmit power: <2W(900MHZ), <1W(1800MHZ)

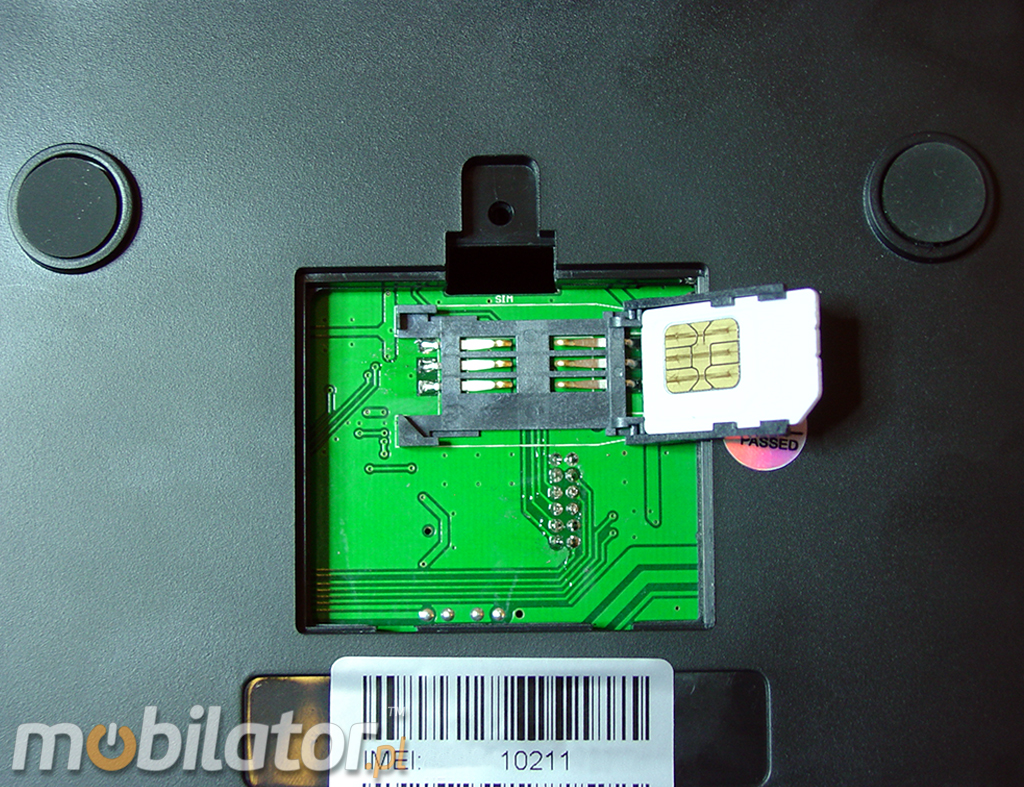

SIM card interface: 3V
Antena: SMA connector,50Ω impedance,3dB gain
|
Print
|
Printing Method: Thermal-line
Printing Speed: 70mm/s
Resolution: 8 dots/mm 480 dots/line
EffectivePrinting Width: 48mm
|
Character
|
Character Set: 12*24 dots
Character per Line: 32
|
Paper Spec
|
Paper Type: Thermal
Paper Width: 57 mm
Paper Roll Diameter:50 mm(max.)
|
Paper Supply Method
|
Drop-In easy paper loading
|
Reliability
|
MCFB: 100 million lines
TPH: 50KM
|
|
Emulation |
ESC/POS |
|
Hardware/software |
CPU: SIM840W
Memory: 16M in the GSM module, more than 200 SMS can be saved, sent or received
GSM Modem: SIM840w
Display: 128 x 64 pixels
Keyboard: 24 keys
Developing environment: OS of SIM840w for design
|
|
Communication |
GSM / GPRS
|
|
Power Supply |
DC12V/2A |
|
Battery |
Battery Power: 1100 mAh, 7.4V
Type: Li-ion
Battery Charge: Can be used for more than 72 hours in idle mode by battery supplied.
|
|
Physical |
Printer Dimension: 240 mm x 140 mm x 90 mm
Weight: 1200g
Color: black
|
|
Accessories |
Battery, Charger, USB cable, paper roll.
|
|
more photos in "Gallery"...
specification of this version is available in the "Specifications"...
|
|
|
VIDEO
Mobile Printer MobiPrint MP-GT5S  Drukarka mobilna MobiPrint MP-GT5S - order
| Other: |
|
| Printing Method: |
Thermal-line |
| Printing Speed: |
70mm/s |
| Resolution: |
8 dots / mm, 480 line/sec |
| Effective Printing Width: |
48mm |
| Character Set: |
12 * 24 dots |
| Print Font: |
- |
| Character per Line: |
32 |
| Paper Type: |
Thermal |
| Paper Width: |
57 mm |
| Paper Roll Diameter: |
40mm (max.) |
| Roll Core Inner Diameter: |
- |
| Paper Thickness: |
- |
| Ribbon Cassette: |
- |
| Paper Supply Method: |
Drop-in easy paper loading |
| Printer Mechanism: |
- |
| MCBF (Mean Cycle Between Failure): |
100 million lines |
| TPH: |
50 KM |
| Smart Card: |
- |
| MSR: |
- |
| Barcode: |
1D / 2D |
| Emulation: |
ESC/POS |
| Sensor: |
- |
| Interface: |
Module: GSM / GPRS |
| Button: |
24 keys |
| Indicator: |
- |
| LCD: |
128 x 64 |
| Display Content: |
- |
| Memory: |
16M in the GSM module, more than 200 SMS can be saved, sent or received |
| Receive Buffer Size: |
- |
| Multi-languages: |
English, Polish, Spanish, Portuguese, Arabic, Italian, Slovak, Swedish, Danish, Mexican, Russian, French, Greek, German, Norwegian, Azerbaidzhan, Chinese, etc. |
| Supported System - Drivers: |
Windows Vista / XP/ 7 / 8 / 8.1 |
| Supported System - SDK: |
- |
| Working on the cable - Systems: |
Windows Vista / XP/ 7 / 8 / 8.1 |
| Working wireless - Systems: |
- |
| Setup Software: |
OS of SIM840w for design |
| Power Supply (Adapter): |
DC12V/2A |
| Battery Power: |
7.4V,1.1A rechargeable Li-ion battery |
| Battery Duration: |
Can be used for more than 72 hours in idle mode by battery supplied. |
| Charge Time: |
less than 3 hours |
| Battery Duration: |
72 h |
| Auto Cutter: |
- |
| Weight: |
1200g |
| Printer Dimension: |
240 mm x 140 mm x 90 mm |
| Color: |
Black |
| Operating Temp: |
-15-55 °C |
| Storage Temp: |
-20-60°C |
| Operating Humidity: |
10%-95% |
| Storage Humidity: |
5%-95% |
| Accessories: |
Battery, Charger, USB cable, paper roll. |
| Resistance IP: |
- |
