Rugged waterproof industrial tablet Emdoor T16 v.4

Rugged waterproof industrial tablet Emdoor T16 v.4

Data update: 2020-02-05

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions

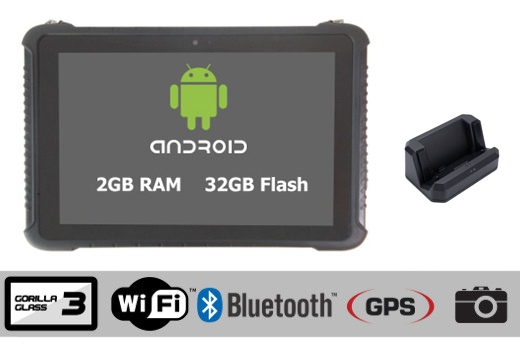

Android 5.1 2GB RAM 32GB Flash EMMC Gorilla Glass 3 WiFi Bluetooth GPS Camera Emdoor I16H mobilator.pl mobilator.eu

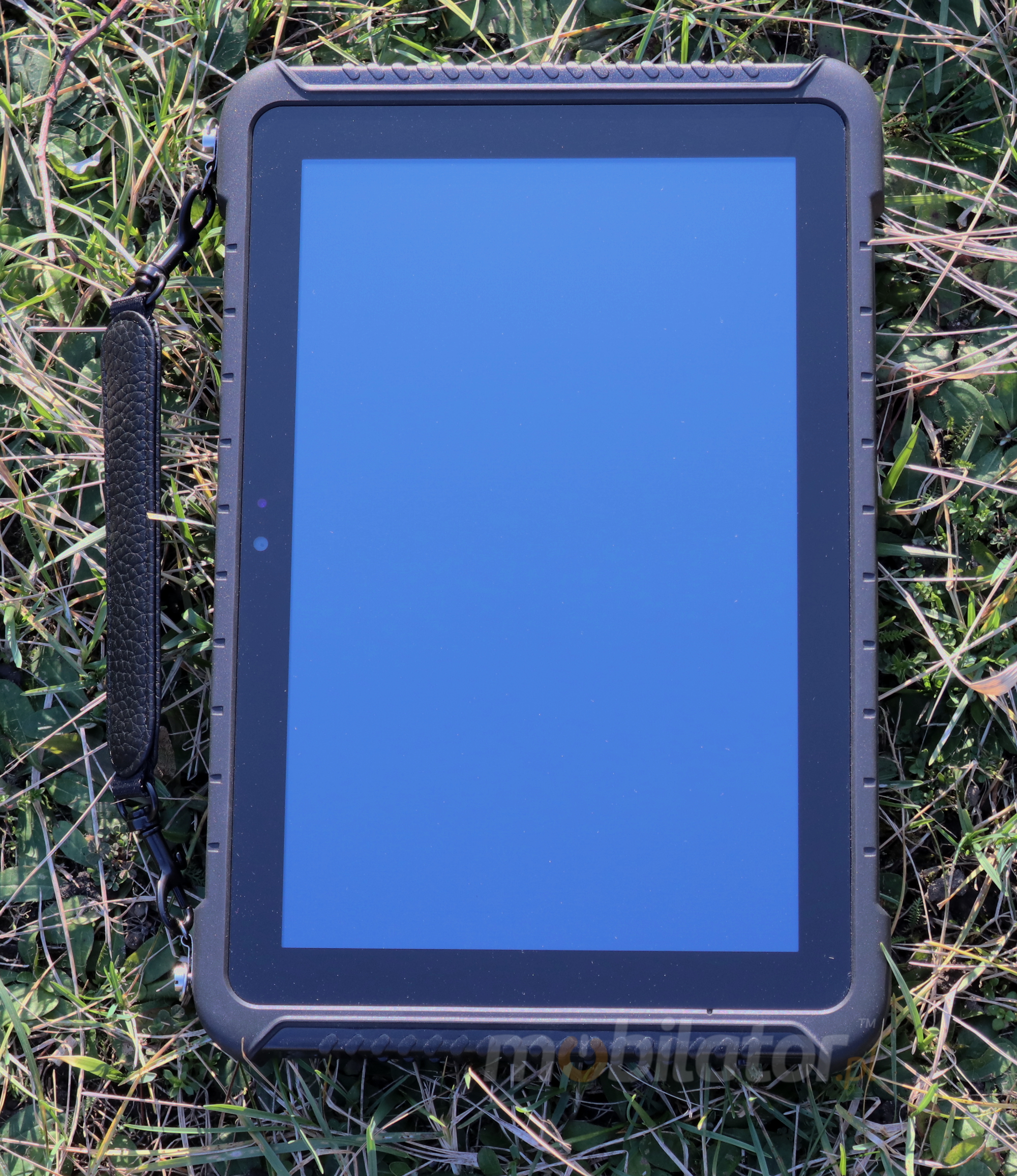

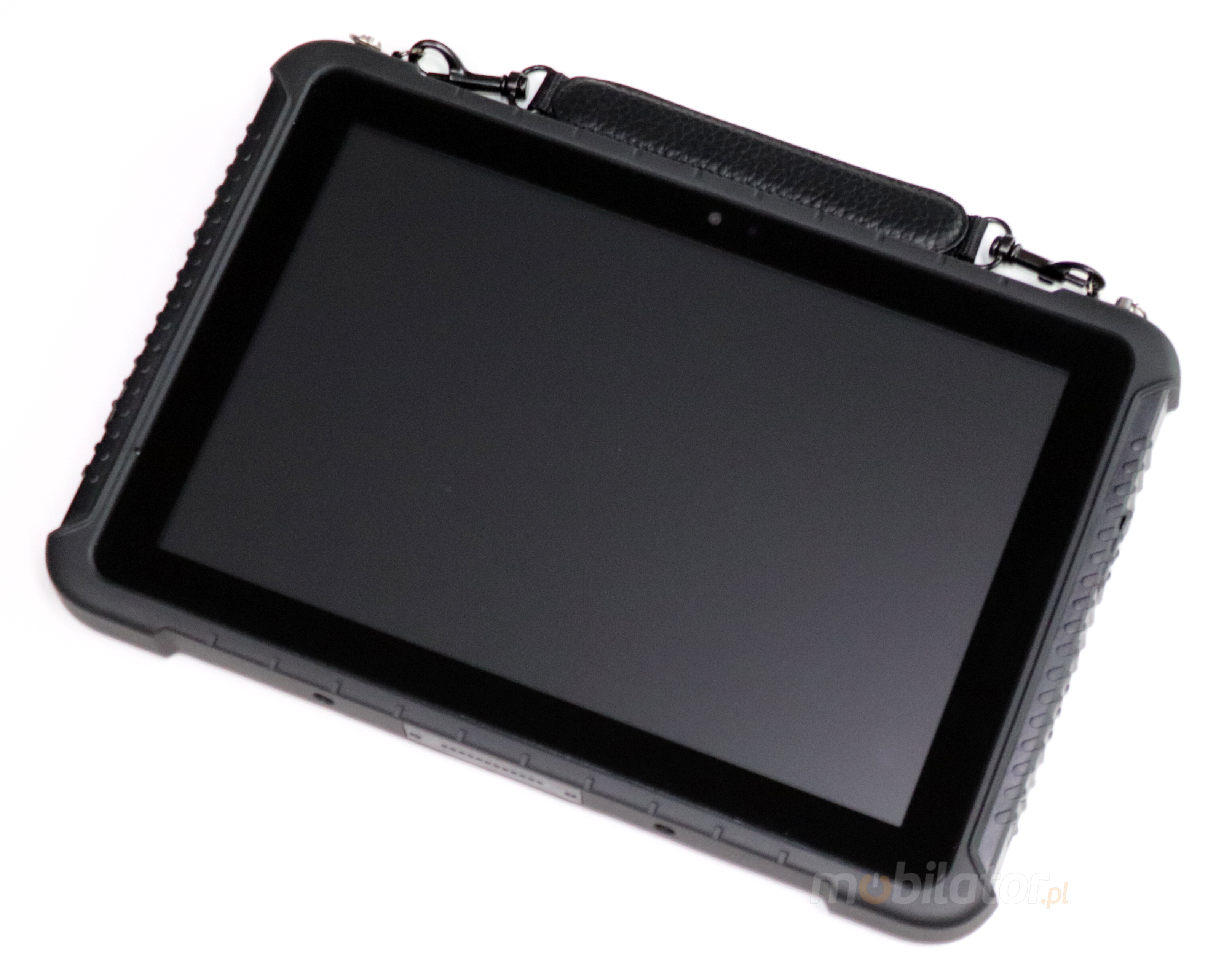

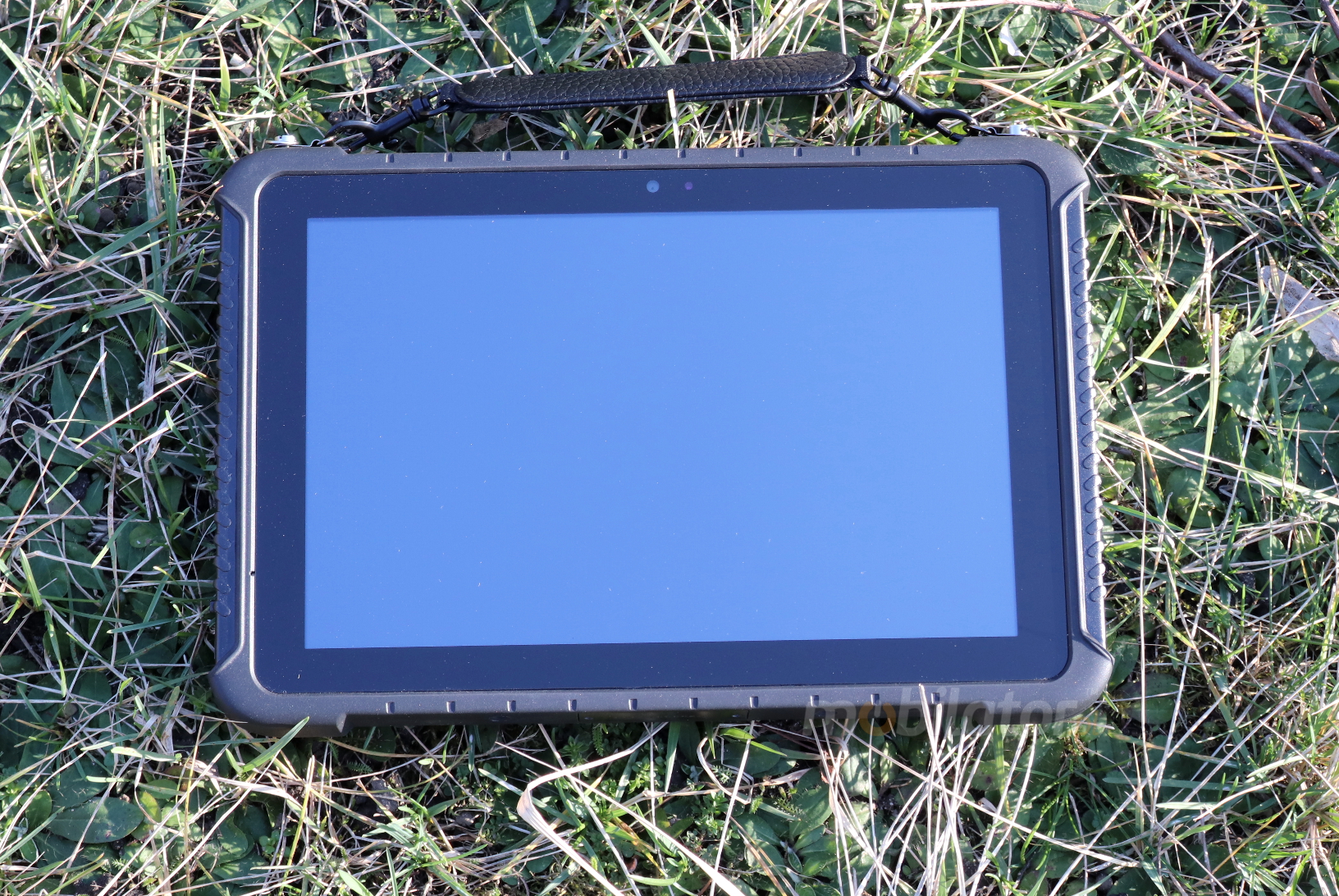

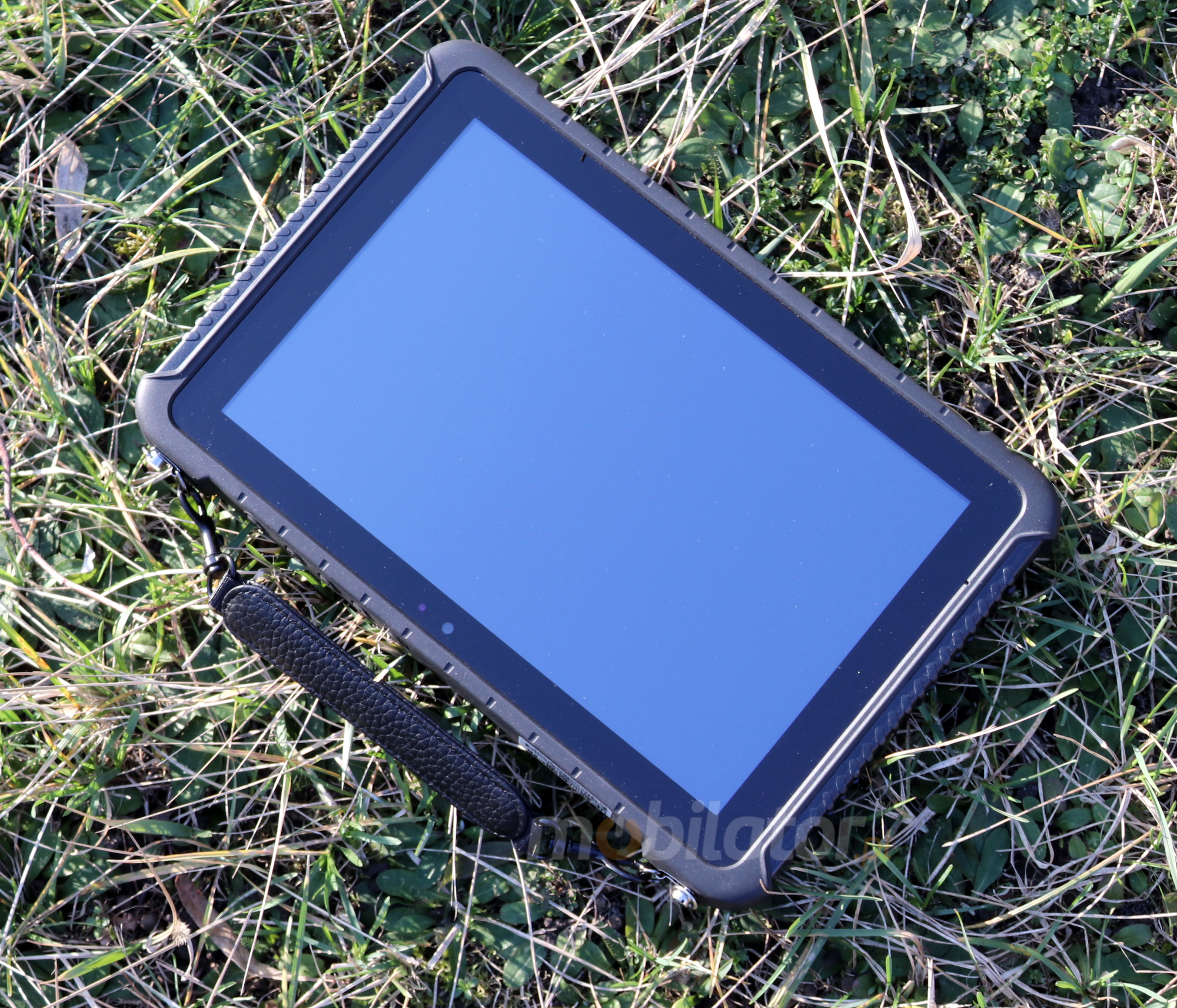

Industrial tablet Emdoor EM-T16, its 10 inch tablet adapted to work in harsh environment. Device passed specialist tests and obtain high norms of durable and resistant like IP65,  MIL-STD-810G and drop up to 1.0m



waterproof dustproof mobilator.pl Emdoor I16H tablet industrial rugged mobilator.eu mobilator.pl



To produce rugged industrial tablet used high quality materials. Inside of device mounted professional modules and components makes that device is not only durable but also very efficient.

Specification of device is on the bottom of this description. To find more details click on "Tecnical data" overlap.

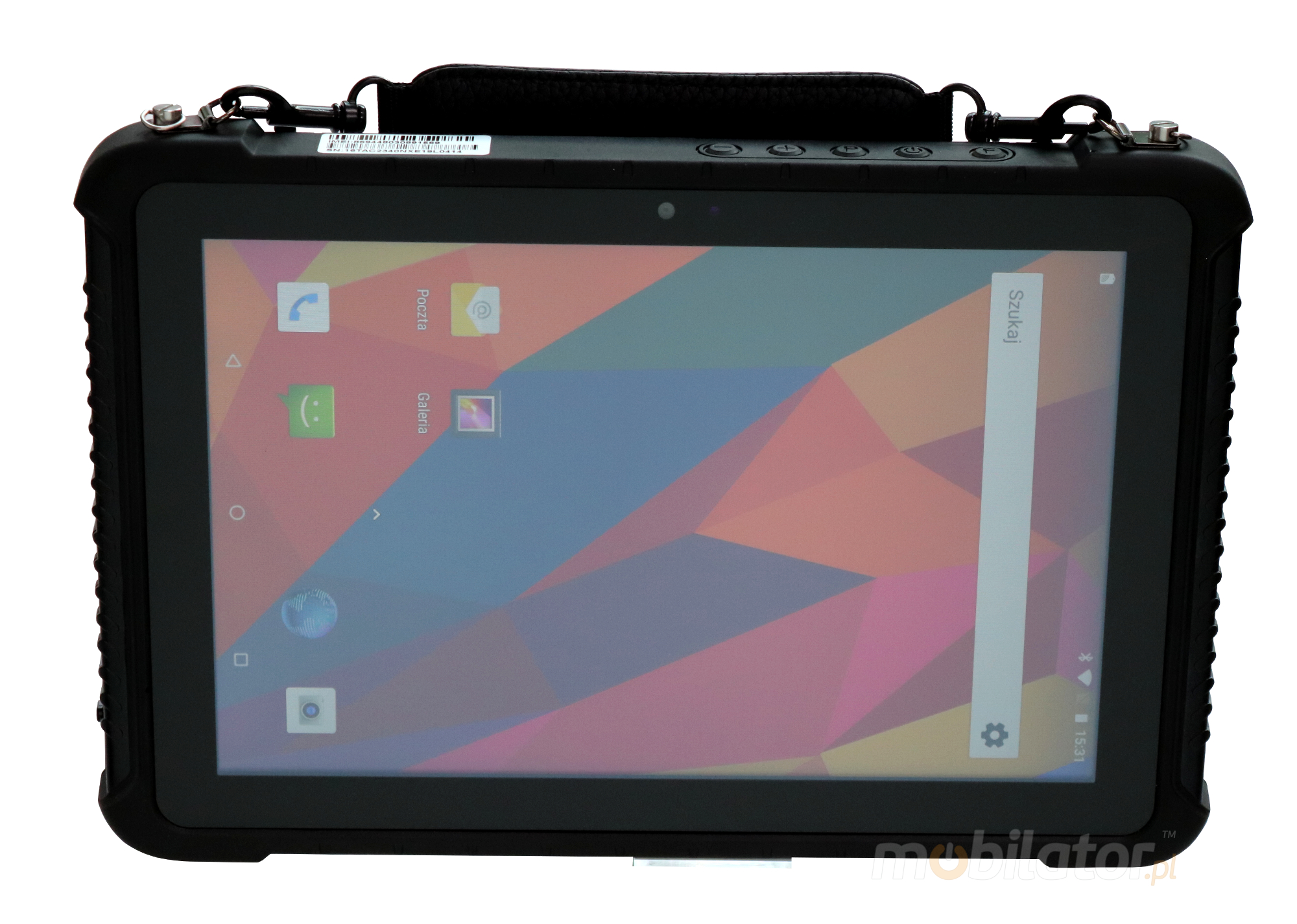

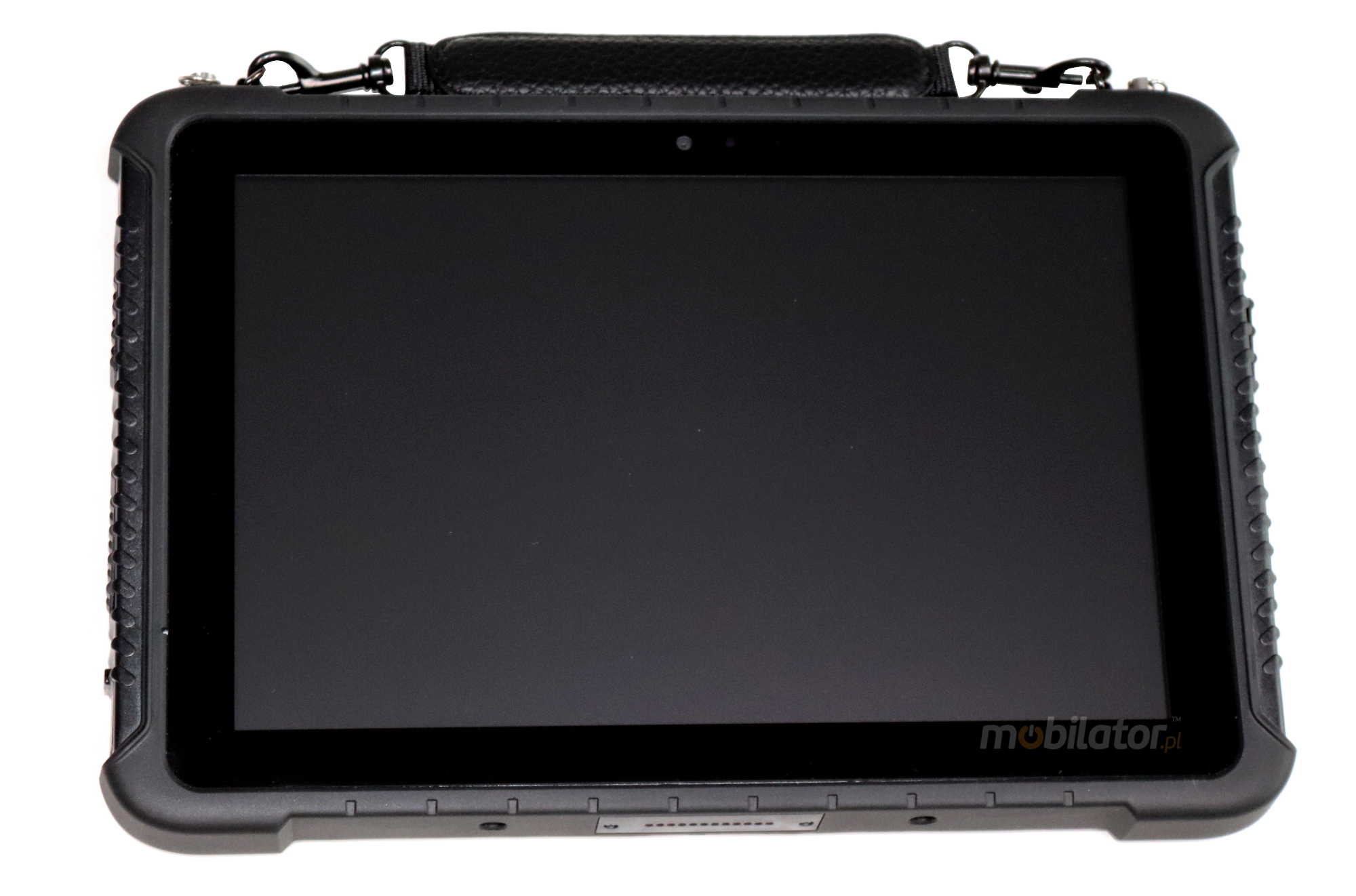

10 inch IPS display with resolution 1280 x 800 pixels show high quality image, making possible to comfortable work for eyes. To ensure better protection, screen is secure by hardened glass pane GorillaGlass3. Thanks this solution display becomes resistant against scratch and tension.



durable I16H tablet drop up to 1.0m high effinency reliable  best in class professional mobilator.pl mobilator.eu

go up…do góry menu… menu



The collection and processing of data



barcode scanner tablet data collector smartphone 1D 2D mobilator.pl mobilator.eu

Barcode scanner, its one of the basic industrial modules increase effinency of work i places where barcodes are using. Thanks technology development modern readers are more efficent and precise. In waterproof industrial Emdoor EM-T16 tablet can be mount one of the top barcode scanner, for example Honeywell N3680.



1D Motorola SE655(optional)
Type of scanner
1D
Type of matrix
CCD
Type of reading barcodes
1D
Support barcodes
Majority 1D codes
2D Honeywell N3680(optional)
Type of scanner 2D
Type of matrix CMOS
Type of reading barcodes 1D and 2D

Support barcodes
Interleaved 2 of 5, Aztec Code, Korea Post, China Post (Hong Kong 2 of 5), Matrix 2 of 5 Chinese Sensible (Han Xin) Code, MaxiCode Codabar, MicroPDF417, Codablock A, MSI Codablock F, NEC 2 of 5, Code 11, Postal Codes - 2D,  Code 128 Postal Codes - Linear, Code 32 Pharmaceutical (PARAF), PDF417, Code 39, GS1 DataBar Omnidirectional Code 93, QR Code, Data Matrix Straight 2 of 5 IATA (two-bar start/stop) EAN/JAN-13, Straight 2 of 5 Industrial (three-bar start/stop), EAN/JAN-8, TCIF Linked Code 39 (TLC39), GS1 Composite Codes,  UPC-A, GS1 DataBar Expanded, UPC-A, GS1 DataBar Limited UPC-A/EAN-13 with Extended Coupon Code, GS1 DataBar Omnidirectional, UPC-E0, GS1 Emulation, UPC-E1, GS1-128







NFC (Near Field Communication), its a wireless communication standard that allows to data transfers up to several centimeters. This technology is slowly becoming a standard and appears in a growing number of devices, expecially mobile.

NFC
Reading distance
up to 4 cm
Frequency 13.56 MHz
Support standards
 ISO14443 A/B | ISO15693

go up…do góry menu… menu


Resistance and durability



Gorilla Glass 3 durable hardened glass mobilator.pl mobilator.eu

One of the important element which strengthens construction of  the shockproof tablet Emdoor EM-T16 is hardened glass GorillaGlass3 providing better protection of display. This solution makes that screen is less susceptible for scratch and tension relative to normal glass.

IP65 ip65 rugged norm  durable strong dustproof waterproof mobilator.eu

IP65 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm  consist of two digitals. First means the level of dust resistance, second to water.

Full specification of IP norms.



The first digit [x]
Protection against solid objects
Protection
Level
The second digits [y]
Protection against liquids

No special protection

No special protection
Protection from solid objects greater than 50mm in diameter Protection from dripping water
Protection from object not greater than 12mm in diamete Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter Protection from sprayed water
(tilted up to 60°)
Protection from object not greater than 1mm in diameter Protection from splashed water
Complete protection against contact, Protection against dust deposit Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust Protection against heavy seas, or powerful jets of water
  Protection against immersion
  Protection against complete, continuous submersion in water





MIL-STD-810 mil std 810g high durable extremal tests vibrations mobilator.pl mobilator.eu

MIL-STD-810G its a military rugged rate. During extremal tests, devices  pass through endurance tests. Equipment which have this rate are much more durable to environmental factors like temperature, humidity, vibration and drop.



Rugged rate
Military standard
MIL-STD-810G
Operate temperature
-20°C -- +60°C
Storage temperature
-30C -- +70°C
Humidity
95%
Drop
1.0m

go up…do góry menu… menu


Modules and Wireless Networks

Wifi bluetooth gps camera 4g 3g mobilator.pl tablet resistant for scratch mobilator.eu

Dustproof tablet Emdoor EM-T16 might be equipped with a number of wired and wireless data transferable comonents and accurate location. In standard device has WiFi and Bluetooth for easy data transfer and high accuracy GPS to determine your possition. Additional build-in 3G module(after set SIM card to slot) making possible to wireless connection to Internet.



Available modules
3G WCDMA (900 / 2100 MHz), HSDPA 7.2Mbps, HSUPA 5.76Mbps
4G(optional) FDD LTE: Band 1/2/3/4/5/7/8/20
GPS GPS, support Beidou
WiFi Dual band 802.11 a/b/g/n
Bluetooth Bluetooth 4.0
LAN adapter
Yes
Camera
Front: 2Mpx, Rear: 5Mpx



Type of installed modules depends of chosen version of device. Table with all available options is on the bottom of this description.

go up…do góry menu… menu


Functionality

functional keys function mobilator.pl tablet wide range of application mobilator.eu

Strengthened tablet Emdoor EM-T16 was design with mind to meet the needs of the widest possible audience. Professional parts like processor, high prerformance RAM memory, fast Flash and expanded communication module makes that industrial rugged tablet EM-T16 meet the most demanding tasks.

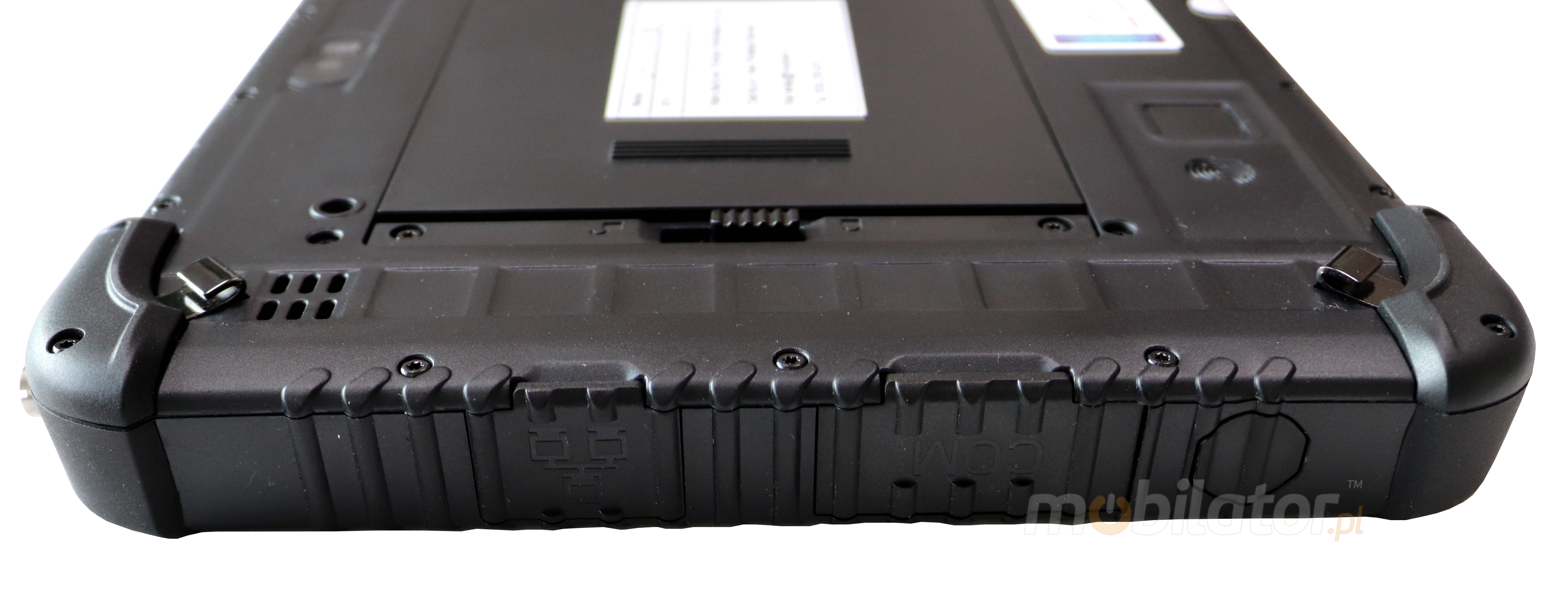

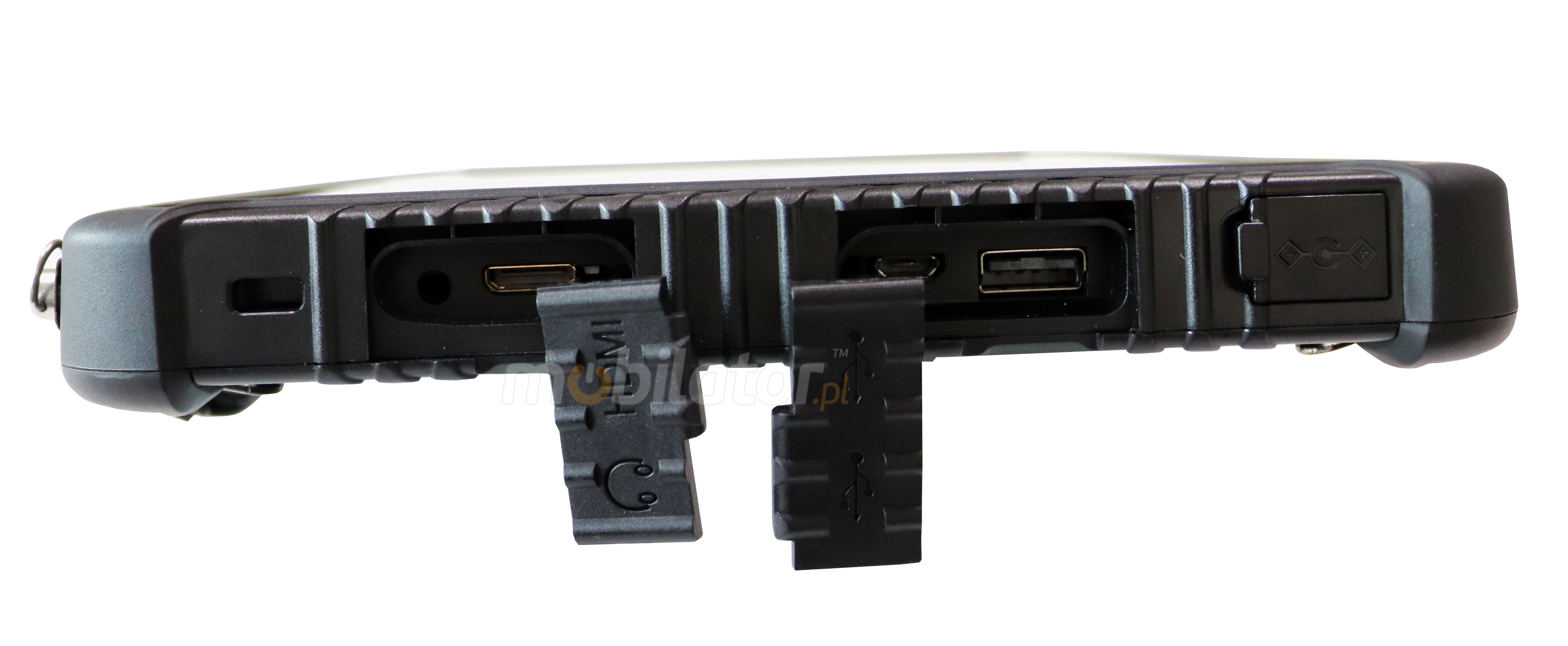

high effinency usb audio hdmi camera docking port LAN COM mobilator.pl mobilator.eu

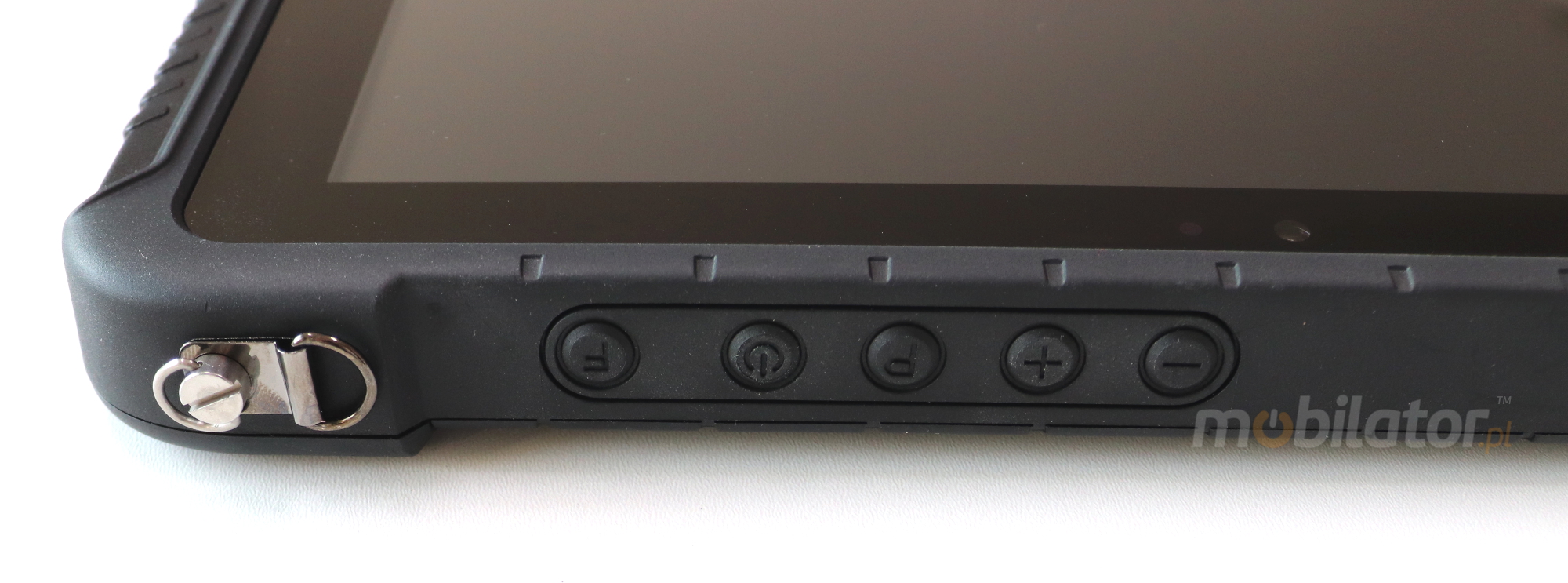

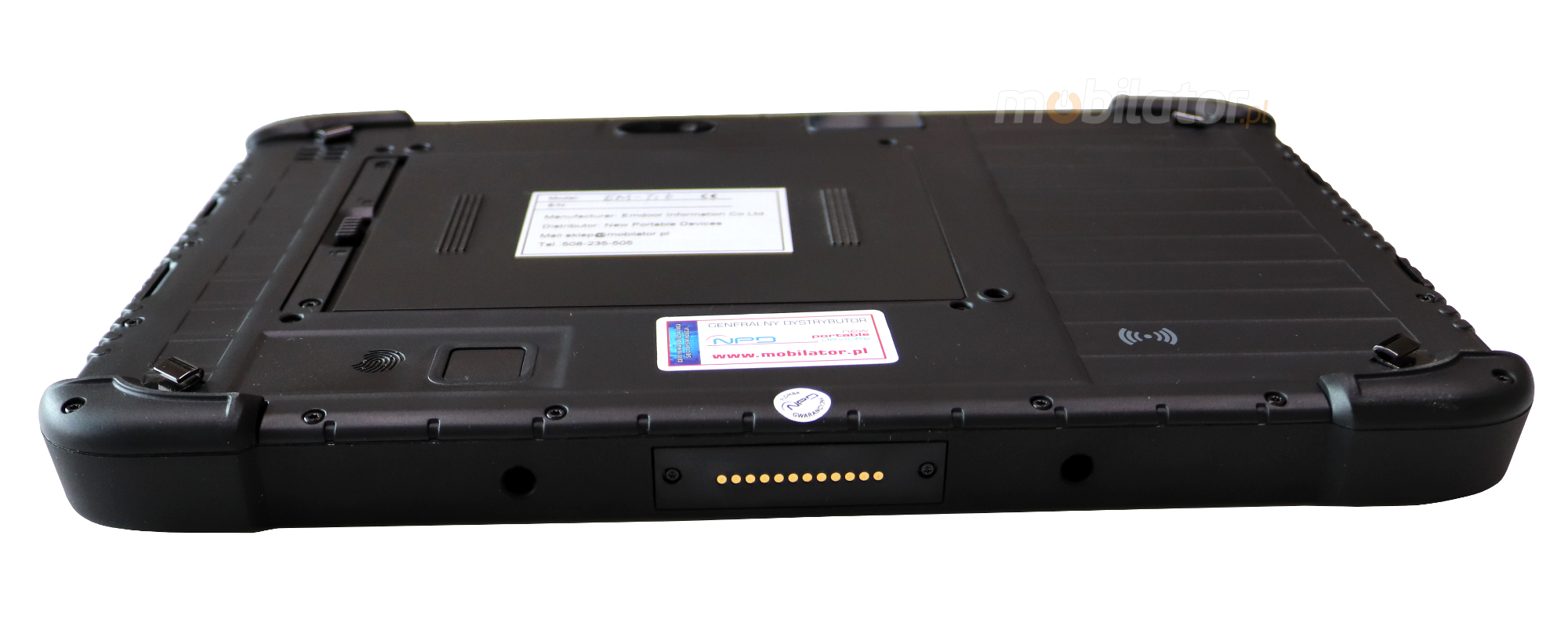

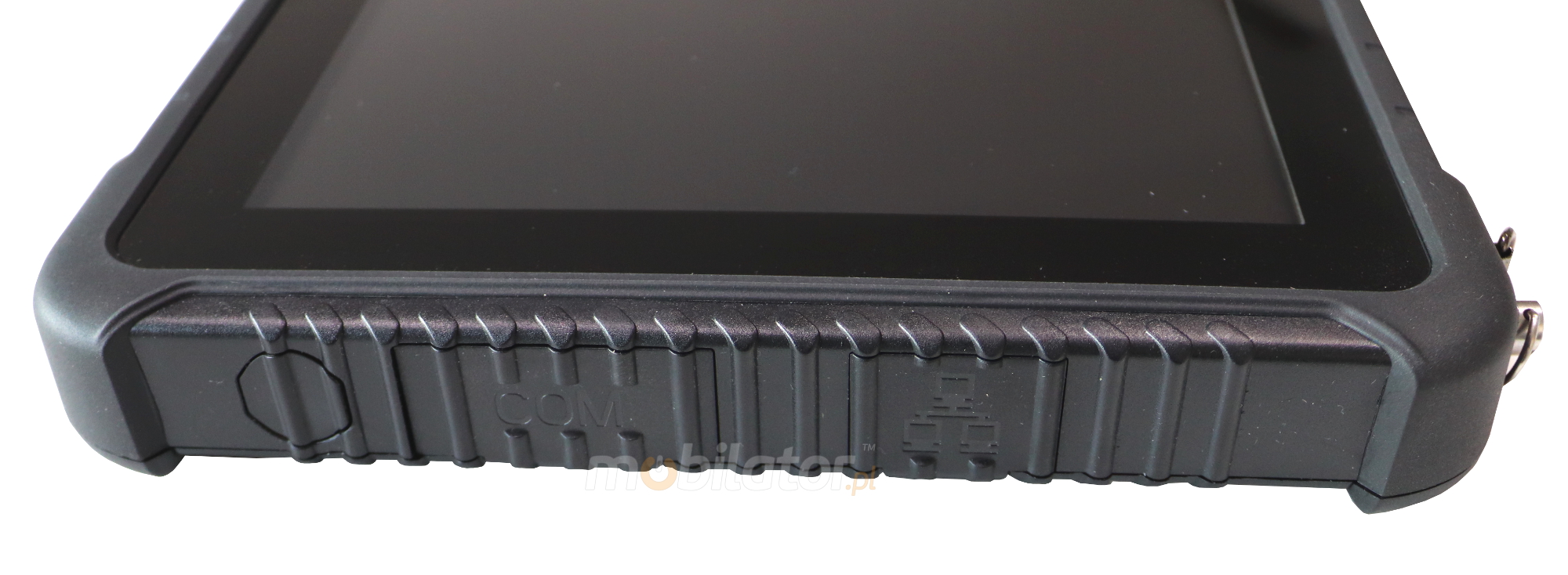

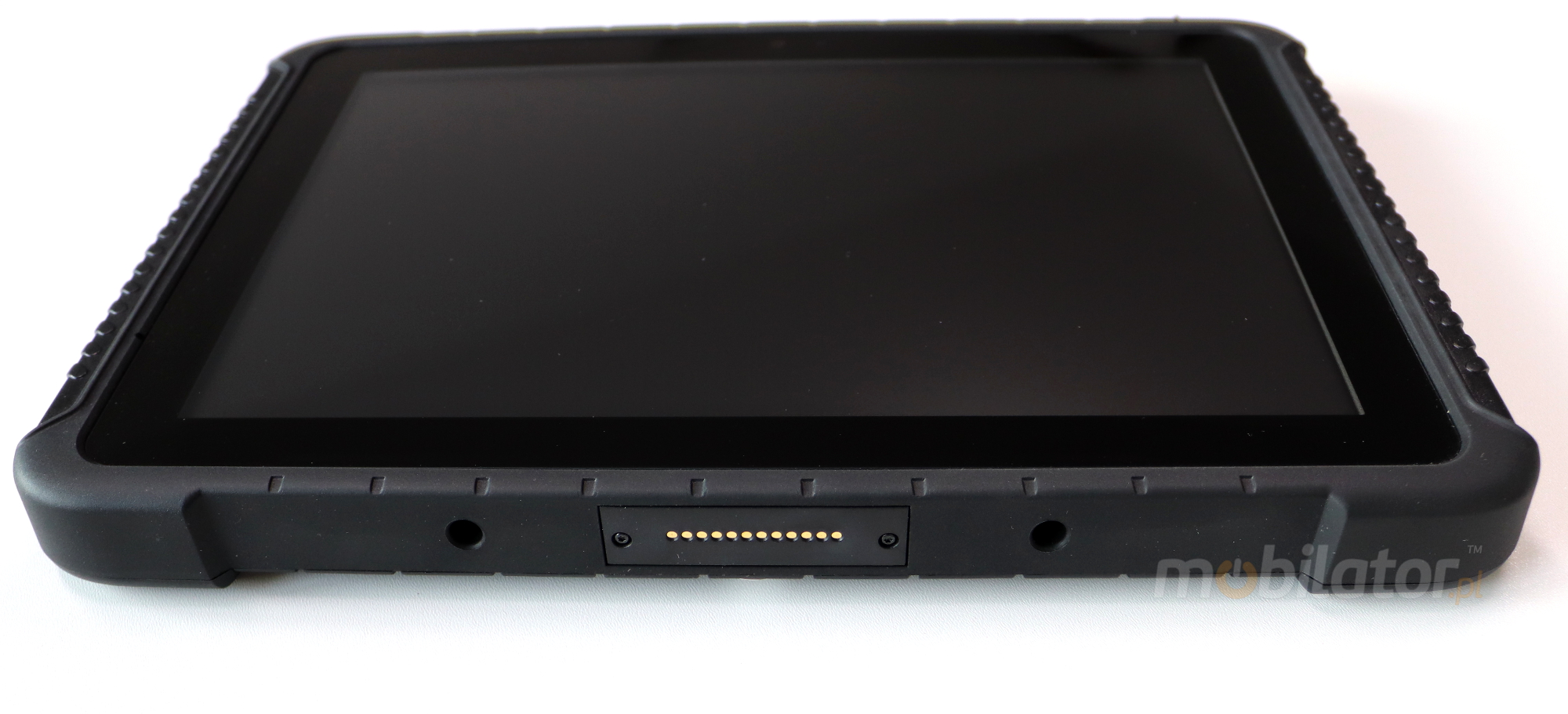

Equipped with additional expansion connectors, docking connector and functional keys makes that utility and mulittasking of device increase. In cooperation with enhanced housing of the Emdoor EM-T16 tablet which provides to high resistant against water, dust and fall whole product become much more attractive.

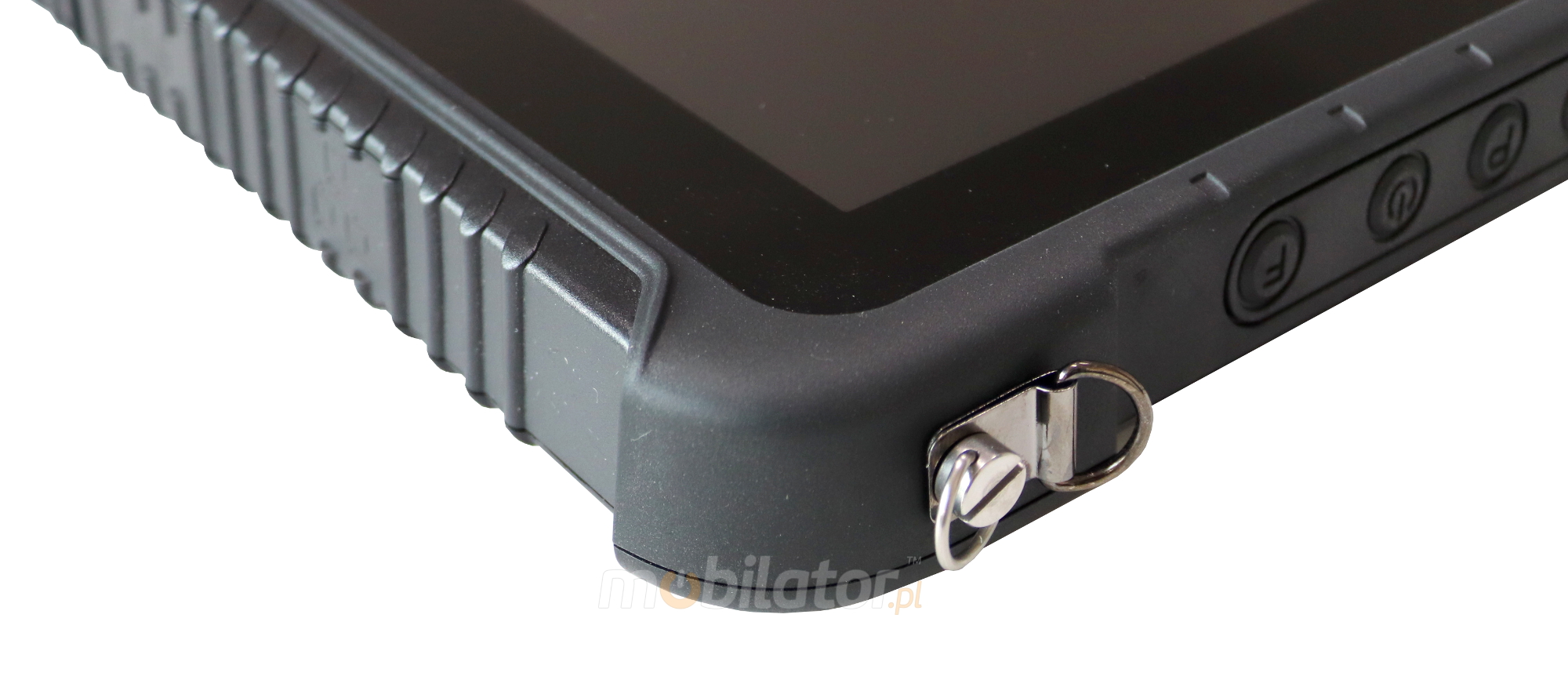

speaker camera barcode scanner rugged corners mobilator.pl mobilator.eu



Physical features
Dimensions 280 x 187 x 22mm
Weight 1014g

go up…do góry menu… menu


Application



Trade and Services

Sales representatives often offer more produtcs so its difficult to have all of them with You. In this  situation thanks rugged tablet all products, their prices, availability and apperance can be present by mobile vendor.



Architecture

Hard conditions on the construction site its a nightmare for miost devices. High pollination an other adverse environmental factors make it almost impossible for them to work. This does not apply to the industrial tablet Emdoor EM-T16, which thanks rugged rates can handle them in extreme conditions.



Industry

It's another area where Emdoor EM-T16 will take full advantage of its potential. High level of humidity, temperature fluctations, water and dust will not interfere with his work. Extremely durable makes that tablet can be use in places with hard conditions, for example in cold room and sawmill.



Warehouse



Efficient and functional data collection device are the basis of all modern warehouses. Installed barcode scanner in Emdoor EM-T16 tablet is one of the best readers used today allowing You to conveniently and quick scan your assortment.



*product does not contain any elements in the kit,

except products marked with star...

go up…do góry menu… menu


Specyfikacja Emdoor EM-T16



many ports USB microUSB waterproof secure Emdoor I16H mobilator.pl mobilator.eu

Table below presents techical data of this device. Type of installed modules depends of chosen version. Look at table with device's versions on the bootom of description.

More details about acctually chosen version You can find in "Technical data" overlap which is on the top of description.

Display
Size and resolution 10.1 (1280x800)
Type of display LCD
Type of touch Capacitive (10-point)
Protection Gorilla Glass 3
Screen ratio 16:10
Brightness 280 cd/m2
Processor
Model Mediatek MT8735
Timing 1.30
Cores 4
Graphic
Model
Intel HD Graphic
RAM memory
Capacity 2GB
Type of memory DDR3L
Flash memory
Capacity 32GB
Type of memory EMMC
Camera
Front
2Mpx
Rear
5Mpx
Operating system
Android
Android 8.1

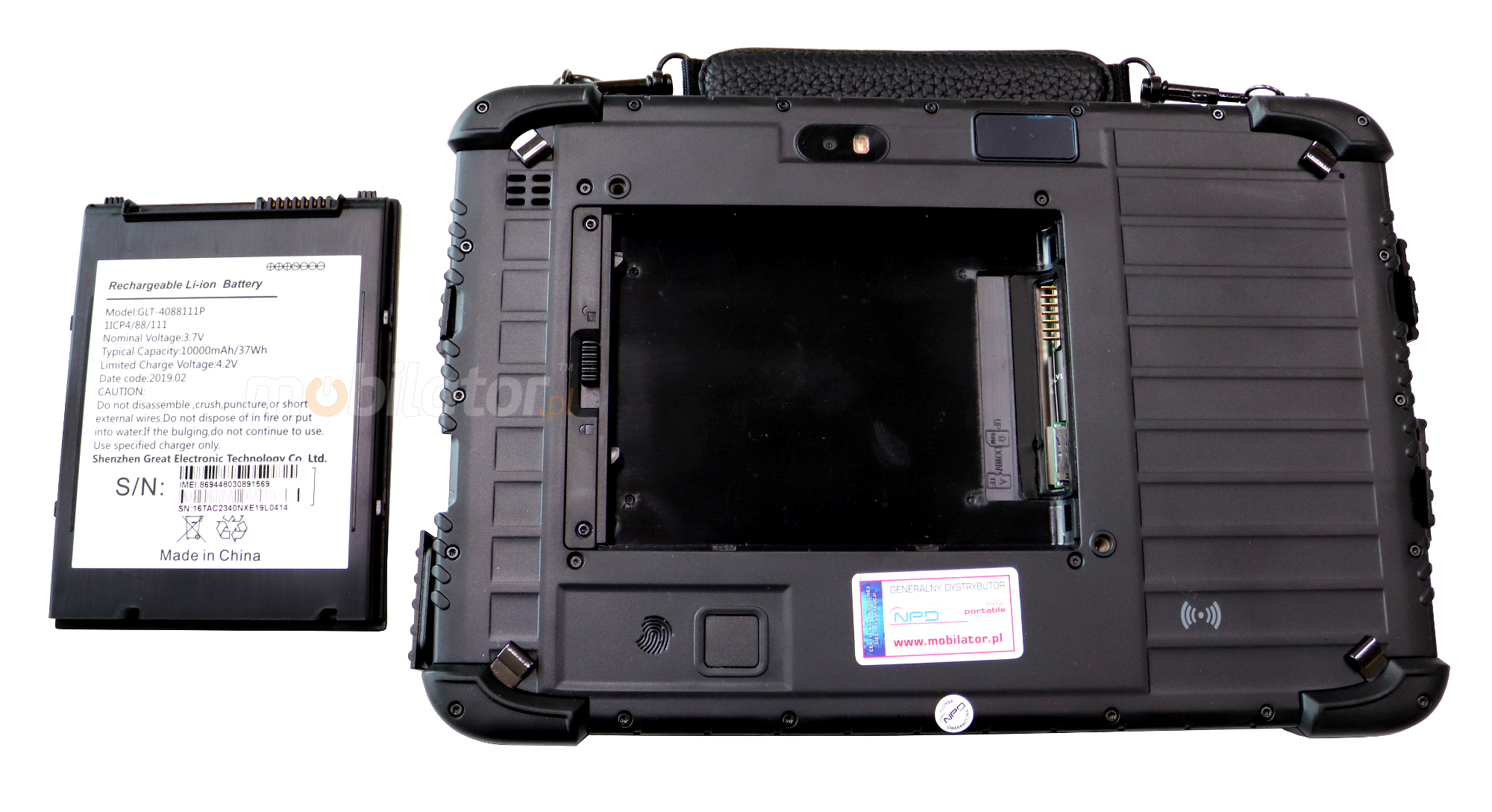

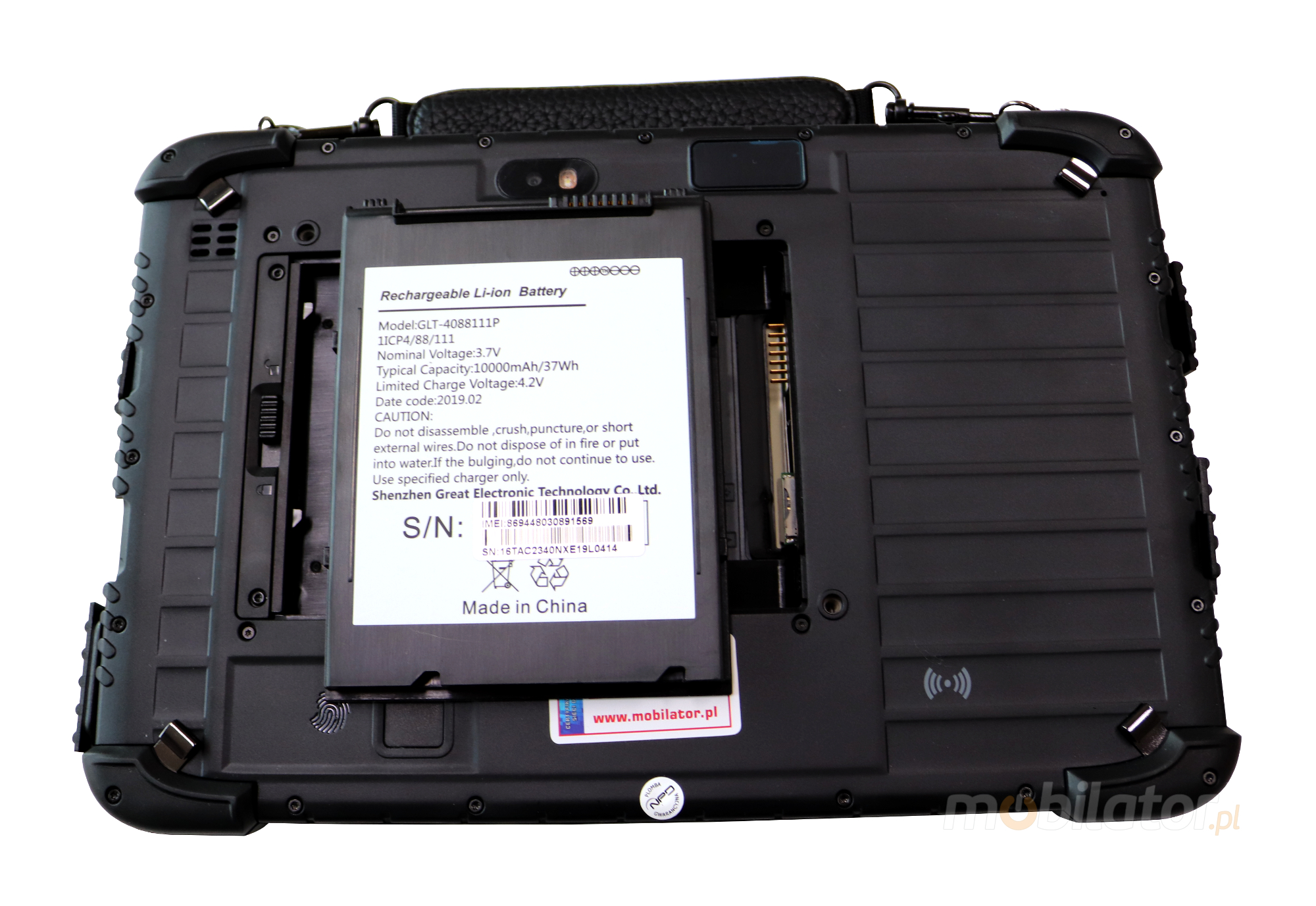

Battery
Capacity 10000mAh
Tension 3.7V
Type of battery Li-Ion
I/O ports
Image HDMI 1.4a Typu C
Network and communication SIM card slot | LAN | WiFi | Bluetooth
Data transfer SD card slot | USB 2.0 | MicroUSB
Audio
Microphone | AudioJack | Speaker
Other COM port | Docking | DC In
Modules
3G WCDMA (900 / 2100 MHz), HSDPA 7.2Mbps, HSUPA 5.76Mbps
4G(optional) FDD LTE: Band 1/2/3/4/5/7/8/20
NFC(optional) 13.56 MHz | ISO14443 A/B | ISO15693
Positioning GPS, support Beidou
Data input
Keyboard
On screen
Functional keys
Volume control | Scanner | Power
Readers(optional)
Scanner 1D
1D Motorola SE655
Scanner 2D
2D Honeywell N3680
Size
Weight 1014g
Dimensions 280 x 187 x 22mm
Certyfications
Level of security IP65
Military standard MIL-STD-810G
Additional
CE | RoHS
Other optional

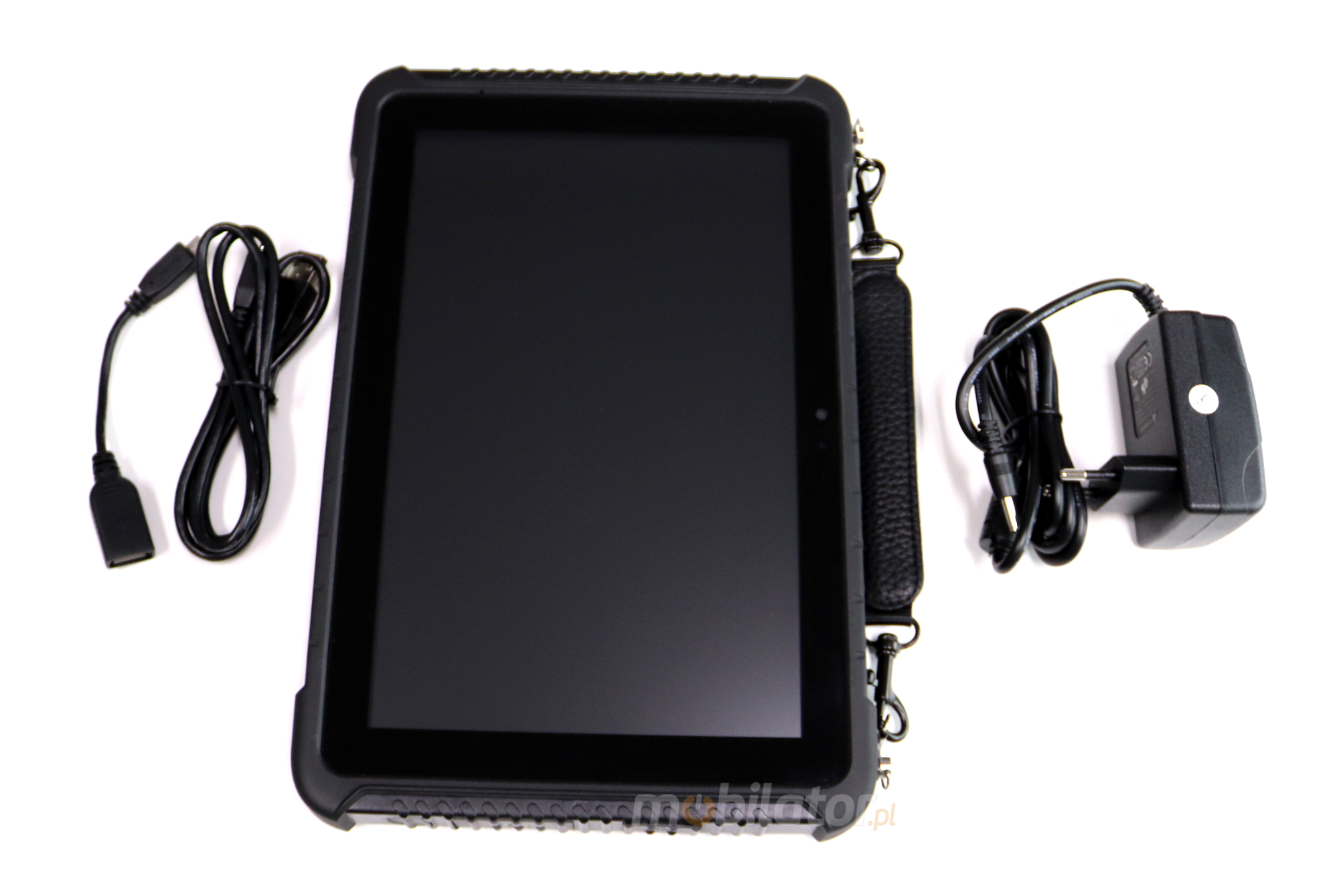

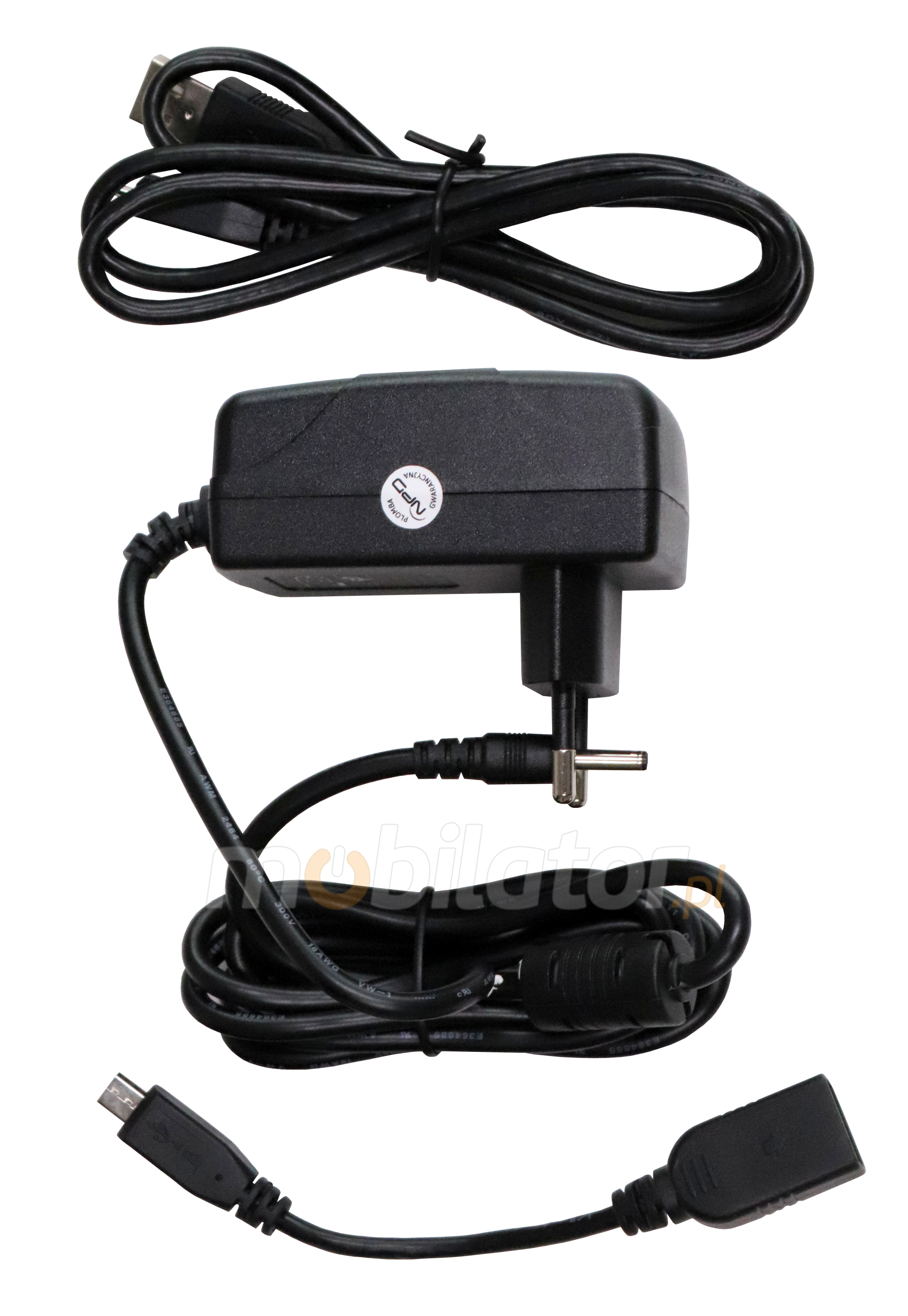

Accessory
Docking station | Battery | Charger | Stylus
Wrist strap | Shoulder strap | Shoulders strap
Suitcase holder | Car holder short and long


go up…do góry menu… menu


Advantages of device:

reinforced, rugged construction,

resistance to dust and water (IP65),

MIL-STD-810G resistance standard,

efficient and comfortable work,

tempered glass Gorilla Glass 3,

large selection of accessories,

good value for money.
