Laptop - Clevo P570WM v.0.0.3
|
|
The product from the archive - production terminated
|
Compare all versions
|
|
Founded in 1983, CLEVO has achieved a fine reputation as a developer and manufacturer of notebook computers. Due to our product positioning in the high-tech market, Clevo has won many awards in computer product evaluation conducted throughout the world.
|
|
|
|

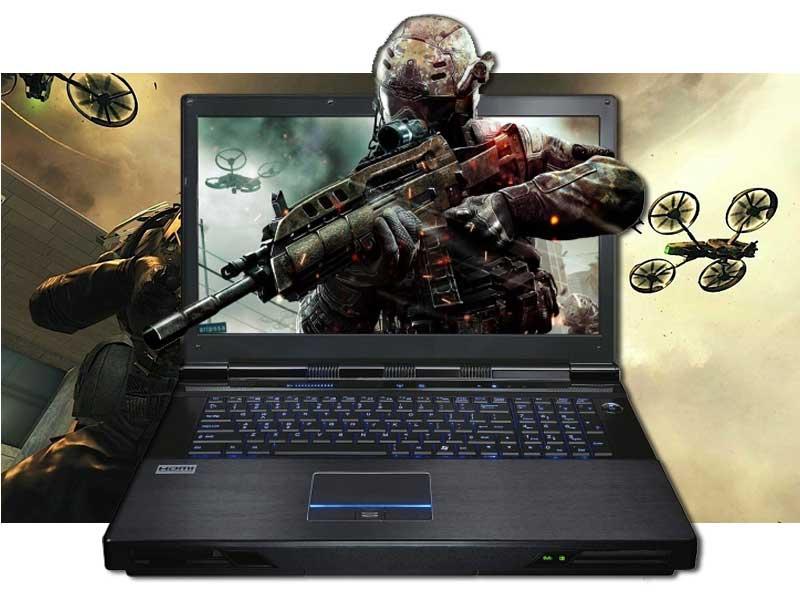

Amazing FULL HD 1080p - LED
Breath-taking graphics generated by a state-of-the-art engine come alive only when displayed in stunning full 1080P. The p570wm 17.3” full 1080P HD widescreen with LED-backlit display technology delivers the most brilliant color and contracts that will dazzle your eye whether you’re watching a Blu-ray movie or playing a game.
.jpg)
|
|
.jpg)
Intel® Core™ i7 Extreme Edition
3rd generation Intel® Core™ i7 processors deliver top-of-the-line performance for your All-in-One or Standard PC. Intel® Core™ i7 processors keep up with your most demanding tasks for a difference you can see and feel in HD or 3D, multitasking or multimedia. The Intel Core i7 processors include advanced technologies that deliver faster, smoother, and richer PC and visual experiences for all of your favorite, demanding activities—from editing film to mind-blowing gaming.
|
|
More doing, less waiting. Intel® Hyper-Threading Technology allows each core of your processor to work on two tasks at the same time. |
|
Get an automatic burst of speed when your PC needs extra performance thanks to Intel® Turbo Boost Technology 2.0
|
|
Intel® HD Graphics enables superior mainstream gaming and 3D experiences – without the need for a discrete graphics card.
|
.jpg) |
|
|
|
|
|
The AMD Rade on HD 7970M is a 28nm DirectX 11 graphics card based on the GCN (Graphics Core Next) architecture. Built primarily for large laptops, the advanced card is positioned near the top of the high-end category as of 2012. The design of the Radeon 7900M series has its roots to the Pitcairn chip as found, for example, on the desktop Radeon HD 7870. The 7970M in particular is similar to its desktop 7870 counterpart with 1280 1D shader cores and 80 texture units, but has a core clock of only 850 MHz versus the 1000 MHz of the HD 7870. As a result, general performance of the HD 7970M is expected to lie somewhere between the 7850 and 7870 desktop Radeon cards.
Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.
Powered by a set of innovative hardware and software technologies working in concert behind the scenes, AMD App Acceleration gives you enhanced speed and performance beyond traditional graphics and video processing.
AMD HD3D Technology is supported by an advanced and open ecosystem that, in conjunction with specific AMD hardware and software technologies, enables 3D display capabilities for many PC applications and experiences. Your PC has evolved, offering unprecedented amount of games, photos and movies for you to play, watch, design, create, share and download in 3D. With the arrival of the latest in 3D technology you can now enjoy an enhanced visual experience on Stereo 3D-capable desktops and notebooks powered by AMD HD3D Technology.
AMD Enduro™ technology is designed to unlock the full potential of your laptop’s performance while maximizing battery life. This mobile-platform technology applies to AMD- and Intel-based laptops equipped with a discrete, high-performance AMD Radeon™ graphics processor.
AMD Enduro™ technology seamlessly/automatically selects (No manual switching) the best graphics processor for a given application.
With the AMD Enduro™ technology UI update our intention was to focus on and allow:
-
A seamless and automatic GPU selection for the vast majority of mainstream and casual users
-
Provide an “Expert mode” customization of GPU selection for enthusiasts and gamers, based on specific applications and requirement for power state
-
Option to do away with the headaches of profile management – choose to only use the embedded graphics on battery and maximize the apps that use dGPU when plugged in
.jpg)
|
Get ready to immerse yourself with an unrivaled auditory experienced courtesy of the P370EM3 powerful Sound Blaster X-Fi MB2 audio platform featuring the THX TruStudio Pro and Creative EAX ADVANCED HD 5.0. The THX TruStudio Pro audio technology creates unprecedented levels of audio realism and adds dynamics and punch to every gaming sound and surround effect. The Creative EAX ADVANCED HD 5.0 features state-of-the-art multi-environment rendering and reverb modeling and delivers an amazingly realistic and immersive 3D gaming experience through the NP9370 built-in speakers and subwoofer made by Onkyo.
.jpg)
 THX® TruStudio Pro™ is specially designed to bring the same great audio experience found in live performances, films, and recording studios - to the PC. THX TruStudio Pro provides the latest groundbreaking technologies that are products of years of collective experience and research by Creative and THX. Together, these technologies deliver the fullest audio experience for music, movies and games, while remaining true to the source and intention of the artists who created it.
go top…  menu…
|
|
|
Fingerprint
.jpg) Fingerprint security feature that makes our system has become even more personal, allows you to secure your fingerprint. This is possible through the use of a small fingerprint scanner. Solutions of this kind are very effective at securing devices containing important and confidential data and also allow for easy and quick log-in to the system. It is an ideal solution for business use, when we need to effectively protect your data.
TPM (Trusted Platform Module)
 A TPM is a microchip designed to provide basic security-related functions, primarily involving encryption keys. The TPM is usually installed on the motherboard of a computer or laptop, and communicates with the rest of the system using a hardware bus. Computers that incorporate a TPM can also create a key that has not only been wrapped, but also tied to certain platform measurements. This type of key can only be unwrapped when those platform measurements have the same values that they had when the key was created. This process is called "sealing" the key to the TPM. Decrypting it is called "unsealing.
With a TPM, private portions of key pairs are kept separated from the memory controlled by the operating system. Keys can be sealed to the TPM, and certain assurances about the state of a system—that define its "trustworthiness"—can be made before the keys are unsealed and released for use. Because the TPM uses its own internal firmware and logic circuits for processing instructions, it does not rely upon the operating system and is not exposed to external software vulnerabilities.
|
|
|
|
NVIDIA ® company CLEVO leaving the needs of laptop users comply P170 easy access to system components. In this way without any problems replacing the drive with a larger one, increase the efficiency of bone RAM or simply clear the laptop with residual dust.
|

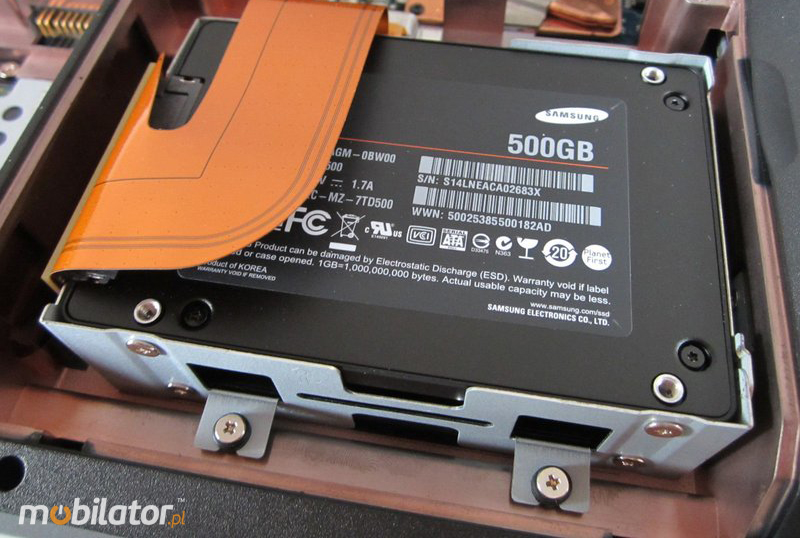

.jpg) Flash SSD (Solid State Disc) technology - this means that they has no moving parts inside. Disk reads and writes data 2 times faster than standard 2,5" disks. In addition, it does not heat up at all, consuming little energy and discharge CPU up to 10%. Computer witch SSD drives runs much faster.

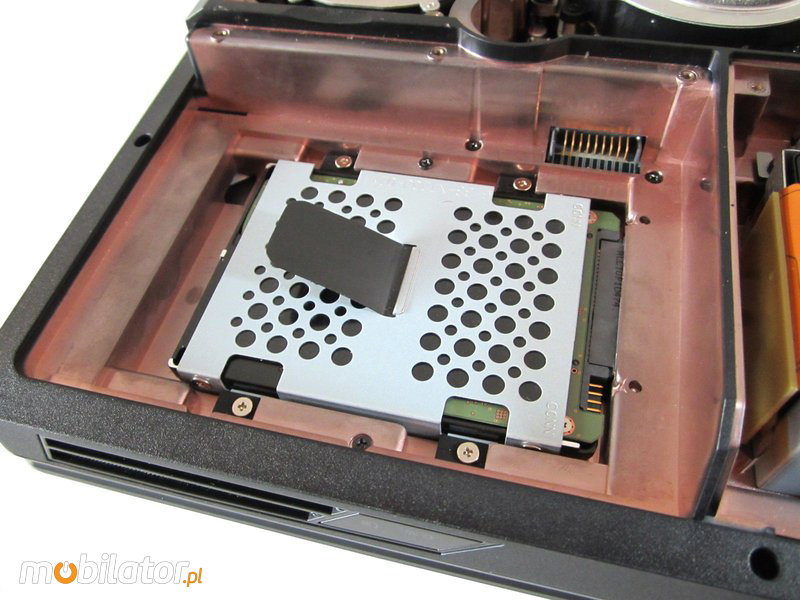

The possibility of adding more drives
|
P570WM supports three hard drives and optical drive at the same time. This enables easy expansion without having to move data from the old disk to the new one. If you start running out of space on your hard drive is enough that simply you will use again.
Greater security and faster work in RAID
 Get more with your HDDs thanks to RAID technology. RAID 0 joins physical drives into a single logical drive which allows you to better use of space. With RAID 1 your data will be safer because one disk is an exact copy of the other. Even if one disk fail all data will still be available on the second disk. With RAID 1 data reading accelerates almost twice. Even if one disk fail all data will still be available on the second disk. With RAID 1 data reading accelerates almost twice.
|
|
|

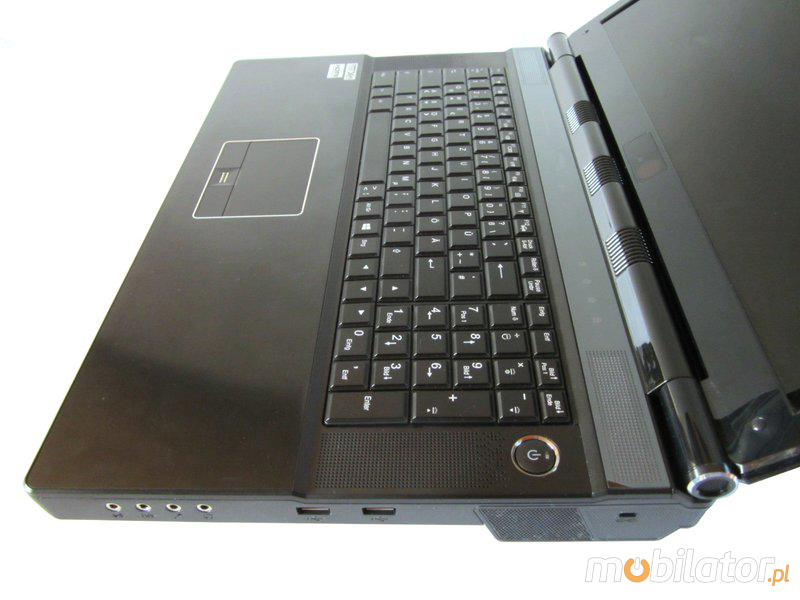

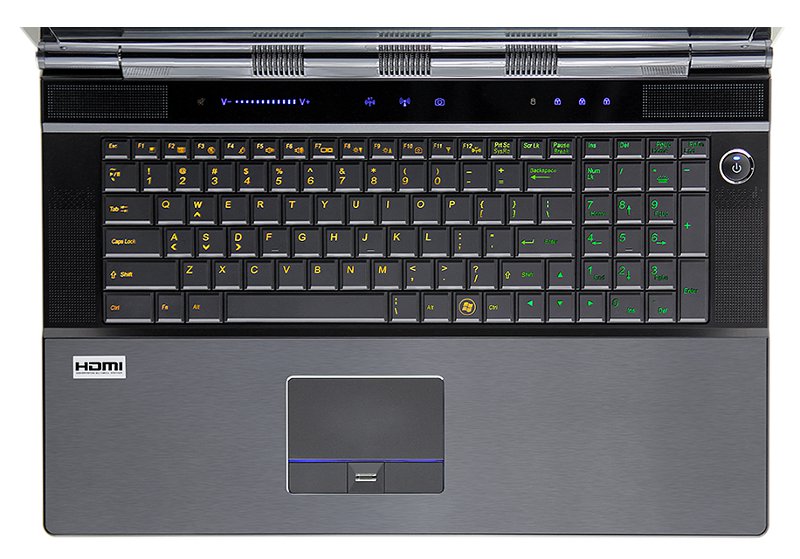

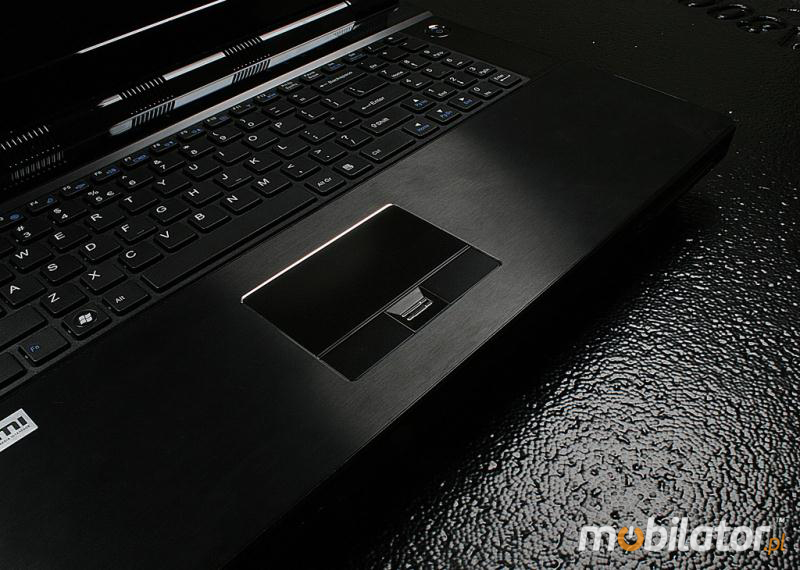

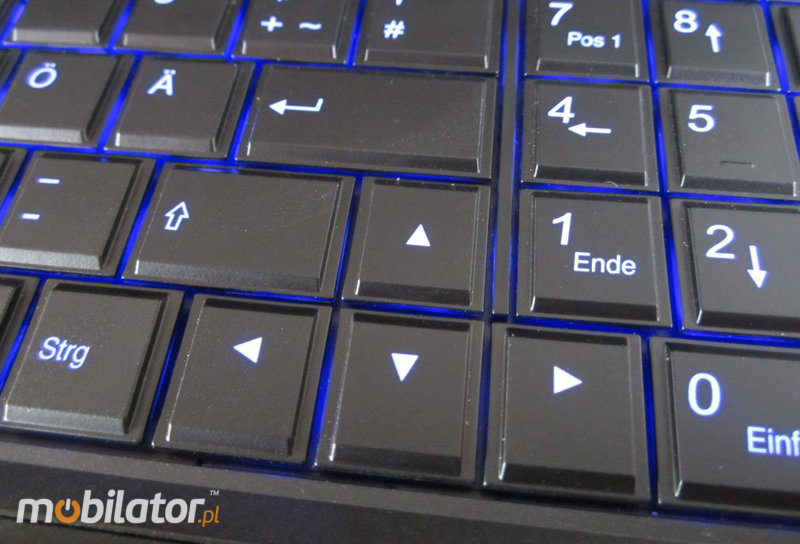

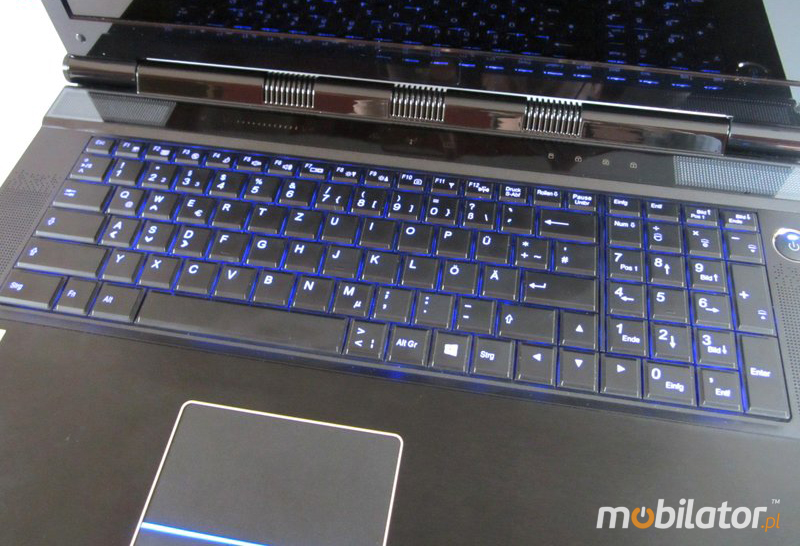

Make your 570WM a stylish focal point with the full color programmable backlight keyboard. Choose from 7 instant effects or customize your own color combinations in 3 different keyboard sections with the Keyboard Backlight Application.
|

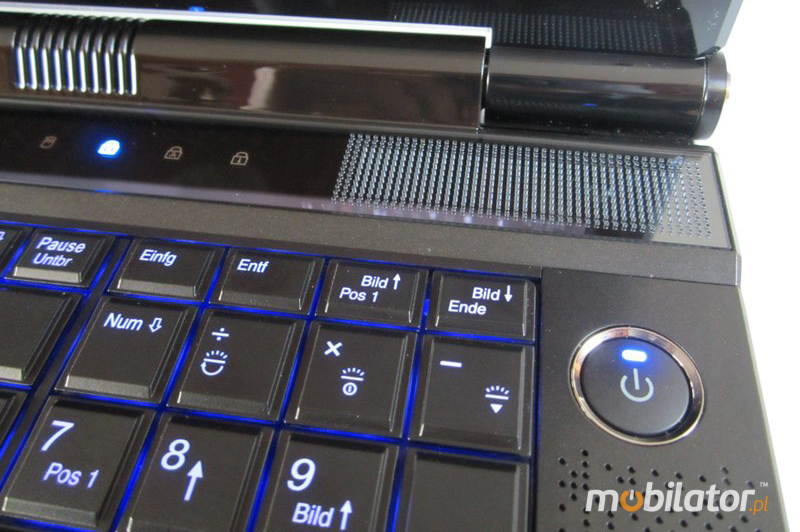

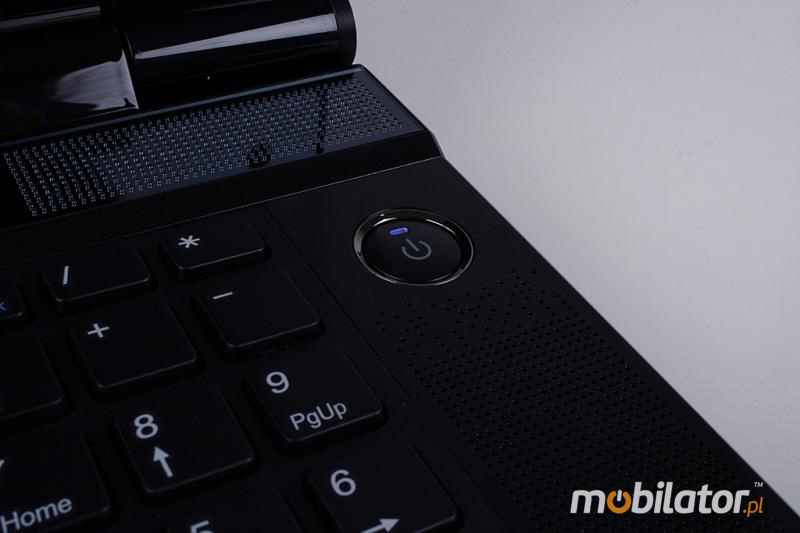

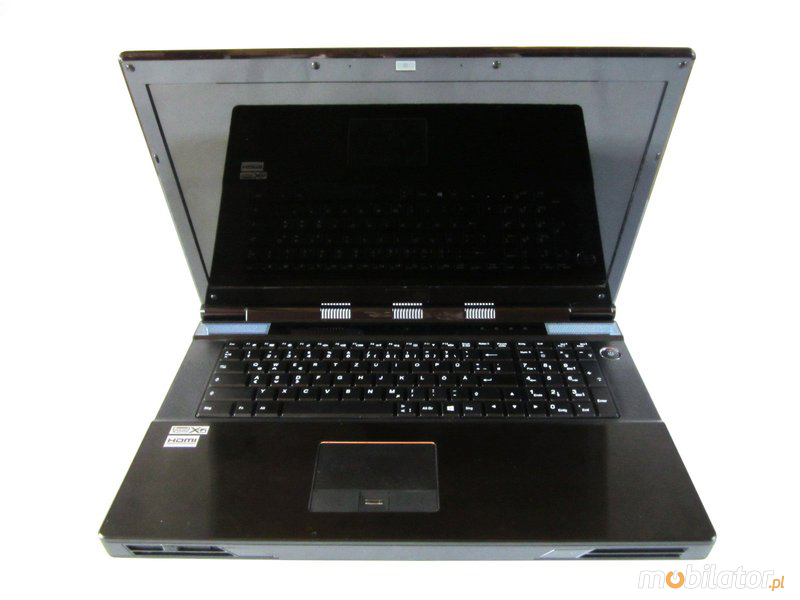

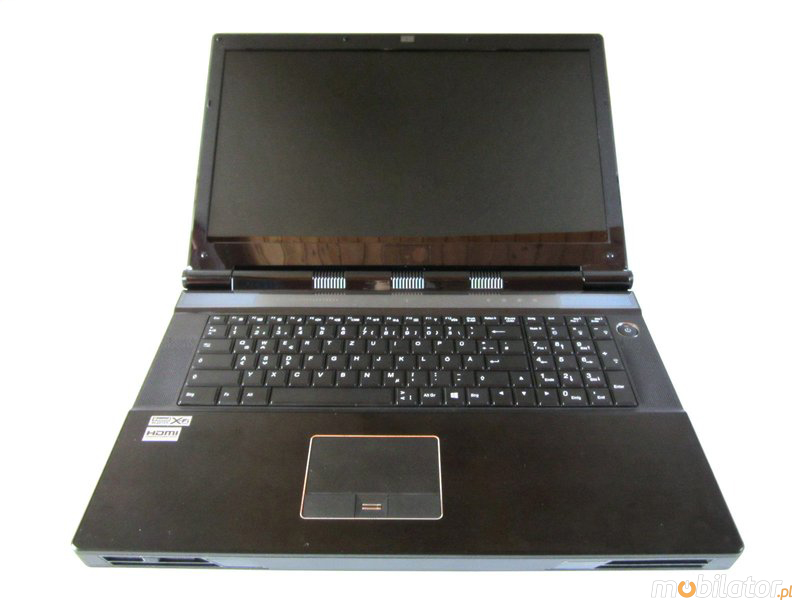

1. Power Button
|
5. Touch Sensor Buttons (Cam&Bluteooth&Wlan)
|
2. Speakers
|
6. Touch Pad with Scroll Slider
|

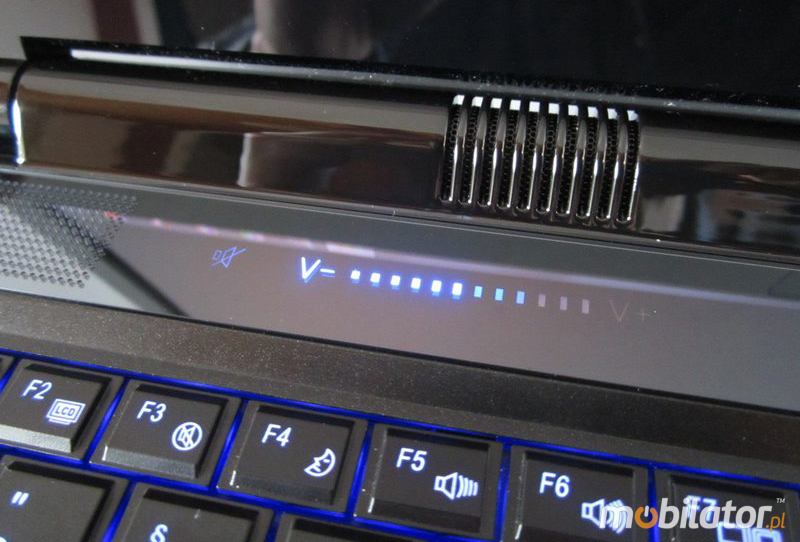

3. Touch Sensor Volume Control and Mute Button
|
7. Fingerprint Reader
|
4. Led Status Indicators
|

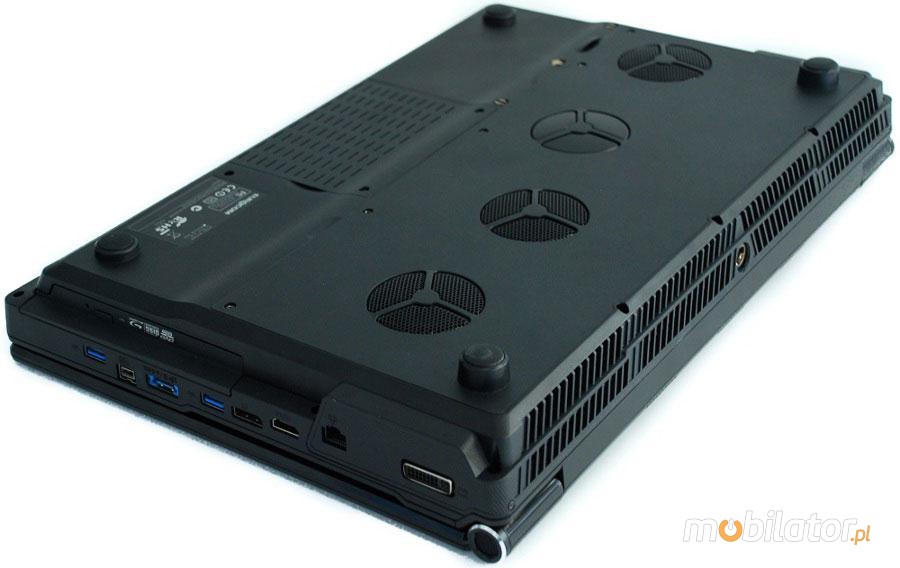

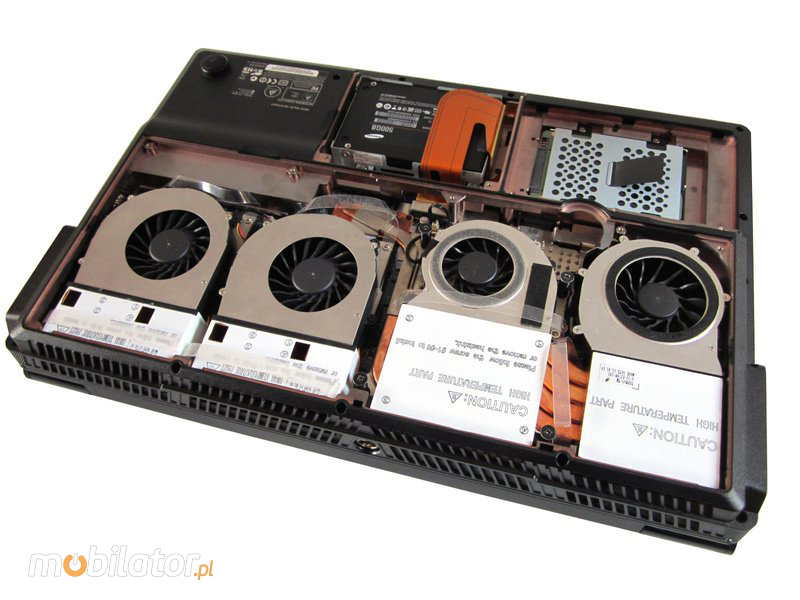

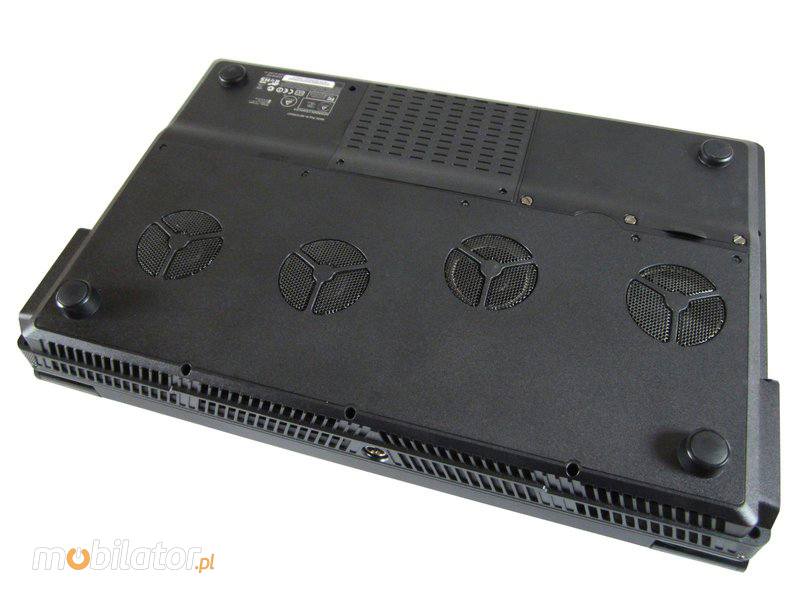

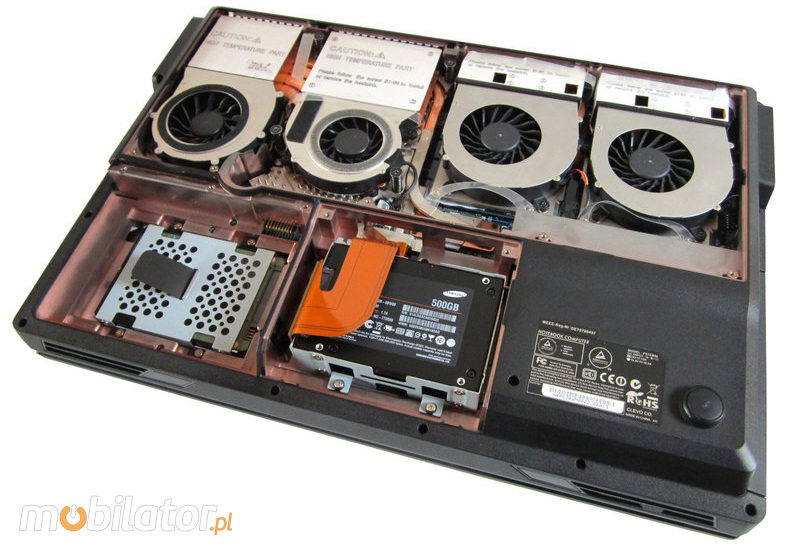

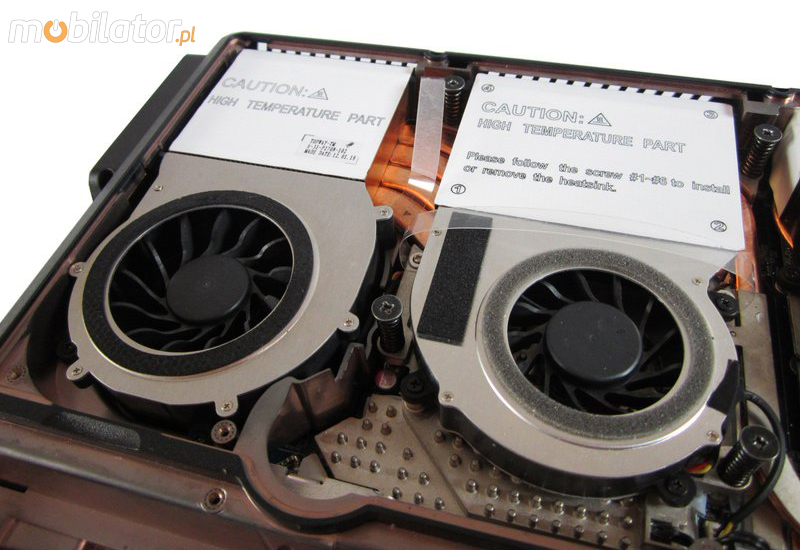

1. CPU Coling Fan
|
4. GPU Cooling Fans
|
|
2. Sub-woofer |
5. Battery Pack & 3rd Hard Drive Compartment
|
3. CPU and GPU Compartment
|
6. Primary & 2nd Hard Drive Compartment
|

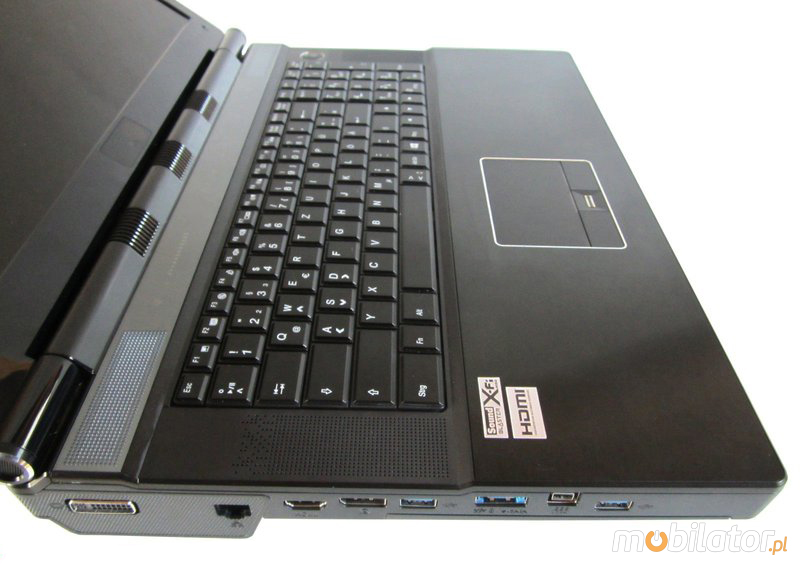

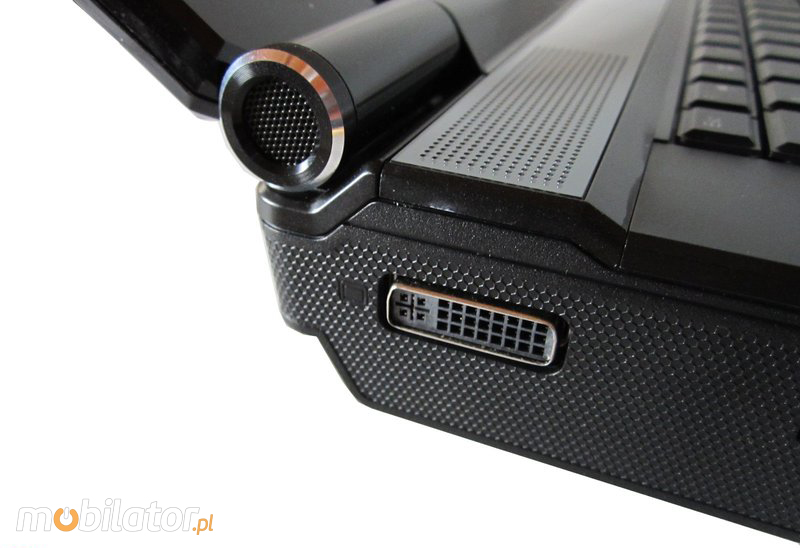

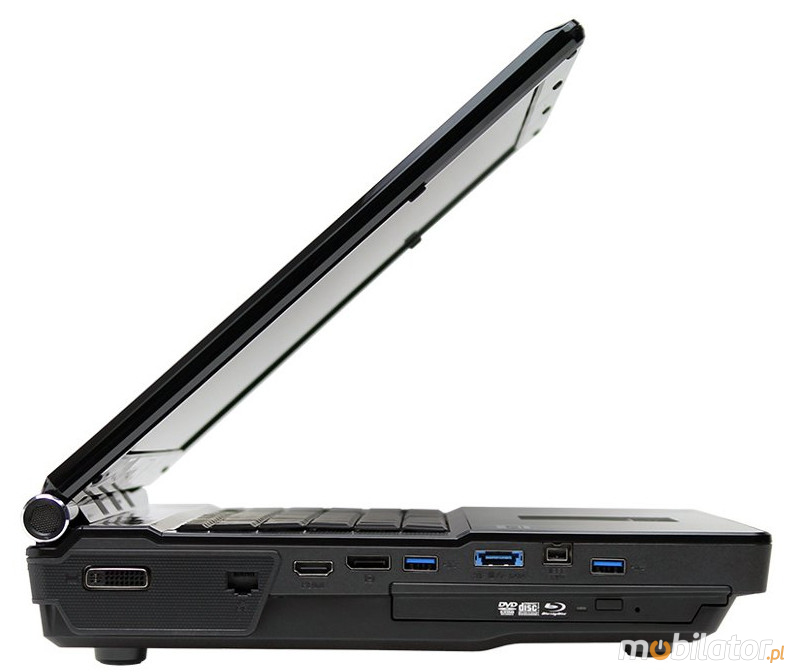

1. DVI-I Output Jack
|

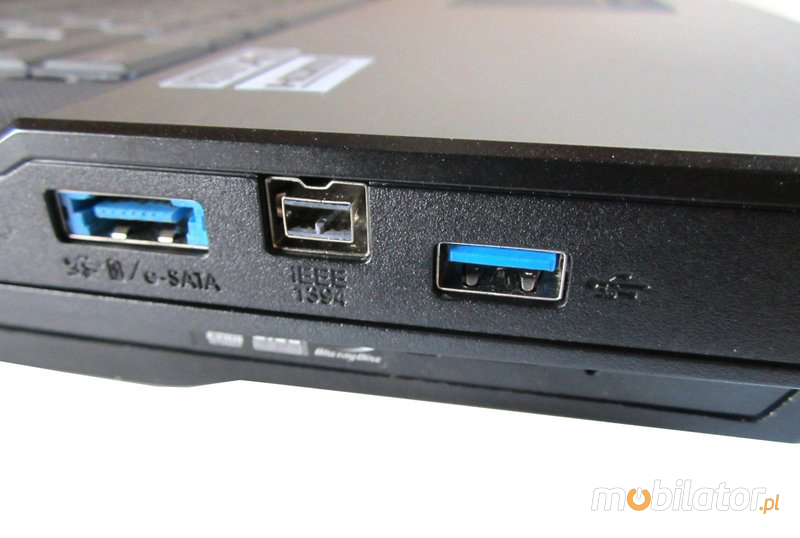

5. 2x - USB 3.0 Ports
|
2. CATV Jack (Enable with TV Tuner only)
|
6. eSATA Port
|
3. RJ-45 LAN Port (Gigabit)
|
7. IEEE 1394b Port
|
4. HDMI Output Jack
|
8. Optical Device Bay
|
|
9. 9in1 Card Reader (SD/Mini-SD/SDHC/SDXC/SDXC/MS/MS Pro/MS Duo/MMC/RSMMC)
|
1. Consumer Infrared Transceiver (Enabled with Optional TV - Tuner only)
|
2. Power Status Indicators
|
|
|

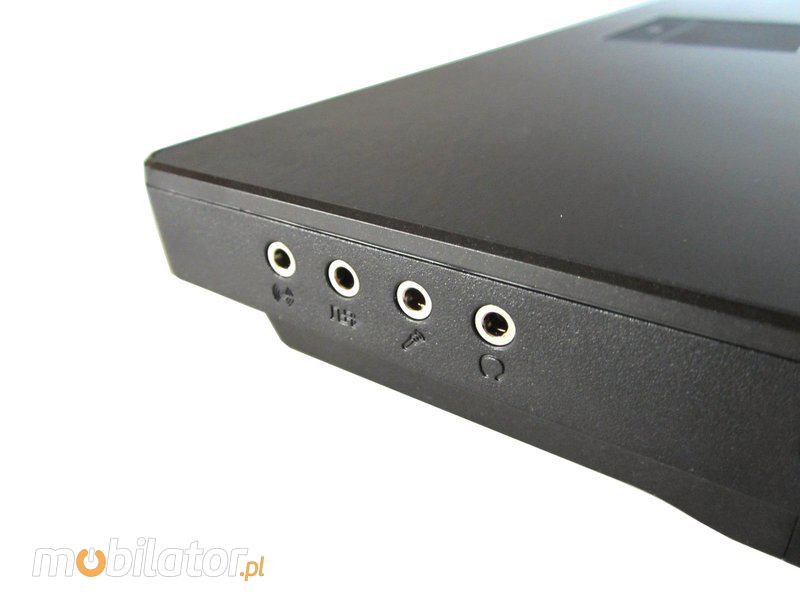

1. Line - In
|
4. Headphone - Out Jack
|
2. S/PDIF - Out Jack
|

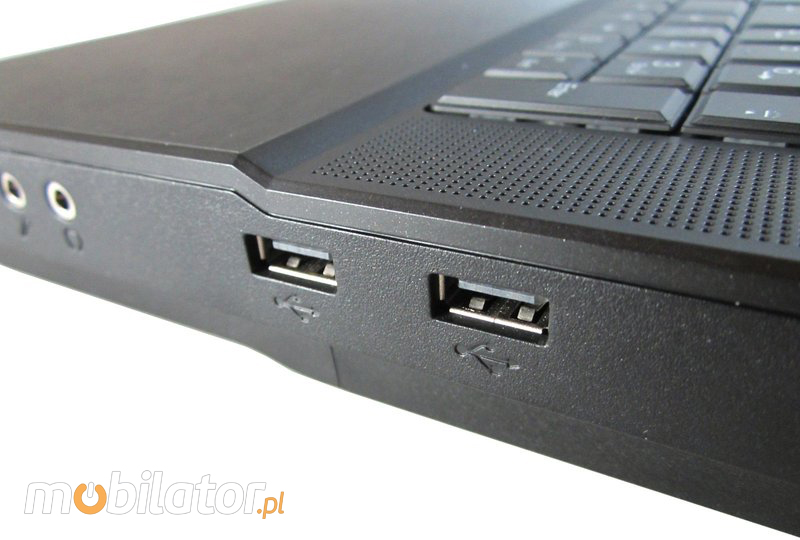

5. USB 2.0 Ports
|
3. Microphone-In Jack
|

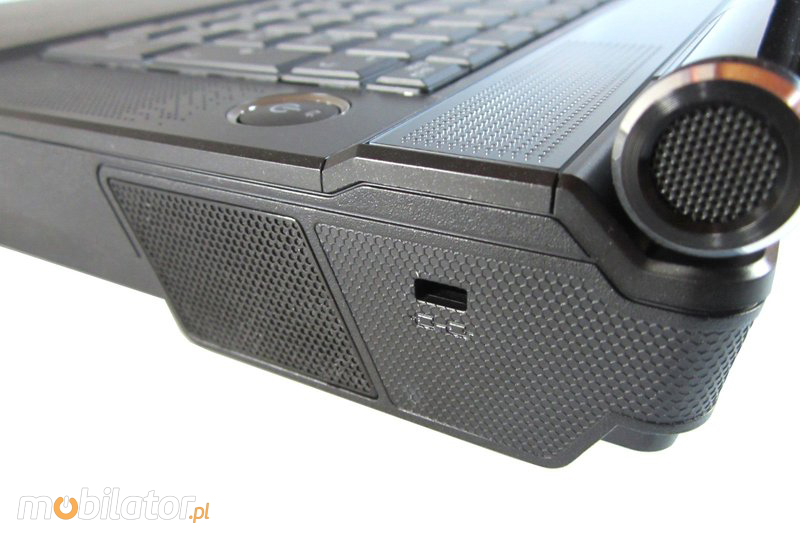

6. Kensington Lock
|
|
|

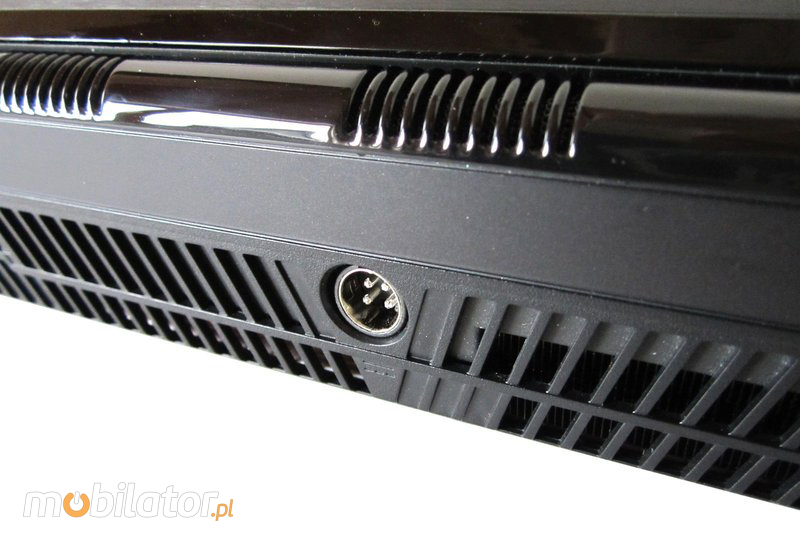

1. DC - In Jack
|
3. Speakers
|

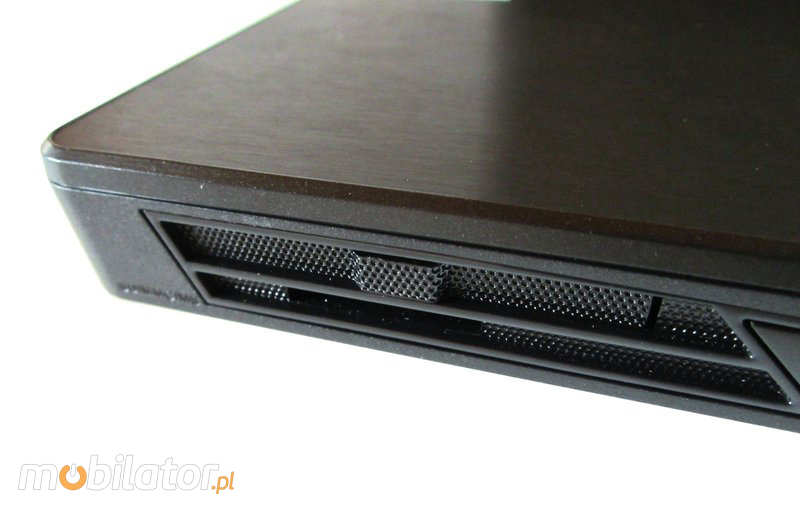

2. Vents
|
|
Enjoy a dramatic boost in multitasking performance with more system memory thanks to the quad SODIMM memory slots. With up to 32GB of Dual-Channel DDR3 memory, your system will never lag while multimedia editing, graphics design/3D modeling, and graphic-intensive gaming at once.
|
|
.jpg)

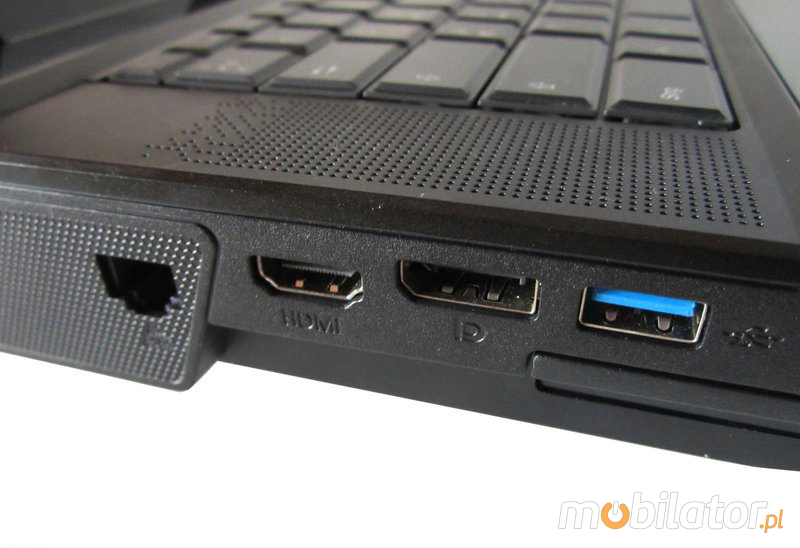

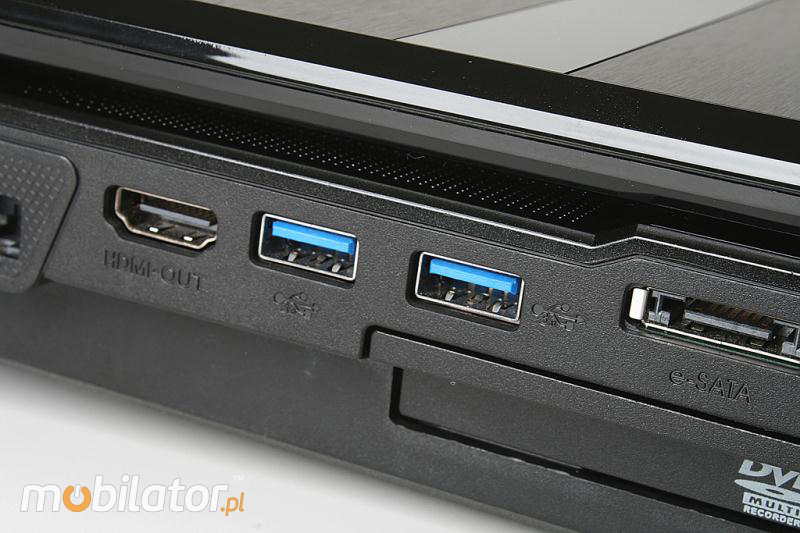

While most gaming notebooks supply four USB ports at most, the P570WM barebone sports five USB ports (3x 3.0 & 2x 2.0). Four audio jacks (microphone, headphone, line-in, S/PDIF) and three digital video outputs (DVI, DisplayPort, HDMI) must also be praised. eSATA and FireWire are also installed. In addition to that, there is a Kensington lock, RJ45 Gigabit LAN port, a 9in1 card reader and an ExpressCard slot. The antenna input of the old model has fallen victim to cutbacks.
|
|
|
|

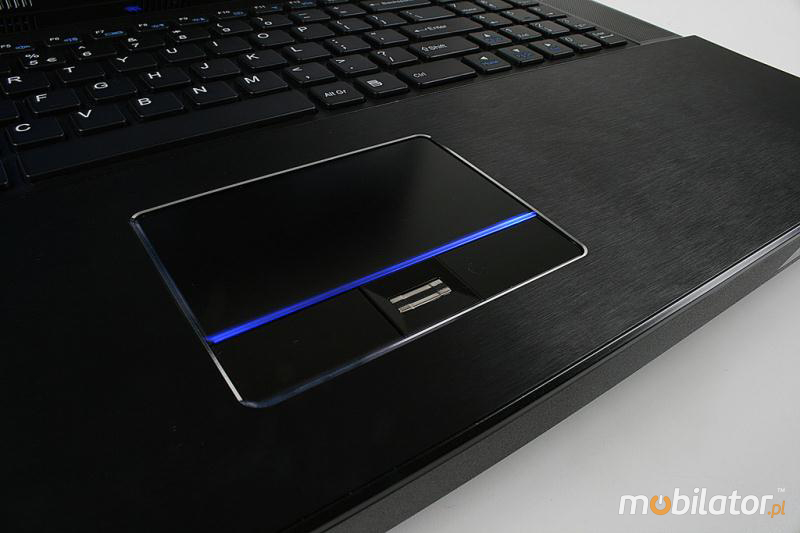

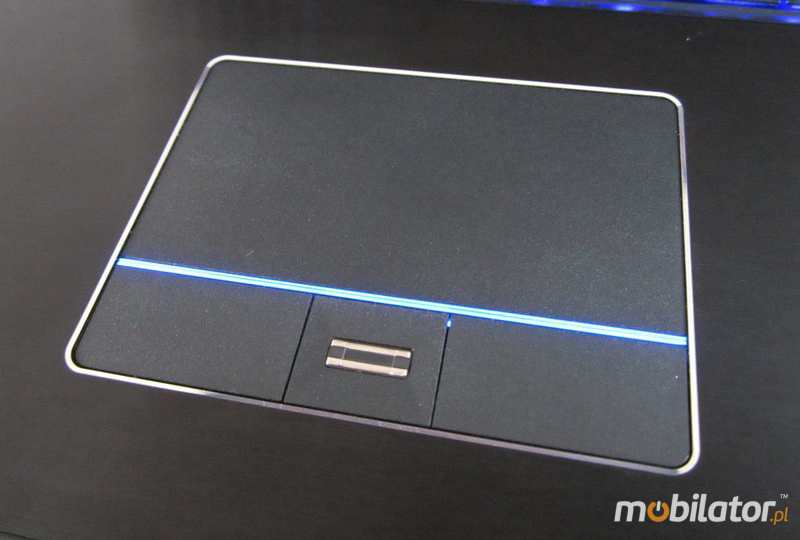

The integrated multi-gesture touchpad on the notebook allows user to perform various operations by tapping multiple fingers and making gestures. When using a computer touchpad can accurately detect multi-finger movements. Using touchpad is not only effective but also enjoyable
 Clevo
P570WM is sold complete with 8-cell battery with a capacity of 78 Wh, which is sufficient for almost 2 hours (not too hard) work. The computer weighs about 6 pounds and has dimensions of 419 x 286 x 73 mm, so it's definitely not ultra-mobile design.
Speaking about justice, two gigantic 300 watt PSUs are included for the P570WM in order to provide the desktop CPU and both GeForce graphics cards with power. Both weigh 1.6 kilograms and have a size of roughly 21 x 11 x 5 centimeters.
|
|
|
|
more photos in "Gallery"...
specification of this version is available in the "Technical Data"...
|
VIDEO
Illuminated keyboard Clevo P570WM
Compare all versions
| WAN: |
No |
| WLAN: |
none (available in other configurations) |
| Bluetooth: |
none (available in other configurations) |
| Processor: |
none (available in other configurations) |
| Memory: |
none (available in other configurations) |
| Chipset: |
Desktop IntelŸ X79 Express Chipset |
| Dispaly: |
17.3" FHD (1920*1080) 16:9 Widescreen |
| Graphics card: |
2 x ATI Wimbledon HD7970 2GB/ Converter % 2x- power adapter (300W) |
| Touch screen: |
No |
| Swivel Hinge: |
No |
| Hard Drive: |
none (available in other configurations) |
| BIOS: |
------- |
| VGA out: |
Yes - HDMI 1.4a , Display Port 1.1 , DVI-I |
| LAN: |
10/100/1000MB Base - TX Ethernet LAN |
| Camera: |
Yes - 2.0M FHD CCD |
| Audio: |
Sound Blaster® X-Fi™ MB 2/ High Definition Audio/ 5 Speakers / Build-in sub-woofer/ External 7.1CH audio output supported by headphone, microphone, Line-in, and S/PDIF jack |
| Seciurity: |
KensingtonŸ Lock, Fingerprint , TPM 1.2 |
| TV Out: |
------ |
| In/Out: |
3x USB 3.0 ports (1 x powered USB port), 2x USB 2.0 ports, 1x eSATA port (powered USB3.0 AC/DC combo), 1x Mini IEEE 1394b port , 1x Display port (Reversion depends on Video Controller), 1x DVI-I output port (Single link), 1x HDMI™ output port (with HDCP), 1x Headphone jack, 1x Microphone jack, 1x S/PDIF output jack, 1x Line-in jack, 1x RJ-45 LAN port, 1x DC-in jack |
| Keyboard: |
QWERTY - function keys, illuminated |
| Additional Navigation Devices : |
Touch pad with scrolling function |
| Battery: |
Removable Polymer Smart Li-Ion battery pack, 78.44WH |
| Working time on battery: |
110 minutes (with NVIDIA® GTX 680M single, 78.44WH battery) |
| Size: |
419(W) x 286(D) x 57.9~62.1(H) mm / ( Including single VGA card, ODD and 78.44WH battery) |
| CD/DVD: |
BlueRay Writer SuperMulti |
| Operating System: |
------ |
| Flash Card Reader: |
Yes - 9-in-1 (MMC / RSMMC - SD / mini SD / SDHC / SDXC - MS / MS Pro / MS Duo) |
| GPS: |
No |
| TV Tuner: |
No |
| Color: |
Black |
| Other: |
------ |
