MiniPC AOpen - MP45-DR Barebone

producer code:

Data update: 2011-08-17

guarantee 2 years

Ask about the product

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated

Description Technical data Available versions Accessories Gallery Download

Energy saving and cost reducing - click detail

XC Series in mobilator.pl

pc_miniPC

New XC Series from AOpen in mobilator.pl

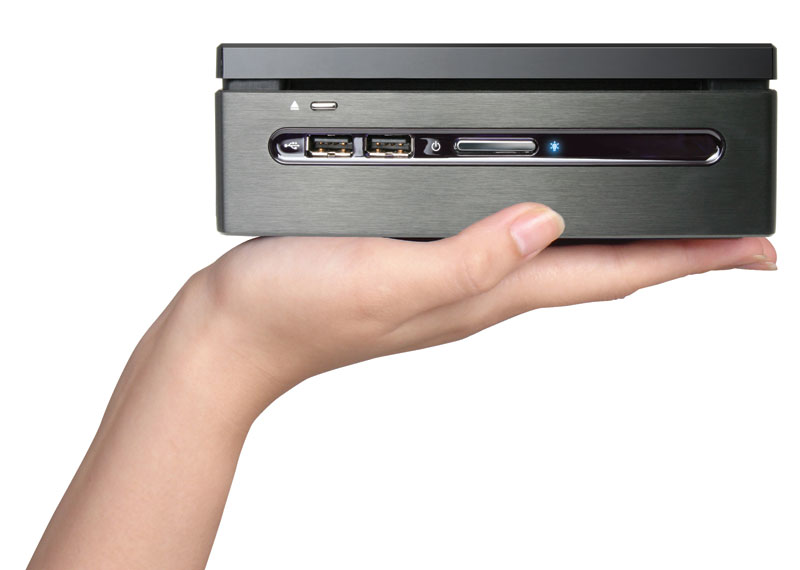

Impressive sizes...

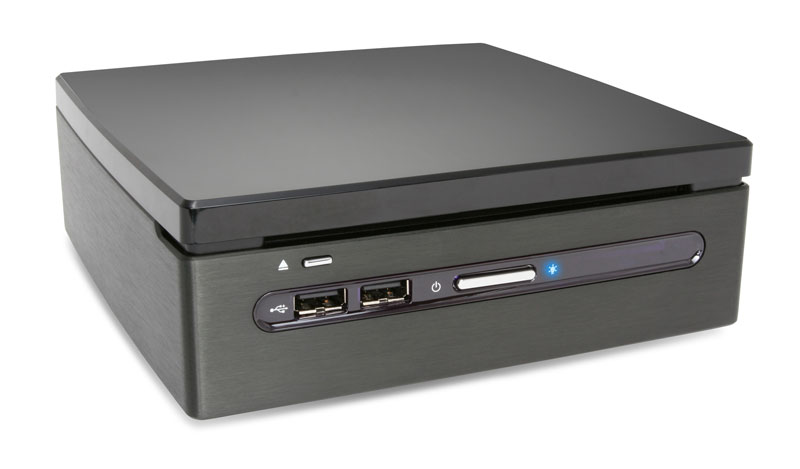

MiniPC from XC series is multimedia center closed in aluminium BOX with super small sizes 165(H) x165(L)x50(W) mm.

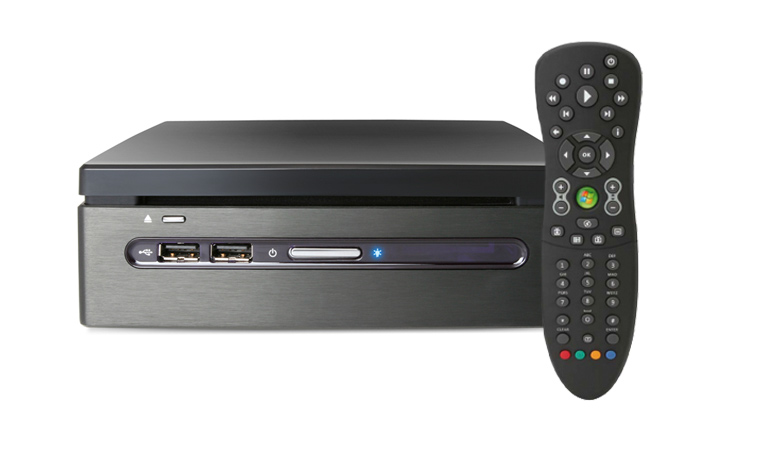

AOpen Remote COntrol in Hand

Implementated advenced technolgy...

go top…

- Support HDMI Interface (High Definition Multimedia Interface)

High-Definition Multimedia Interface (HDMI) is a compact audio/video connector interface for transmitting uncompressed digital streams.

- Support HDMI 1.2 Version

- Include Digital Video and Digital Audio Single

- Support Full HD 1080P (1920x1080) resolutions

- Storage up to 750GB

- eSATA interface

- 6 x USB with 2.0 interace

Connectivity & fun...

XC mini MP45-DR has an option for built-in 802.11b/g/n wireless, Bluetooth, and analog/digital TV modules to fulfill different requirements.

- 802.11b/g, 54Mbps wireless LAN PCIe mini Card

- Functional Specifications

- Standard: IEEE802.11b; IEEE 802.11g; IEEE 802.11i

- Bus Interface: PCI Express mini Card

- Security: 64-bit, 128-bit and 152-bit WEP, AES, TKIP, WPA2

- MC770A Hybrid TV mini Card (DVB-T and Analogue)

- MiniCard hybrid DVB-T and Analog TV tuner card

- Watch digital and analog TV in Windows on your MiniPC

- Bring TV function to Media Center Edition 2005

- Free to air digital terrestrial DVB-T receptions (6/7/8 MHz)

- Support High Definition digital TV channel

- Advanced Silicon Tuner for worldwide analog TV receptions

- Interactive , Teletext EPG ,and scheduler

DVB-T In AOpen MiniPC

WiFi in AOpen miniPC

Using & interface..

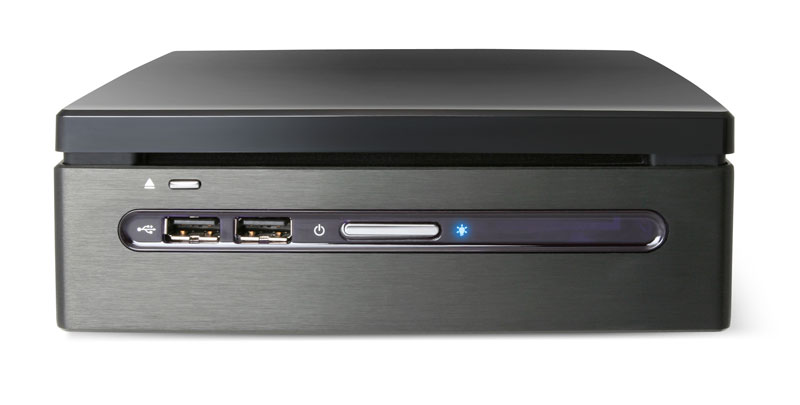

Front panel:

go top…

AOpen Mini PC

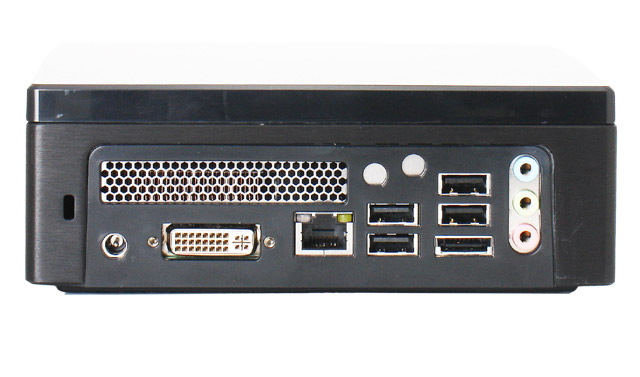

Rear Panel - unlimited possibility to plug in devices:

Easy control...

go top…

• Built in internal Vista certificated IR receiver

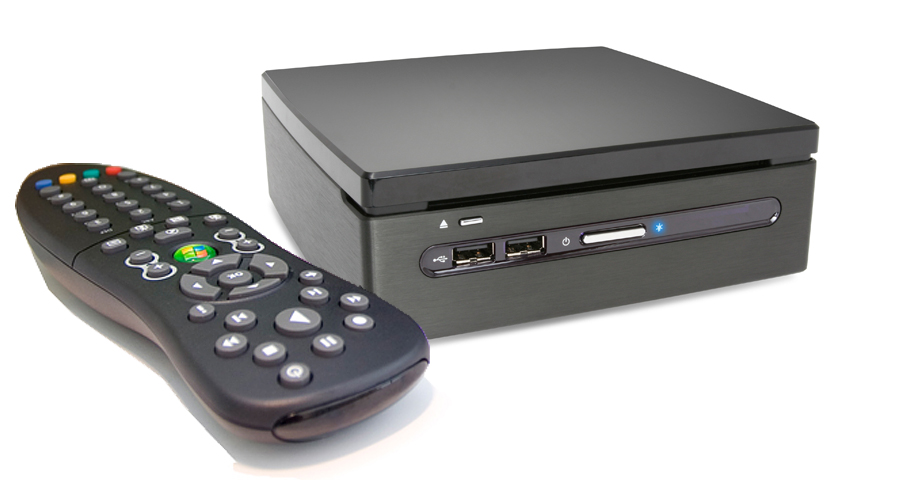

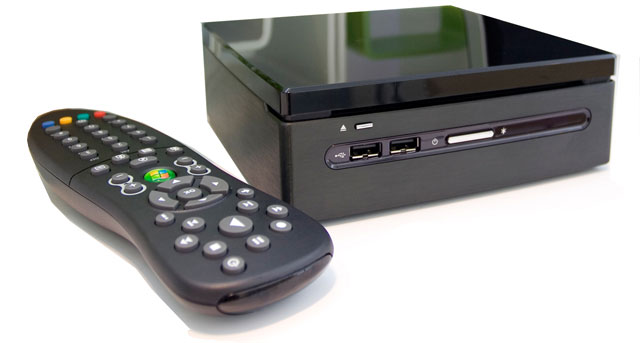

• Vista certificated remote control

Power save and silence...

Thanks to use of energy-saving technologies the MiniPC uses many less electric energy, and his culture of work pierces the standard stationary computer many the times.

Accessories in Box

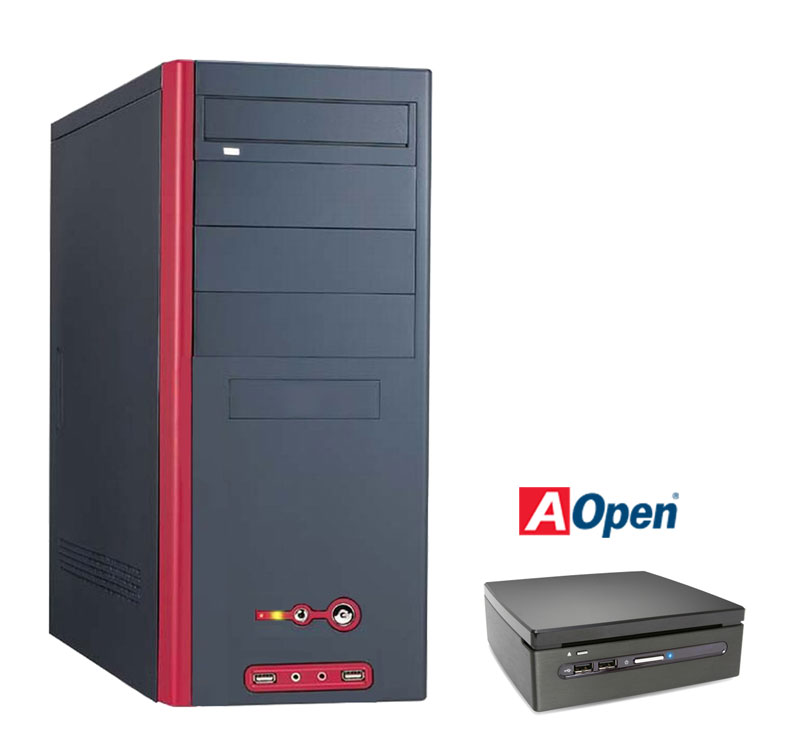

Energy saving and cost reducing

go top…

VIDEO

AOpen miniPC

AOpen miniPC mobilator.pl

AOpen_miniPC

Others:	Remote control for Windows and aplications.
Chipset:	ICH9M
FSB:	1066
CPU Support:	Socket P - Intel Core 2 Duo (Penryn), Celeron M
Installed CPU:	None
Memory Support:	2 x SODIMM DDR2, Up to 4GB
Installed Memory:	None
Graphic Card:	Builit In - Intel GM45 (GFX 500 Mhz), HD Playback, Support DirectX 10
Storage (HDD) Support:	1 x 2,5'' - Up to 750GB
Installed Storage (HDD):	None
CD/DVD Drive:	SATA II Slim DVD Supermulti Slot-in type
LAN:	10/100/1G Intel GbE LAN controller
Wireless LAN card:	No (Optional Yes)
TV Tuner:	No (Optional Yes)
Front Panel (ports):	2 x USB 2.0
Rear Panel (ports):	6 x USB 2.0, LAN RJ45 (10/100/1G LAN),1 x Audio Jack Stereo (Line In, Line Out, Optical Out) /SPDIF via adapter, 1 x DVI (HDMI converter in BOX) , 1 x eSATA,
Power:	External AC adapter
Supported OS:	Windows XP, Windows Vista
Installed OS:	None
Dimensions:	165mm x 50mm x 165mm
Expansion:	Hybrid TV Tuner DVB-T (analog + digital + FM), , WiFi 802.11 a/b/g/n
