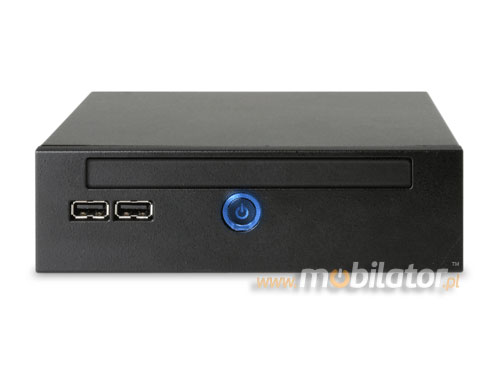

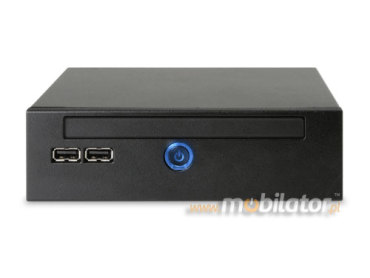

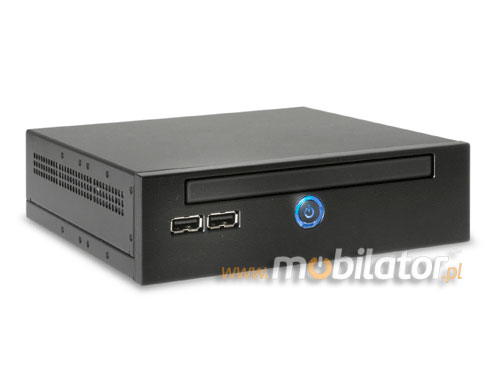

MiniPC Industrial AOpen DE 7000
Terms and Conditions: |
|
|
 In 2010, AOpen Digital Engine Series ® has become very popular in China. Exhibition of International Digital Signage Show which was 25-27 June 2010 in Shanghai, nominate device Aopen Digital Engine DE 7000 "Best Media Player." Then AOpen DE 7000 was presented at the World Expo 2010 Exhibition which was hailed as the most practical and application platform in the world. |
|
DIGITAL ENGINE the series of products AOpen firm dedicate to industrial use ...
|
|
Resistance on damage & small size ... |
|
|
The AOpen Digital Engine DE7000 is a high performance Intel-based system in a 166mm x 48mm x 164.1 mm footprint that weighs less than 1.2 kg.
|
|
Environment specifications:
MTBF : 40,000 hrs
Operating Temperature : 0 ~ 50°C (32 ~ 122°F)
Storage Temperature : -30 ~ 60ºC (-22 ~ 140ºF)
Relative Humidity : 90% RH (45°C non-Condensing)
Operating Vibration : 0.5Grms, Random, 10~500Hz, X,Y,Z 3Axes, 0.5hr/Axis
Non-Operating Vibration : 2Grms, random, 10~300Hz, X,Y,Z 3Axes, 1hr/Axis
Operating Shock : 8G, half sine, 11ms duration, X,Y,Z 3Axes, 6Direction, 3 shocks/direction
Non-Operating Shock : 50G, Half sine, 11ms duration
|
|
|

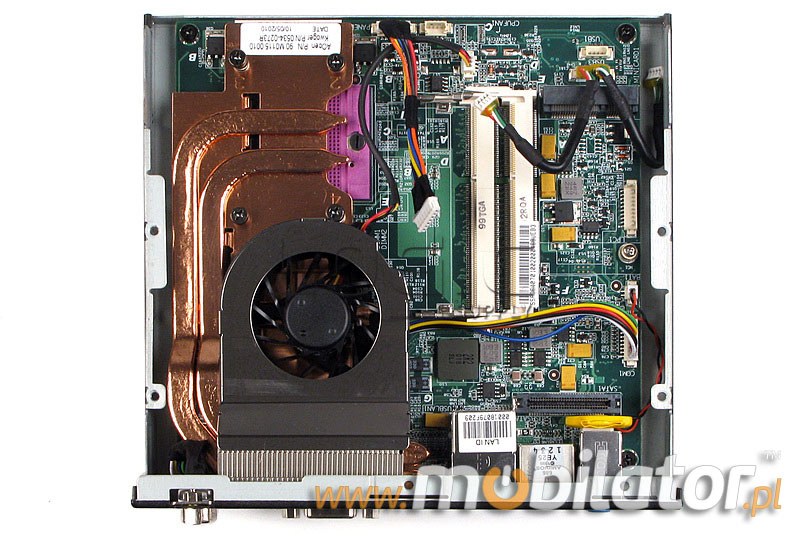

The system has been especially developed as a non-spindle concept, meaning more reliability and zero noise. The AOpen heat pipe solution and aluminum fans create a reliable passive cooling that prevents dust intake and fulfills silent requirements. | |
|
 Powered by the Nvidia MCP7A-LP chipset, AOpen Digital Engine features HDCP (high-definition copy protection), H.264 high-definition video acceleration and is full HD ready to offer 1080P perfect playback. AOpen Digital Engine DE7000 can operate two displays simultaneously for more complex digital signage applications. AOpen Digital Engine DE7000 is equipped with two DDRII SO-DIMM 800/1066/1333 memory slots supporting up to 4GB. The full range of AOpen digital engines is equipped with standard industrial PC features like, RS232, HDMI, 2 independent display ports and hardware controlled Watch Dog Timer (a tool to help the system to recover from fatal errors). |
| 1. USB 2.0 Ports |
ssssssssssssssss |
3. Multicombo CD/DVD |
| 2. On/Off Switch |
|
|
|
|
|
| 4. Port RS232 |
www |
10. Speaker input, audio line input |
| 5. Antenaa |
|
11. Port e-SATA |
| 6. Port RJ-45 |
|
12. USB 2.0 Ports |
| 7. USB 2.0 Ports |
|
13. HDMI connector |
| 8. Speakers |
|
14. VGA connector |
| 9. Kensington Lock |
|
15. DC-in Jack |
|

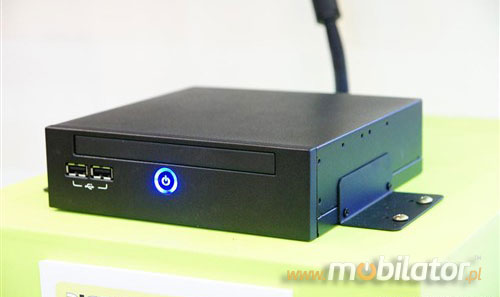

For thanks of use handles box, it many possibilites to mount Digital Engines - for example: in factory halls, with LCD / LED monitors, hipermarkets, shops, under table top and cars.
|
|
 |
|
AOpen Digital Engine DE7000 is a complete solution for Digital Signage, Projector PC, Media Player, and Vehicle PC. AOpen is a compact system of 1,3L with Nvidia MCP7A-LP Chipset supporting Intel socket P Core 2 Duo processors. The AOpen DE7000 had 40,000 hour MTBF and passed shock and vibration operation tests. It can be installed both vertically and horizontally without having thermal issues. AOpen DE7000 adapts mobile CPU, chipset and memory to reduce heat. With less heat, the speed of the fans will drop and create a silent working condition.
|
|
Energy saving and cost reducing |
|
With energy cost saving in mind, AOpen Digital Engine DE 7000 supports the Intel Core™2 Duo Socket P “Penryn” series processor aiming for energy-efficiency. AOpen Digital Engine DE 7000 is one of the products from the AOpen Green Product range, complying with Energy Star 5.0. Energy Star is an officially recognized way to save money through energy efficiency and help the environment without sacrificing the performance. Energy Star standard has been developed to save energy at home and office. Through energy-efficient design of hardware and system components, there is a guarantee your system will use less energy to perform tasks, and will enter low-power modes, when not in use. |
| Others: |
Colour Black, Case SECC |
| Chipset: |
Nvidia MCP7A-LP |
| FSB: |
667/800/1066MHz |
| CPU Support: |
Socket P - Intel Core 2 Duo (Penryn) |
| Installed CPU: |
No (Optional Yes) |
| Memory Support: |
DDR3 SO-DIMM x 2 800/1066/1333MHz (up to 4 GB) |
| Installed Memory: |
No (Optional Yes) |
| Graphic Card: |
Integrated GeForce 9300 do 256 MB/64bit (16 shader processor, 600 Mhz memory, 800 Mhz shader) |
| Storage (HDD) Support: |
2.5 |
| Installed Storage (HDD): |
No (Optional Yes) |
| CD/DVD Drive: |
No (Optional Yes- Multicombo DVD/CD) |
| LAN: |
Realtek Gigabit Ethernet/ 10/100/1000 |
| Wireless LAN card: |
No (Optional Yes) |
| TV Tuner: |
No |
| Front Panel (ports): |
2x USB 2.0 |

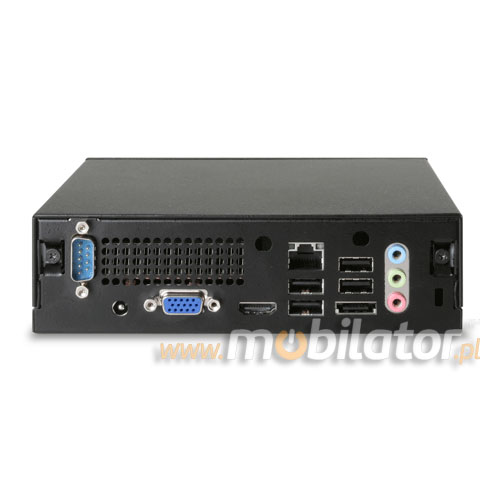

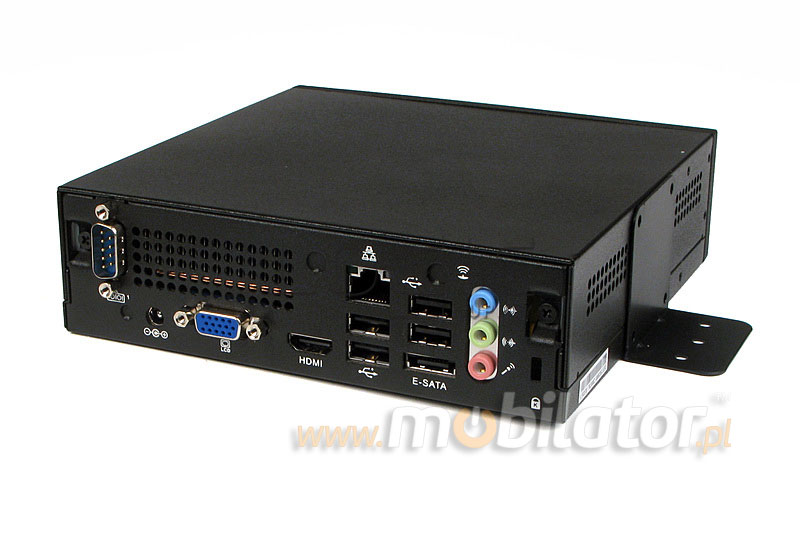

| Rear Panel (ports): |
4x USB 2.0, e-SATA, HDMI, Audio 5.1, RJ-45, DC-in Jack, VGA, RS232, |
| Power: |
90W (20V, 4.5A) |
| Supported OS: |
Microsoft Windows: XP/Vista/7 , Linux |
| Installed OS: |
No (Optional Windows 7/Vista/XP) |
| Dimensions: |
166 (W) x 48 (H)x 164.1 (D) mm, weight 1,2kg |
| Expansion: |
MultiCombo DVD/CD, WiFi card, HSDPA module |
|
