Rugged MobiPad MP VX-S
|
|
The product from the archive - production terminated
|
Compare all versions

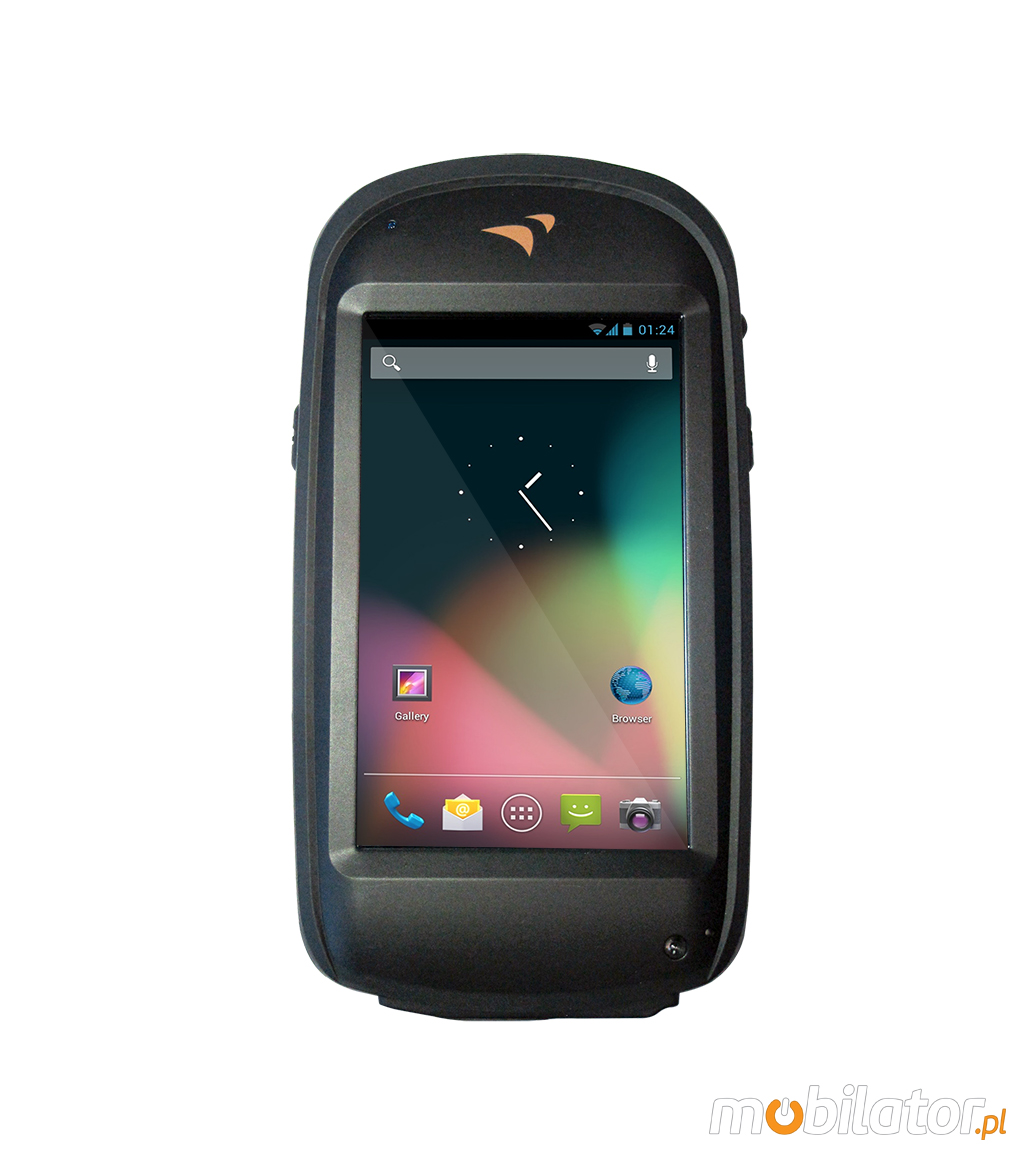

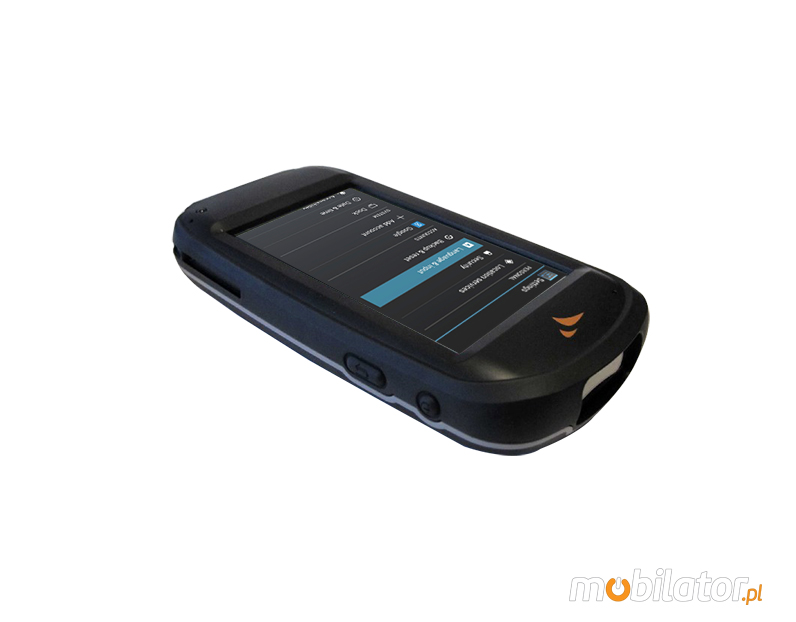

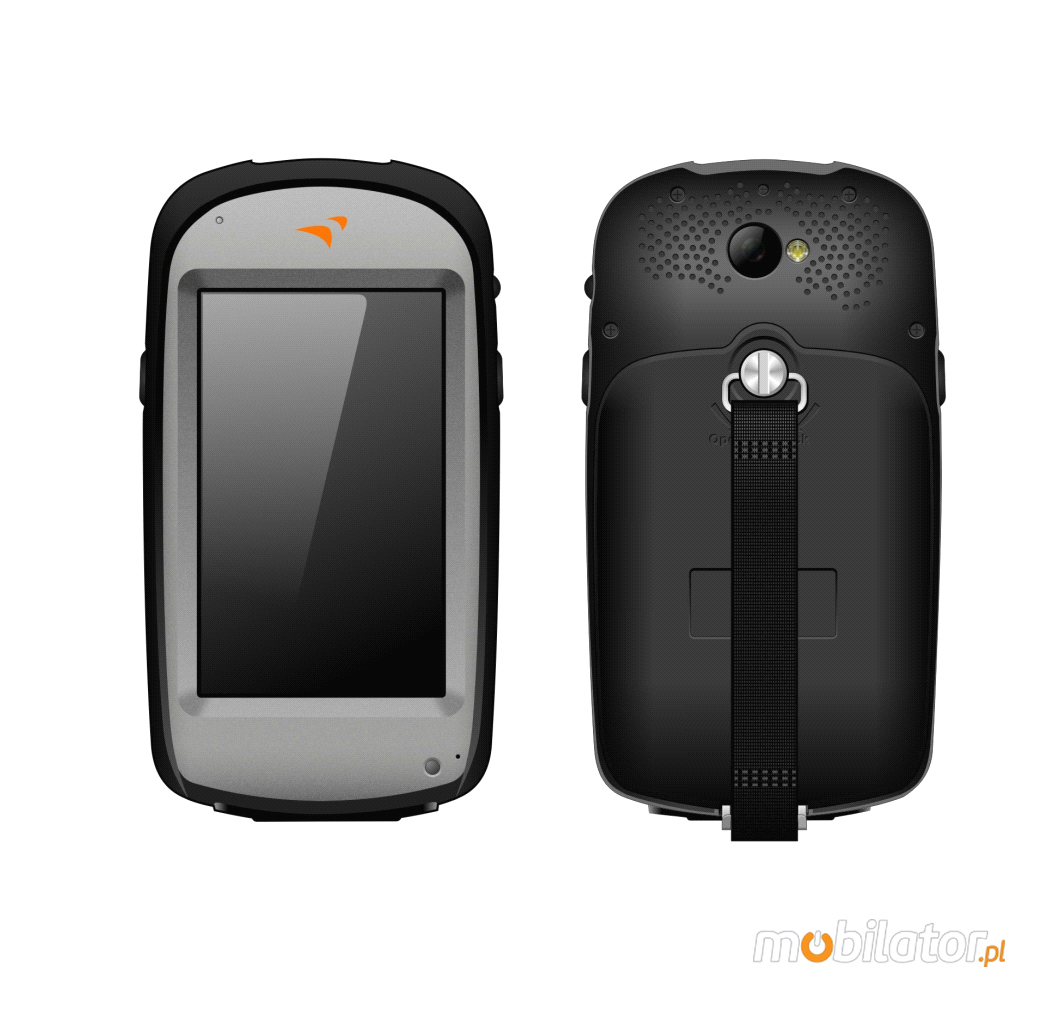

Tablet MobiPad MP VX has a specially designed, reinforced structure, adapted to harsh environmental conditions. As equipment produced for the military, meets the requirements of IP65. With this structure is resistant to dust and water. The device works great when in the home and industry.
|
|
|
Processor |
Samsung Cortex-A8 S5PV210@1GHz |
|
PCB |
G43 |
|
Display |
4.3" (800x480) TFT : Capacitive | Notification LED (red-green) |
|
RAM |
512MB DDR3 |
|
ROM |
4GB NAND flash |
|
Connectors |
MicroSD Reader : Mini USB |
|
GPS |
High sensitivity receiver, 64 channels |
|
Audio |
2,5mm mini headphone jack |
|
Camera |
5Mpx : Auto-focus : LED Flash
|
|
Battery |
2500mAh Li-Ion |
|
Keyboard |
Onscreen + Function keys (scanner, camera) |
|
Environment |
Android 4.0.4 (Multi-Language) |
Modules (factory)
|
850/900/1800/1900 : IEEE 802.11 b/g : Bluetooth V2.1 (OPP) : GPS |
Dimensions
|
83 x 153 x 32mm - 380g |
|
Resistance |
IP65 (dustproof and waterproof) |
|
Readers |
RFID 13.56 Mhz, 1D (CCD), 2D (CMOS) |
Warranty
|
12months (optional 24 months) |
|
|
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form. |
 |
go top...  menu…
|
|
|

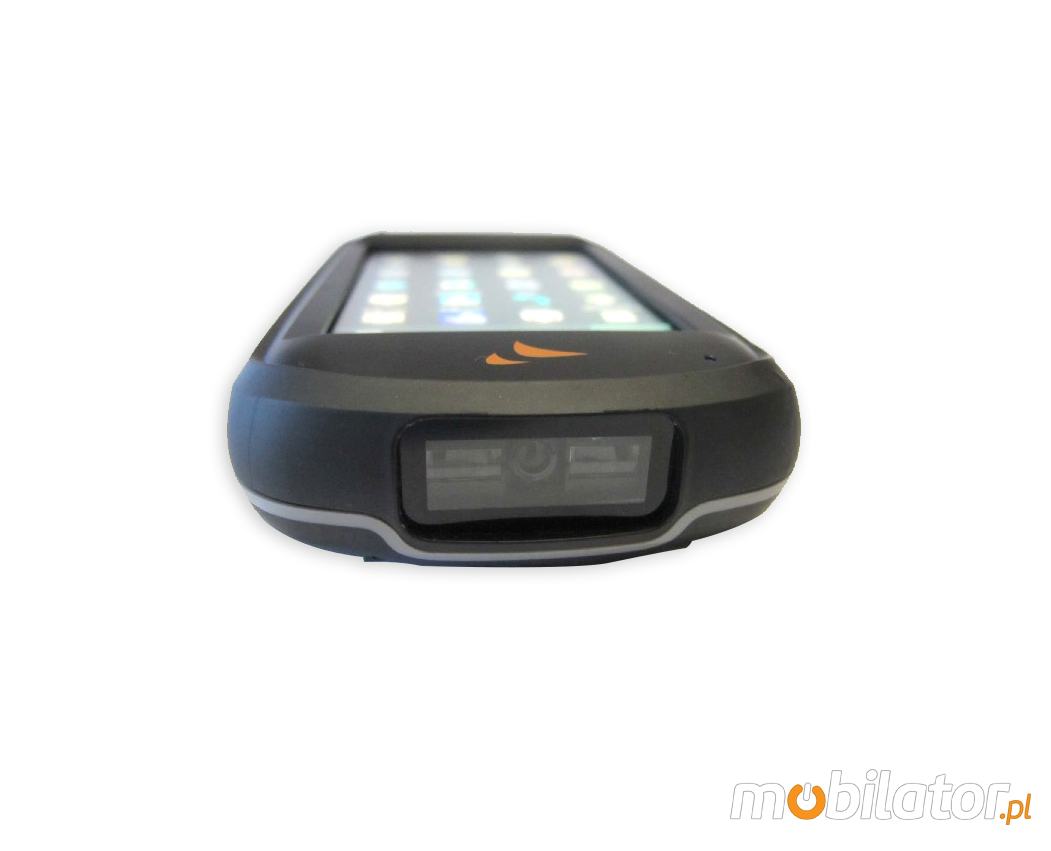

Barcode Readers (optional)
Quick and accurate identification of the object crosses the warehouseman and does not create bottlenecks in logistics processes. Barcode Reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities and the large scope of the reading of the data collector collects data MobiPad exactly what helps to increase the speed and productivity. The whole can jump-start, because with simplified installation and an intuitive, comfortable design to prepare the scanner to work is very easy.
|
1D (CCD)
Newland EM1300
|
JAN/UPC/EAN incl. addon, Codabar/NW-7, Code 11, Code 39,Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial2of5,Interleaved 2of5, ISBN-ISMN-ISSN,Matrix 2of5, MSI/ Plessey, S-Code, Telepen,Tri-Optic, UK/Plessey• Postal code: Chinese Post, Korean PostalAuthoritycode itp.
|
|
2D (CMOS)
Newland EM3000
|
QRCode, DataMatrix, PDF417 Maxicode,Aztec itp.
2D reader also supports 1D.
|
.jpg)
|
RFID (optional)
They are expected to solve the many problems with fast and unmistakable identification of people and equipment. Its development is more turbulent than being gradually implemented barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.
|
Fudan Microelectronics FM1735Q - (RFID)
|
13.56Mhz |
go top... menu…
|
|
|

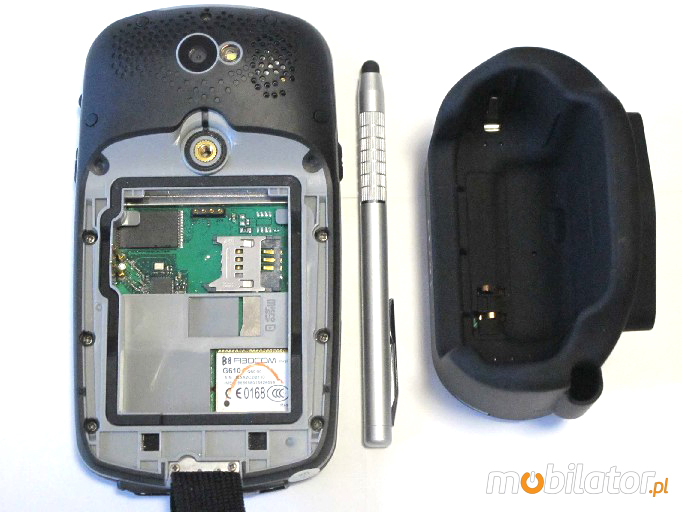

Quick changer battery
With friendly construction equipment it is possible to quickly change the battery. This is useful when working in the field and difficult conditions, where there is no additional tools and the necessary time.

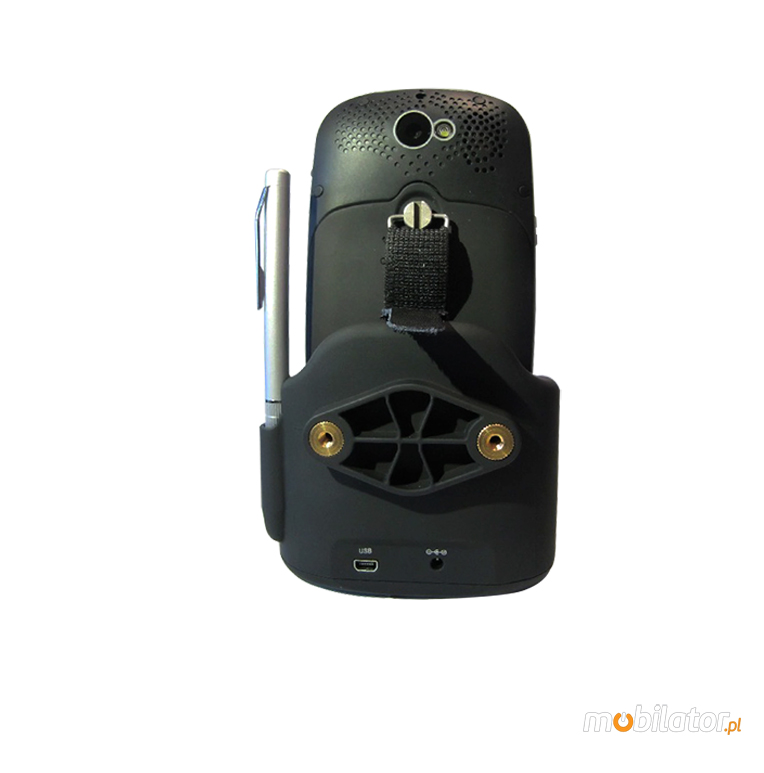

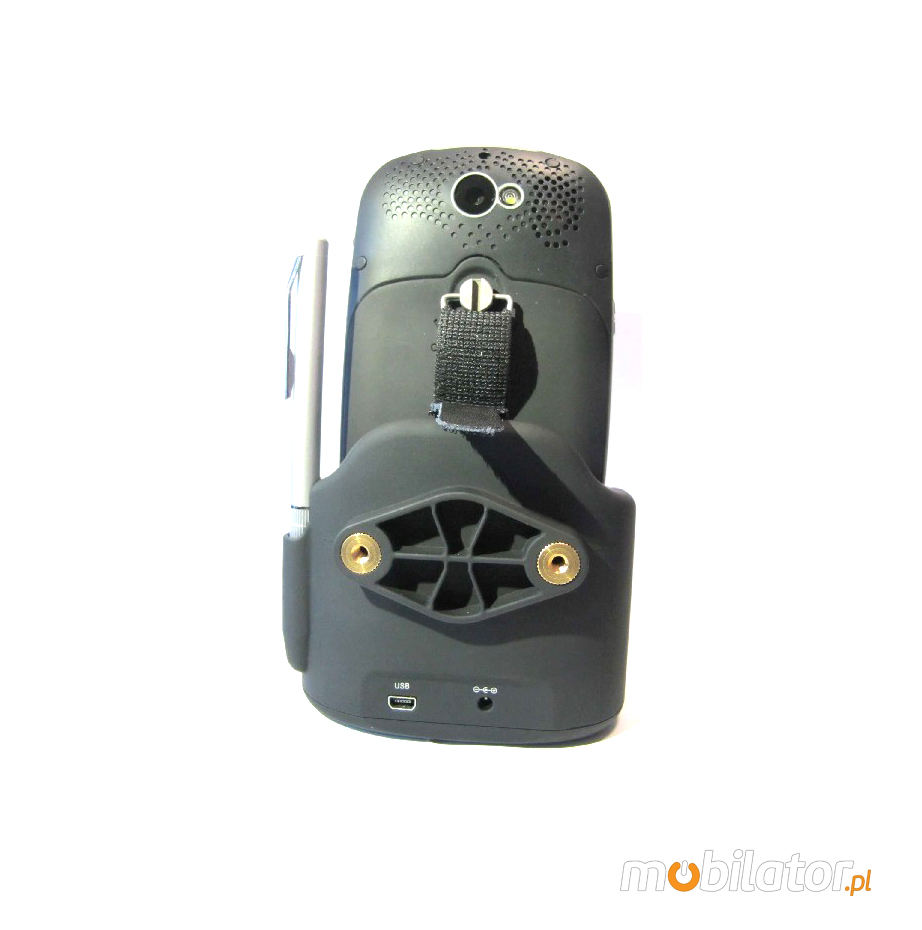

Charging Station (included)
The kit comes with a comprehensive charging stand, which provides stability of the device in a vertical position and quick loading. MiniUSB output allows you to connect the device via stajcê charging to your computer. To more accurately seize the opportunity to display the kit was included as a high quality stylus.
|
|
|
Applicable standards and tests
|
Operating |
-15°C -- +50°C |
|
Storage |
-20°C -- +60°C |
|
Humidity |
5% -- 95% non condensation
|
|
Dust |
IP6x (dustproof) |
|
Water |
IPx5 (waterproof) |
|
Upadek |
Multiple drops a concrete 5ft./1.5m the entire operation range |
|
Regulatory |
CE
|
go top... menu…
IP65
Degrees of IP is a classification of different degrees of protection of electrical equipment that are provided by enclosures of these devices according to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contamination, such as dust. It's mainly about access foreign objects to enter the unit. The second digit is a degree of protection against water.
|
No special protection |
|
0 |
 |
0
|
|
No waterproofing |
|
Protection from solid objects greater than 50mm in diameter |
|
1 |
 |
1
|
|
Protection from dripping water
|
|
Protection from solid objects greater than 50mm in diameter |
|
2 |
 |
2
|
|
Protection from vertically dripping water (tilted up to 15°) |
|
Protection from object not greater than 2,5mm in diameter |
|
3 |
 |
3
|
|
Protection from sprayed water (tilted up to 60°) |
|
Protection from object not greater than 1mm in diameter |
|
4 |
 |
4
|
|
Bryzgi wodne niezale¿nie od
kierunku nie powinny wywo³ywaæ ¿adnych niepo¿±danych efektów |
|
Complete protection against contact, Protection against dust deposit |
|
5 |
 |
5
|
|
Protection from splashed water |
|
Complete protectionm against contact, Protection from infiltration of dust |
|
6 |
 |
6
|
|
Protection from water projected from a nozzle |
|
|
|
 |
7
|
|
Protection against immersion |
|
|
|
.gif) |
8
|
|
|
Protection against complete, continuous submersion in water |
go top... menu…
|
|
|
|
.jpg)
With HSDPA module, you need only insert a SIM card in the special slot and can immediately connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Moreover, the use of the MP-VX internal 3G module adjusts automatically to transfer and network coverage.
|
WiFi |
802.11b/g |
|
GPS |
high sensitivity receiver, 64 channels |
|
Bluetooth |
Bluetooth V2.1 (OPP) |
|
GSM/GPRS |
Quad Brand EGSM 850/900/1800/1900 |
|
|
Possibility of calling using wireless headphones |
go top... menu…
|
|
|
|
You no longer need to worry about whether you will put your old laptop into a briefcase, backpack or travel bag with MobiPadem problem disappears forever, as it weighs only 380g and its dimensions (83 x 153 x 32mm) allow you to take it with them everywhere. With elegant performance and energy efficiency is on the forefront of this segment equipment and is very popular on the European market in the industrial segment.
|
|
Dimensions |
83 x 153 x 32mm |
|
Weight |
380g |
more photos in the "Photo Gallery" ...
specification of this version is available in the "Technical data" ...
|
Compare all versions
| Durability: |
IP65 |
| Humidity: |
5% -- 95% non-condensation |
| Waterproof: |
IP 65 |
| Weight: |
|
| Temperature: |
Operating temperature: -15°C - 50°C / Storage temperature: -20°C - 60°C |
| Shock: |
-------- |
| Vibration: |
-------- |
| Drop: |
t 1.2 meters (47") drop, 2⇒plywood over concrete, each edge,face and corner; 26 drops total (@ ambient temp) |
| Sand and dust: |
IP 65 |
| 1D barcode scanner (reader): |
none (available in other configurations) |
| 2D barcode scanner (reader): |
none (available in other configurations) |
| RFID scanner (reader): |
none (available in other configurations) |
| Magnetic card reader (MSR): |
-------- |
| Microchip card reader: |
-------- |
| Docking station connector: |
Yes - Charging station (included) |
| VESA standard – holders and mounts support: |
-------- |
| COM port: |
-------- |
| Dispaly: |
4.3'' (800x480) TFT |
| Brightness: |
400nit |
| Contrast: |
800:1 |
| Touch screen: |
Yes - Capacitive |
| Graphics card: |
-------- |
| Swivel Hinge: |
No |
| VGA out: |
No |
| TV Out: |
No |
| TV Tuner: |
-------- |
| Processor: |
Samsung Cortex-A8 S5PV210 1GHz |
| Chipset: |
-------- |
| BIOS: |
-------- |
| Memory: |
512MB DDR3 |
| Hard Drive: |
4GB NAND flash |
| Flash Memory: |
|
| Battery: |
2500mAh Li-Ion |
| Working time on battery: |
-------- |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
Yes - specially designed battery |
| Size: |
83 x 153 x 32mm
380g |
| Casing material: |
plastic with rubber |
| Fanless casing: |
Yes |
| Operating System: |
Yes - Android 4.0.4 (Multi-Language) |
| LAN: |
No |
| WLAN: |
Yes - Wifi IEEE 802.11 b/g |
| Bluetooth: |
Yes - V2.1 (OPP profile) |
| WAN: |
Yes - Quad brand EGSM 850/900/1800/1900 (Voice Calling - Handsfree) |
| GPS: |
Yes - Built-in (high sensitivity receiver, 64 channels) |
| Flash Card Reader: |
Yes - micro SD up to 64GB |
| CD/DVD: |
-------- |
| Camera: |
Yes - 5Mpx (Flash + Autofocus) |
| Audio: |
2.5mm mini headphone jack |
| Seciurity: |
Gum case |
| In/Out: |
Mini USB : SIM : Micro SD : 3.5mm Audio Jack |
| Keyboard: |
Ekranowa |
| Additional Navigation Devices : |
Yes - Function keys (launch scanner, launch camera, power) |
| Color: |
black-grey |
| Optional accessories: |
Additional battery 2500mAh Li-Ion |
| Other: |
Optional warranty up to 2 years |
