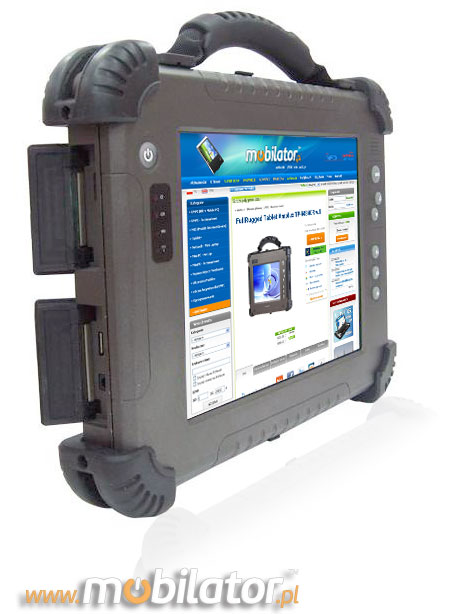

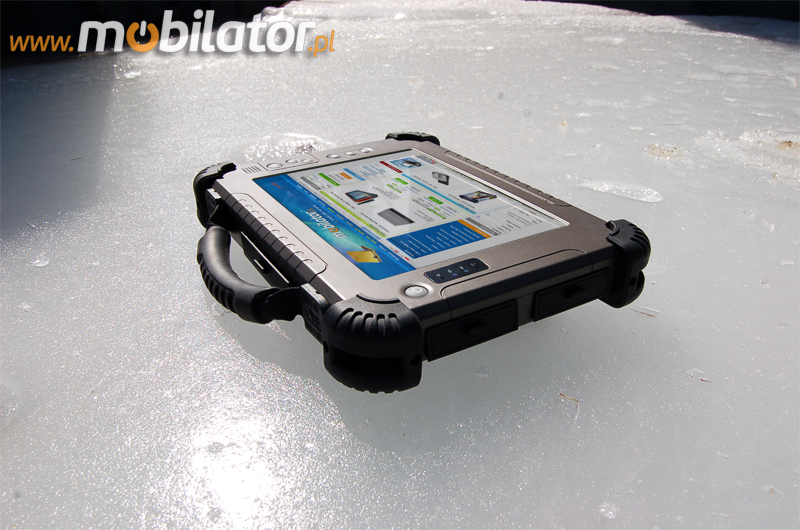

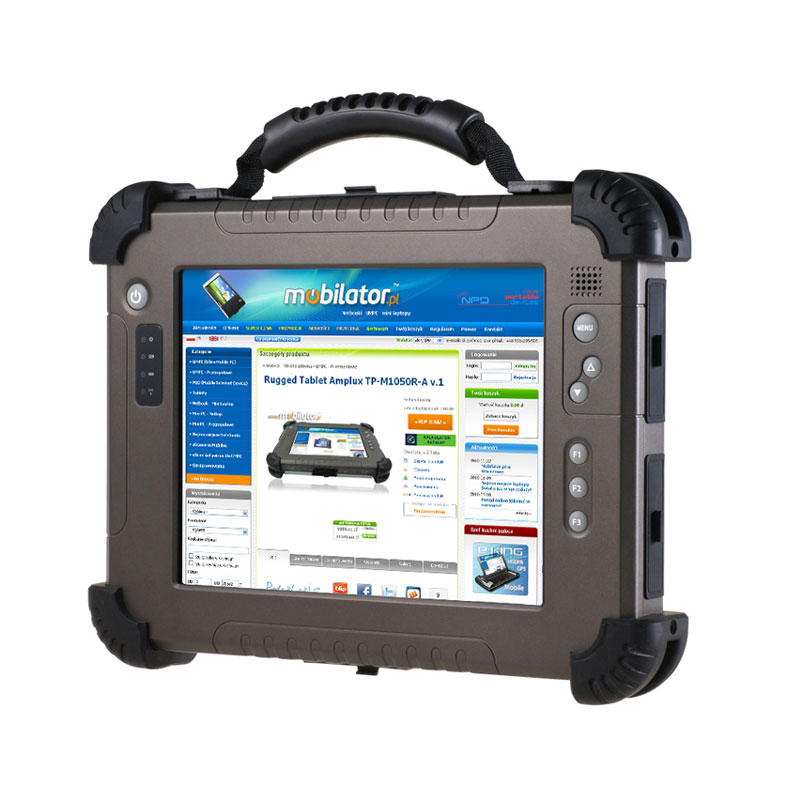

Rugged Tablet Amplux TP-M1050R-A v.1
| CURRENT PRICE |
| 2209.20 € |
Net |
| 2717.32 € |
Gross |
|
AMPLUX PCs are an ideal gadget for mobile professionals. They enable you to take notes quickly and work in close spaces. Rugged Tablet PCs provide even more benefits for mobile professionals. TP-M1050R-A is fully rugged and is certified for both military and industrial ruggedization standards.
|
|
|
Case and size
Integrated options include a GPS solutnion, GSM/GPRS/EDGE/3G/HSDPA(external PCMCIA card), LCD (touchscreen and digitizer). In addition, IP54 certified design with a full aluminium-magnesium alloy case, helps to ensure that the TP-M1050R-A will stand up to the most rigorous environments.
|
|
Communications
Amplux TP-M1050R-A supports the state of art wireless network feature. It basically supports the wireless LAN 802.11 b/g, Bluetooth has built-in (PCMCIA) 3G HSDPA module ang GPS solution options. The great expansion of WiFi technologies to wireless connect to the Internet both in professional and domestic settings through the public or private hot-spots, make your TP-M1050R-A an inseparable resource for your daily activities. You can enjoy the use of various wireless networks and wireless Internet to your heart's content with UMPC TP-M1050R-A at any time and place where the wireless Internet environment is established. |
|
|
|
Processor and chipset
TP-M1050R-A is supported Intel Single Core Atom N270 1.6GHz processor, thanks to what it is unsually energy-saving, keeping near this large efficiency of work, what proof system is Windows XP / 7 which be dedicated for this device.
|
|
Screen
TP-M1050R-A ships standard with a transflective sunlight viewable 10.4" LED 1024x768 screen, ideal for high ambient light conditions standard 350nits, option 800nits. A built-in touch screen allows finger-touch inputs directly on the screen or the use of the stylus pen for data input capability.
|
|
|
Option accessories
AMPLUX delivers our all new Ruggedized Tablet products with two kind of series: one is Rugged Mobile PC Series for a Panel PC with battery charging solution, other series is Rugged Tablet PC Series with totally portable design with hot-swap battery for outdoor use. |
Car AC |
|

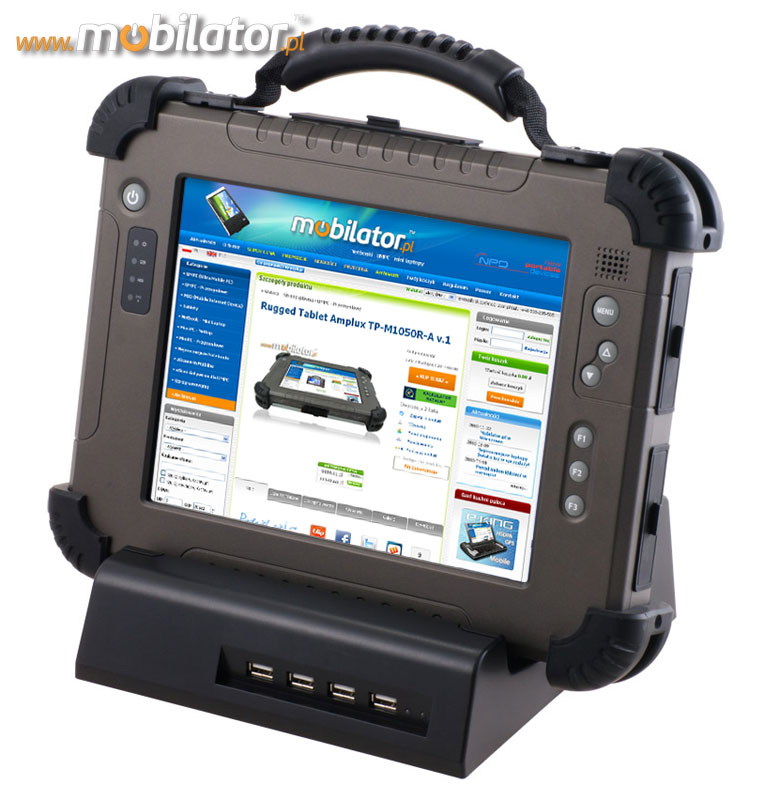

Docking Station |

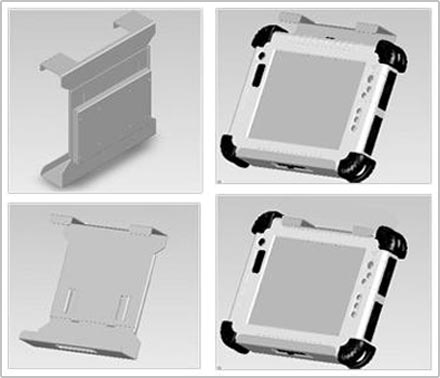

Vehicle Mount Kit VESA |
|
Vehicle Mount Kit |
Carrying Handle |
|
Shoulder Handle
|
Carry Bag |
|

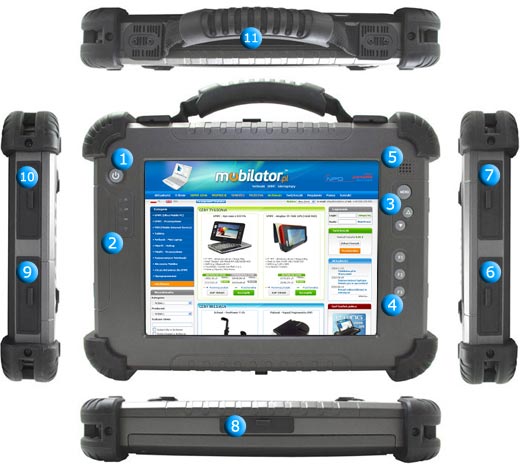

1. Power
2. LED Indicators
3. Functions key
4. Buttons Software
5. Speaker

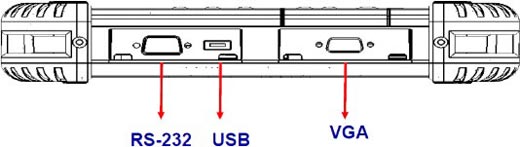

6. RS232, USB |
7. VGA

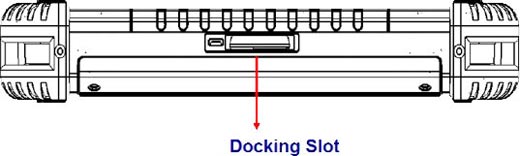

8. Docking expansion
9. 2xUSB, DC-in
10. LAN, Audio, Microphone

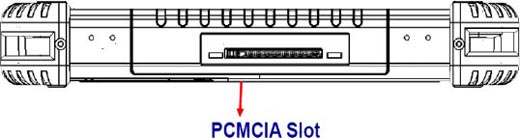

11. PCMCIA |
|
|

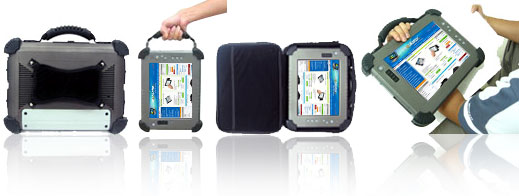

Ergonomics:
-Designed with about custommer.
-Comfortable strong handle be irreplaceable in transportation.
|
|
|
Mobility:
- WiFi 802.11b/g,
- Bluetooth,
- option GSM/GPRS/CDMA/UMTS/EDGE PCMCIA Express card,
- option GPS PCMCIA Express card |
|
|
Software:
- Programmable function HotKey buttons.
- Programmable application HotTab SW
- Support: Windows XP, 7
|
|
|

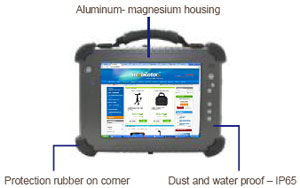

Durability:
- Full Rugged aluminium-magnesium alloy case. |
|
|
Screen:
- 10.4" LED 1024x768 touch screen, ideal for high ambient light conditions standard 350nits, option 800nits. |
|

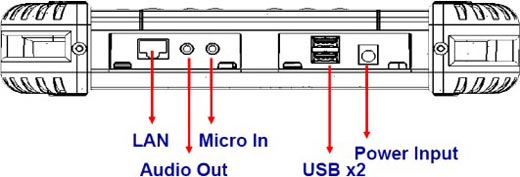

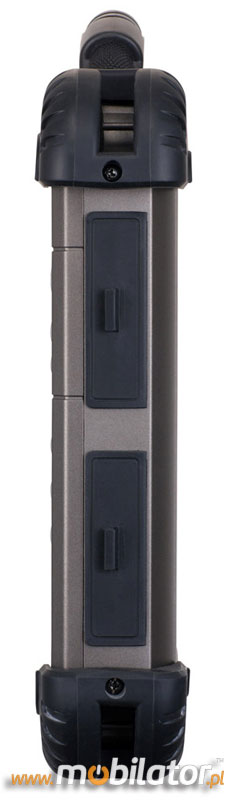

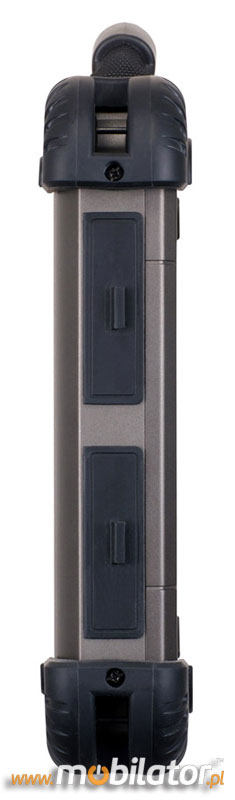

Left view:
|
|
The TP-M1050R-A, rugged tablet is ideal solution for Government; industrial/commercial customers who are interested in the ability to work in rough environments yet maintain productivity without the risk of data or performance losses.
|
|
The following is a top-level introduction to US Military standard MIL-STD-810, used to define the testing methodology for, and results required for acceptance of, rugged equipment.
MIL-STD-810 is a series of performance and manufacturing guidelines set by the US Department of Defense for military and commercial equipment and applications. These guidelines specify allowable parts and environmental condition ranges in which a device must be able to operate to meet compliance.
MIL-STD-810 is a generally accepted standard of ruggedisation testing and compliance for mobile computers and equipment.
The MIL-STD-810 test method is used to generate confidence in the environmental worthiness and overall durability of ‘material system’ design. The testing process follows guidelines, which include program documentation, program roles, test standards, and laboratory test method guidelines for all categories.
The laboratory test methods are broken down into 24 categories and thereafter procedures (specific tests or levels) appropriate to the environment in which the equipment is expected to be used. The compliance test categories are shown overleaf. |
|
MIL-STD 461E
Requirements for the Control of Electromagnetic Interference Characteristics of Subsystems and Equipment.
|
|
Vibration: MIL-STD 810F Metod 514.5
|
|
Shock: MIL-STD 810F Metod 516.5
|
|
Nit - 1Nit = 1Candela - The candela is the luminous intensity, in a given direction, of a source that emits monochromatic radiation of frequency 540×1012 hertz and that has a radiant intensity in that direction of 1⁄683 watt per steradian. The definition describes how to produce a light source that (by definition) emits one candela. Such a source could then be used to calibrate instruments designed to measure luminous intensity.
The candela is sometimes still called by the old name candle, such as in foot-candle and the modern definition of candlepower. |
| Durability: |
MIL-810F / Full Rugged |
| Humidity: |
10 - 90% |
| Waterproof: |
IP 54 |
| Temperature: |
-20˚C ~ 60˚C |
| Shock: |
MIL-STD 810F Method 516.5 |
| Vibration: |
MIL-STD 810F Method 514.5 |
| Drop: |
MIL-STD 810F Method 516.5 / 1.20m |
| Sand and dust: |
IP 54 |
| Dispaly: |
10.4'' (1024x768) |
| Brightness: |
350nit |
| Contrast: |
----- |
| Touch screen: |
Yes |
| Graphics card: |
Integrated |
| Swivel Hinge: |
No |
| VGA out: |
Yes |
| TV Out: |
No |
| TV Tuner: |
No |
| Processor: |
Intel® Atom™ N270 1.6GHZ |
| Chipset: |
Intel® 945GSE |
| BIOS: |
AMI System BIOS |
| Memory: |
1GB DDRII |
| Hard Drive: |
2.5'' 80GB HDD |
| Battery: |
4800mAh Li-Ion |
| Working time on battery: |
300min - 5h |
| Size: |

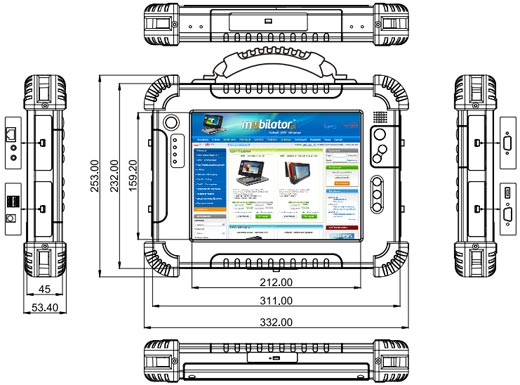

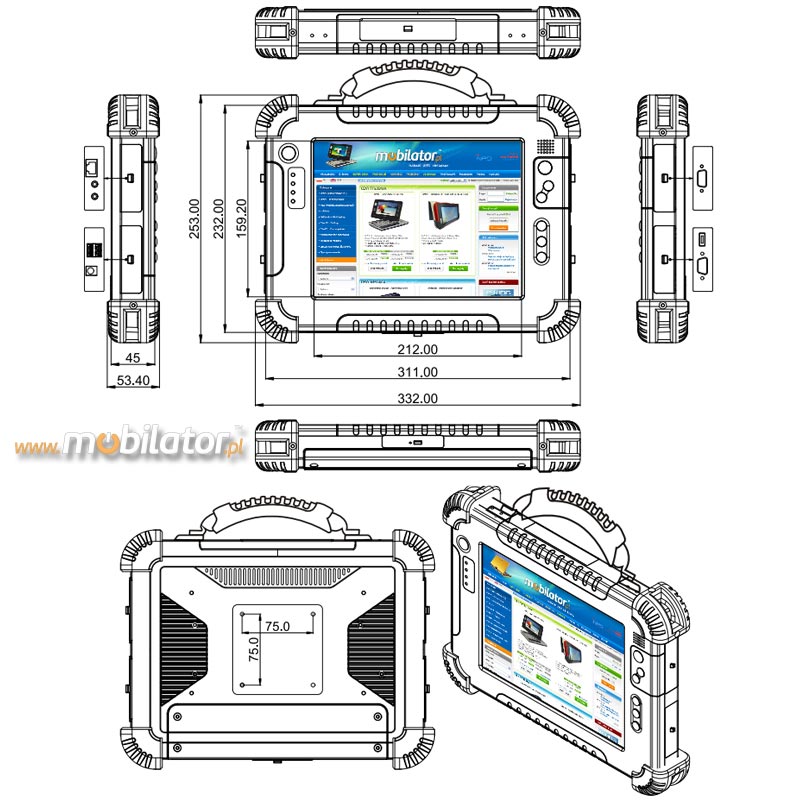

311 x 232 x 45 mm / 2.2 Kg / VESA |
| Operating System: |
None (Option Windows Xp / 7) |
| LAN: |
Yes 10/100/1000 LAN |
| WLAN: |
Yes WiFi b/g |
| Bluetooth: |
Yes Bluetooth 2.0 |
| WAN: |
No |
| GPS: |
No (Option) |
| Flash Card Reader: |
None |
| CD/DVD: |
No (optional by USB) |
| Camera: |
No |
| Audio: |
2 Speakers stereo |
| Seciurity: |
Gum corners |
| In/Out: |
1x LAN, 1x Audio out, 1x Micro-in Jack, 2x USB, 1x Power input Jack. |
| Keyboard: |
No |
| Additional Navigation Devices : |
No |
| Color: |
Graphit |
| Optional accessories: |
Car AC, Docking Station, Vehicle Mount Kit VESA, Vehicle Mount Kit, Carrying Handle, Shoulder Handle, Carry Bag, Car Mounting |
| Other: |
MIL-STD 461E / Fanless / Stadard VESA |
|
