UMPC - Kohjinsha SX4-B
The product from the archive - production terminated
Kohjinsha SX - mini laptop with DVD SuperMultiCombo
|
MOBILITY WITH NO COMPROMISE
Currect price comprise device with Microsoft XP Home.
Weight only slightly over 1000 grams, and compatibility with most operating systems allows you to take a Kohjinsha SX v every trip and the use of almost every available now on the software market. Working with popular Microsoft Office will be simpler and more pleasant through the use of a wide range of controls and pointing.
Kohjinsha SX offers more than just mobility - a laptop that combines the functionality of the Smart Phone'a, PDAs, Movie Player and MP3 player - with a modern designer, creating an amazing product.
The SX has the benefit of having an easy to use Qwerty keyboard, with real keys and full notebook functionality. The SX combines your conventional notebook, desktop, PDA, MP3 and MP4 Player, whilst being not much bigger than a paperback book.
The thorough study of all the ergonomic aspects, the keyboard dimensions and the position of the main control keys allow a very simple usage – even standing. |
ONLY S41 WITH DVD SuperMultiCombo  go top…
The model Kohjinsha SX in its form is based on successful previous model, but the spirit of engineers was to create something innovative, something which does not offer any other mini-notebook. Thus was the world's first mini-laptop with built-in optical drive installed SuperMultiCombo DVD. You Kohjinsha SX does not have to worry about the lack of additional USB port attached to the optical drive. Built-in Super Multi DVD Combo allows record and play all kinds of data, video, pictures and music.
|
|
Kohjinsha SX integrates communication technologies, wired and wireless.
|
|
Using Intel ® SX  as a Kohjinsha SX compact notebook computer will be an excellent office. Given the built-in VGA port, LAN 10/100 network card and USB 2.0 - you can connect to mini-v many multimedia and office equipment (printer, mouse, keyboard, scanner, a set of external speaker, headphones, pen driver, etc.). Integrated card Wireless LAN (WiFi) and a built-in Bluetooth module ® allows you to connect with the Internet through your wireless network or hot spot - anywhere in the world.
|
|

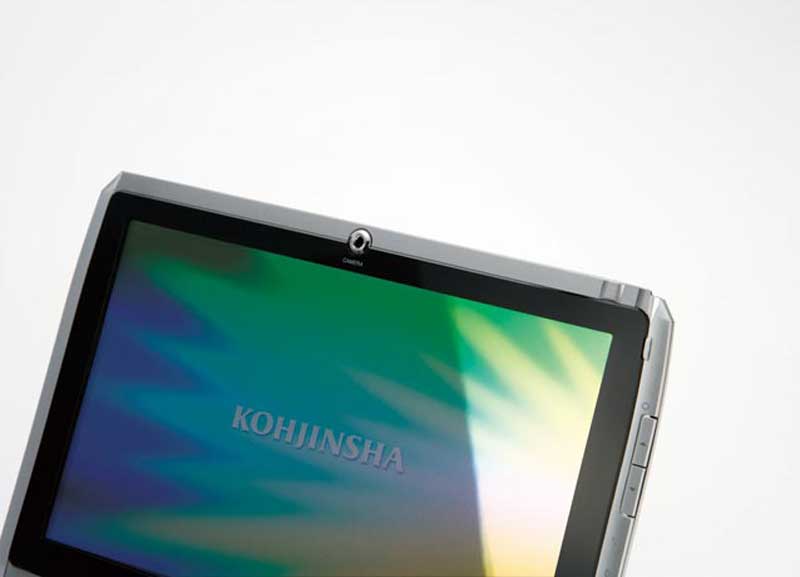

WEBCAM
Whatever the connection used, your 2.0 Mpixel webcam will allow you to be seen while videoconferencing, thus reducing distances. |
|

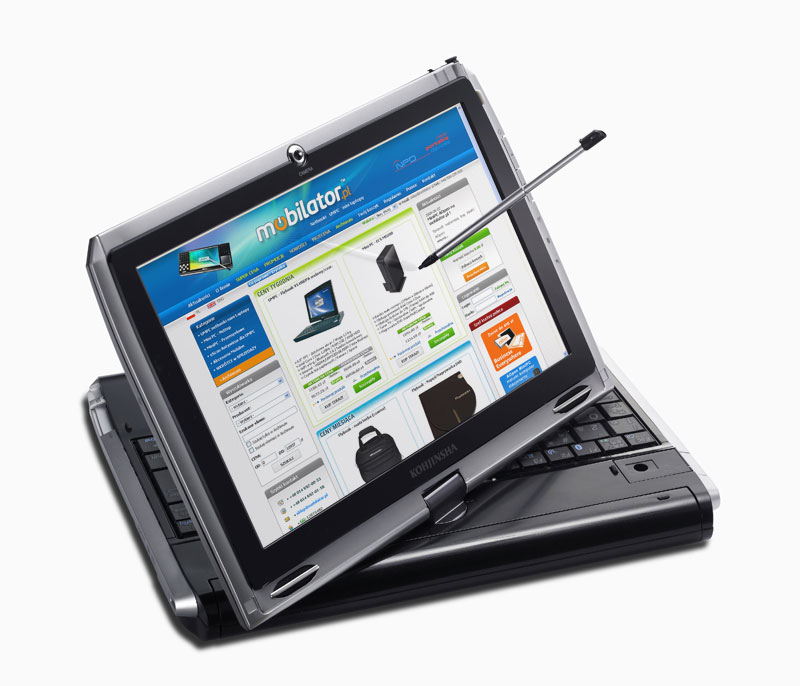

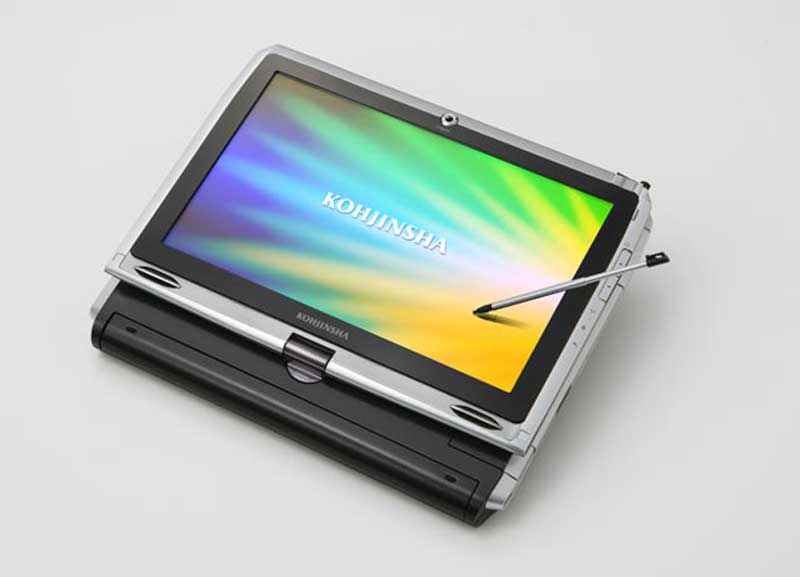

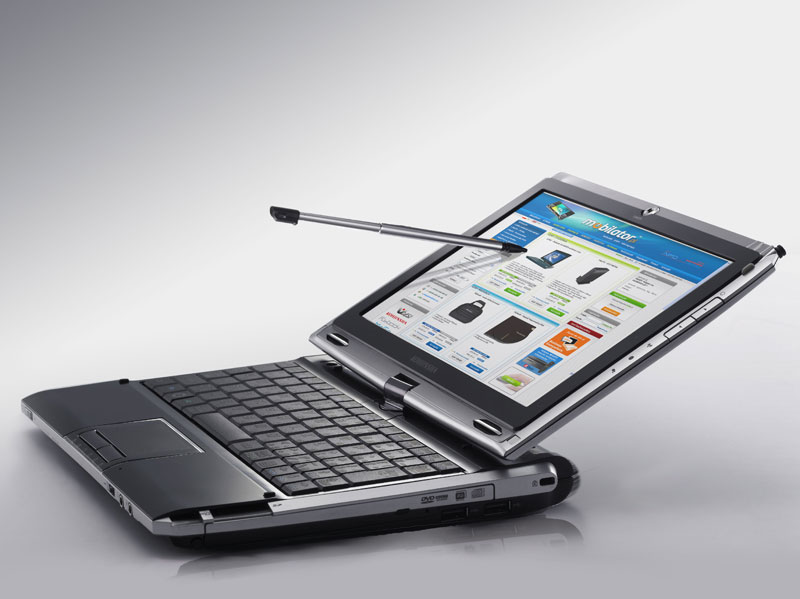

Use your Netbook Kohjinsha SX like a real block notes: thanks to its touch-panel, it allows you to write your notes on the screen as you would do with a normal paper sheet. The stylus pen can be used to easily and quickly access all the Vye's functions or to add notes to your documents. Thanks to the Microsoft Windows Vista operative system, it’s easier to manage all the info written on the screen: use the tools given by the O.S. and see how they perfectly integrate with Vye's technology. |
|
EQUIPPED WITH
|
1. Front Camera: 0.35
Mega Pixels
2. Brightness Button
3. Rear Camera: 2 Mega
Pixels
4. Buit-In Stereo
Speakers
5. Keyboard
6. 8.9" WXGA Swivel LCD
with Toch Screen
7. Power Switch
8. RF Switch
9. Optical Drive
10. Vent
11. Volume Control Knob
(With Mute Switch)
12. Headphones Jack
13. Microphone Jack
14. Kensington Security
Slot
15. Analog RGB (VGA)
16. Vent
17. ExpressCard / 34 Slot
18. AC Power Jack
19. LAN Port Cover
20. Memory Stick Duo Slot 21. Micro SD Card Slot
22. SD / MMC Card Slot
23. Eject Button
24. DVD Super Multi Drive
25. Kensington Security
Slot
26. Stylus Pen
27. USB 2.0 port
28. USB 2.0 port |
|
|
VIDEO
Kohjinsha SX-4  Kohjinsha SX-4  Kohjinsha SX-4  Kohjinsha SX-4
| WAN: |
No (Optional Yes external HSDPA modem on USB) |
| WLAN: |
IEEE 802.11 b/g |
| Bluetooth: |
Bluetooth 2.0 |
| Processor: |
Intel Atom Z520 1,33 GHz |
| Memory: |
1GB DDR2 |
| Chipset: |
Intel US15W |
| Dispaly: |
8,9'' (1280x768) TFT LCD |
| Graphics card: |
Integrated |
| Touch screen: |
Yes |
| Swivel Hinge: |
Yes |
| Hard Drive: |
120 GB |
| BIOS: |
ACPI 2.0 |
| VGA out: |
Yes (D-sub 15pin). Up to 1600 x 1200 resolution (highest to 32-bit color) |
| LAN: |
10BASE-T/100BASE-TX-LAN |
| Camera: |
Front - 1,3 megapixels / Rear - 2 megapixels |
| Audio: |
Realtek ALC262 VC2GR - two stereo speakers |
| Seciurity: |
Two Hole For Kensington cord |
| TV Out: |
No |
| In/Out: |
1 x LAN (RJ-45), 1 x headphones out, 1 x microphone in, 2 x USB 2.0, 1 x mini-VGA, 1 x Media Card Slot (4in2), 1 x ExpressCard 34 |
| Keyboard: |
QWERTY + function keys |
| Additional Navigation Devices : |
Pointer, Touchpad, Click Button (L&R), Volume, Power DVD On/Off, Scroll (Up/Down) |
| Battery: |
Standart battery Li-Ion (2600mAh, 3 cells); Large battery (option - Li-Ion (2600mAh, 6 cells) |
| Working time on battery: |
Standard battery - 4h 30 min, large battery - up to 8h 30min |
| Size: |
225 x 185 x 33 (mm). Weight 12500g |
| CD/DVD: |
DVD SuperMultiCombo - 9.5mm Height Device (ATAPI) |
| Operating System: |
Windows XP Home |
| Flash Card Reader: |
4 in 2 - Memory Stick / SD card / MMC / CF |
| GPS: |
No (Optinal Yes Bluetooth or USB module) |
| TV Tuner: |
No |
| Color: |
Black |
|
