3x Industial Touch Monitor CCETM10-IP65

Data update: 2018-02-14

guarantee 2 years

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
up to 3 weeks
CURRENT PRICE
845.55
Net
1040.03
Gross
Znak akceptacji płatno?ci pl



Compare all versions



Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

Industrial Touch Monitors

Small dimensions Industrial Panel Monitor are used in environments dominated by dust, dirt and moisture. They are ideal for applications requiring quiet and continuous operation. Industrial touch screen monitor, through its function of touch, replaces: mouse, keyboard, or other pointing device.

Description


Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

CCETouch

Industial Touch Monitor CCETM10-IP65






Industial Touch PC CCETouch CT08-PC Komputer panelowy Panel PC

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

Resolution: 1024x 768/ 4:3


LCD size: 10"


Backlight: LED


Connectors: VGA / USB


Screen Protection: IP 65



Mounting: VESA: 75mm x 75mm / 100mm x 100mm

Built-in speakers: Yes


Detailed specification of the configuration available in the "Technical data"


Using the latest technology Industrial Monitor is designed for continuous multitasking operating with low power consumption 9-25W. An important advantage is the effective combination of small size with considerable opportunities.

Dimensions:

Housing dimension are 258 (W) x 205.1 (L) x34 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.75 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

go top… do góry   menu… menu

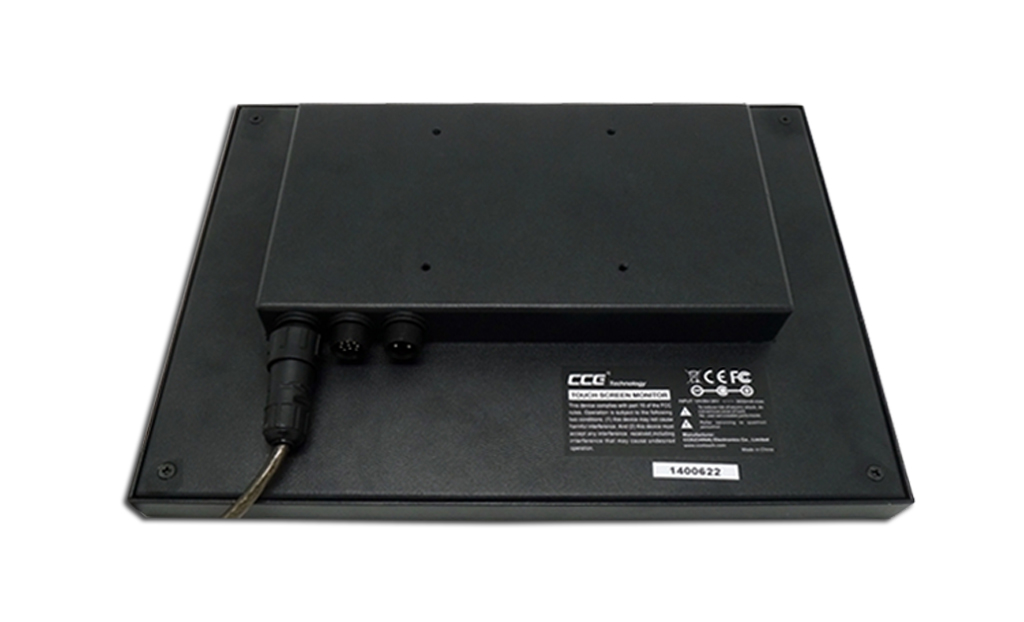

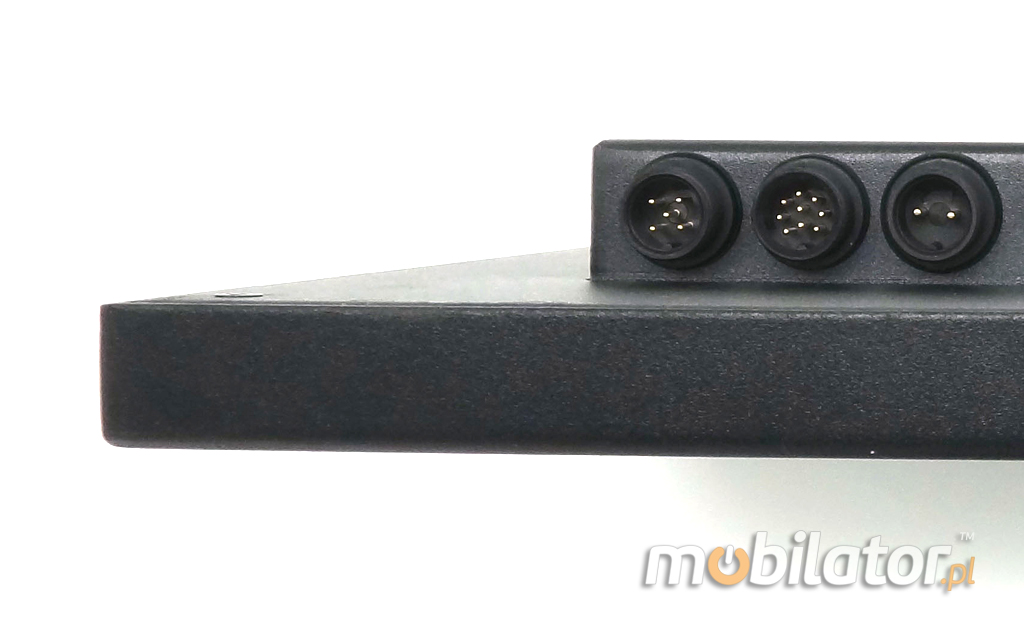

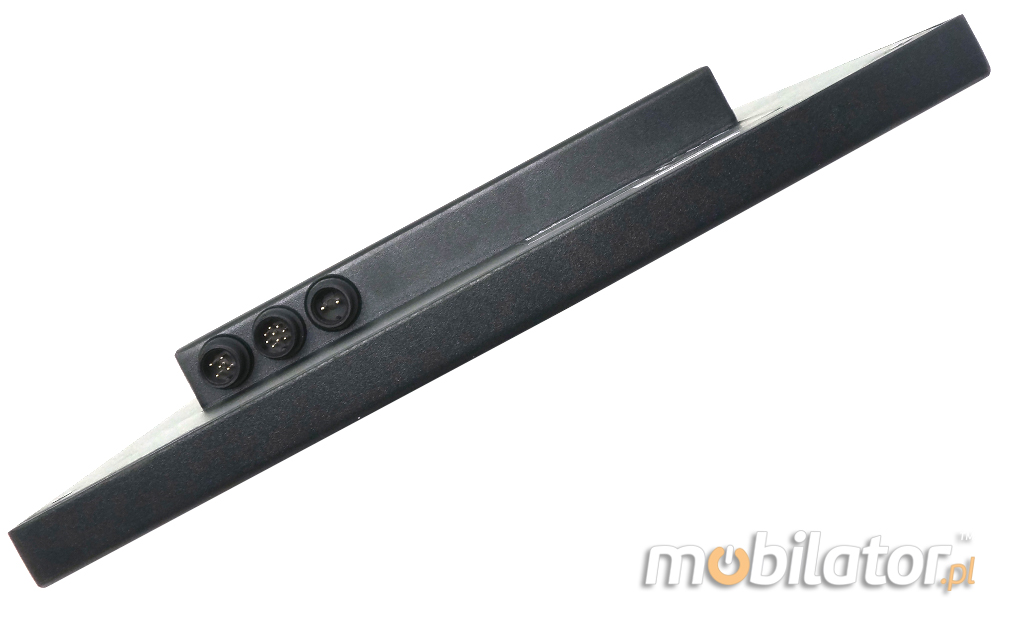

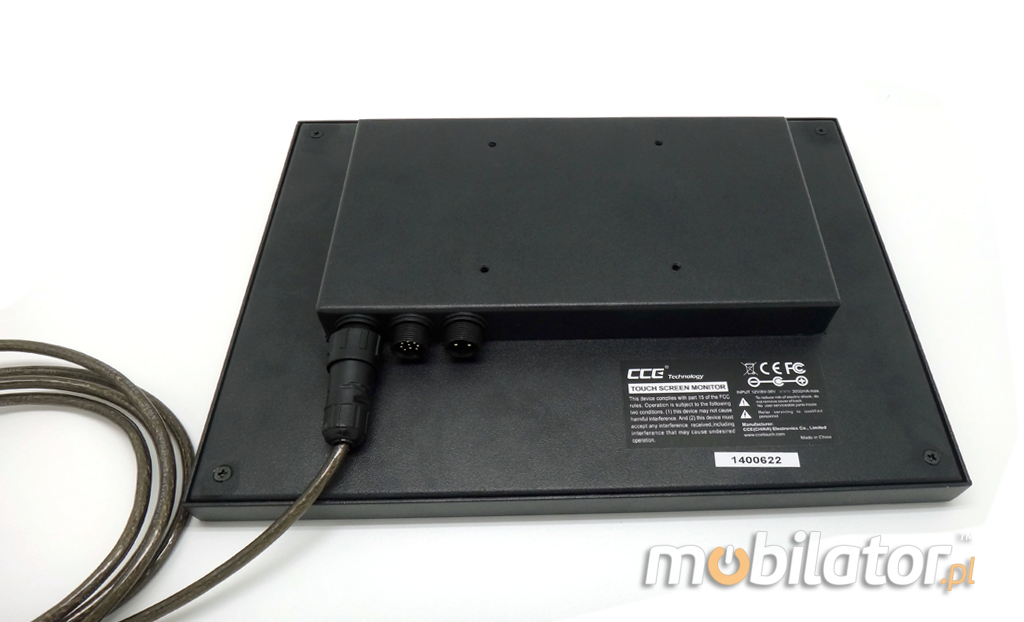

Connector

Connector:

Industrial Touch Monitor CCETM10-IP65 is equipped with the essential connectors such as:

- 1 x VGA,

- 1 x USB(for touch screen),

- 1 x DC-in,

For proper operation of the touch controller is needed connect the monitor to the computer using the USB cable.

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

Screen

Industial Touch Monitor CCETM10-IP65 has a water-resistant scratch resistant LED screen with 3H hardness. With 1024x768 resolution and high brightness of 250 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.

The LCD monitor backlight LED technology results in realistic color rendering, energy consumption reduced by up to 40% and much lower failure rate compared to traditional LCD monitors with CCFL backlight.

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB



Resistive screen

A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen monitor is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside.  The second important layer is either made of glass or hard plastic and is also coated with ITO.  Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another.  When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).

5-WIRE RESISTIVE SCREENS

The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.

Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.

Application

Applicable standards and tests carried out.

Industial Touch Monitor CCETM10-IP65 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial IP65 aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust.  CCETM10-IP65 is the best solution for extreme applications in dust or moisture.

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

 Operating Temp
0-60 °C
 Operating Humidity 5%-95%
 Dust IP6x(dust)
 Water IPx5(drops of water)

Resistance IP65

The IP Code, International Protection Marking. IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC).

go top… do góry menu… menu

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids
No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

Industrial Monitors from the company CCETouch are based on efficient high-quality displays.Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

Industrial Monitors are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of monitors models of industrial and the ability to change the configuration, allow for optimal selection monitors for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model monitors has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

Areas of use of industrial panel computers.

With industrial touch screens (touch screen) can be used on virtually any computer, and the list of applications is limited only by the imagination. Common applications of the touch screens:

  •          information points,
  •          electronic catalogs,
  •          gambling, lotteries and slot arcade
  •          marketing media
  •          ATMs,
  •          Ticket
  •          interactive public telephones,
  •          Industrial control rooms,
  •          terminals at points of sale,
  •          control of industrial processes,
  •          palmtop computers,
  •          medical equipment,
  •          office equipment (photocopiers, franking machines, etc.)
  •          handling vehicles and machines airlines.



Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB

go top… do góry   menu… menu

Specifications


   Display

   Screen: 10"

   Resolution: 1024 x 768

   Type: 5 - Wire Resistive

   Backlight: LED

   Aspect ratio: 4:3

   Brightness: 250 nits

   Contrast Ratio: 600:1

   Resistance IP

   IP: 65

   Connectors

  1 x VGA

  1 x USB(for touch screen),

  1 x DC-in


   Dimensions



  Height:  205.1 mm

   Width: 34 mm

   Length: 258 mm

    Weight    2.75 kg

Industial Touch Monitor CCETM10-IP65 Przemysłowy Monitor Panelowy  Norma odporności IP65 Monitor dotykowy Ekran rezystancyjny 5 wire resistive wyświetlacz 10 cali LED mobilator.pl New Portable Devices VGA USB
