bBOX i7-4500U v.1 - Industrial small computer with a reinforced housing (4x LAN, 6x COM)

Data update: 2020-10-26

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays

Product Configurator

CURRENT PRICE
447.65
Net
550.61
Gross



Compare all versions

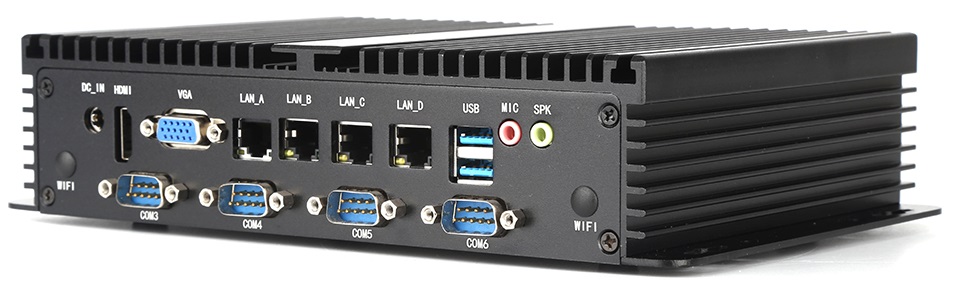

bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module



Small dimensions industrial computers excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable MiniPC use heat-pipe technology and aluminum fins for passive cooling. The robust mini Industrial Computer bBOX i7-4500U is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.





Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.
Lightweight design
The computer's weight does not exceed 3.0 kg, so it can be conveniently carried in a bag or backpack.



Efficent components
The Intel   i7 4500U
dual-core CPU provides improved device performance.

Wireless network
The mini PC can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.




Quick start
A modern SSD drive will increase the speed of application programs and ensure quiet computer operation.
Passive cooling
The use of passive cooling in the Mini PC ensures silent operation and slows dust deposition.






Optional equipment, available only in other versions of the device.





SPECIFICATION



Mini-PC bBOX i7-4500U
Processor

Intel Core i7-4500U (2x 1.7 GHz)

Operation system

Support:  Windows 7/8/10

Linux

RAM 2 GB  DDR3L
Drive

32 GB SSD

Graphic card Integrated Graphic Card
Connectivity

 WiFi | 3G/4G * Bluetooth *

LAN: Realtek RTL 8111E

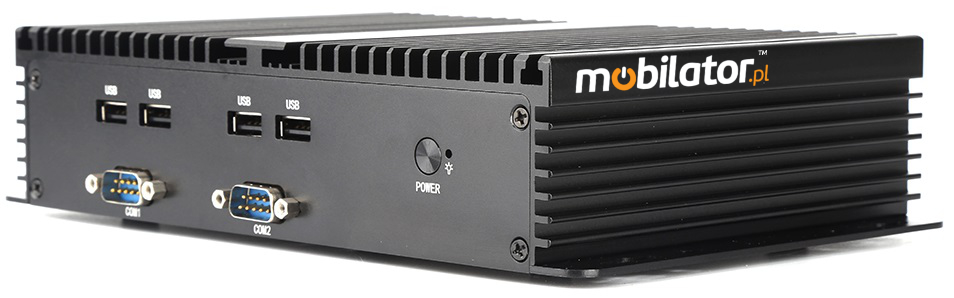

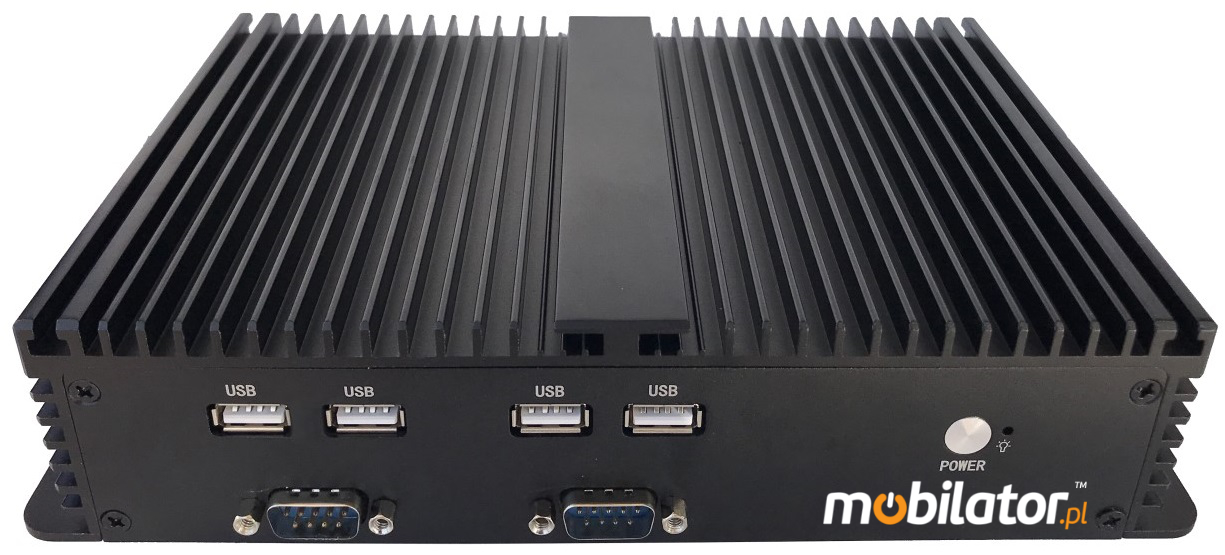

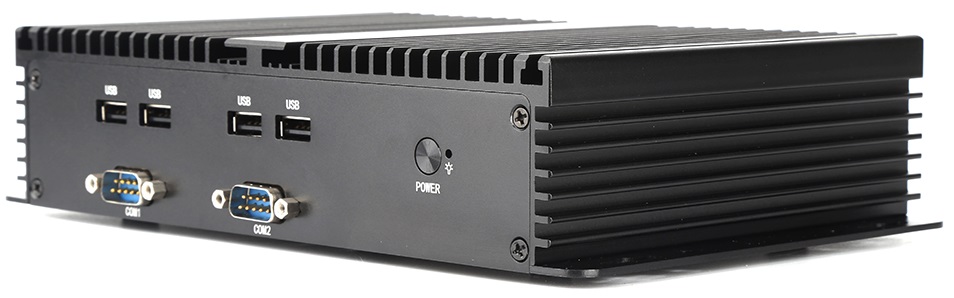

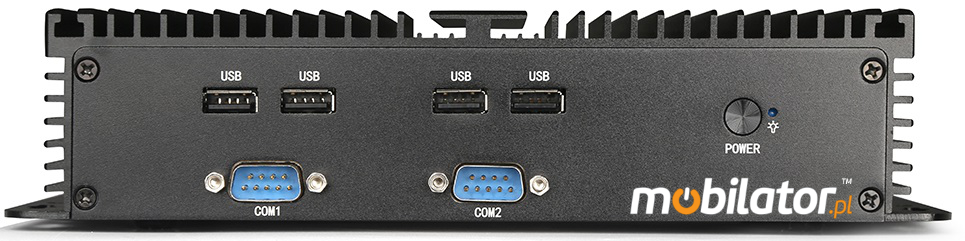

Front panel

4xUSB 2.0 | 2xCOM | Power button

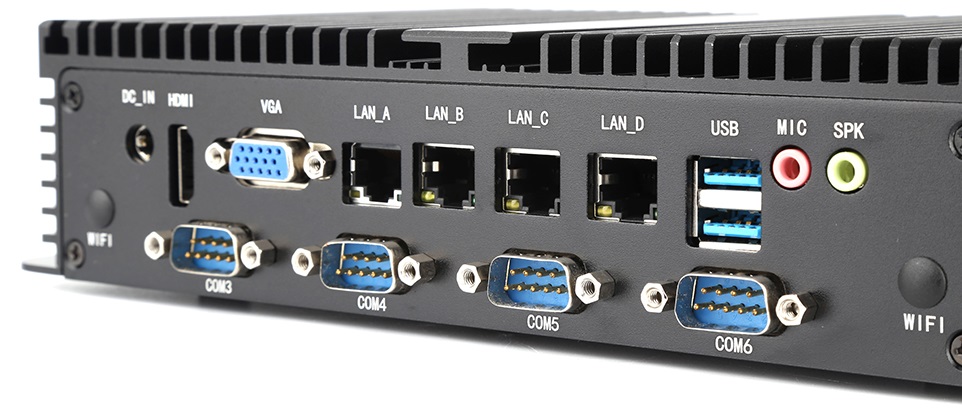

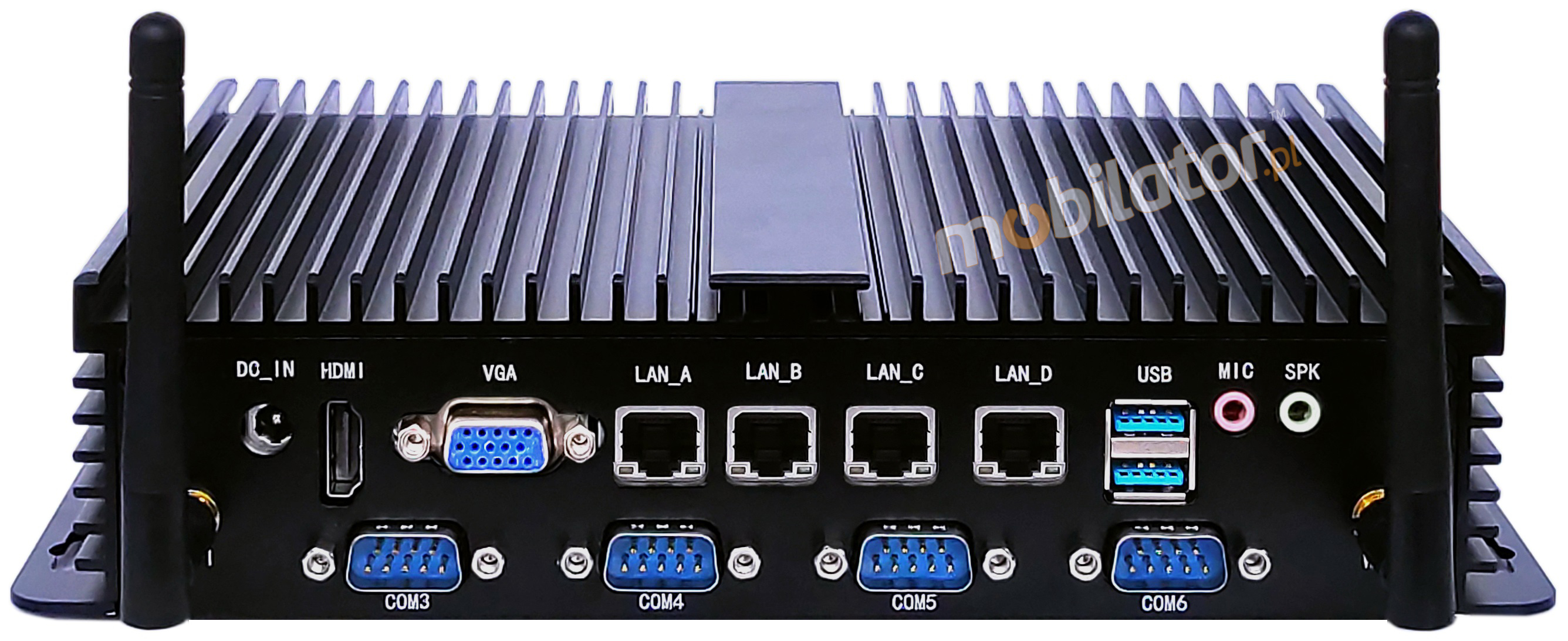

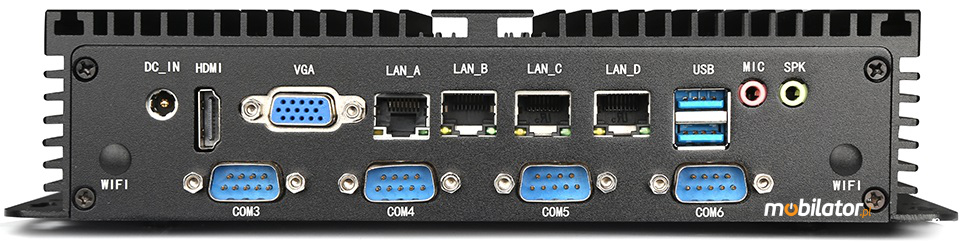

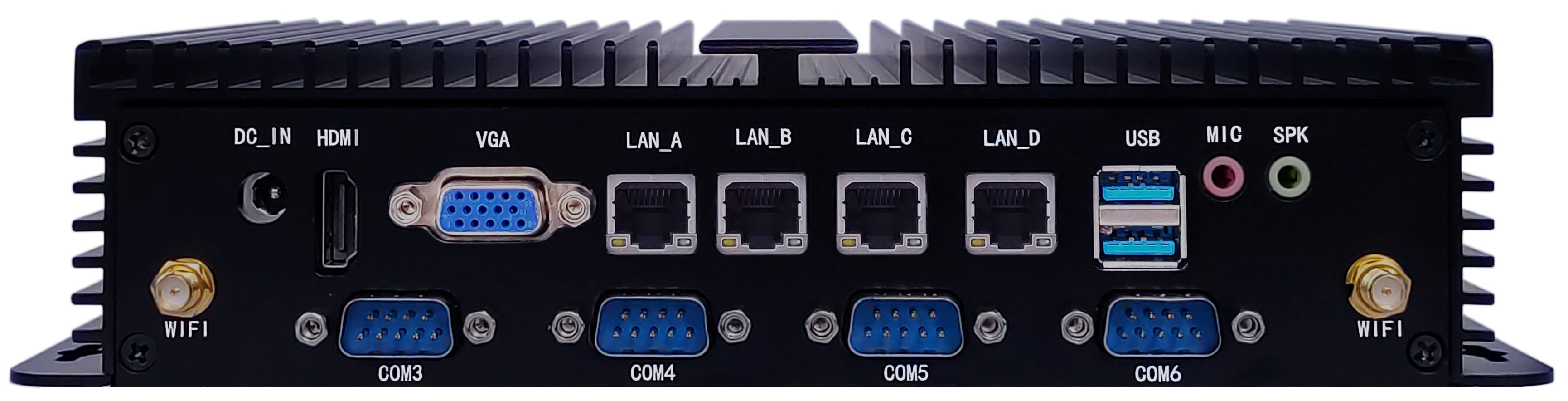

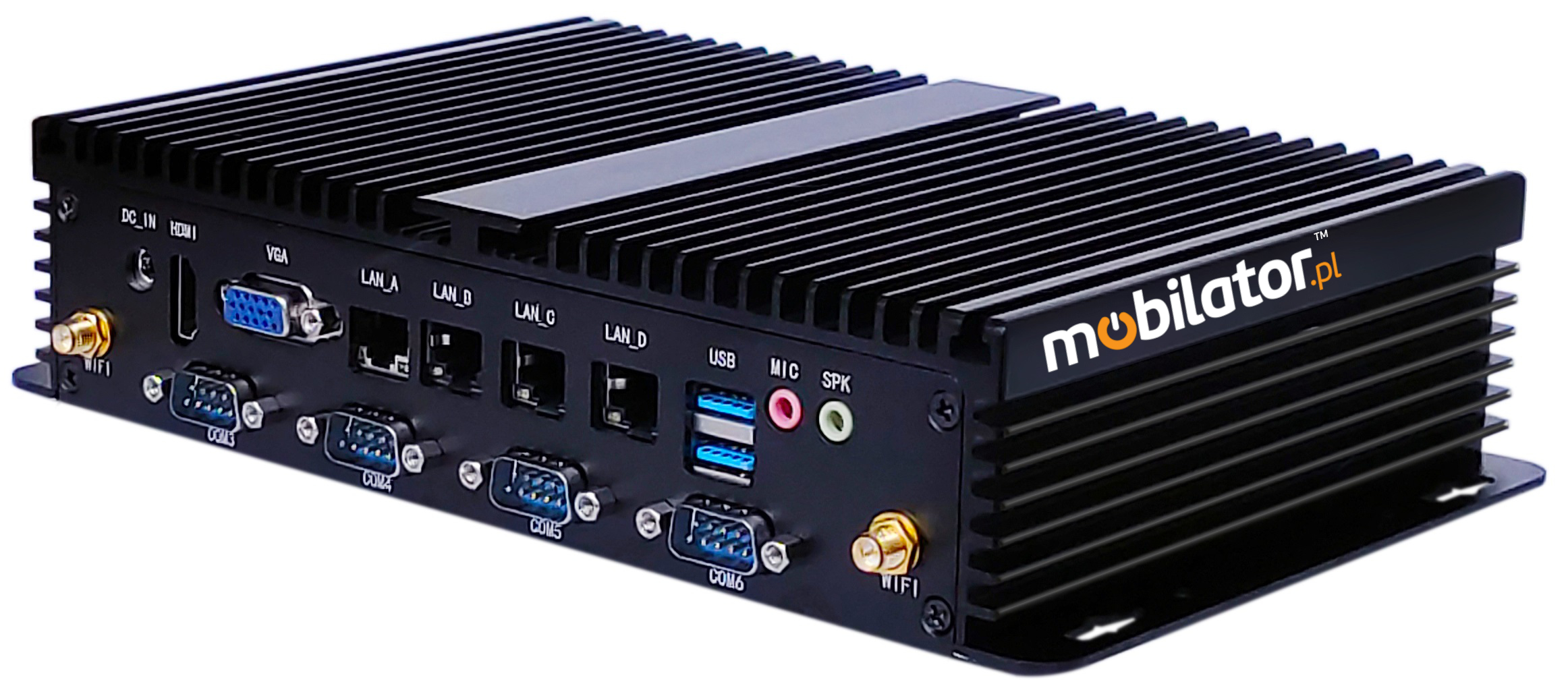

Rear panel

2xUSB 3.0 | VGA | 4xLAN  | HDMI | 4xCOM

Audio | Mic | Power DC

Available colors

Black

Dimensions 215x150x52 mm
Weight 2.5 kg






Optional equipment, available only in other versions of the device.






bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module



Efficient processor





The industrial mini-computer bBOX i7-4500U uses an efficient and energy-saving Intel i7 4500U. Inside it there are two cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

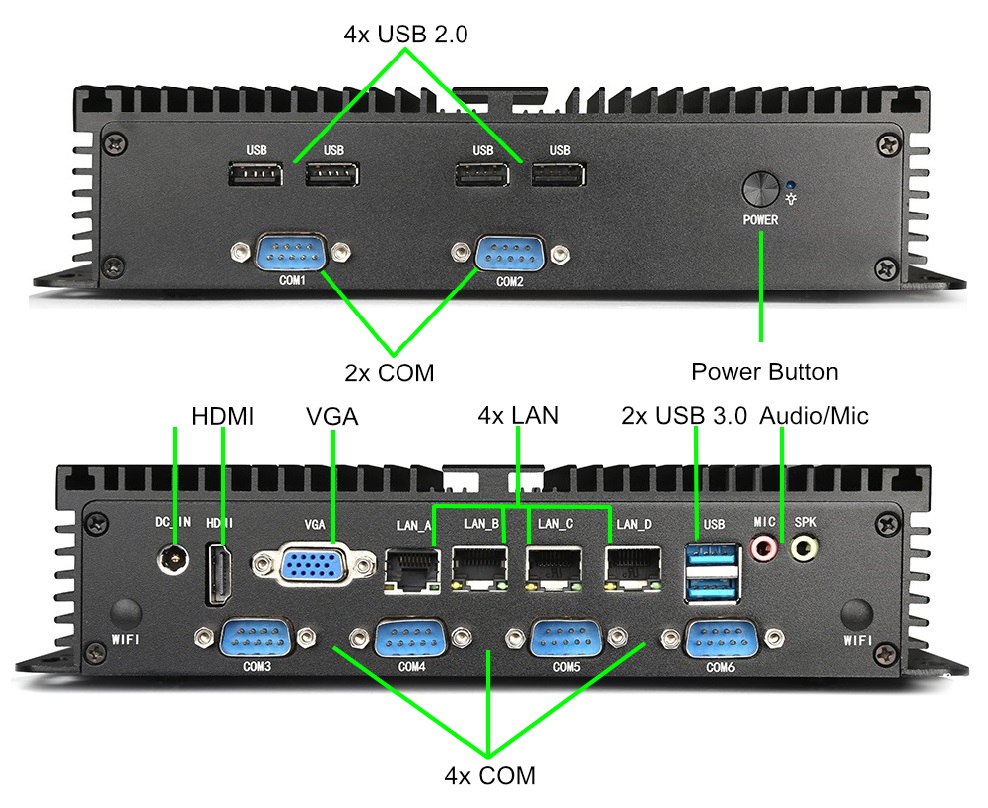

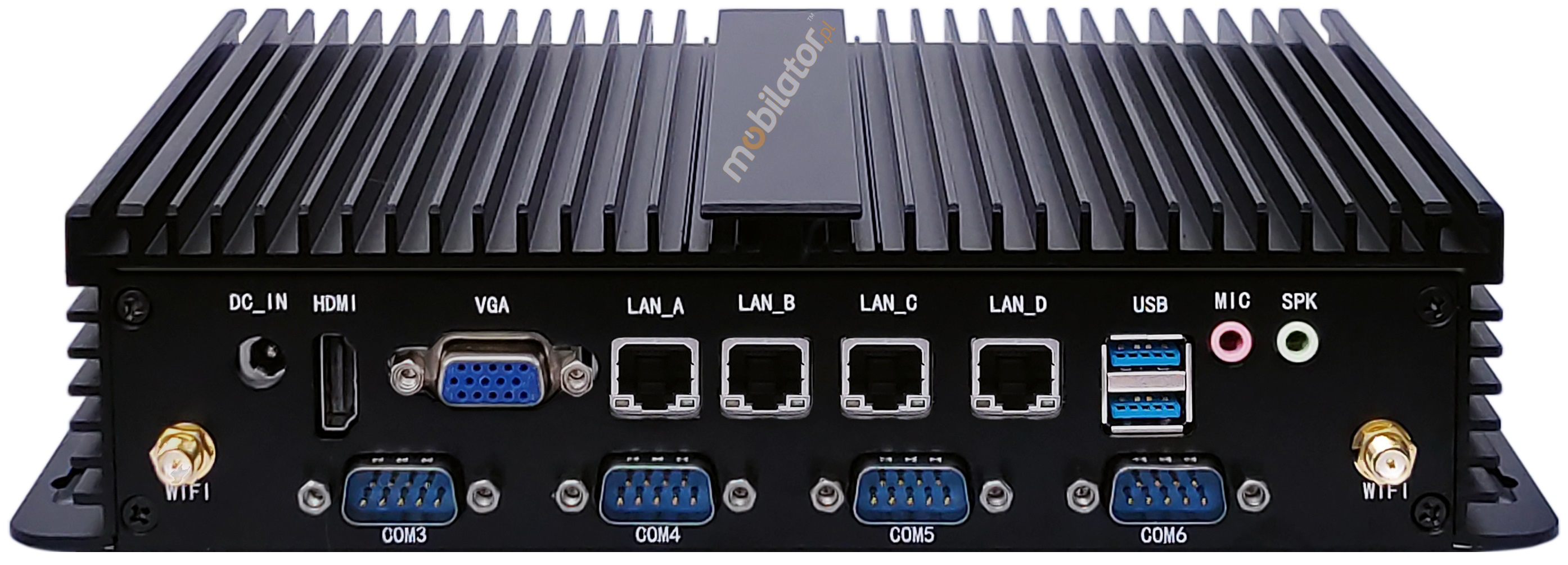

Interfaces





bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module

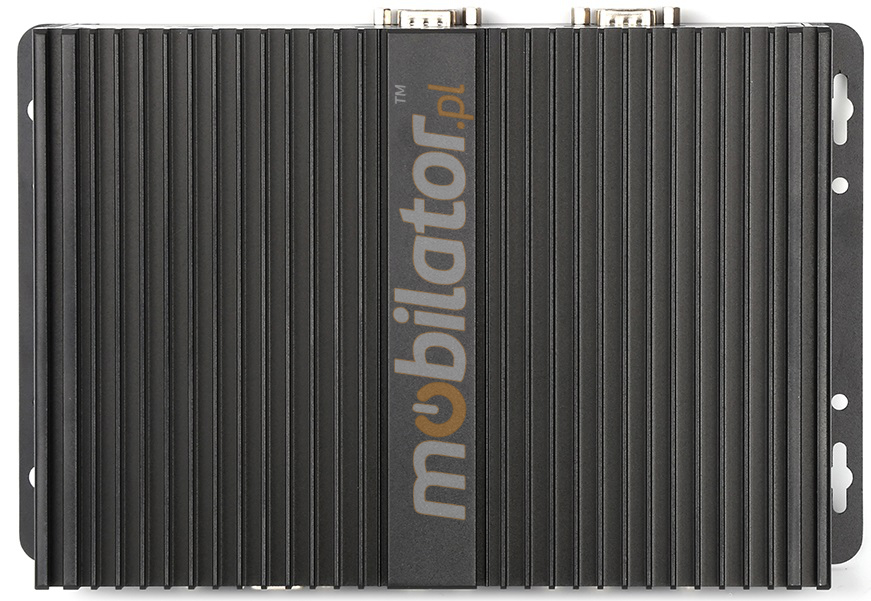

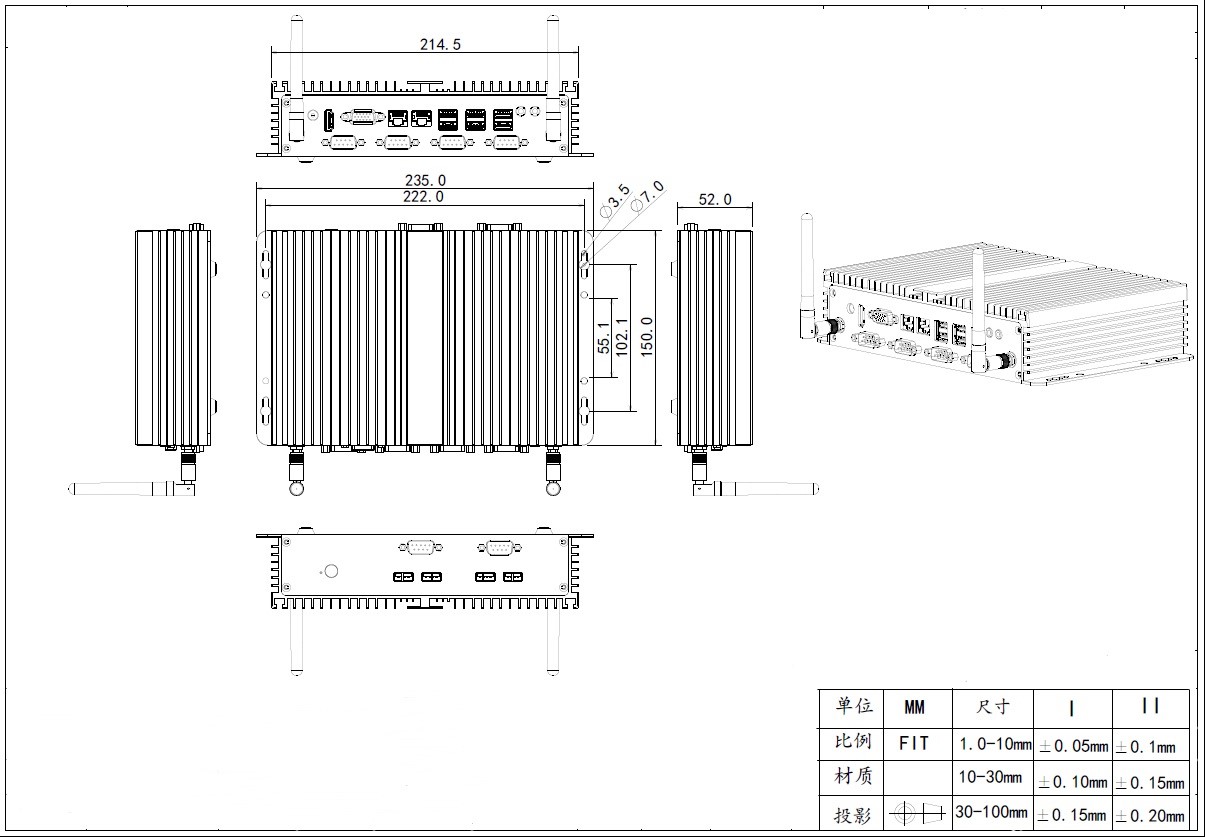

Dimensions



Thanks to the small dimensions of the MiniPC, the bBOX i7-4500U is versatile for use at home, in the office and in the industry, for example in the production hall. It's literally everywhere, and it can be mounted on the back of the monitor to optimize the job.





bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module

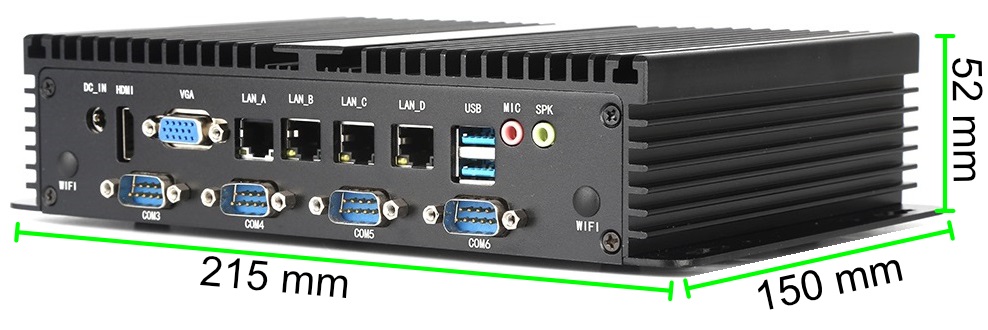

Dimensions 215x150x52 mm
Weight 2.5 kg

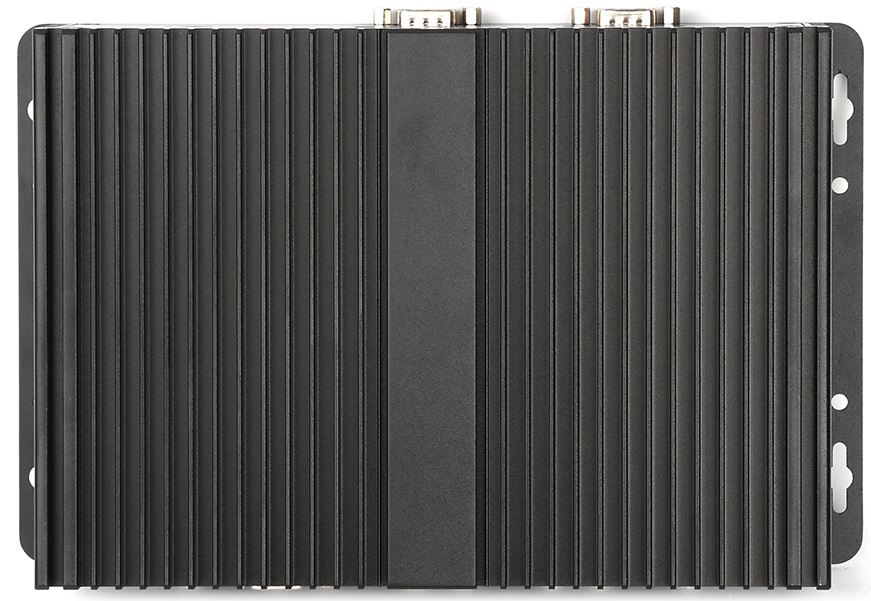

Passive coolong





The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.



do góry… do góry   menu… menu



Resistance and durability





bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module





Temperatures



bBOX i7-4500U is designed for continuous operation in both very low and high temperatures ranging from -10 °C to 60°C. If the device is switched off, it can already handle temperatures in the range of -10 ° C to 60 ° C.



Work temp. -10°C do 60°C
Storage temp. -30°C do +70°C
Humidity 5% ~ 95% Non-Condensing



Mechanical damage





The passive cooling system used in the MiniPC bBOX i7-4500U combined with the SSD disk makes this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.


do góry… do góry   menu… menu


connectivity and communication



bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module

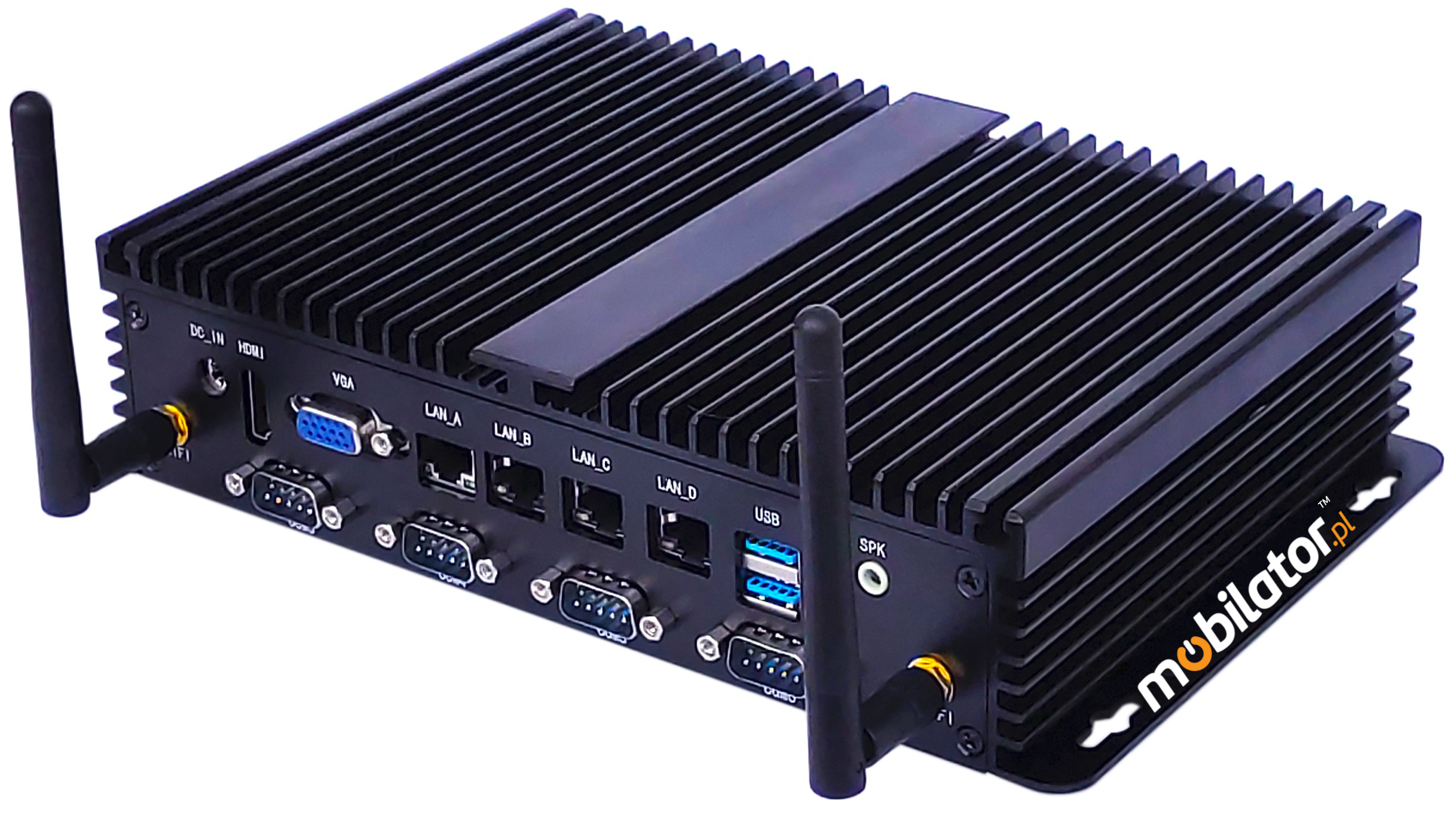

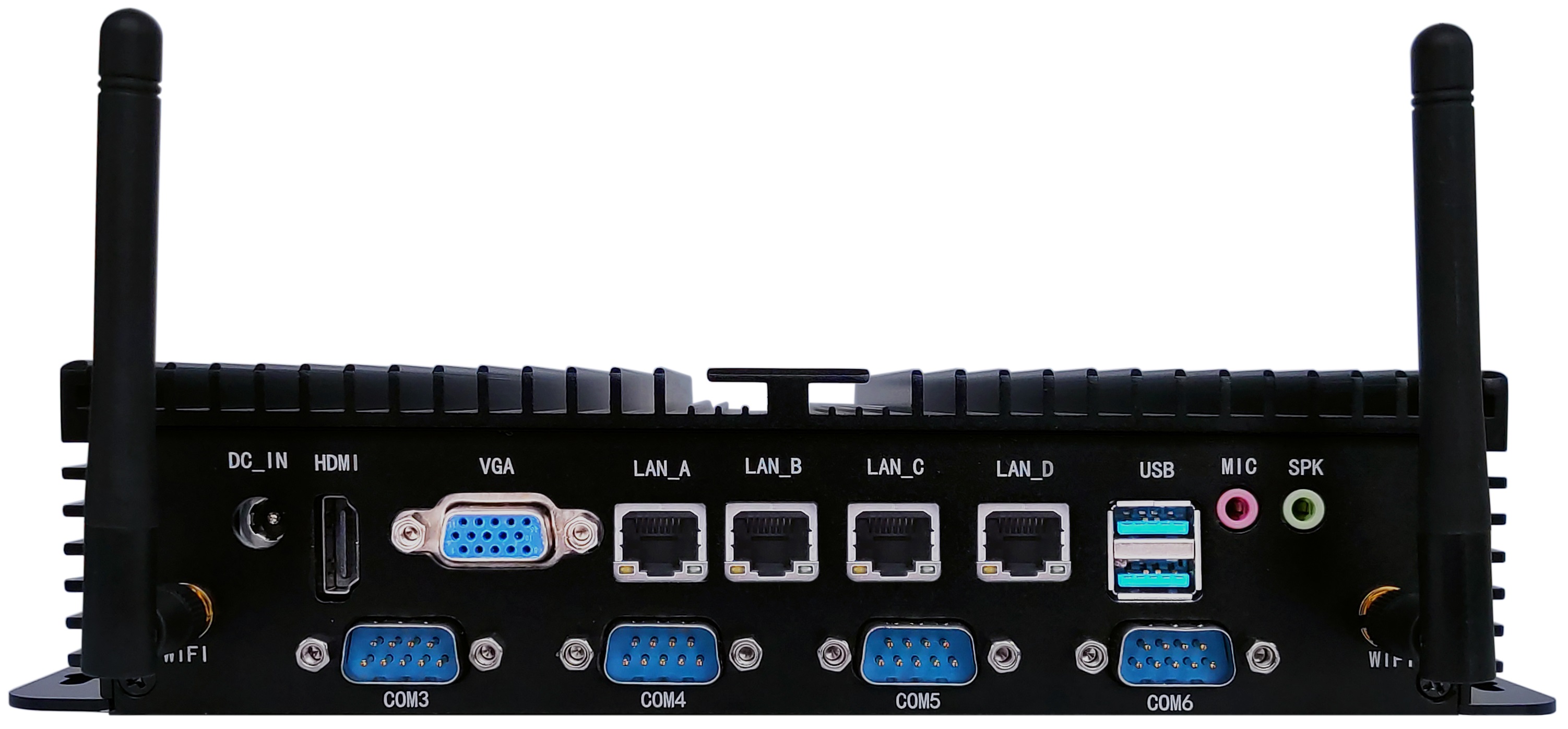

Wireless network (Option)



The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC bBOX i7-4500U has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.

Wired LAN Network



The MiniPC bBOX i7-4500U has built-in Realtek network adapter that can work in a fast Gigabit Ethernet network.


bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module





do góry… do góry   menu… menu

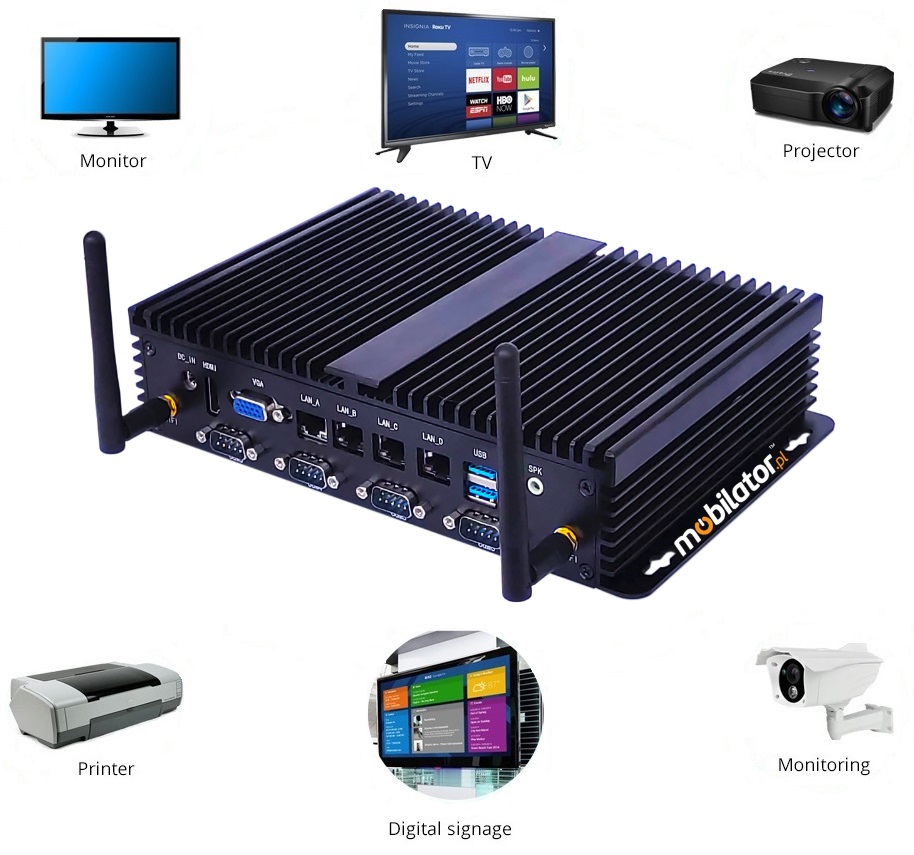

device application



Trade and service



Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management. The VESA holder mounted to the housing provides many installation options, eg in stores (at the cash register, under the desktop), in factory halls or in a delivery truck.



iBOX-ZPC X4 Industrial computer for warehouse applications with WiFi module 6x COM



Warehouse and logistics





Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.

bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module

bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module



Transport and motorization



A small industrial computer can be used in transport thanks to the ability to work on 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows you to inform the driver about the current state of the vehicle, transfer its current location to the management center, display information for passengers, etc. It performs well in vehicles where small dimensions are important.


bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module


do góry… do góry   menu… menu

available versions

bBox 4xLan BestView Industrial computer for warehouse applications with Bluetooth WiFi 3G 4G 6x COM module



The industrial mini-computer bBOX i7-4500U is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.

 v.1v.2v.3v.4v.5v.6
Wifi + Bluetooth
Wifi
4G LTE
2GB RAM
4GB RAM
8GB RAM
32GB SSD
64GB SSD
128GB SSD
256GB SSD



Compare all versions
