Fanless MiniPC Small Mini Industrial Computer yBOX-A30X (1LAN) -J1900 Barebone

Data update: 2019-03-12

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
127.04
Net
156.27
Gross
Znak akceptacji płatno?ci pl



Compare all versions

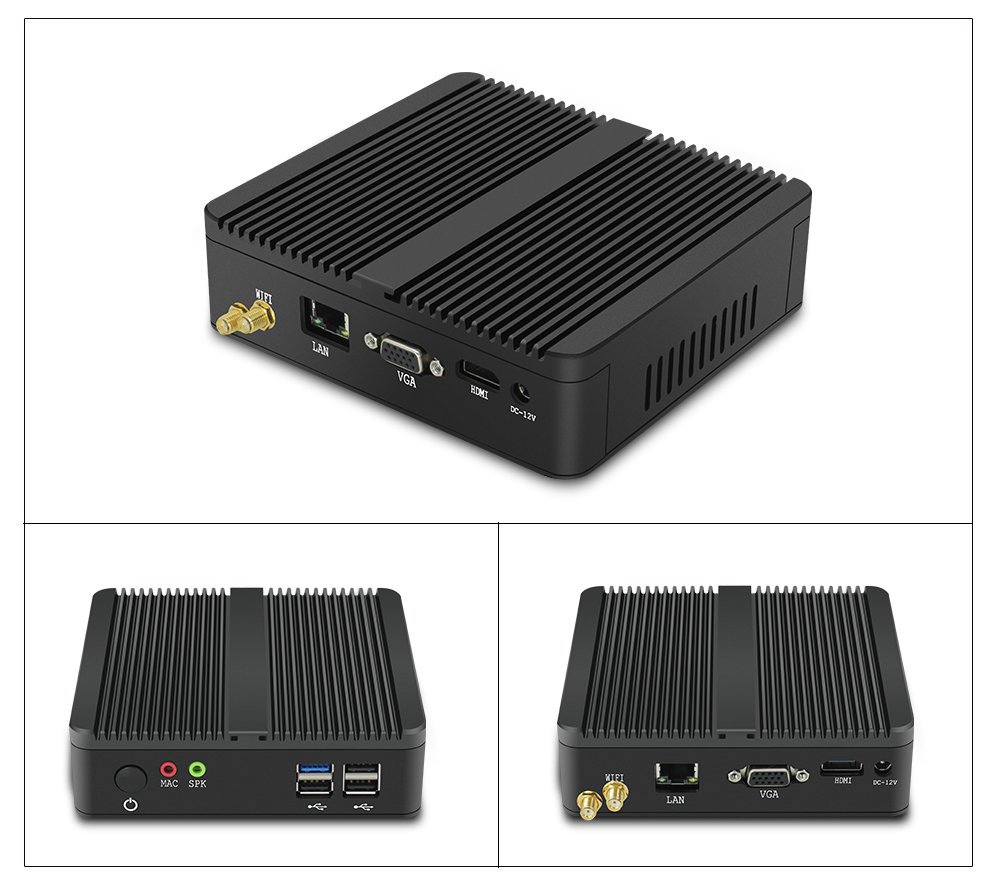

MiniPC yBOX-A30X Fanless Small Computer





Small dimensions industrial computers excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable MiniPC use heat-pipe technology and aluminum fins for passive cooling. The robust mini Industrial Computer yBOX-A30X is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.




Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.
Lightweight design
The computer's weight does not exceed 1.5 kg, so it can be conveniently carried in a bag or backpack.



Efficent components
The Intel Celeron J1900 quad-core CPU provides improved device performance.

Wireless network *
The mini PC can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.




Quick start *
A modern SSD drive will increase the speed of application programs and ensure quiet computer operation.
Passive cooling
The use of passive cooling in the Mini PC ensures silent operation and slows dust deposition.






Optional equipment, available only in other versions of the device.





SPECIFICATION



Mini-PC A30X
Processor Intel Celeron J1900 (4x 2.00 GHz)  2MB Cache L2
Operation system

Support:  Windows 7/8/10

Linux

RAM None (4GB | 8GB)  DDR3L SO-DIMM *
Drive

None (SSD: 32GB | 64GB | 128GB SSD *

HDD: 500GB | 1TB*

Graphic card Intel HD Graphics
Connectivity

WLAN:  Intel 6205 Dual-Band | 802.11 a/b/g/n

LAN: Realtek  RTL8111E Gigabit Ethernet

Front panel

Power ON | 1x Mic | 1x Audio | 1x USB 3.0 | 3x USB 2.0

Rear panel

WiFi antennas 2,4GHz & 5GHz *  | 1x LAN

1x VGA  | 1x HDMI | 1x DC 12V

Available colors Black
Dimensions 136 x 126 x 39 mm
Weight 1.5 kg






Optional equipment, available only in other versions of the device.








Efficient processor

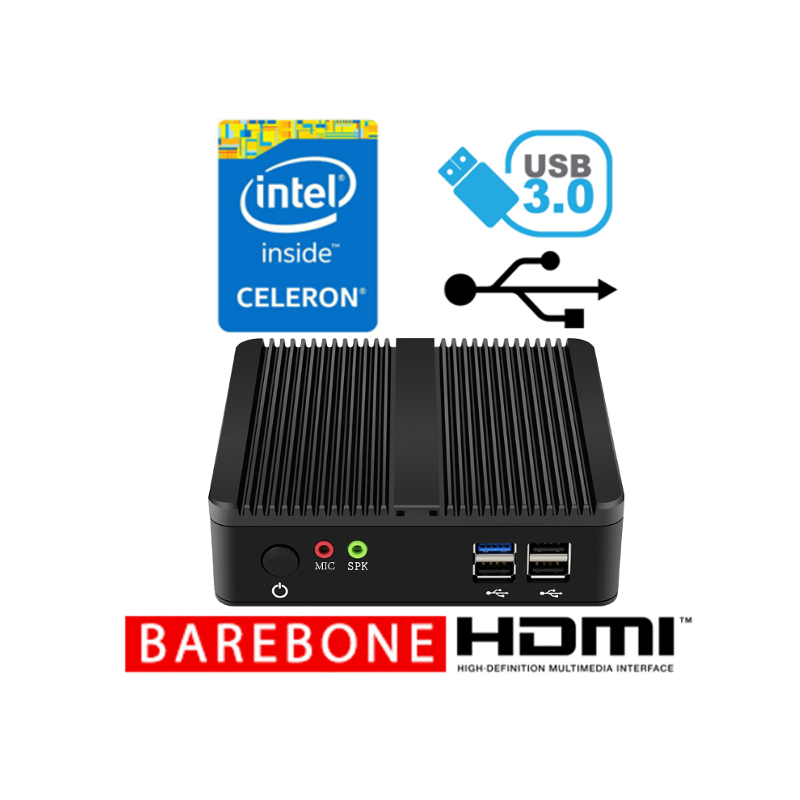

MiniPC yBOX-A30X Small Industrial Computer Intel Celeron J1900 processor





The industrial mini-computer yBOX-A30X uses an efficient and energy-saving Intel Celeron J1900 processor. Inside it there are four cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory.






Interfaces

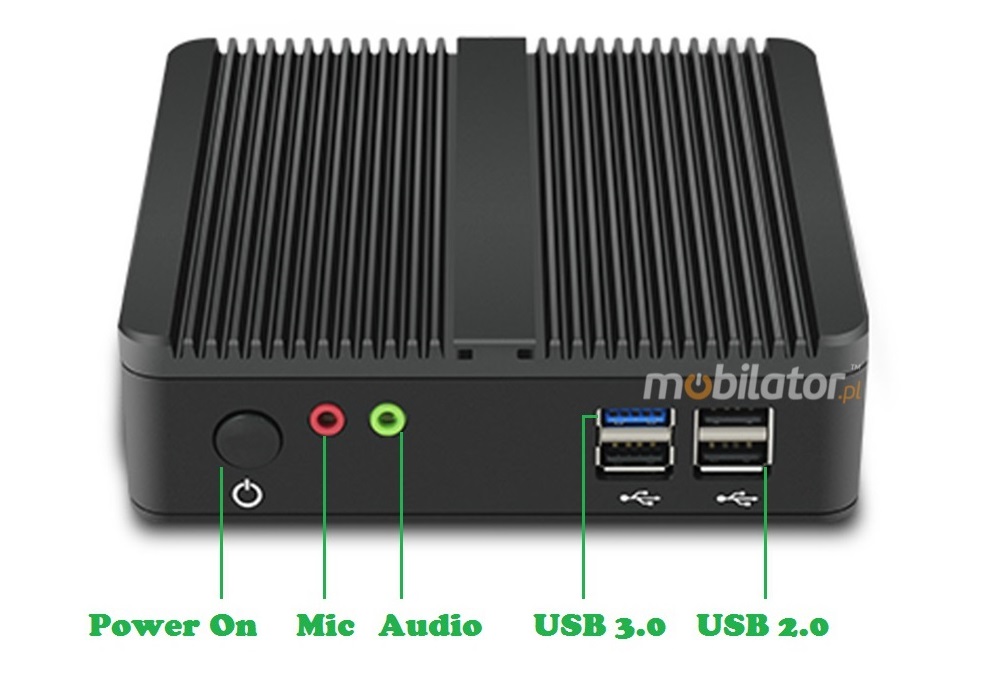

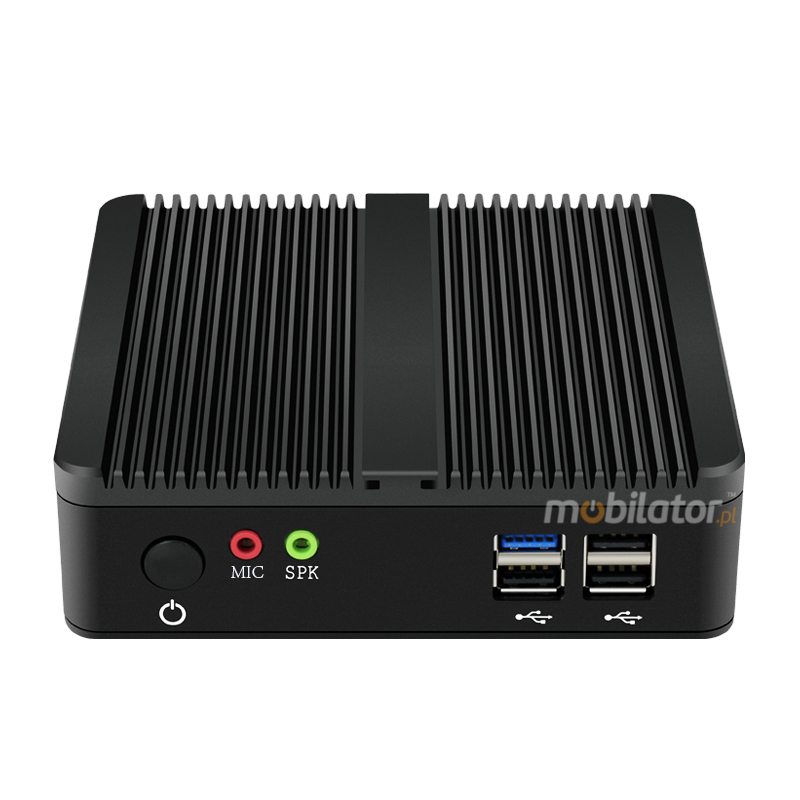

MiniPC yBOX-A30X Mic Audio USB3.0 USB2.0 connectors

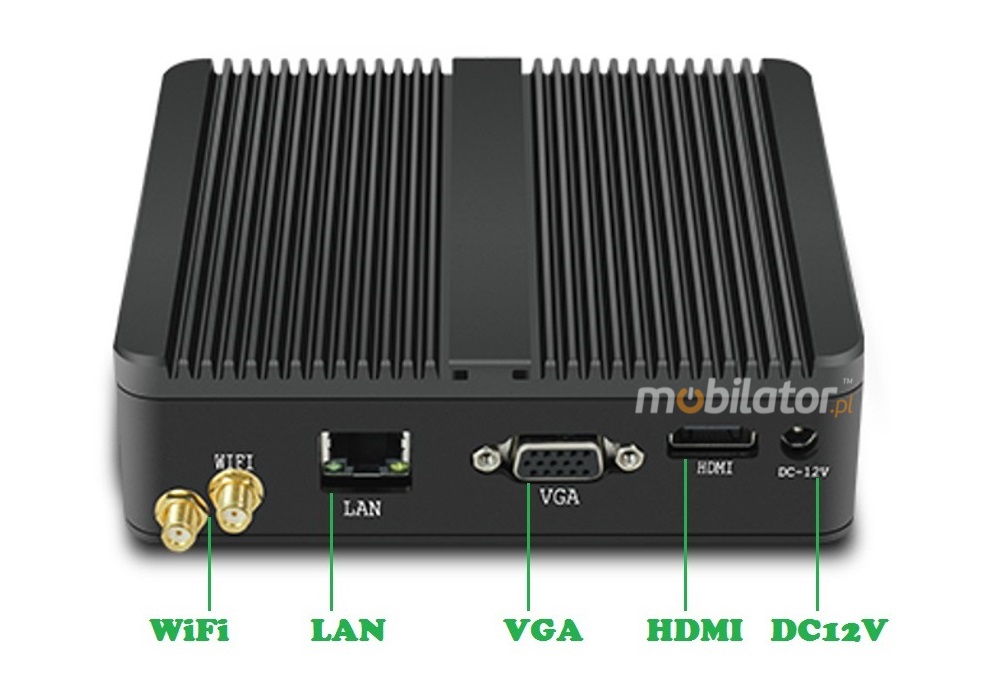

MiniPC yBOX-A30X Light Small Computer WiFi WiFi LAN HDMI Power



Dimensions

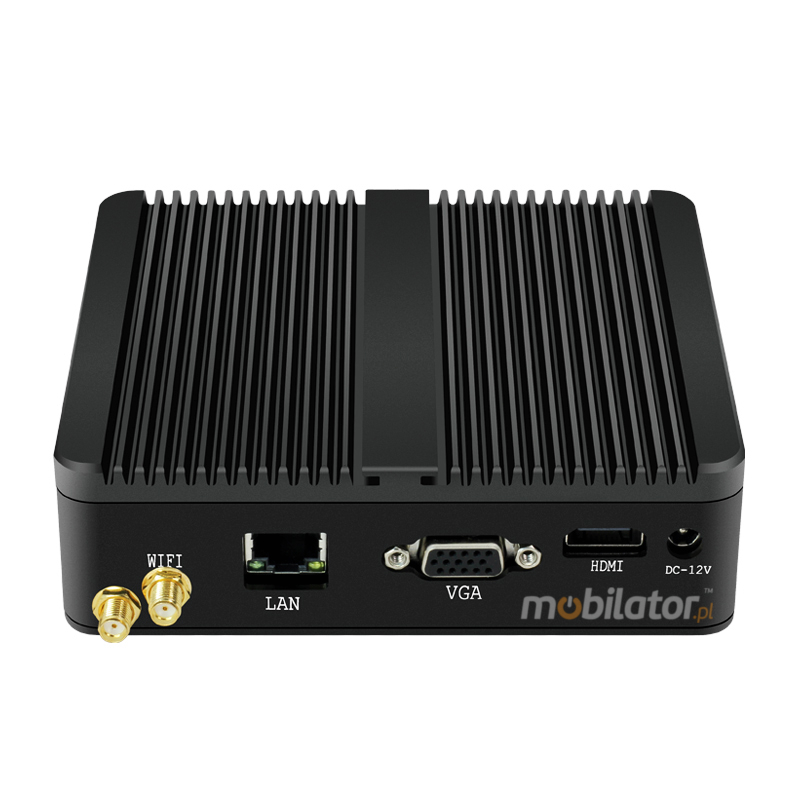

MiniPC yBOX-A30X Rapid Small Computer with small dimensions 136mm x 126mm x 39mm



Thanks to the small dimensions of the MiniPC, the yBOX-A30X is versatile for use at home, in the office and in the industry, for example in the production hall. It's literally everywhere, and thanks to the VESA mount it can be mounted on the back of the monitor to optimize the job.





Dimensions 136 x 126 x 39mm
Weight 1500g







Passive coolong





The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.




do góry… do góry   menu… menu



Resistance and durability

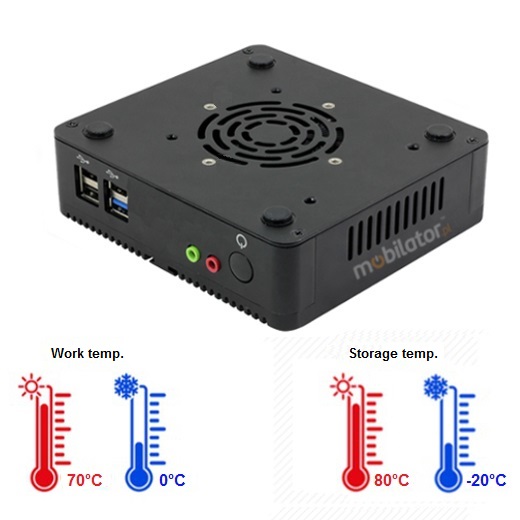

MiniPC yBOX-A30X  The efficient small industrial computer working temperature storage temperature humidity without condensation


Temperatures



yBOX-A30X is designed for continuous operation in both very low and high temperatures ranging from 0 ° C to 70 ° C. If the device is switched off, it can already handle temperatures in the range of -20 ° C to 80 ° C.




Work temp. 0°C do 70°C
Storage temp. -20°C do 80°C
Humidity 10% do 90%



Mechanical damage





The passive cooling system used in the MiniPC yBOX-A30X combined with the non-disk SSD* make this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.



do góry… do góry   menu… menu


connectivity and communication



Wireless network (Option)





The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge.Industrial mini-PC yBOX-A30X has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.



Wired LAN Network

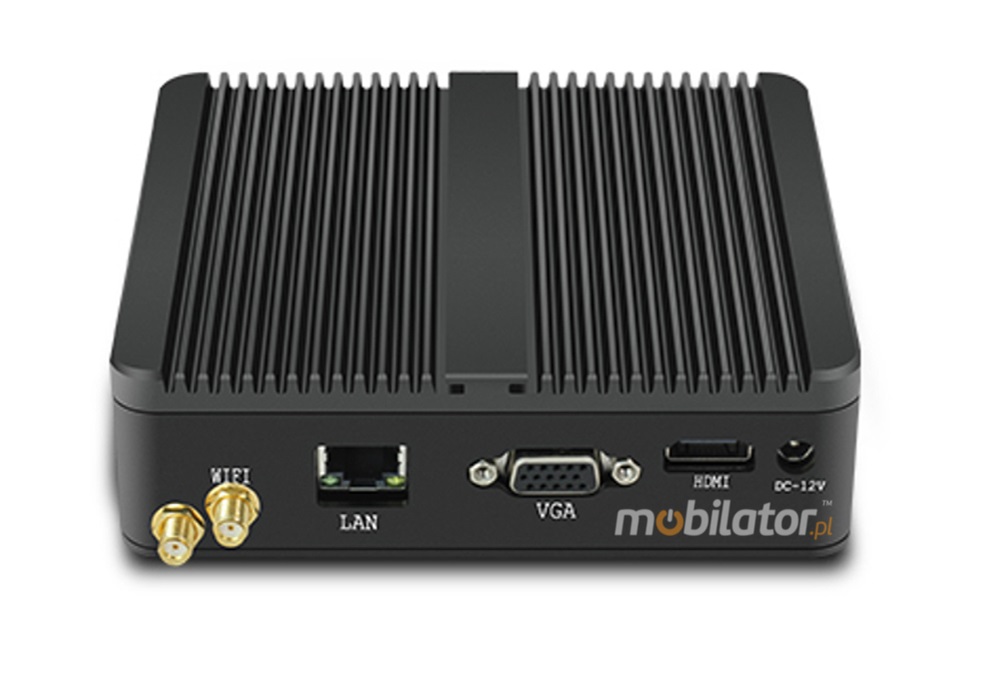

The MiniPC yBOX-A30X has built-in Realtek network adapter that can work in a fast Gigabit Ethernet network.


MiniPC yBOX-A30X Industrial professional small fanless computer





do góry… do góry   menu… menu

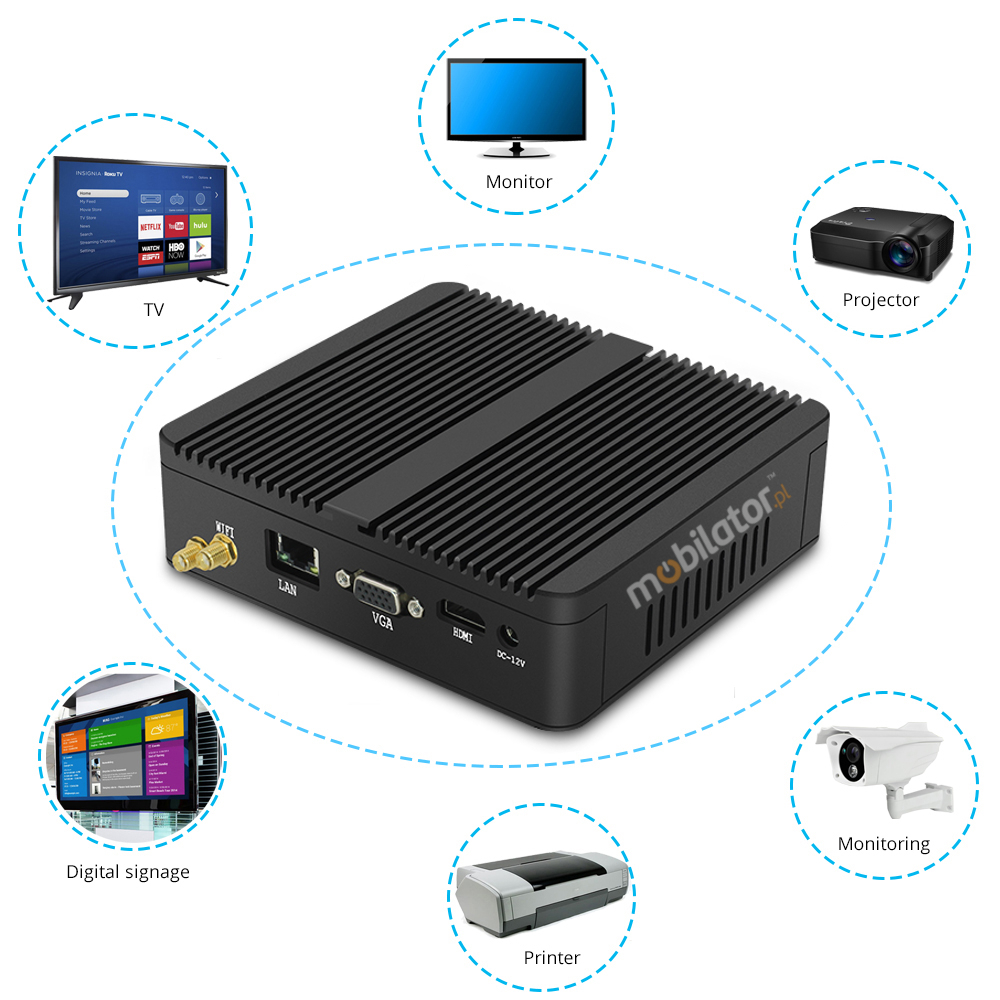

device application



Trade and service



Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management. The VESA holder mounted to the housing provides many installation options, eg in stores (at the cash register, under the desktop, behind the LCD / LED monitor), in factory halls or in a delivery truck.

MiniPC yBOX-A30X Robust, efficient small fanless with the possibility of mounting beneath the desktop behind the monitor using the VESA mount



MiniPC yBOX-A30X Mini PC used in trade and industry



Warehouse and logistics



Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.

MiniPC yBOX-A30X Practical small-sized industrial computer warehouse and logistics



MiniPC yBOX-A30X The smallest mobilator mini pc fanless intel celeron j1900





Transport and motorization



A small industrial computer can be used in transport thanks to the ability to work on 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows you to inform the driver about the current state of the vehicle, transfer its current location to the management center, display information for passengers, etc. It performs well in vehicles where small dimensions are important.




MiniPC yBOX-A30X  Przemysłowy praktyczny profesjonalny mały komputer transport i motoryzacja



do góry… do góry   menu… menu





available versions



The industrial mini-computer yBOX-A30X is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.





Porównaj wszystkie wersje



 v.0v.1v.2v.3v.4v.5
WiFi
4GB RAM | 32GB SSD
4GB RAM | 64GB SSD
4GB RAM | 500GB HDD
8GB RAM | 128GB SSD
8GB RAM | 1TB HDD



Porównaj wszystkie wersje



Compare all versions
