The BiBox 133-I58 Computer Panel is a rugged, multifunctional command center. It combines the full power of a desktop computer with an intuitive touchscreen. Designed to operate reliably in the harshest industrial environments, including extreme temperatures, humidity, dust, and water. It ensures maximum performance and operational stability regardless of the environment.

CertificateS

World-class certification is an integral part of the BiBox 133-I58 computer panel, which has successfully passed the necessary tests and holds key certifications: CE, FCC, and RoHS. This demonstrates the device's full compliance with global legal and technical requirements. The CE certification certifies its safety and compliance with European Union directives, while the FCC guarantees that the device does not generate electromagnetic interference. Furthermore, the RoHS marking confirms that the components are free of harmful substances. This comprehensive certification guarantees the manufacturer that the product meets rigorous quality and environmental standards, offering users not only performance but also complete operational safety.

up…    menu…

Specification

Detailed device specification is available in the "Technical data".

The heart of the BiBox 133-I58 panel computer system is the powerful and energy-efficient Intel Core i5-8250U processor, designed with industrial reliability in mind. Equipped with four cores and eight threads, it guarantees high multitasking performance, eliminating the risk of slowdowns. Furthermore, the processor's large cache memory allows for rapid access to frequently used data, ensuring smooth operation of even the most demanding industrial applications.

up…    menu…

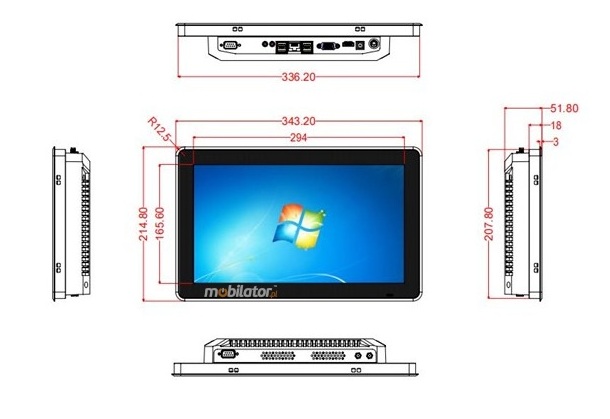

The BiBox 133-I58 panel computer measures 343.20 x 214.80 x 51.80 mm. Its compact, flat housing is designed to fit perfectly into control cabinets and confined industrial spaces. The device is packaged in cartons containing two panel PCs. The total gross weight (GW) of one such package is approximately 9 kg. Included accessories for these two devices include power adapters and Wi-Fi antennas.

up…    menu…

A capacitive screen detects touch by changing the electrostatic field created when you touch the screen with your finger. Unlike resistive technology, it doesn't require any physical pressure. This makes operation precise and fluid, with the screen responding to even the lightest touches. This technology also supports multitouch, allowing for simultaneous recognition of multiple touch points, enabling gestures such as zooming or rotating.

Aluminum Bezel Style is a solution in which the screen frame is made of aluminum or finished with this material. This gives the device an immediate, premium look and significantly increases the feeling of solidity. Aluminum, being a more durable and rigid material than plastic, provides better protection against scratches and damage. Furthermore, in addition to its aesthetic appeal, this metal dissipates heat more effectively while maintaining the device's slim profile without compromising structural strength.

*At the customer's request, it is possible to order the BiBox 133-I58 device in the Aluminum Bezel Style version. Click on the configurator at the top of the page to go to the product settings.

The BiBox 133-I58 v.6 is a durable panel computer designed for reliable operation in harsh outdoor conditions. Its key advantage is a screen with exceptional 1000 nits of brightness. This parameter guarantees excellent readability and comfortable data viewing, eliminating visibility issues in both direct sunlight and shaded areas.

up…    menu…

REsistance

The IP65 standard means that the device's housing provides complete protection against dust ingress. It is also resistant to water jets from any direction. This makes it an ideal solution for use in harsh environments where the equipment is exposed to external factors but not immersed in water.

Firts digit              Protection level                Second digit
No special protection		No special protection
Protection from solid objects greater than 50mm in diameter		Protection from dripping water
Protection from object not greater than 12mm in diameter		Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter		Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter		Protection from splashed water
Complete protection against contact, Protection against dust deposit		Protection from water projected from a nozzle
Complete protectionm against contact, protection from infiltration of dust		Protection against heavy seas, or powerful jets of water
		Protection against immersion
		Protection against complete, continuous submersion in water

The BiBox 133-I58 is designed to operate in the harshest environments. Its rugged construction allows for reliable operation across a wide temperature range of -10°C to 60°C, as well as high relative humidity environments of up to 95% (non-condensing). This thermal durability also extends to storage, which is safe from -20°C to 70°C, providing flexibility in logistics and warehousing.

up…    menu…

COMMUNICATIONS AND CONNECTIONS

The modern BiBox Industrial Tablet is a powerful device designed for harsh environmental conditions and demanding applications. Its key advantage is advanced connectivity: it is equipped with ultra-fast WiFi 6 and 4G modules, ensuring stable and fast network connections and data transfer, both in the field and inside production halls.

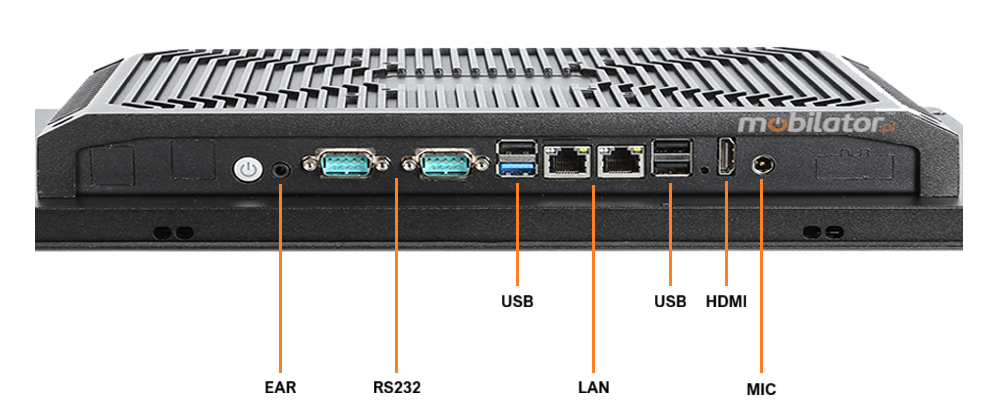

The BiBox 133-I58 offers a wide range of connections for maximum functionality in industrial environments. Connectivity includes four USB ports, an HDMI video output, and two LAN ports for stable network communication. Two RS-232 serial ports are crucial for system integration. The device also features full audio support, with a dedicated microphone input (MICx1) and headphone output (EARx1). Power is supplied via 12V DC, and the design eliminates the legacy VGA port.

Application

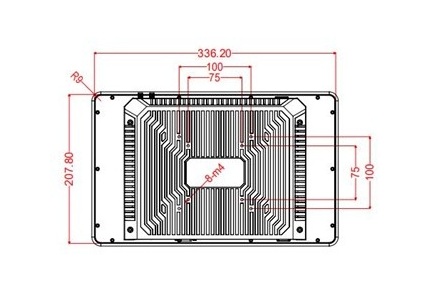

The BiBox 133-I58 Panel PC is an exceptionally versatile tool that performs well in both intensive industrial environments and the retail sector. Designed for centralized system control, the efficient display of detailed information (e.g., about products or production line status), and the dynamic presentation of content, including advertising, the device's true strength lies in its installation flexibility: thanks to full VESA compatibility, the panel can be quickly and securely mounted in almost any location. Regardless of the application—whether it's a cash register terminal, a process monitoring point on the factory floor, or a fleet management component for delivery vehicles—the BiBox 133-I58 guarantees reliability, perfectly suited to any demanding operational network.

do góry…    menu…

Specialized panel computers are synonymous with reliability in the harshest operating environments. Their reinforced enclosures, certified to the IP65 standard, provide complete resistance to dust and powerful water jets. This makes devices like the BiBox 133-I58 the ideal choice for applications where traditional equipment would quickly deteriorate – from demanding construction sites, to dynamic logistics centers, to intensive production lines. This durability allows you to rely on your equipment without fear of damage.

This reliable panel computer was created to accelerate warehouse operations. Equipped with RS-232 interfaces, it enables centralized device control, making management simple and efficient. Furthermore, its durable construction is fully resistant to industrial factors such as dust and dirt. This ensures stable and reliable operation even in the harshest and most polluted production environments.

up…    menu…

Accessories and available versions

The BiBox 133-I58 heavy-duty panel PC is available in several versions tailored to different needs. Clicking on the hardware configuration number will redirect you to the product with the parameters listed in the table below. Furthermore, upon request, we can create a configuration not currently available.

More photos in full resolution available in the "Gallery".
