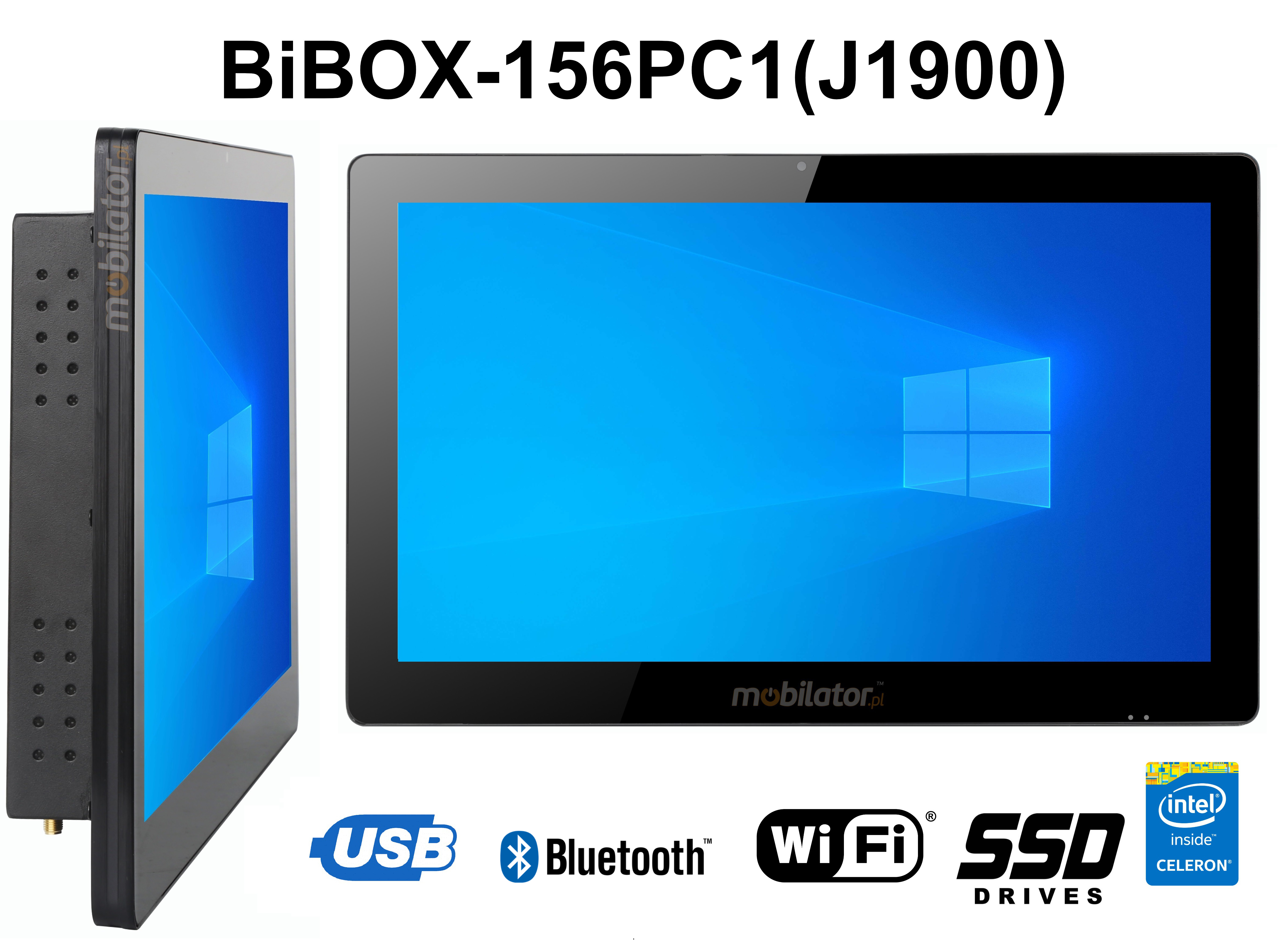

BiBOX-156PC1 (J1900) v.7 - Metal industrial panel with WiFi, Bluetooth, IP65 resistance standard for screen with 128GB SSD disk and Windows 10 PRO license

BiBOX-156PC1 (J1900) v.7 - Metal industrial panel with WiFi, Bluetooth, IP65 resistance standard for screen with 128GB SSD disk and Windows 10 PRO license

Data update: 2023-04-25

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
667.91
Net
821.54
Gross



Compare all versions

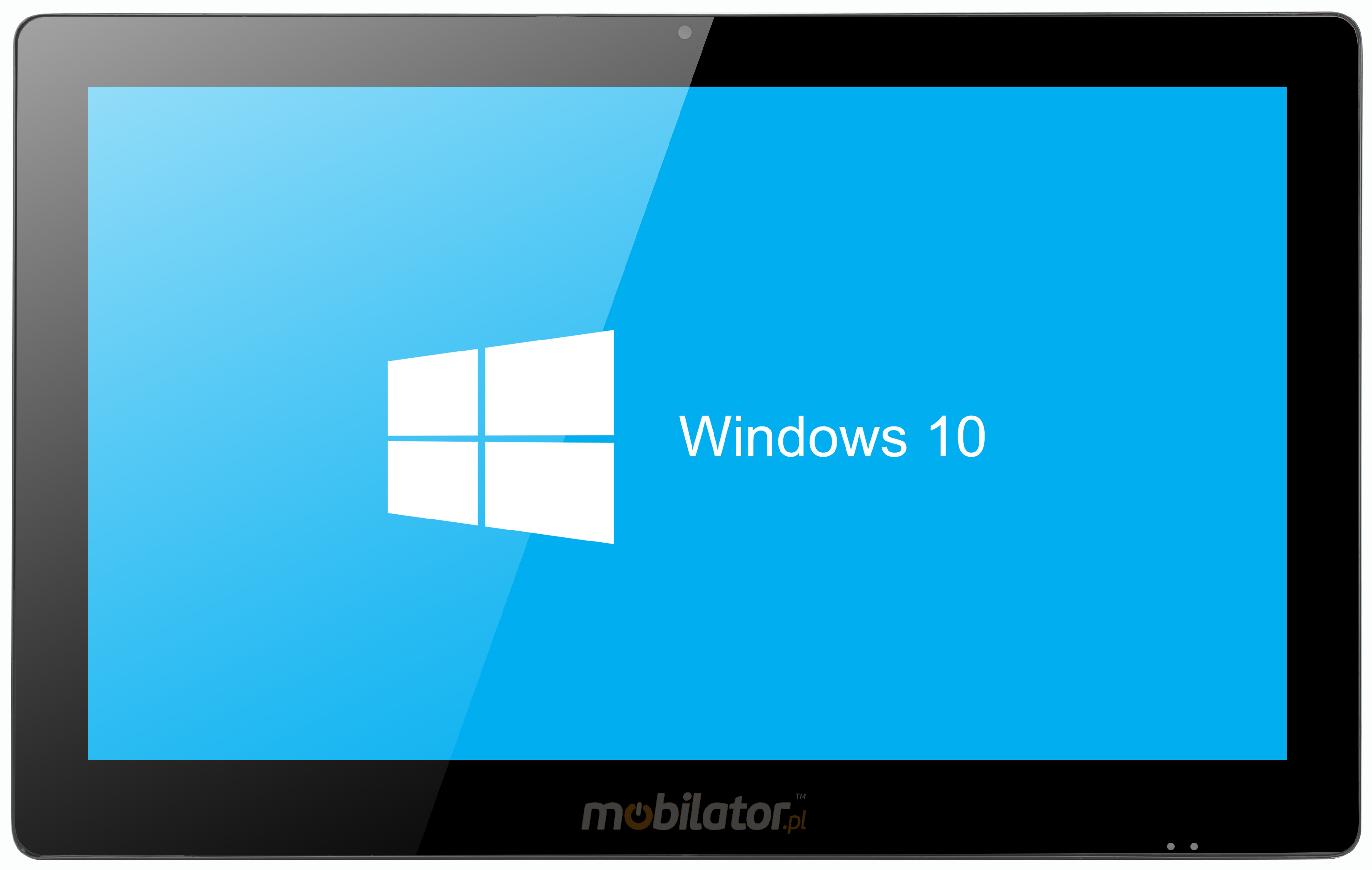

BiBOX-156PC1- Industrial panel computer with Wifi and IP65 resistance standard for screen (1xLAN, 6xUSB)











Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.





Efficient cooling
The housing with notches used in the panel ensures good air exchange inside the device.

Quick start
A modern SSD drive will increase the speed of applications and programs and ensure quiet computer operation.



Efficient
The quad-core Intel
Celeron J1900 2GH
improves the device's
performance.

Bright Screen
The display with 300 cd/ m² brightness makes the picture much more vivid and better readable when used outside in the sun.





Wireless network
The panel can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.
Capacitive screen

The capacitive screen allows precise handling and gentle on-screen movement.







up… do gry   menu… menu



Specifications and parameters








Performance
Processor Intel® Celeron J1900 2.0GHz quad core
Graphics card Integrated HD Graphics
Operating system Windows 10 PRO with license
RAM 4GB DDR3
Drive 128GB SSD
Display
Screen 15.6" (1920x1080)
Touch screen 10 Points Projected Capacitive Touch Screen
Brightness 300cd/m²
Screen ratio 16:9
View angle 85/85/85/85(L/R/U/D)
Interfaces
Communication 4G * | WiFi  | Bluetooth 4.0
Connectors

2x USB 3.0 | 4x USB 2.0 | 2x COM | 1x LAN

1x VGA | 1x HDMI  | DC 12V

Other
Dimensions 388 x 245 x 38 mm
Weight 5 kg
Casing material Metal


* Optional equipment, available only in specific versions of the device.








The industrial PC panel uses an efficient and energy-saving Intel Celeron J1900. In its interior there are four cooperating cores enabling more efficient processing of many tasks at the same time. Shared cache memory in which a multi-level hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory. Improved graphics card technology allows you to enjoy movies at full resolution and HD quality.

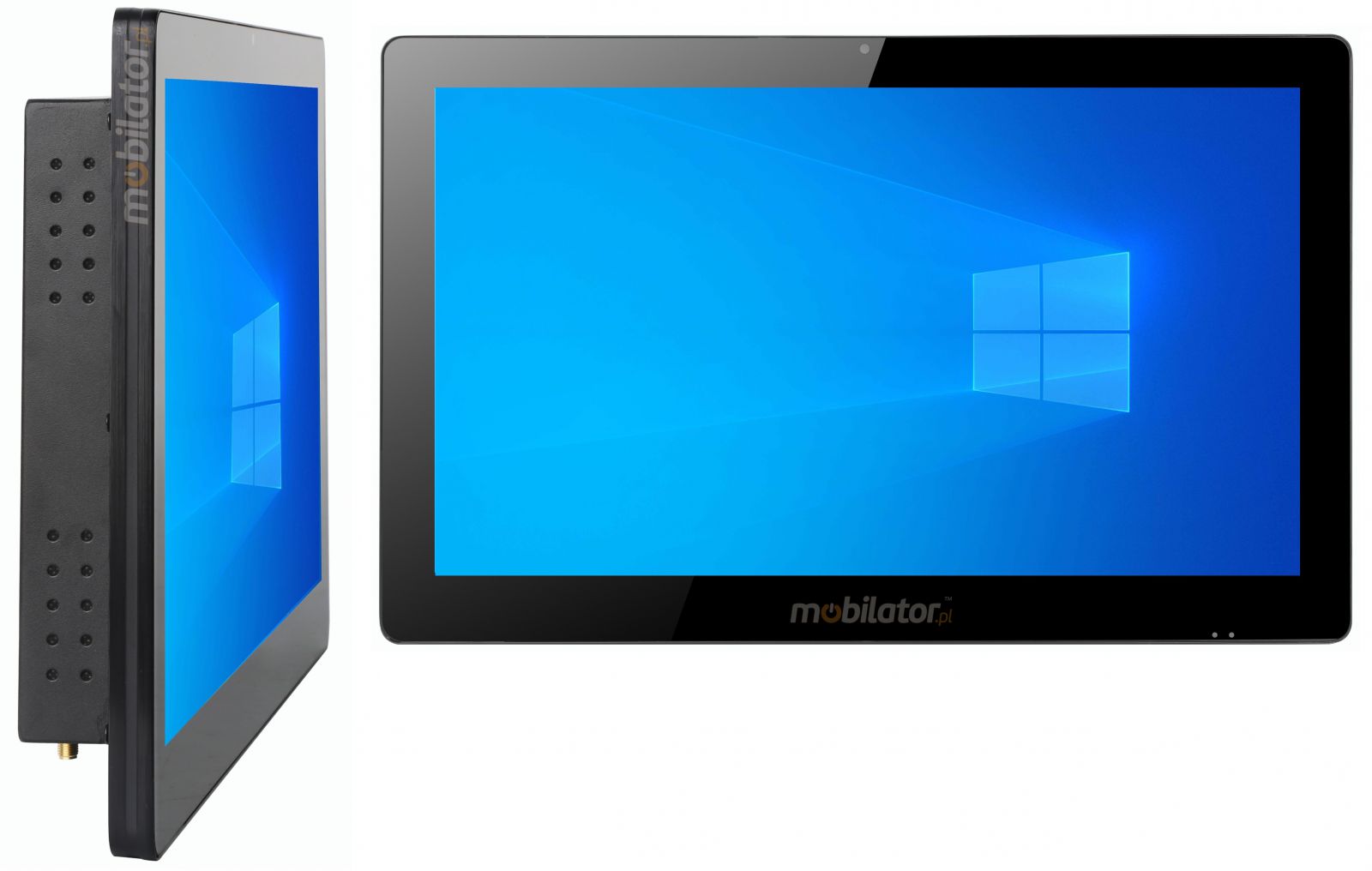

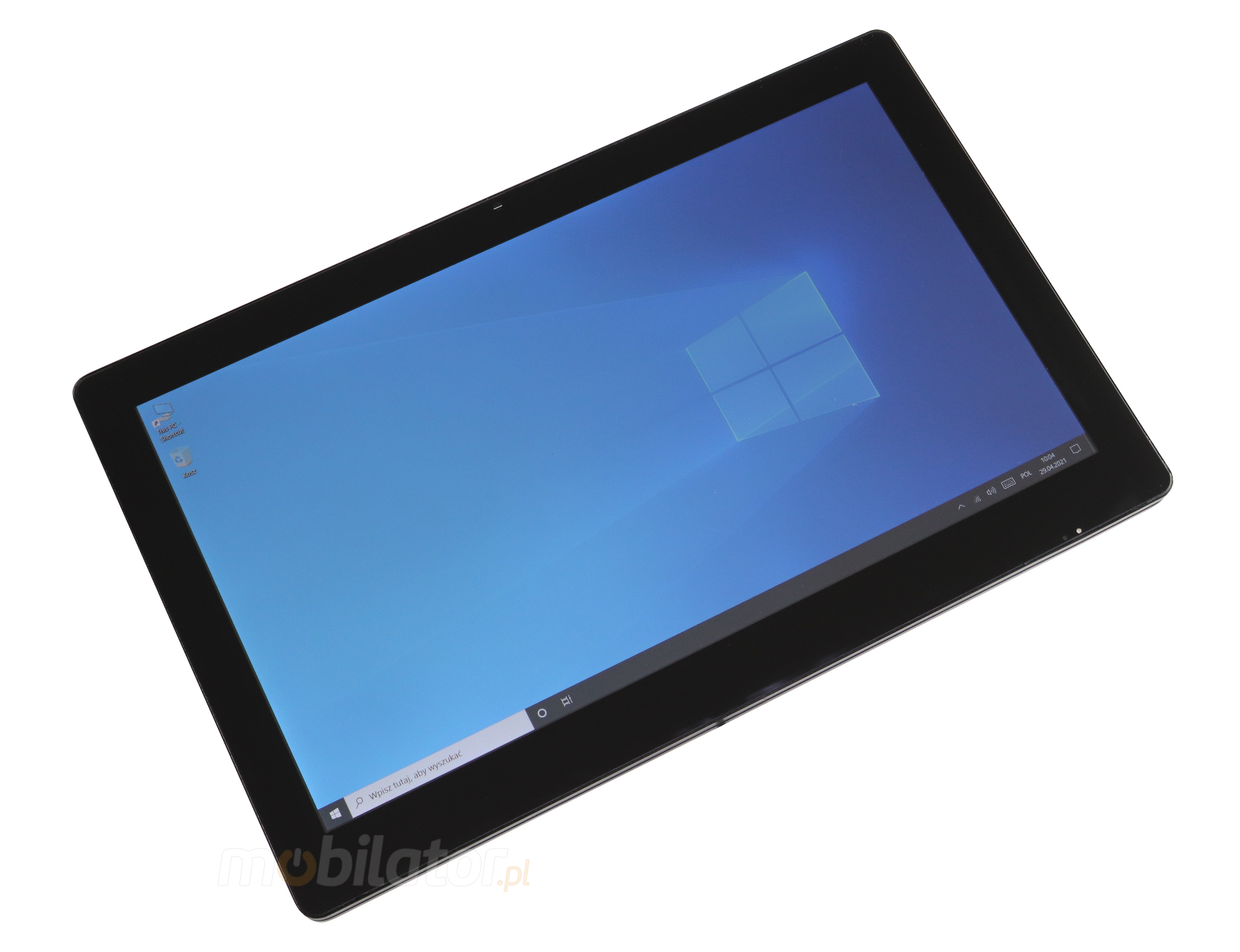

BiBOX-156PC1 - Industrial panel computer with Wi-Fi and screen standard IP65 (1xLAN, 6xUSB)



up… do gry   menu… menu

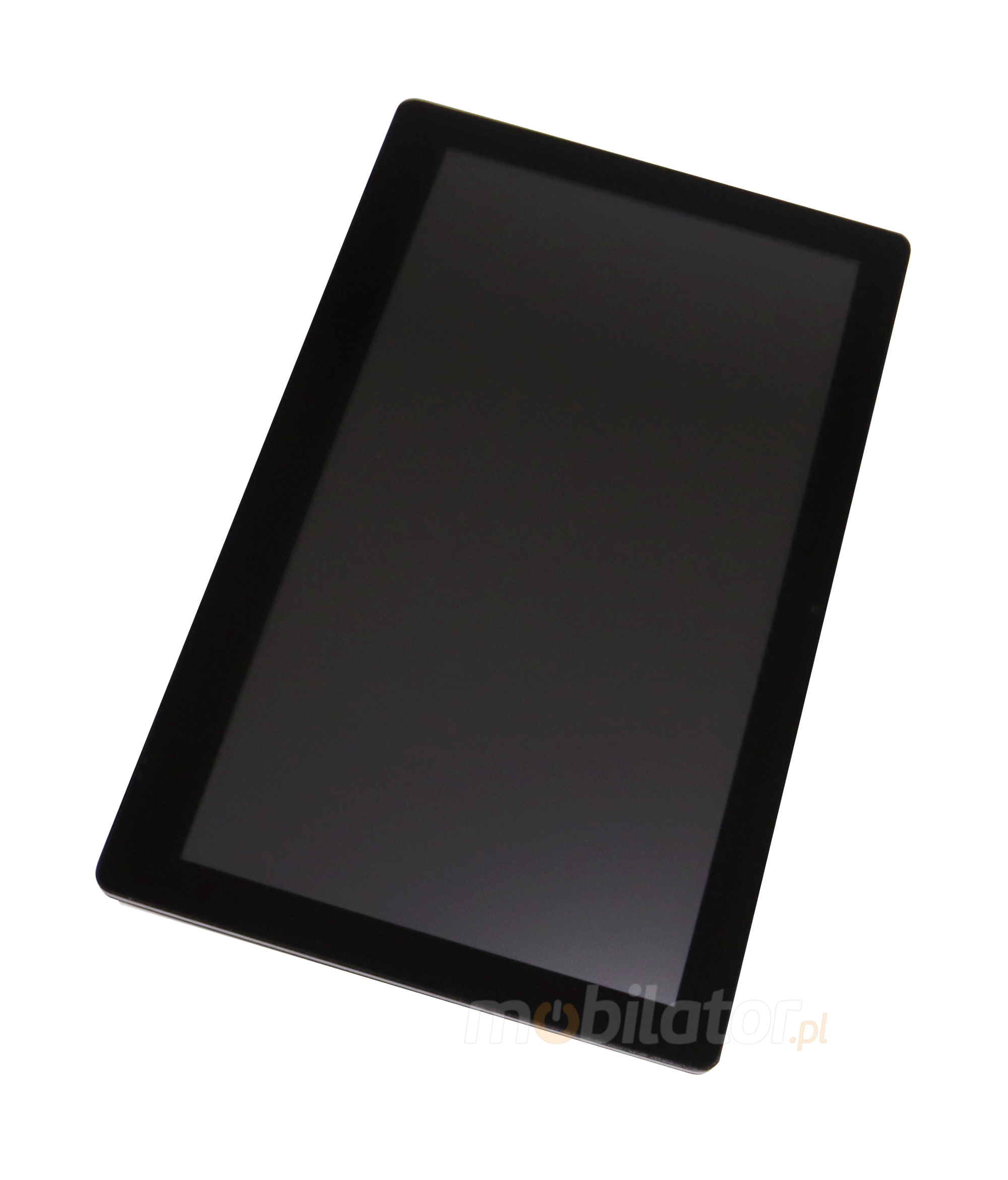

Display and touch

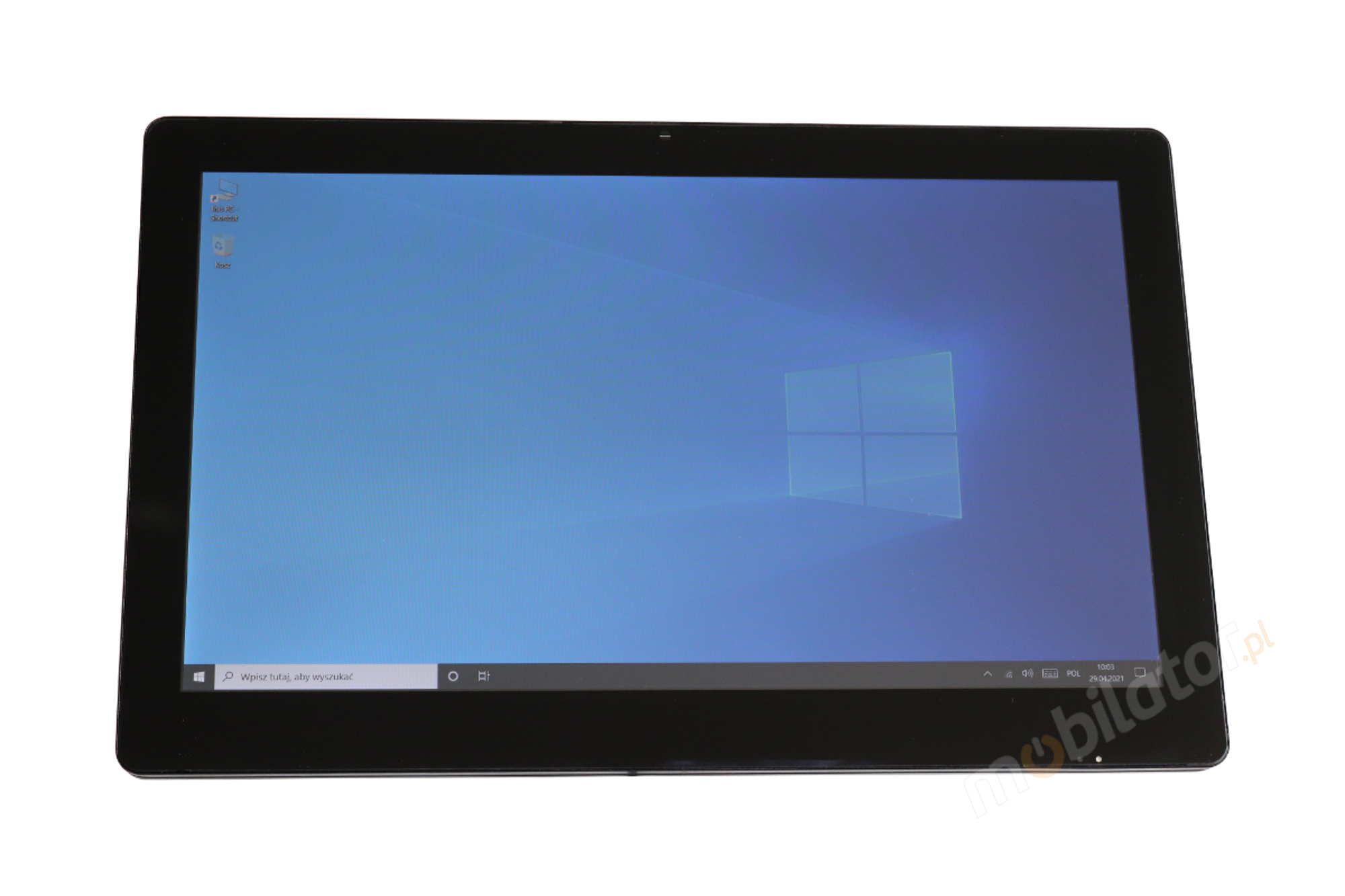

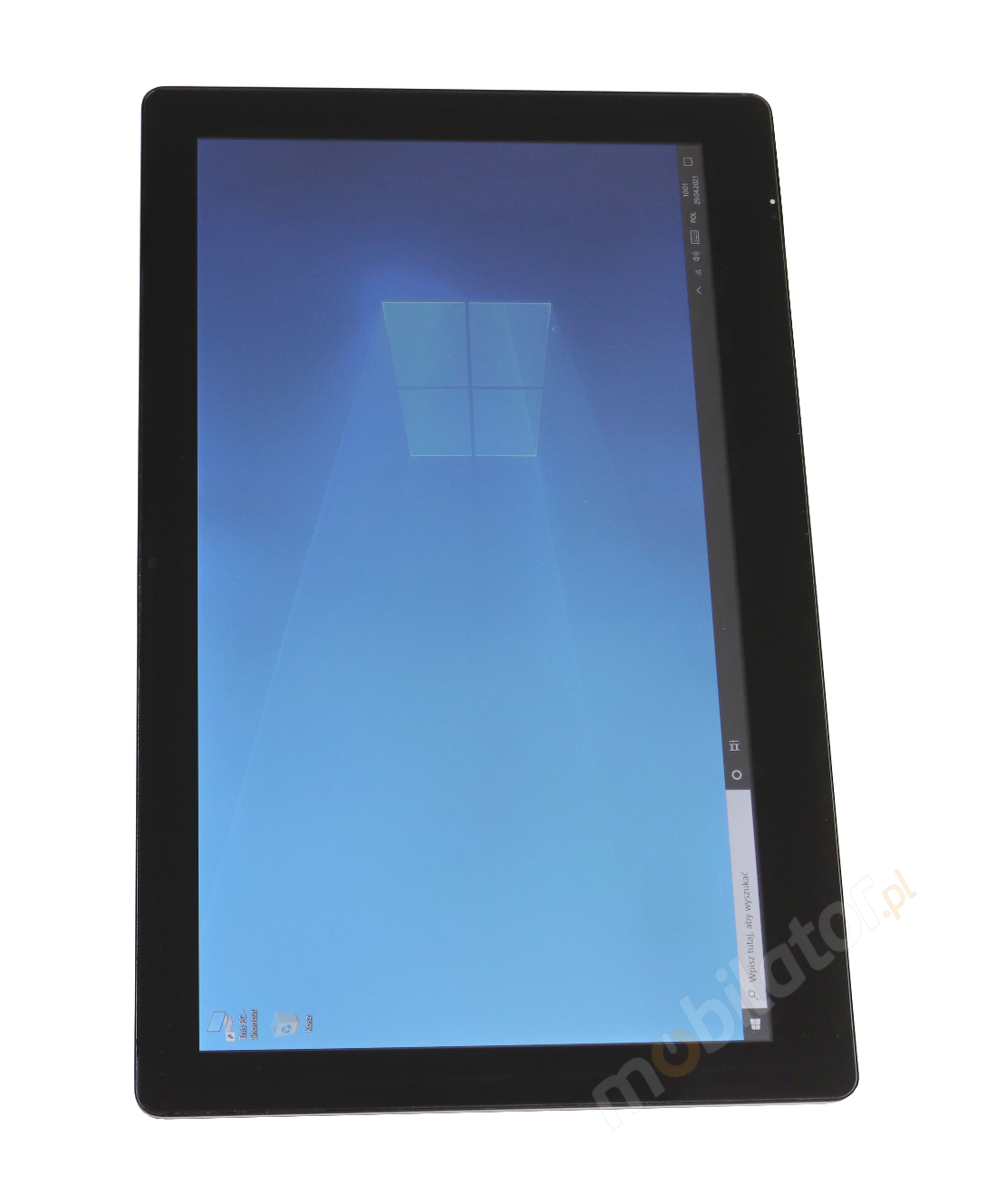

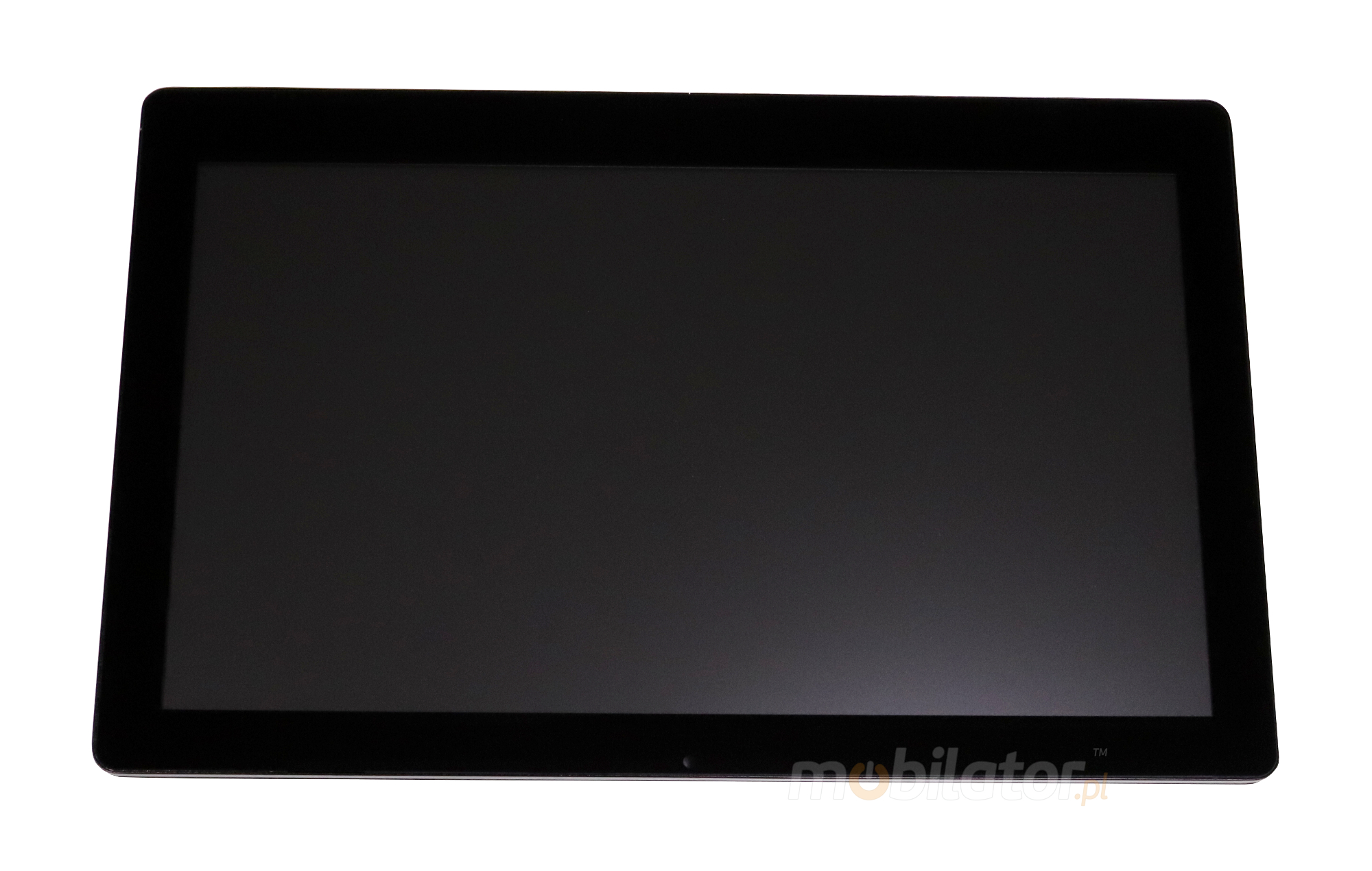

Amplified, metal industrial computer BiBOX-156PC1 has a water-resistant and scratch-proof 15.6" LED screen 1920x1080  resolution offers good image quality, and high brightness in the 300 cd/m² range gives better color saturation and contrast and allows significantly improved visibility even in the case of incident The display of the resistive type provides the user with a clear image and ease of use by touch.






capacitive Screen





The capacitive screen consists of a glass coating that is covered with an insulator. Touching the surface of the touch pad with your finger causes a disturbance in the flow of electric current. This display provides very good visibility under industrial conditions. The panel can be operated with one finger or conductive material (special glove). This type of screen provides support for multi-touch technology, which is a clear convenience during work. This is due to the fact that a large number of electrodes allows accurate detection of many points of touch. You do not have to use a stronger pressure for capacitive screens, because you only need to lightly brush the screen with your finger to make the device react.



industrial panel pc durable resistant monitor lcd screen A64 Quad-core Cortex-A53 2G+8G Capacitive touch screen wifi IP65 for the front bezel mobilator poland

up… do gry   menu… menu



Resistance and protection








Quality of materials

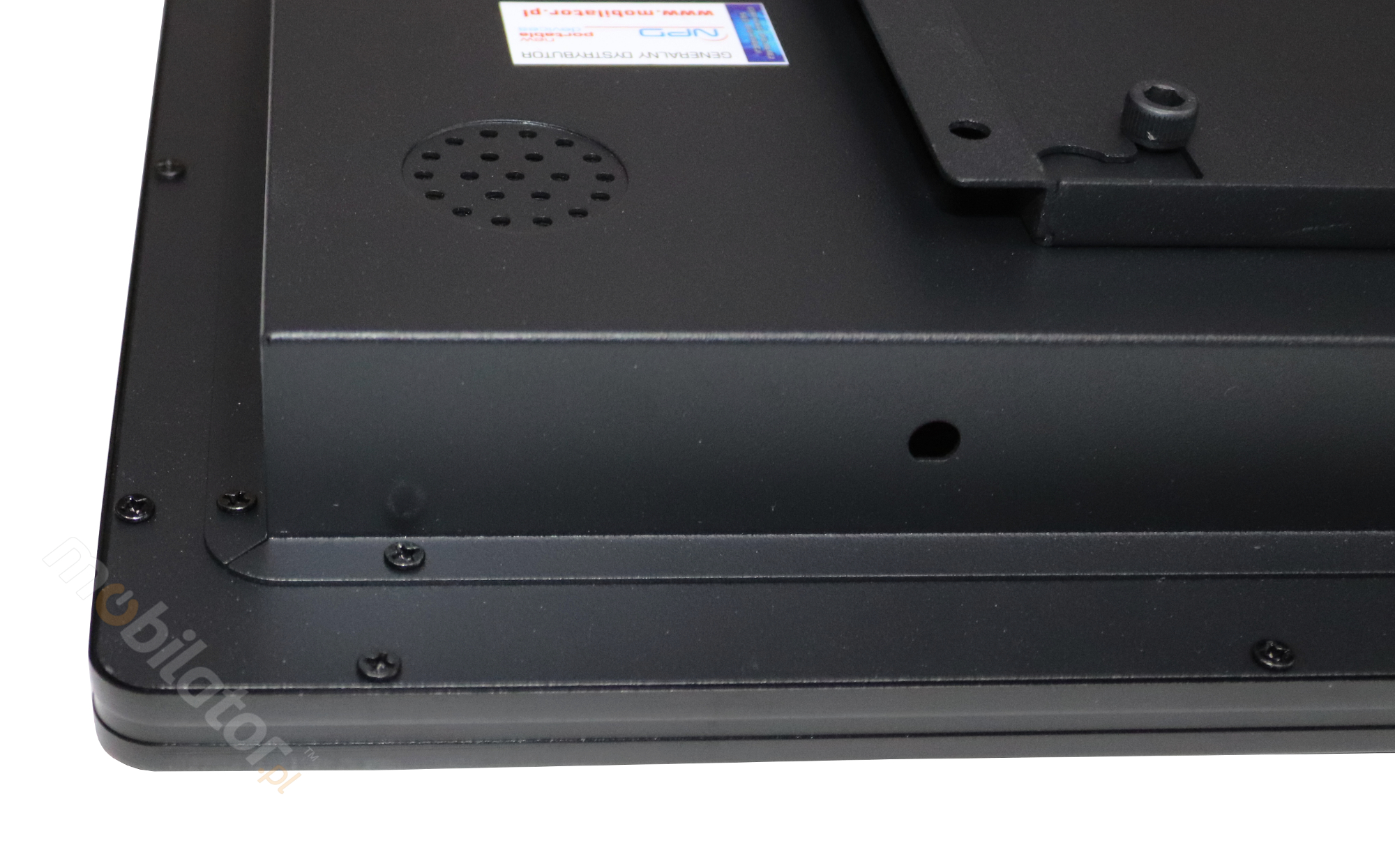

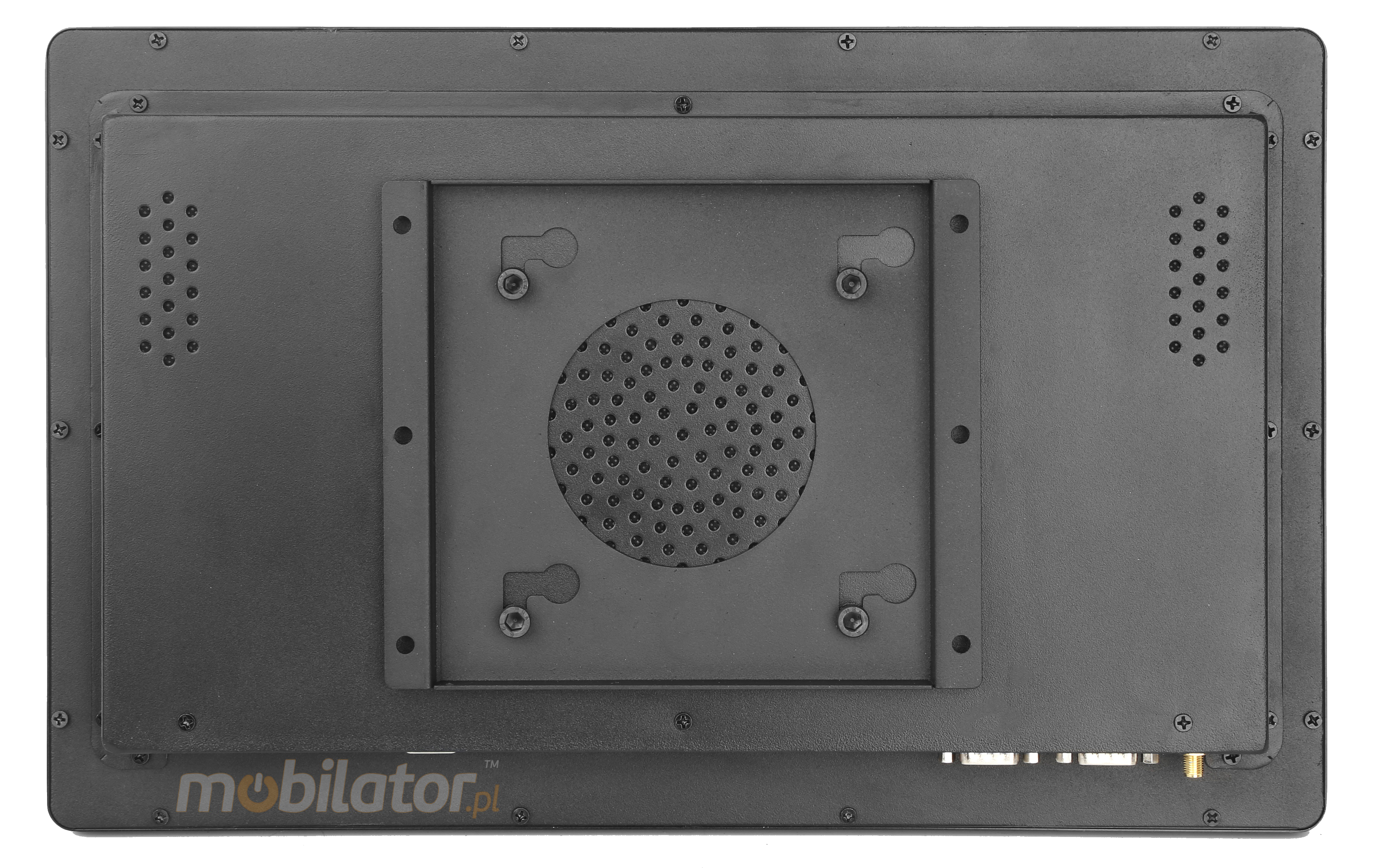

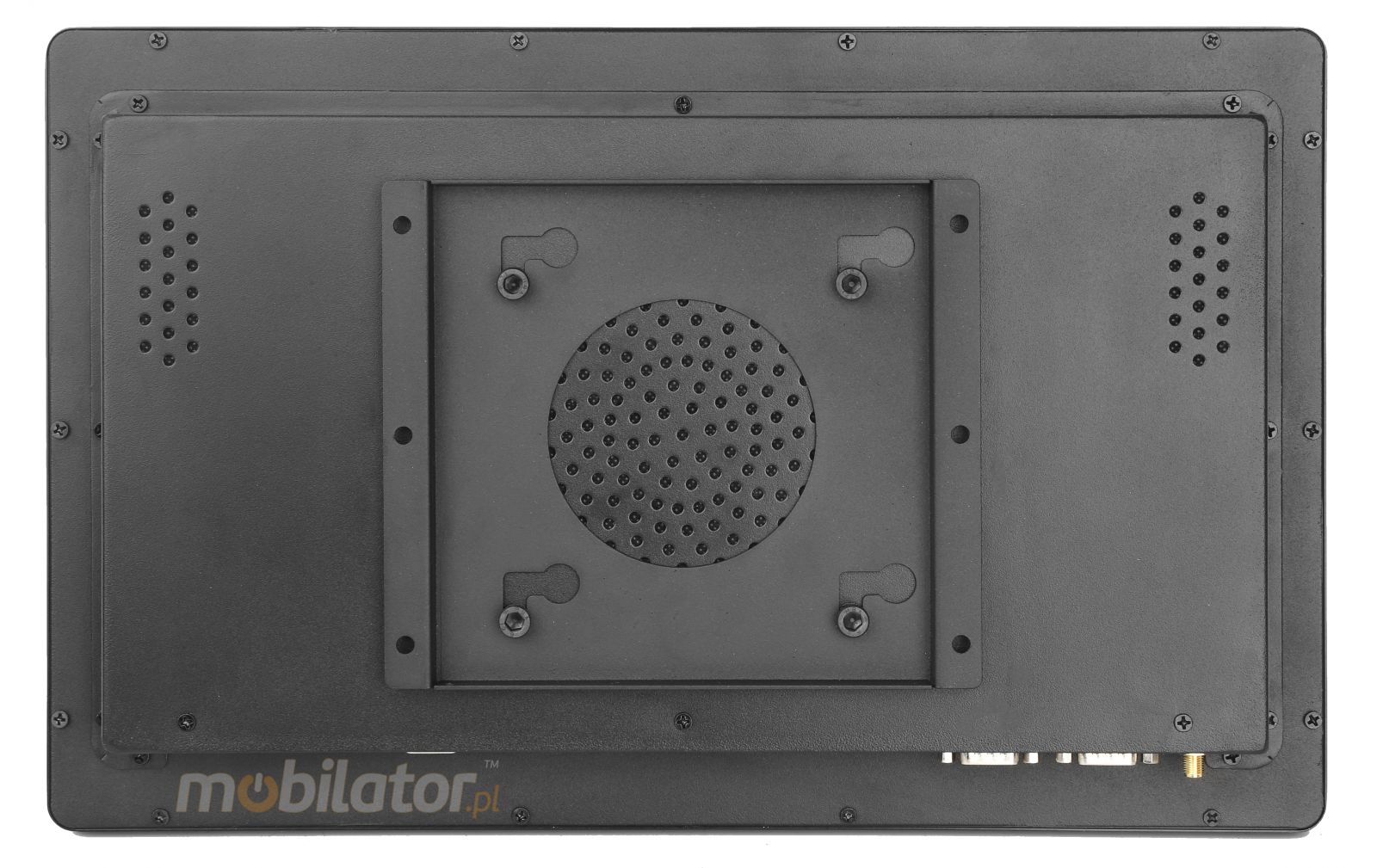

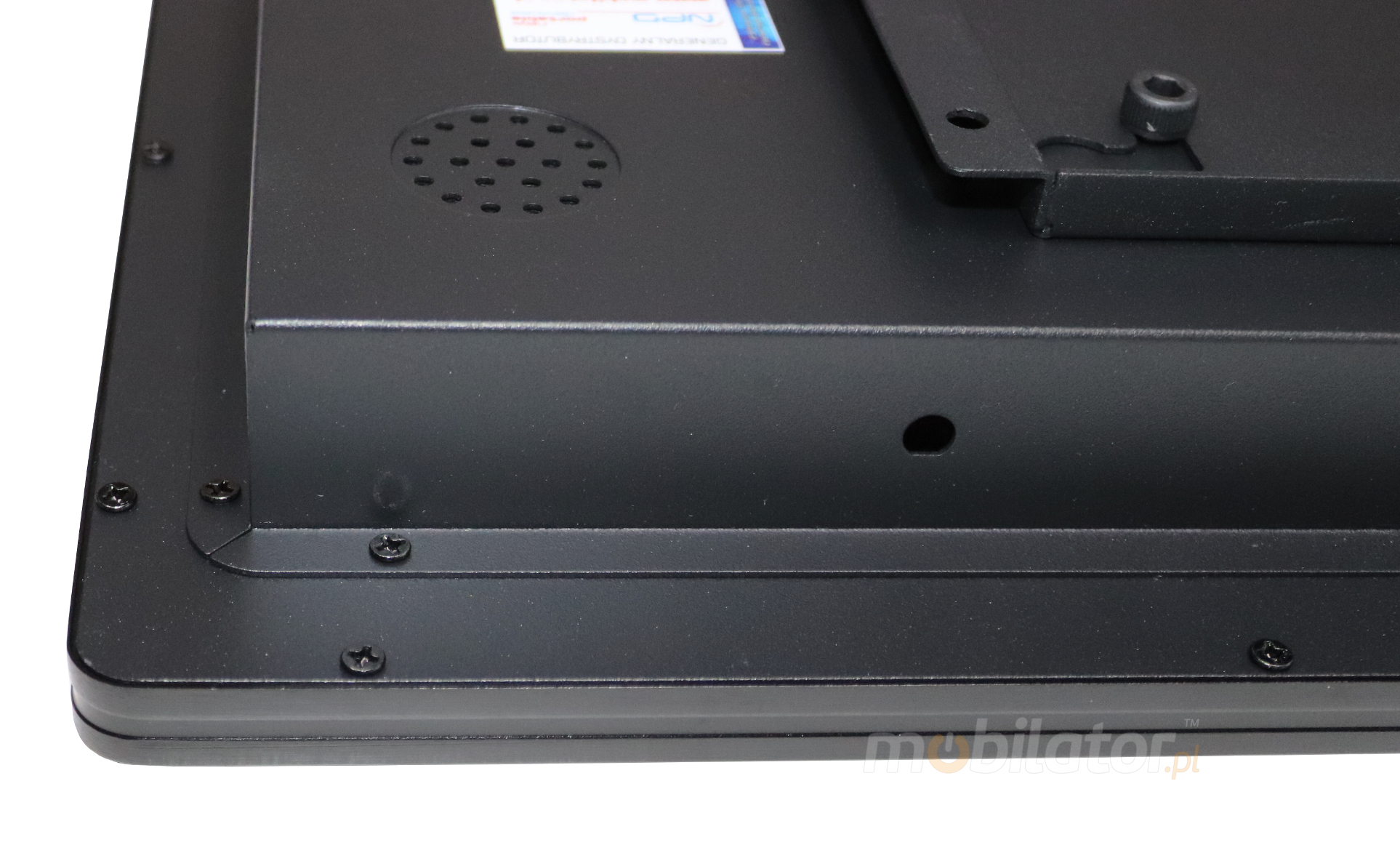

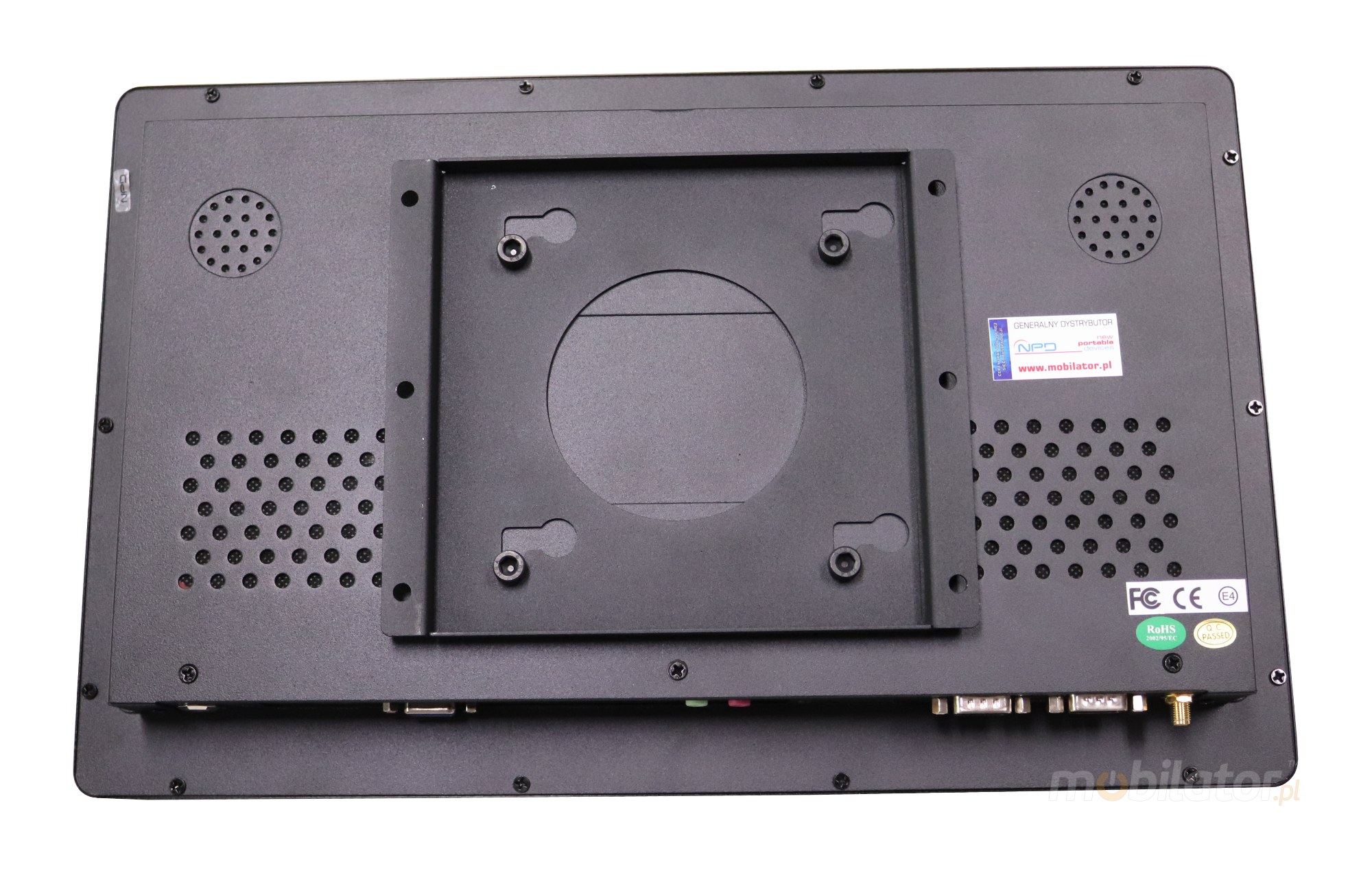

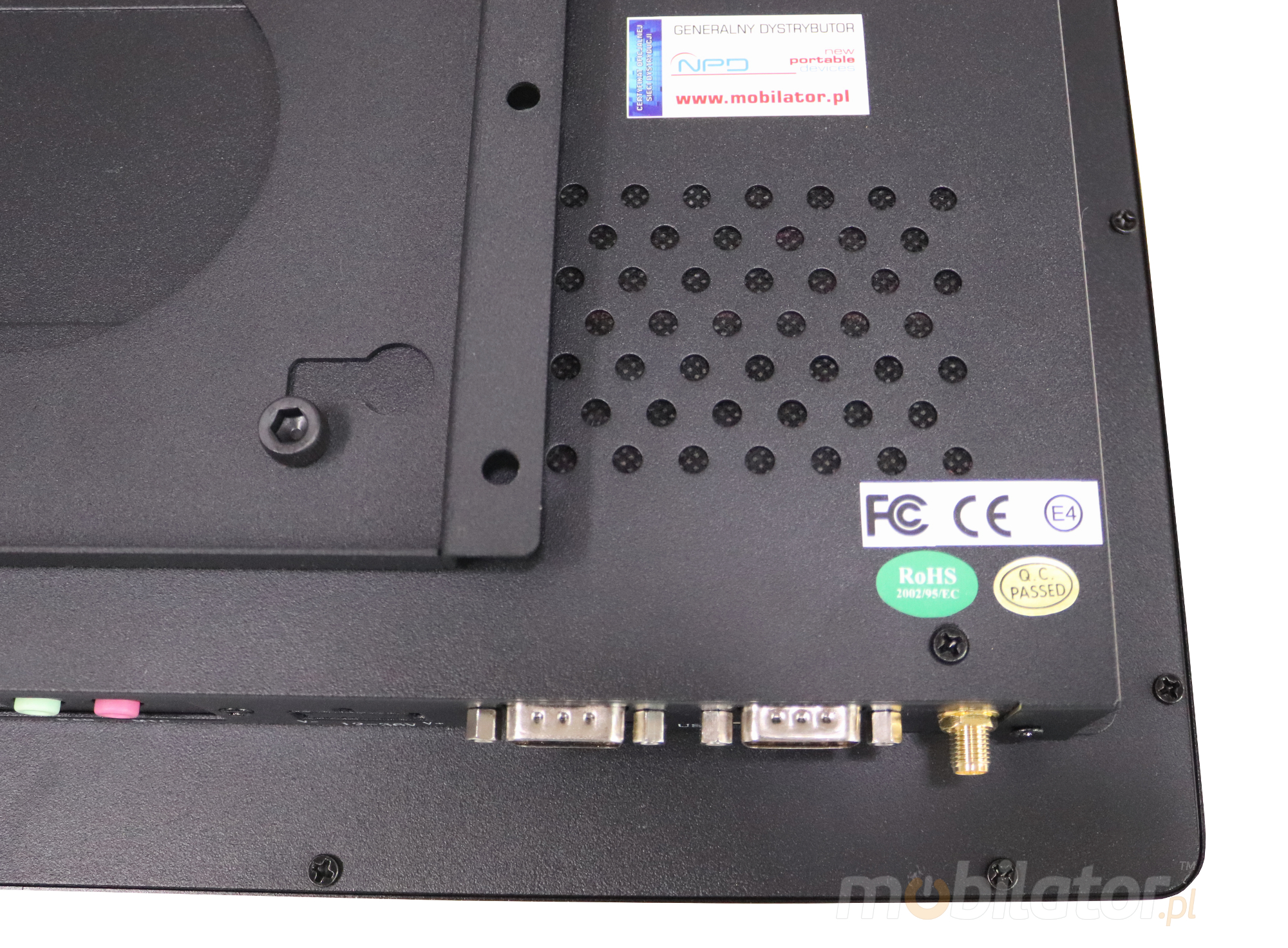

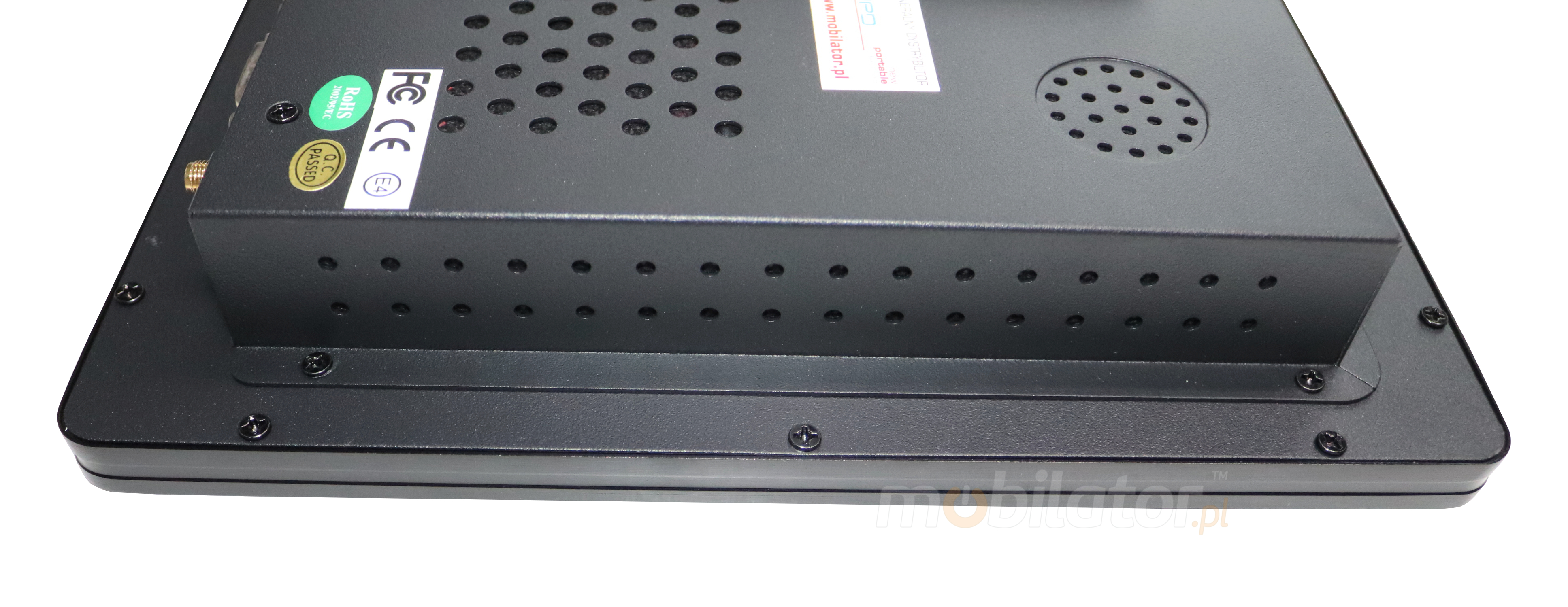

The panel PC has a good-quality metal casing. It is an important element of the cooling system thanks to specially designed cutouts that facilitate air circulation inside the housing. The overall design of the device is focused on simplicity and functionality appreciated by professionals, as an accessory the panel can be equipped with passive cooling.

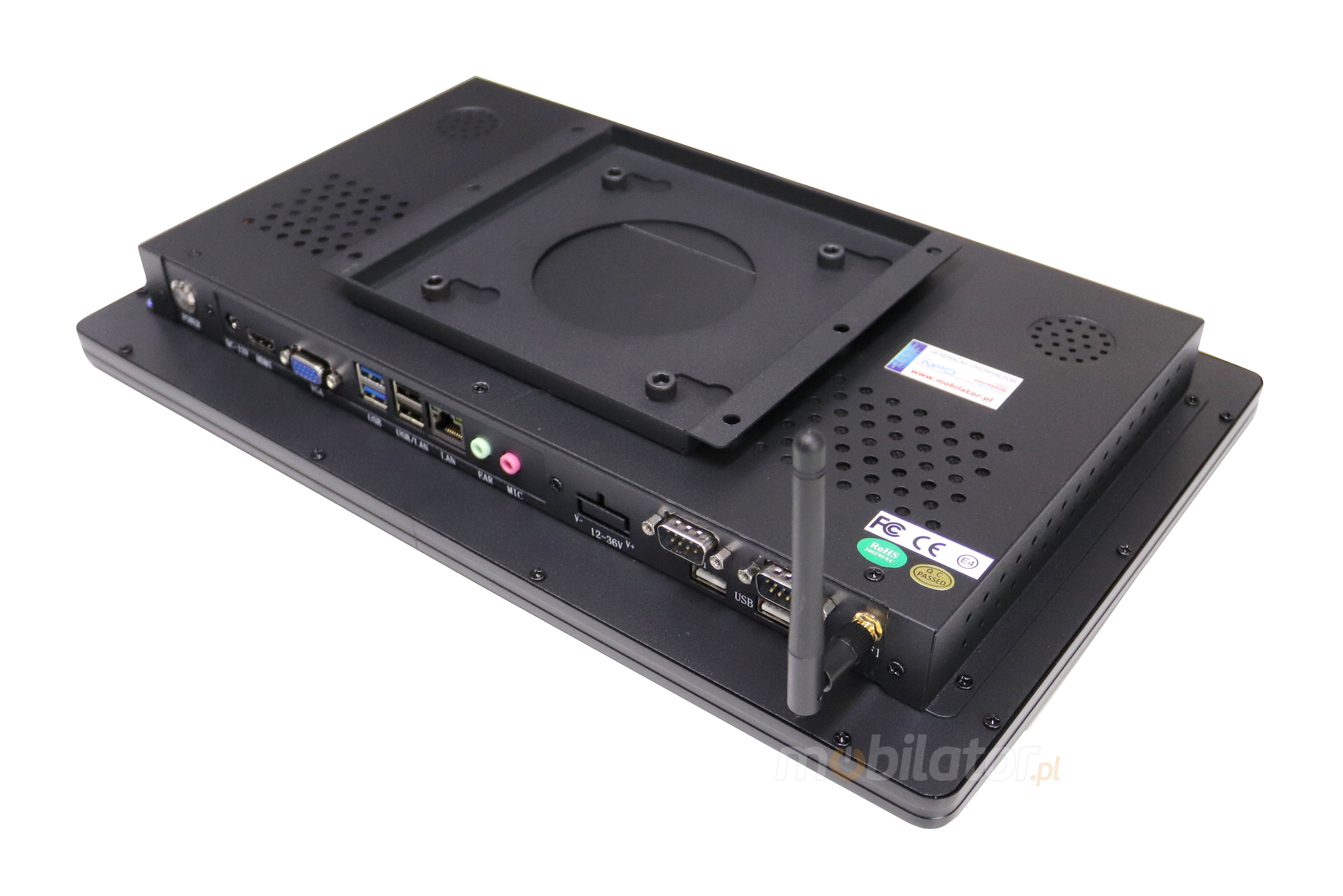

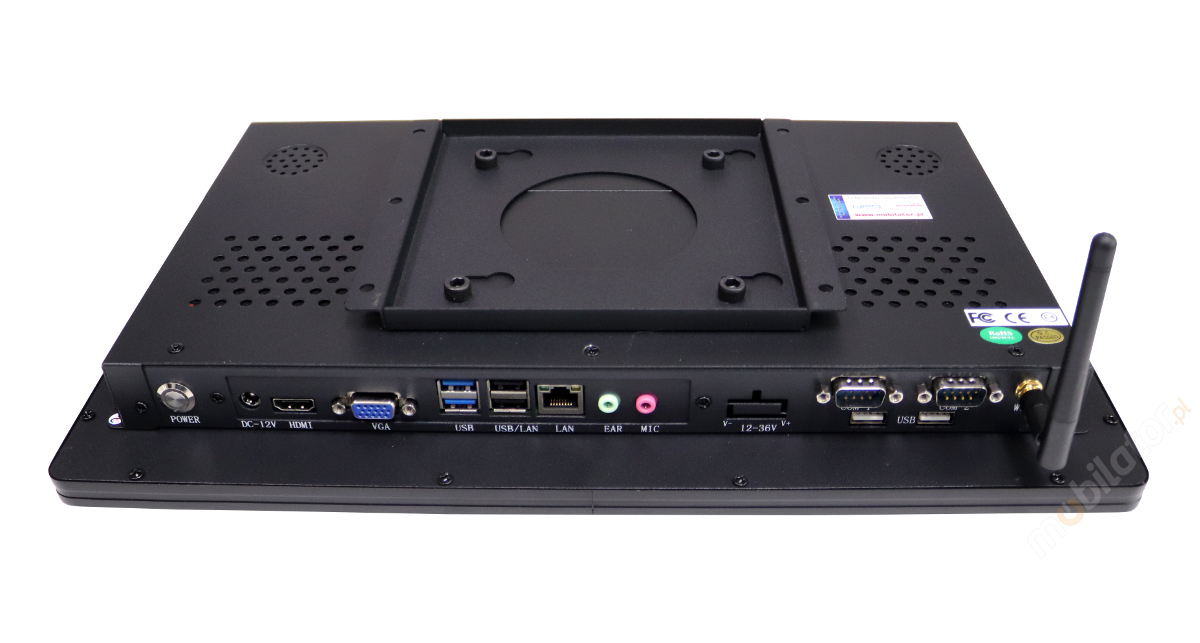

BiBOX-156PC1 - Industrial panel computer with 2xCOM, 2xUSB 3.0







EXtreme temperatures






PanelPC BiBOX-156PC1 is designed for continuous operation both at very low and high temperatures in the range from -10 ° C to 60 ° C. If the device is turned off, it can handle temperatures ranging from -20 ° C to 70 ° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 95% relative air humidity. It is also possible to purchase additional fanless cooling.



Work temp. -10°C do 60°C
Storage temp. -20°C do 70°C
Humidity 0% - 95% Non-Condensing





up… do gry   menu… menu



Communication and connectors








WIreless Wi-Fi network





The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The shockproof industrial panel BiBOX-156PC1 has been equipped with standards - 802.11n, which allows transfer of files at a dizzying speed of up to 150 Mb/s.





Standards 802.11a/b/g/n
Frequencies 2.4GHz

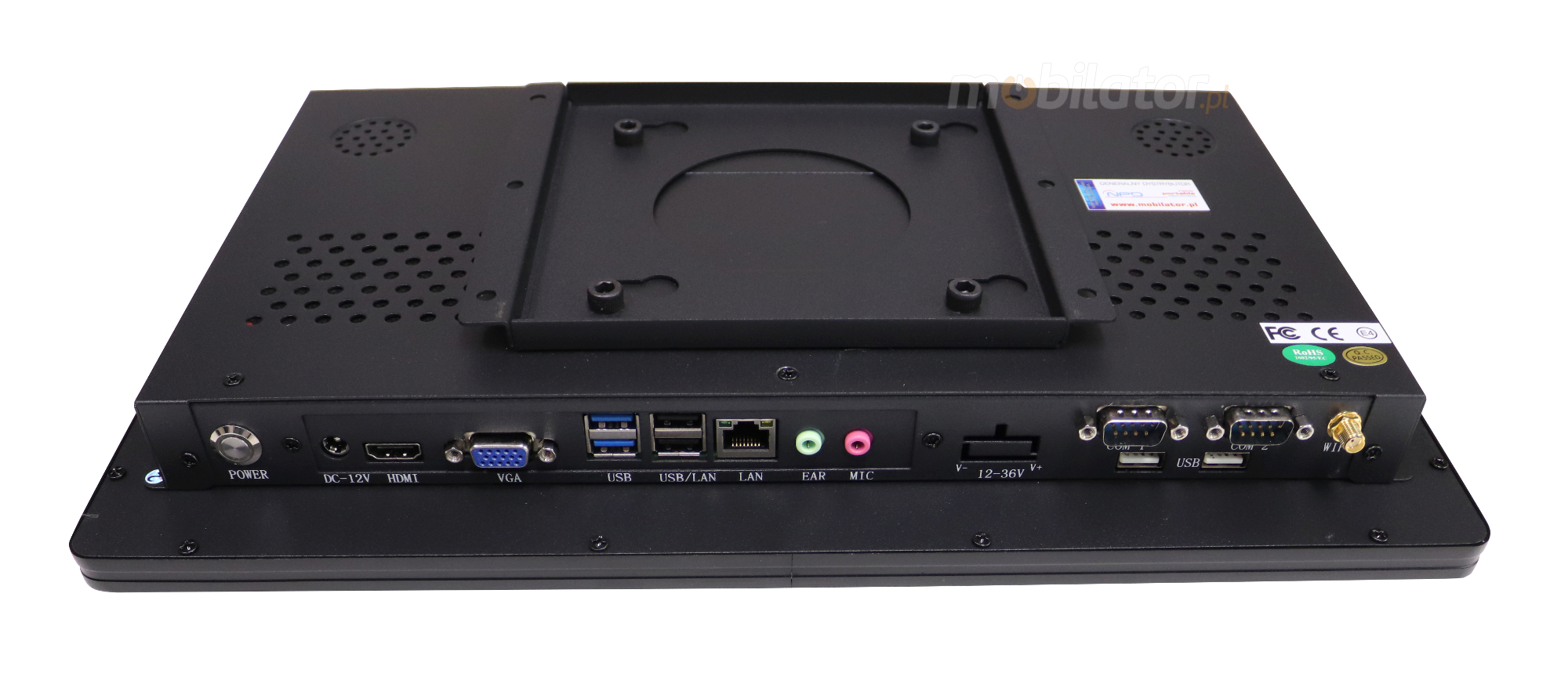

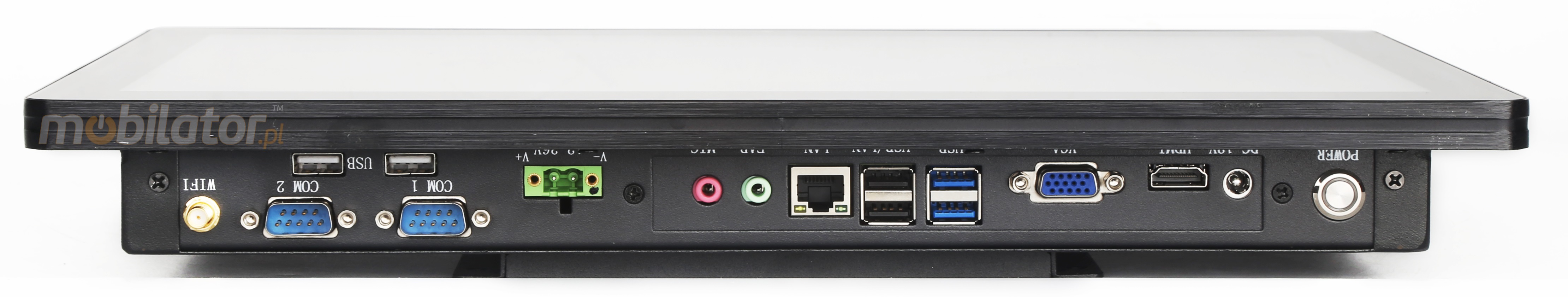

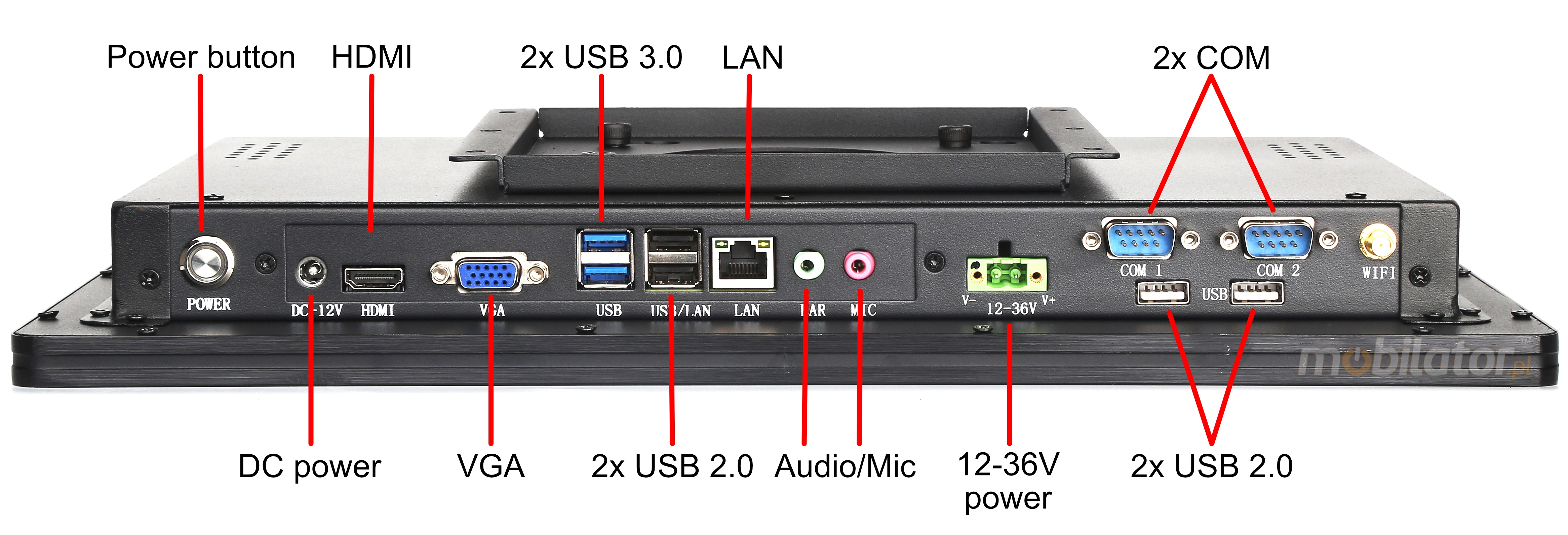

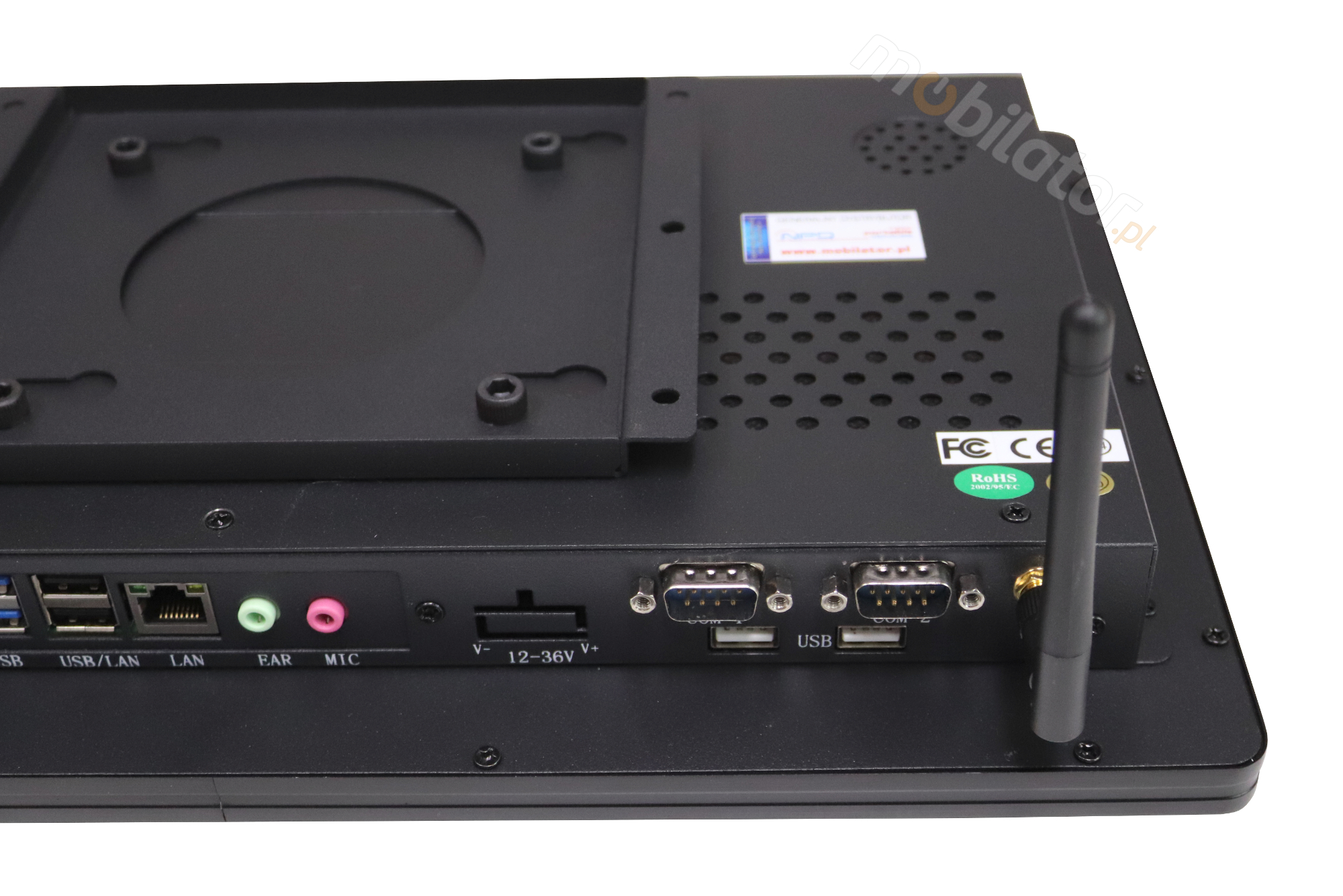

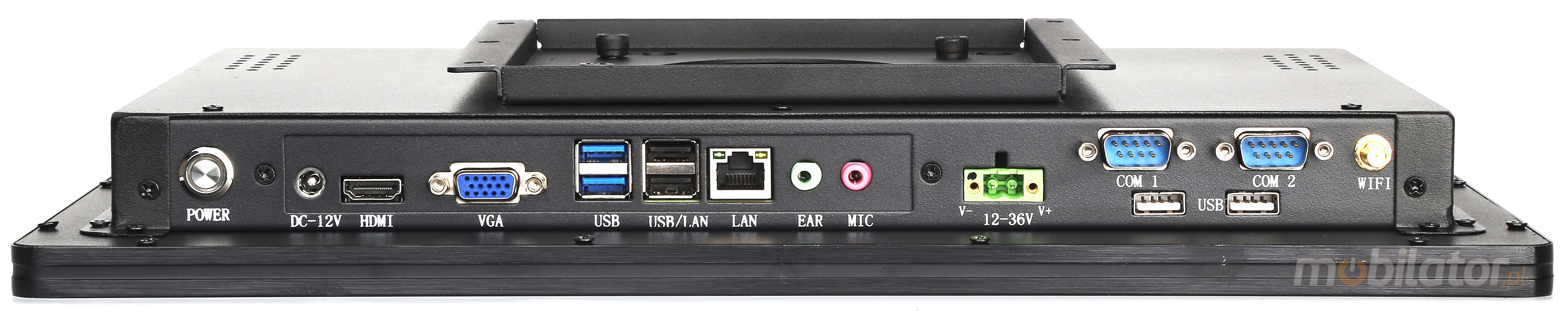

Connectors and interfaces

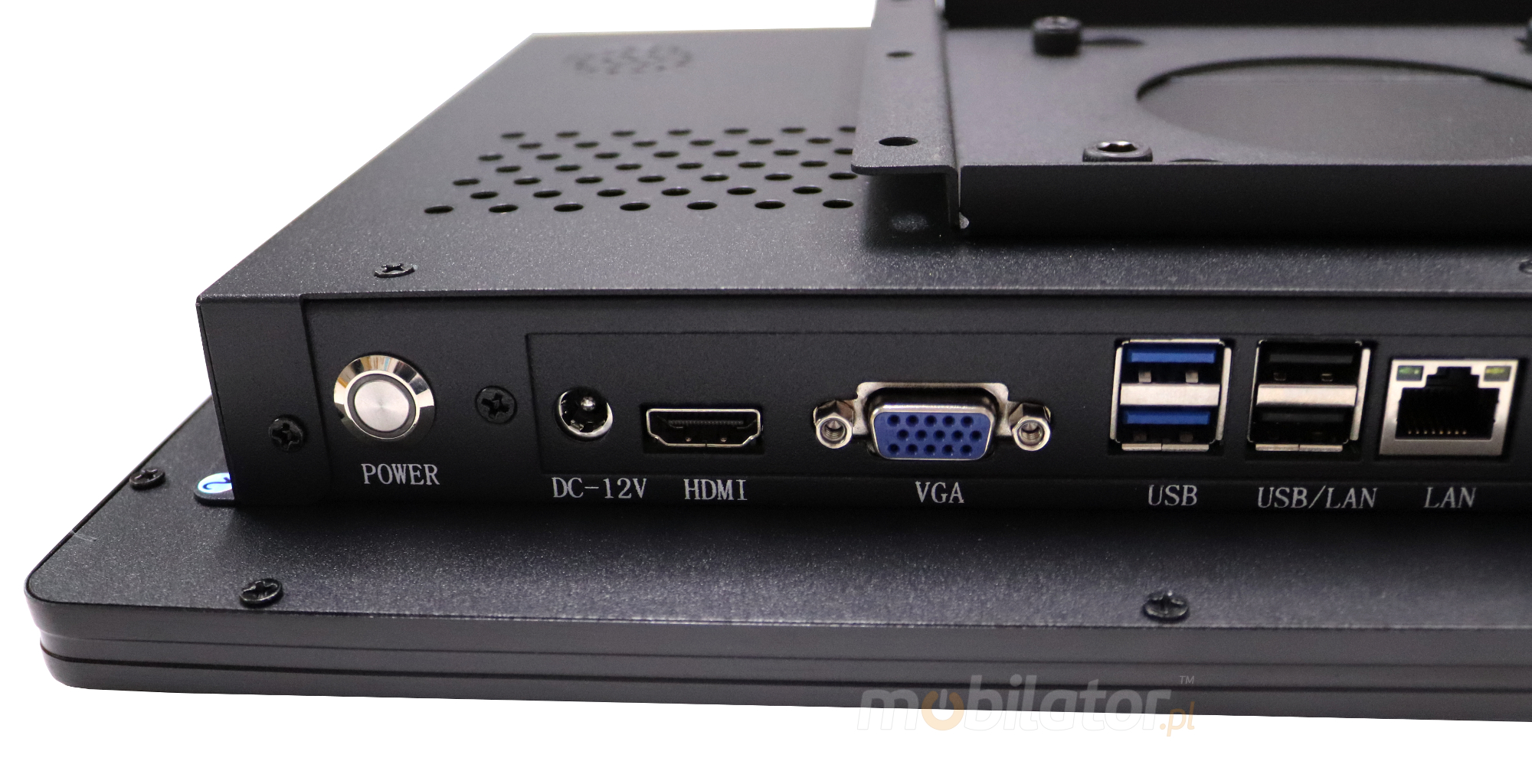

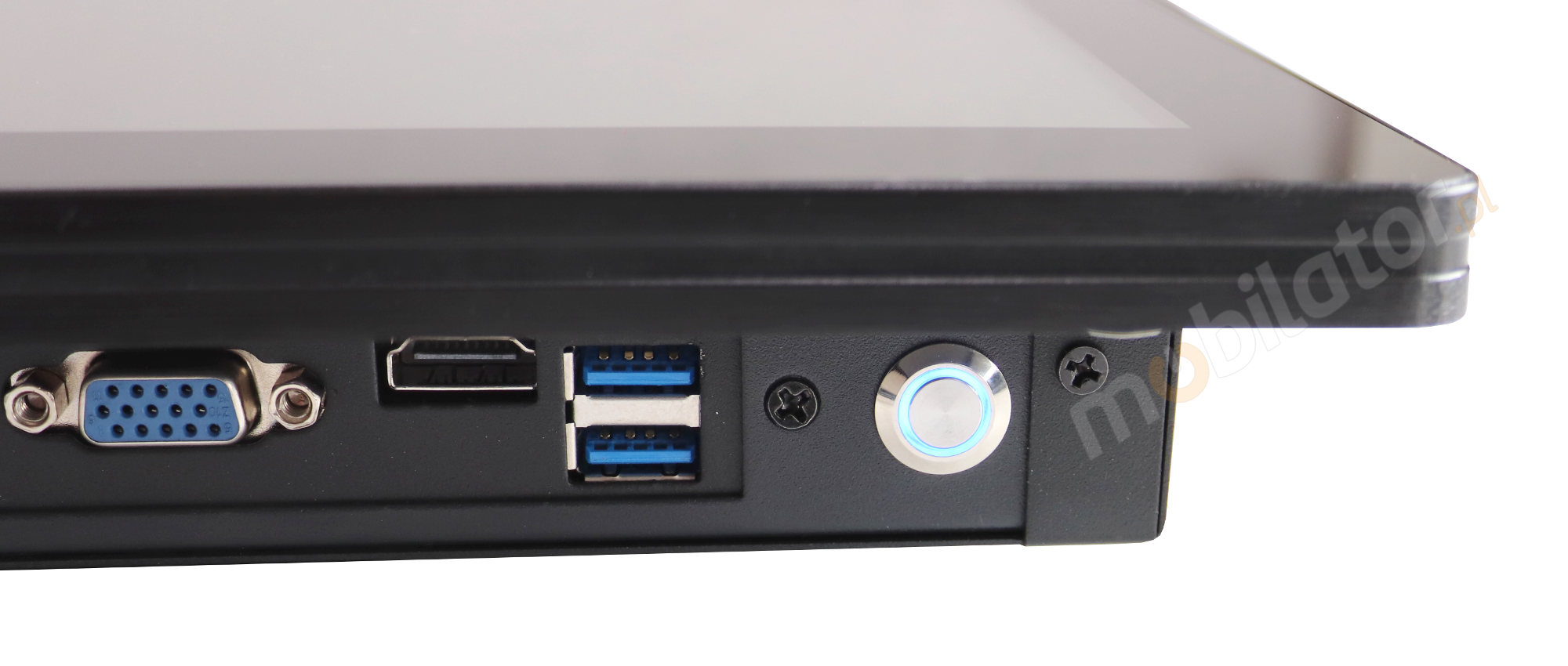

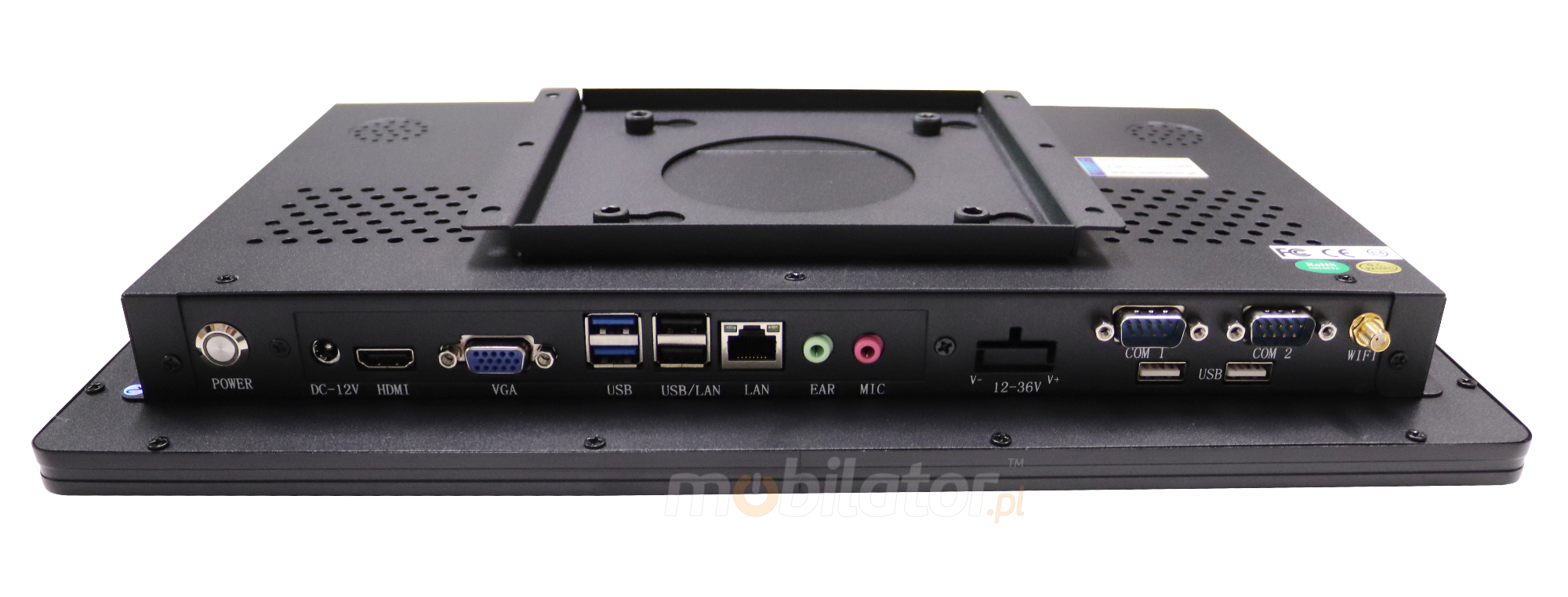

BiBOX-156PC1 - Industrial panel computer with two video outputs

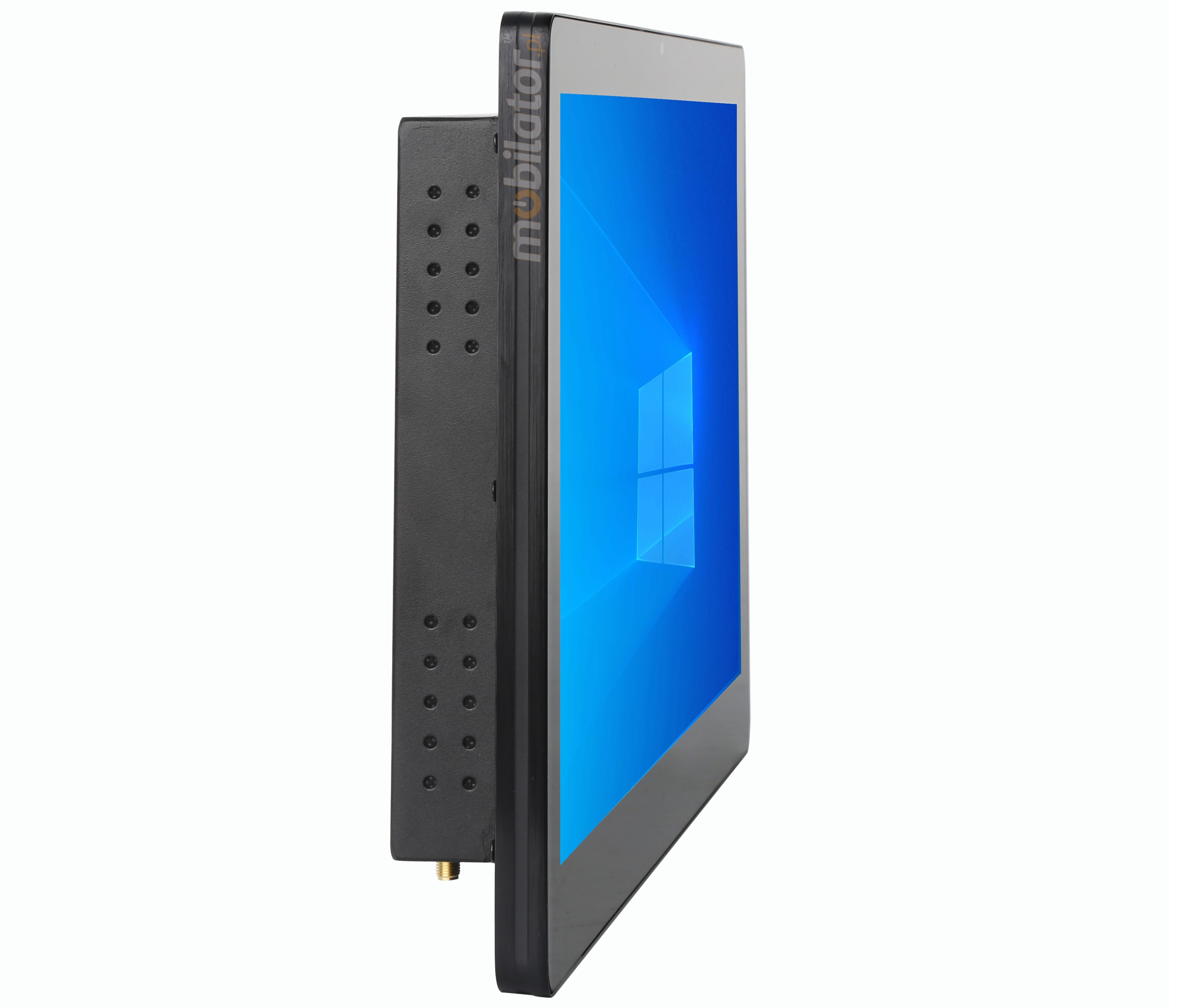

Dimensions










BiBOX-156PC1 - Industrial panel computer with 2xCOM, 2xUSB 3.0 product dimensions









Application

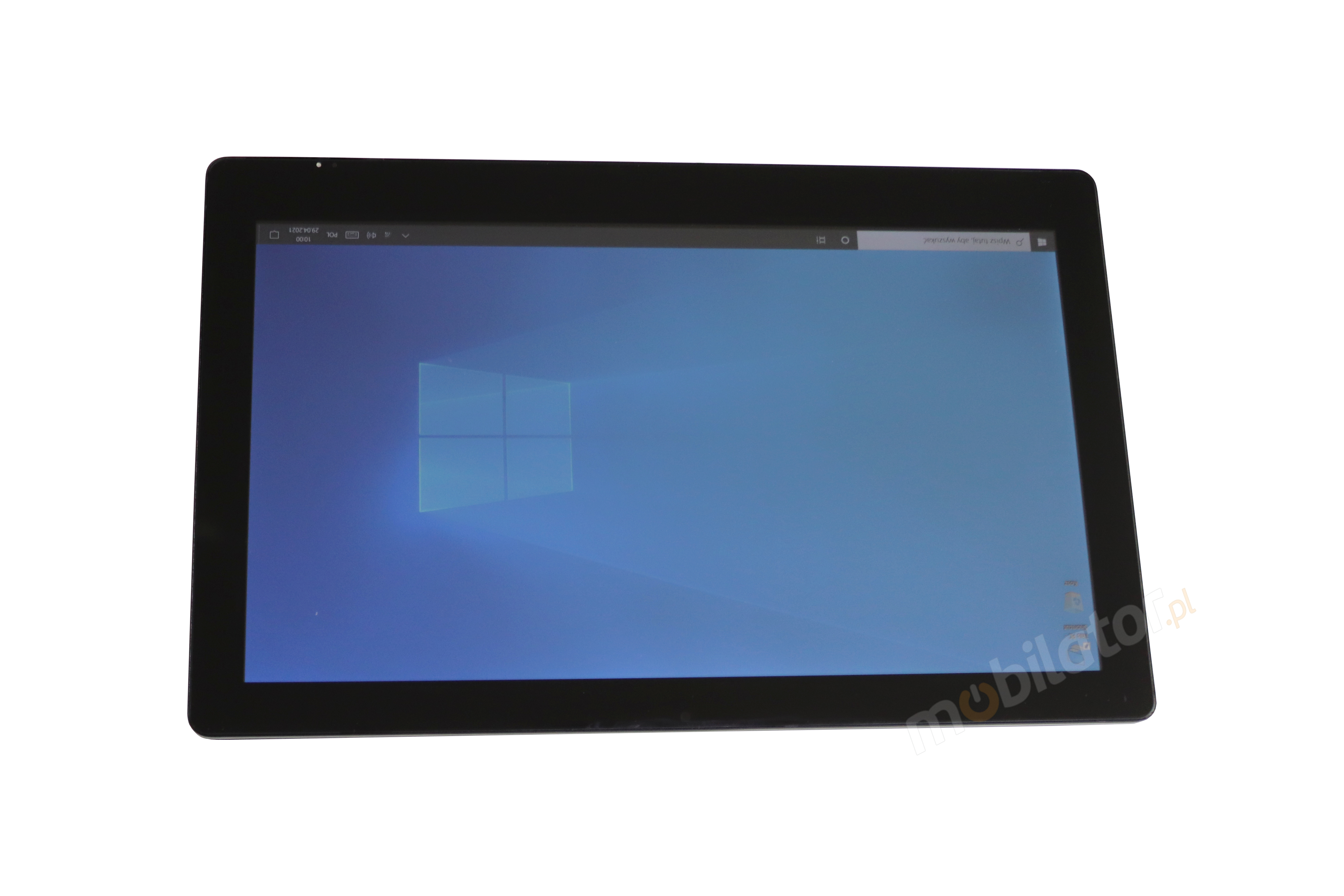

BiBOX-156PC1 - Industrial panel computer with a 15-inch screen







trade and services

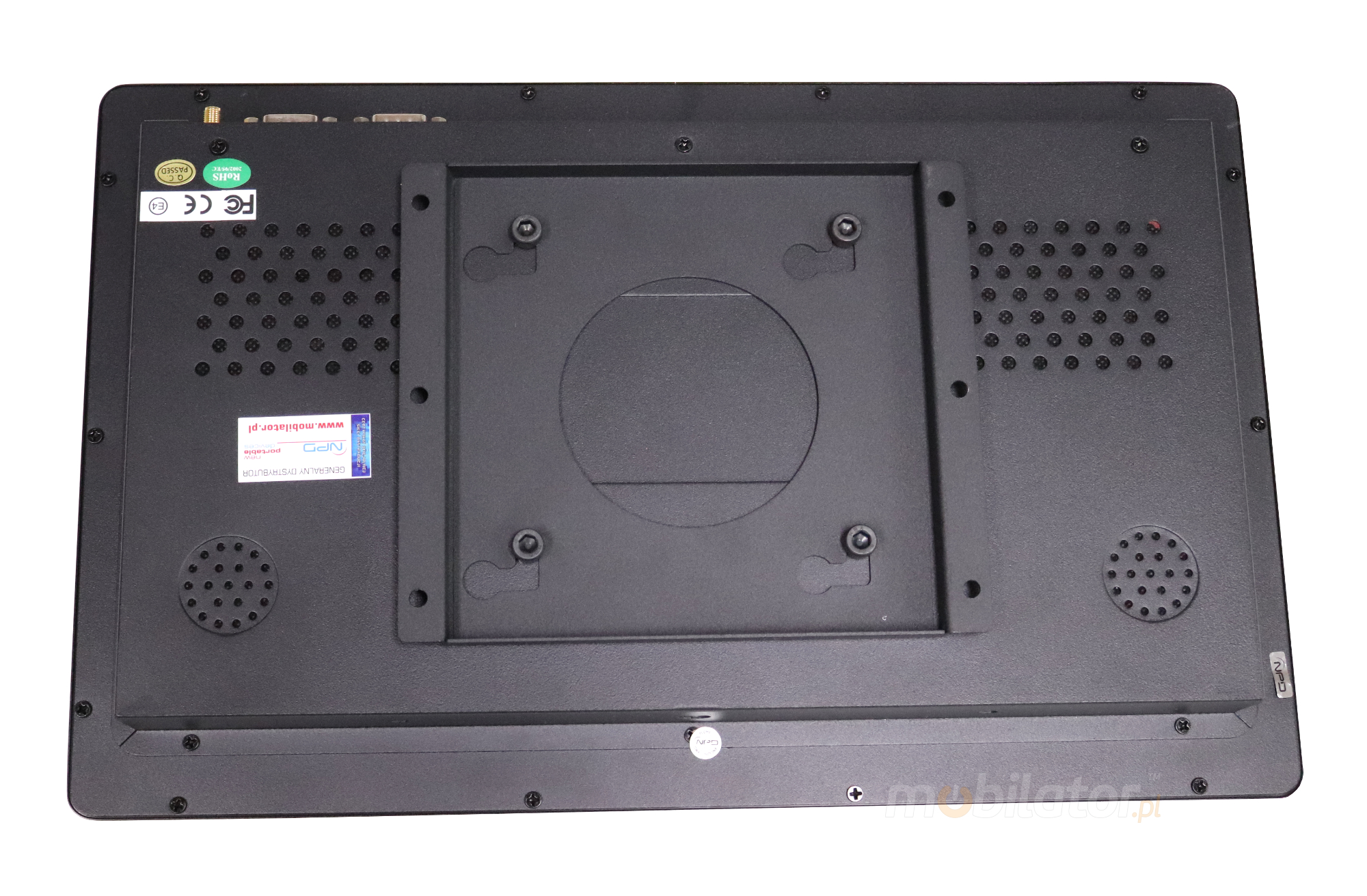

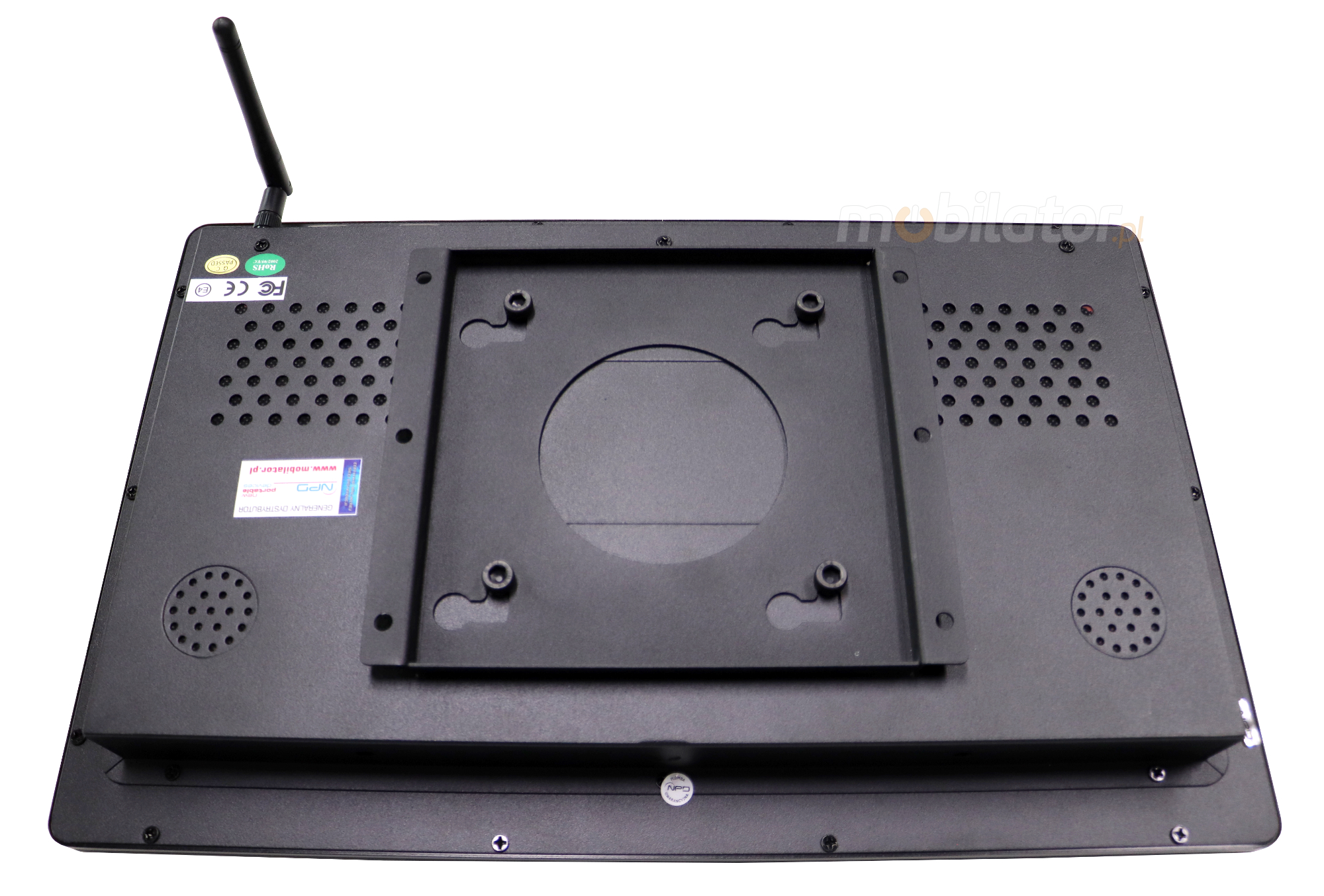

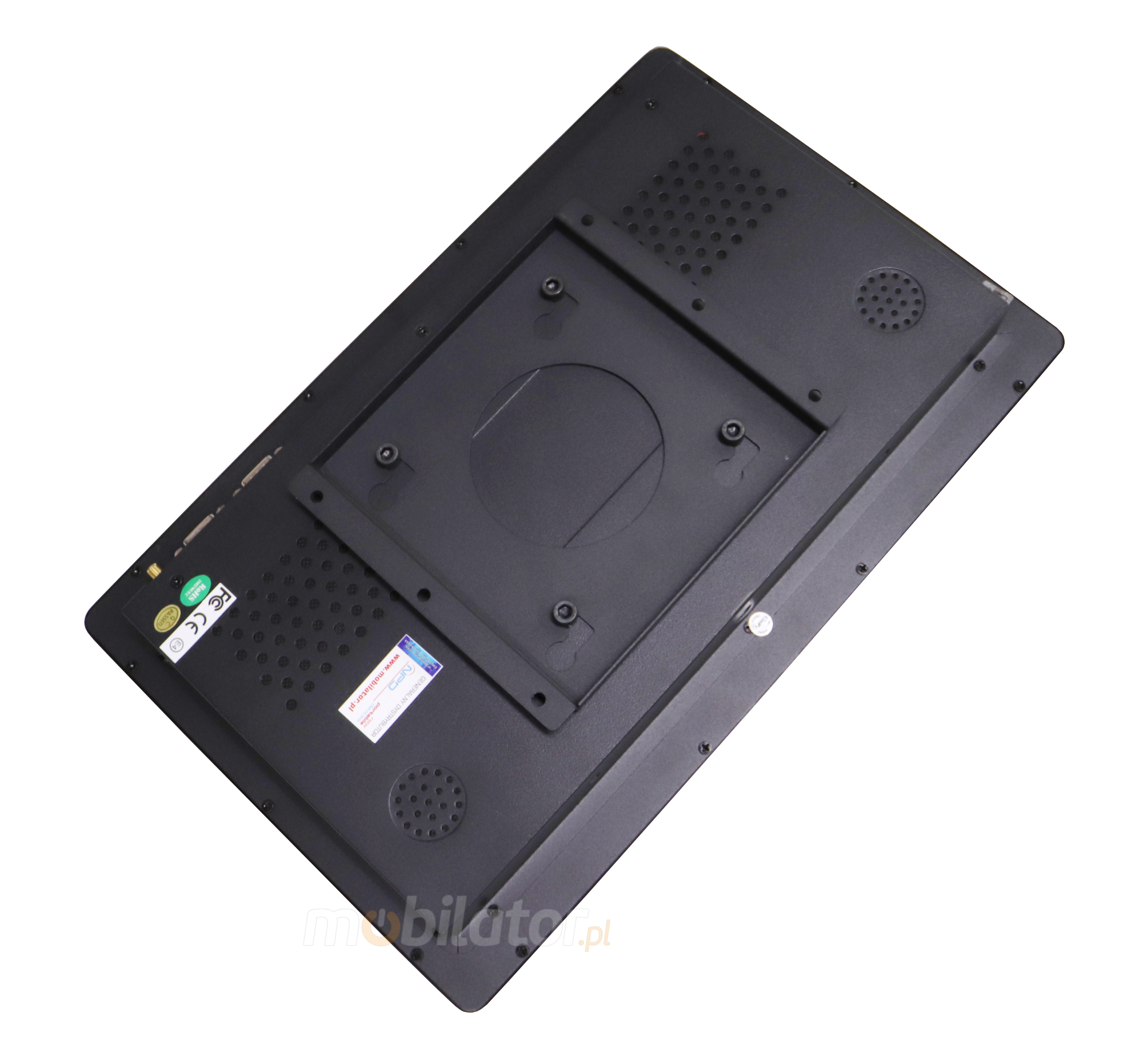

PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.






warehouse and management






The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.






Transport and motorization






Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.





up… do gry   menu… menu

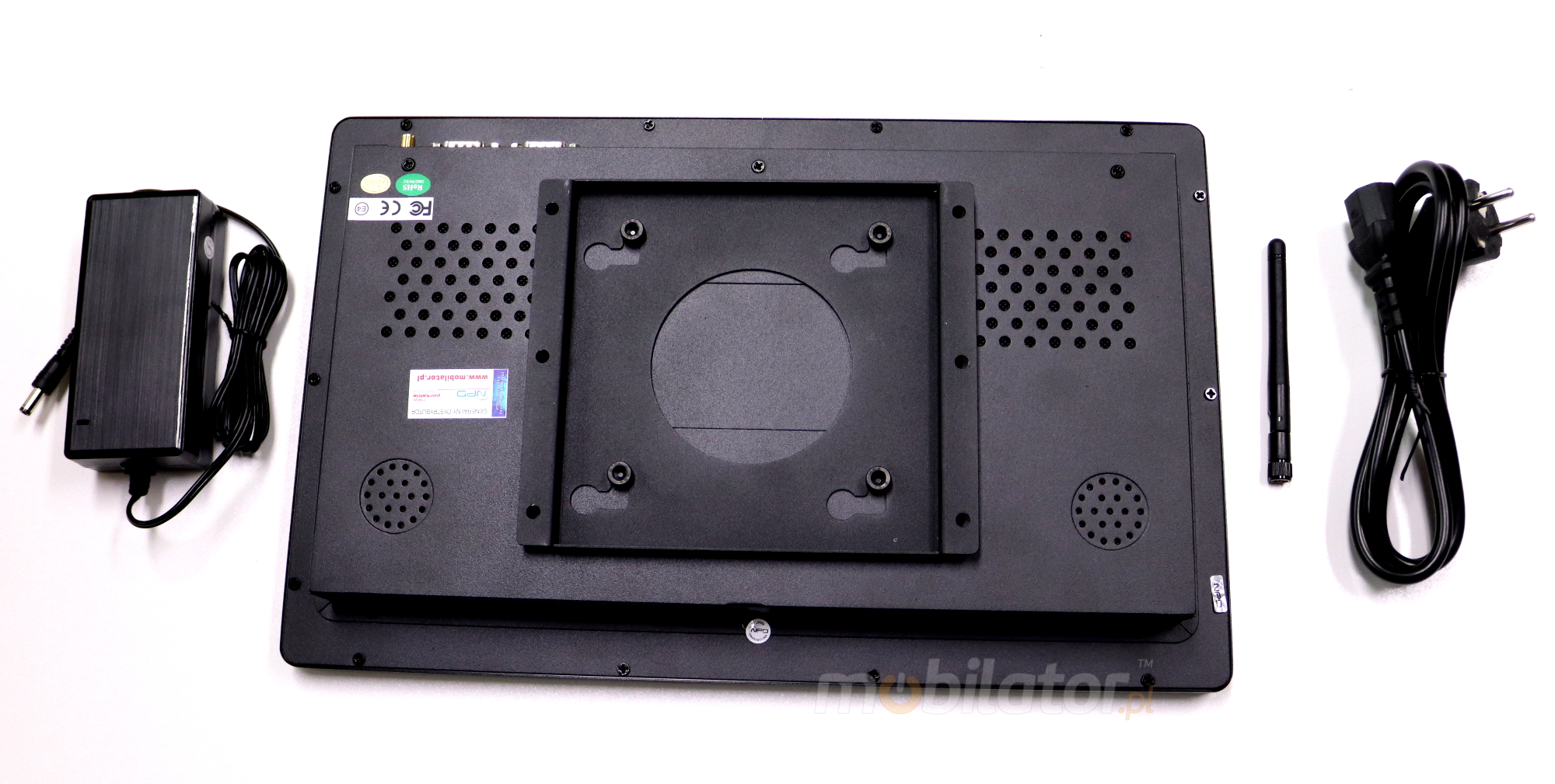

Available versions and accessories







Industrial Panel PC BiBOX-156PC1 is offered in several versions adapted to different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.

 v.1v.2v.3v.4v.5v.6v.7v.8
4GB RAM
8GB RAM
64GB SSD
128GB SSD
256GB SSD
512GB SSD
500GB HDD
4G
Bluetooth 4.0
Windows 10 PRO



Compare all versions
