BiBox 185-I510 v.3 - Rugged 18.5-inch Full HD panel PC - Intel i5-10210U, 8GB RAM, 256GB SSD, IP65 front panel, Windows 11, VGA, 2x RJ45 - For hydroelectric power plant operation
Compare all versions
BiBox 185-I510

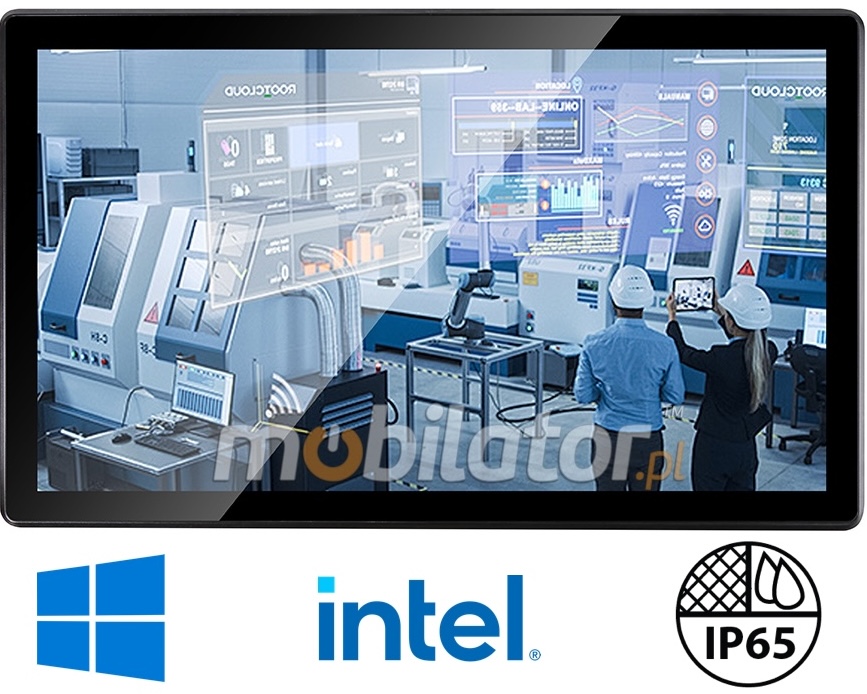

The BiBox 185-I510 industrial computer panel is a durable and dependable device that combines desktop-grade performance with the convenience of a touchscreen interface. Featuring a 18.5-inch Full HD display (1920×1080 px) and an energy-efficient Intel Core i5-10210U processor, it delivers smooth operation and low power consumption. Its IP65-rated front panel provides protection against dust and moisture, making it ideal for automation systems, production lines, and control environments. The BiBox 185-I510 panel PC ensures consistent and reliable performance even in demanding industrial conditions.
CertificateS
The BiBox 185-I510 control panel holds essential CE, FCC, and RoHS certifications, confirming compliance with international safety and quality standards. The CE mark ensures alignment with EU directives, FCC certification guarantees freedom from electromagnetic interference, and RoHS compliance confirms the use of eco-friendly materials. This comprehensive certification demonstrates that the device meets the highest technical, environmental, and operational requirements. It’s a professional and safe industrial-grade solution.
up…  menu…
Specification
| BiBox 185-I510 |
|
Certifications
|
CE | FCC | RoHS |
| Network |
1× Realtek RTL 8111E Gigabit Ethernet controller |
| Processor |
Intel Core i5-10210U (with fan) |
| Graphics |
Integrated |
| Operating system |
Windows 11 Pro
|
| Memory |
8GB RAM
16GB *(optional)
32GB *(optional)
|
| SSD |
256GB
512GB* (optional)
1TB* (optional)
|
| Display |
18.5" (1920x1080) 250 nits
1000 nits* (optional)
|
| Touch screen |
Capacitive (10-point) |
| Viewangle |
89°/89°/89°/89°
(R/L/U/D)
|
| Protection |
IP65 (front panel) |
| Communication |
BT | WiFi
WiFi 6* (optional)
4G* (optional)
|
| Connectors |
1x MIC | 4x USB | 2x LAN | 1x EAR
1x HDMI | Power DC12V | 2x RS232 | 1x VGA
RS485 instead of 1x RS232* (optional)
RS422 instead of 1x RS232* (optional)
4 additional RS232 ports* (optional)
9-36V power supply* (optional)
|
The BiBox 185-I510 industrial touch computer is a powerful and energy-efficient solution designed for demanding manufacturing and automation environments. Its quad-core Intel Core i5-10210U processor with eight threads delivers excellent multitasking performance and fast data processing. With an enhanced cache memory, the system ensures smooth operation under heavy workloads. This professional panel PC is ideal for running advanced industrial applications.
up… menu…

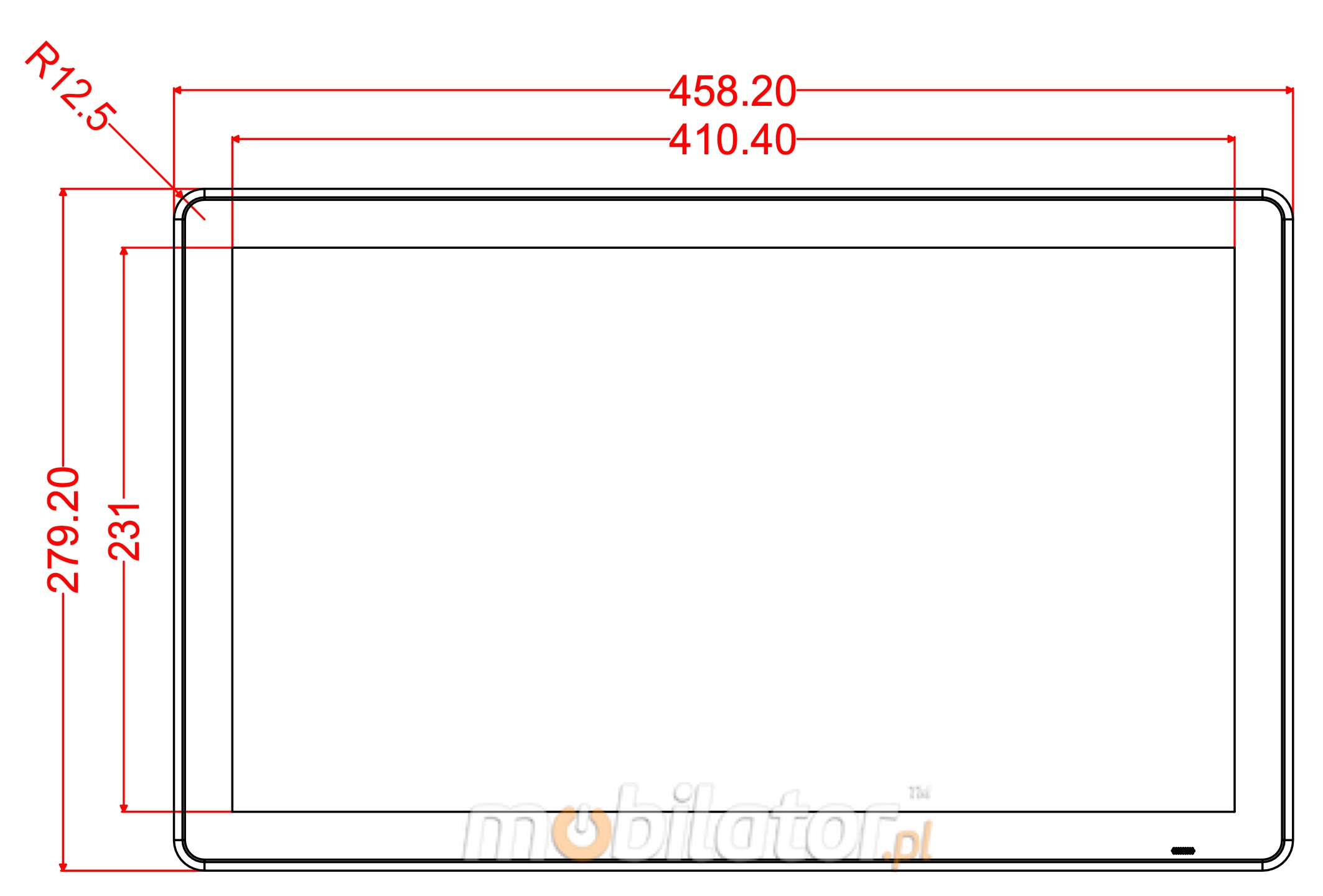

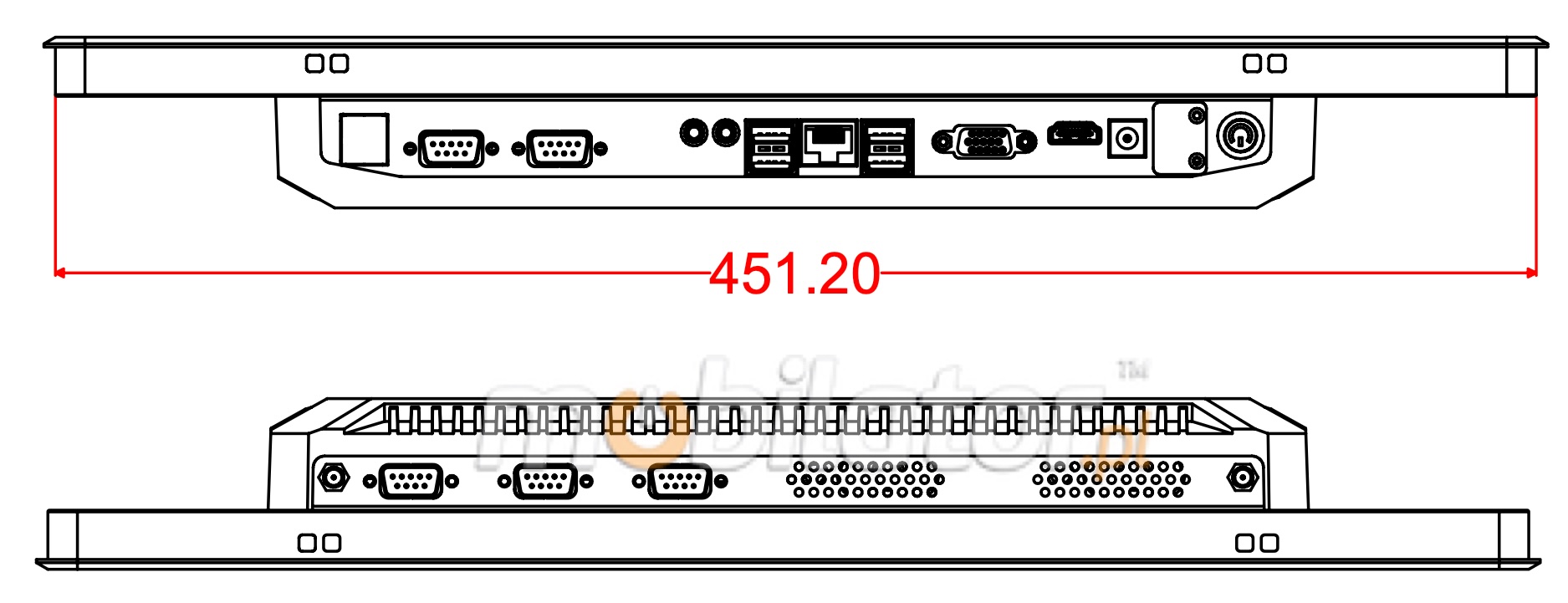

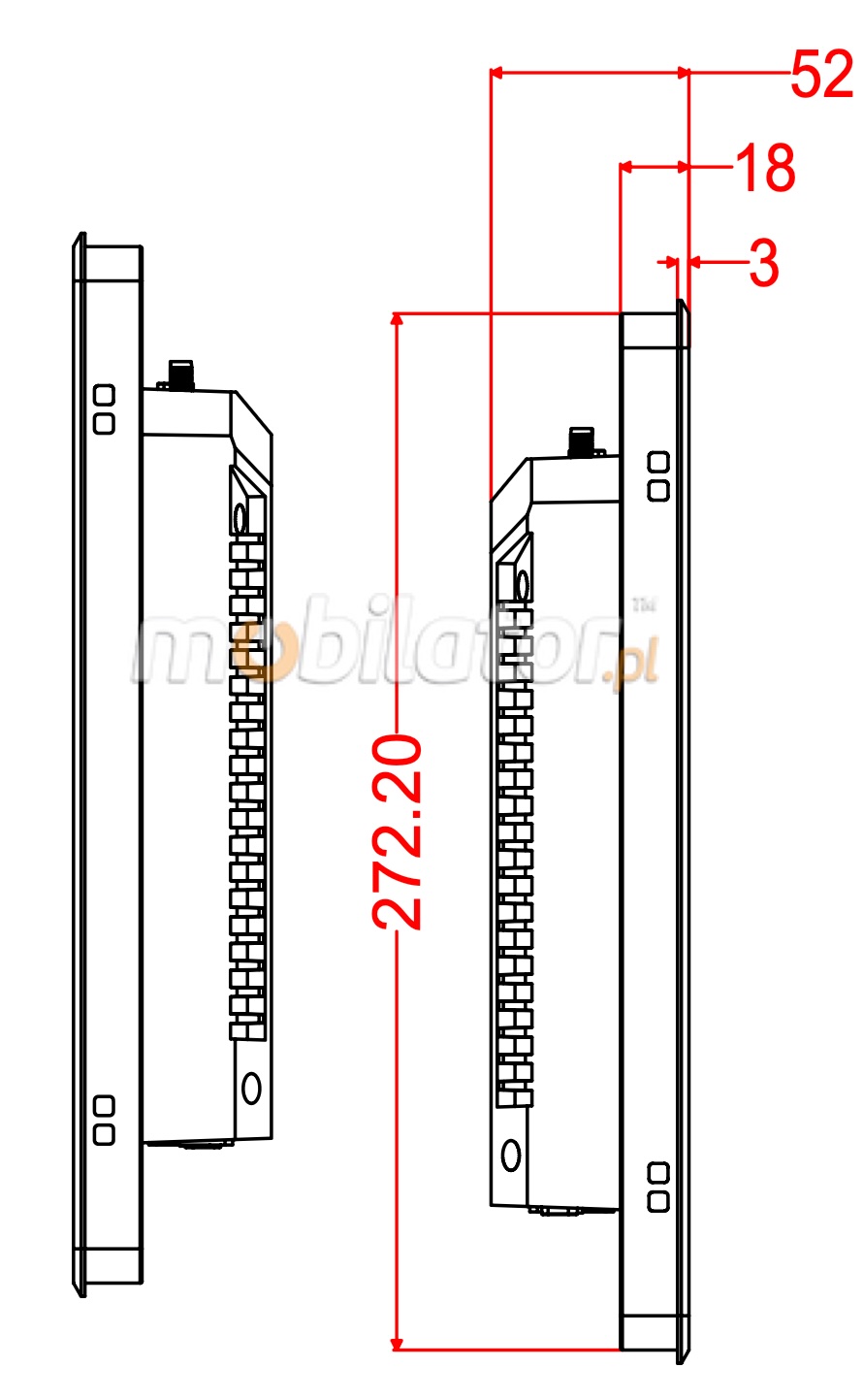

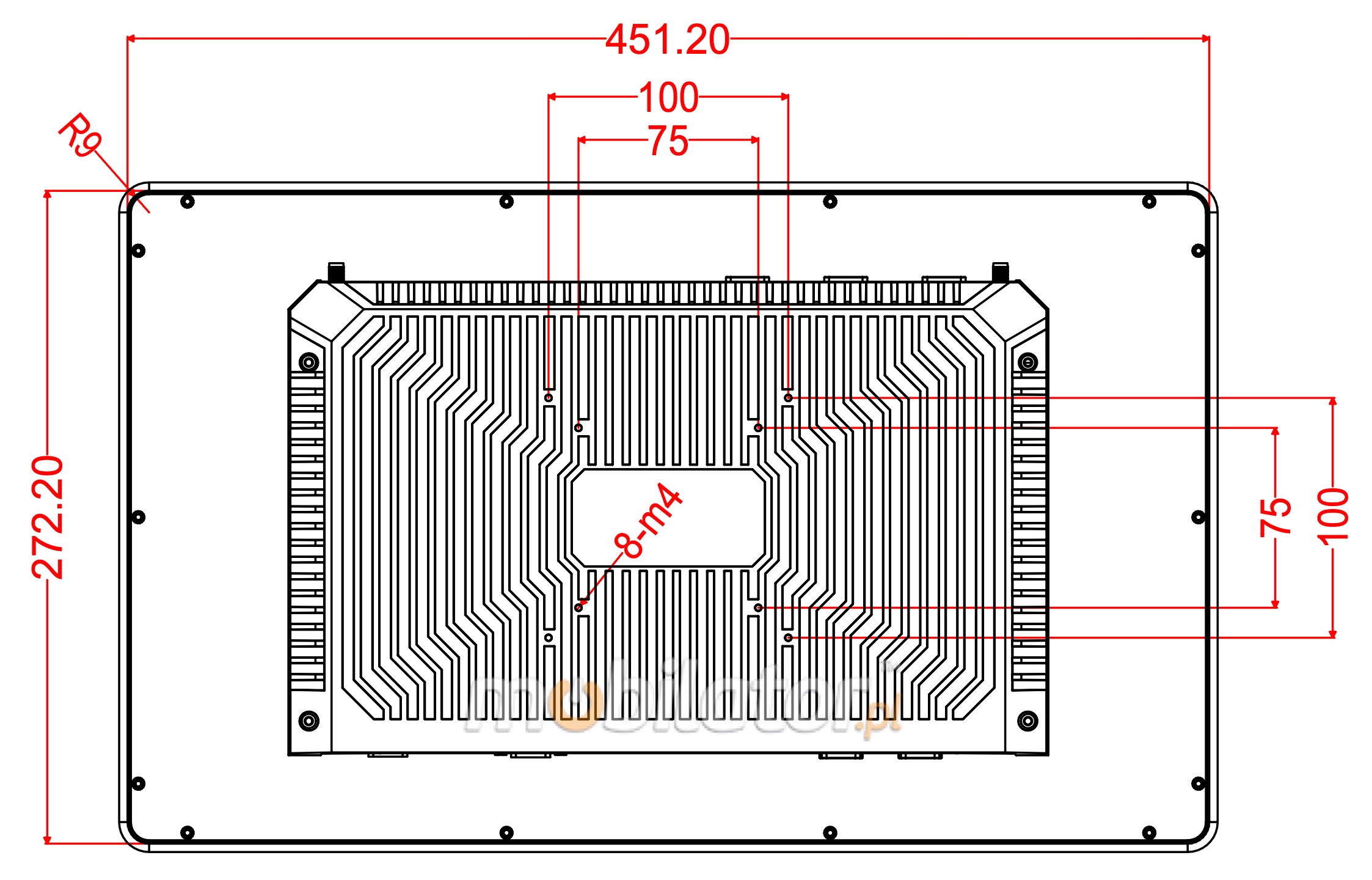

Dimensions

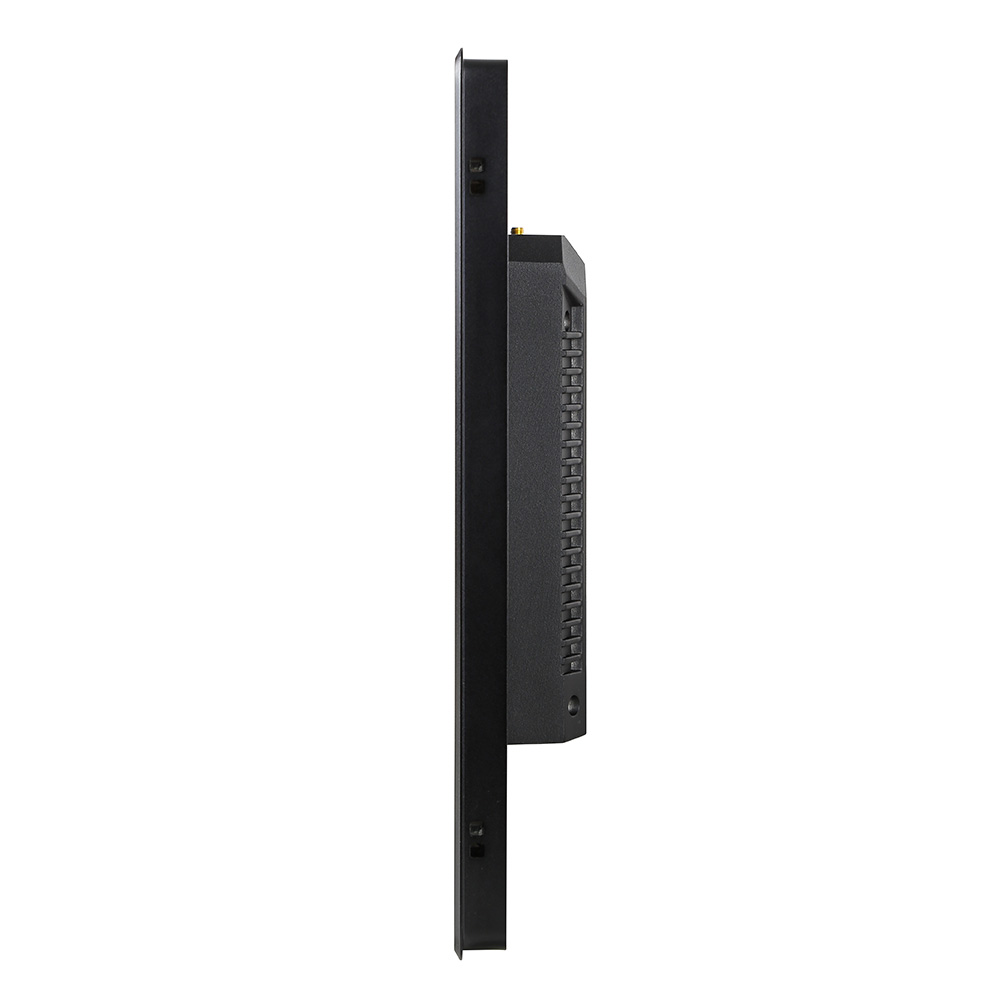

The durable BiBox 185-I510 industrial panel PC measures 458.2 × 279.2 × 52 mm and features a slim, space-saving design perfectly suited for control cabinets and limited industrial environments.
| Dimensions |
458.2 × 279.2 × 52 mm |
up… menu…
Capacitive screen
A capacitive screen detects touch by changing the electrostatic field created when you touch the screen with your finger. Unlike resistive technology, it doesn't require any physical pressure. This makes operation precise and fluid, with the screen responding to even the lightest touches. This technology also supports multitouch, allowing for simultaneous recognition of multiple touch points, enabling gestures such as zooming or rotating.

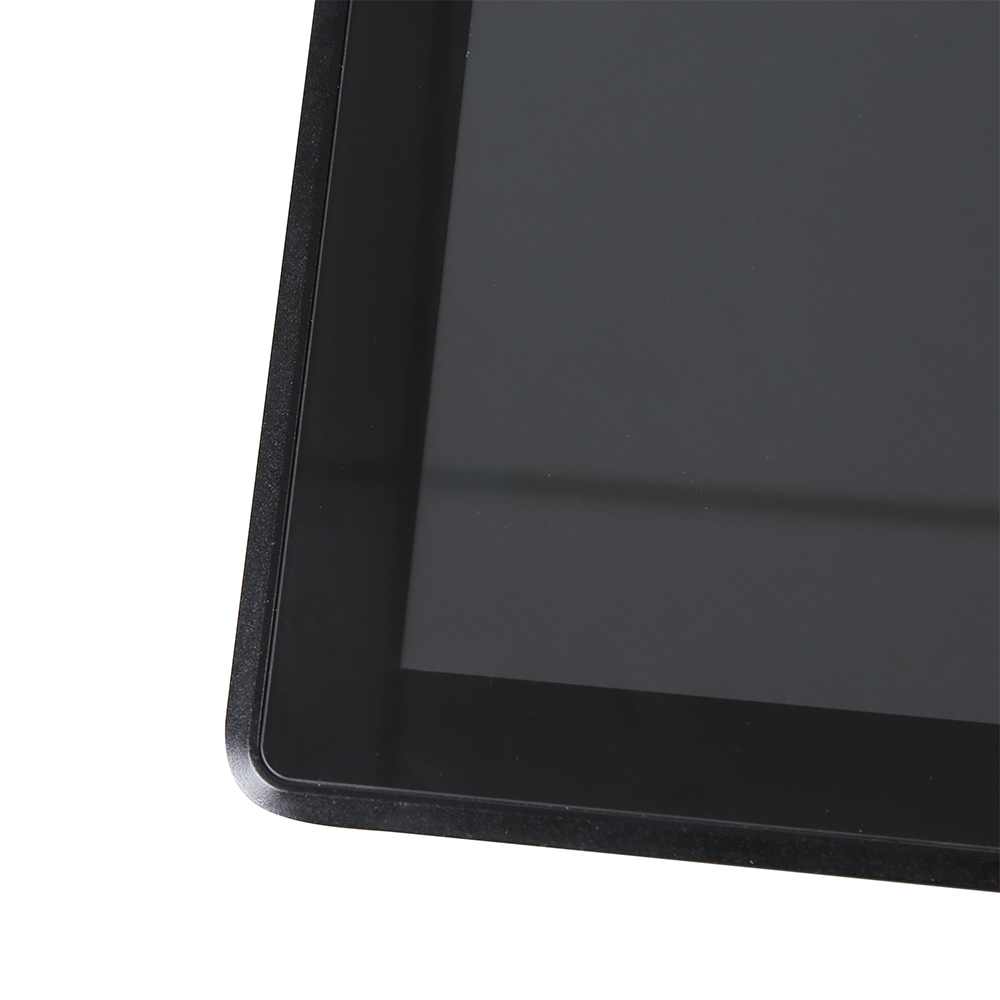

Aluminium Bezel Style *(option)
Aluminum Bezel Style is a solution in which the screen frame is made of aluminum or finished with this material. This gives the device an immediate, premium look and significantly increases the feeling of solidity. Aluminum, being a more durable and rigid material than plastic, provides better protection against scratches and damage. Furthermore, in addition to its aesthetic appeal, this metal dissipates heat more effectively while maintaining the device's slim profile without compromising structural strength.
*At the customer's request, it is possible to order the BiBox 185-I510 device in the Aluminum Bezel Style version. Version available in the configurator.
250-nits screen
The BiBox 185-I510 industrial panel PC is a durable and reinforced computing solution designed for efficient operation in challenging industrial environments. Its 250-nit display brightness ensures excellent readability and user comfort in shaded areas or under moderate sunlight. This balanced luminance provides a clear image and accurate process monitoring. The BiBox 185-I510 panel computer is a professional solution for automation, manufacturing, and machine control applications.
up… menu…
REsistance
IP65
.png)
The IP65-rated front panel provides complete protection against dust and resistance to powerful water jets from any direction. This makes it an excellent, reliable, and durable solution for demanding operating conditions where the device is exposed to atmospheric conditions but not to complete immersion in water
Extreme temperatures
The BiBox 185-I510 industrial touch computer is a modern and robust device engineered for operation in extreme environmental conditions. Its reinforced housing ensures reliable performance within a wide temperature range of -10°C to 60°C, and in humidity levels up to 95% (non-condensing). The system also allows for safe storage between -20°C and 70°C, providing maximum flexibility for transport and warehousing. This professional industrial solution is ideal for continuous operation in demanding automation and manufacturing environments.
| Working Temp. |
-10°C do 60°C |
| Storage Temp. |
-20°C do 70°C |
| Humidity |
5% do 95% |
up… menu…
COMMUNICATIONS AND CONNECTIONS
Communication

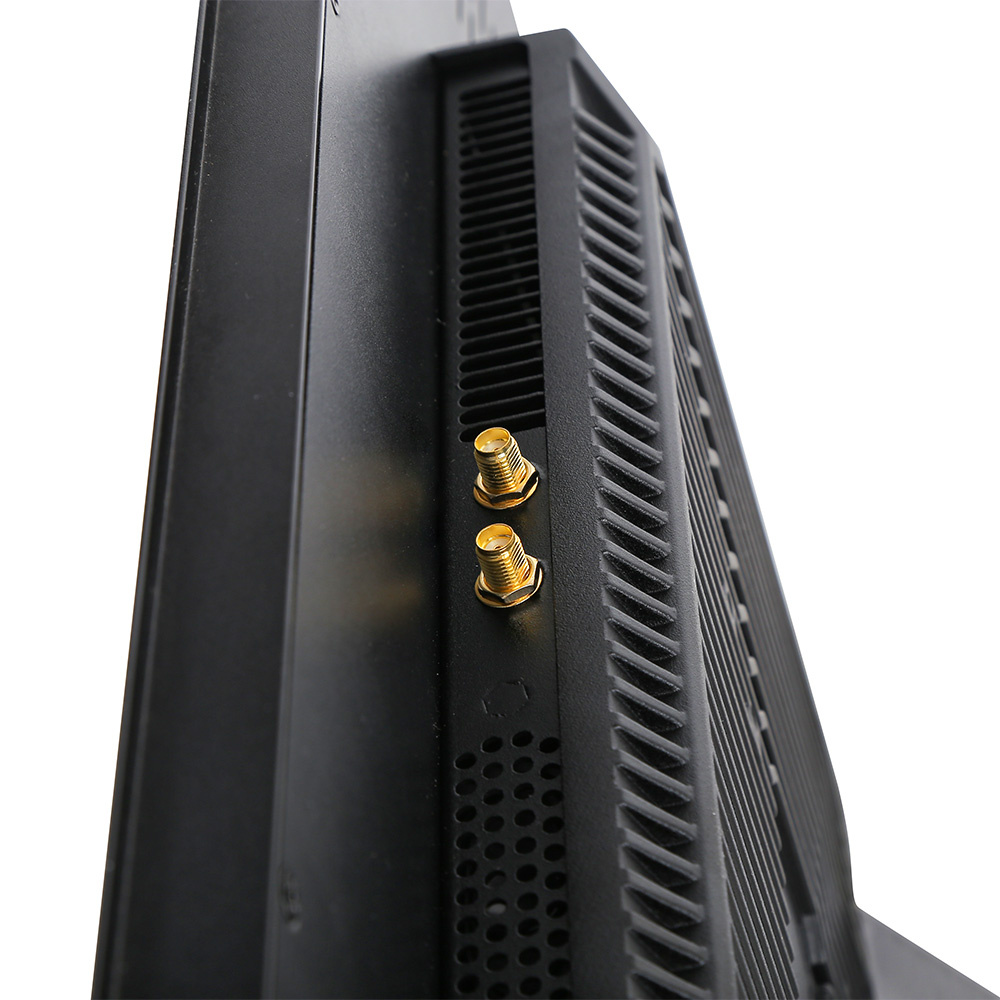

The device features two versatile Mini-PCIe expansion slots, allowing the installation of additional modules. You can add a WiFi card for wireless internet, a 3G/4G module for mobile connectivity, or an mSATA drive to expand storage. This capability makes the panel highly flexible and easily customizable for a wide range of industrial applications.

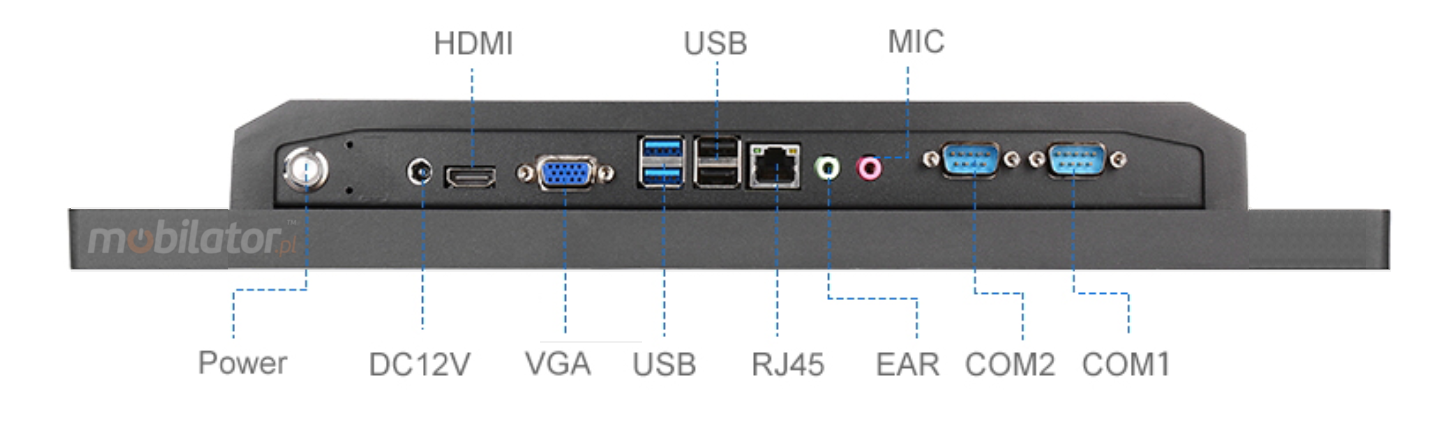

Ports
The PC panel BiBox 185-I510 provides a comprehensive set of connectors for maximum functionality in industrial environments. Connectivity includes four USB ports, an HDMI video output, dual LAN ports for stable network communication and 1 VGA port. Two RS-232 (one port can be replaced with either RS485 or RS422) serial ports are essential for system integration, while full audio support includes a microphone input (MICx1) and headphone output (EARx1). The computer panel is powered by DC 12V. On client's wish, four additional RS-232 ports can be added.
Application
Trade and Services
The BiBox 185-I510 Panel PC is an exceptionally versatile tool that performs well in both intensive industrial environments and the retail sector. Designed for centralized system control, the efficient display of detailed information (e.g., about products or production line status), and the dynamic presentation of content, including advertising, the device's true strength lies in its installation flexibility: thanks to full VESA compatibility, the panel can be quickly and securely mounted in almost any location. Regardless of the application—whether it's a cash register terminal, a process monitoring point on the factory floor, or a fleet management component for delivery vehicles—the BiBox 185-I510 guarantees reliability, perfectly suited to any demanding operational network.
do góry… menu…
Industry and Construction
Specialized panel computers are synonymous with reliability in the harshest operating environments. Their reinforced enclosures, certified to the IP65 (front panel) standard, provide complete resistance to dust and powerful water jets. This makes devices like the BiBox 185-I510 the ideal choice for applications where traditional equipment would quickly deteriorate – from demanding construction sites, to dynamic logistics centers, to intensive production lines. This durability allows you to rely on your equipment without fear of damage.
Warehouse
This reliable panel computer was created to accelerate warehouse operations. Equipped with RS-232 interfaces, it enables centralized device control, making management simple and efficient. Furthermore, its durable construction is fully resistant to industrial factors such as dust and dirt. This ensures stable and reliable operation even in the harshest and most polluted production environments.
up… menu…
Accessories and available versions
The BiBox 185-I510 heavy-duty panel PC is available in several versions tailored to different needs. Clicking on the hardware configuration number will redirect you to the product with the parameters listed in the table below. Furthermore, upon request, we can create a configuration not currently available.
Porównaj wszystkie wersje | | v.1 | v.2 | v.3 | v.4 | v.5 | v.6 | v.7 | v.8 | | BT + WiFi | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | | Windows 11 Pro | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | | WiFi 6 | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | | 4G | — | — | — | ✔ | — | — | — | — | | 1000 nits | — | ✔ | — | ✔ | — | ✔ | — | ✔ | | 8GB RAM + 256GB SSD | ✔ | ✔ | ✔ | ✔ | — | — | — | — | | 16GB RAM + 512GB SSD | — | — | — | — | ✔ | ✔ | — | — | | 32GB RAM + 1TB | — | — | — | — | — | — | ✔ | ✔ |
Compare all versions
| Screen size: |
18.5 inch |
| Resolution: |
1920x1080 |
| Aspect ratio: |
16:9 |
| Touchscreen: |
Capacitive |
| Chipset: |
--- |
| CPU Support: |
Intel Core i3, i5, i7 - 10th generation |
| Installed CPU: |
Intel core i5-10210U with fan |
| Memory Support: |
DDR4 |
| Installed Memory: |
8GB |
| Graphic Card: |
CPU Integrated graphics HD Graphics
support 1080p HD photo quality |
| Audio: |
Realtek ALC662 | High Definition Audio (HD)
Line in | Line out |
| Storage (HDD) Support: |
SSD |
| Installed Storage (HDD): |
256GB |
| CD/DVD Drive: |
No |
| LAN: |
2 ports RJ-45 |
| Wireless LAN card: |
WiFi |
| Bluetooth: |
Yes |
| 3G: |
No (optional) |
| 4G LTE: |
No (optional) |
| GPS: |
No (optional) |
| TV Tuner: |
No |
| Watch Dog Timer: |
Yes |
| Ports - front panel: |
----- |
| Ports - rear panel: |
VGA x1 | USBx4 | HDMIx1 | LANx2 | RS232x2 | MIC EARx1 | Power DC12V |
| Ports - left panel: |
----- |
| Ports - right panel: |
----- |
| Power: |
Ext.Power Supply AC100-240V
Working voltage DC12V | Power consumption ≤60W |
| Supported OS: |
Windows |
| Installed OS: |
Windows 11 Pro |
| Dimensions: |
458.2x279.2x52mm |
| Weight: |
4.6kg |
| Expansion: |
--- |
| Fanless: |
No |
| Humidity: |
5% - 95% Non-Condensing |
| Temp: |
-10 °C to 60 °C |
| Storage Temp: |
-20 °C to 70 °C |
| IP Norm: |
IP65 |
| IP Level (back panel): |
----- |
| IP Level (front panel): |
IP65 |
| Dual display: |
--- |
| Response time touch-panel (ms): |
15 ms |
| Contrast Ratio: |
1000:1 |
| Brightness: |
250 nits |
| Viewing Angle: |
89°/89°/89°/89°
(R/L/U/D) |
| Backlight MTBF: |
--- |
| Color Resolution: |
16.7 million |
| Surface hardness (display): |
7H |
| Touch Life(contacts): |
50 000 |
| Housing material: |
Metal |
| Mounting VESA: |
100 x 100 mm |
| Folding Bracket (for office type working): |
No (optional) |
| Power Consumption: |
--- |
| Others: |
--- |
| Anti-vibration: |
5-500Hz,0.026G²/Hz,2.16Grms,X,Y,Z
1 hour per axis |
| Anti-shock: |
---- |
| RFID scanner (reader): |
No |
| Barcode reader: |
No |
Compare all versions
 |
BiBox 185-I510 v.1 - Rugged 18.5-inch Full HD panel computer - i5-10210U, 8GB RAM, 256GB SSD, IP65 front panel, Windows 11, 2x RJ45, HDMI, RS232 - For smart network operation |
801.90 €
|
 |
BiBox 185-I510 v.2 - Rugged 18.5-inch Full HD panel PC - Intel i5-10210U, 8GB RAM, 256GB SSD, IP65 front panel, WiFi, VGA, HDMI - For operating dispatch terminals in warehouses |
915.65 €
|
 |
BiBox 185-I510 v.4 - Rugged 18.5-inch Full HD industrial computer - i5-10210U, 8GB RAM, 256GB SSD, IP65 front panel, Windows 11, LTE, RS232 - For transmission network monitoring |
1059.81 €
|
 |
BiBox 185-I510 v.5 - Rugged 18.5-inch Full HD panel PC - Intel i5-10210U, 16GB RAM, 512GB SSD, IP65 front panel, WiFi 6, VGA, HDMI - For displaying menu boards in food service establishments |
992.24 €
|
 |
BiBox 185-I510 v.6 - Rugged 18.5-inch Full HD industrial computer - i5-10210U, 16GB RAM, 512GB SSD, IP65 front panel, Windows 11, RS232 - For taking orders in food trucks |
1087.97 €
|
 |
BiBox 185-I510 v.7 - Professional 18.5-inch Full HD computer panel - Intel i5-10210U, 32GB RAM, 1TB SSD, IP65 front panel, Windows 11, VGA, HDMI, 2x RJ45 - For managing table reservations in restaurants |
1076.71 €
|
 |
BiBox 185-I510 v.8 - Modern 18.5-inch Full HD panel PC - Intel i5-10210U, 32GB RAM, 1TB SSD, IP65 front panel, WiFi 6, 2x RJ45 - For analyzing sales data in food service outlets |
1172.44 €
|
