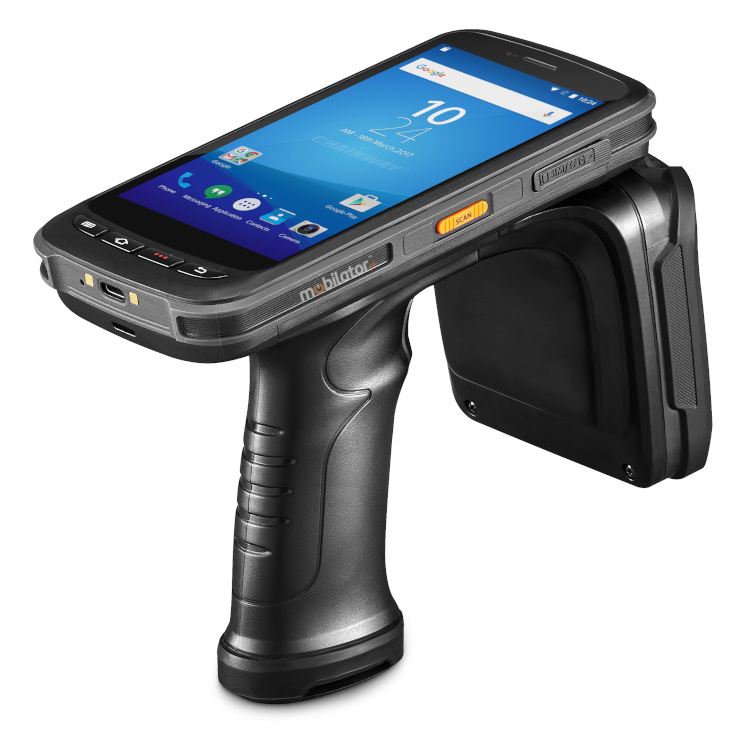

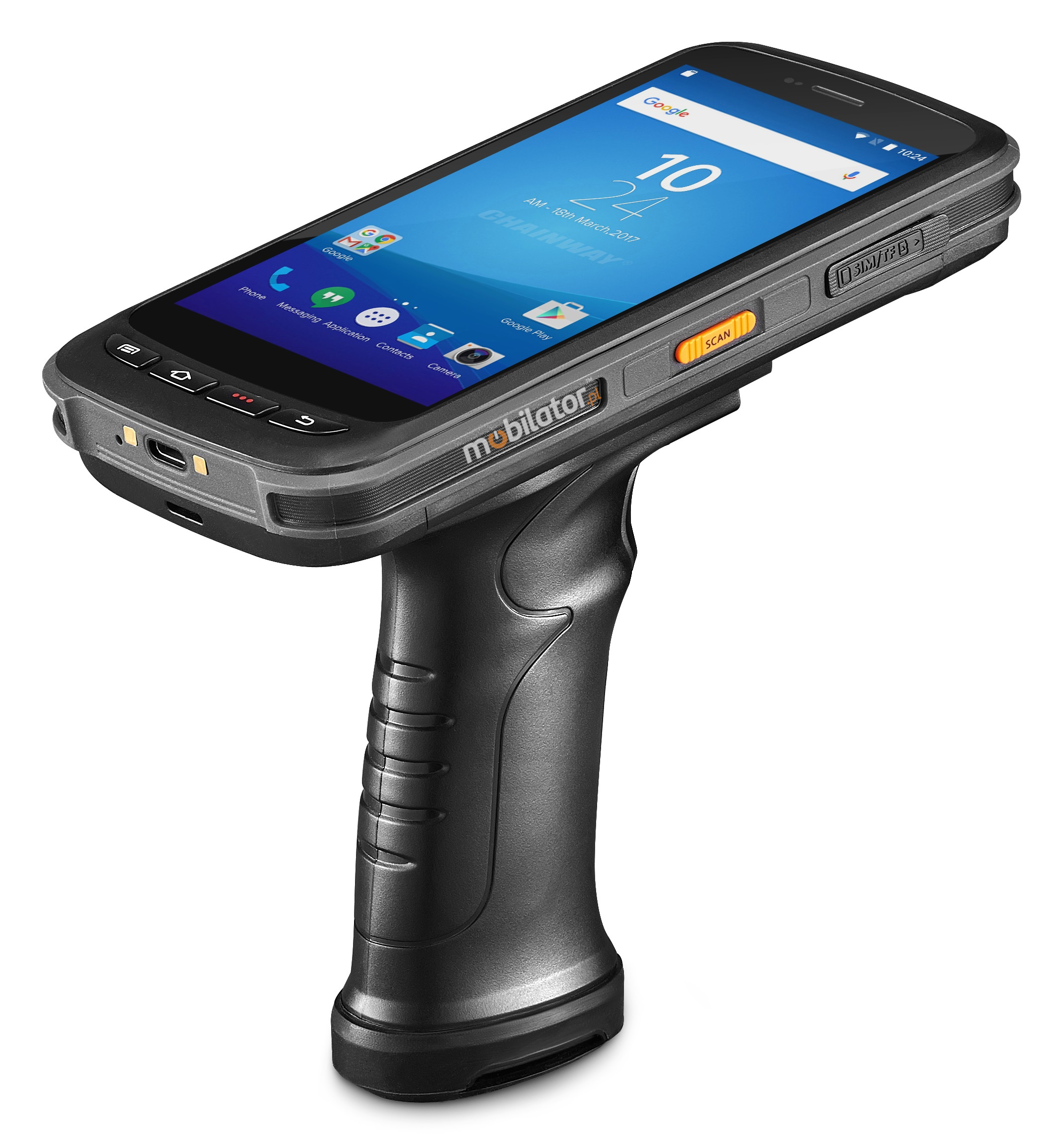

Chainway C72-AE v.7 - Data collector for warehouse with GPS, NFC, WiFi, 3GB RAM and 32GB ROM module, UHF RFID scanner and 2D code reader (4m range)

Chainway C72-AE v.7 - Data collector for warehouse with GPS, NFC, WiFi, 3GB RAM and 32GB ROM module, UHF RFID scanner and 2D code reader (4m range)

Data update: 2024-01-11

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays

Product Configurator

CURRENT PRICE
853.93
Net
1050.34
Gross



Compare all versions

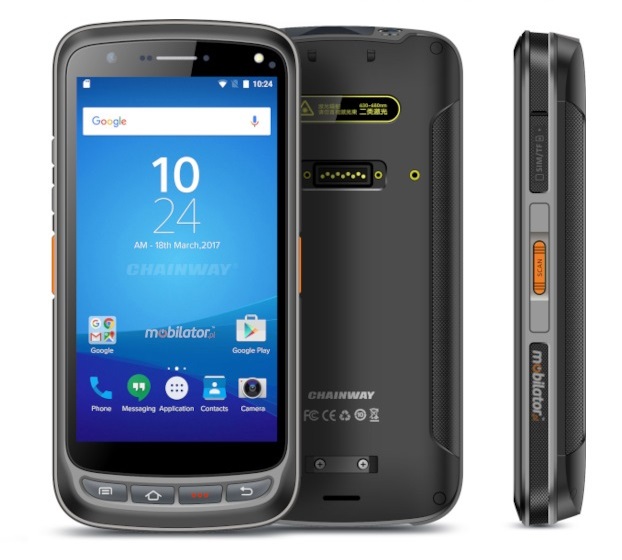

Chainway C72-AE Shockproof Industrial Rugged NFC 4G IP65 Smartphone





Chainway C72-AE is a modern, waterproof industrial smartphone designed for extreme applications. The 5.2-inch touch screen with Full HD 1920x1080 resolution allows you to conveniently use the device. The use of Gorilla Glass increases the smartphone's resistance to scratches and cracks.

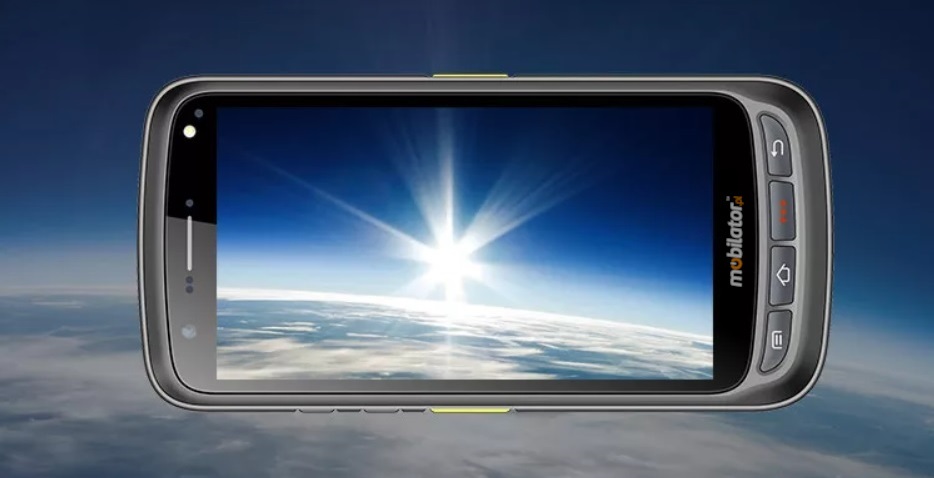

Chainway C72-AE modern 5.2 inch touch screen Full HD 1920x1080 resolution Gorilla glass



Specification



Chainway C72-AE
Processor Mediatek Helio MT6765 2.30GHz (8x2.30GHz)
Operating system Android 11.0 (no GMS)
RAM 3GB
ROM 32GB
Display 5.2" IPS  LTPS 1920x1080
Touch screen Multi-touch, Gorilla Glass
Battery 8000mAh, Li-ion
Camera 13 Mpx, Autofocus with flash, back
Protection IP65 | 1.5m. drops
Communication 4G | Bluetooth 5.0 | Wi-Fi | GPS
Connectors USB Type-C, USB 2.0, OTG
Memory card Micro SD (max. 128 GB)
SIM card Nano SIM
NFC

YES

13.56Mhz

2D scanner Zebra SE4750MR
RFID UHF Indy Impinj R2000 + Pistol + Battery


Dustproof industrial smartphone Chainway C72-AE was equipped with high performance, energy-efficient Mediatek Helio MT6765 processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy full HD video and movies. Low power consumption guarantees long battery life.






Ergonomic design

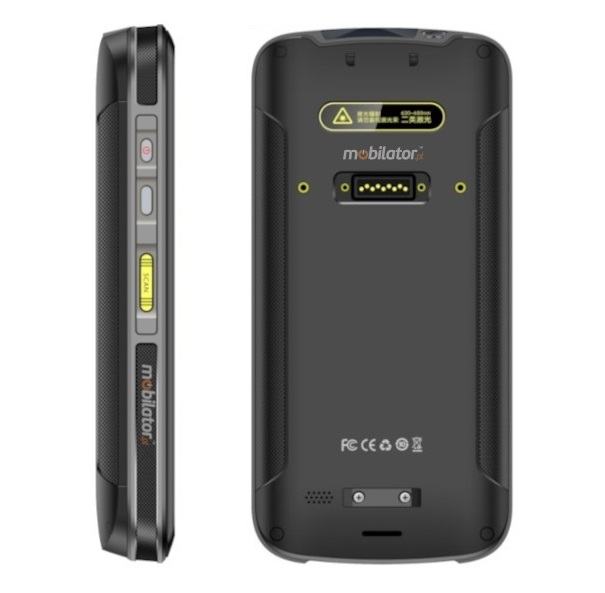

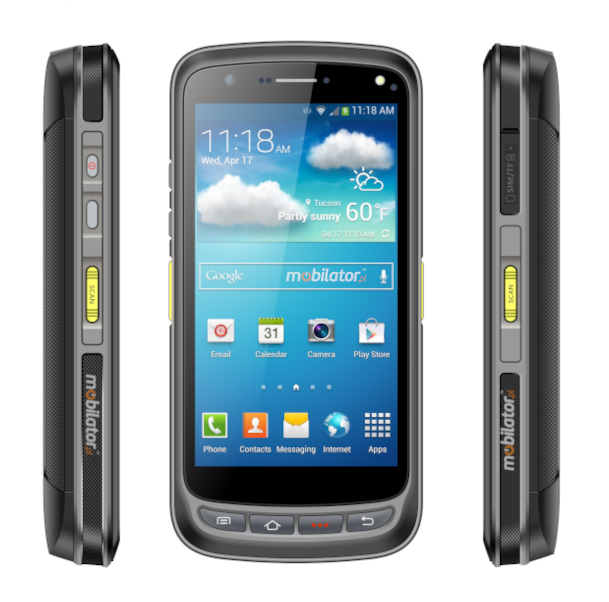

Chainway C72-AE rugged smartphone resistant comfortable stylish design handy and ergonomic




Chainway C72-AE industrial smartphone is designed for resistance and convenience. The sleek and rugged 24.3mm thick design and stylish case will make the smartphone very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.


Dimensions 164.2mm x 80.0mm x 24.3mm
Weight 654g









Keypad







Chainway C72-AE ergonomic buttons keys efficient and energy-saving MTK MT6765 processor (8x2.30GHz)





up… do góry menu… menu

REsistance

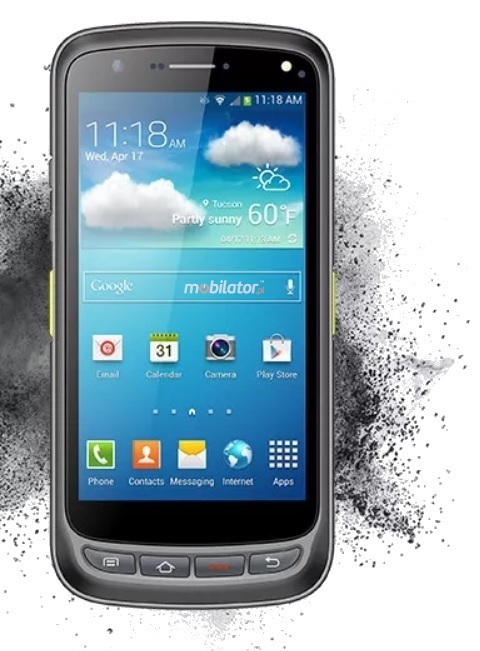

Chainway C72-AE protection class IP65 waterproof dustproof resistance






IP65 Protection


The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.



IP6X No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow.
IPX5 Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.









1.5m drop resistance


Specially designed construction gives the machine a chance of accidental falls from up to 1.5 meters in operating mode, even on hard surfaces. In addition, the smartphone screen is protected by specially tempered glass Gorilla Glass.



Chainway C72-AE drop resistant to 1.5m falls adapted to work in extreme temperatures





Extreme temperatures


Chainway C72-AE is suitable for continuous operation in both low and high temperatures in the range of -20 ° C to 50 ° C. When the device is off, it can handle temperatures ranging from -40 ° C to 70 ° C. In addition, the rugged industrial smartphone performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.



Working Temp. -20°C to 50°C
Storage Temp. -40°C to 70°C
Humidity 5% do 95%





up… do góry menu… menu

wireless communication



Chainway C72-AE Professional Bluetooth 5.0 GPS Module Dual-band Wi-Fi Module

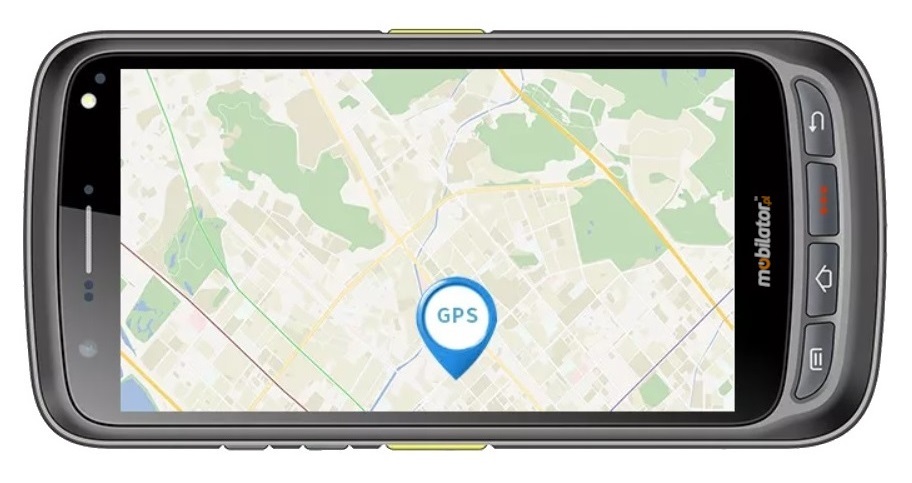

GPS Navigation


Waterproof smartphone Chainway C72-AE is equipped with a professional GPS module  combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.








Bluetooth 5.0


Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.







 Wi-Fi network


Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial smartphone, is equipped with the latest 802.11ac technology, which allows file transfer speeds up to 1 Gb/s.


Standards 802.11(a/b/g/n/ac)
Frequencies 2.4GHz and 5GHz







Chainway C72-AE NFC radio communication standard wireless data exchange 2-4cm



NFC


Near Field Communication - a short-range, high-frequency, radio communication standard that allows for wireless data exchange at a distance of up to several centimeters. The technology is a simple extension of ISO / IEC 14443 that combines the smart card interface and reader in one device. NFC devices can communicate with both existing devices in the ISO / IEC 14443 standard, as well as with other NFC devices, and thus are compatible with the existing and already in use public transport and payment infrastructure. NFC present in the device supports ISO / IEC 14443A / B and ISO15693 protocols. Working distance is 2-4 cm.





up… do góry menu… menu

Functionality



Chainway C72-AE 1D 2D barcode scanner reader dynamic scanning retrieves data quickly and accurately

                         Barcode Scanner



Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 1D/2D barcode reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities Chainway C72-AE quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.



2D scanner

Zebra SE4750MR

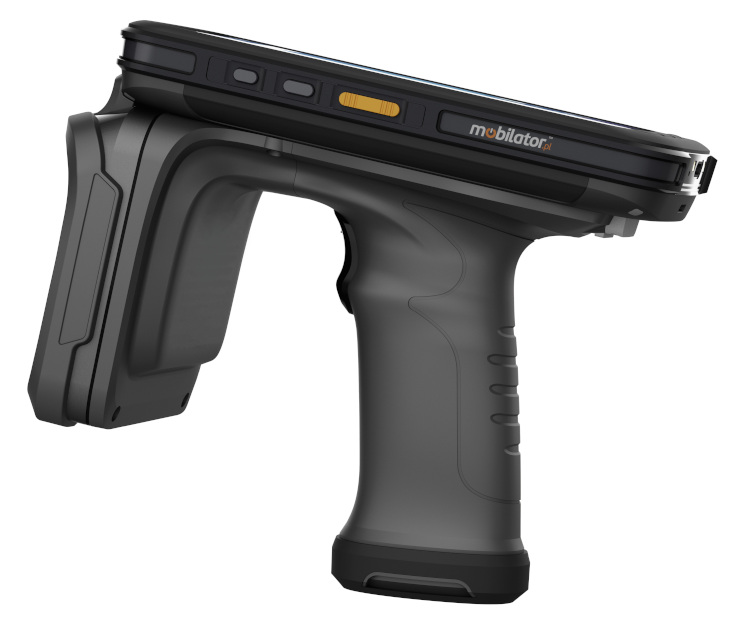

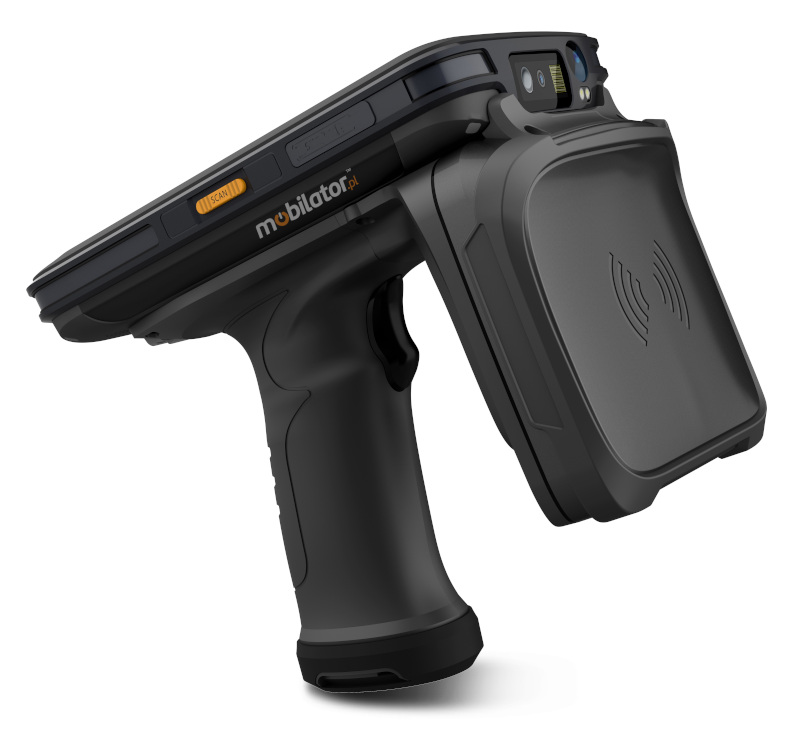

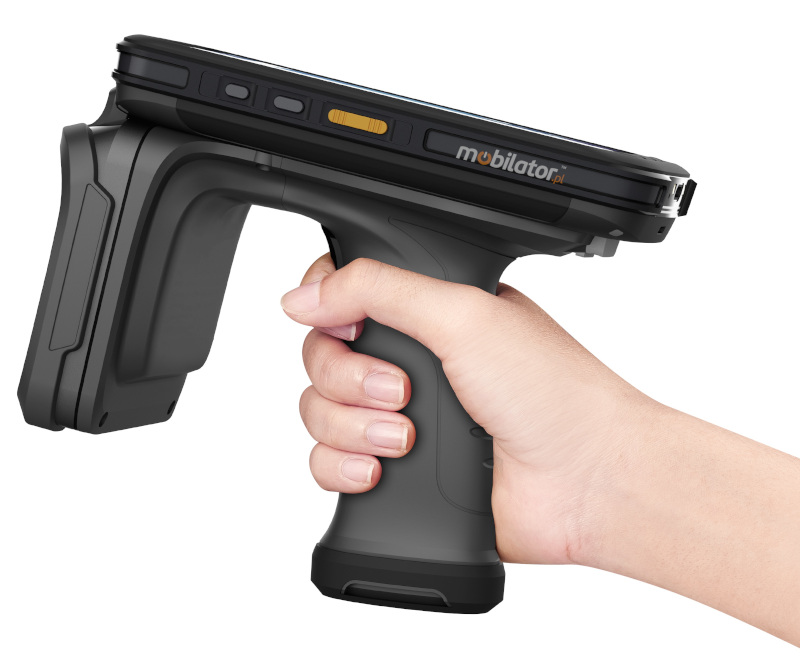

Chainway C72-AE RFID UHF Technology Indy Impinj R2000 + pistol + battery








RFID


RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products. UHF Indy Impinj R2000 also has a pistol grip and a battery.





RFID UHF UHF Indy Impinj R2000 + Pistol + Battery







up… do góry menu… menu

Application


Trade and Services


Thanks to their size and light weight, smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.



Chainway C72-AE small size data collector in the form of a smartphone






Industry and Construction



Industrial smartphones and data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards), can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, collectors can be used for control and control of various industrial processes, as well as for data collection and analysis.


Chainway C72-AE data collector resistant to unfavorable working conditions tightness, dust and water resistance of the housing confirmed by the IP certificate






Warehouse



An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.


Chainway C72-AE streamlines the process of introducing goods to the warehouse and issuing it, allows you to control prices and issue goods, it helps in collecting and organizing orders as well as in identifying customers




up… do góry menu… menu

Available versions and accessories





The industry-leading Chainway C72-AE smartphone is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.







 v.1v.2v.3v.4v.5v.6v.7v.8v.9v.10
skaner 2D Zebra SE4710
skaner 1D Zebra SE965
skaner 2D Zebra SE4750SR
skaner 2D Zebra SE4750MR
UHF Impinj Indy R2000 + Pistol + Battery
