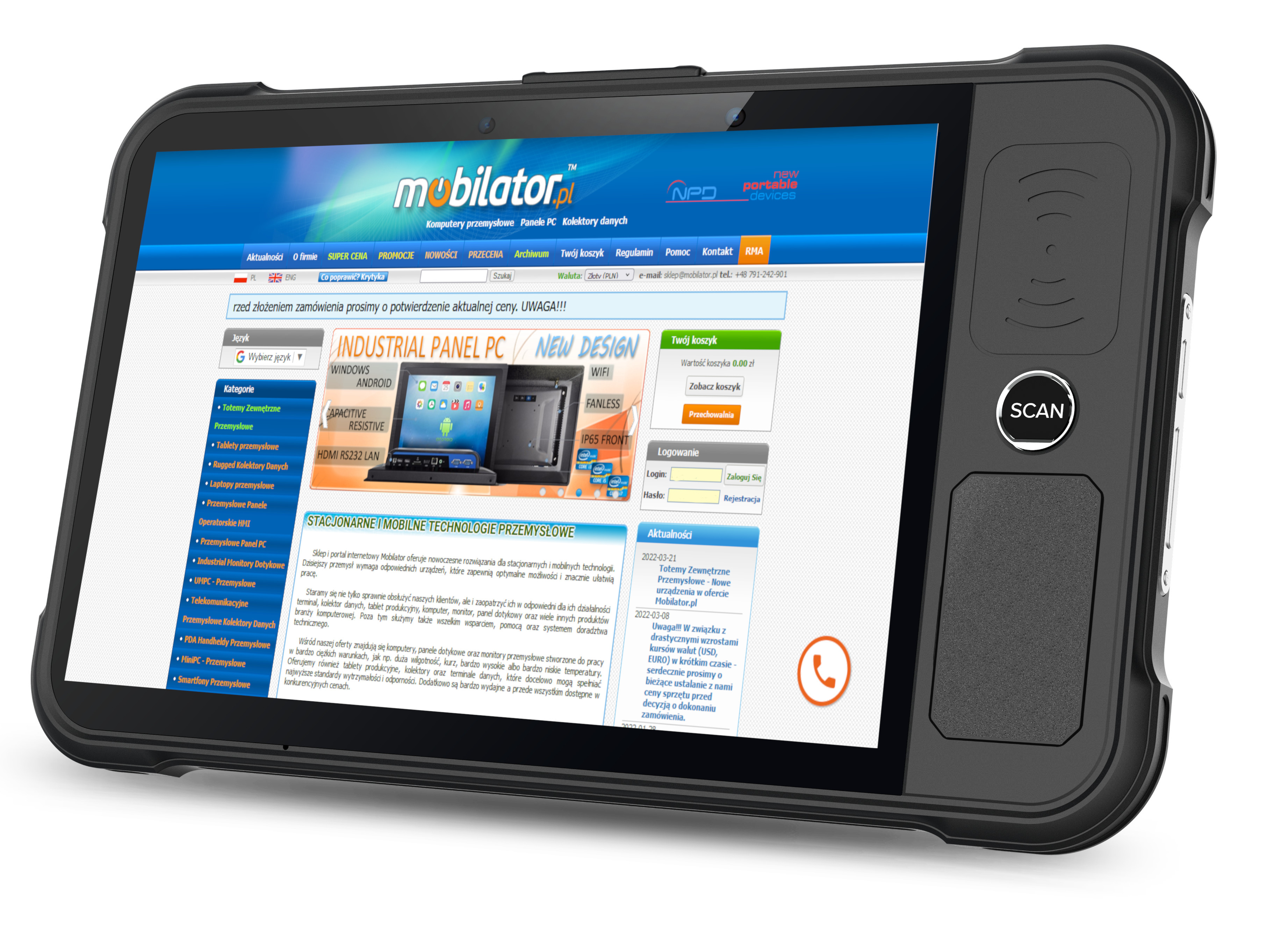

Chainway P80-PE v. 5- Robust tablet with Gorilla Glass protection, 13Mpx rear camera and 5Mpx front, UHF RFID front (30-100cm range)

Tablet przemys³owy o przek±tnej ekranu 8 cali, z czytnikiem kodów 1D oraz 2D Zebra, dwoma wej¶ciami PSAM i przednim UHF RFID Chainway P80

Data update: 2024-01-11

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays

Product Configurator

CURRENT PRICE
582.48
Net
716.45
Gross



Compare all versions

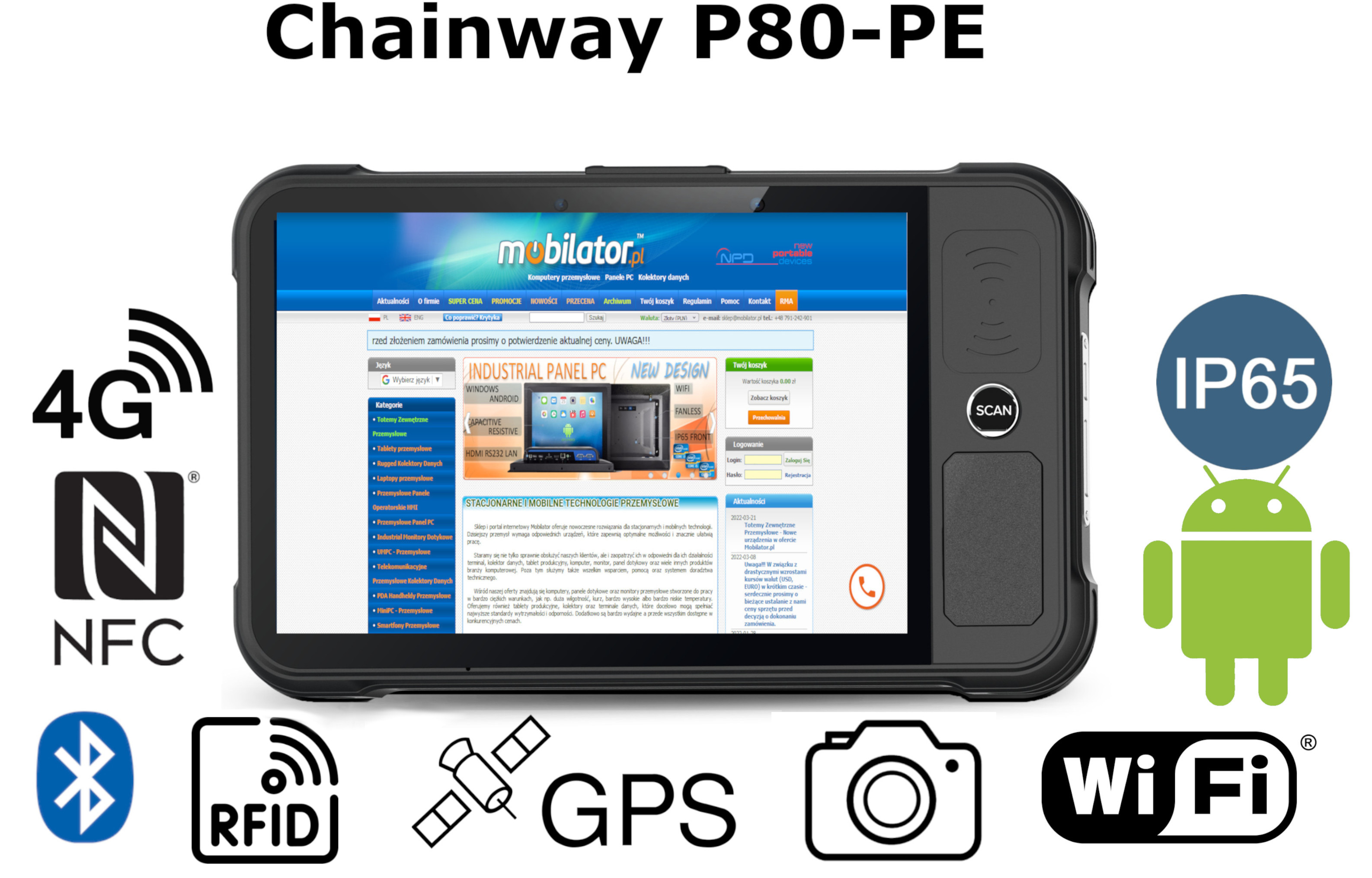

Chainway P80-PE v. 5- Robust tablet with Gorilla Glass protection, 13Mpx rear camera and 5Mpx front, UHF RFID front (30-100cm range)




Chainway P80-PE is a modern, waterproof industrial tablet designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP65, which confirms the protection of the device against dust and water. It is also resistant to falls, even on hard surfaces.

Chainway P80-PE has a specially designed reinforced structure that meets the requirements of the IP65 standard



Specification



Chainway P80-PE
Processor Qualcomm SDM450 (8x1.80Ghz)
Graphics Qualcomm Adreno 506 GPU
Operating system Android 9.0
RAM 3GB
ROM 32GB
Display 8" | 1920x1200 IPS
Touch screen Capacitive (multi-touch)
Battery 8000mAh
Camera 5Mpx Front | 13Mpx Rear
Protection IP65
Communication 2G/3G/4G | Bluetooth 4.2 | NFC | Wi-Fi | GPS | Vo-LTE HD
Connectors

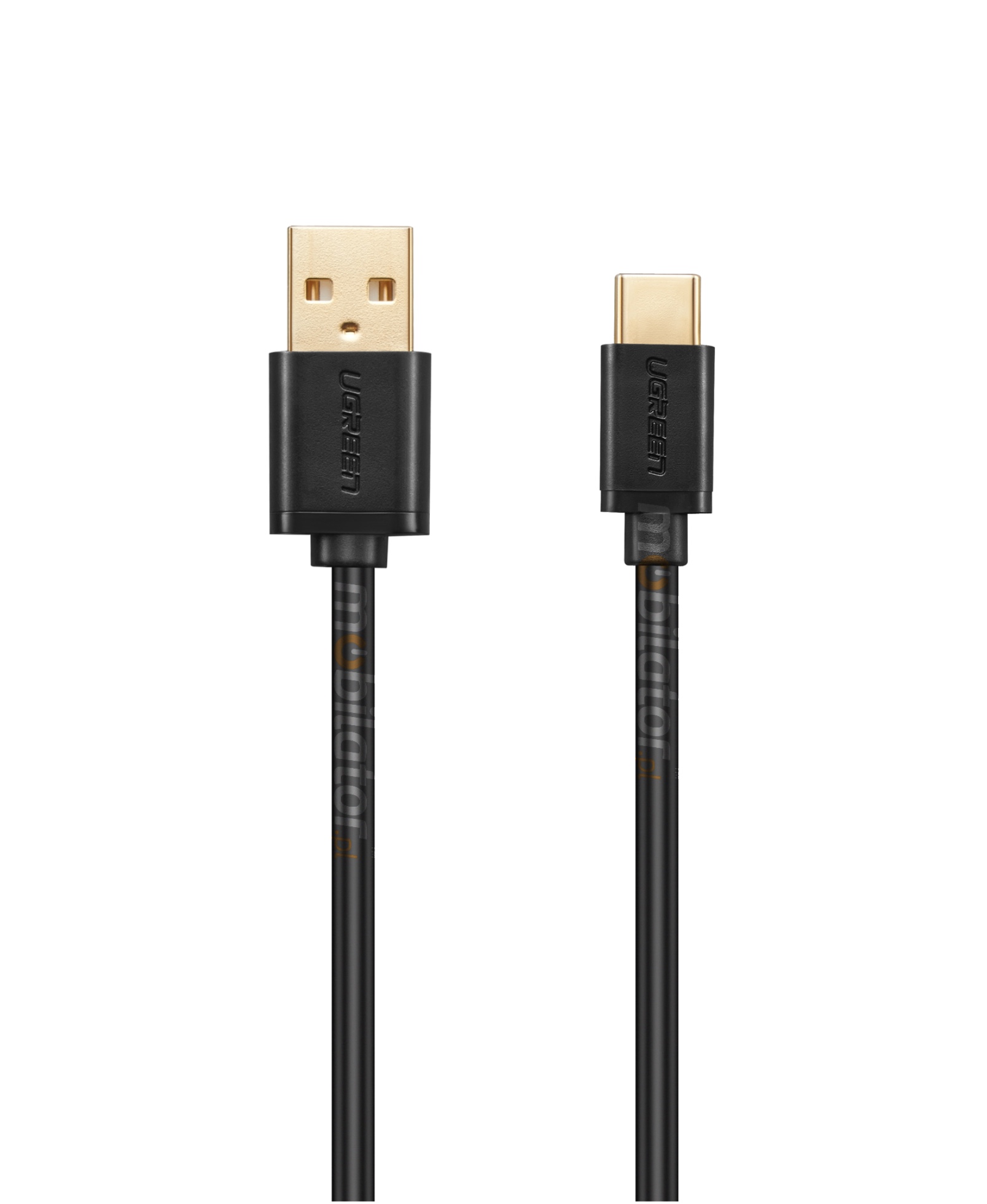

Charging port| USB-C 2.0 (OTG)

Memory card Micro SD (max. 128GB)
SIM card
Micro SIM (dual PSAM card input*)
RFID Reader

NFC 13.56MHz | UHF-2 (range: 30-100cm)

(RFID UHF zasiêg 15m*)

2D Scanner* Zebra SE4710

* Optional equipment, available on specific versions only.


Dustproof industrial tablet Chainway P80-PE was equipped with high performance, energy-efficient Qualcomm processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy FHD video and movies. Low power consumption guarantees long battery life.



Low Power Consumption and Performance Chainway Industrial Tray P80-PE

Ergonomic design




Chainway P80-PE durable ergonomic tablet design




Chainway P80-PE industrial tablet is designed for resistance and convenience. The sleek and rugged 15mm thick design and stylish case will make the tablet very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.


Dimensions 250.8 x 152 x 15mm
Net weight 700g






Capacitive screen




capacitive touch screen in P80-PE



With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our tablet or the collector with a few fingers at once.

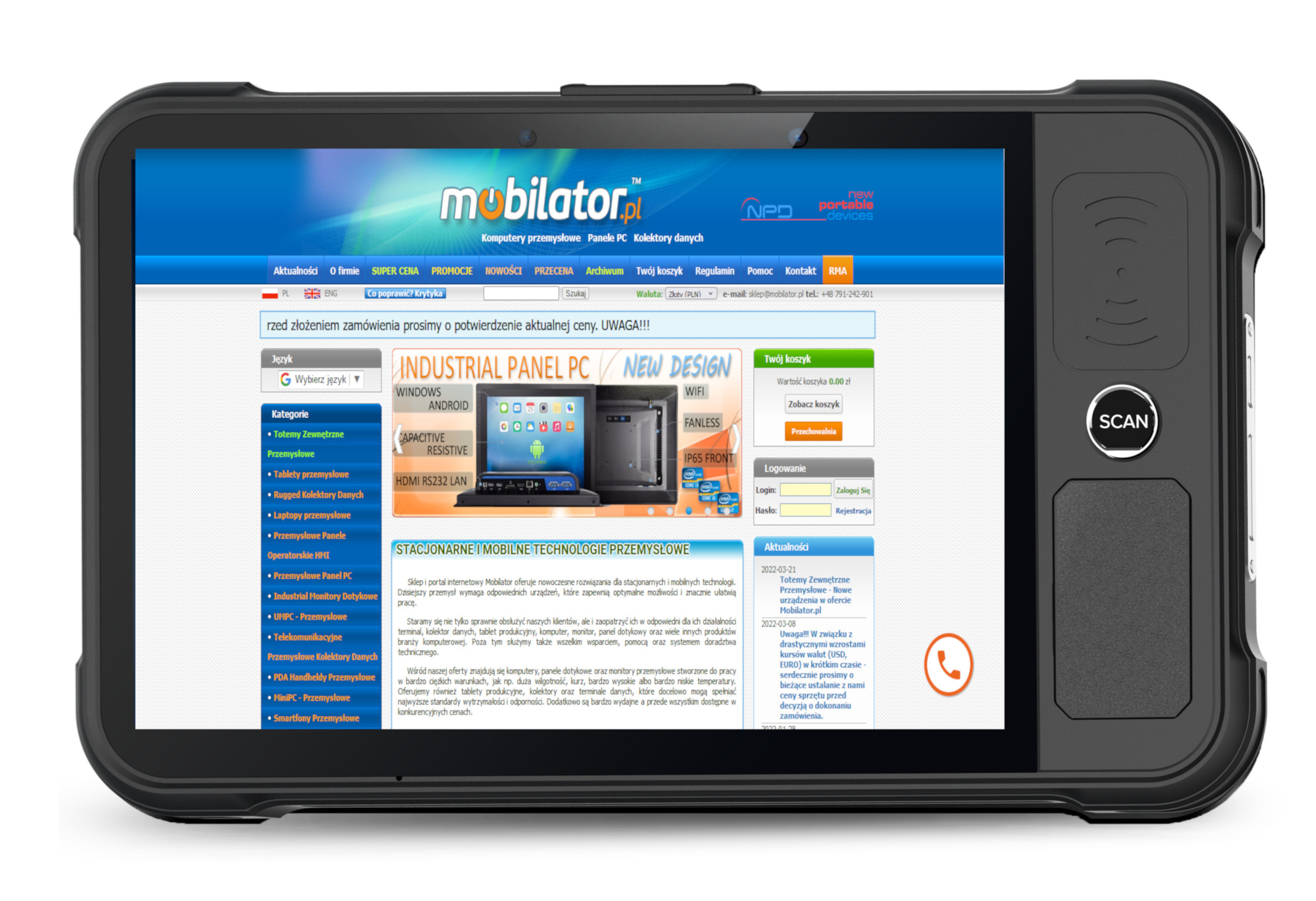

1920x1200 Display in Chainway Tablet P80-PE

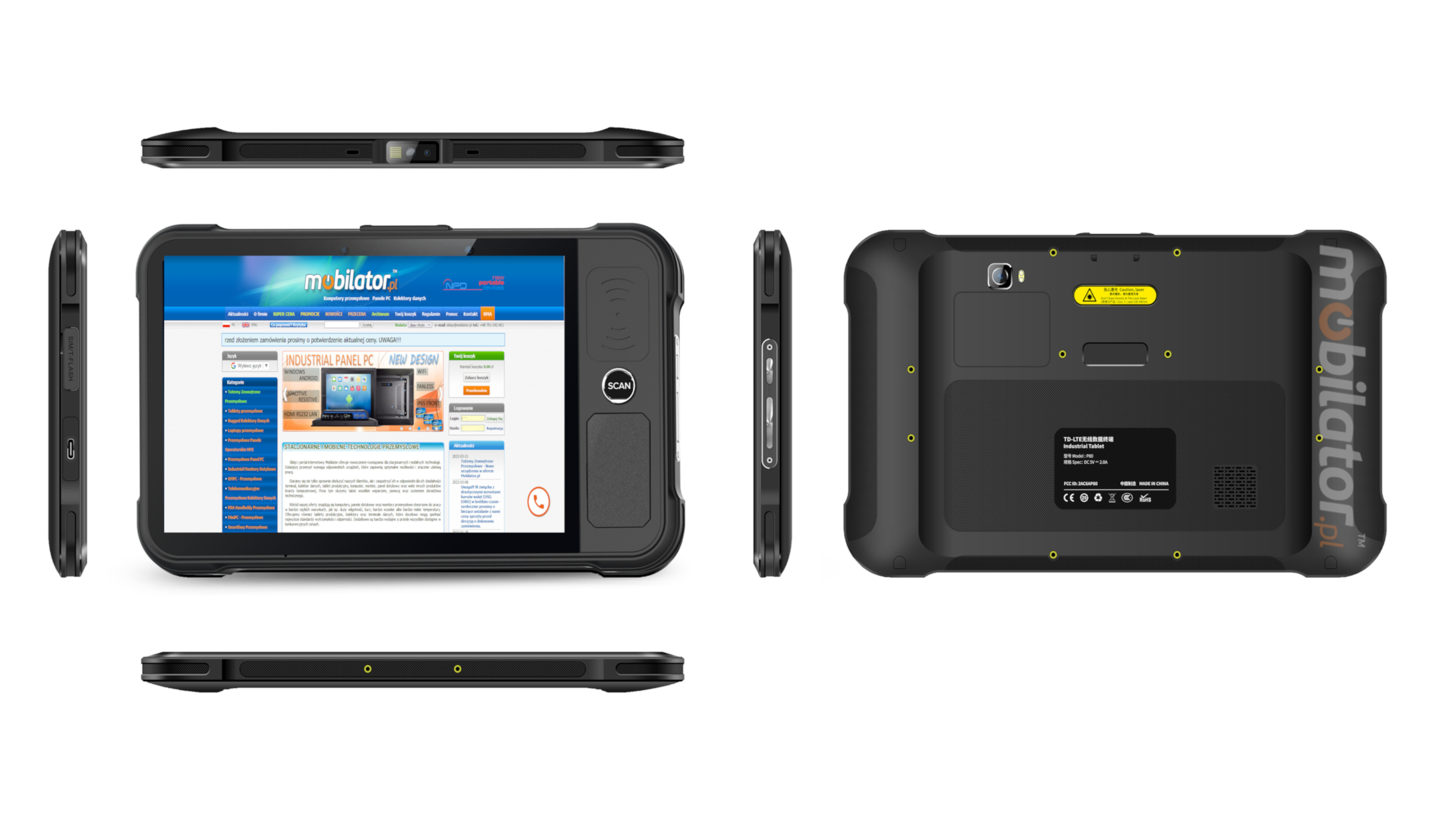

Connectors and dimensions

built-in NFC that works for short distance on the front of the tablet P80-PE

 small dimensions Chainway P80-PE

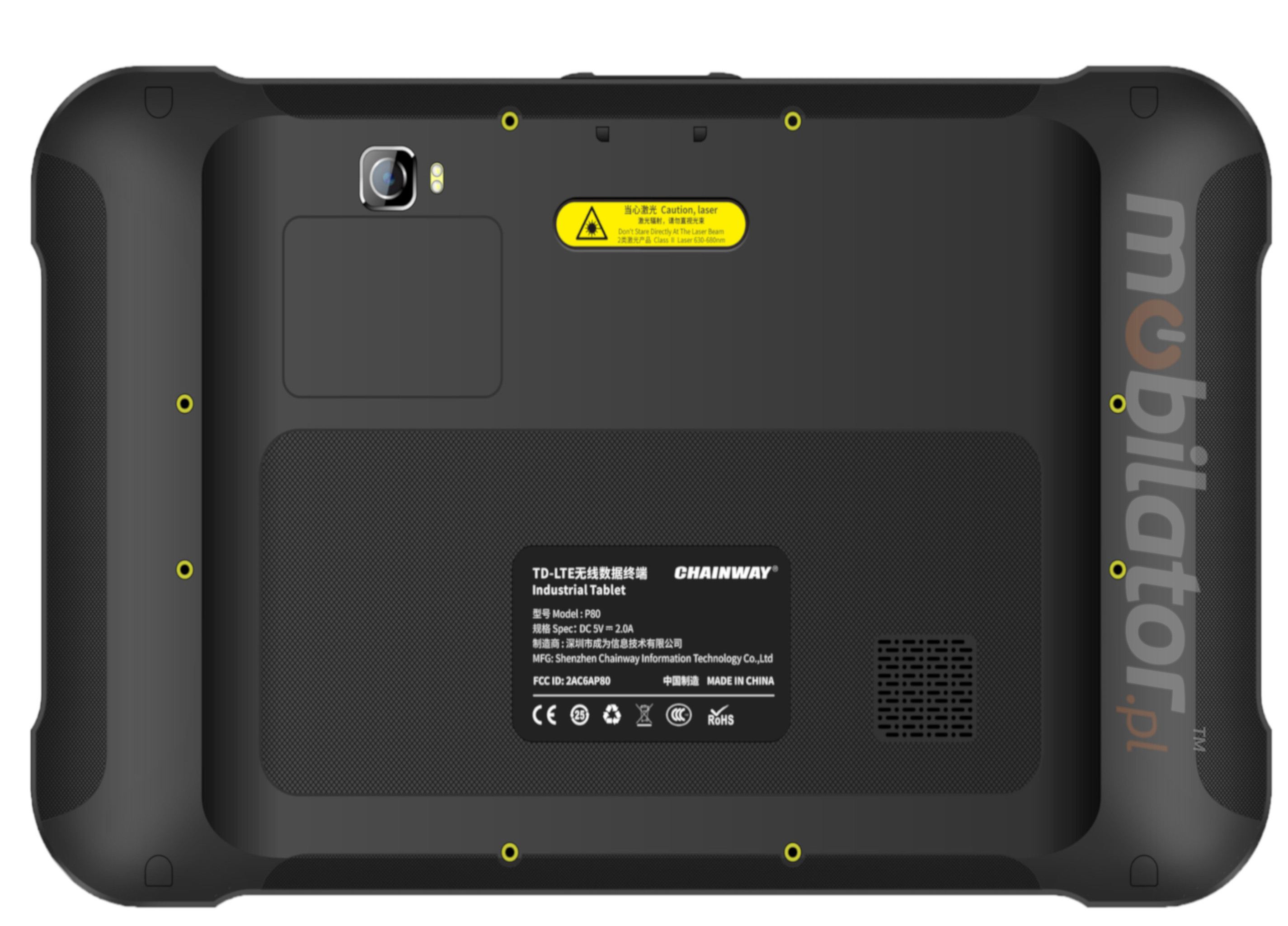

Rear view Chainway P80-PE with camera and FLASH lamp

Top and below view with loudspeaker, scanner and docking point of the Chainway P80-PE

SIM and TF card input as well as power and volume button in P80-PE

to up… do góry   menu… do góry

REsistance





Water resistance of tablet P80-PE






IP65 Protection


The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.



IP6X No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow.
IPX5 Protection against flowing water with an intensity of 12. 5 l/min on each side.

IP65 which tablet has P80-PE






1.5m drop resistance


Specially designed construction gives the machine a chance of accidental falls from up to 1.5 meters in operating mode, even on hard surfaces. In addition, the tablet screen is protected by specially tempered glass Gorilla Glass.

Specification and resistance of P80-PE tablet to various types of damage



Extreme temperatures
 Extreme conditions at extreme temperatures resistant Tablet P80-PE

Chainway P80-PE is suitable for continuous operation in both low and high temperatures in the range of -20 ° C to 50 ° C. When the device is off, it can handle temperatures ranging from -40 ° C to 70° C. In addition, the rugged industrial tablet performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.



Working Temp. -20°C to 50°C
Storage Temp. -40°C do 70°C
Humidity 5% do 95%

to up… do góry   menu… do góry



data collecting






NFC



Short-range communication, known as NFC, is a radio communication standard that allows for wireless data exchange at a distance of a few centimeters. This technology is a simple extension of the proximity card standard that combines smart card interface and reader in one device. NFC devices can communicate with existing equipment in the standard ISO / ISO14443A/B or ISO15693 (cards and readers) as well as with other NFC devices, and thus are compatible with existing and already used public transport and payment infrastructures such as MIFARE.



NFC with support for IPN1, IPN2, MIFARE Classic in tablet P80-PE

RFID Reader



RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

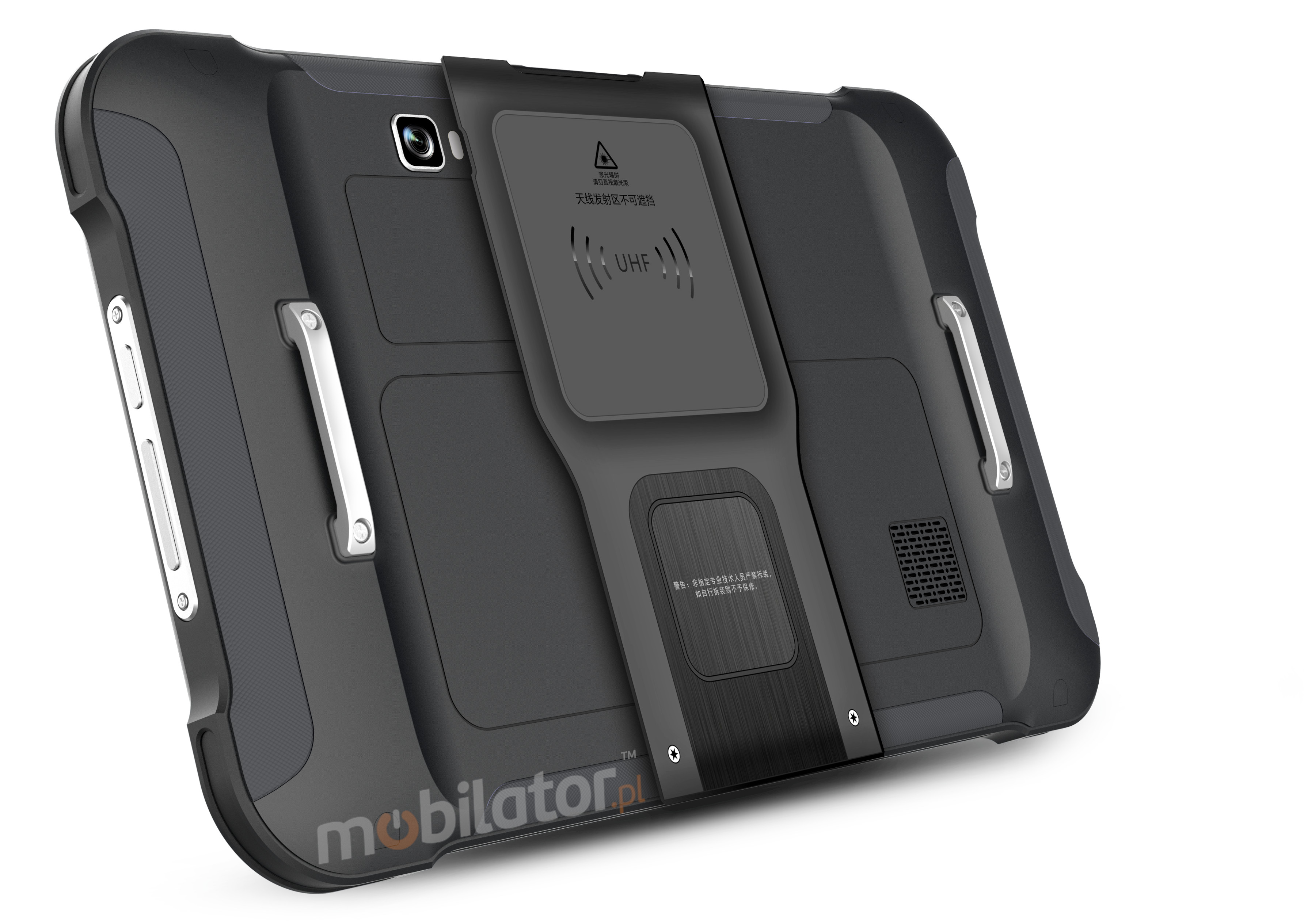

RFID UHF

(option 1)

865-868 MHz, read distance up to 15m
ISO11 784/5 support
RFID UHF (option 2)
865-868MHZ
Support for EPC protocol C1 GEN2/ISO 18 000-6C
Read distance 30-100 cm





Barcode scanner (option)





ZEBRA Code Reader and Scanner in Chainway Tablet P80-PE





Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, tablet is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

to up… do góry   menu… do góry



wireless communication





 4G Module


4G technology is based on a radio network with fast transmission and the rare occurrence of downtime or transfer errors. The main distinguishing feature of the 4G from its predecessor (3G) is the speed of transfer between devices. The fourth generation network offers 100 Mb / s of mobile internet speed and 25 Mb / s of packet transfer. Technology enables users, including: extremely fast radio networks, Internet access, personalized telephony, and access to modern media and games services.


4G Module FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE :
B34/B38/B39/B41/B40
3G Module

GSM: 850/900/1800/1900MHz  , GPRS, EDGE
WCDMA: B1/B5/B8
TD-SCDMA: B34/B39

CDMA EVDO: BC0






GPS Navigation


Waterproof tablet Chainway P80-PE is equipped with a professional GPS module with Beidou and GLONASS support, combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.








Bluetooth 4.2


Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.







 Wi-Fi network


Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial tablet, the Chainway P80-PE, is equipped with the latest 802.11n technology, which allows file transfer speeds up to 150 Mb/s.


Standards 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G
Frequencies 2.4G + 5.8G (Dual-Band)





Android Enterprise


Chainway P80-PE is listed on Android Enterprise. Android Enterprise is a Google-led initiative to enable the use of Android devices and apps in the workplace. The program offers APIs and other tools for developers to integrate support for Android into their enterprise mobility management (EMM) solutions. Android Enterprise Recommended makes it easy for businesses to select, deploy, and manage Android devices and the appropriate services. Thanks to this program, you can be sure that such devices and services meet the high requirements related to their use in the company, which is confirmed by their approval by Google. The link to the device on the Google list is HERE.

to up… do góry   menu… do góry

Application


Trade and Services


Thanks to their size and light weight, tablet are a useful tool for sales representatives. Today's applications running under the tablet's system enable even entering the devices's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of tablets in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.



Support of the small and light industrial tablet P80-PE in the commercial sector






Industry and Construction



Industrial tablets are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP65 (dust and water resistance standards), can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, tablets can be used for control and control of various industrial processes, as well as for data collection and analysis.


Use of the robust, fast P80-PE tablet on the construction site






Warehouse



An industrial tablet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using tablets are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.


Przet³umacz Saving time in warehouse work by using Chainway P80-PE


to up… do góry   menu… do góry

Available versions and accessories





The industry-leading Chainway P80-PE tablet is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.





Porównaj wszystkie wersje



  v.1 v.2 v.3 v.4 v.5 v.6 v.7 v.8 v.9
skaner 2D Zebra SE4710
UHF-1D 15m
UHF-1P 15m
UHF-2 30-100cm
Direction keys - 7
PSAM x2





We also offer a number of extra accessories for this tablet to further enhance its functionality and comfort. Below is a list of available accessories. Click on the "Check" link to go to the description page and the price of the accessory.





Docking Station





The docking station allows you to easily and conveniently charge your tablet.

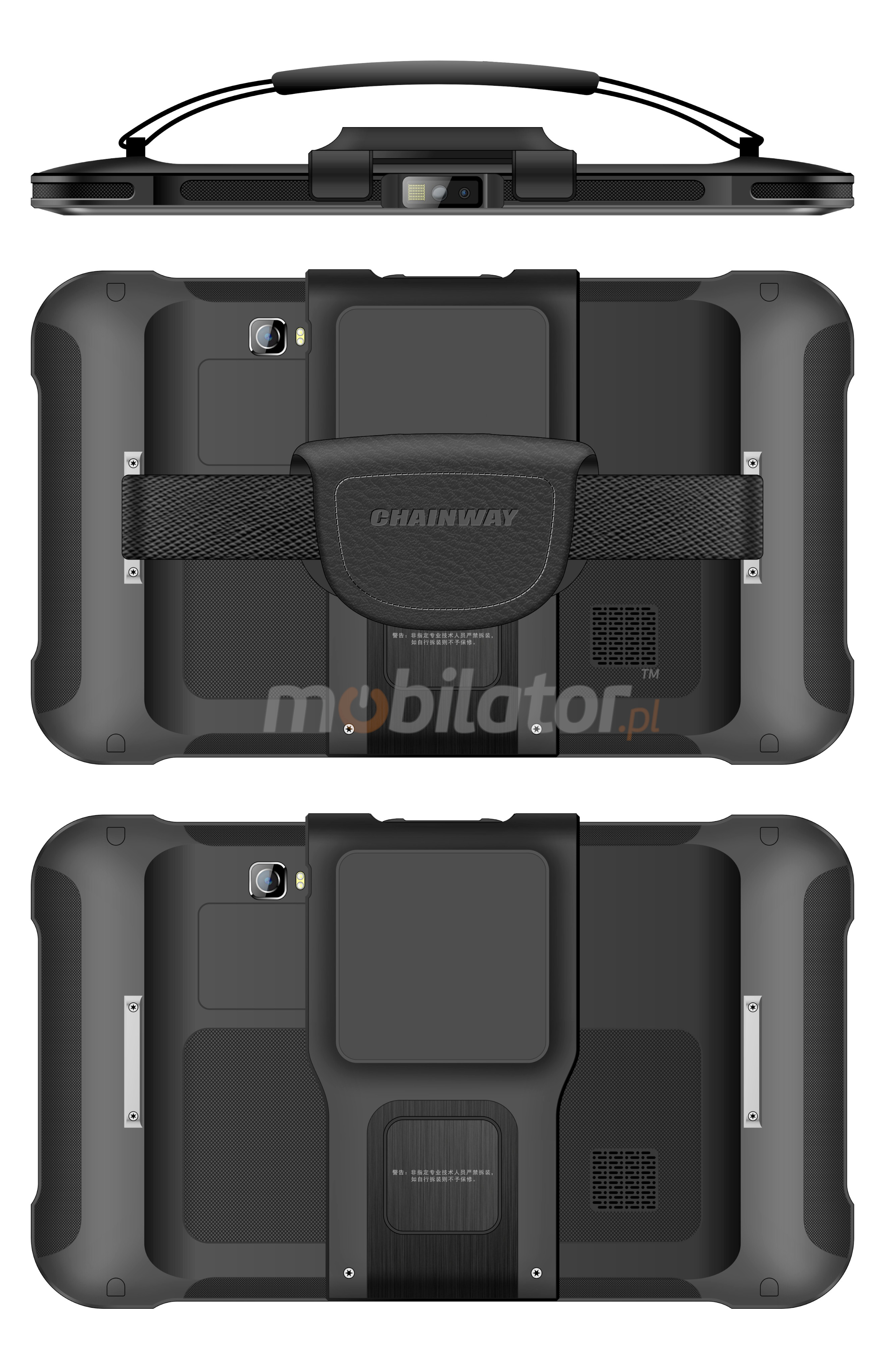

Support for holding

Allows a comfortable and safe use of the device that is in a rubber case

Rubber case

The device is even more robust against falls and other mechanical damage.

Scan holder with LED

The scan holder ensures comfortable use of the device and extends the shelf life of the tablet.

to up… do góry   menu… do góry
