Accessories and available versions

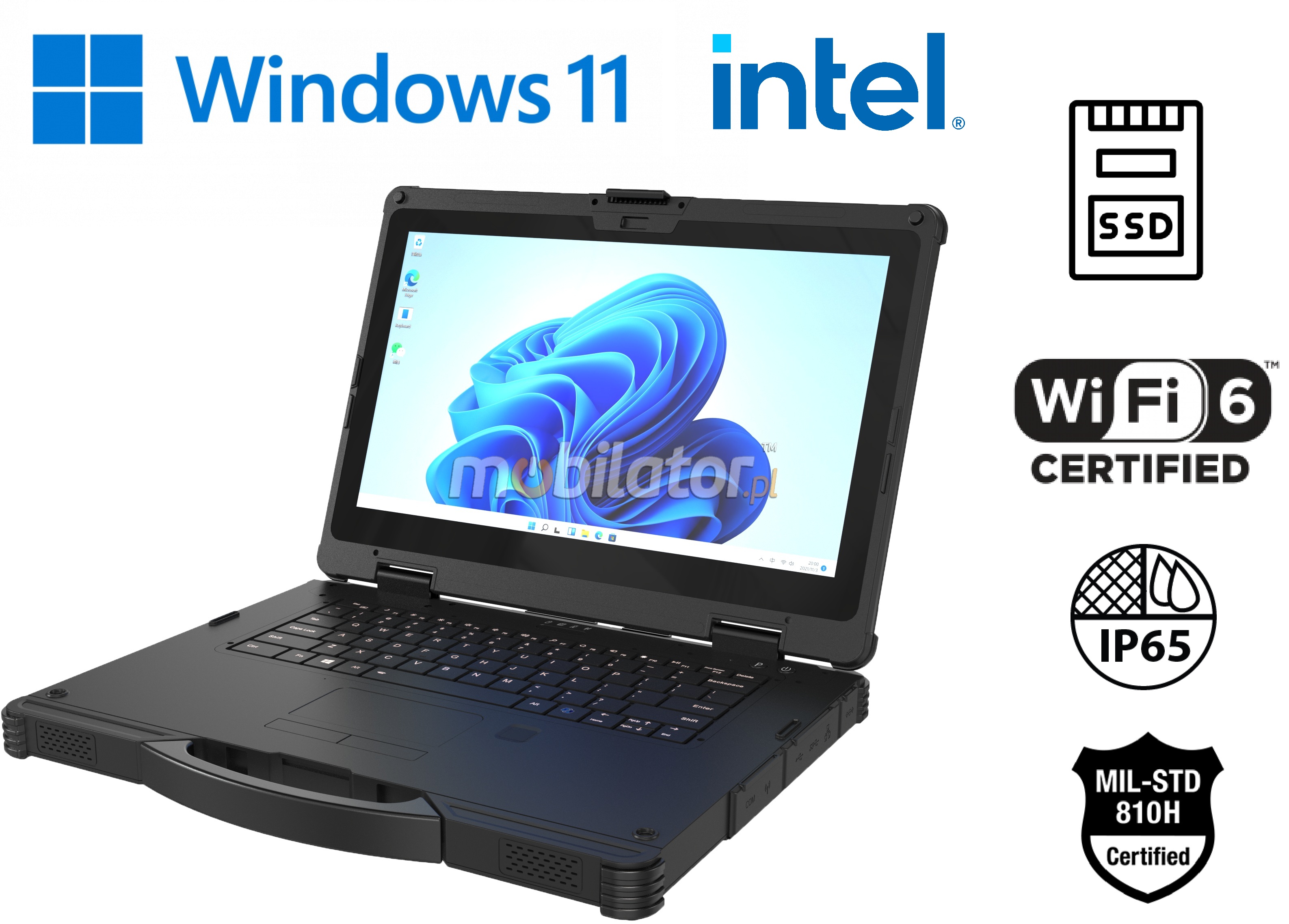

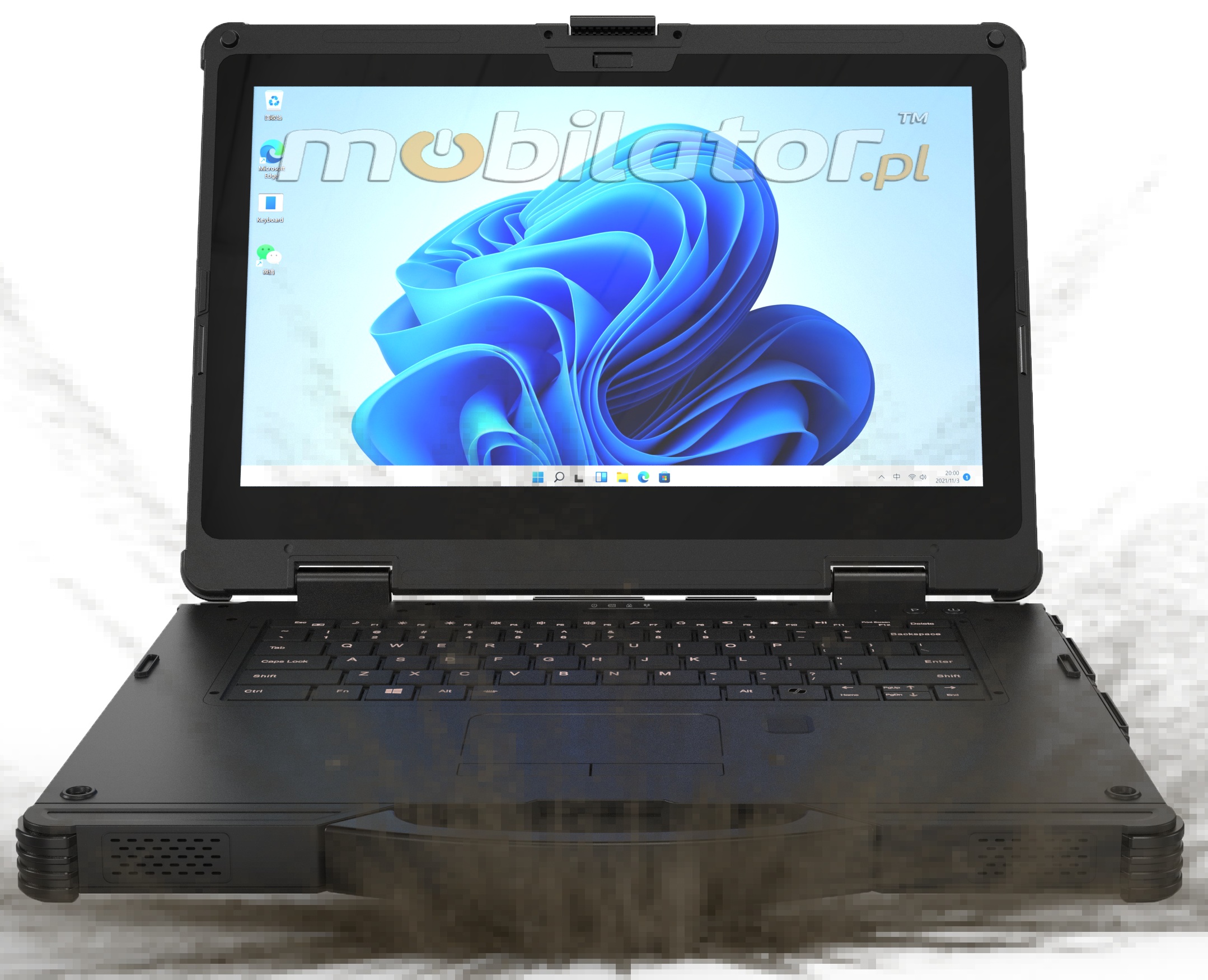

The rugged industrial laptop Emdoor X14A is built for demanding environments. It features a 14-inch display with 1920×1080 px resolution and 1000-nit brightness, ensuring excellent visibility even in bright sunlight. Powered by an Intel Core i7-1255U processor with 32 GB RAM and 512 GB SSD storage, it is housed in an IP65-rated durable case. Connectivity options include, Wi-Fi 6, Bluetooth, and GPS, while the 4850 mAh battery provides up to 6.5 hours of field operation.
Specification
| Emdoor X14A (i7) |
| Processor |
Intel Core i7-1255U
|
| Graphics |
Intel Iris Xe
|
| Operating system |
Windows 11 Pro
Windows 11 IoT* (optional)
|
| RAM |
32GB
|
| SSD |
512GB
256GB* (optional)
1TB* (optional)
|
| Display |
14" IPS, 1920×1080, 1000 nits
|
| Battery |
4850mAh (removable) |
| Camera |
5MP front |
| Protection |
IP65 |
| Communication |
Wi‑Fi 6 | Bluetooth 5.1 | GPS
NFC* (optional)
|
|
Connectors
|
USB 3.2 Gen1 x1
USB 3.2 Gen2 x1
USB2.0 x1
USB-C x1
Micro SD x1
SIM card x1
3.5mm Audio Jack x1
5.5mm DC-In jack x1
HDMI 2.0a mini x1
RJ45 Network port x2
RS232 serial port x1
|
| SIM card |
SIM |
* Optional equipment, available on specific versions only.
The Emdoor X14A industrial laptop is powered by the energy-efficient Intel Core i7-1255U processor, delivering high performance. The chip features ten cooperating cores, enabling smoother multitasking and faster data processing. Its multi-level shared cache is dynamically allocated to each core depending on the workload, reducing average memory access time and improving overall efficiency.

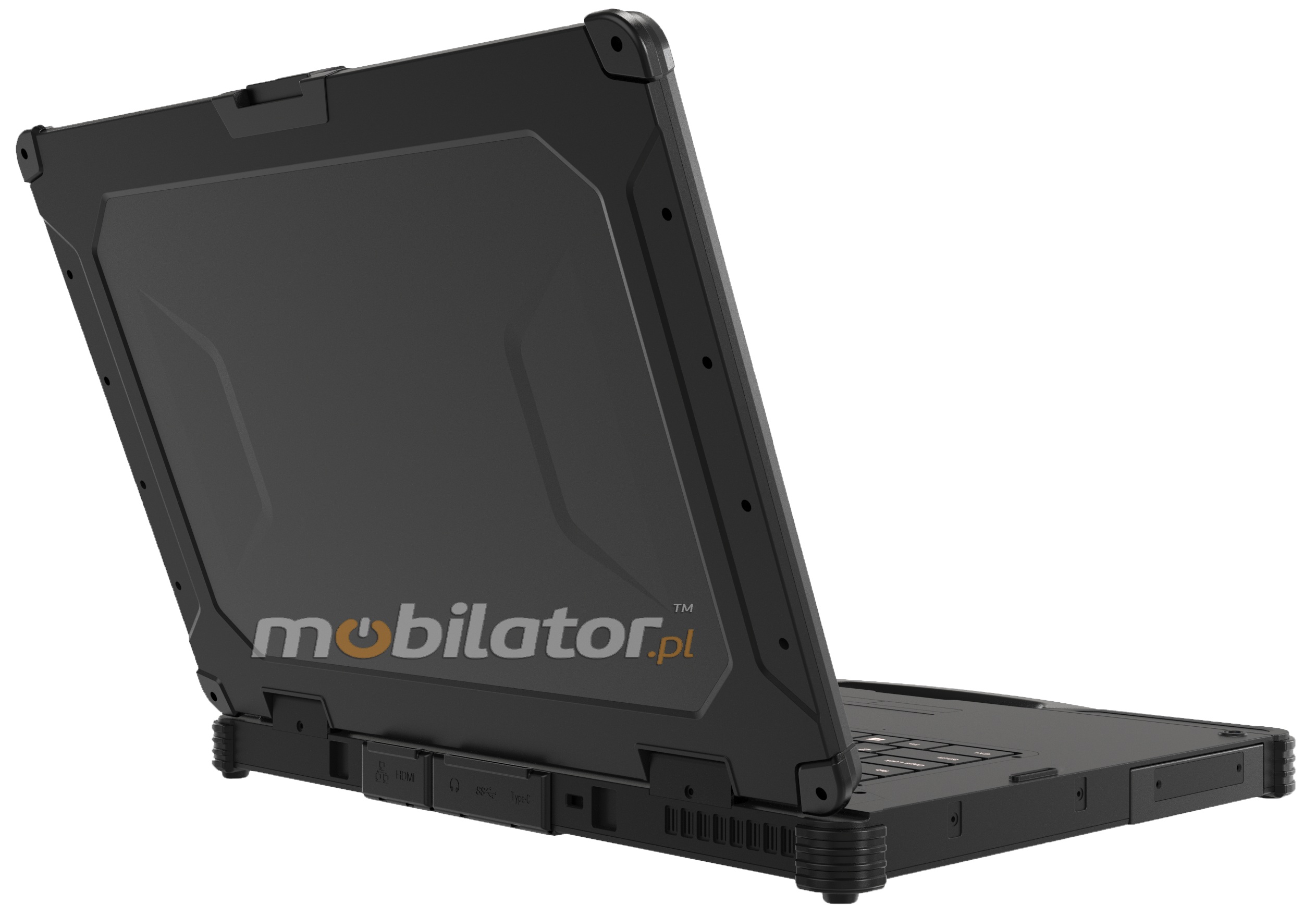

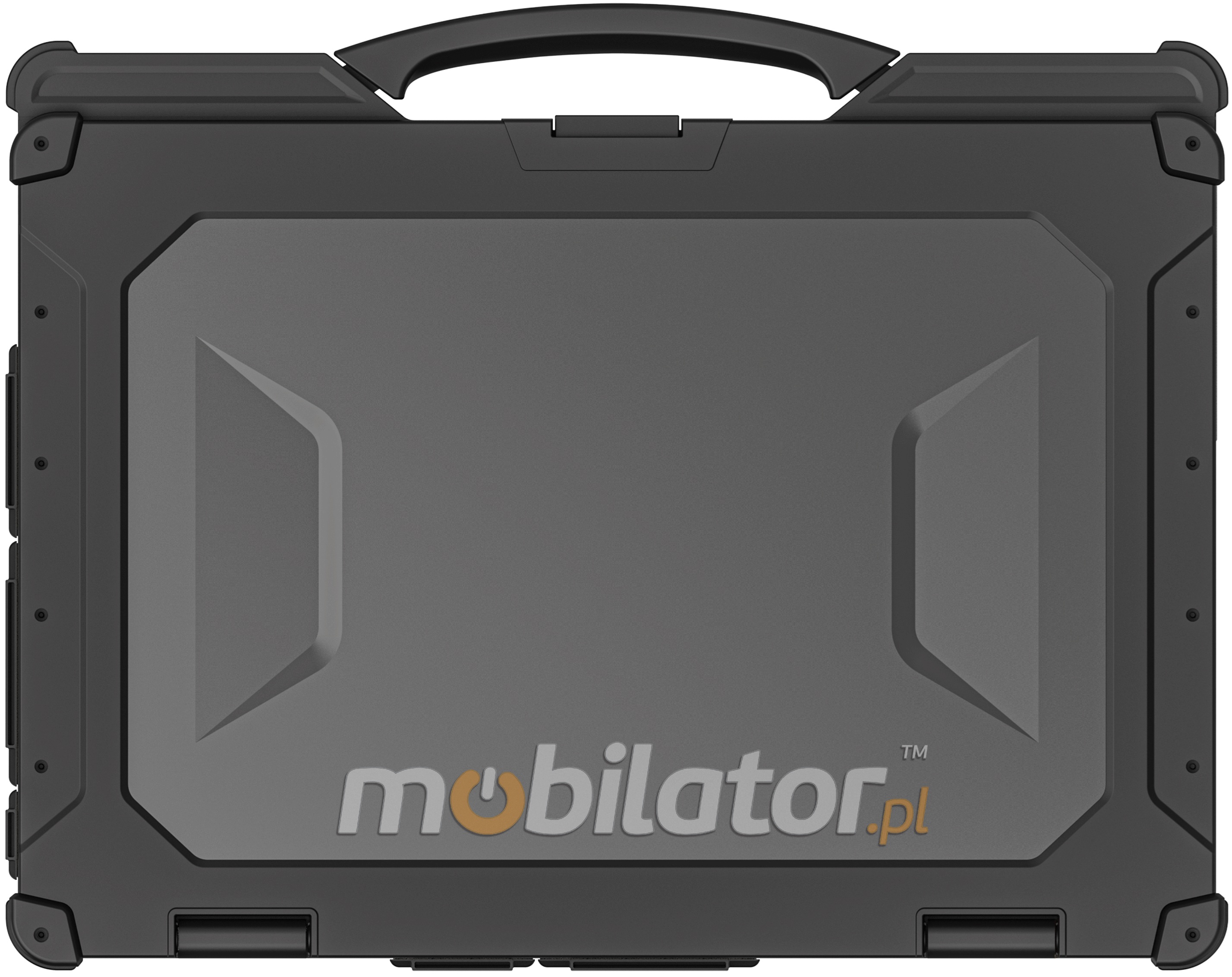

Ergonomic design
The rugged Emdoor X14A tablet is designed for challenging environments – from production halls to open construction sites. Its IP65-certified housing protects components from dust and water, while reinforced seals absorb shocks and withstand drops from up to 1.5 meters. Non-slip edges and strengthened corners ensure a secure grip, making this tablet a reliable tool for demanding fieldwork.

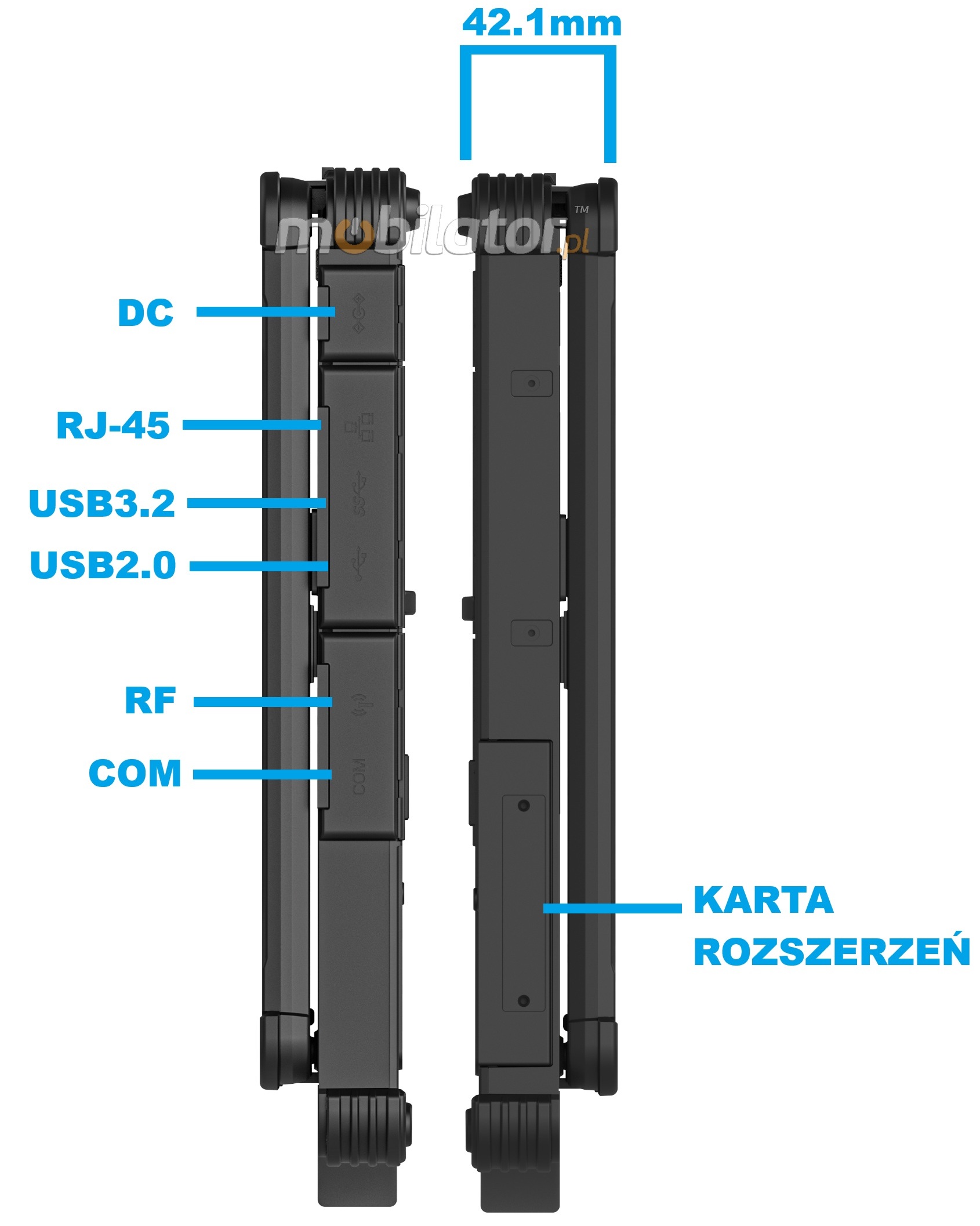

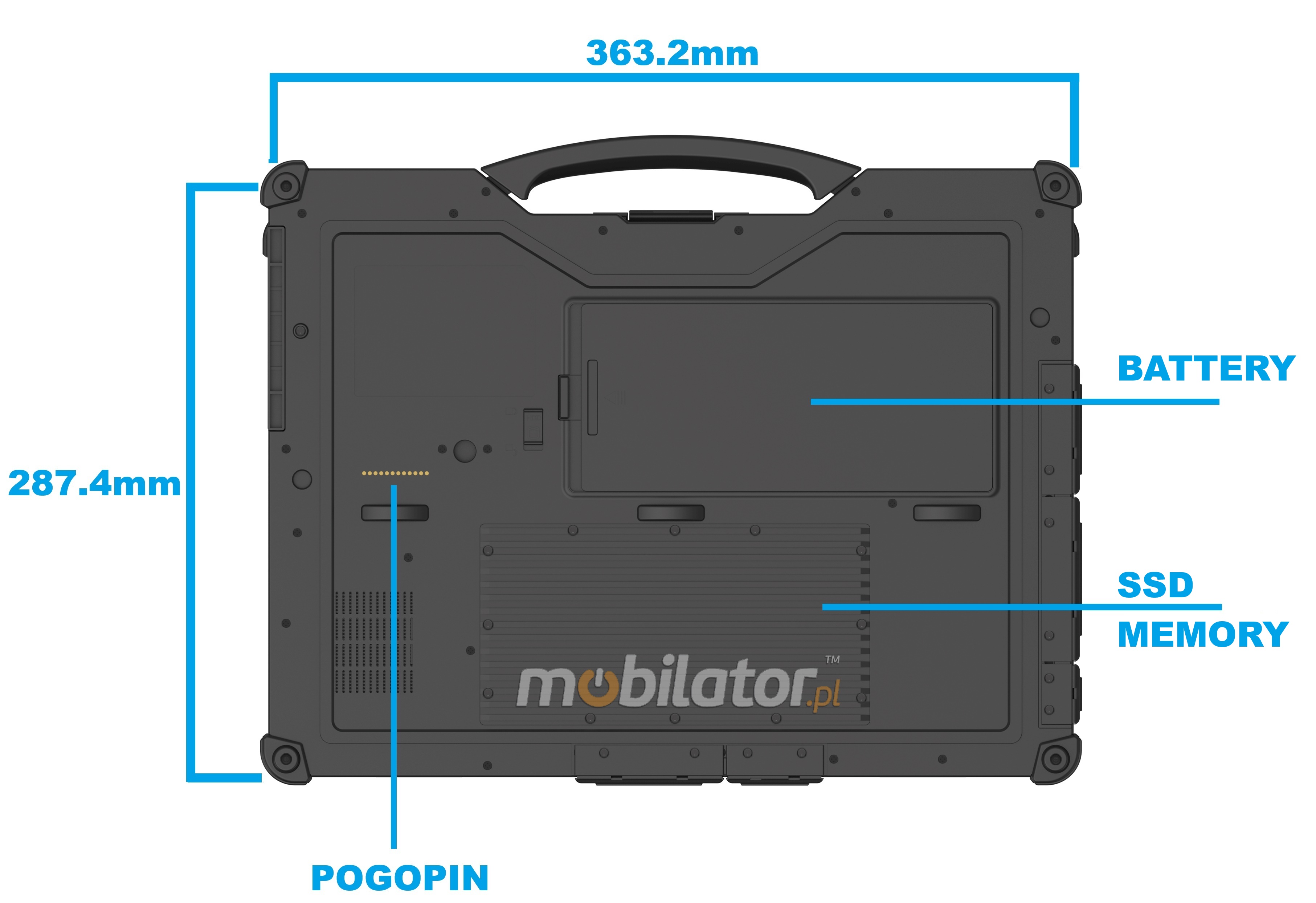

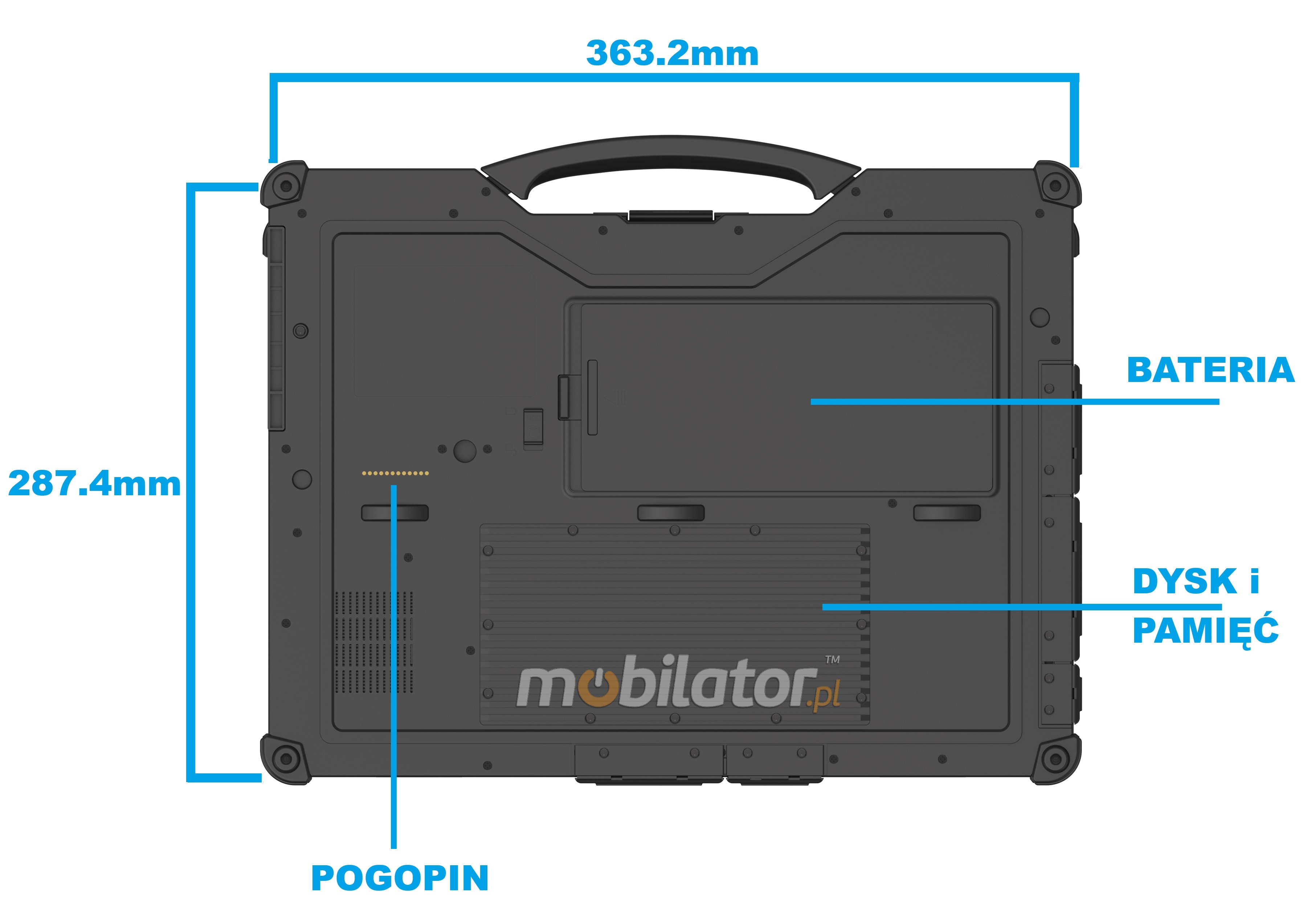

| Dimensions |
363.2×287.4×42.1mm |
| Net weight |
2.97kg |

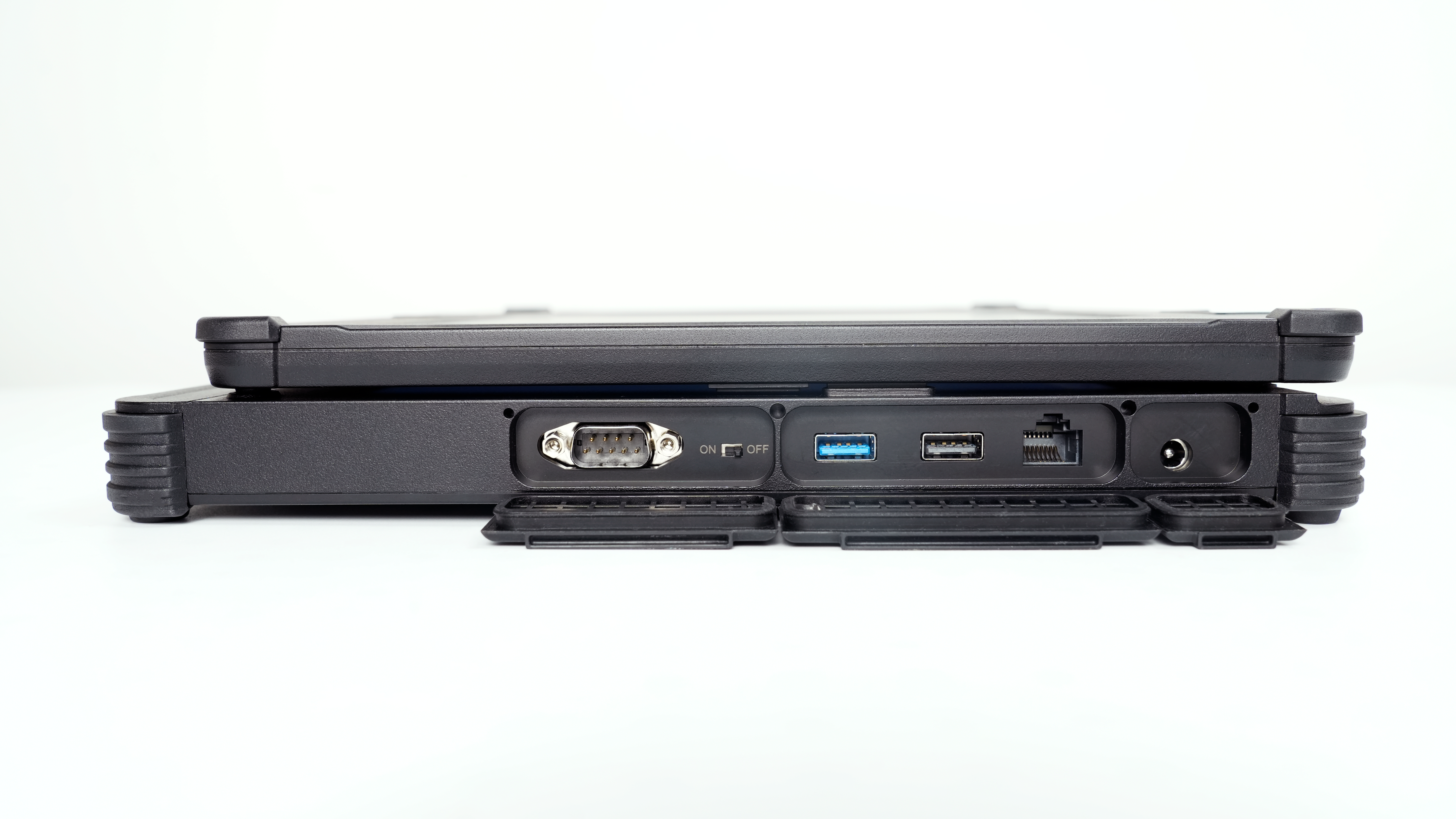

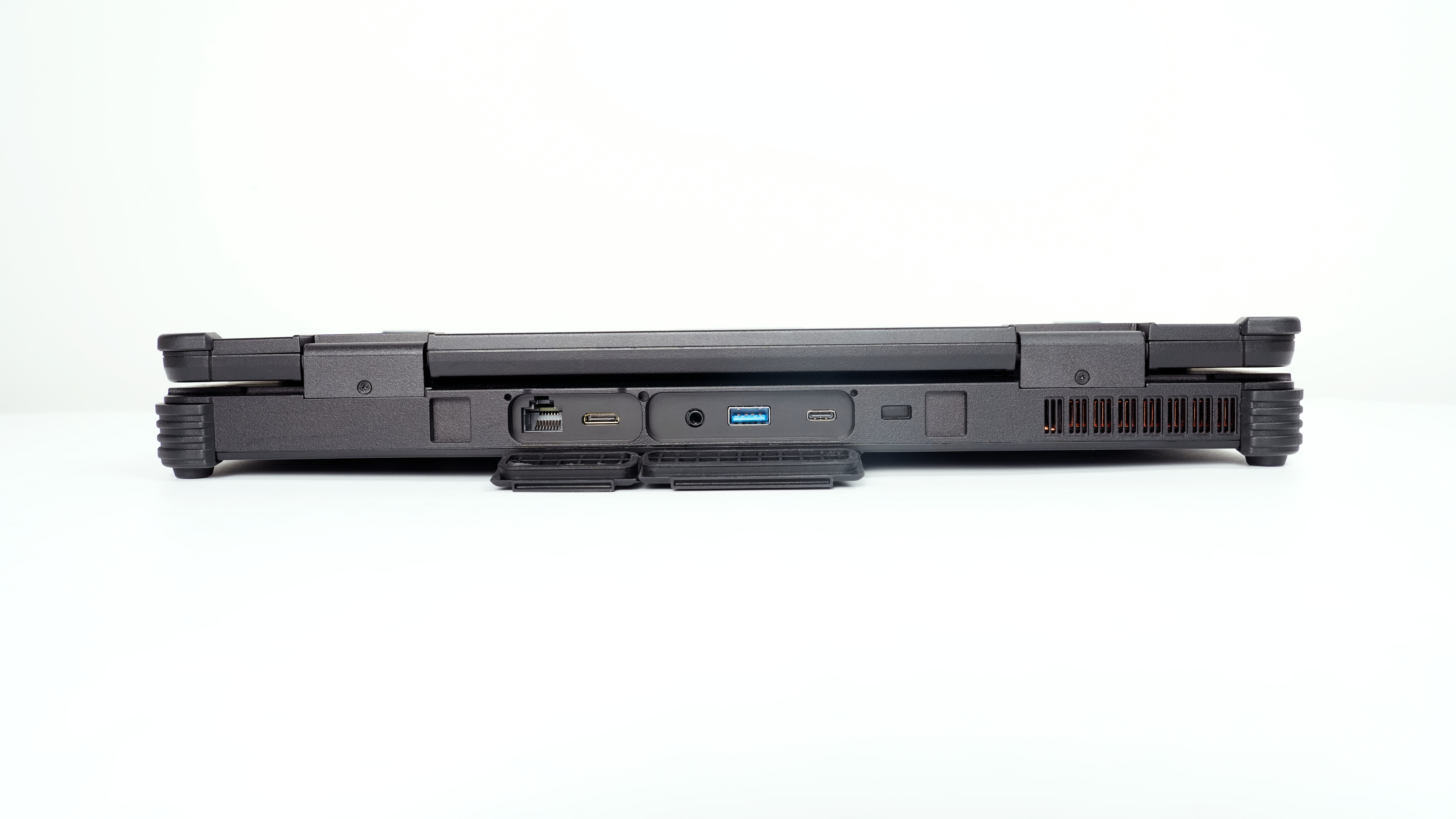

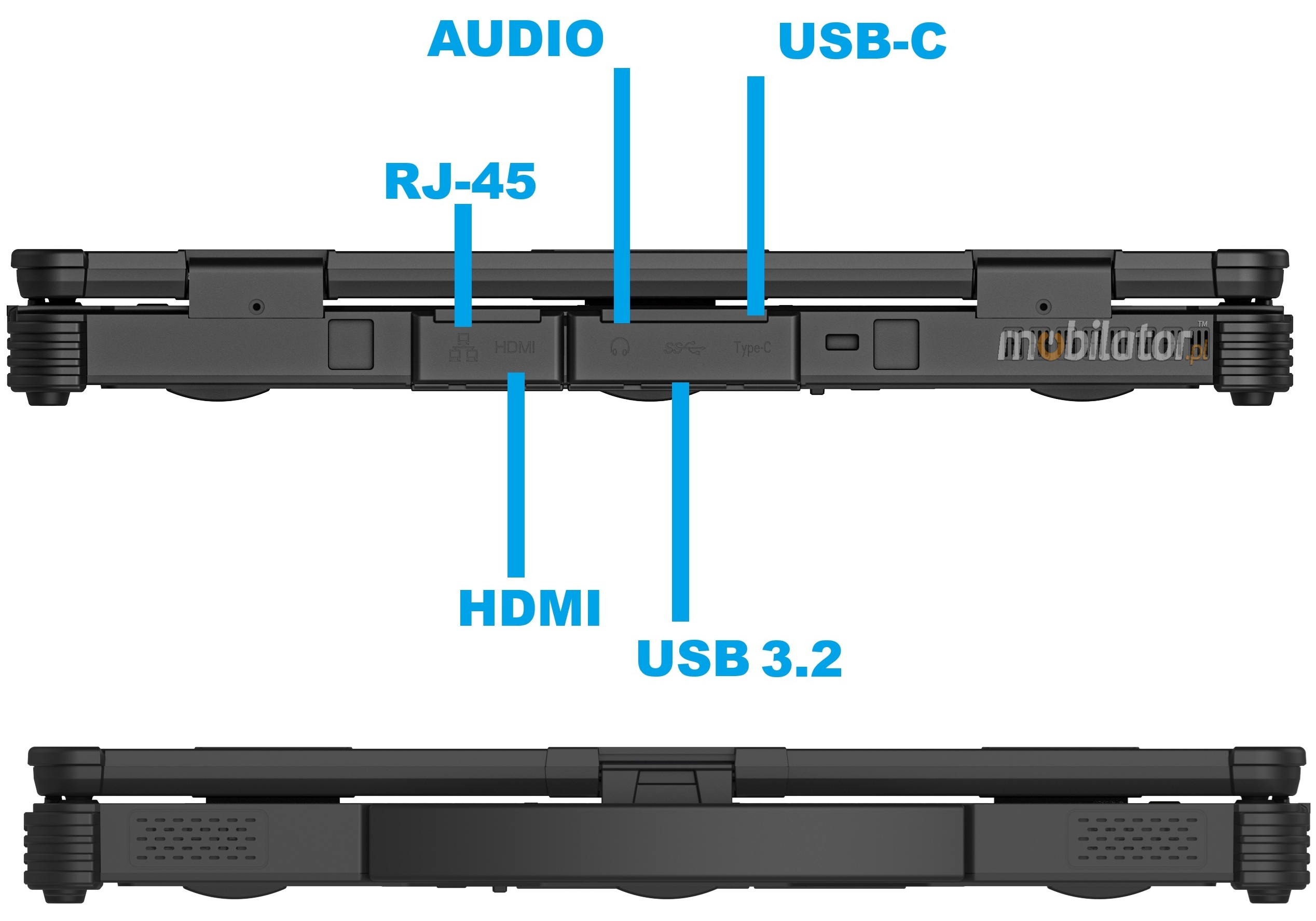

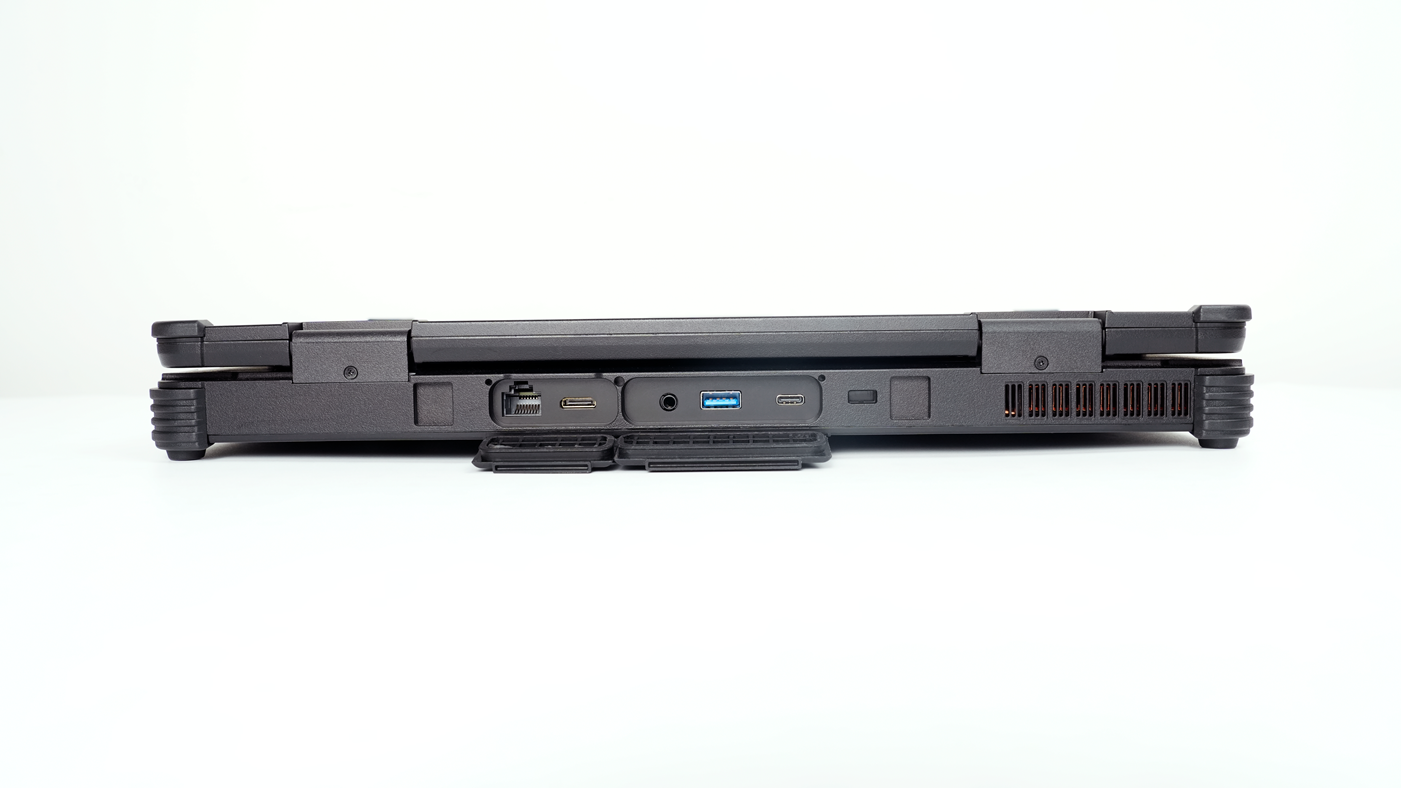

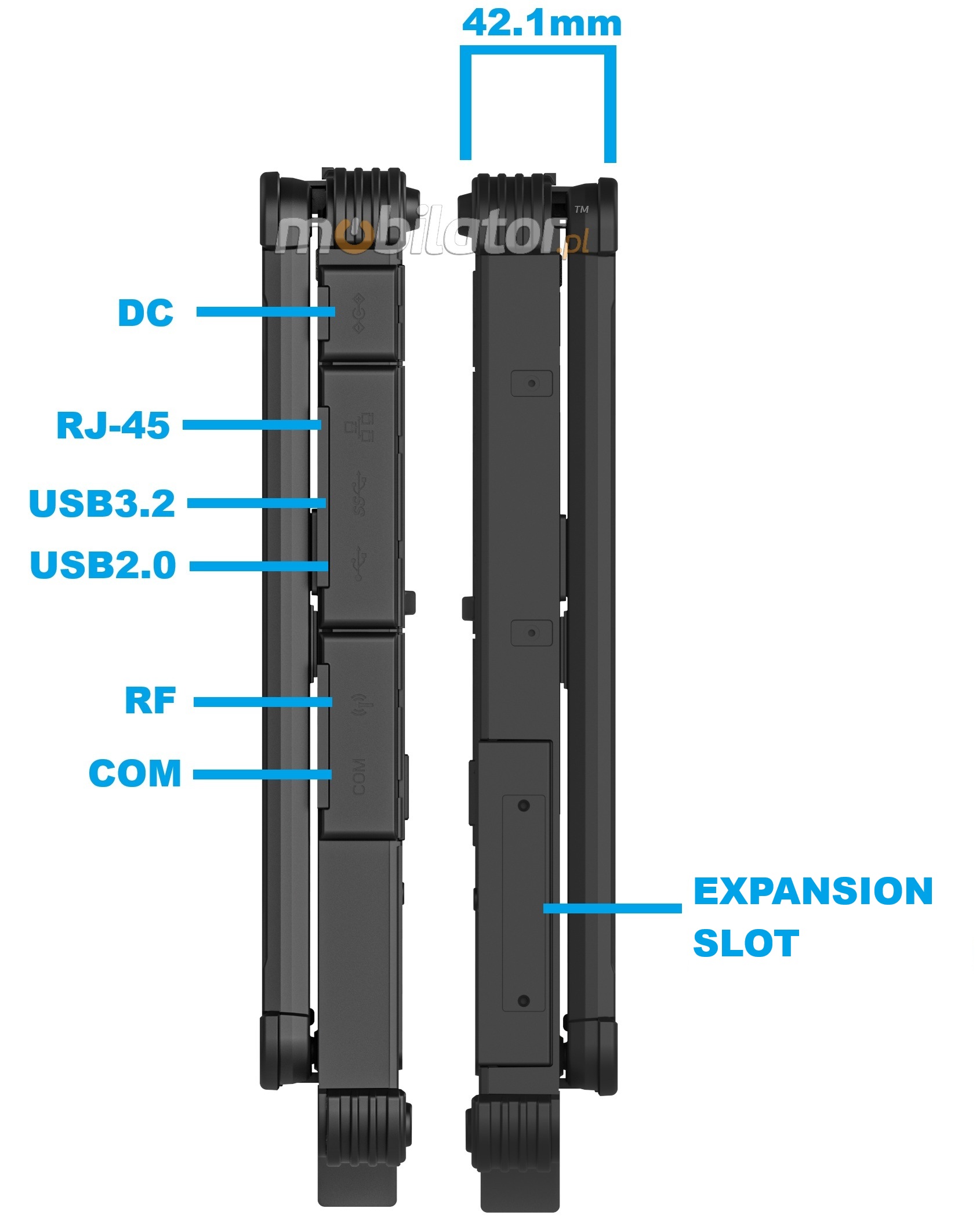

Connectors and buttons
The versatile Emdoor X14A industrial laptop comes with a well-designed set of interfaces, allowing seamless connection of various accessories and peripherals. Available ports include USB-C, USB 3.2, HDMI, a 3.5 mm audio jack, as well as a SIM card slot and an RJ-45 connector, making this notebook an excellent tool for both office and field operations.
up…
menu…

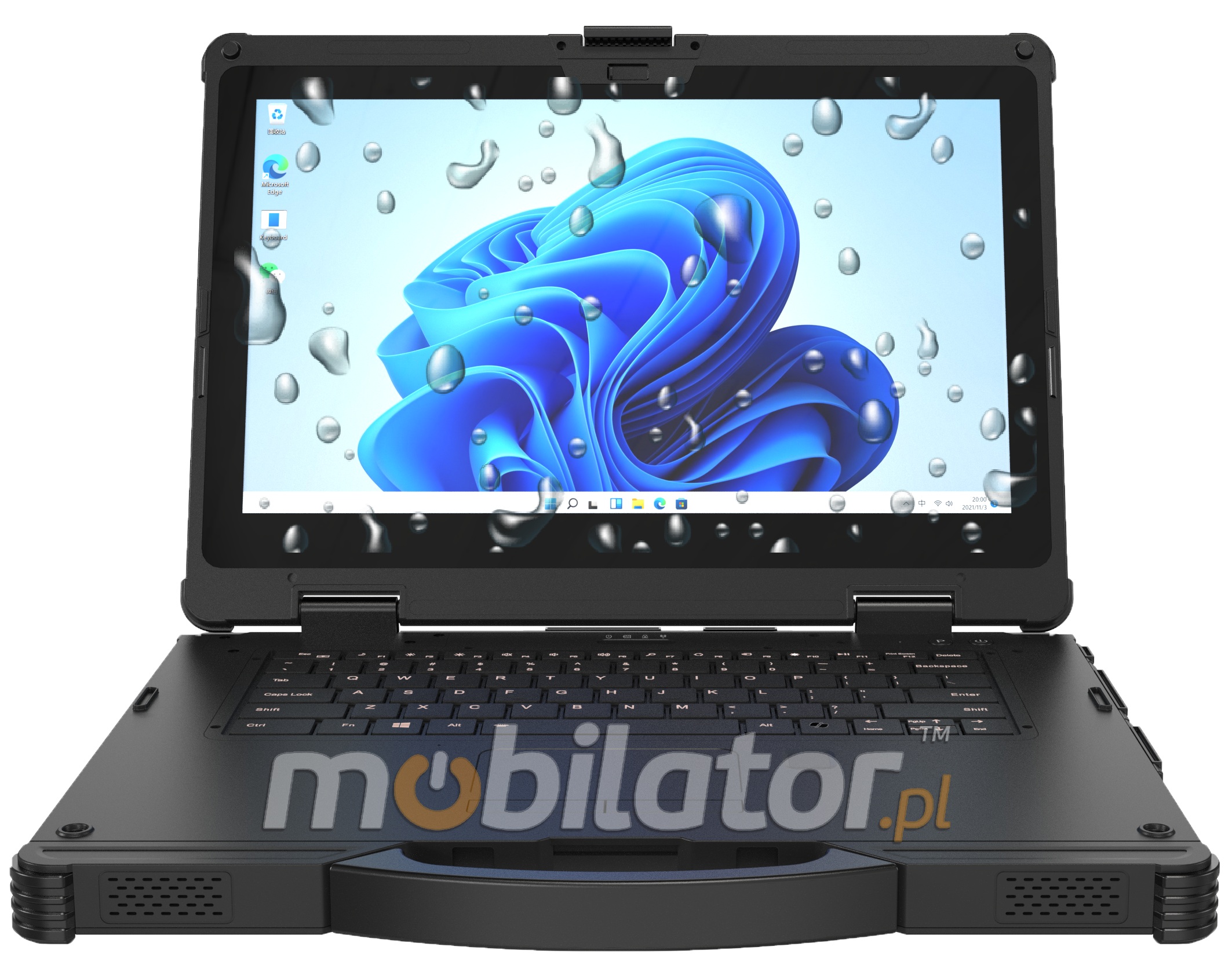

Resistance
IP65 protection class
The rugged Emdoor X14A laptop is built for demanding environments. Its IP65-certified design ensures complete protection against dust and resistance to temporary water immersion. This reliable industrial notebook is the perfect solution for industries where durability and resistance to harsh conditions are crucial.
| First digit |
Protection level |
Second digit |
| No special protection |
 |
No special protection |
| Protection from solid objects greater than 50mm in diameter |
.png) |
Protection from dripping water |
| Protection from object not greater than 12mm in diameter |
 |
Protection from vertically dripping water (tilted up to 15°) |
| Protection from object not greater than 2,5mm in diameter |
 |
Protection from sprayed water
(tilted up to 60°) |
| Protection from object not greater than 1mm in diameter |
 |
Protection from splashed water |
| Complete protection against contact, Protection against dust deposit |
 |
Protection from water projected from a nozzle |
| Complete protectionm against contact, protection from infiltration of dust |
 |
Protection against heavy seas, or powerful jets of water |
| |
.png) |
Protection against immersion |
| |
.png) |
Protection against complete, continuous submersion in water |
MIL-STD 810 Standard
The durable and rugged Emdoor X14A laptop meets the MIL-STD-810H standard, used by the U.S. Army, ensuring resistance to harsh environmental conditions. With mechanical durability proven by tests (1.5 m drop resistance), this laptop is perfectly suited for demanding industrial and field operations, providing reliability even in extreme scenarios.
Extreme temperatures
The rugged Emdoor X14A field laptop is designed for demanding conditions and operates reliably in temperatures ranging from -20°C to 60°C. When stored while powered off, it withstands -30°C to 70°C, ensuring durability and stability even in extreme environments.
| Working Temp. |
-20°C to 60°C |
| Storage Temp. |
-30°C to 70°C |
| Humidity |
0% to 95% |
up… menu…
wireless communication
GPS Navigation
The waterproof and durable Emdoor X14A laptop is equipped with a precise GPS module that combines low power consumption with high positioning accuracy. This rugged field laptop enables fast and stable location tracking, ensuring safe navigation in challenging industrial and outdoor conditions while significantly improving work efficiency in the field.
Bluetooth 5.1
The modern and functional Emdoor X14A laptop is equipped with Bluetooth 5.1, enabling energy-efficient short-range communication with devices such as printers, keyboards, RFID readers, scanners, and headsets. This powerful mobile laptop delivers higher connection stability and speed compared to previous versions while reducing power consumption, enhancing both comfort and efficiency in field operations.
Wireless Wi-Fi
The professional Emdoor X14A laptop supports dual-band Wi-Fi 802.11 a/b/g/n/ac, operating in the 2.4 GHz and 5.8 GHz ranges. This ensures fast and stable access to local networks and the Internet both in the office and in the field, with data transmission speeds reaching up to 9.6 Gbps theoretically.
| Standards |
WiFi 6 802.11(a/b/g/n/ac) |
| Frequencies |
2.4GHz/5.8GHz (Dual-Band) |
NFC communication (optional)
NFC (Near Field Communication) technology is a short-range wireless communication standard that allows data exchange over just a few centimeters. NFC is ideal for applications such as access control, employee authentication, logistics, and payment processing. The modern industrial Mobipad tablet enables tag reading and integration with smart card systems.
up… menu…
Application
Trade and Services
The rugged and functional Emdoor X14A laptop is an ideal tool for sales and field representatives. With modern business applications, it enables fast data collection, client verification, offer presentation, and the creation of sales documents. This mobile warehouse laptop allows issuing invoices, creating orders, and synchronizing data with the ERP system in real time, regardless of location, thanks to GSM or Wi-Fi connectivity.
Industry and Construction
The rugged and waterproof Emdoor X14A laptop features dust and water resistance (IP65 certification), enabling safe use in industrial halls, construction sites, and challenging environments. With modern business applications, this practical field laptop is ideal for work supervision, data collection, and managing infrastructure and human resources.
Service and Diagnostics
The powerful and rugged Emdoor X14A industrial laptop is ideal for automotive service centers and workshops. Its durable design, along with Wi‑Fi, and GPS connectivity, assists technicians in rapid vehicle diagnostics, analysis of onboard system data, and handling service documentation. Installing specialized software allows for error reading, vehicle system configuration, and access to diagrams and repair history, significantly improving work efficiency and accuracy.
.jpg)
up… menu…

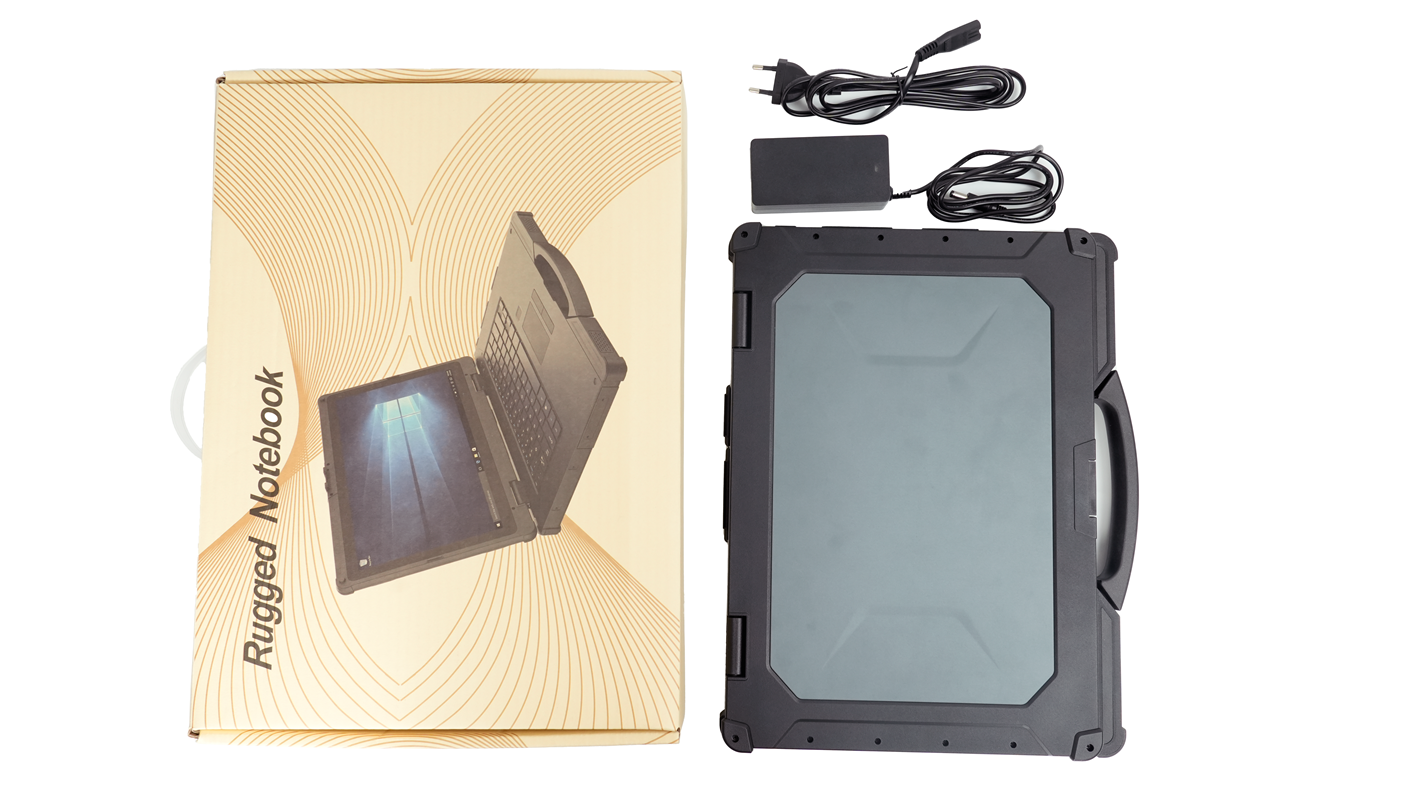

Accessories and available versions
We offer a range of additional accessories for this innovative tablet to further enhance its functionality and comfort of use. Below is a list of available accessories. Click on the accessory name or the "Check" link to be taken to a page with a description and price of the accessory.
Station that allows charging up to 4 batteries at once.
Allows to charge your device.

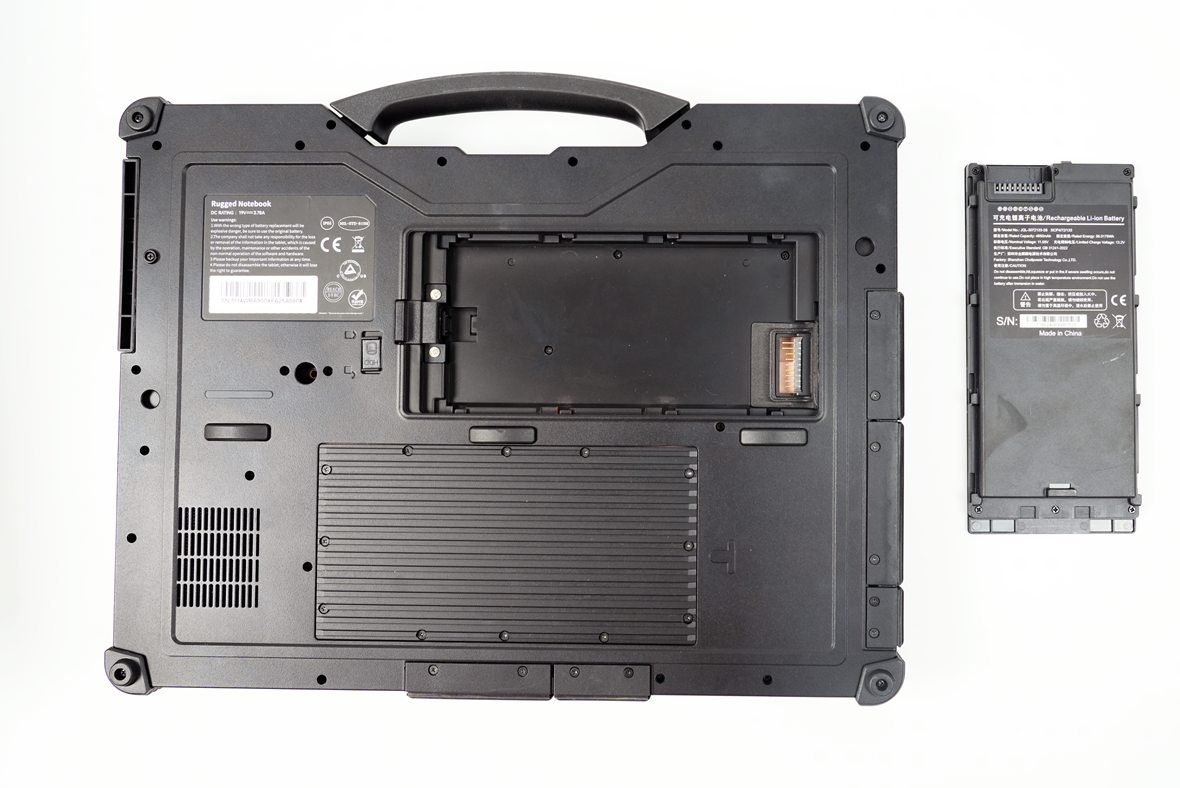

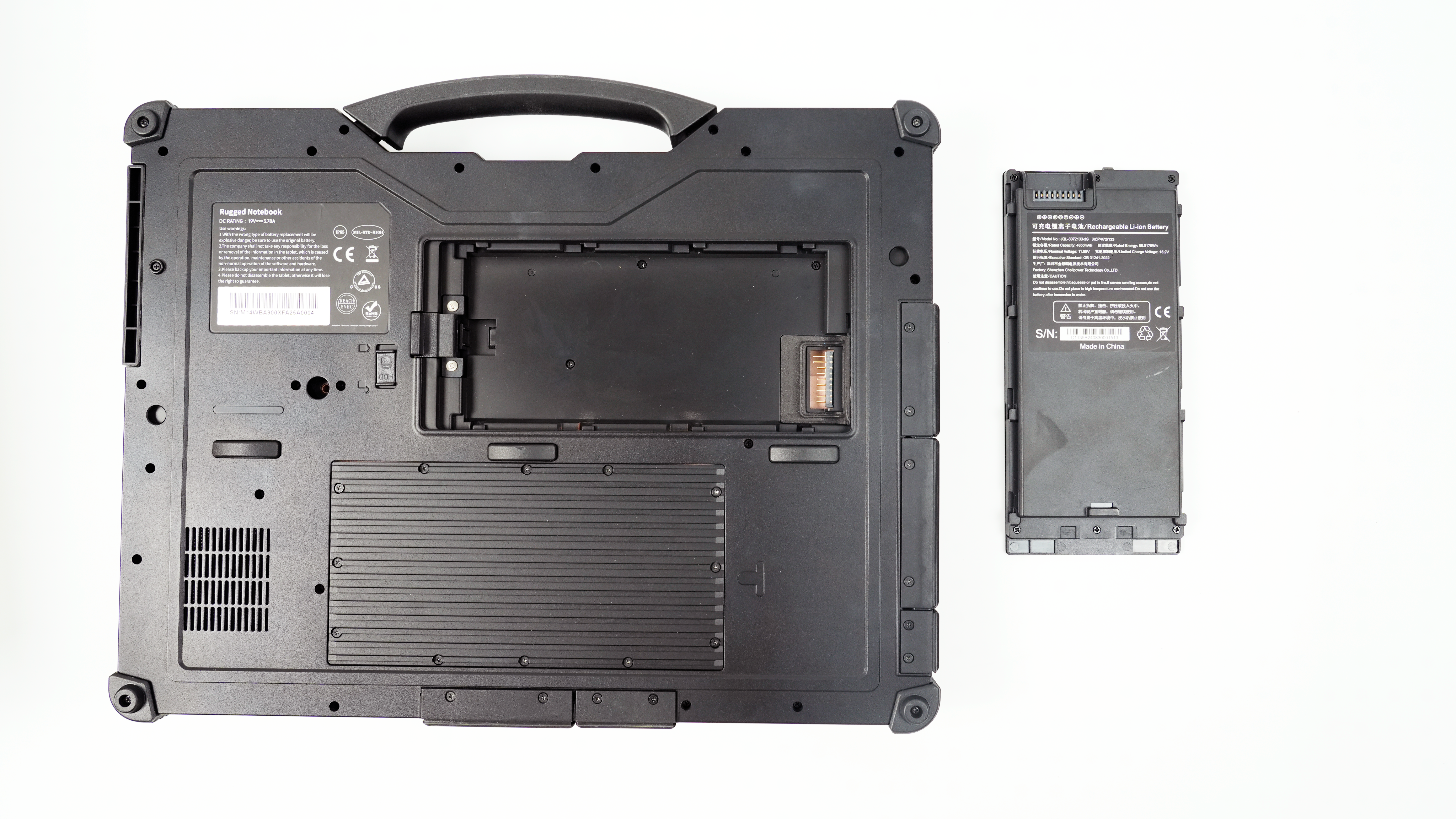

Additional battery for the device.
The rugged Emdoor X14A laptops are available in several versions, tailored to meet different user needs. Clicking on a configuration number directs to a detailed product visualization with specifications listed in the table. Upon request, a custom configuration not currently available in the standard offer can also be created.
Porównaj wszystkie wersje
| | v.1 | v.2 | v.3 | v.4 | v.5 | v.6 |
| 32GB+256GB | ✔ | — | — | — | — | — |
| 32GB+512GB | — | ✔ | ✔ | ✔ | — | — |
| 32GB+1TB | — | — | — | — | ✔ | ✔ |
| Windows 11 Pro | — | — | ✔ | — | ✔ | — |
| Windows 11 IoT | — | — | — | ✔ | — | ✔ |
| NFC | — | ✔ | — | — | ✔ | ✔ |
