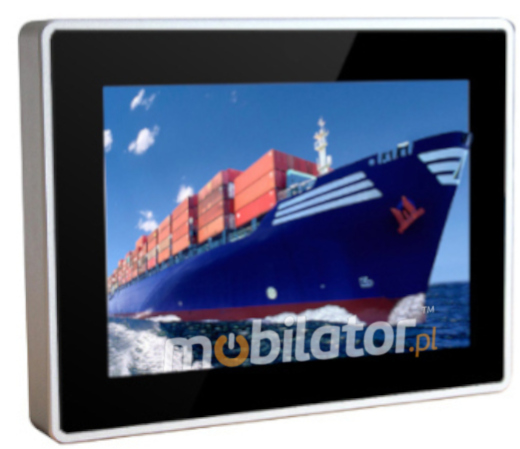

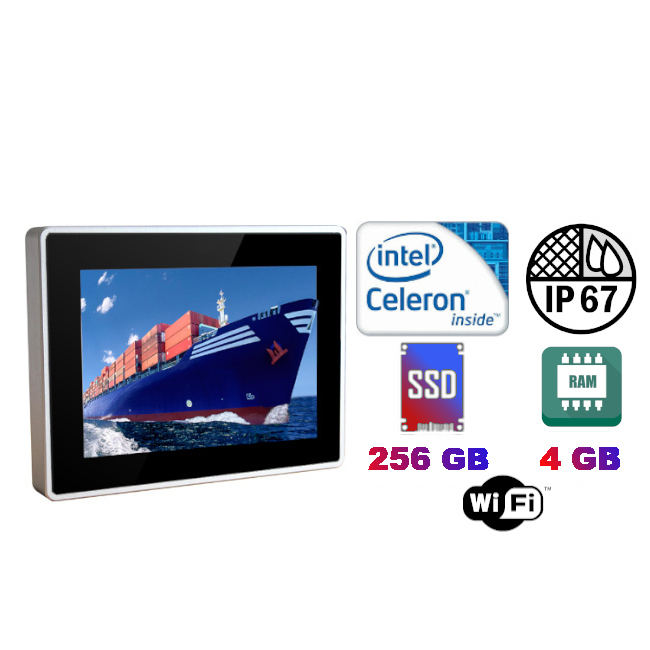

Touch screen computer (IP67 standard for the ENTIRE enclosure) - QBOX 12 (J1900) v.5

Touch screen computer (IP67 standard for the ENTIRE enclosure) - QBOX 12 (J1900)  v.5

Data update: 2022-11-29

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
1006.73
Net
1238.28
Gross



Compare all versions



industry panel PC computer proof waterproof shockproof rugged IP67



Industrial PC panels are integrated devices consisting of a PC computer and a touch monitor. Due to their design, they can work even under severe conditions prevailing in industrial environments, such as high humidity, high dustiness, contact with water or very low or high temperatures. These panels are characterized by high efficiency and stability of operation in all conditions.






Waterproof
The IPX7 water-resistance standard on the front panel guarantees protection of the device for contact with water.
Dustproof
The dustproof IP6X standard on the front panel protects the panel against dust and access to hazardous parts.



Efficient
The quad-core Intel Celeron J1900 processor supported by 2GB of RAM improves the device's performance.
Bright Screen
The display with 400cd/ m² brightness makes the picture much more vivid and better readable when used outside in the sun.



Wireless network
The panel can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.
Capacitive screen
The capacitive screen allows precise handling and gentle on-screen movement.







up… do góry   menu… menu



Specifications and parameters








Performance
Processor Intel Celeron J1900 (4X2 GHz)
Graphics card Intel HD Graphics
Operating system suppotred
RAM 4GB
Drive 256 GB SSD
Display
Screen 12" (800x600)
Touch screen Capacitive
Brightness 400cd/m²
Contrast 800:1
Response time 10PT:80MH
Hardness
Interfaces
Communication Wi-Fi
Connectors DC 12V | RJ-45 | 2x USB 2.0 (USB 3.0 option) | VGA | RS 232
(Possibility to swap connectors)
Other
Protection IP 67

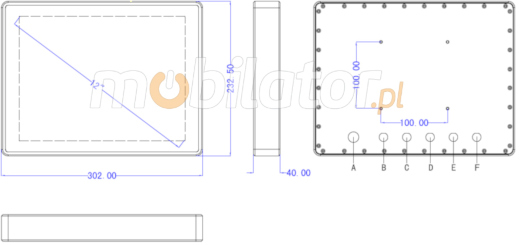

Dimensions 302x232x40 mm
Weight 2.5 kg




Porównaj wszystkie wersje



 1v.2v.3v.4v.5v.6v.3.1v.4.1v.5.1
SSD 32 GB
SSD 64 GB
SSD 128 GB
SSD 256 GB
RAM 2 GB
RAM 4 GB
RAM 8 GB
HDD 500 GB
Wi-Fi









The dust-proof industrial PC panel uses an efficient and energy-saving Intel Celeron J1900 processor. The shared cache memory that uses a multi-level hierarchy is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory.




industry panel PC computer proof waterproof shockproof rugged IP67









up… do góry   menu… menu



Display and touch





The enhanced, waterproof QBOX 12 (J1900) industrial computer has a 12 "water-resistant LED screen, 800X600 resolution, good image quality and high brightness of 400 cd / m² for better color saturation and contrast, and significantly improved visibility, even in cases of sunbeams falling on the screen.






CAPACITIVE SCREEN





The capacitive screen consists of a glass coating that is covered with an insulator. Touching the surface of the touch pad with your finger causes a disturbance in the flow of electric current. This display provides very good visibility under industrial conditions. The panel can be operated with one finger or conductive material (special glove). This type of screen provides support for multi-touch technology, which is a clear convenience during work. This is due to the fact that a large number of electrodes allows accurate detection of many points of touch. You do not have to use a stronger pressure for capacitive screens, because you only need to lightly brush the screen with your finger to make the device react.





capacitive touch screen









up… do góry   menu… menu



Resistance and protection








PROTECTION STANDARD IP67






Normatyw IP (International Protection Rating) determines the degree of protection provided by the housing of an electrical device against such factors as: access to dangerous parts inside the housing, penetration of foreign solids and splashing or immersion. The first characteristic number means that the housing protects people against access to dangerous parts located inside the device, and at the same time provides protection against the penetration of foreign solids. The second characteristic digit means that the housing provides protection against the effects of water penetration.





IP67 With short-term immersion.

Protection against access to dangerous parts with wire.
Dustproof protection.

Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.







industry panel PC computer proof waterproof shockproof rugged IP67






EXtreme temperatures






PanelPC QBOX 12 1900 is adapted for continuous operation in both very low and high temperatures ranging from 0° C to 60 ° C. If the device is switched off, it can already handle temperatures between -20 ° C and 80° C. In addition, the durable PanelPC is perfect for rooms with increased humidity, ensuring proper functioning even in the case of 95% relative humidity.





Work temp. 0°C to 60°C
Storage temp. -20°C to 80°C
Humidity 10% - 95%





up… do góry   menu… menu



Communication and connectors








WIreless Wi-Fi network






The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. The QBOX 12 (J1900) shockproof industrial panel has been equipped with 802.11n standards, which allows transfer of files at a dizzying speed of up to 150 Mb / s.





Standards 802.11a/b/g/n
Frequencies 2.4GHz

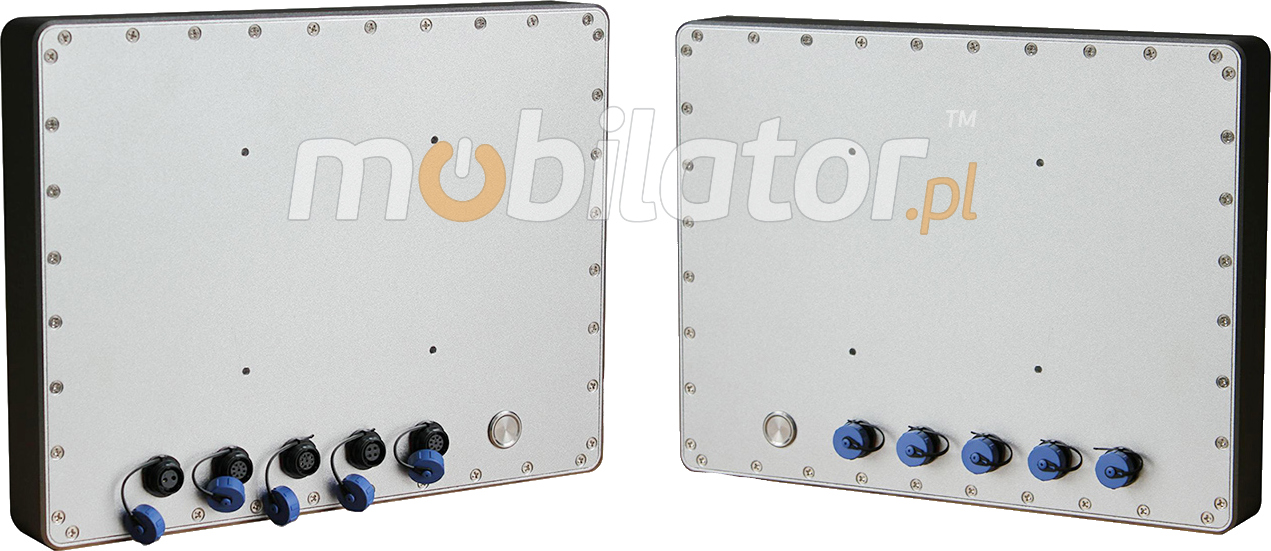

Connectors and interfaces









industry panel PC computer proof waterproof shockproof rugged IP67






up… do góry   menu… menu



Application





trade and services






Waterproof and dustproof PC Panel is widely used primarily in the commercial industry, for example for controlling the sales system, displaying product information on monitors or advertising on large screens. With the VESA holder in the housing there are many possibilities for its assembly, eg in stores (at the cash register) in factory halls, in a car delivering products, etc. It will certainly be used in all types of retail chains.






warehouse and management






The industrial panel computer thanks to the RS232 interface can be used to connect many devices in the warehouse and facilitate their control. And its rugged housing is ideally suited to the harsh conditions prevailing in such rooms. No dust or dirt will prevent him from working, he will work without complaints even in a large dusty and dirty environment.






Transport and motorization






Panel computers can be used in transport by adapting it to work on 12V power supply. Then Panel PC can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. Thanks to the integrated monitor, these panels perform very well in vehicles where mobility and the small size of the device are important.



industry panel PC computer proof waterproof shockproof rugged IP67
