« Back    Home / MiniPC Industry / Archives

Computer Industry Fanless MiniPC MiniPC yBOX - X33 (6 LAN) - 1037U v.5

Data update: 2022-07-18

guarantee 1 year

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions





Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new design look mobilator fast 6 lan rj45


Small dimensions industrial computers excel in environments where dust, dirt and moisture predominate. They are ideal for applications requiring quiet operation. Small and reliable MiniPC use heat-pipe technology and aluminum fins for passive cooling. The robust mini Industrial Computer yBOX-X33 is a device designed for all industrial and non-continuous applications requiring continuous operation - 24 hours, 7 days a week.


Small dimensions
The compact housing means that the Mini PC will fit wherever you need it and is easy to carry.
Lightweight design
The computer's weight does not exceed 2.0 kg, so it can be conveniently carried in a bag or backpack.



Efficent components
The Intel Celeron 1037U dual-core CPU provides improved device performance.

Wireless network
The mini PC can be connected to nearby wireless networks by equipping it with an optional Wi-Fi module.




Data Storage
The large disk capacity allows to store and archiving important user data.
Passive cooling
The use of passive cooling in the Mini PC ensures silent operation and slows dust deposition.





go up… do góry menu… menu



SPECIFICATION



Performance
Processor Intel Celeron 1037U (2x 1.80GHz)
Graphics card Intel HD Graphics
Operating system Windows 7/8/10 | Linux
RAM 8 GB
Drive 1000 GB
Interfaces
Connectivity

Wi-Fi b/g/n

LAN - 6x Intel 82583V  10/100/1000 Mbps

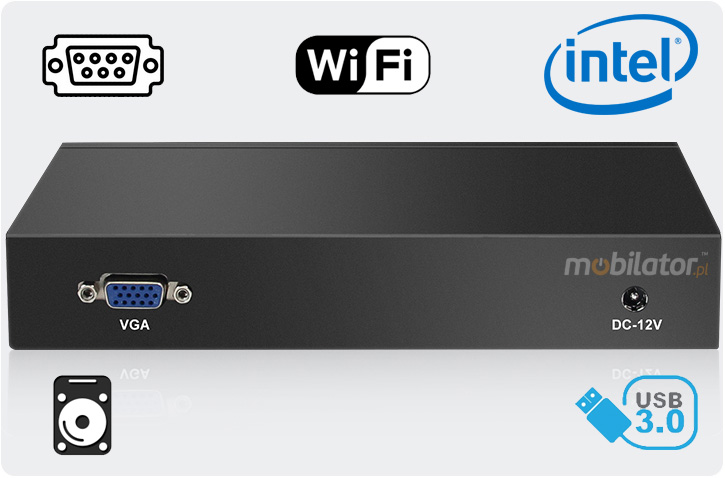

Front panel Power On/Off / 6x LAN / 2x USB 3.0 / 1x COM
Rear panel

1x VGA / DC IN 12 V

Other
Available colors Black
Dimensions 185mm x 125mm x 33mm
Weight 1.50kg







EFFICIENT PROCESSOR

The industrial mini-computer yBOX-X33 uses an efficient and energy-saving Intel Intel Celeron 1037U processor. Inside it there are four cooperating cores enabling more efficient processing of many tasks at the same time. The shared cache memory in which the multilevel hierarchy is used is dynamically allocated to each processor core depending on the load. This reduces the average access time to the main memory.



INTERFACES

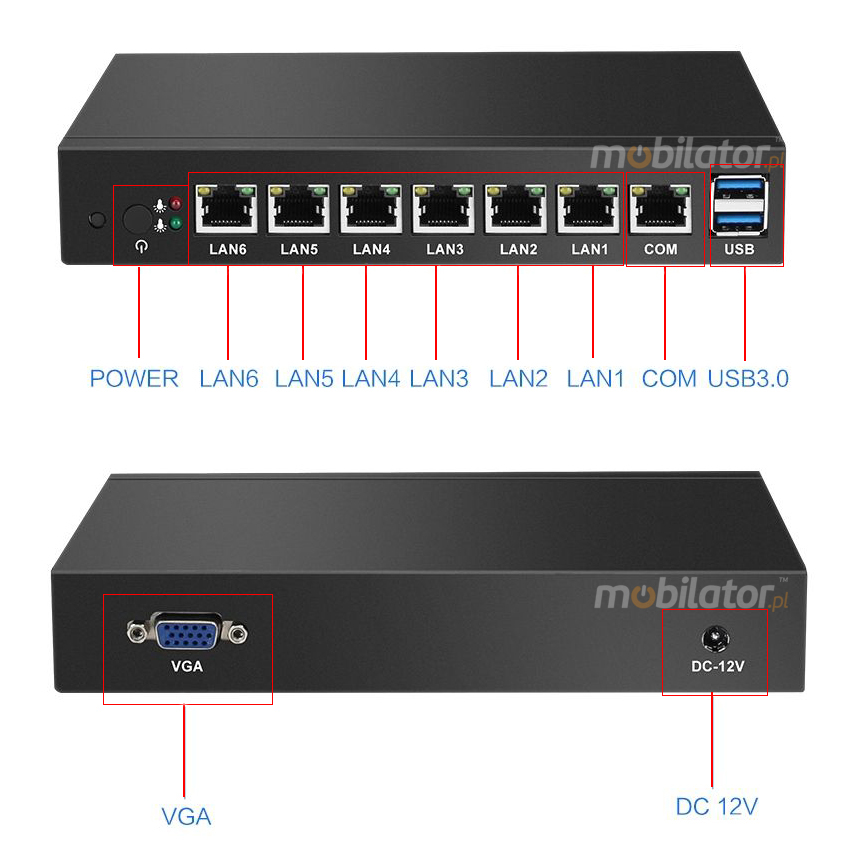

Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U back panel mobilator fast 6 lan rj45





DIMENSIONS

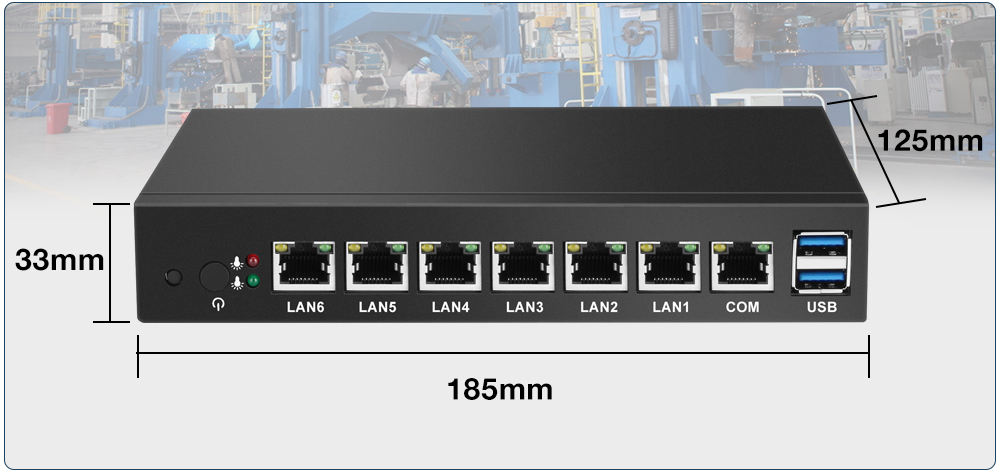

Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new design size small unique mobilator fast 6 lan rj45



Passive cooling

The industrial Mini PC uses a proven cooling system, based only on solid elements, mainly heat sinks. The system uses the phenomenon of metals passing thermal energy into the environment - there are no additional moving elements in the form of eg fans. This solution ensures noiseless operation, lower failure rate and greater protection against dust and other dirt while reducing the amount of energy consumed.



go up do góry menu… menu



RESISTANCE



Temperatures

yBOX-X33 is designed for continuous operation in both very low and high temperatures ranging from -20 ° C to 80 ° C. If the device is switched off, it can already handle temperatures in the range of-20 ° C to 80 ° C.


Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new inside view mobilator fast 6 lan rj45



Work temp. -20°C — 80°C
Storage temp. -20°C — 80°C
Humidity 10% — 90%


Mechanical damage

The passive cooling system used in the MiniPC yBOX-X33 make this computer very resistant to various types of mechanical injuries. An additional advantage of industrial computers is a solid construction made of high quality aluminum and specially designed in such a way that in addition to high efficiency in heat dissipation, it can also resist any external damage.



go up do góry menu… menu



CONNECTION



Wireless network

The dual-band Wi-Fi module provides quick access to the network wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a router at home or place of residence and a wireless network that can be used at no extra charge. Industrial mini-PC yBOX-X33 has been equipped the standard of  - 802.11n, which allows transfer of files at a dizzying speed of up to 300 Mb / s.





WIRED LAN NETWORK

The MiniPC yBOX-X33 has built-in six Intel network adapters that can work in a fast Gigabit Ethernet network.


Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new design conncetors front panel mobilator fast 6 lan rj45



go up do góry menu… menu



APPLICATIONS



Trade and services

Mini PC is an ideal tool to support us in the implementation of many activities in the field of trade, small dimensions increase the possibility of its adaptation to activities such as issuing invoices or preparing documentation, which in turn allows us to convenient and optimal sales management. The VESA holder mounted to the housing provides many installation options, eg in stores (at the cash register, under the desktop, behind the LCD / LED monitor), in factory halls or in a delivery truck.



Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new design size VESA easy mount mobilator fast 6 lan rj45


Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new design size small unique rs232 com mobilator fast 6 lan rj45



Warehouse and logistics

Thanks high performance an industrial computer can be used to connect multiple devices in a warehouse and make their management much easier. Its rugged casing and the fanless cooling system are ideal for harsh environments in such rooms. The solid construction guarantees long-lasting work, even in environments with high dustiness and dirt.


Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new design size small unique mobilator fast 6 lan rj45



Transport and motorization

A small industrial computer can be used in transport thanks to the ability to work on 12V power supply. Then the mini computer can be used in passenger cars, buses, trams, taxis, trains and even in airplanes. It allows you to inform the driver about the current state of the vehicle, transfer its current location to the management center, display information for passengers, etc. It performs well in vehicles where small dimensions are important.


Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new design size small unique mobilator fast 6 lan rj45

More pictures of the device available in the "Gallery" tab.


go up do góry menu… menu



VERSIONS



Computer Industry Fanless MiniPC with 6 LAN cards  MiniPC yBOX-X33 - 1037U new design size small panel mobilator fast 6 lan rj45



The industrial mini-computer yBOX-X33 is offered in several versions to suit different needs. By clicking on the number of the hardware configuration you will be redirected to the product with the parameters given in the table below. In addition, it is possible to create a configuration that is currently unavailable on the customer's request.






Porównaj wszystkie wersje



 v.0v.1v.2v.3v.4v.5
4 GB RAM
8 GB RAM
32 GB SSD
64 GB SSD
500 GB HDD
128 GB SSD
1 TB HDD



Compare all versions
