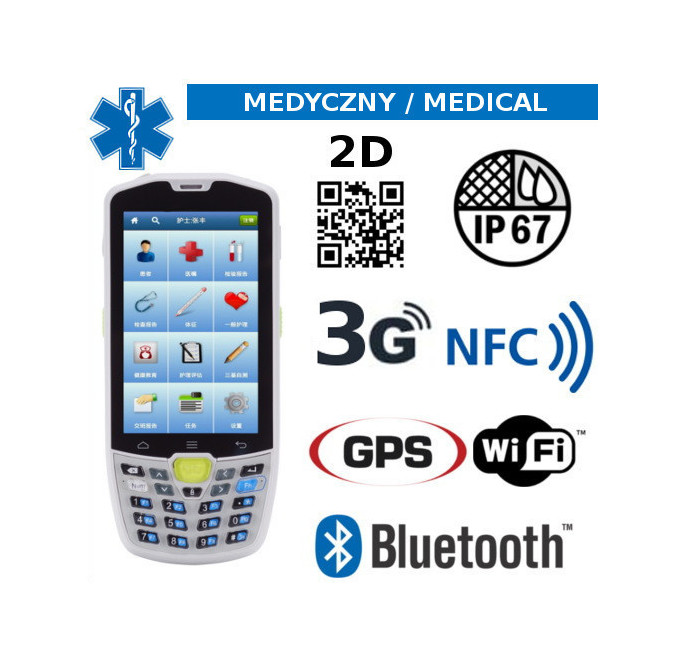

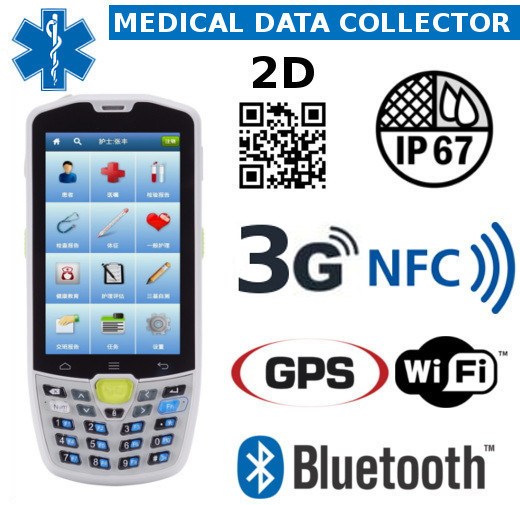

Medical industrial Data Collector MobiPad MPS8W 2D v.2

Data update: 2019-09-04

guarantee 1 year

Ask about the product


Tell a friend


Compare product

The product from the archive - production terminated
Znak akceptacji płatno?ci pl

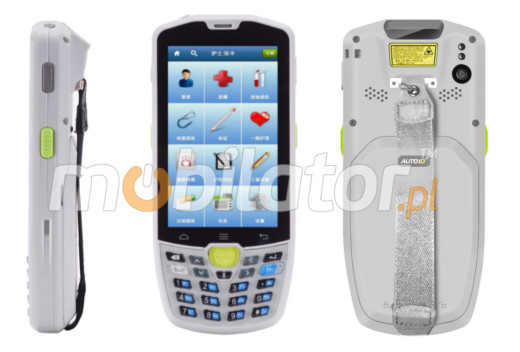

Medical Data Collector MobiPad MPS8W has a specially designed, reinforced structure and anibacterial shell adapted to harsh and sterile environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP67 norm. Thanks to its structure is resistant to dust and water.


medic MobiPad MPS8W 2d CMOS functional keys

 Processor Cortex Quad-Core 1.2GHz
 Display  4" (800x480) IPS | Capacitive
 RAM  1GB | 2GB (depends of version)
 ROM  8GB | 16GB (depends of version)
 Connectors  microUSB | Micro SD | SIM
 Audio  AudioJack | Speaker | Microphone
 Camera  Rear: 5Mpx | 8Mpx (depends of version)

 3.8V 4000mAh Li-Ion

 3.7V, 60mAh Li-Ion (HotSwap - depends of version)

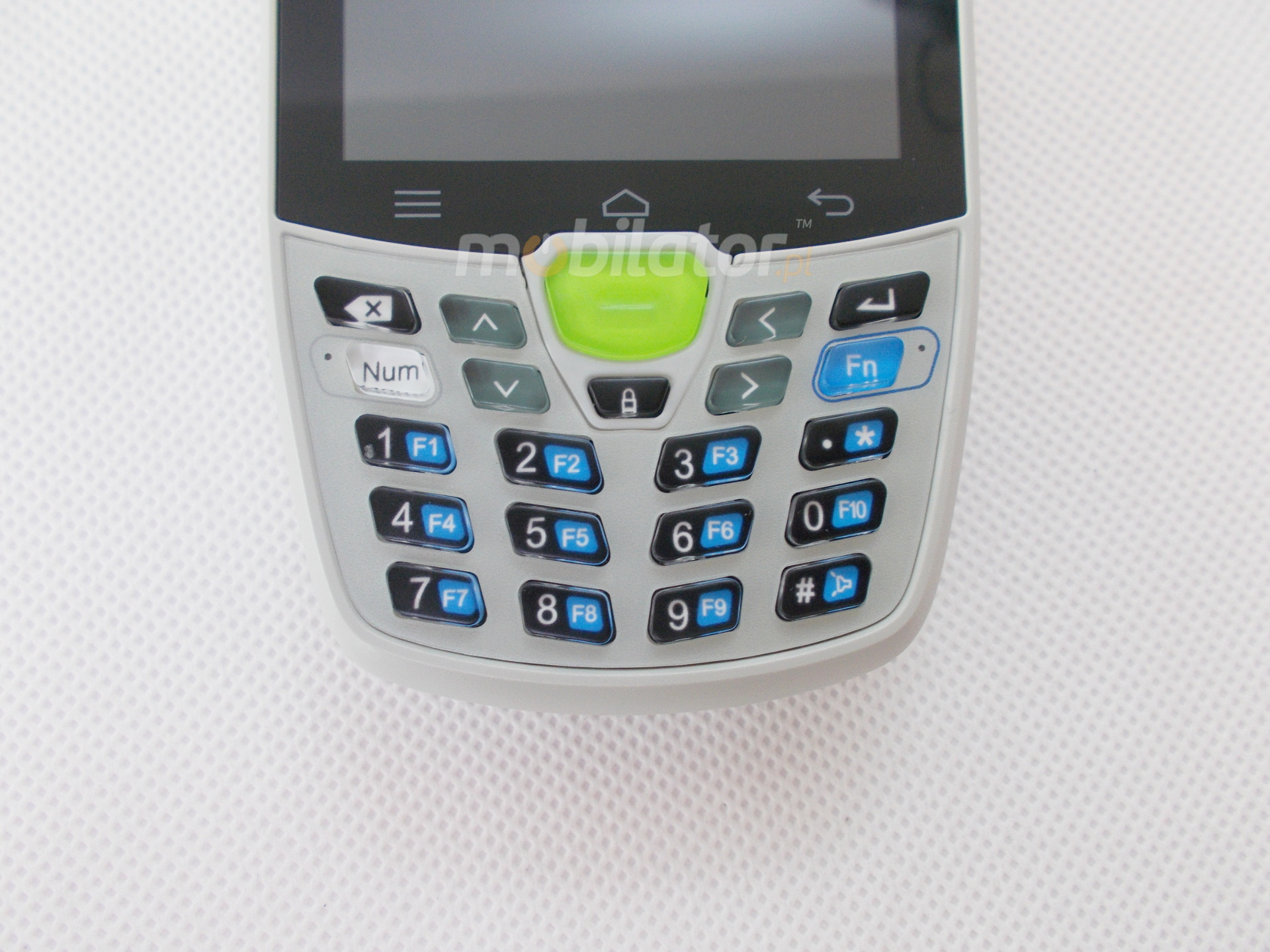

 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 4.4 | Android 5.1 (depends of version)
 3G| 4G | WiFi | Bluetooth | GPS | NFC
 Dimensions  156mm*70mm*27mm
 Resistance  IP67
 Additional Features
 Antibacterial shell
 Readers(optional)  2D (CMOS)


Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".


  v.1 v.2
Android 4.4 -
Android 5.1 -
8GB ROM Memory -
16GB ROM Memory -

1GB RAM Memory

2GB RAM Memory
Honeywell 6603
Motorola SE4500
Camera 5Mpx
Camera 8Mpx -
Mediacal Data Collector


Application in medical field

In modern medical centers employee should have comfortable and handy data collectors to their daily work. Device should be durable and easy to use. Thanks case with IP67 rate its resistant also for dust and water. Special antibacterial shell effectively prevents growth of bacteria. Additional device's case might be disinfected in any time by using alcohol.

do góry… do góry menu… menu

The collection and processing of data

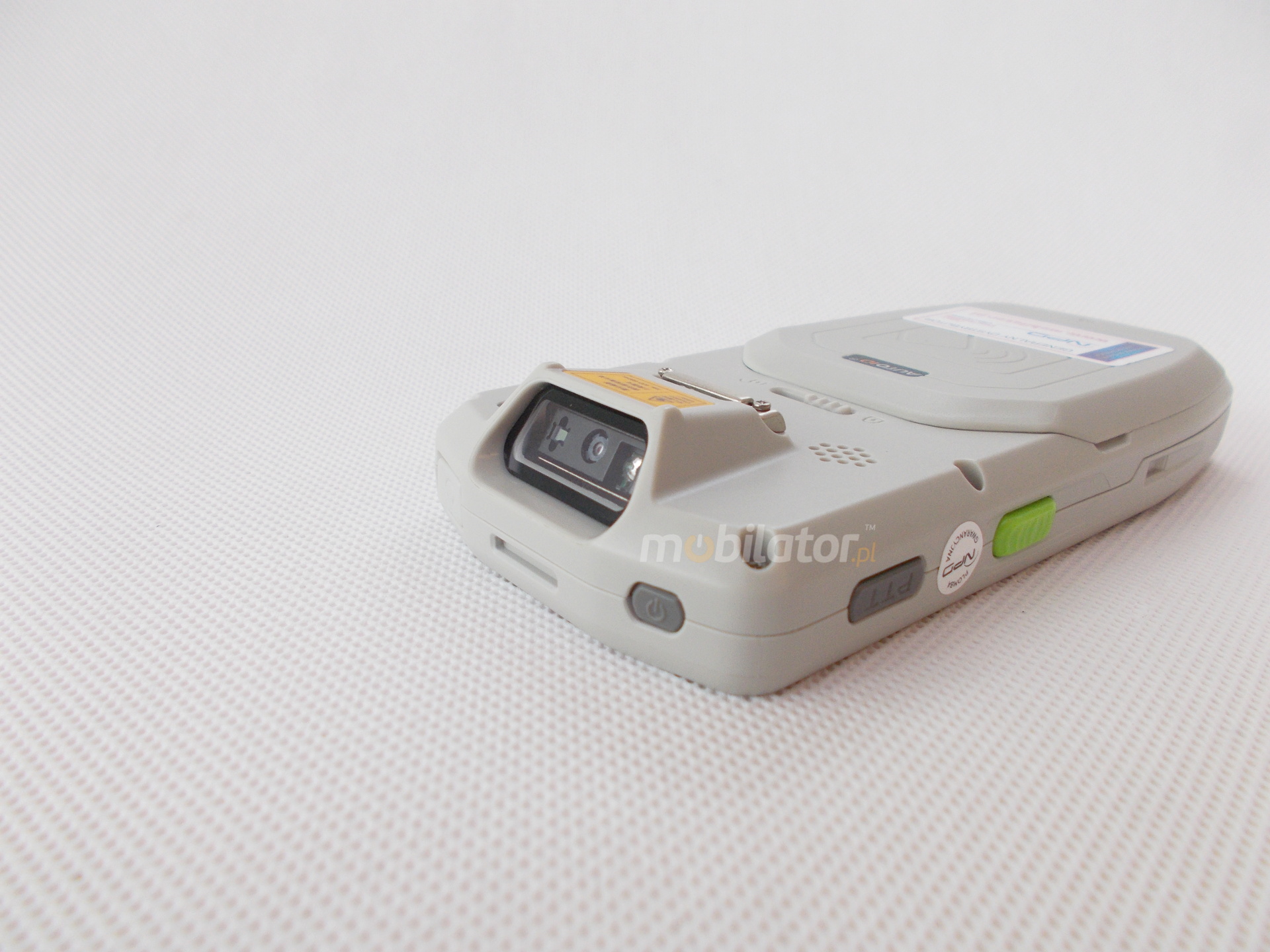

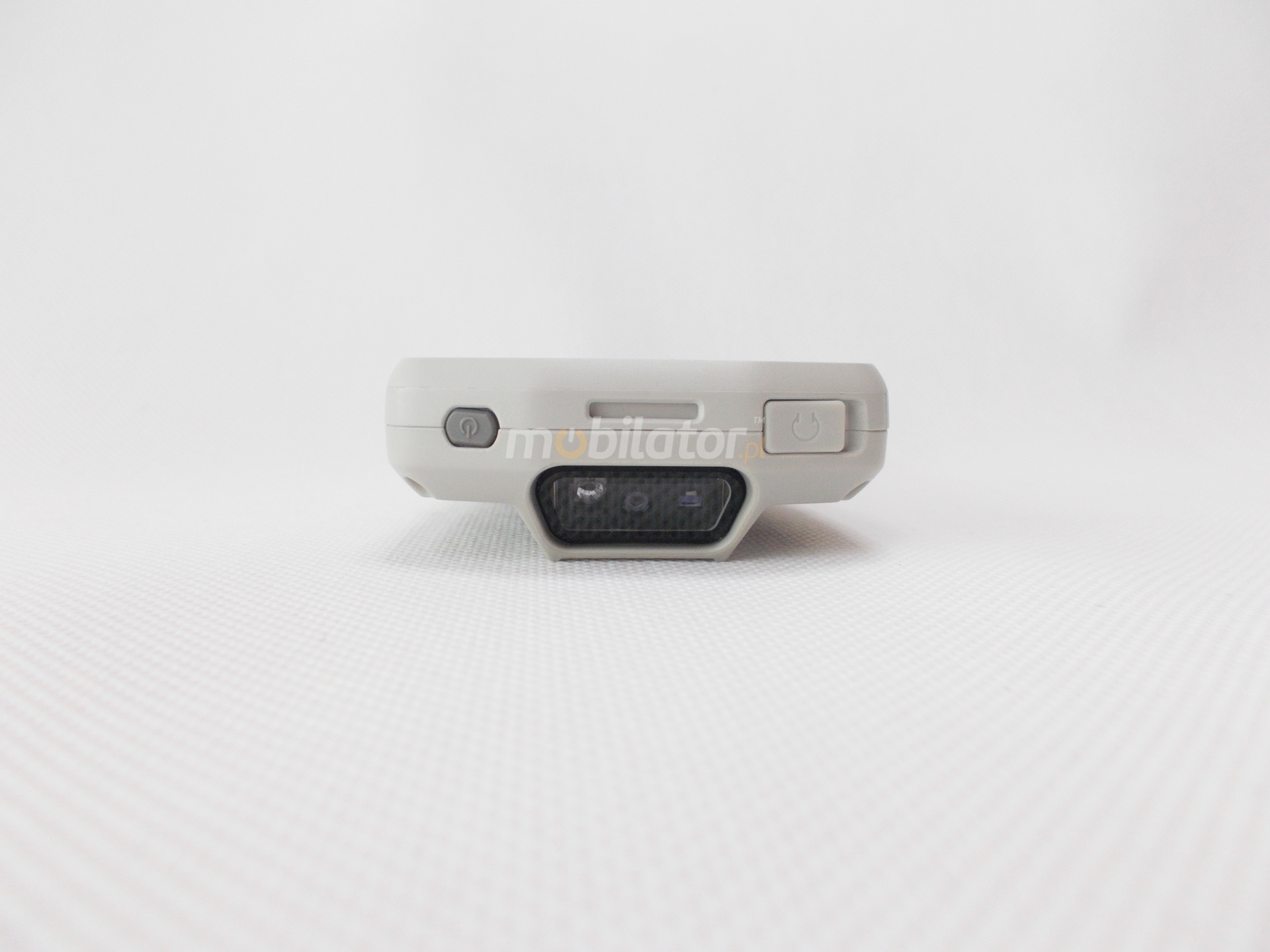

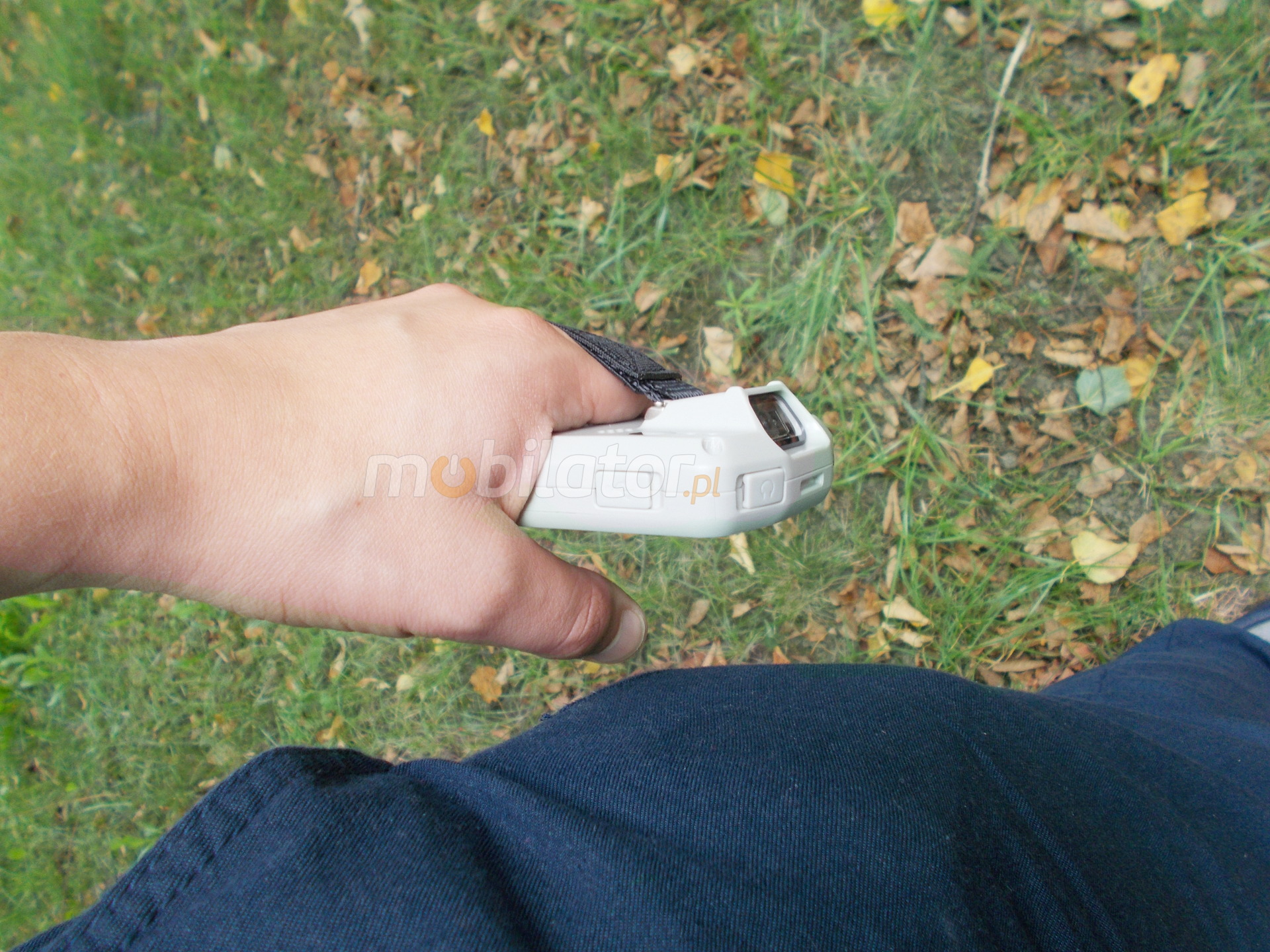

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

MobiPad MPS8W 2D CMOS wifi  medcical scanner

Near Field Communication (NFC)

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 5 cm or less.


MobiPad MPS8W 2D cmos wifi nfc medical functional easy to use


 Frequency 13.56 MHz
Reading distance od 1 do 5 cm
Supported standards  ISO 14443
  ISO 15693
  ISO 18092

go top... do góry menu… menu


Applicable standards

Operating -20°C -- +50°C
Storage -40°C -- +60°C
Humidity 5% - 95% RH | non-condensing
Dust IP6x (dust)
Water IPx7 (water)
Drop  5ft./1.5m

go top... do góry menu… menu

MobiPad MPS8W 2D CMOS wifi alphanumeric keyboard

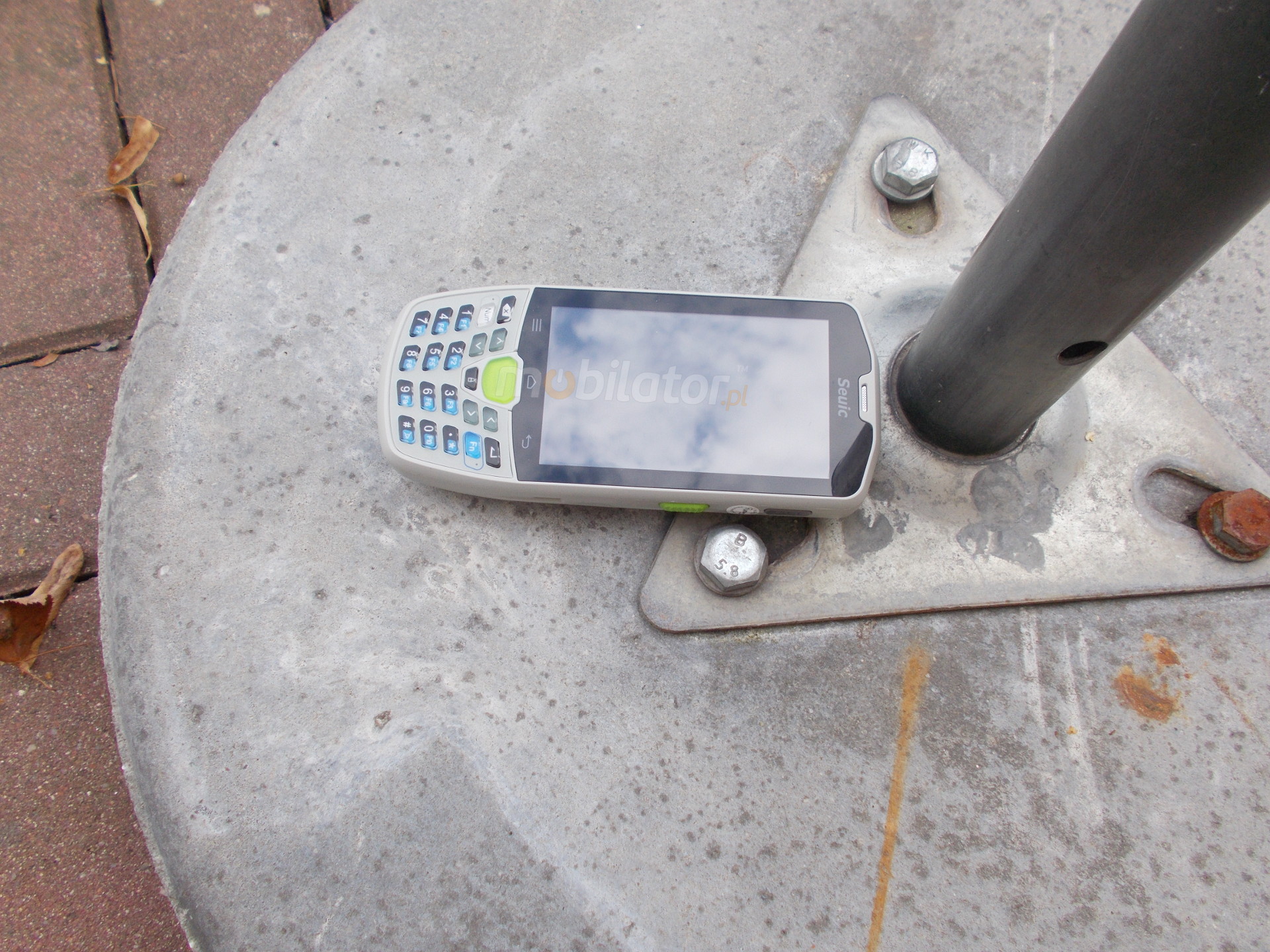

IP67 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection


No waterproofing
Protection from solid objects greater than 50mm in diameter


Protection from dripping water

Protection from solid objects greater than 50mm in diameter


Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter


Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter


Protection from splashed water
Complete protection against contact, Protection against dust deposit


Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust


Protection from water projected from a nozzle


Protection against immersion


Protection against complete, continuous submersion in water

go top... do góry menu… menu


Modules and Wireless Networks

MobiPad MPS8W 2D CMOS wifi gps  4G Bluetooth

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 3G(or 4G) module used in MobiPad MPS8W adjusts automatically to transfer and network coverage. Built-in speaker and microphone allows you to make voice calls.

WiFi  802.11 a/b/g/n
GPS  Yes
Bluetooth  Bluetooth  4.0
GSM: Quad Band(850/900/1800/1900Mhz)
  The ability to make voice calls

go top... do góry menu… menu


mobipad 2d cmos MobiPad MPS8W IP67 keyboard medical use

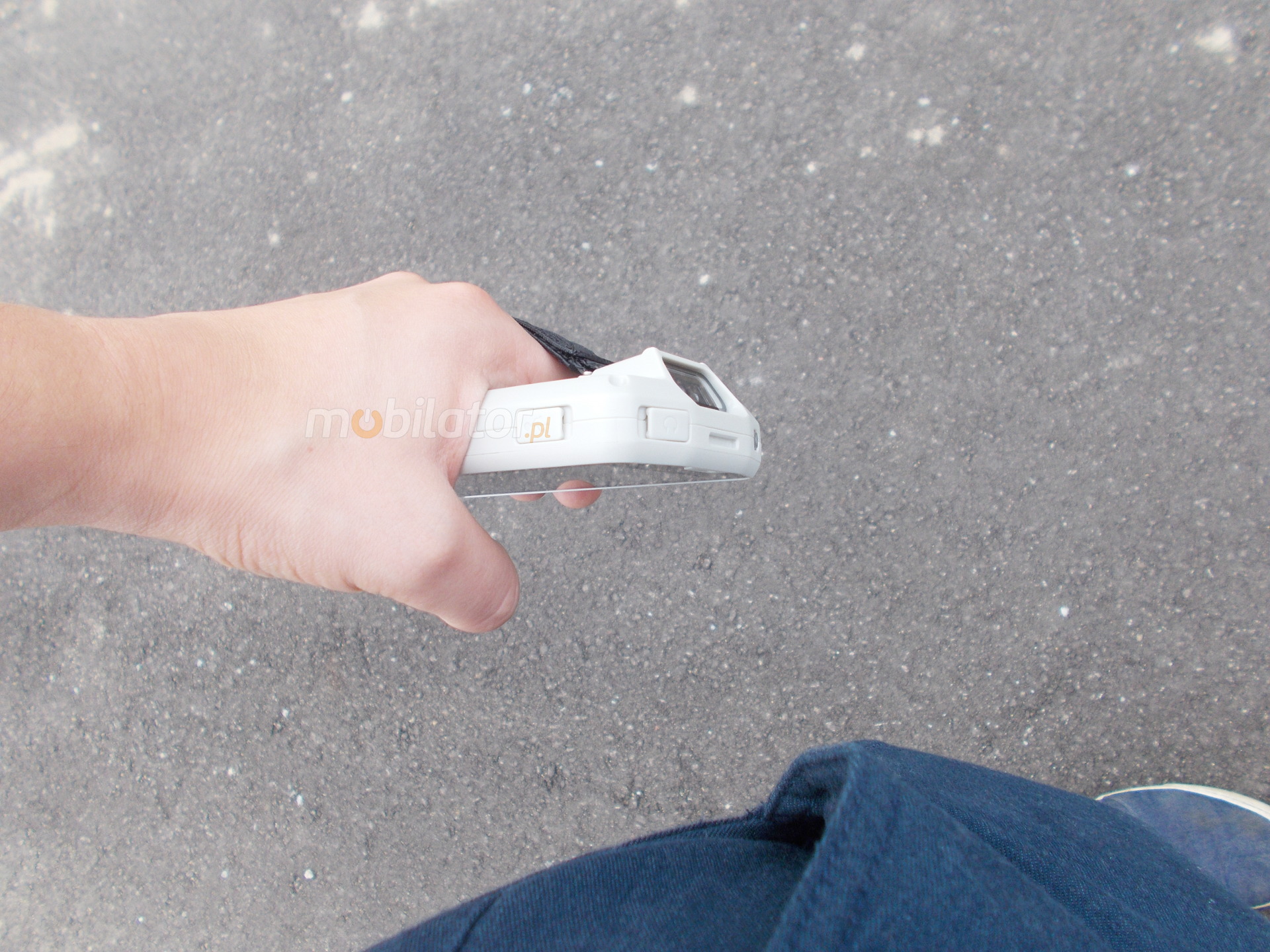

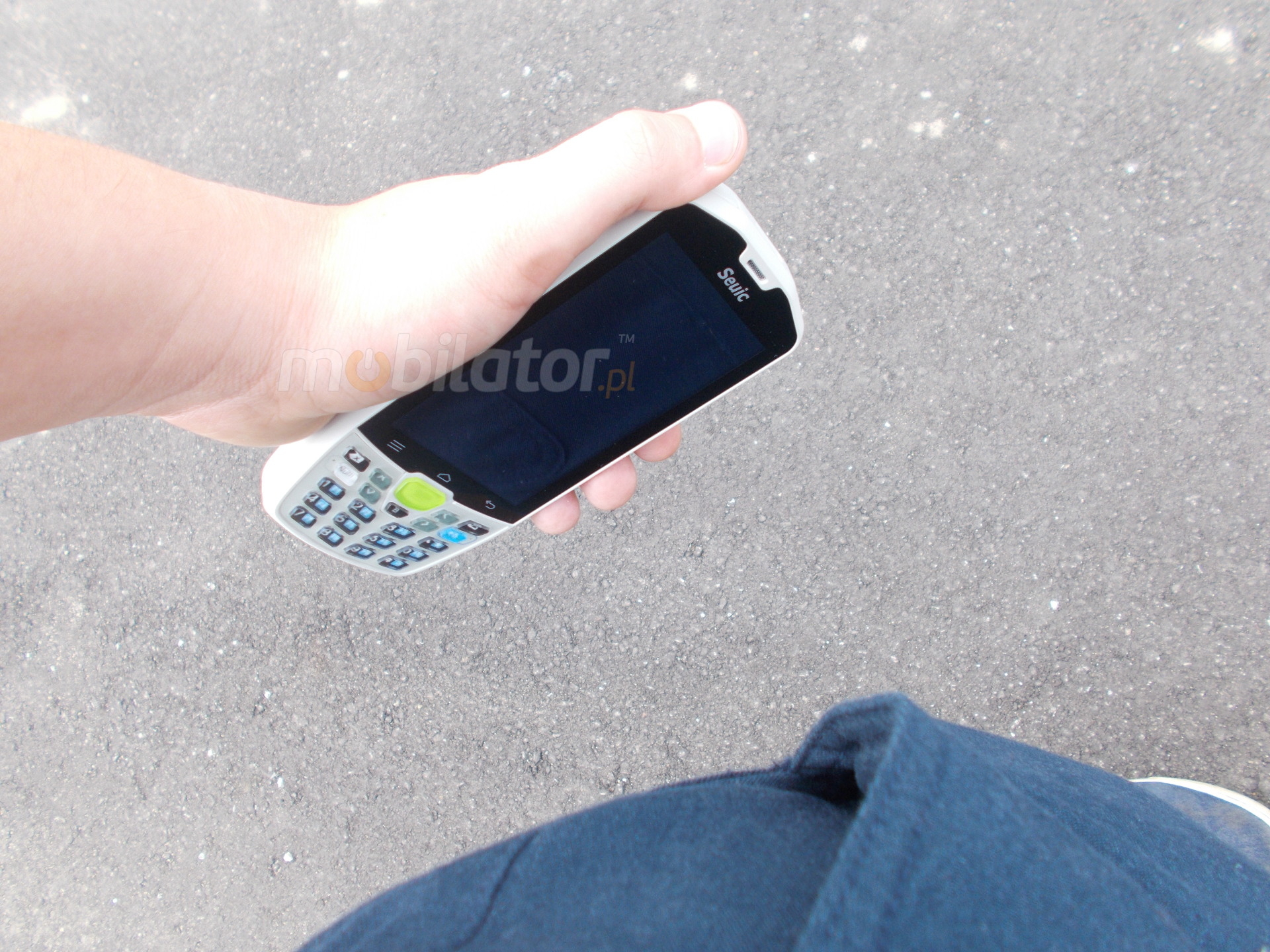

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad MPS8W. The device weighs just 270g and its dimensions  (156 x 70 x 27mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MPS8W is in a group of devices which enjoy great popularity in the European market in the industrial segment.


 Dimensions 156 ×70 × 27mm
 Weight 270g

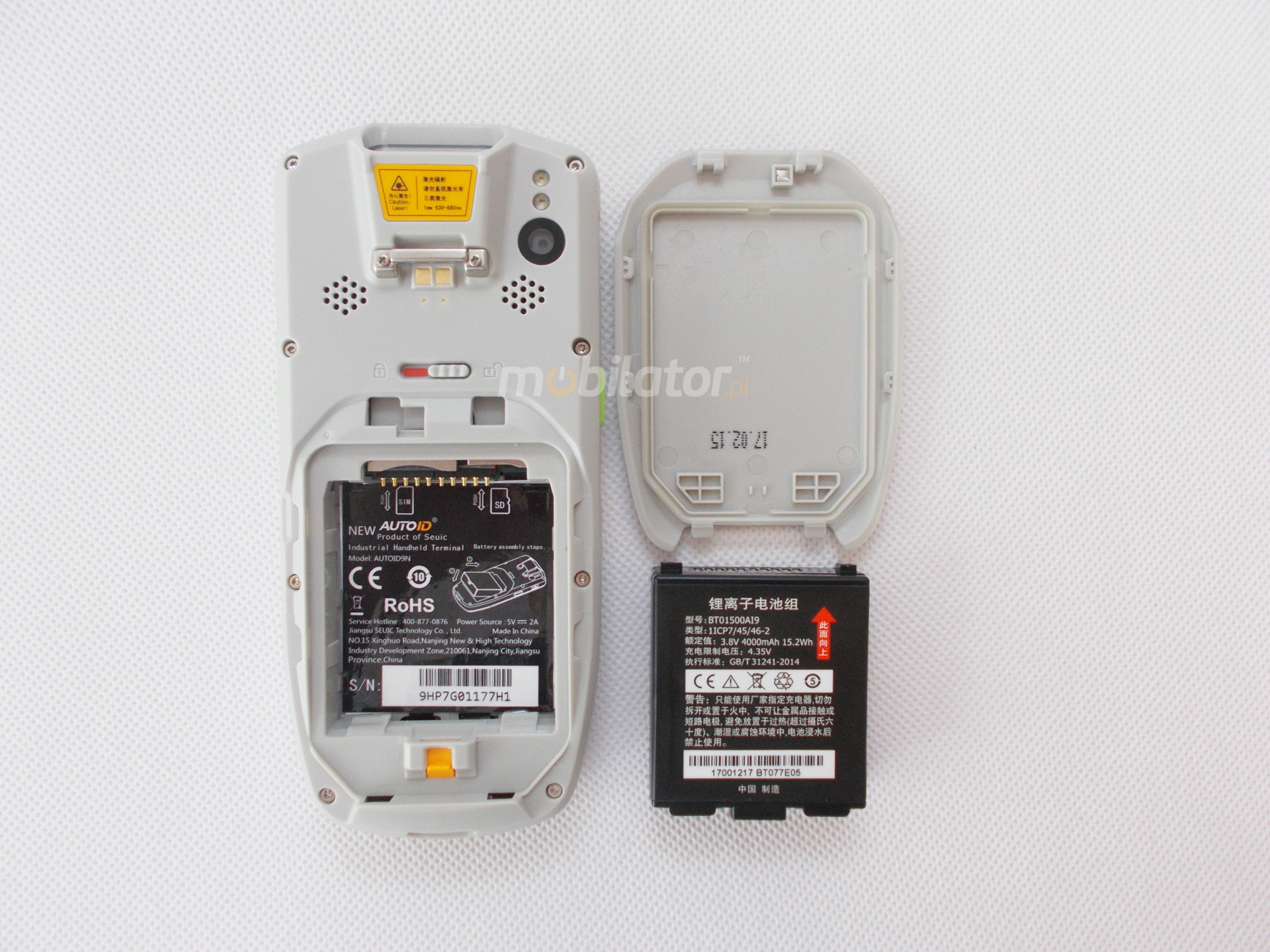

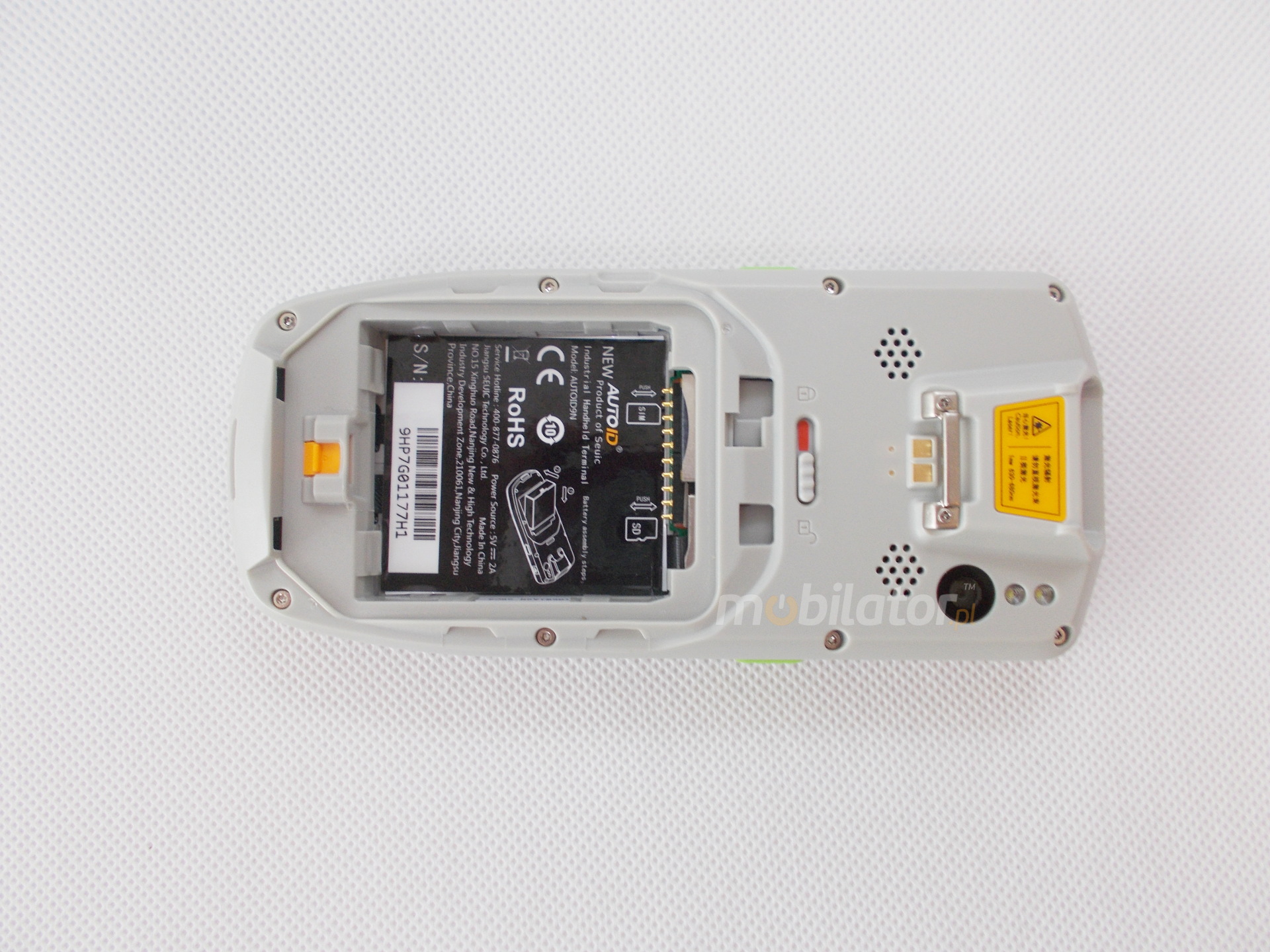

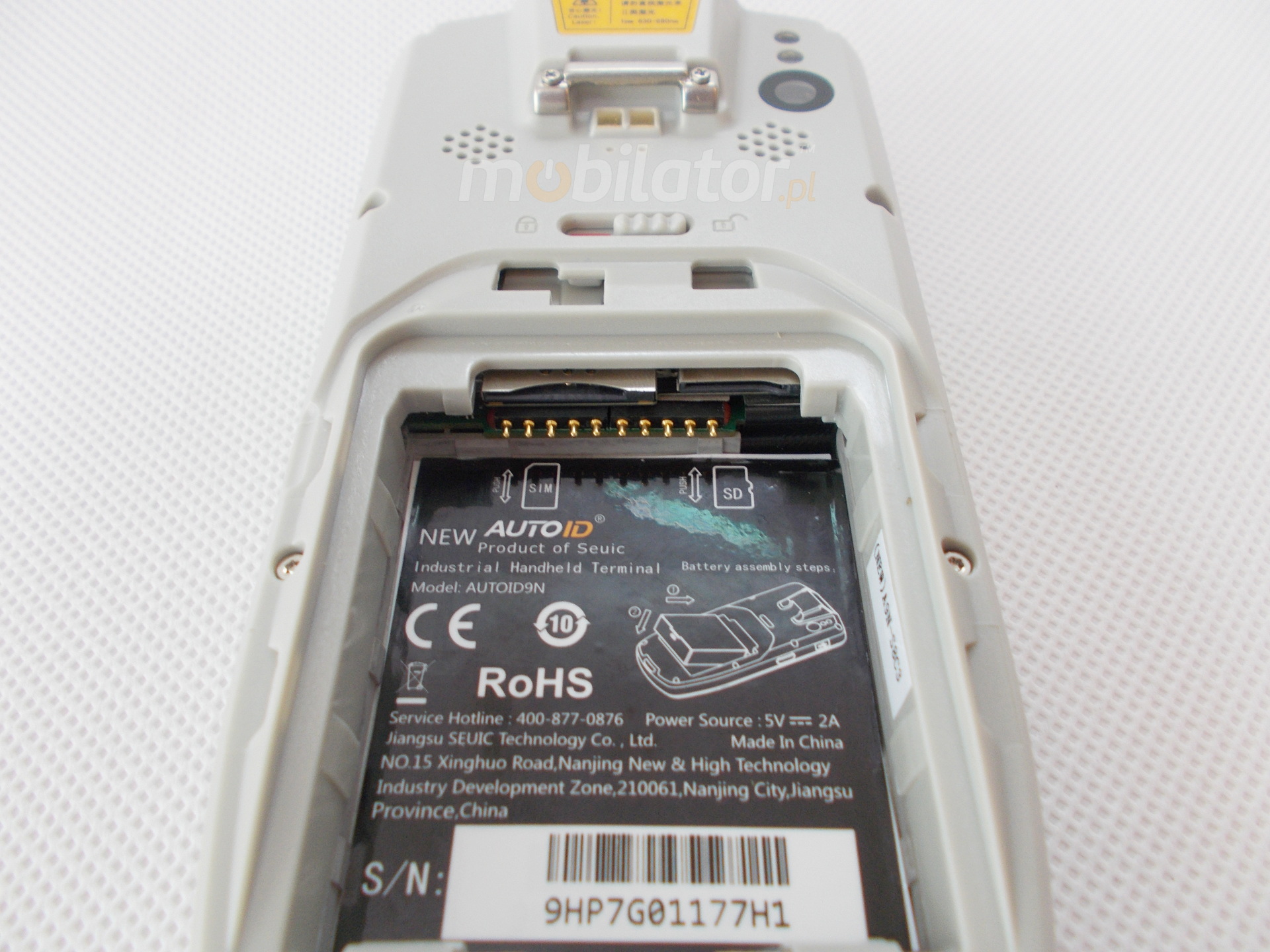

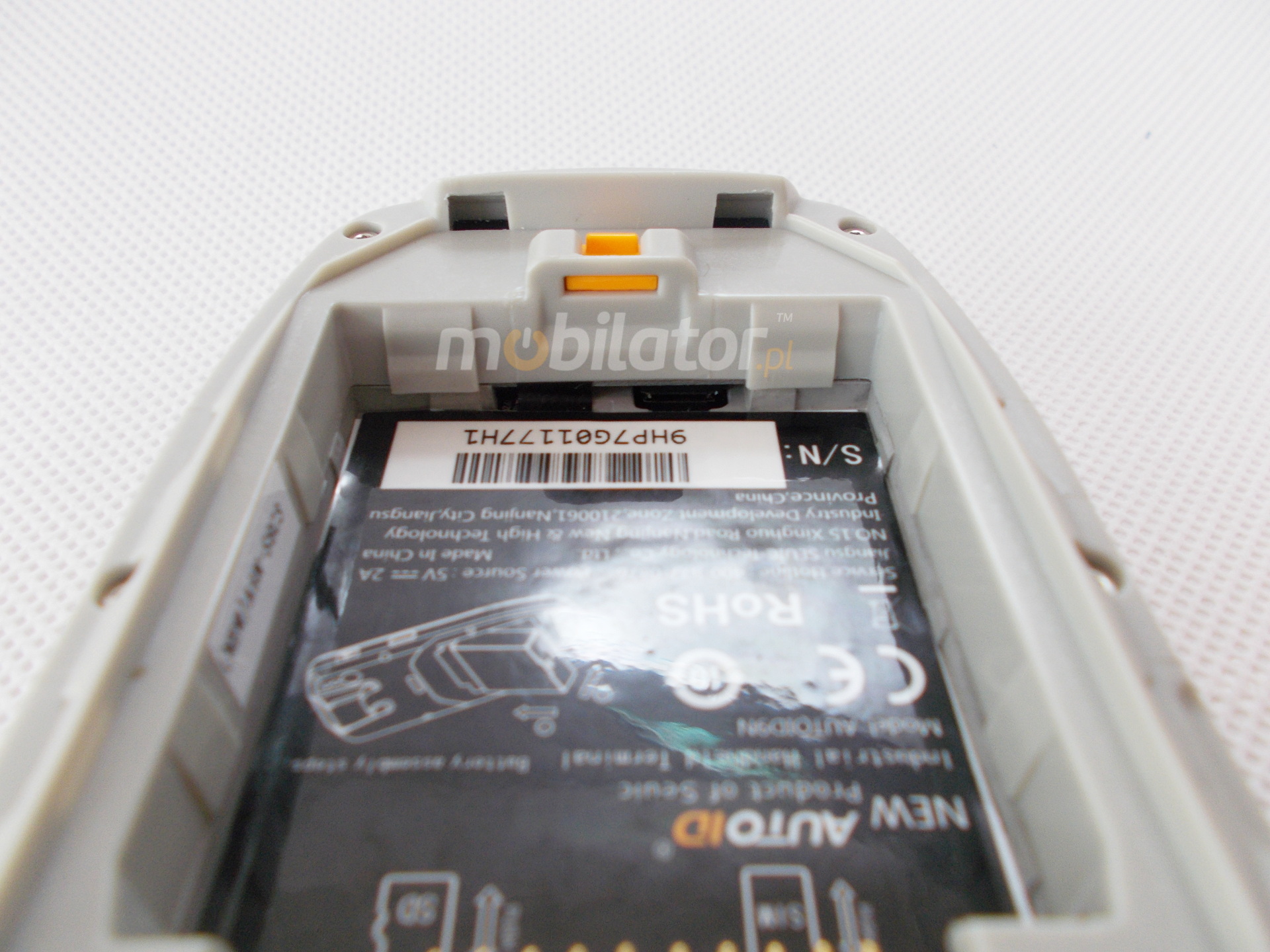

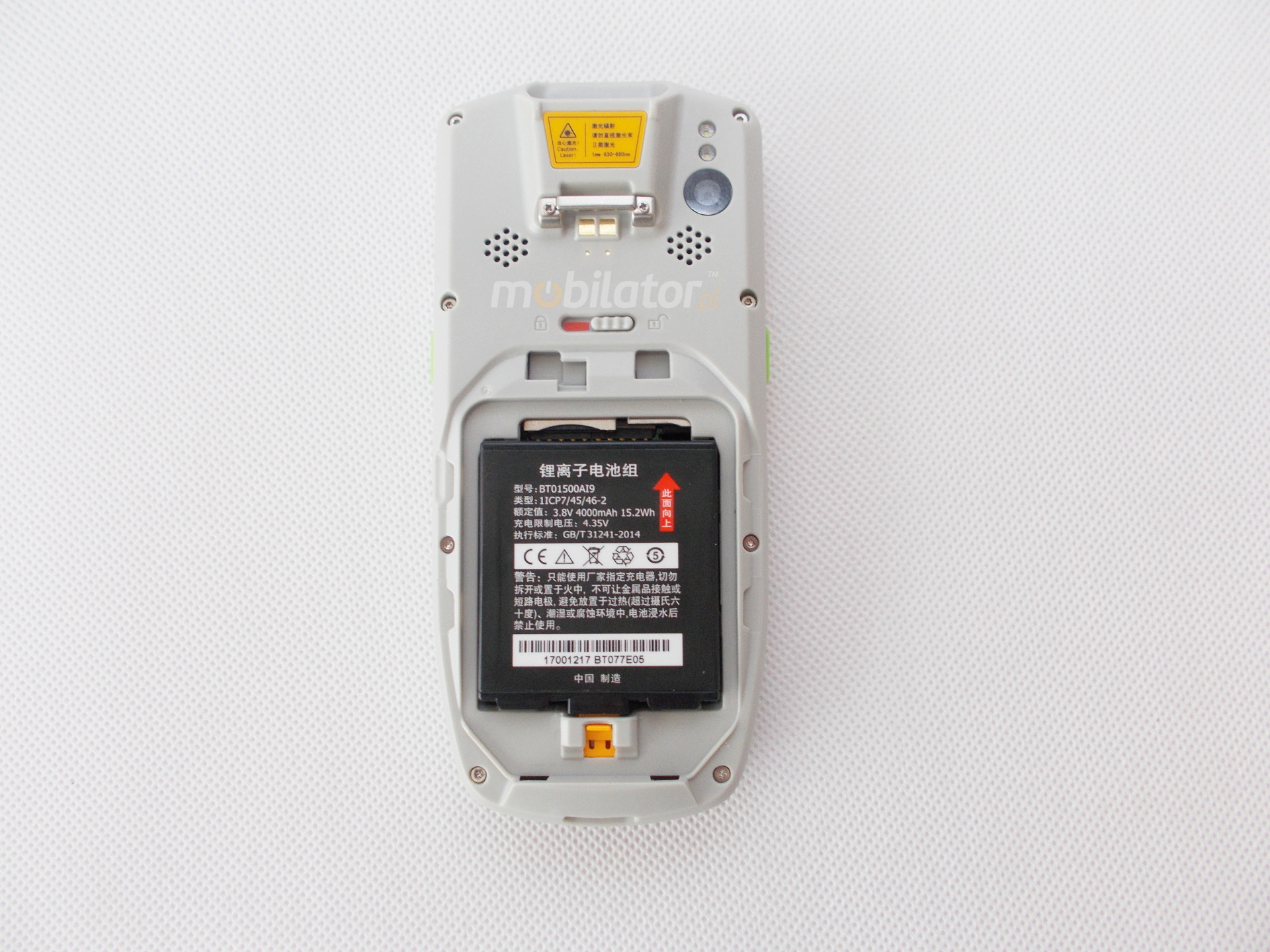

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

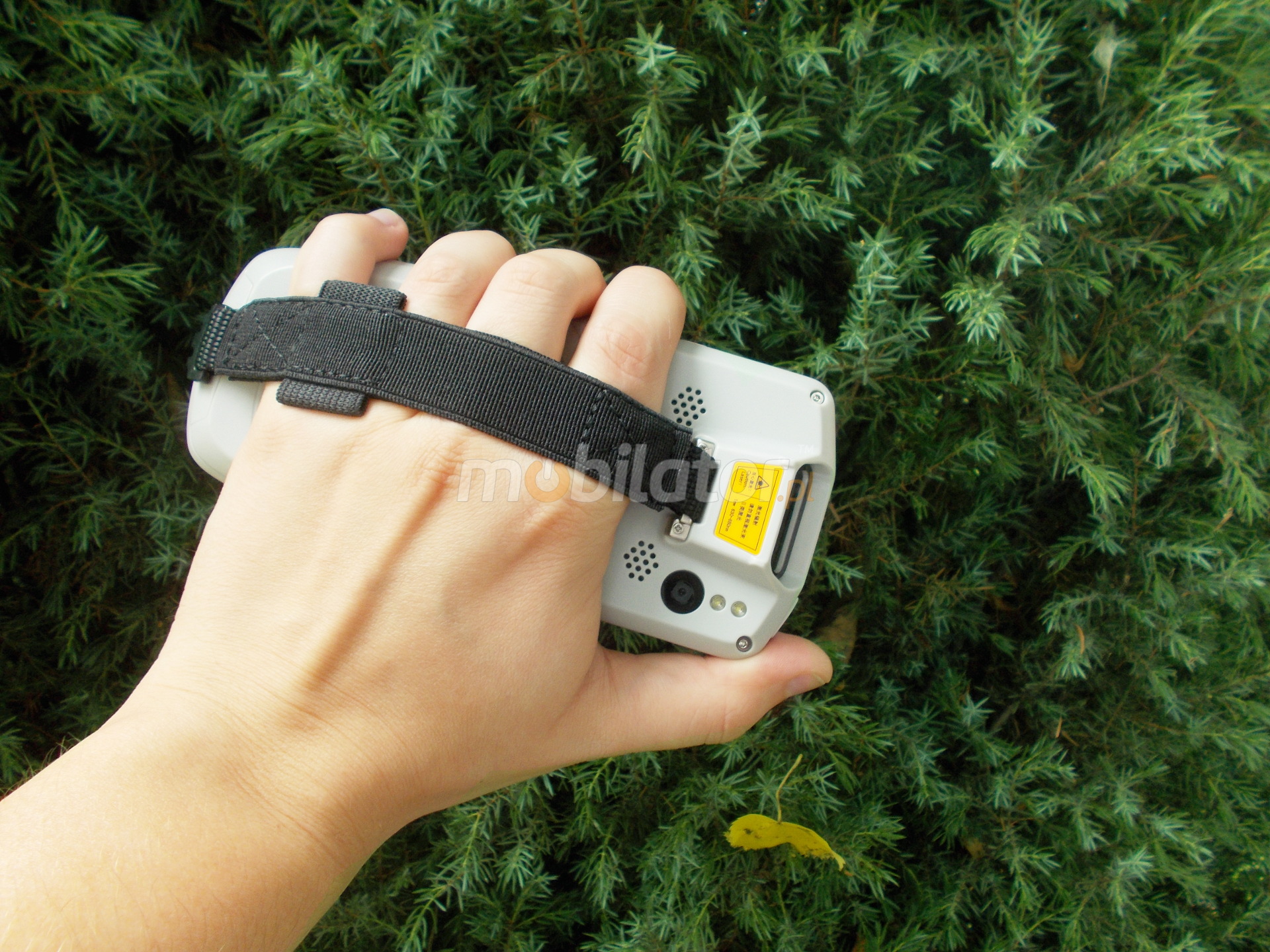

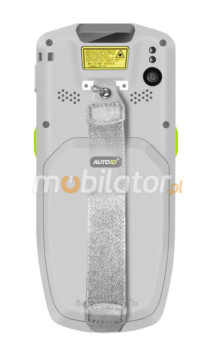

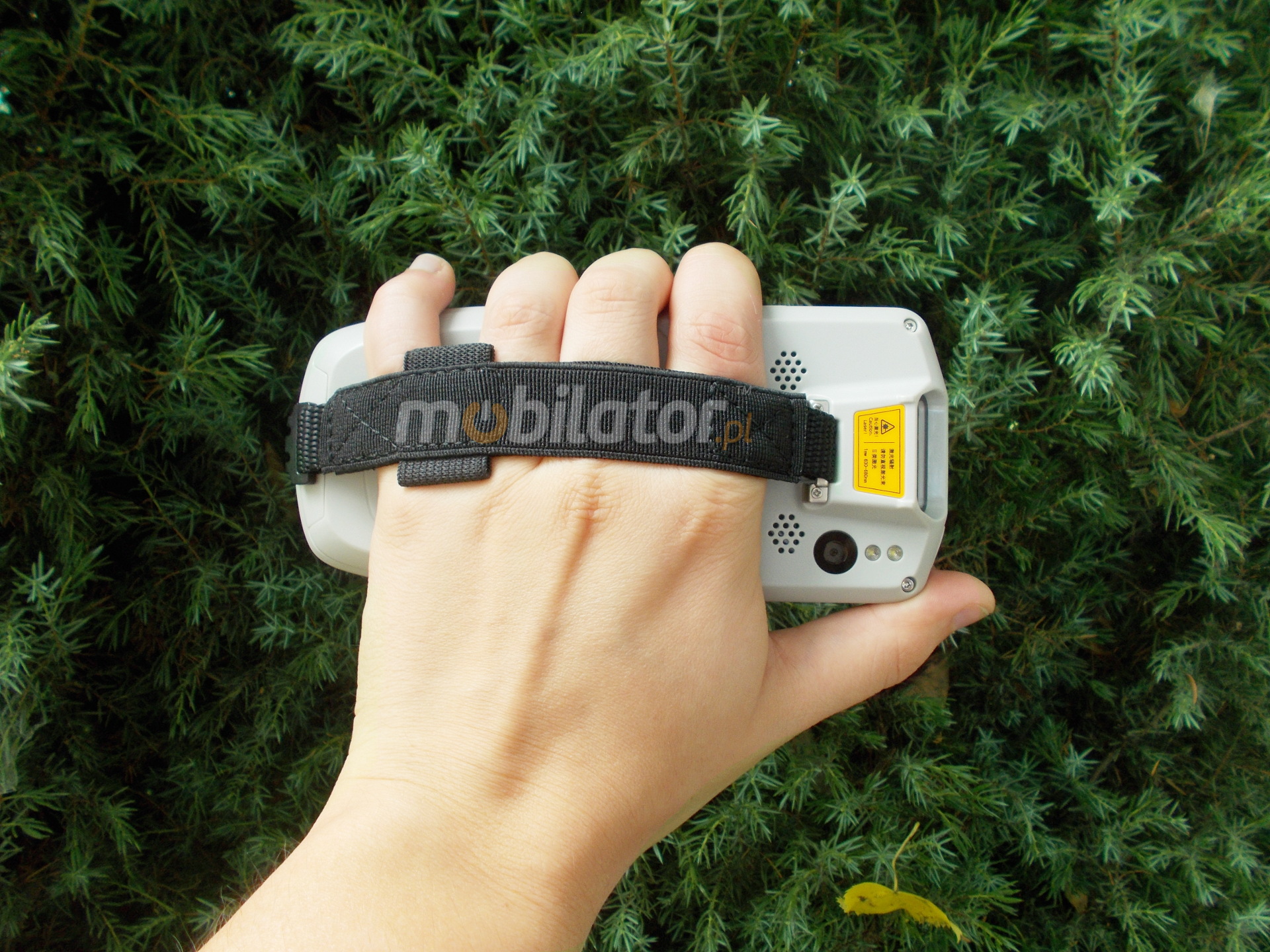

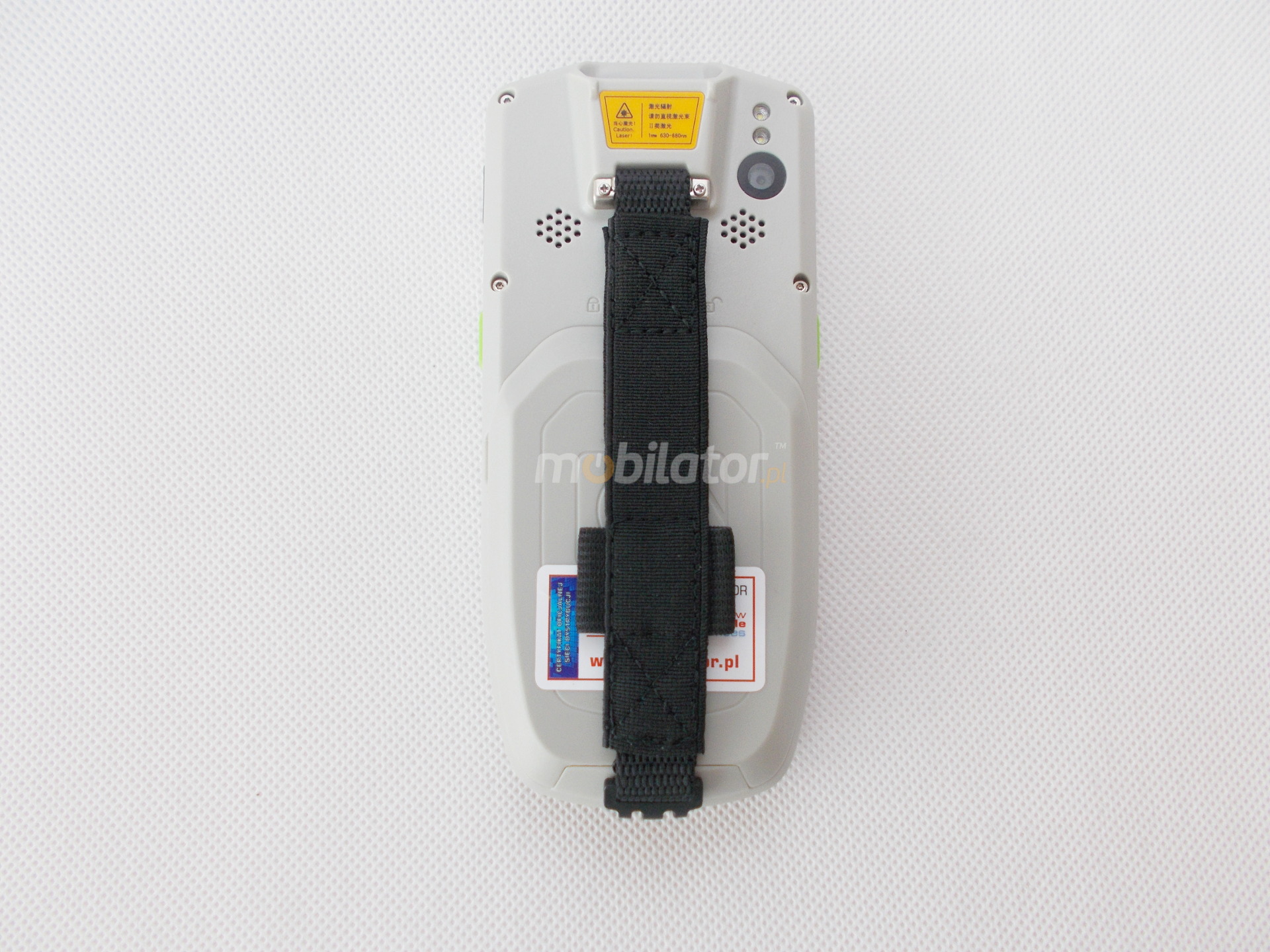

MobiPad MPS8W 2D wifi  camera wrist strap medical use

go top... do góry menu… menu


more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

product does not have any accesories in set...
