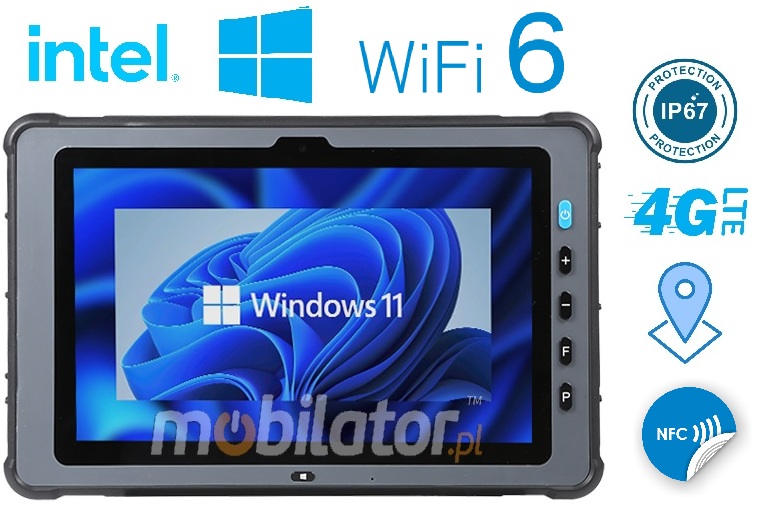

Durable and compact Mobipad 10DS-RTC tablet features an 10.1‑inch display and an Intel Core i5-1235U processor, delivering high performance for demanding applications. Equipped with 16 GB of RAM and 256 GB of storage, this robust industrial tablet comes in a IP67-certified rugged design, ensuring protection against dust and water. The 1920×1200 px display with 700 nits brightness and Corning Gorilla Glass III provides excellent readability even under bright sunlight.
Specification
| Mobipad 10DS-RTC |
| Processor |
Intel i5-1235U |
| Graphics |
Intel UHD Graphics |
| Operating system |
Windows 11 Pro |
| RAM |
16GB DDR5 (max 32GB) |
| SSD |
256GB M.2 SSD (max 2TB) |
| Display |
10.1" TFT-LCD, 1920×1200, 700 nits, Corning Gorilla Glass III |
| Touch screen |
Capacitive (10-point) |
| Battery |
7.6V/10000mAh (removable) |
| Camera |
5MP front FF | 8MP rear AF (optional13MP) |
| Protection |
IP67 |
| Communication |
Wi‑Fi 6 | Bluetooth 5.2 | GPS+GLONASS/Galileo | 4G LTE |
|
Connectors
|
1x 12 PIN POGO PIN (USB+Charging)
1x USB Type C (USB OTG+Charging)
1x USB 3.0 Type A
1x Mini HDMI
1x 3.5mm earphone jack
1x RJ45 Standard
1x RS232 Standard
1x DC Jack
2x aviation ports for CAN/COM/USB/DC |
| Memory card |
TF card (max 1TB) |
| SIM card |
Micro SIM |
| Sensor |
Gravity sensor (G-sensor), gyroscope, compass, distance sensor |
| Scanner 2D |
1D/2D Scanner (optional) |
* Optional equipment, available on specific versions only.

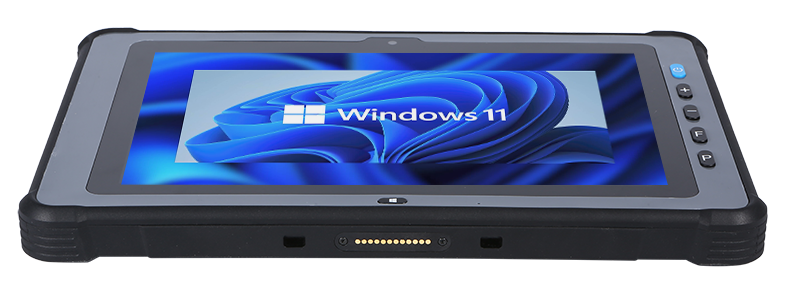

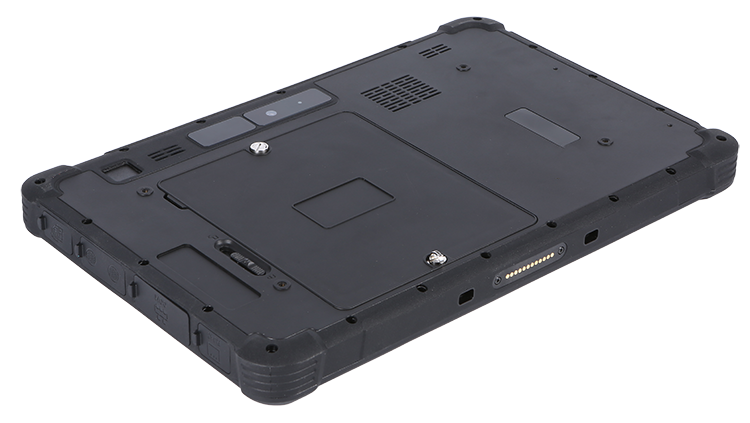

Ergonomic design
The robust and high-performance Mobipad 10DS-RTC tablet is powered by an Intel Core i5‑1235U processor. This four-core, eight-thread CPU intelligently allocates computing power for optimal performance. Combined with 16 GB of RAM, the efficient industrial tablet handles demanding tasks such as data analysis, running specialized applications, and quick responses to field operations, making it ideal for challenging work environments.

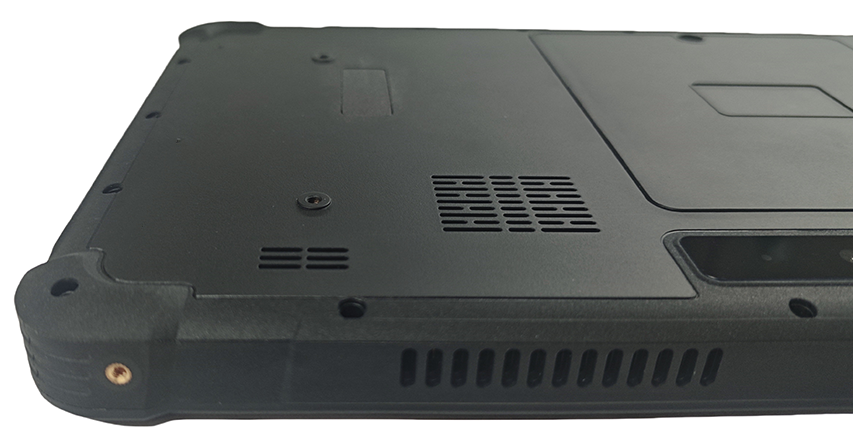

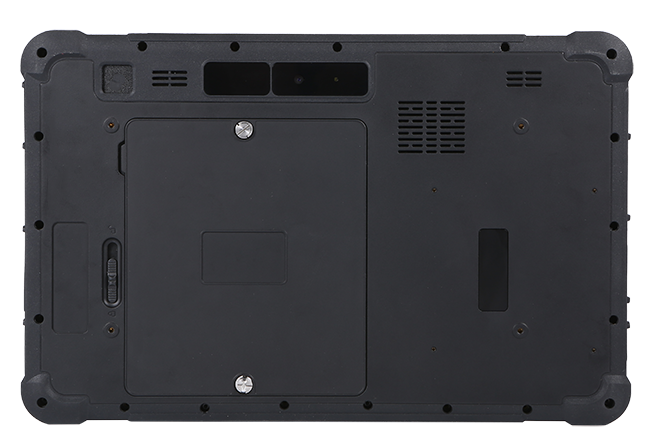

The rugged and durable Mobipad 10DS-RTC tablet is designed for demanding environments, from production halls to open construction sites. Its IP67-rated rugged housing protects internal components from dust and water, while reinforced seals absorb impacts from accidental drops up to 1.2 m. Non-slip edges and strengthened corners ensure a secure grip, making this industrial-grade mobile tablet ideal for reliable operation in harsh conditions.

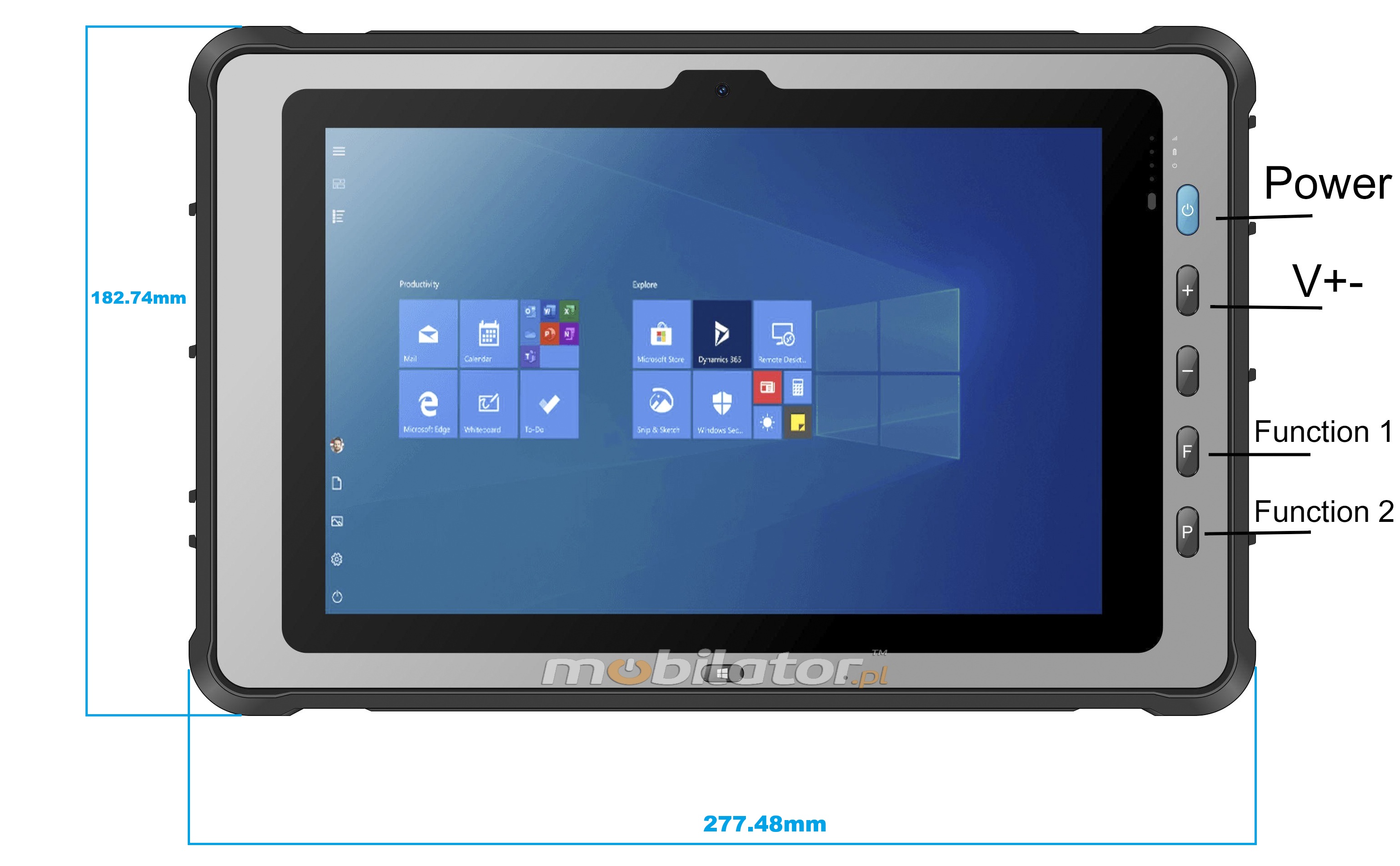

| Dimensions |
277.48 x 182.74 x 21.5 mm |
| Net weight |
1.22 kg |
Capacitive screen

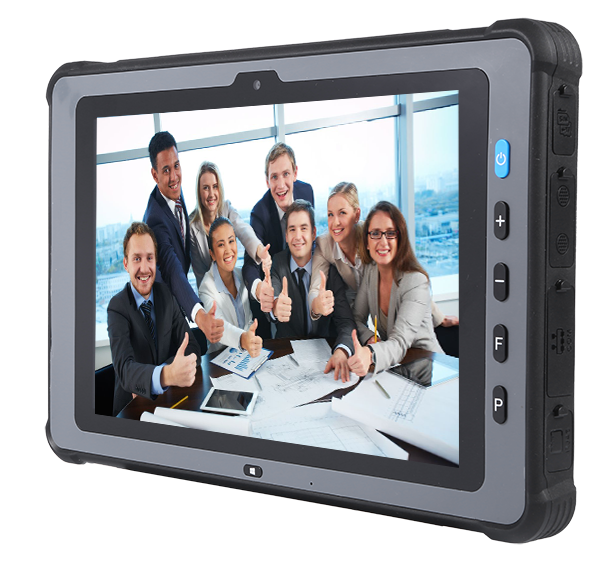

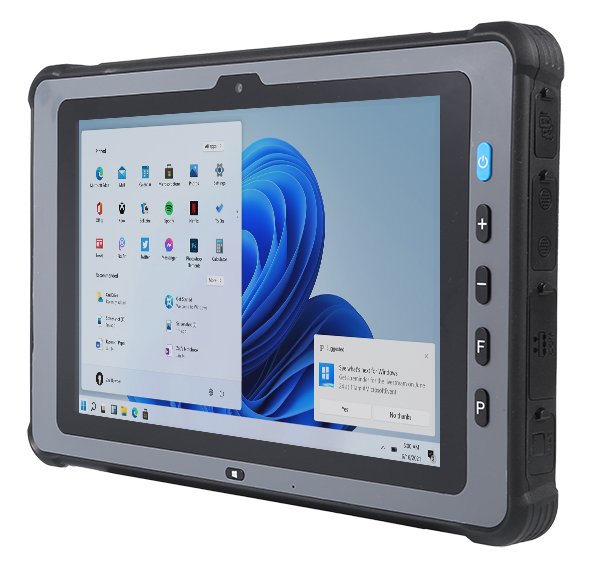

The versatile Mobipad 10DS‑RTC tablet features a TFT‑LCD display combining 700 nits brightness with a 1920×1200 px resolution, ensuring clear visibility even in direct sunlight. Its durable Corning Gorilla Glass III coating protects the screen from scratches and impacts, while the 10-point capacitive touchscreen allows precise navigation and fast data entry. This modern industrial tablet performs reliably in any environment—both in the office and out in the field.

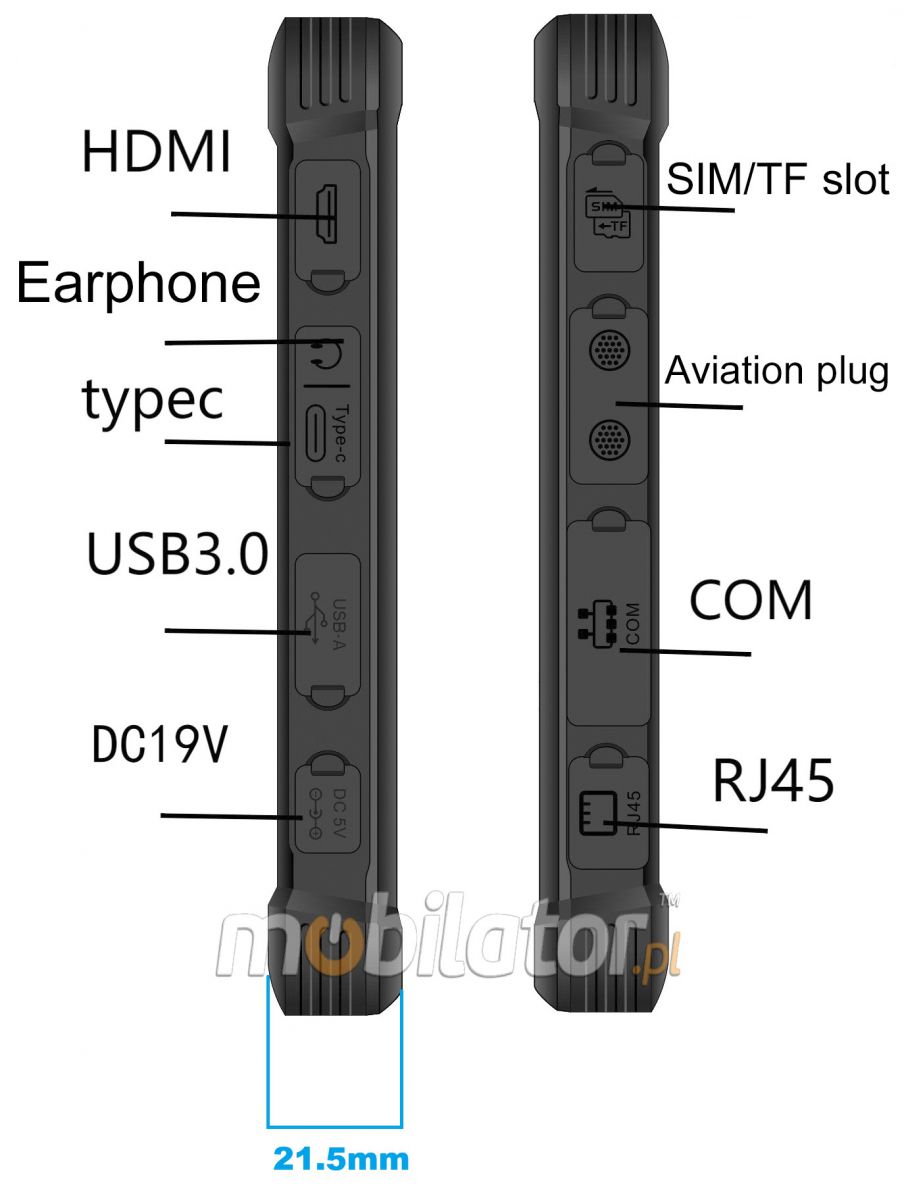

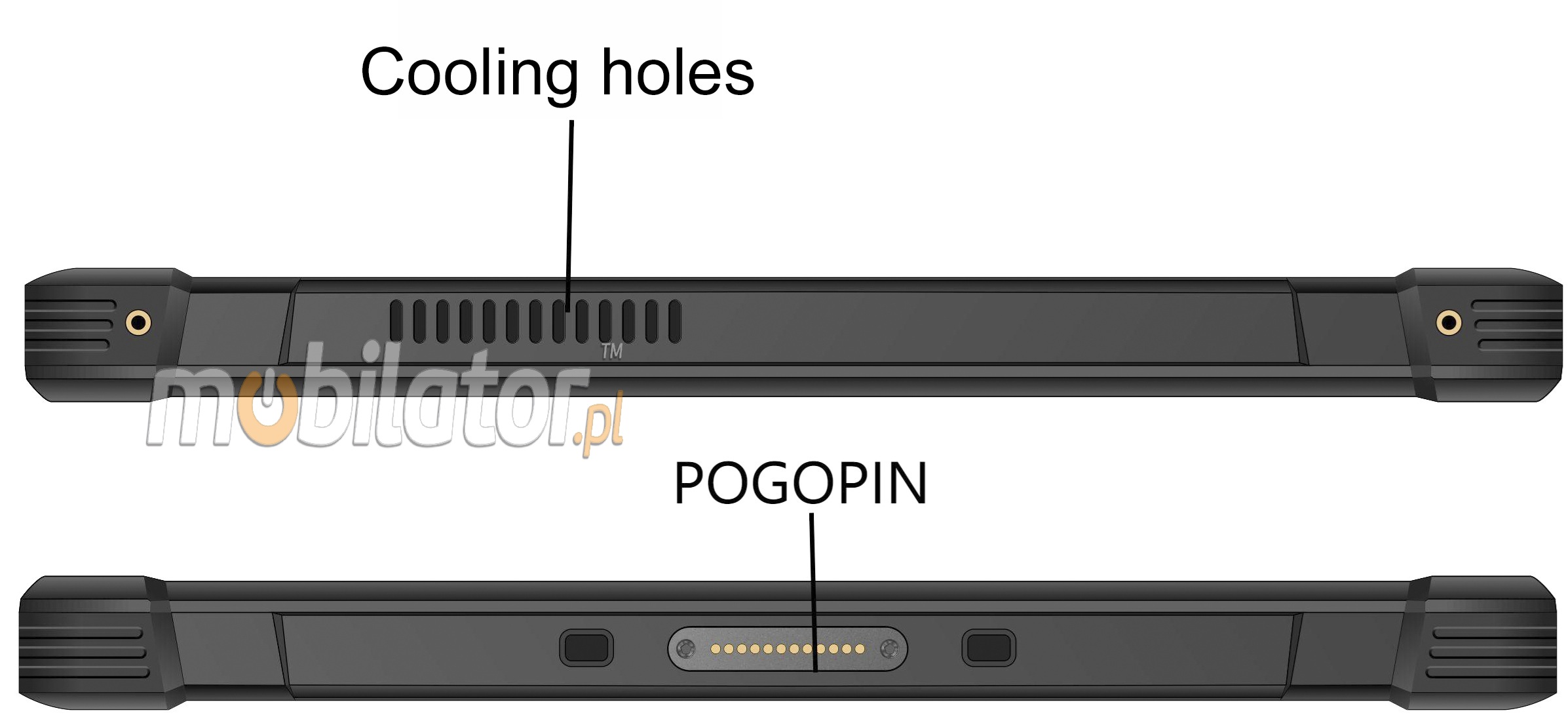

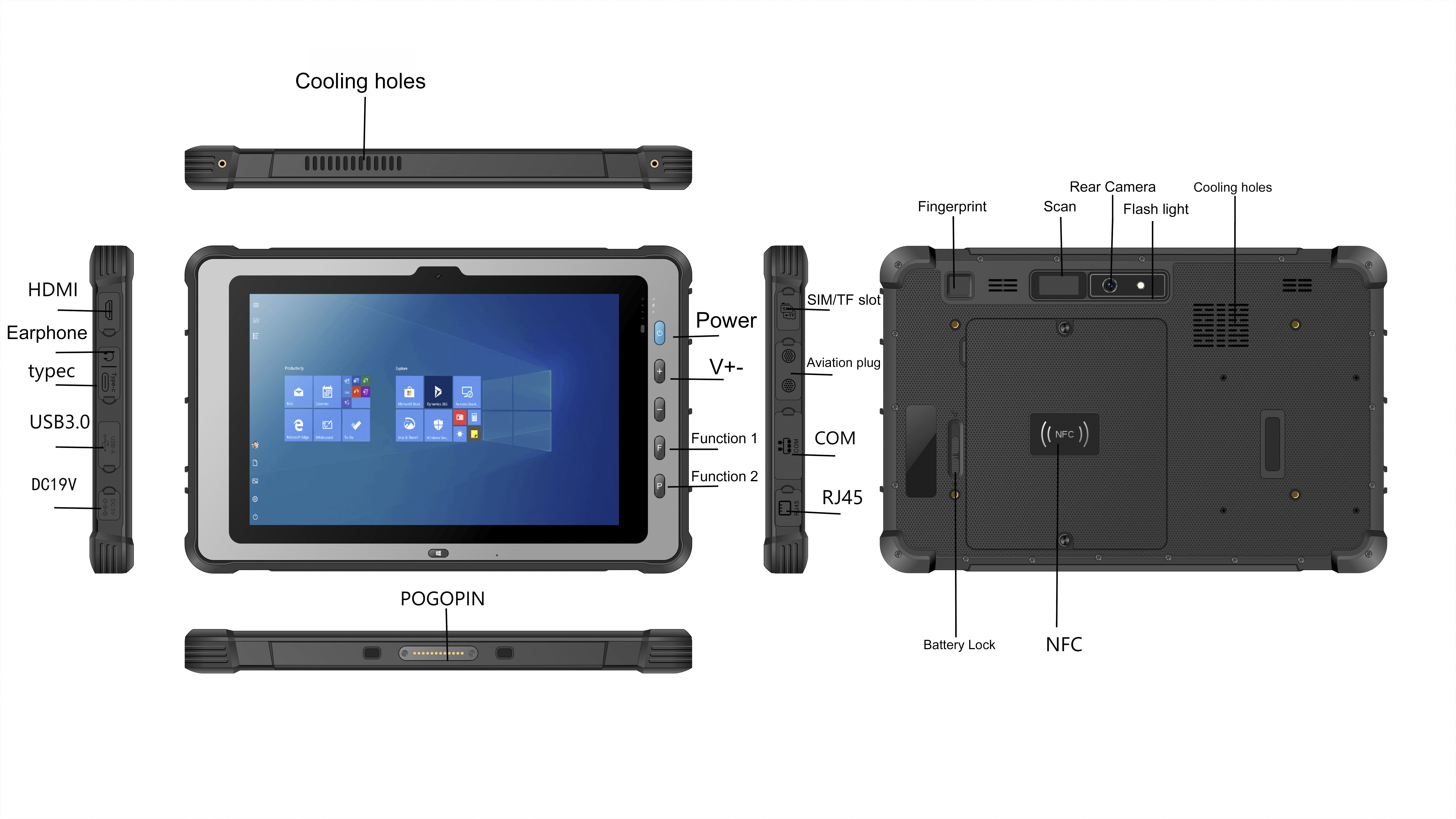

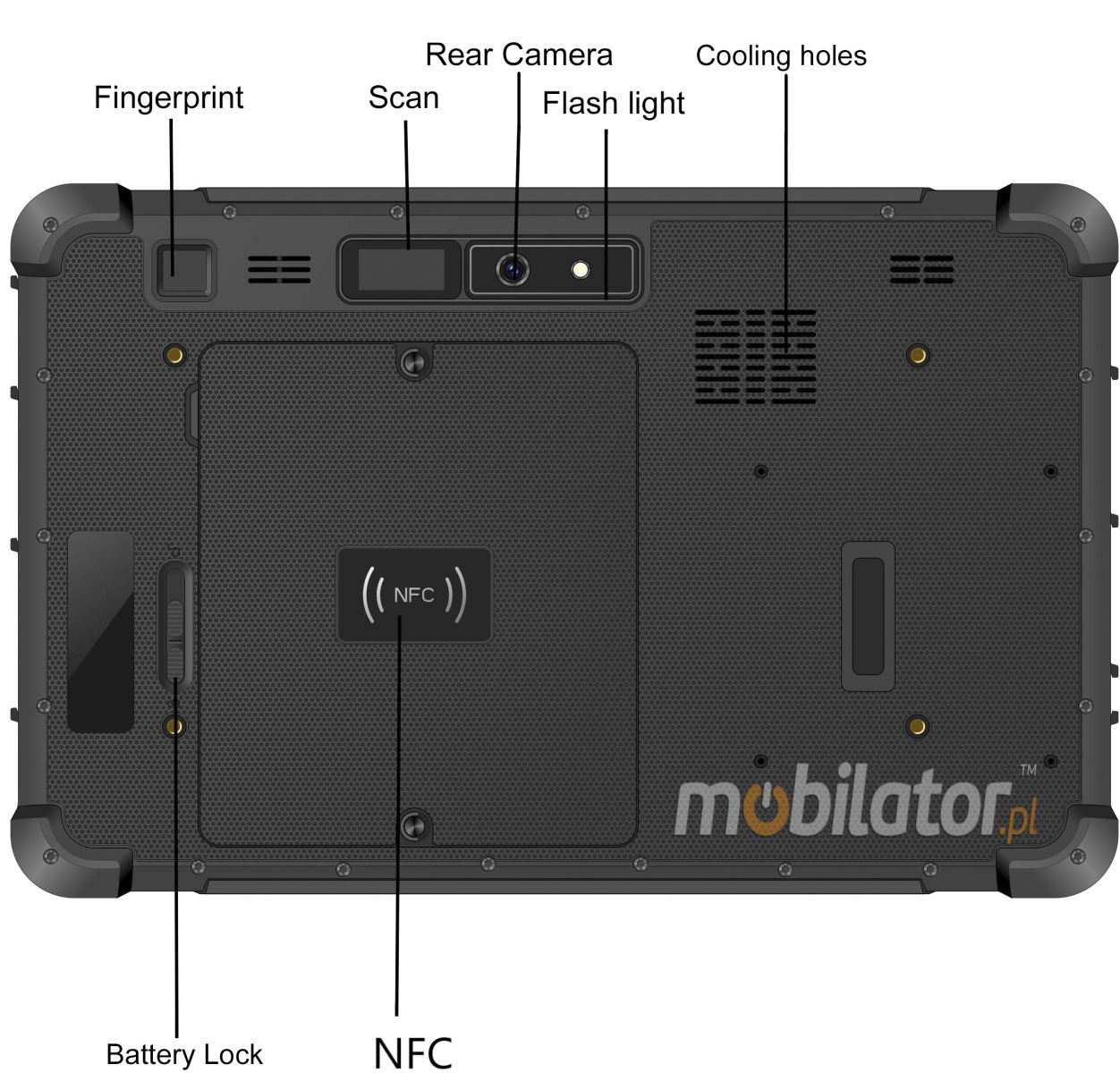

Connectors and buttons
The versatile Mobipad 10DS‑RTC tablet offers a well-designed set of interfaces, allowing connection to a wide range of accessories. Available ports include USB‑C with OTG and charging, USB 3.0, mini HDMI, a 3.5 mm audio jack, as well as a micro-SIM slot and TF card reader.
up…
menu…
DATA COLLECTING

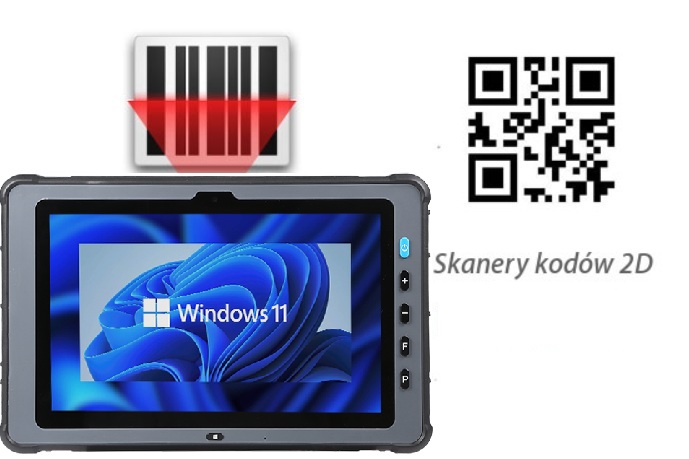

Barcode scanner (optional)*
The mobile industrial Mobipad 10DS‑RTC tablet with a built-in barcode scanner enables fast reading and transmission of data to a computer. Thanks to its wide scanning range and precise Newland N1 module, it boosts speed and efficiency in warehouse operations. Its intuitive design and simplified setup allow the practical warehouse tablet to be quickly ready for use.
* Optional equipment, available on specific versions only.
up… menu…

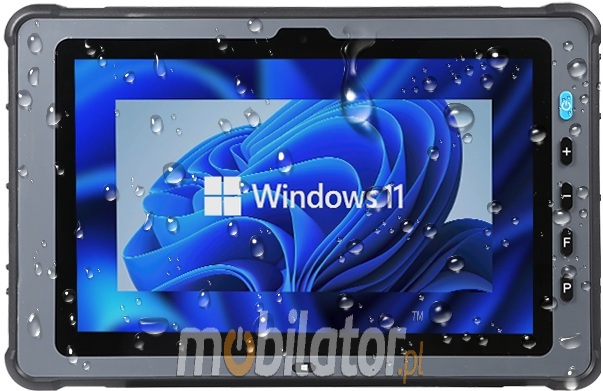

Resistance
IP67 protection class
The rugged Mobipad 10DS‑RTC tablet for special tasks meets the IP67 standard, providing strong protection against dust and temporary immersion in water. It is a reliable solution for industries where equipment durability and resistance to harsh working conditions are essential.
| First digit |
Protection level |
Second digit |
| No special protection |
 |
No special protection |
| Protection from solid objects greater than 50mm in diameter |
.png) |
Protection from dripping water |
| Protection from object not greater than 12mm in diameter |
 |
Protection from vertically dripping water (tilted up to 15°) |
| Protection from object not greater than 2,5mm in diameter |
 |
Protection from sprayed water
(tilted up to 60°) |
| Protection from object not greater than 1mm in diameter |
 |
Protection from splashed water |
| Complete protection against contact, Protection against dust deposit |
 |
Protection from water projected from a nozzle |
| Complete protectionm against contact, protection from infiltration of dust |
 |
Protection against heavy seas, or powerful jets of water |
| |
.png) |
Protection against immersion |
| |
.png) |
Protection against complete, continuous submersion in water |

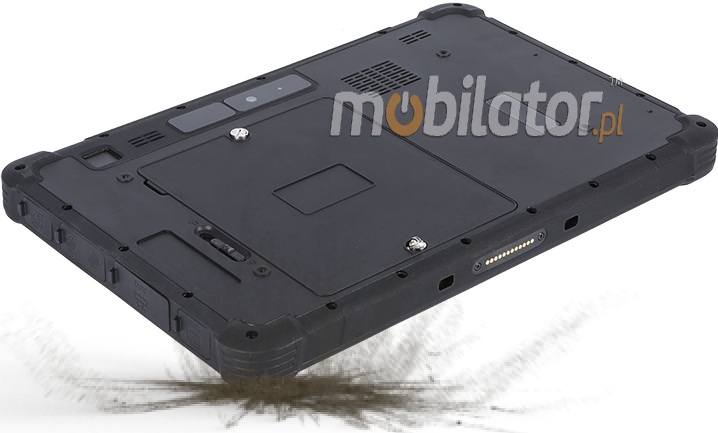

MIL-STD 810 Standard
The durable and rugged military-grade Mobipad 10DS‑RTC tablet meets the MIL-STD-810 standard, a military durability benchmark used by, among others, the U.S. Army, defining equipment resistance to harsh environmental conditions. Thanks to its mechanical resilience compliant with MIL-STD-810 (drop from 1.2 m), this industrial mobile tablet is perfectly suited for demanding field and industrial environments, offering reliability and safety even in extreme situations.
Extreme temperatures
The field-ready Mobipad 10DS‑RTC tablet, designed for operation in challenging conditions, is capable of continuous use across a wide temperature range from -20°C to 60°C. When powered off, this durable industrial tablet can withstand temperatures from -30°C to 70°C, ensuring reliability even in extreme environmental conditions.
| Working Temp. |
-20°C to 60°C |
| Storage Temp. |
-30°C to 70°C |
| Humidity |
0% to 95% |
up… menu…
wireless communication
GPS Navigation
The waterproof and rugged industrial Mobipad 10DS‑RTC tablet is equipped with a precise GPS module that combines low power consumption with high location accuracy. This mobile field tablet enables fast and stable positioning, ensuring safe navigation even in challenging industrial and outdoor environments, thereby enhancing fieldwork efficiency.
Bluetooth 5.2
The modern and functional Mobipad 10DS‑RTC tablet is equipped with Bluetooth 5.2, enabling energy-efficient short-range communication with devices such as printers, keyboards, RFID readers, scanners, or headsets. This high-performance mobile tablet offers greater connection stability and speed compared to previous versions, while reducing power consumption, thereby enhancing comfort and efficiency in field operations.
Wireless Wi-Fi
The professional Mobipad 10DS‑RTC tablet supports dual-band Wi-Fi 802.11 a/b/g/n/ac, operating on both 2.4 GHz and 5.8 GHz bands. This enables fast access to local networks and the Internet, whether in the office or in the field, providing high stability and data throughput of up to theoretical 9.6 Gbps.
| Standards |
WiFi 6 802.11(a/b/g/n/ac) |
| Frequencies |
2.4GHz/5.8GHz (Dual-Band) |

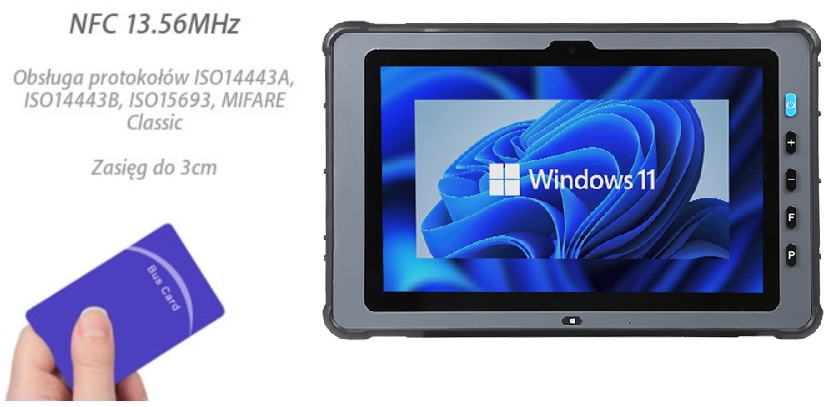

NFC communication
NFC (Near Field Communication) technology is a short-range wireless communication standard that allows data exchange over just a few centimeters. NFC is ideal for applications such as access control, employee authentication, logistics, and payment processing. The modern industrial Mobipad tablet enables tag reading and integration with smart card systems.
up… menu…
Application
Trade and Services
The durable and versatile Mobipad 10DS‑RTC tablet is an ideal tool for sales and field representatives. With modern mobile applications, it enables fast data collection, client verification, offer presentation, and sales document generation. The mobile warehouse tablet allows for invoice creation, order management, and real-time ERP data synchronization, regardless of location, thanks to GSM and Wi‑Fi connectivity.
Industry and Construction
Industrial and rugged tablets like the 10DS-RTC are designed for demanding work environments, offering exceptional resistance to harsh conditions. The dust- and waterproof housing, certified to IP67, ensures safe operation in areas with high humidity, dust, or on construction sites and industrial floors. Equipped with appropriate mobile applications, the waterproof field tablet can serve as a tool for work supervision, data collection from construction sites, and management of technical infrastructure and personnel.
Service and Diagnostics
The efficient 10DS-RTC industrial tablet is ideal for automotive services and workshops. Its durable construction, resistance to harsh workshop conditions, and connectivity options—including optional 5G LTE, Wi‑Fi, and GPS—make it well-suited for demanding environments. The reinforced tablet assists technicians with rapid vehicle diagnostics, analysis of on-board system data, and handling service documentation. It also supports software for reading error codes, configuring vehicle systems, accessing diagrams, and reviewing repair histories, enhancing both operational efficiency and precision.
.jpg)
up… menu…
Accessories and available versions
We offer a range of additional accessories for this innovative tablet to further enhance its functionality and comfort of use. Below is a list of available accessories. Click on the accessory name or the "Check" link to be taken to a page with a description and price of the accessory.
Rysik Pojemno¶ciowy(1).jpg)
Accurate stylus allowing for easier use of the device.
Solid car holder allowing for safer and easier use of the device in the car.
Multifunctional docking station with multiple ports.
The professional Mobipad 10DS-RTC tablet is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.
