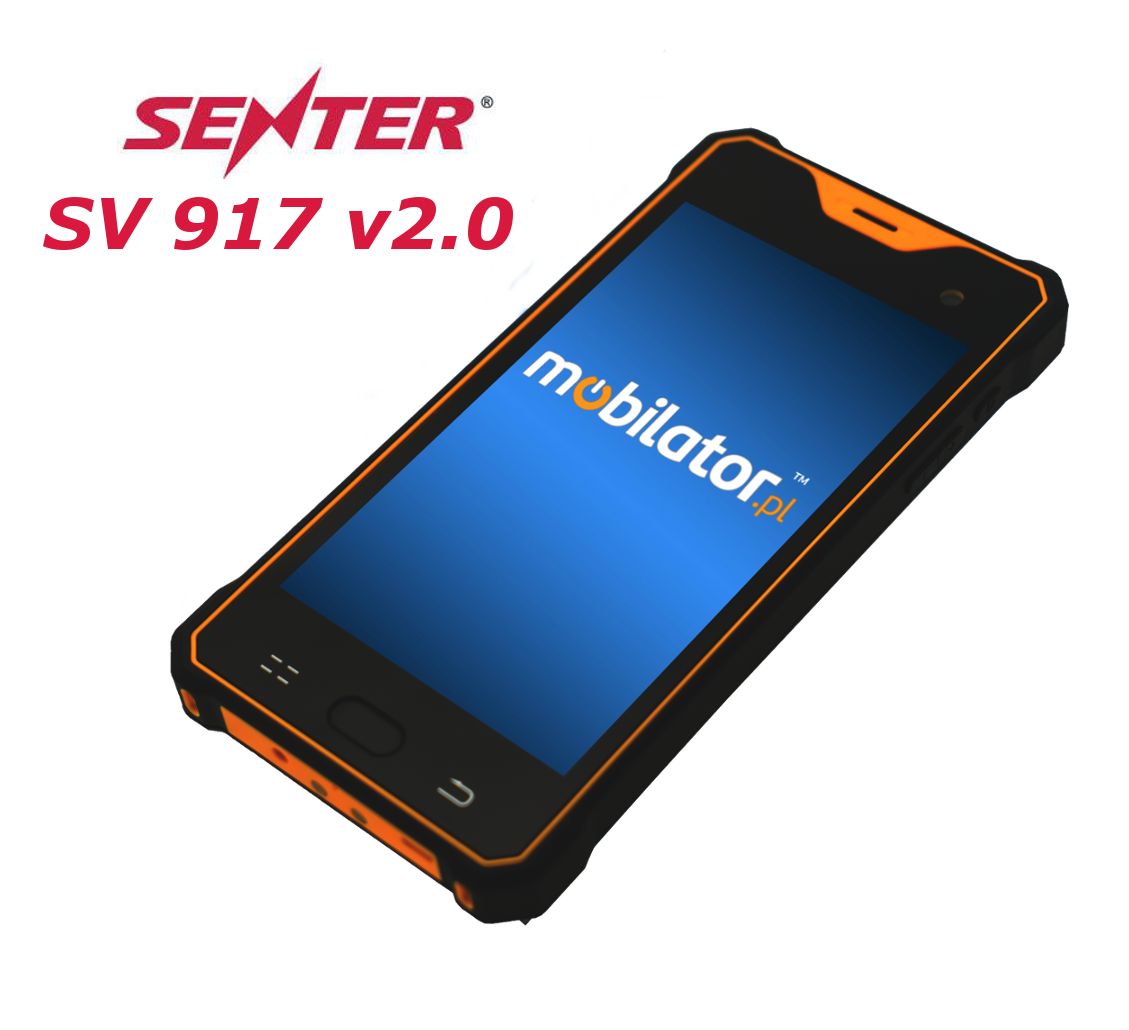

MobiPad Senter S917V20 v.2 - Rugged industrial data collector with IP65 standard, Android 8.1 system, HF RFID / NFC radio reader and 2D barcode scanner NLS-EM3296

Data update: 2019-09-04

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
472.70
Net
581.42
Gross
Znak akceptacji płatno?ci pl



Compare all versions





Porównaj wszystkie wersje

waterproof shock-resistant industrial resilient smartphone NFC 4G military IP65 MIL-STD 810G barcode scanner 1D 2D

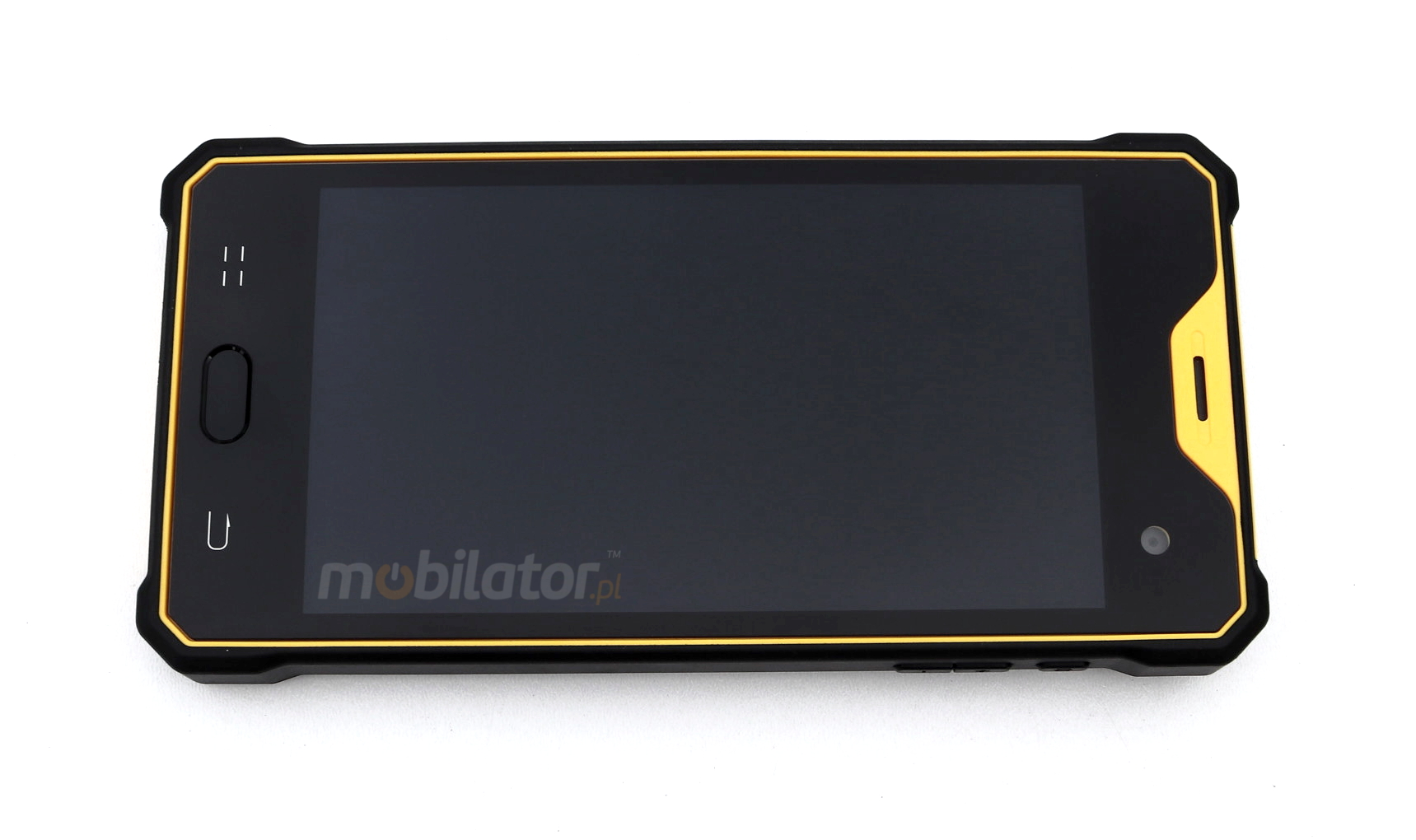

Senter ST917 v2.0 is a modern, waterproof industrial smartphone designed for extreme applications. It has a specially designed, reinforced construction that meets the requirements of IP65, which confirms the protection of the device against dust and water. Like the military equipment, the smartphone has the MIL-STD 810 military standard.




Specification



Senter ST917 v2.0
Processor Qualcomm 810 (8x1.8GHz)
Graphics Adreno 430
Operating system Android 8.1
RAM 4GB
ROM 64GB EMMC
Display 5.5", 1920 x 1080 IPS
Touch screen Capacitive
Battery 3.8V/5000mAh
Camera 5Mpx Front | 13Mpx Back + Flash
Protection IP65 | 1.2m. drops
Communication 4G | Bluetooth | GSM | Wi-Fi | GPS
Connectors Micro USB (OTG) | Audio
Memory card Micro SD (max. 128 GB)
SIM card  SIM
RFID Reader   HF | UHF* | LF*
1D / 2D Scanner Newlands NLS-EM3296

* Optional equipment, available on specific versions only.


Dustproof industrial smartphone Senter ST917 v2.0 was equipped with high performance, energy-efficient Qualcomm 810 processor. Inside, there are eight cores that allow for more efficient processing of multiple tasks simultaneously. Shared caching, which uses a multi-level hierarchy, is dynamically allocated to each processor core according to the load. This reduces the average access time to main memory. Enhanced graphics card technology lets you enjoy full HD video and movies. Low power consumption guarantees long battery life.

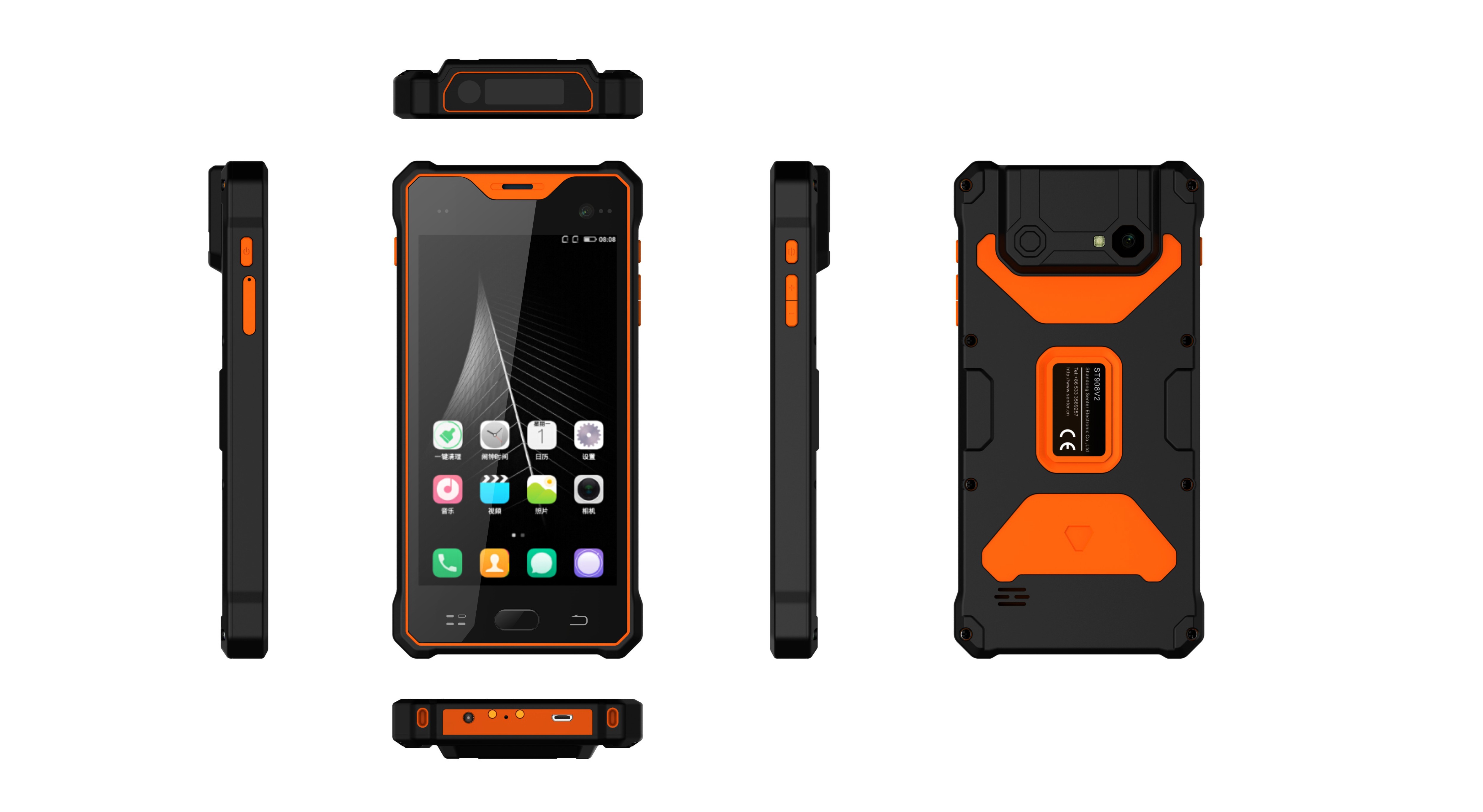

Ergonomic design




waterproof shock-resistant industrial resilient smartphone NFC 4G military IP65 MIL-STD 810G barcode scanner 1D 2D

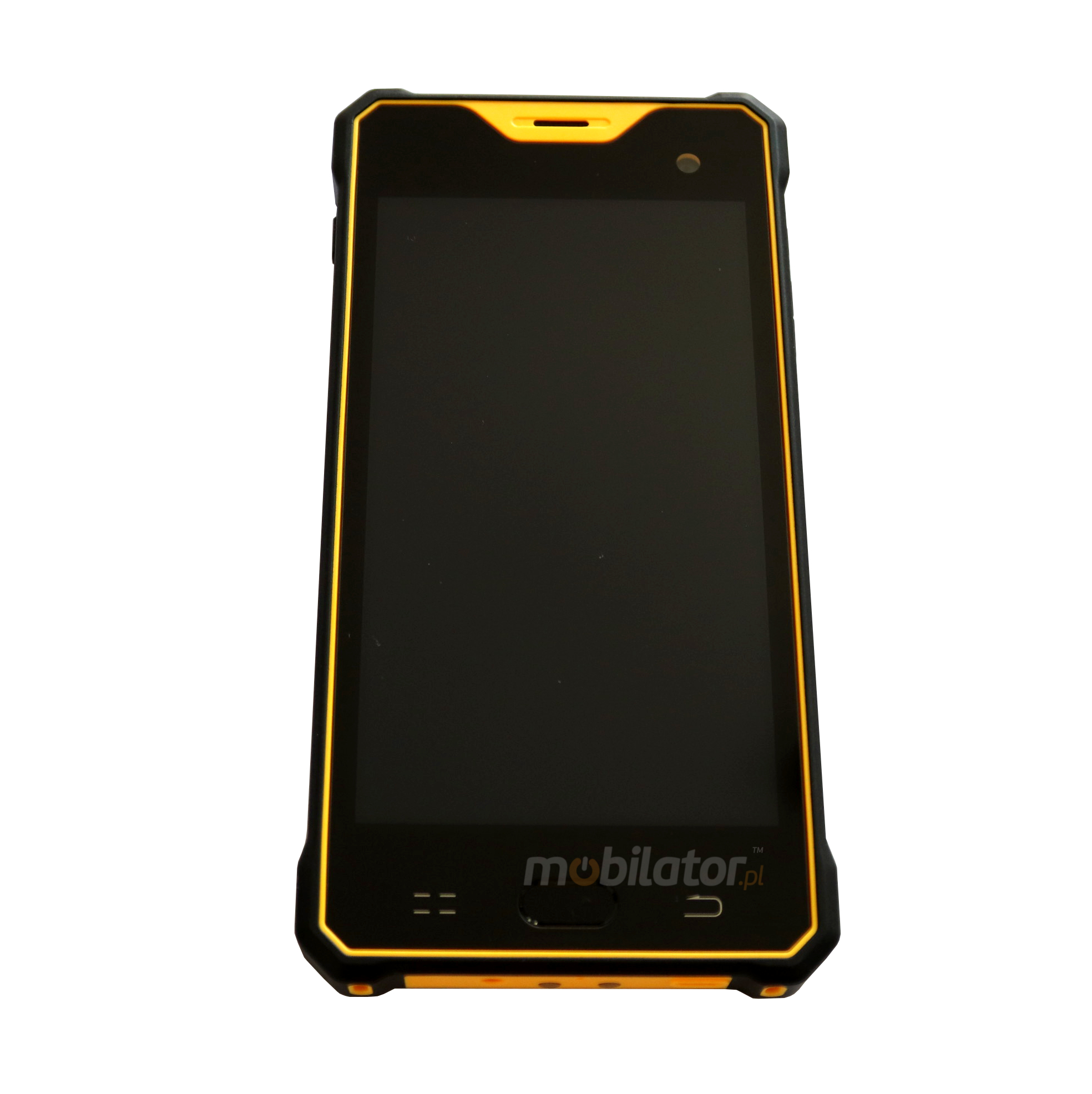

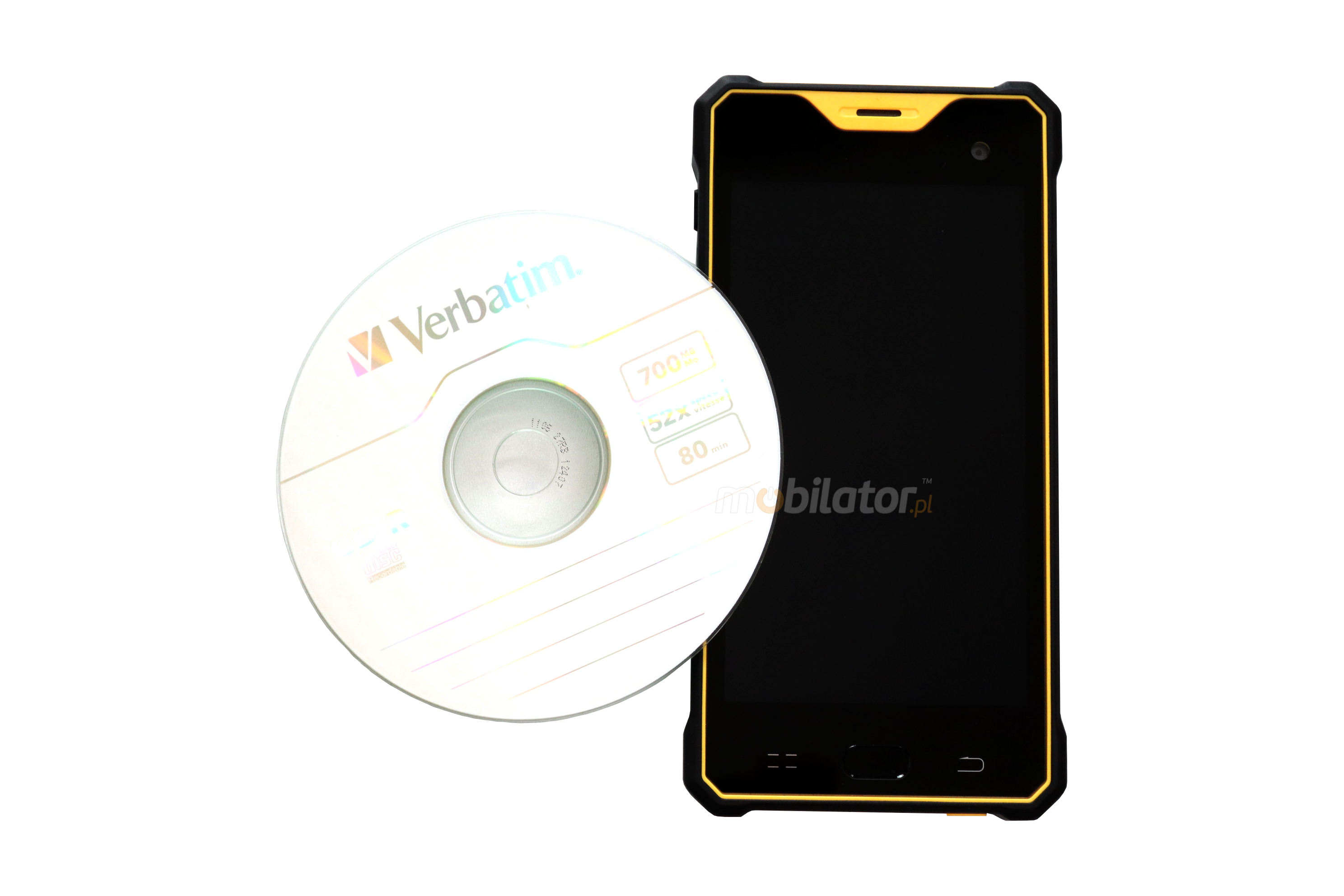

Senter ST917 v2.0 industrial smartphone is designed for resistance and convenience. The sleek and rugged 15mm thick design and stylish case will make the smartphone very well suited for industrial use and more. The unique size has been carefully thought out to make the device more comfortable and ergonomic. The non-slip casing makes it safe and secure to hold it in your hand, and the rubber corners further protect your device against possible damage as a result of falls.

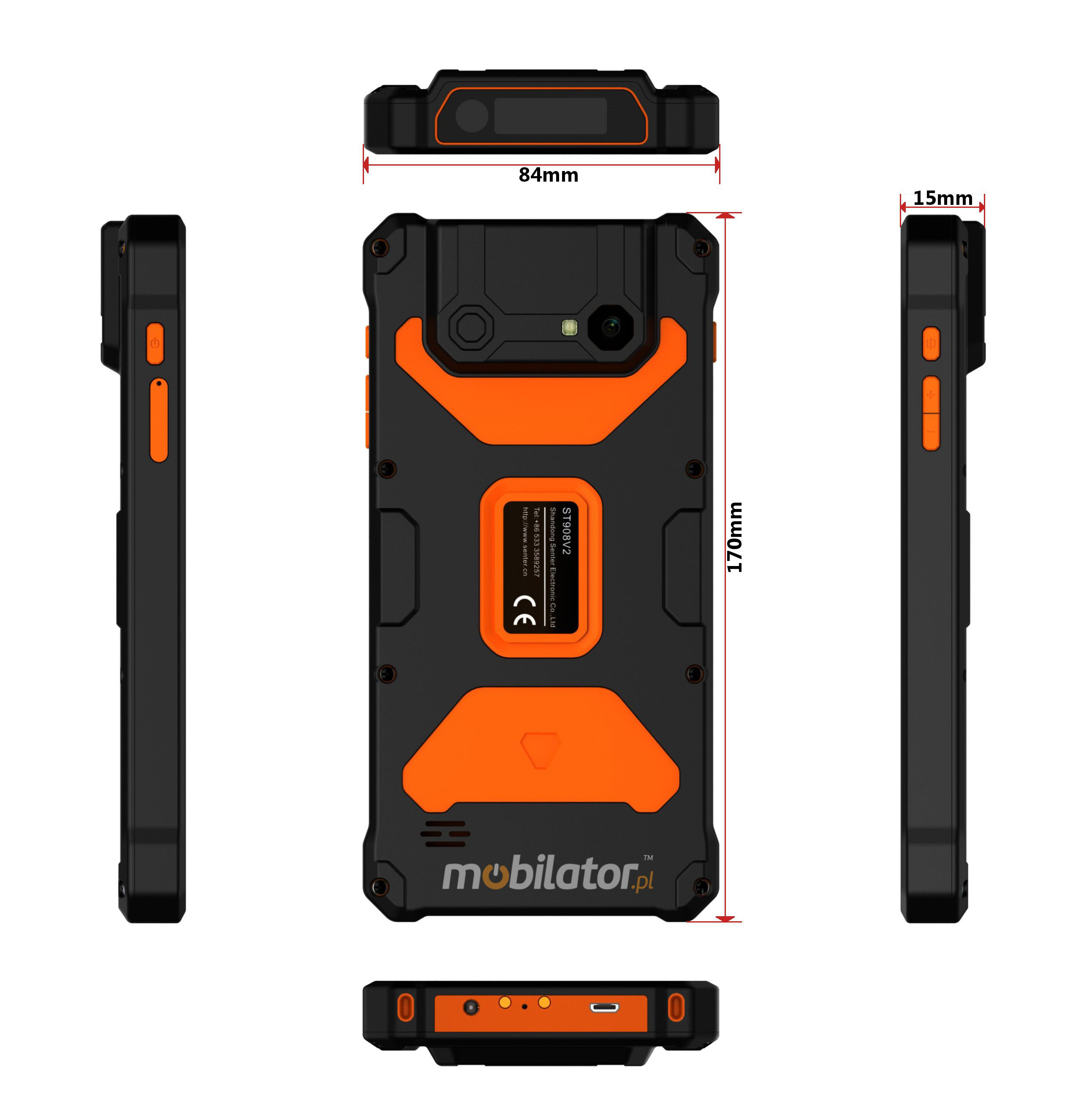

Dimensions 170mm x 84mm x 15mm
Weight 230g






Capacitive screen




capacitive touch screen



With the capacitive screen, the reaction of the device is not to directly press the screen, but to change the electrostatic field at the point where the device is touched. This allows for much more precise handling and gentle brushes on the screen. In addition, we can use multitouch technology, the ability to control our smartphone or the collector with a few fingers at once.


up… do góry menu… menu

REsistance





waterproof shock-resistant industrial resilient smartphone NFC 4G military IP65 MIL-STD 810G barcode scanner 1D 2D






IP65 Protection

The IP standard defines the degree of protection provided by the enclosure of an electrical device against such factors as: access to dangerous parts inside the enclosure, penetration of foreign matter, splashing or immersion.



IP6X No ingress of dust, complete protection against contact. A vacuum must be applied. Test duration of up to 8 hours based on air flow.
IPX5 Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.






MIL-STD 810 Standard

The MIL-STD-810 is a strict military standard used in the United States Army. It determines the immunity of the equipment to severe environmental and weather conditions such as extreme low and high temperatures, temperature changes, rain or dust, as well as various accidents (shocks, floods, high altitude falls, etc.). Although the MIL-STD-810 is mainly used for military equipment, it is often used by private companies that produce equipment that requires unmatched durability.






1.2m drop resistance

Specially designed construction gives the machine a chance of accidental falls from up to 1.2 meters in operating mode, even on hard surfaces. In addition, the smartphone screen is protected by specially tempered glass Gorilla Glass.







Extreme temperatures

Senter ST917 v2.0 is suitable for continuous operation in both low and high temperatures in the range of -10 ° C to 50 ° C. When the device is off, it can handle temperatures ranging from -40 ° C to 60 ° C. In addition, the rugged industrial smartphone performs well in rooms with increased humidity, ensuring proper operation even with 95% relative humidity.



Working Temp. -10°C do 50°C
Storage Temp. -40°C do 60°C
Humidity 5% do 95%





up… do góry menu… menu

wireless communication



waterproof shock-resistant industrial resilient smartphone NFC 4G military IP65 MIL-STD 810G barcode scanner 1D 2D

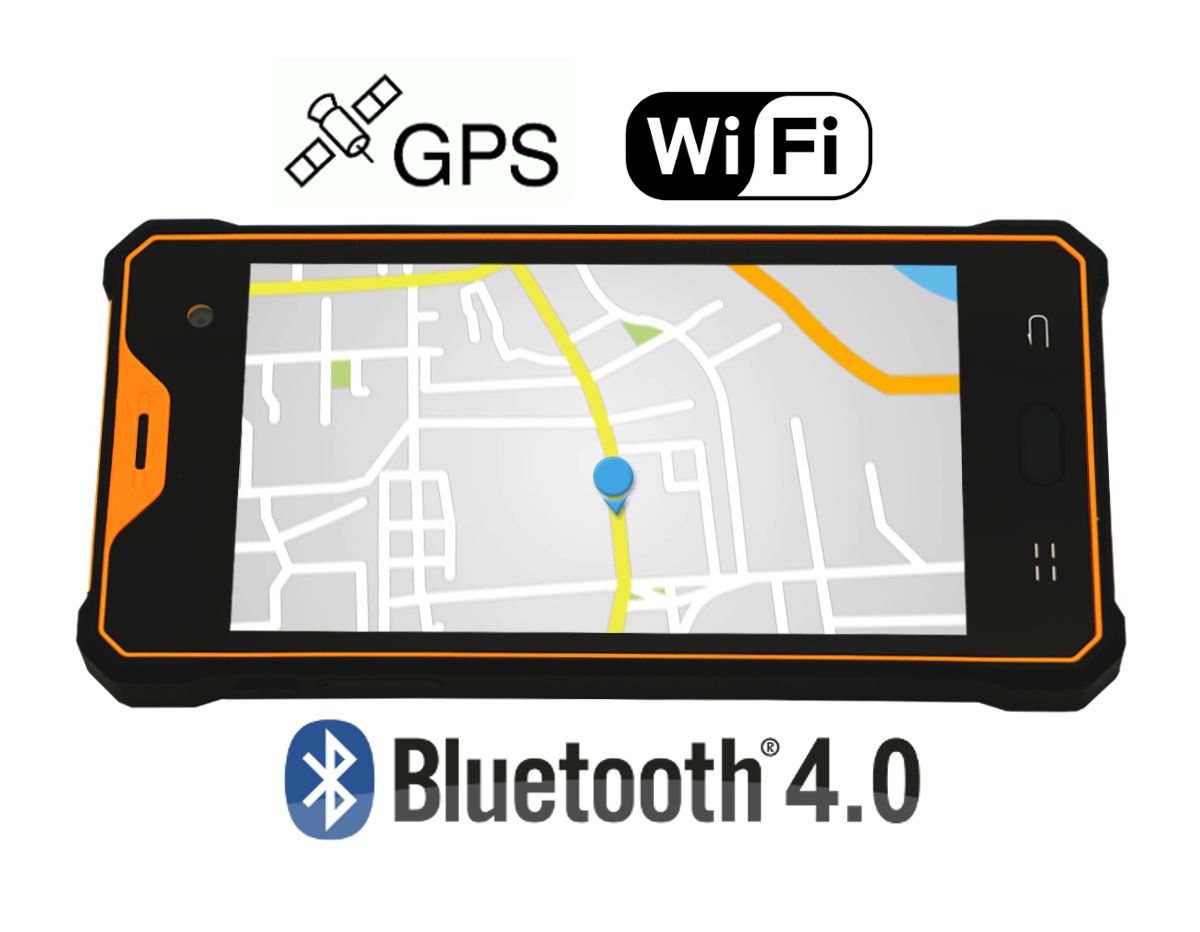

GPS Navigation

Waterproof smartphone Senter ST917 v2.0 is equipped with a professional GPS module  combining low power consumption with high accuracy. Navigation is fast and smooth, allowing you to easily and easily reach any destination.








Bluetooth 4.0

Bluetooth enables wireless short-range communication between various electronic devices, such as the keyboard, computer, laptop, palmtop, mobile phone and many others. In the fourth version of this standard, energy consumption was reduced considerably, at the expense of lower transfer costs, and real operating coverage increased.







 Wi-Fi network

Dual-band Wi-Fi provides fast network access wherever you can connect to secured or open Wi-Fi networks. This is a convenient solution for people who have a work or residence router and a wireless network that can be used at no extra cost. The shock-resistant industrial smartphone, is equipped with the latest 802.11ac technology, which allows file transfer speeds up to 1 Gb/s.



Standards 802.11(a/b/g/n/ac)
Frequencies 2.4GHz and 5GHz





up… do góry menu… menu

Functionality





Barcode Scanner


Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code. With dynamic scanning capabilities Senter ST917 v2.0 quickly and accurately retrieves the data, which helps to increase the rate and efficiency. You can jump-start a whole because with simplified installation procedure and intuitive, comfortable design to prepare the scanner to work is very easy.



1D / 2D
► Newlands NLS-EM3296
Honeywell N3680
Honeywell N6603


waterproof shock-resistant industrial resilient smartphone NFC 4G military IP65 MIL-STD 810G barcode scanner 1D 2D

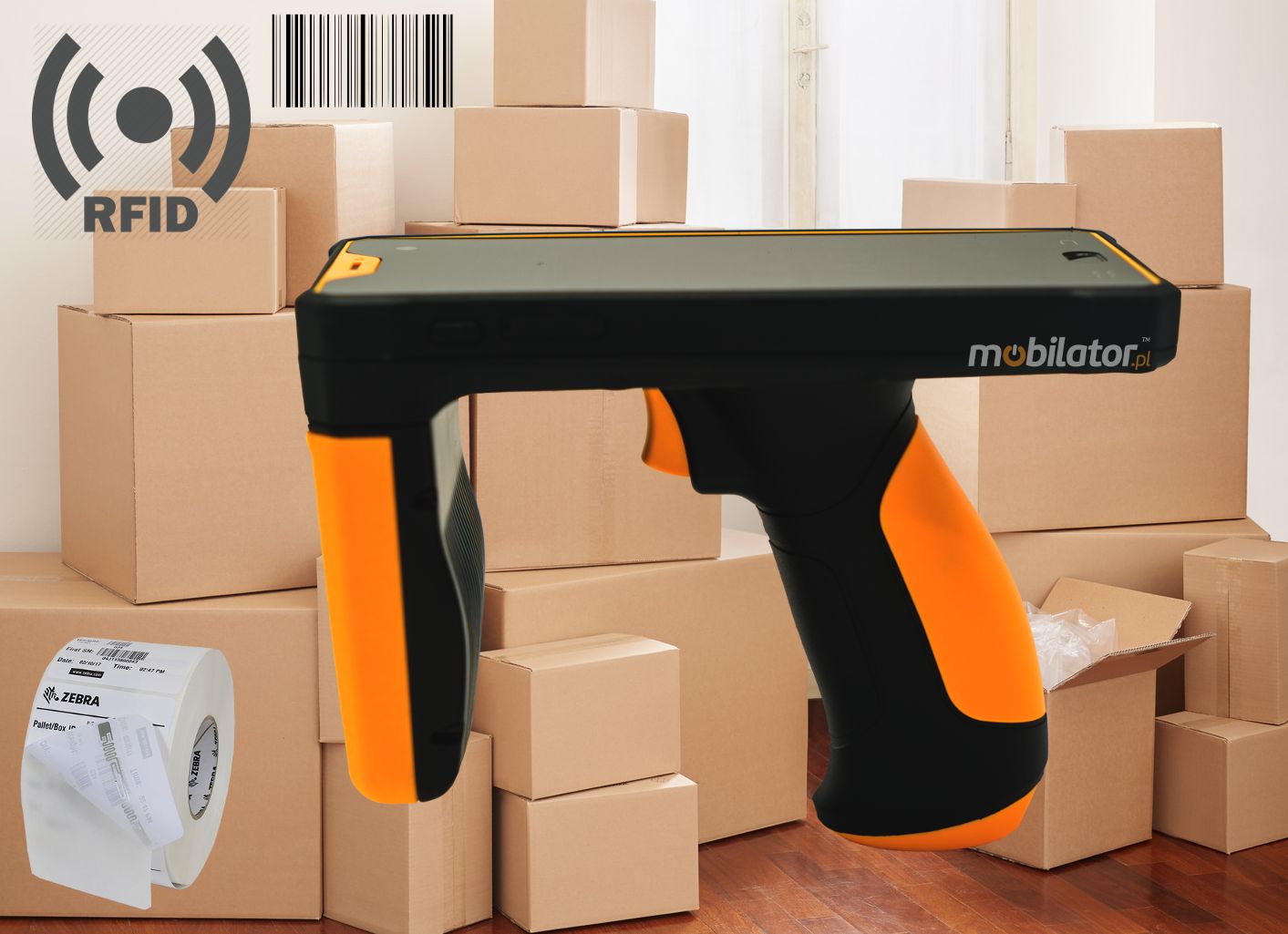

RFID


RFID technology has aroused great worldwide interest. Is expected to solve many of the problems with fast and faultless identification of people and equipment. Its development is more turbulent than gradually Introduced barcodes. RFID technology is cheap, reliable and versatile. RFID (Radio-Frequency Identification) is a technology used to identify objects and flow control products.







 Type RFID HF RFID UHF
RFID LF
 Frequency 13.56 MHz 865-868 MHz 125-134.2 KHz
 Standard Mifare ISO 18000-6C

ISO/IEC 18000-2







up… do góry menu… menu

Application



Trade and Services

Thanks to their size and light weight, tablet and smartphone data collectors are a useful tool for sales representatives. Today's applications running under the collector system enable even entering the data collector's contractor database, which allows us to later search for it quickly by name or NIP number. We can do the same with our commodity base, which can work in parallel with the database of contractors. Additional use of collectors in the trade, such as sending orders or invoices directly to the company through the GSM network or Wi-Fi.



waterproof shockproof industrial rugged durable smartphone NFC 4G android 8.1 military IP65 MIL-STD 810G barcode scanner 1D 2D






Industry and Construction



Industrial smartphones and data collectors are characterized by high resistance to adverse working conditions. Tightness, dust and water resistance of enclosures, certified by IP (dust and water resistance standards) and often MIL-STD military standard, can withstand even the harshest conditions in industrial infrastructure or on the construction site. With appropriate applications, collectors can be used for control and control of various industrial processes, as well as for data collection and analysis.


waterproof shocproof industrial rugged durable smartphone NFC 4G android 8.1 military IP65 MIL-STD 810G barcode scanner 1D 2D






Warehouse



An industrial data sheet is the ideal solution for quick stocktaking. In addition, depending on the software used, it streamlines the process of entering and delivering goods into the warehouse, enables price control and dispensing, helps to collect and order orders, and identifies customers and servicing the rental. The advantages of using data collectors are undoubtedly: time savings, customer satisfaction thanks to the correct price and speed of operation.


waterproof shocproof industrial rugged durable smartphone NFC 4G android 8.1 military IP65 MIL-STD 810G barcode scanner 1D 2D




up… do góry menu… menu

Available versions and accessories





The industry-leading Senter ST917 v2.0 smartphone is available in several versions to suit different needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters given in the table below. In addition, on request, you can create a configuration not currently available in the offer.




 v.1v.2v.3v.4v.5v.6v.7
HF RFID / NFC
Newland NLS-EM3296
Honeywell N3680
Honeywell N6603

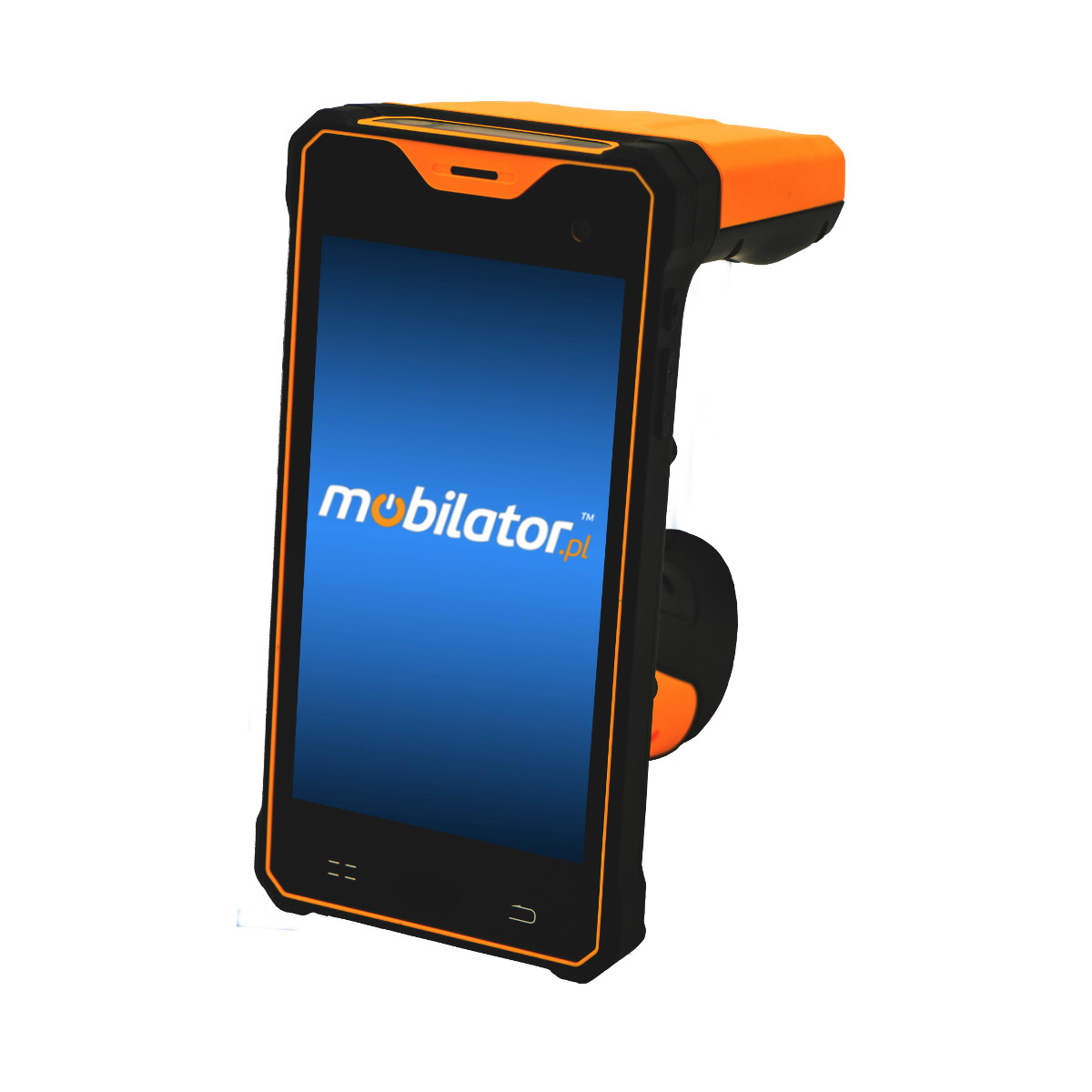

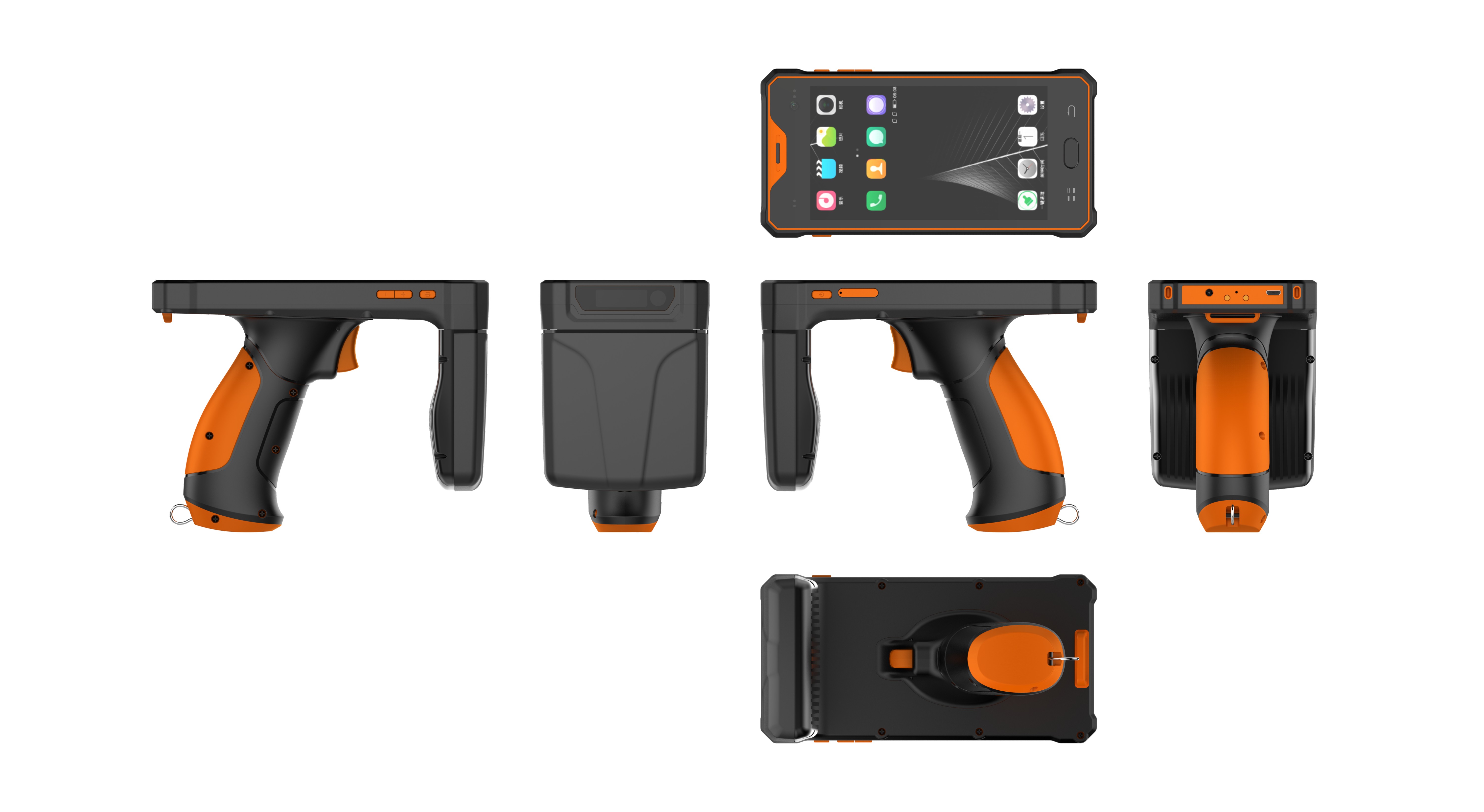

Uchwyt pisotletowy / Pistol grip

Porównaj wszystkie wersje



Compare all versions
