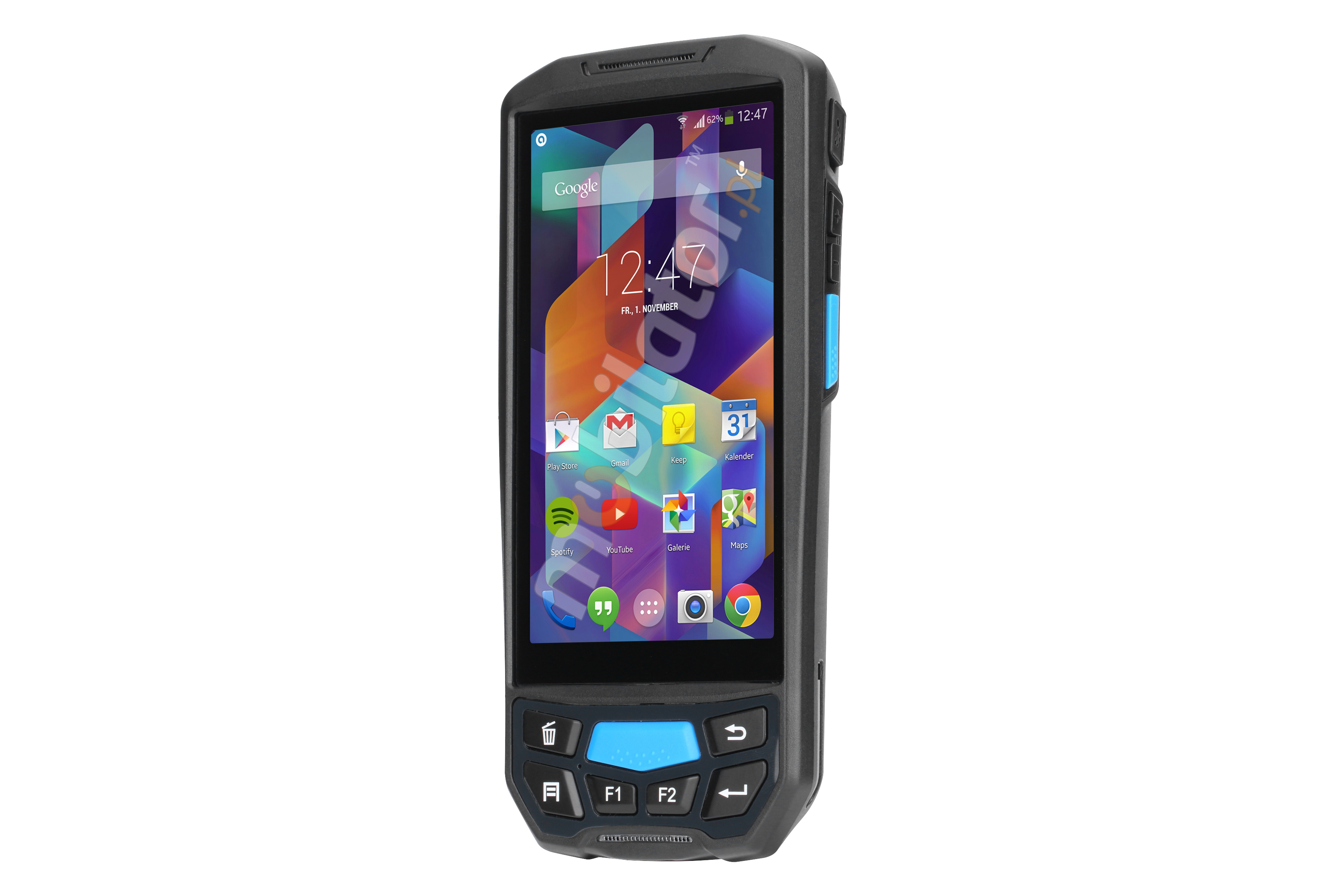

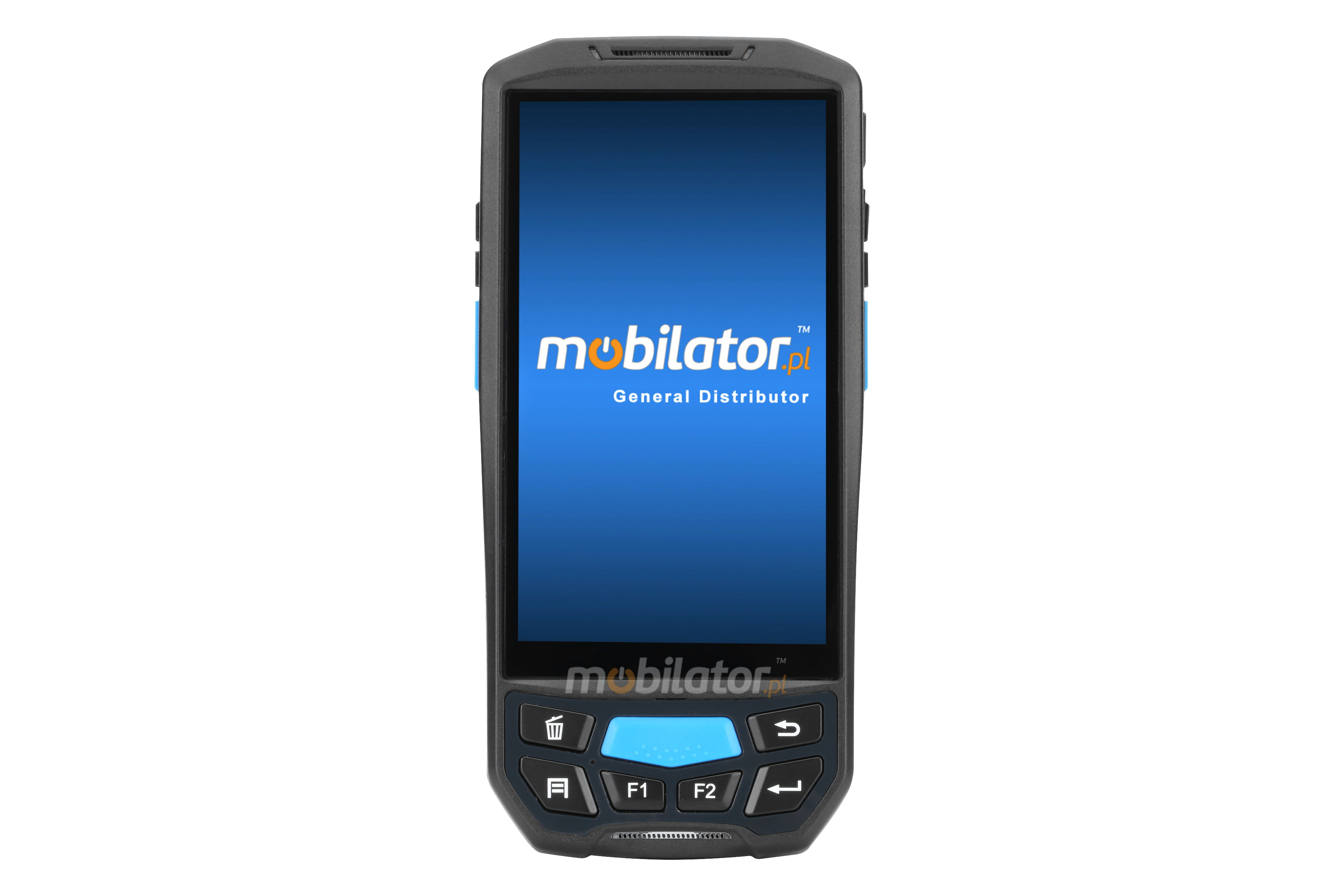

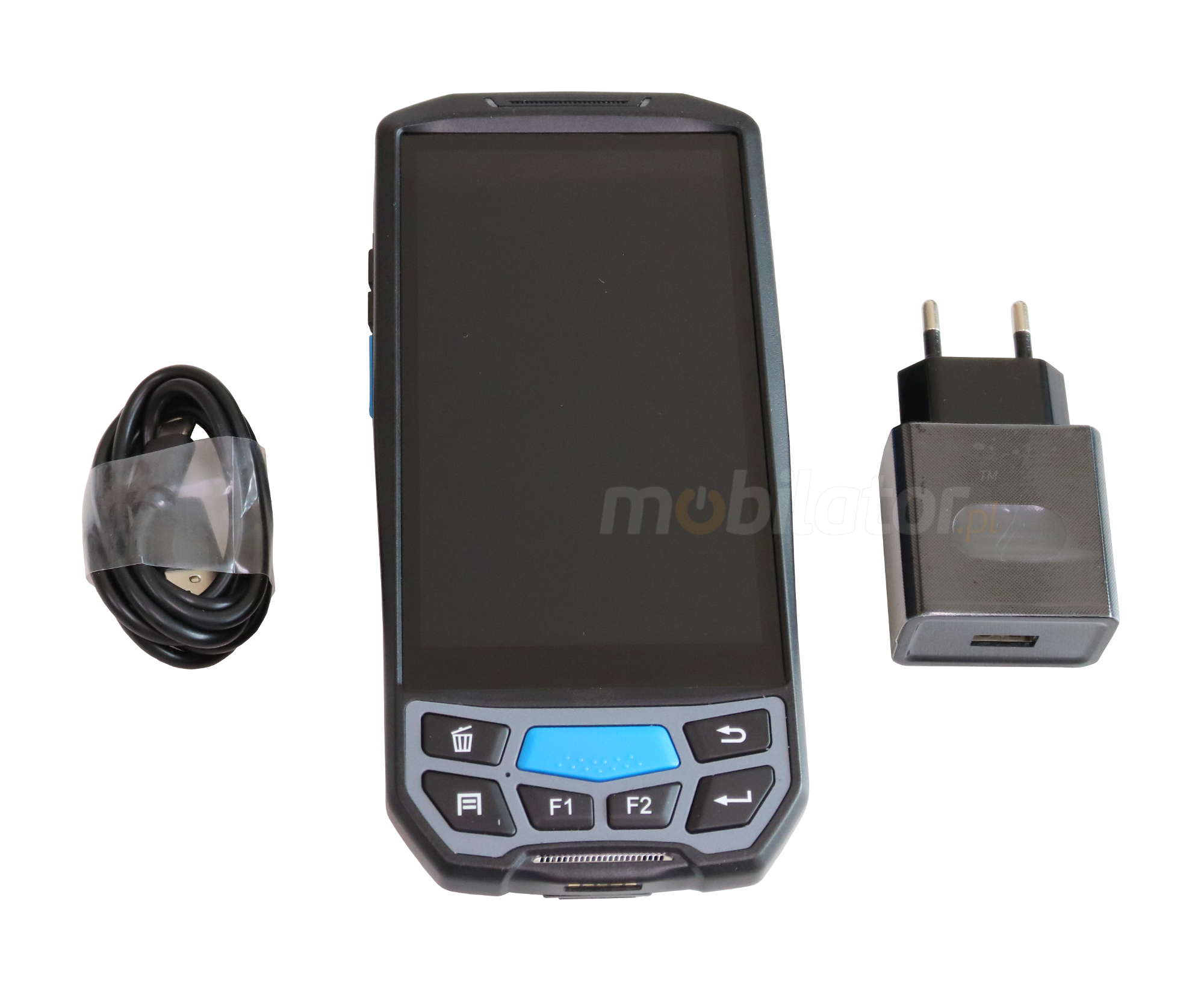

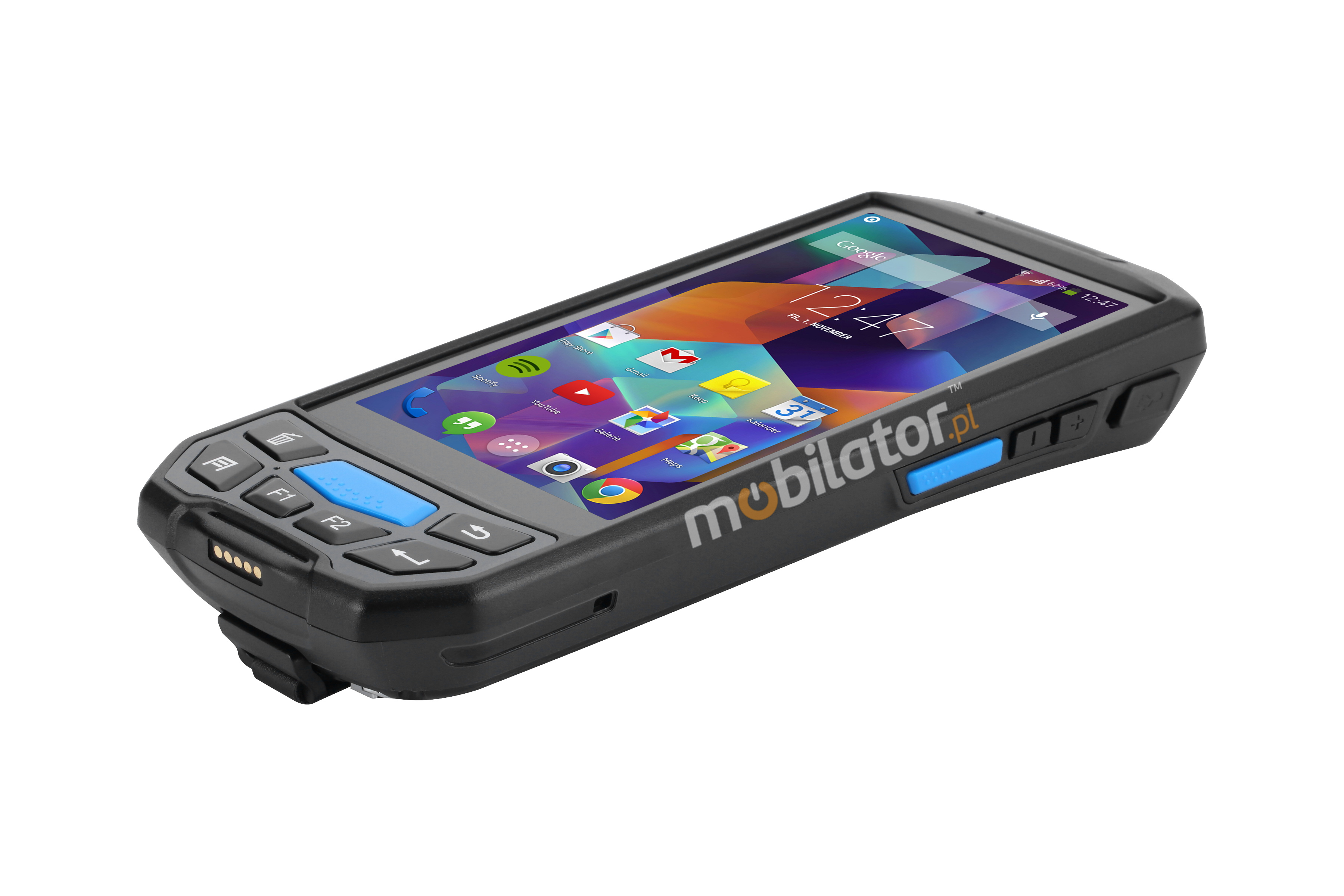

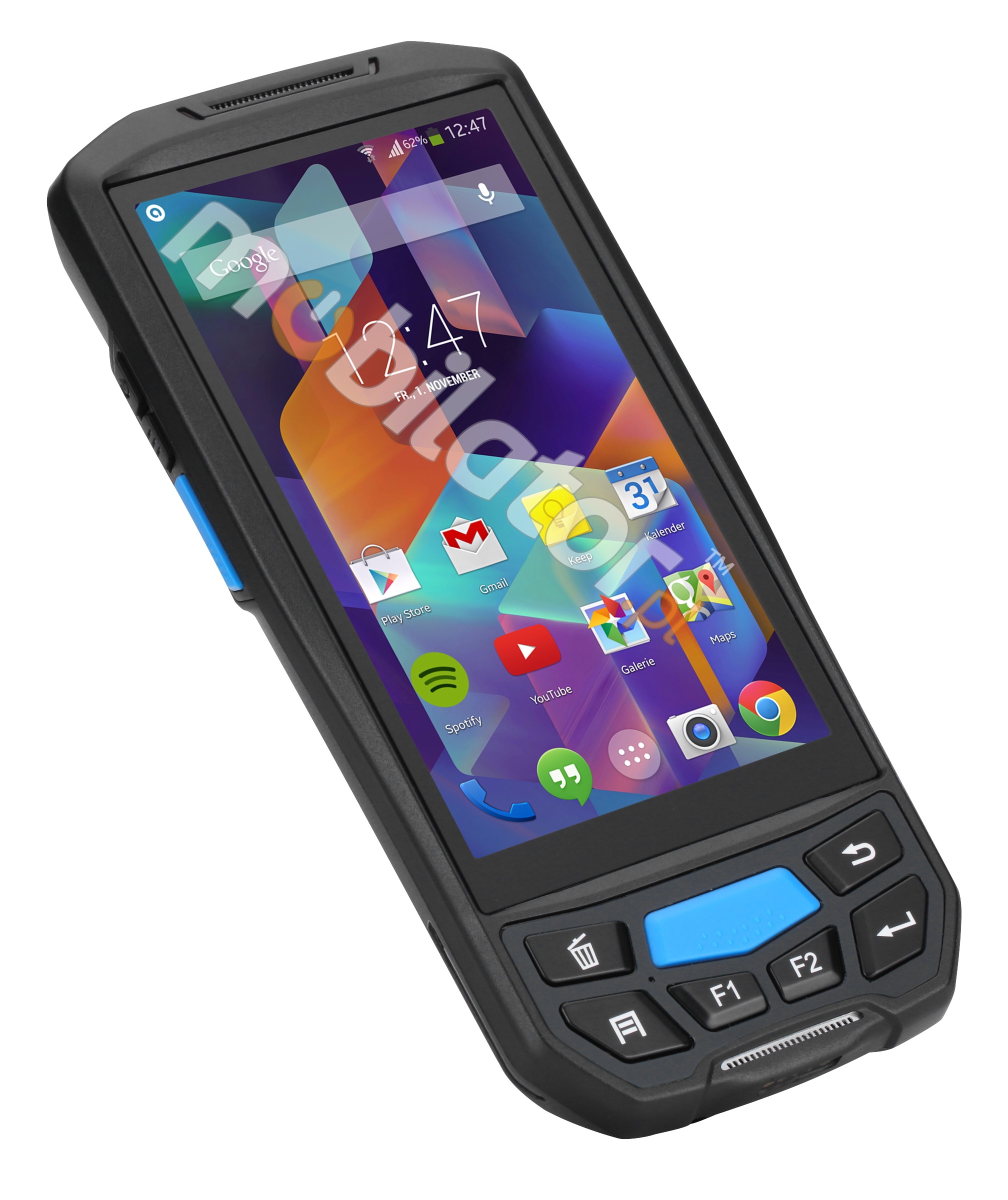

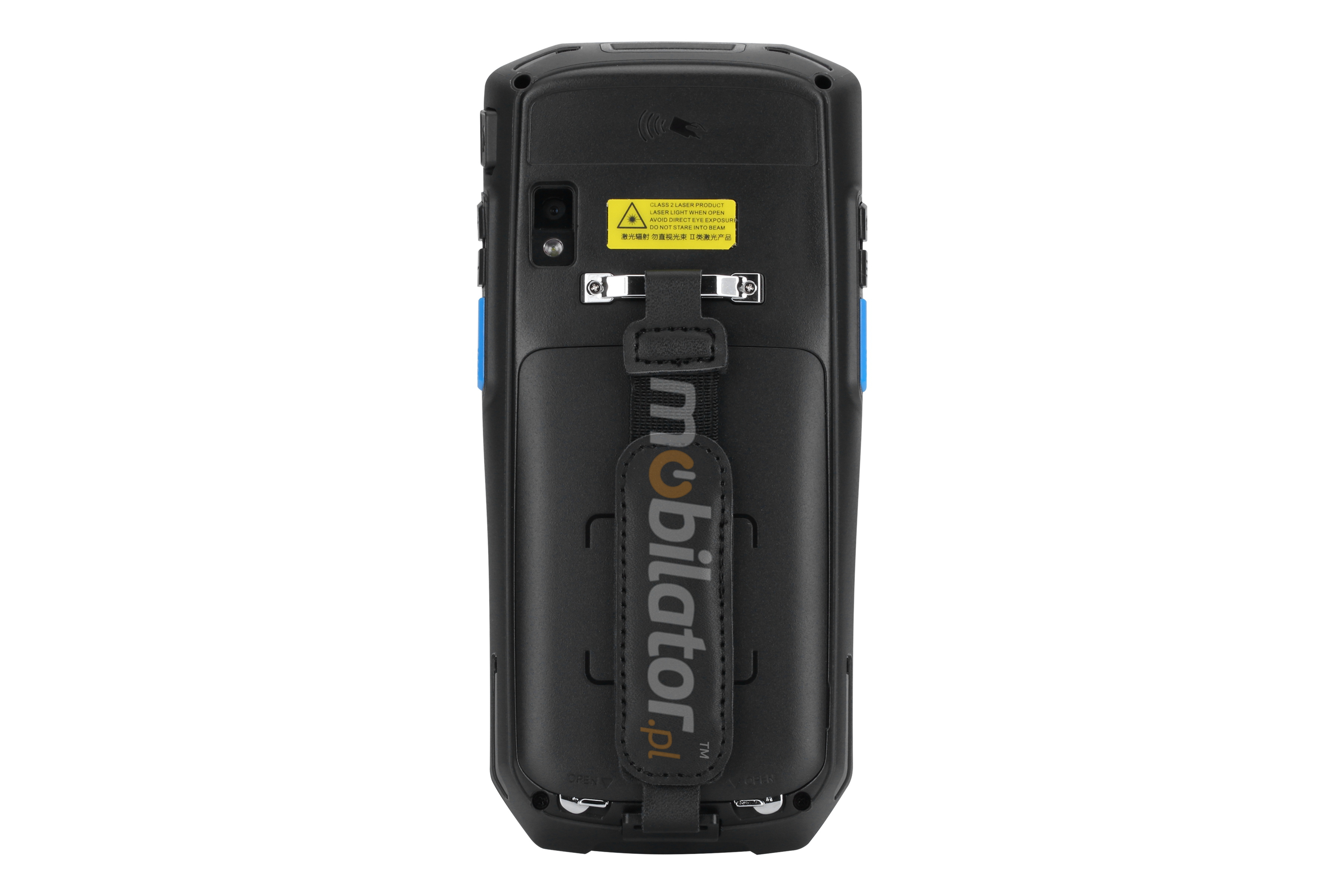

MobiPad U90 v.0 - Industrial Data Collector

MobiPad U90  v.0 - Industrial Data Collector

Data update: 2022-06-06

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
331.53
Net
407.79
Gross



Compare all versions

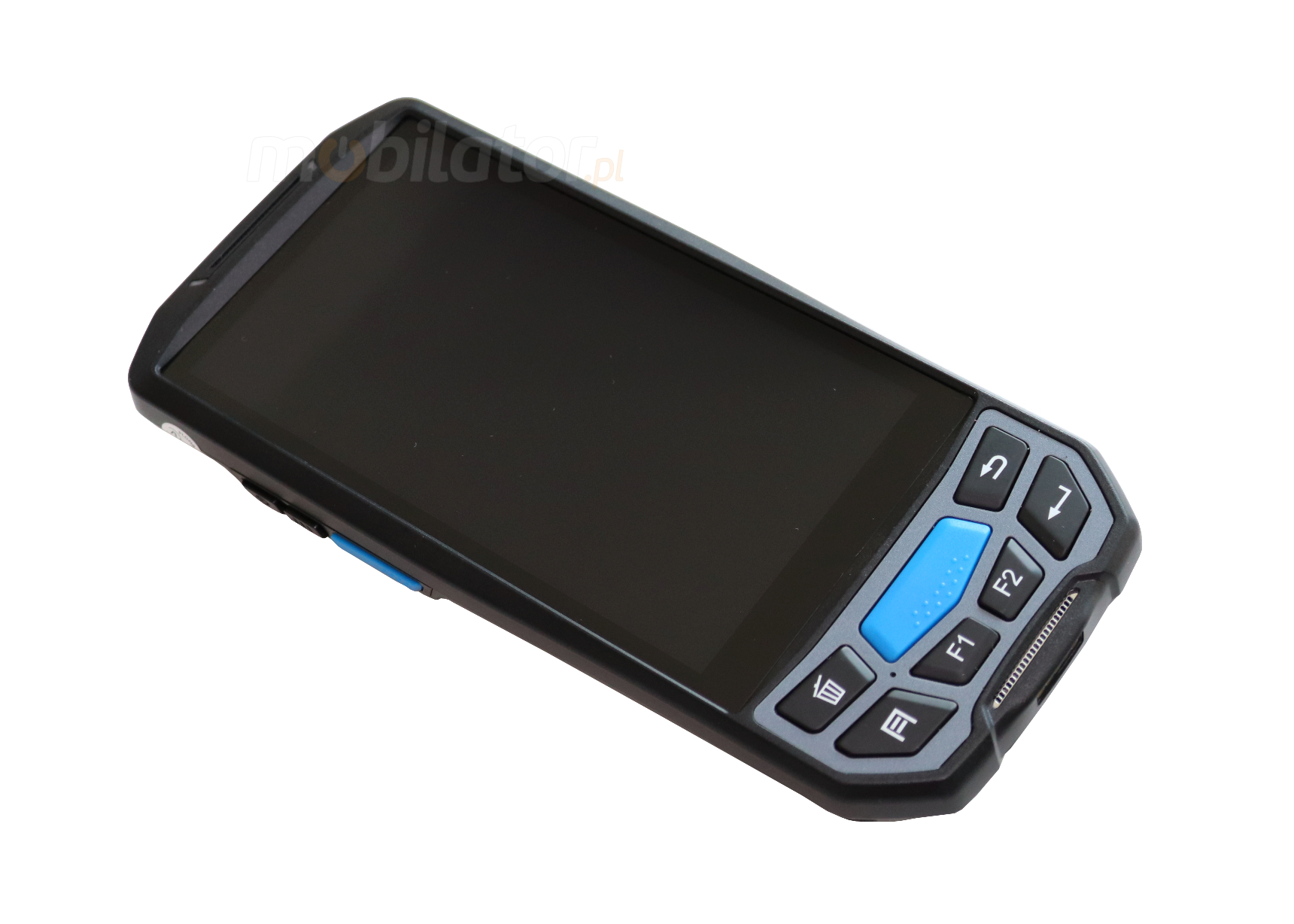

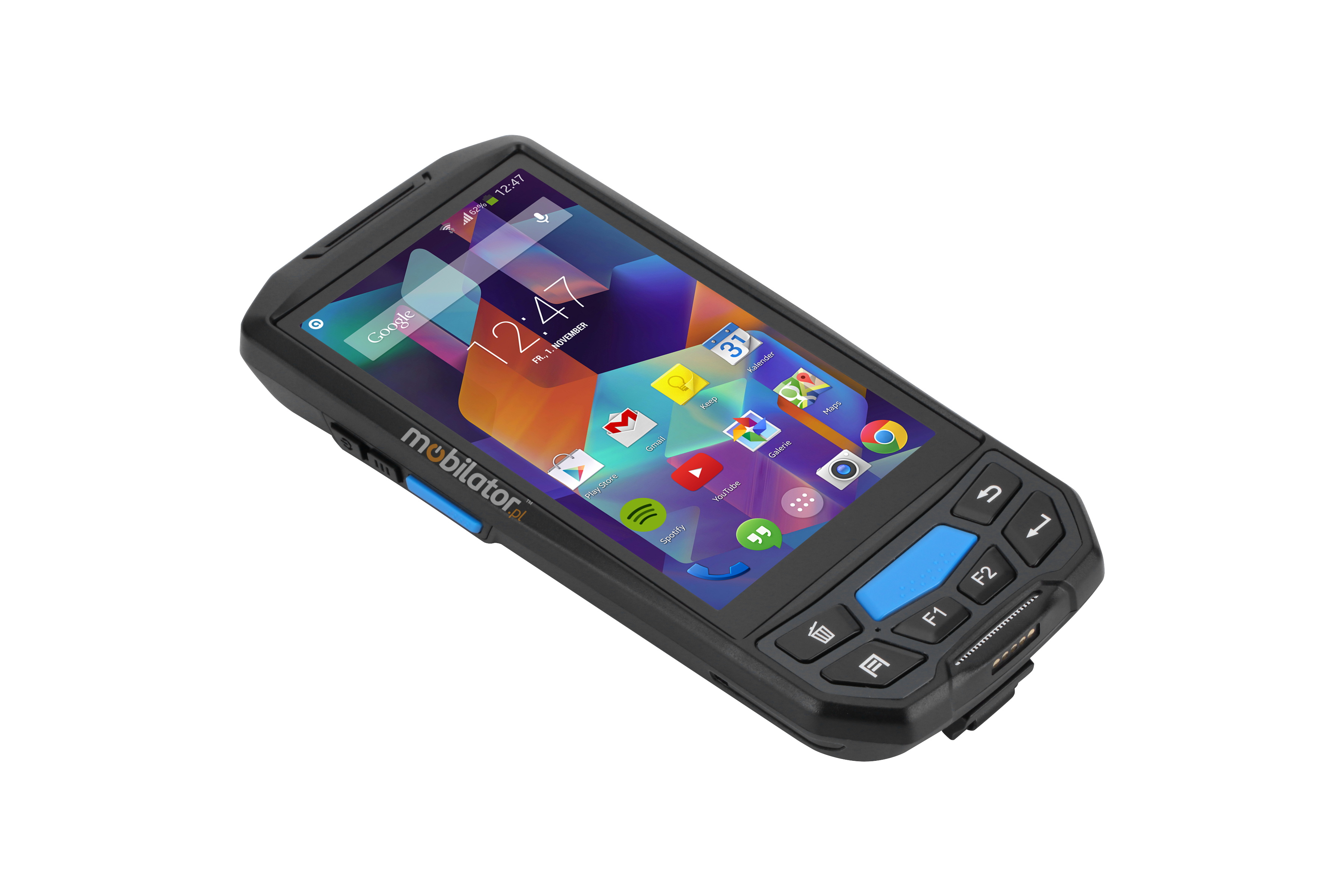

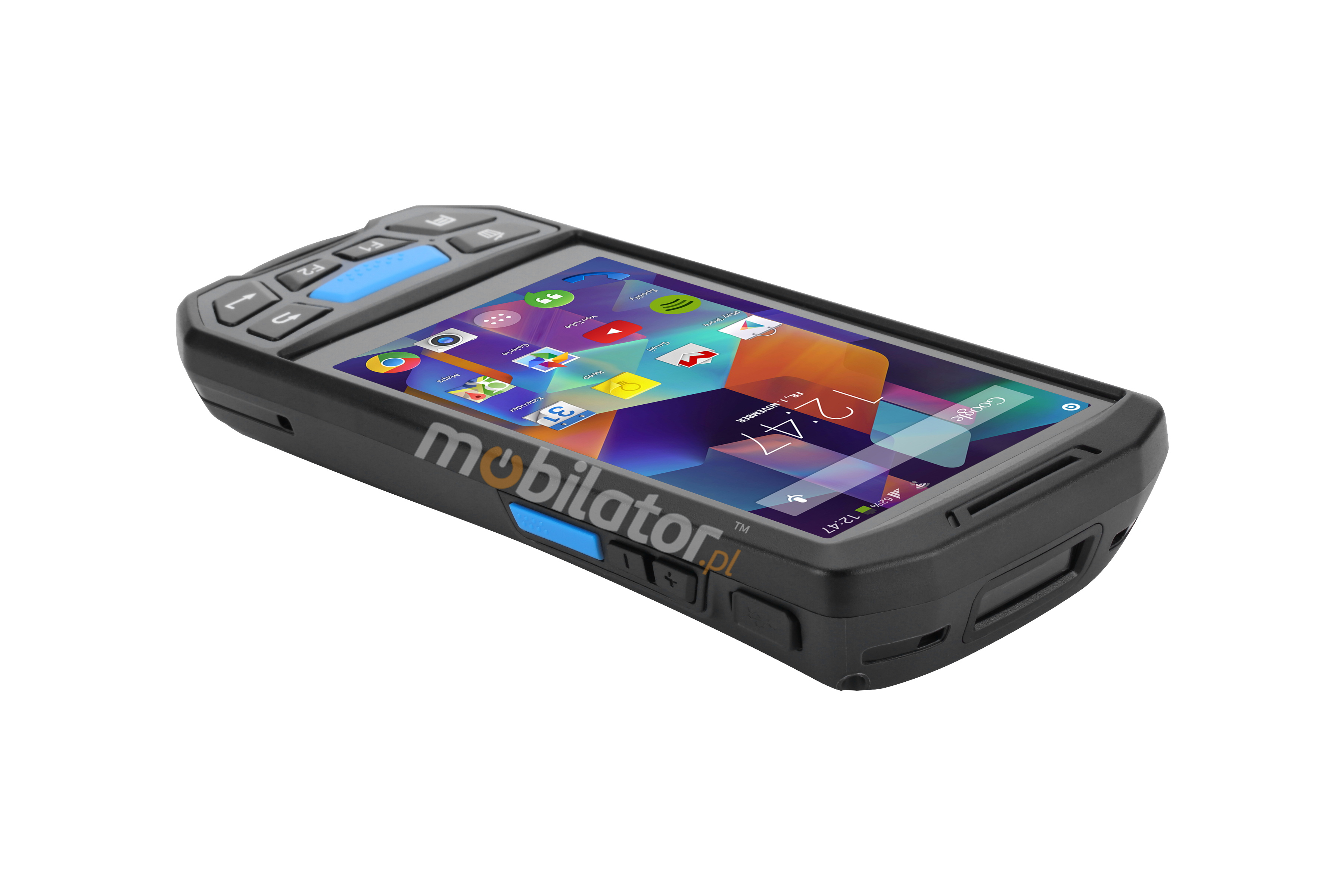

MobiPad U90 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP66 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.




Description



 Processor(CPU) ARM Cortex-A53 64-bit | Quad-core  1.3GHz

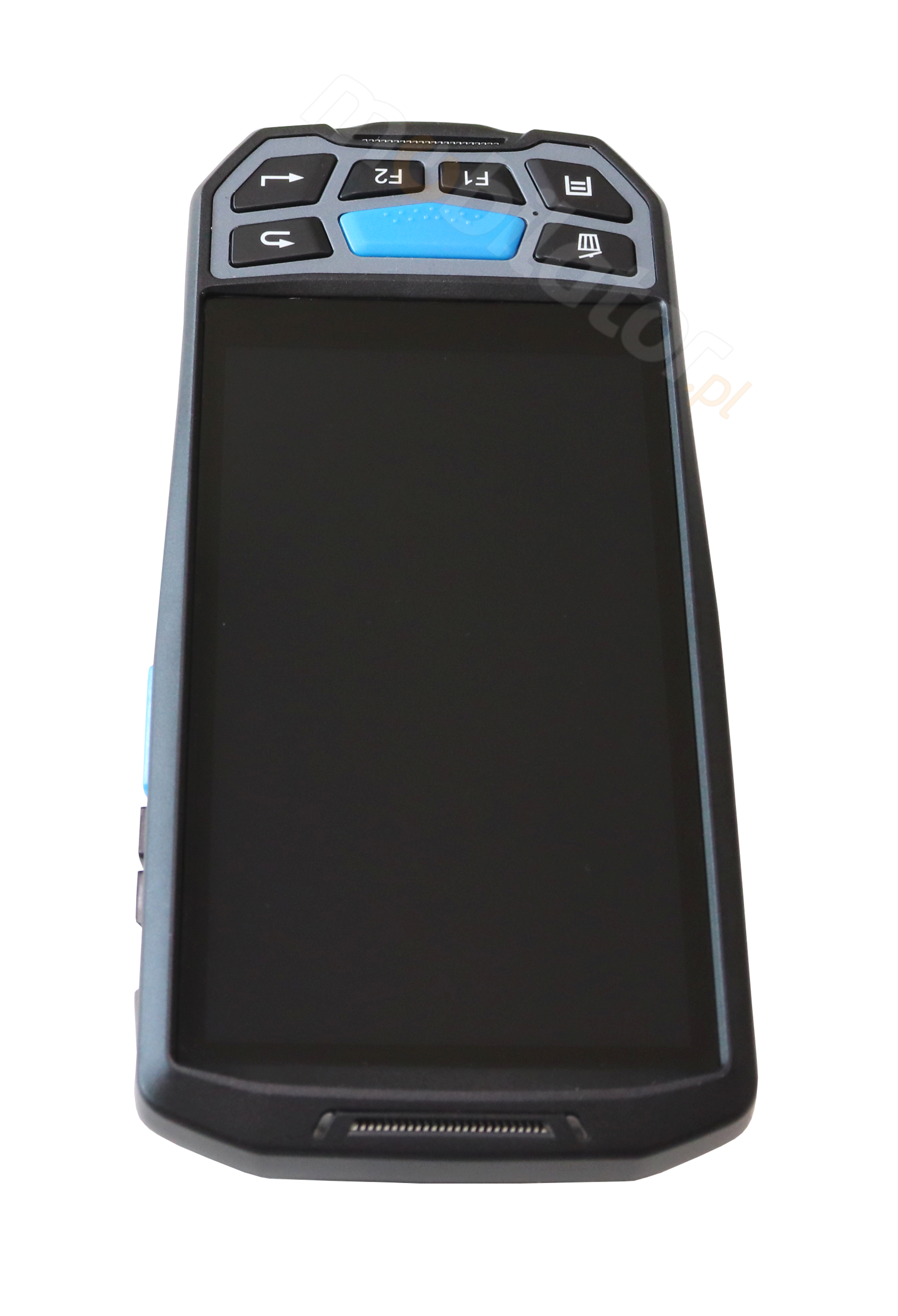

 Display 5.0" (720*1280) IPS HD Color Touch Screen
 RAM  2GB
 ROM  16GB Nand Flash
 Connectors  Micro-USB | Micro SD/TF card slot (max. 32GB) | Micro-SIM
 GPS  Built-in GPS Support A-GPS
 Audio  Speaker | Microphone
 Camera 8Mpx + Flash
 Battery  3.7V, 4800mAh Li-Ion (Czas dzia³ania ok. 7-8 h)
 Keyboard  Vitual qwerty keyboard and actual figure button
 Environment  Android 7.0 Nougat
 Modules
 GPS /4G/3G/2G | WiFi | Bluetooth | NFC* | RFID HF/LF/UHF*
 Dimensions  172mm*80mm*27mm | 500g
 Resistance  IP66
Czytniki

1D (Mindeo 1D uE966)* / Honeywell N4313*

2D (Newland EM3090* / Newland EM3096* / Honeywell N6603*



* Optional equipment, available on specific versions only.



Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".




Porównaj wszystkie wersje



  v.0 v.1 v.0.1 v.2 v.3 v.4 v.5 v.6 v.7 v.8
NFC
RFID HF
RFID LF
RFID UHF
1D Mindeo uE966
1D Honeywell N4313
2D Newland EM-3090
2D Newland EM-3096
2D Honeywell N6603
  v.9 v.10 v.11 v.12 v.13 v.14 v.15 v.16 v.2.1 v.3.1
NFC
RFID HF
RFID LF
RFID UHF
1D Mindeo uE966
1D Honeywell N4313
2D Newland EM-3090
2D Newland EM-3096
2D Honeywell N6603
  v.4.1 v.5.1 v.5.2 v.6.1 v.7.1 v.8.1
NFC
RFID HF
RFID LF
RFID UHF
1D Mindeo uE966
1D Honeywell N4313
2D Newland EM-3090
2D Newland EM-3096
2D Honeywell N6603

go top… do góry menu… menu


Use of device

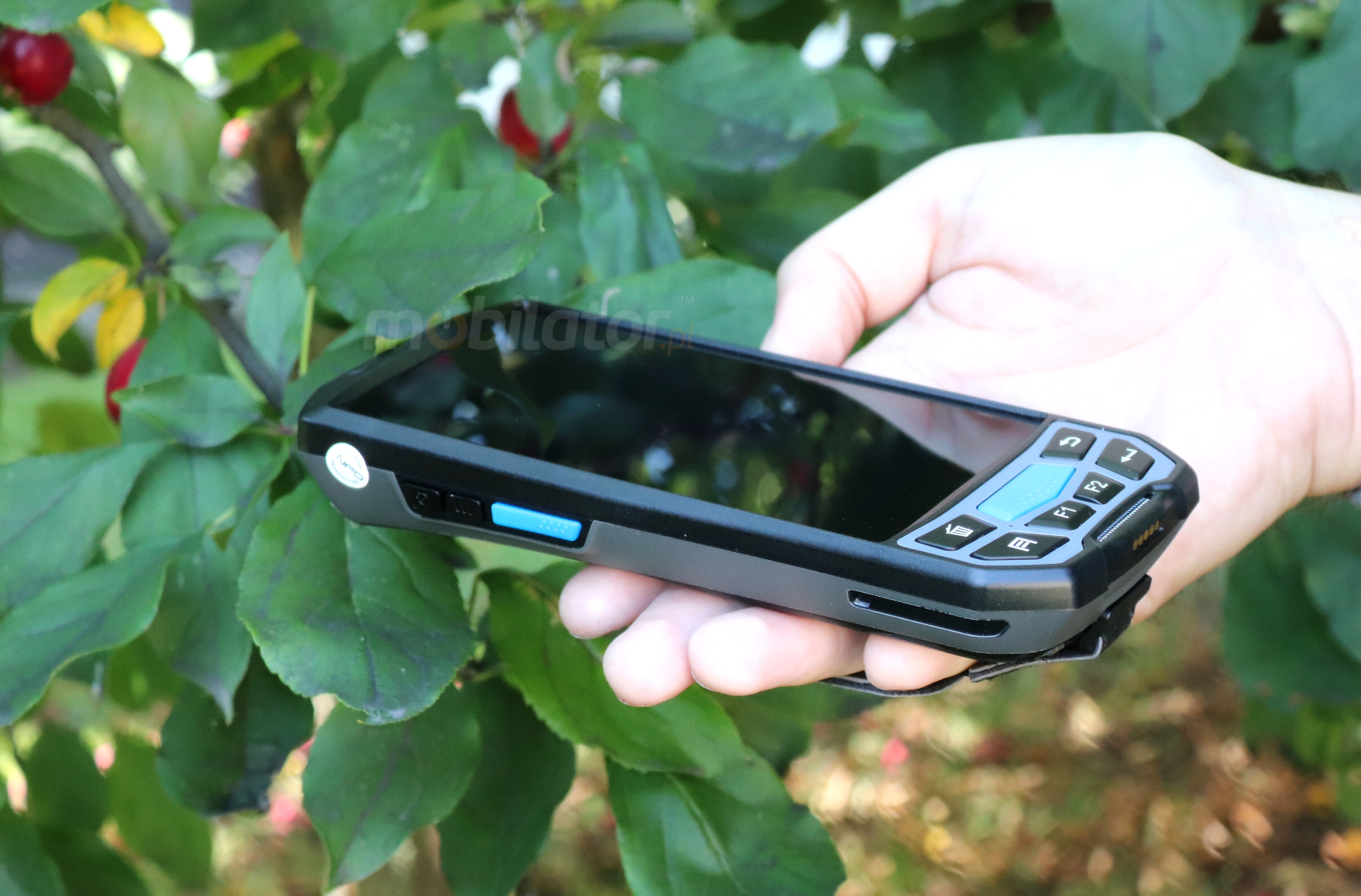

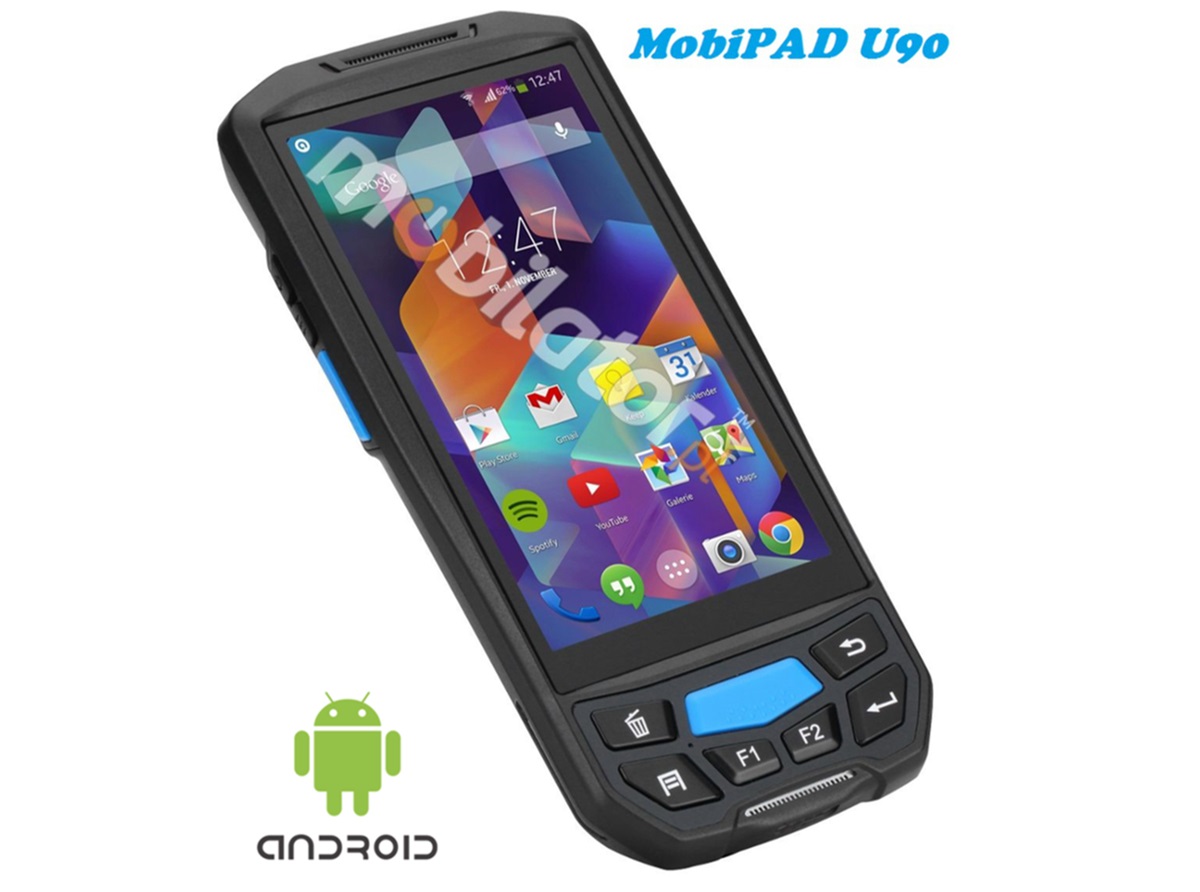

Modern Refractory Resistans Practical Data Collector MobiPad U90 Android WiFi


Data collector MobiPad U90 can be used for projects like: supermarket cashless payment, inventory management and logistics tracking. Device will be also good option to business data management and other services.

Operating temperature: -20 ° C ~ 50 °C

Operating Humidity: 5% ~ 95%

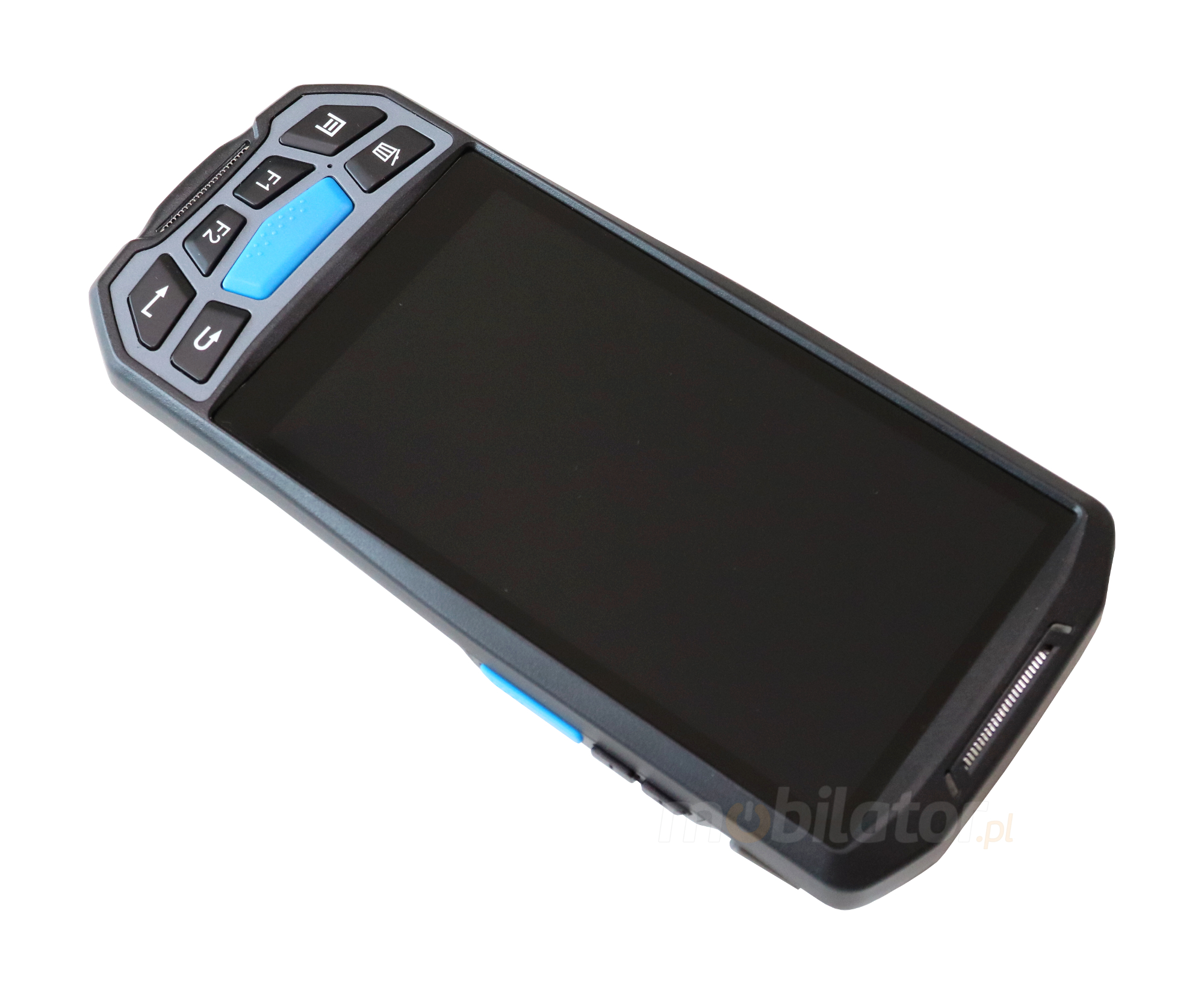

Modern Refractory Resistans Practical Data Collector MobiPad U90 Android WiFi

go top… do góry menu…menu




The collection and processing of data

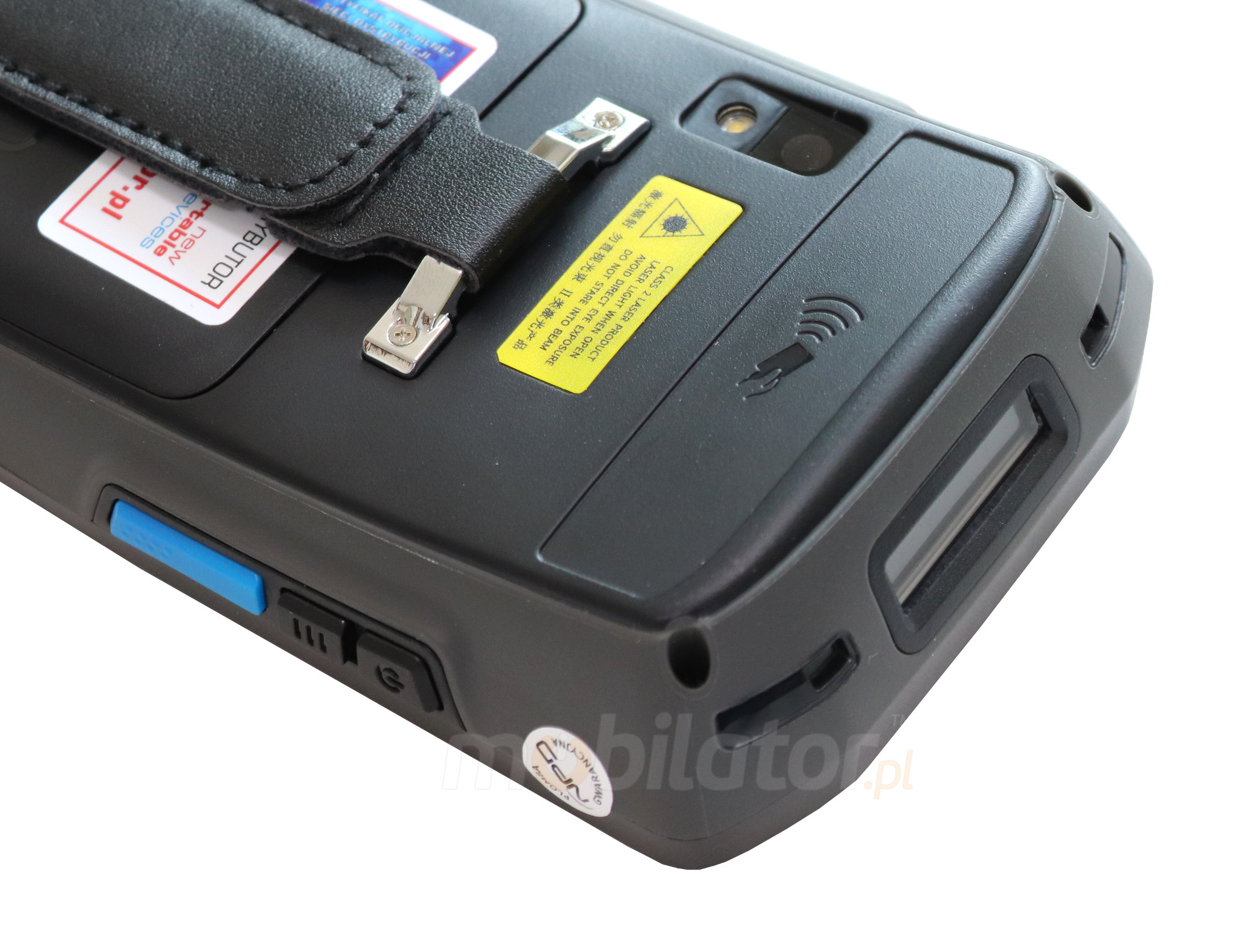

Barcode Scanner (option)

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

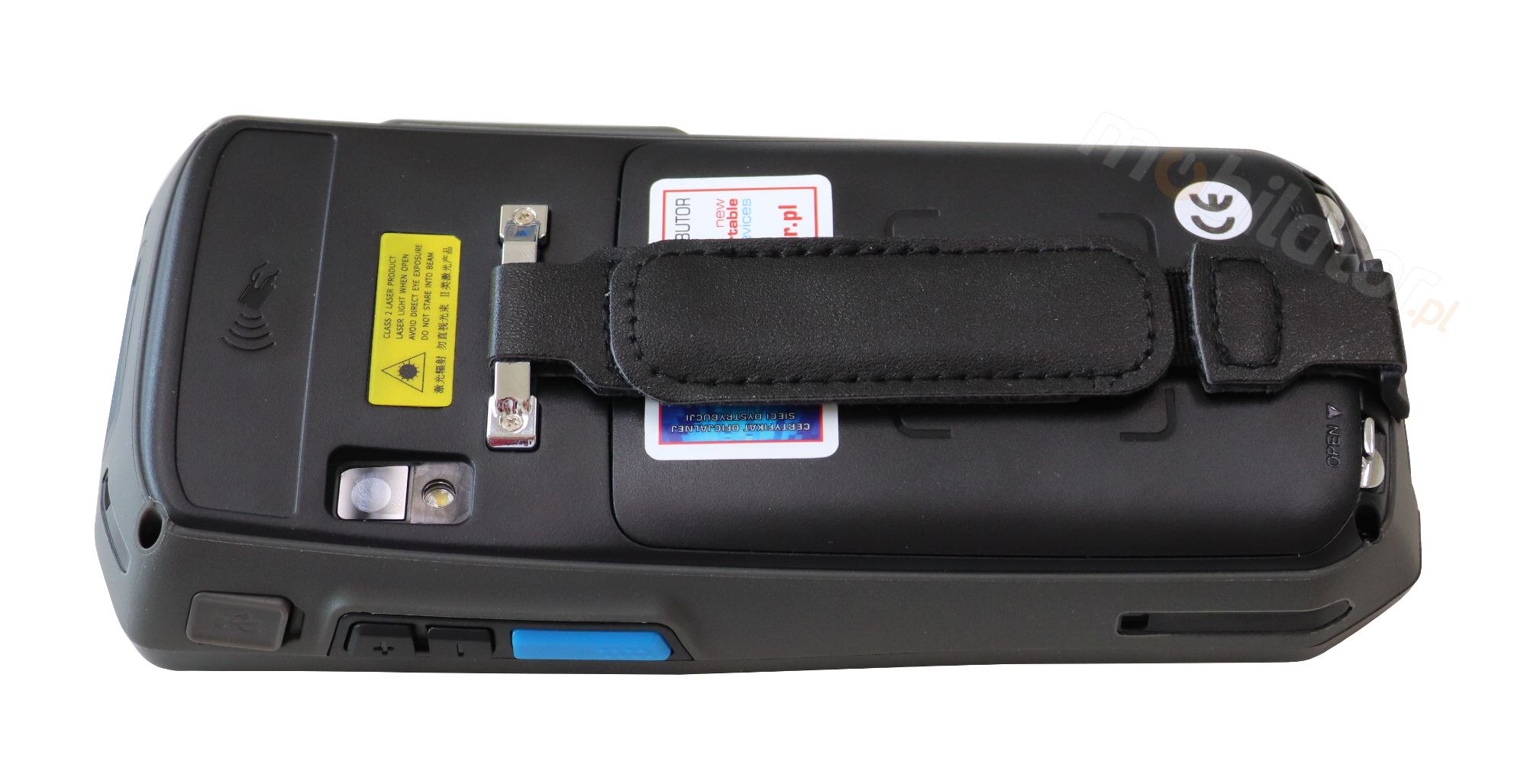

Modern Refractory Resistans Practical Data Collector MobiPad U90 Android WiFi

1D 1D / 2D
Mindeo uE966

 Newland: EM3090, Newland: 3096

Honeywell N4313

Honeywell: N6603



Radio-Frequency Identification (RFID) (Option)

RFID is a technology used to identify objects and to control the flow products. Reading of information from the special tags that are attached to objects (but not only, because RFID is also applicable to the identification of the animals and even humans) followed by radio. Depending on the type of tag changes the amount of information that can hold as well as the maximum distance at which data can be read. RFID tags, is an alternative to bar codes - more comfortable and more efficient.

Type

RFID LF     RFID HF
Frequency 125KHz               13.56MHz
Potocol ISO11784/5 ISO14443A/B | ISO15693
Read distance 3-8cm 3-8cm
Type RFID UHF
Frequency 840-960 MHz
Potocol EPC Class1Gen2 | ISO18000-6B/C
Antenna Circular antenna(3dBi)
Read distance 1.5-3m, tags and environment dependent



Near Field Communication (NFC) (Option)

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm or less. NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.


NFC
 Frequency 13.56 MHz
Reading distance od 2 do 4 cm
Supported card standard
Mifare Write/Read
Supported standards  ISO/IEC 18092

EMCA 340

go top... do góry menu… menu



Resitance

Applicable standards

Operating -20°C -- +50°C
Storage -25°C -- +70°C
Humidity 5% - 95% RH | non-condensing
Dust IP6x (dust)
Water IPx6 (water)
Drop 1.5m

go top... do góry menu… menu

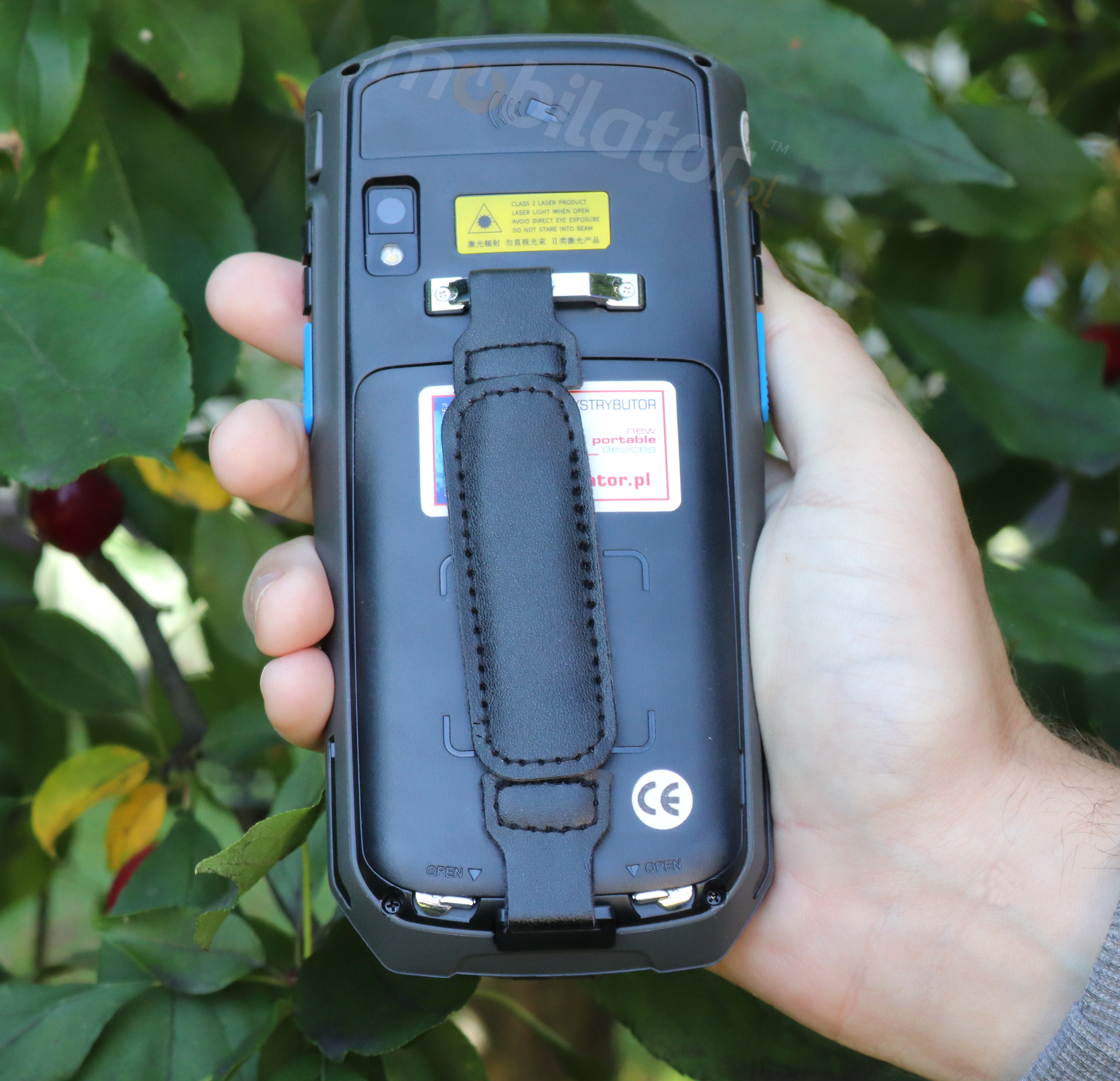

Modern Refractory Resistans Practical Data Collector MobiPad U90 Android WiFi

IP66 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

No special protection
0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from solid objects greater than 50mm in diameter
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from splashed water
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection from water projected from a nozzle


7

Protection against immersion


8


Protection against complete, continuous submersion in water

go top... do góry menu… menu

Modules and Wireless Networks

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad U90 devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.

WiFi  802.11 a/b/g/n
GPS  Yes
Bluetooth  Bluetooth  v4.1
WWLAN(4G/3G/2G)

LTE-FDD B1 B3 B8

LTE-TDD B38 B39 B40 B41

WCDMA Band1 Band8

TD-SCDMA Band34 Band39

CDMA BC0

DCS1800

EGSM900


go top... do góry menu… menu

Minimalism

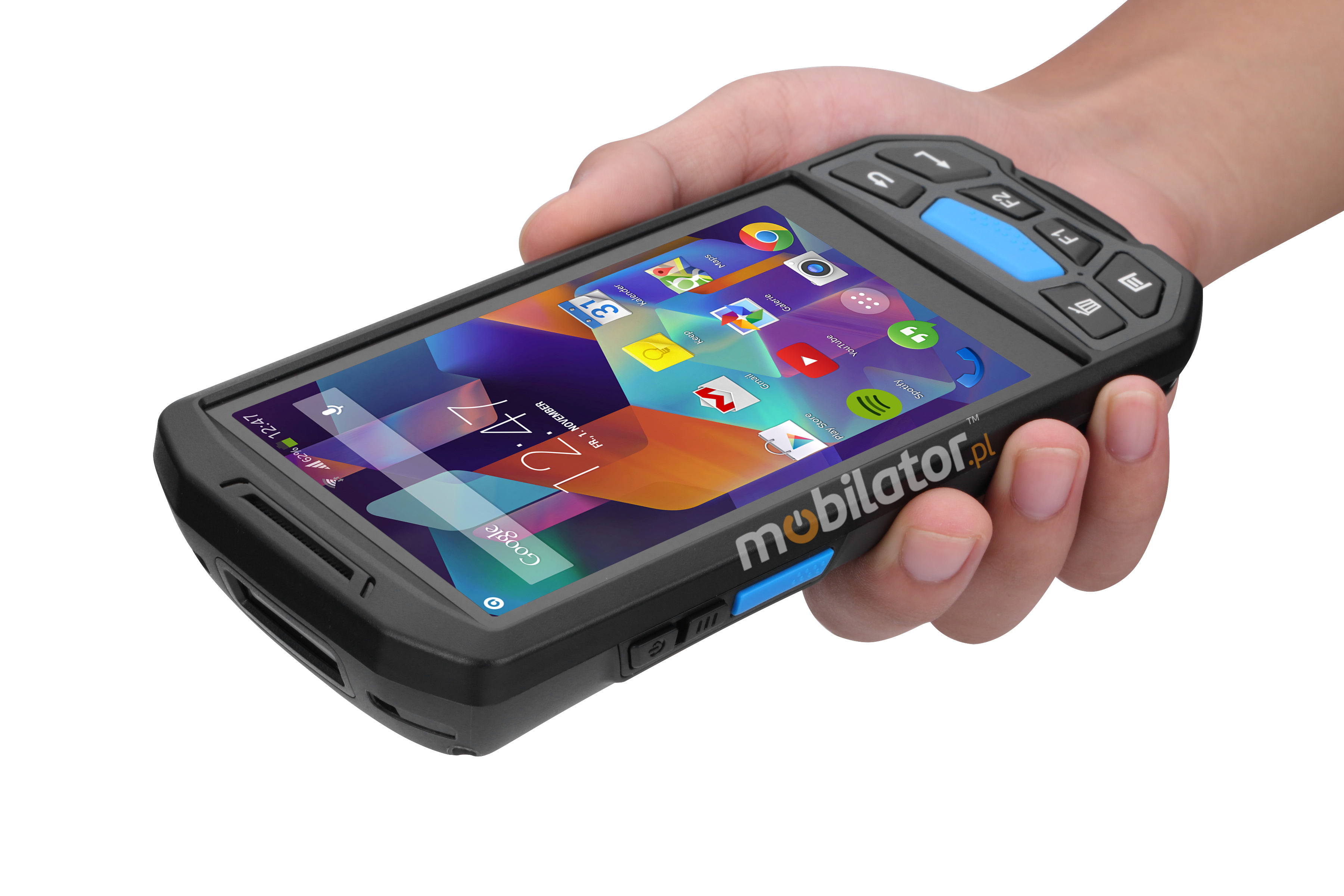

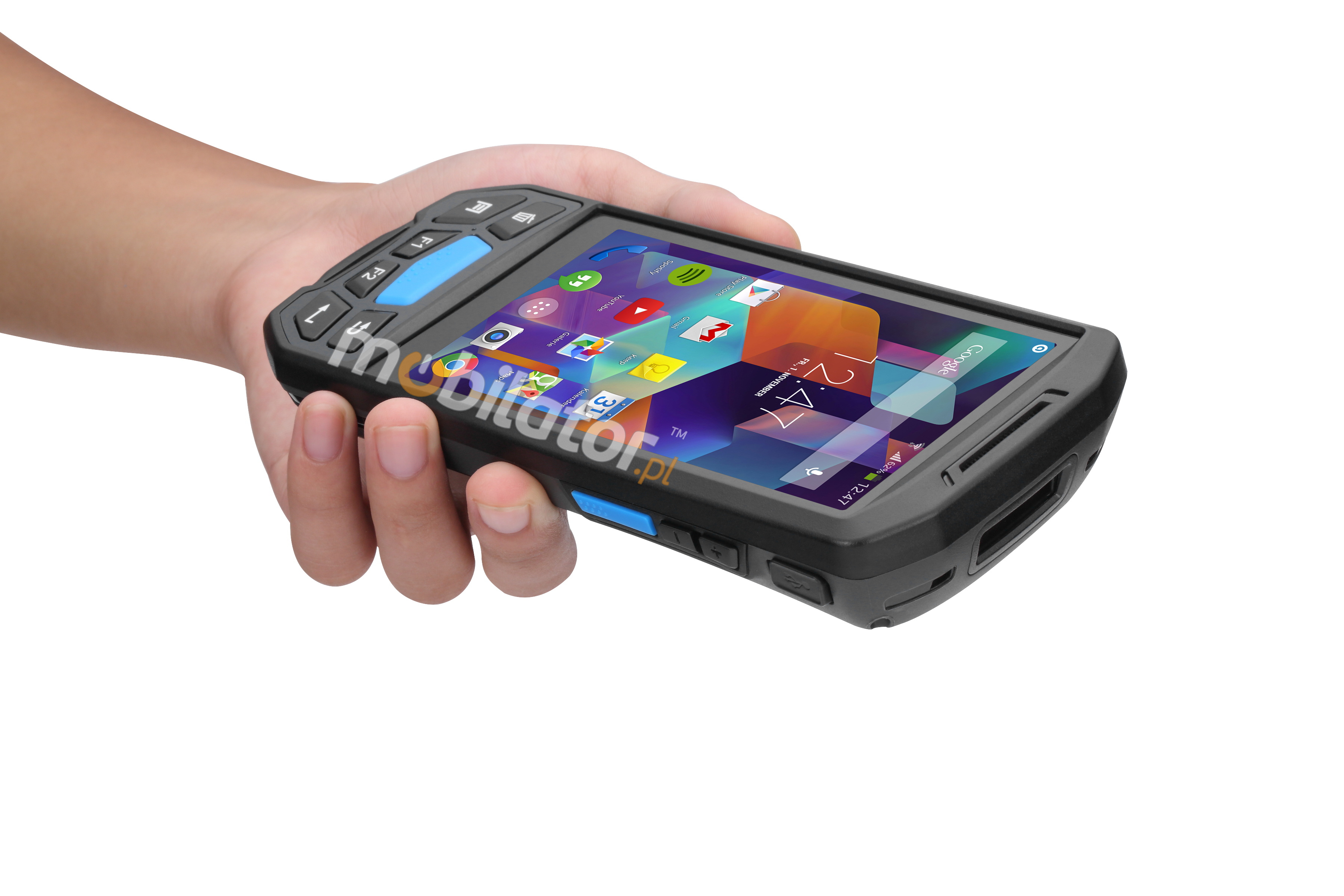

Modern Refractory Resistans Practical Data Collector MobiPad U90 Android WiFi

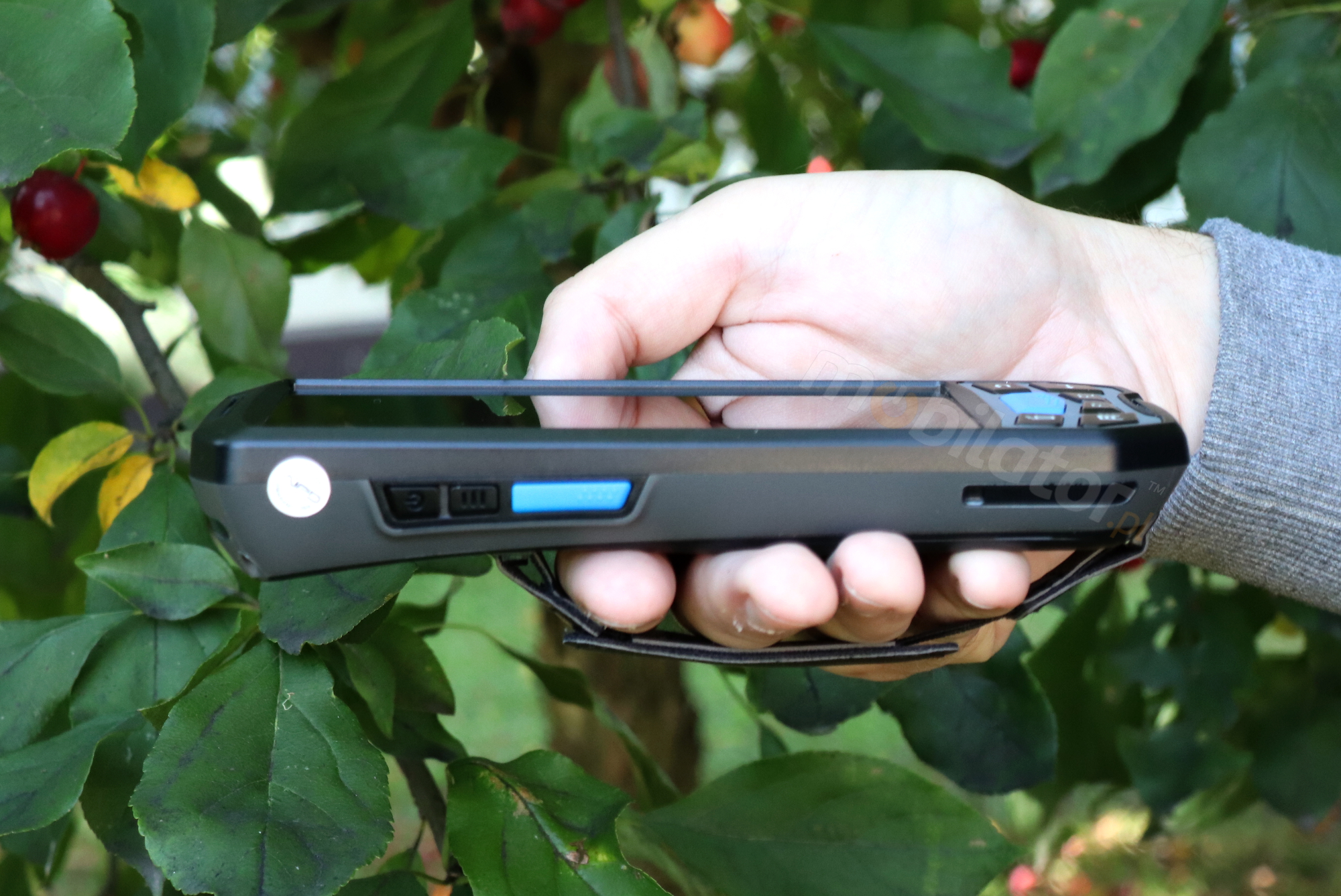

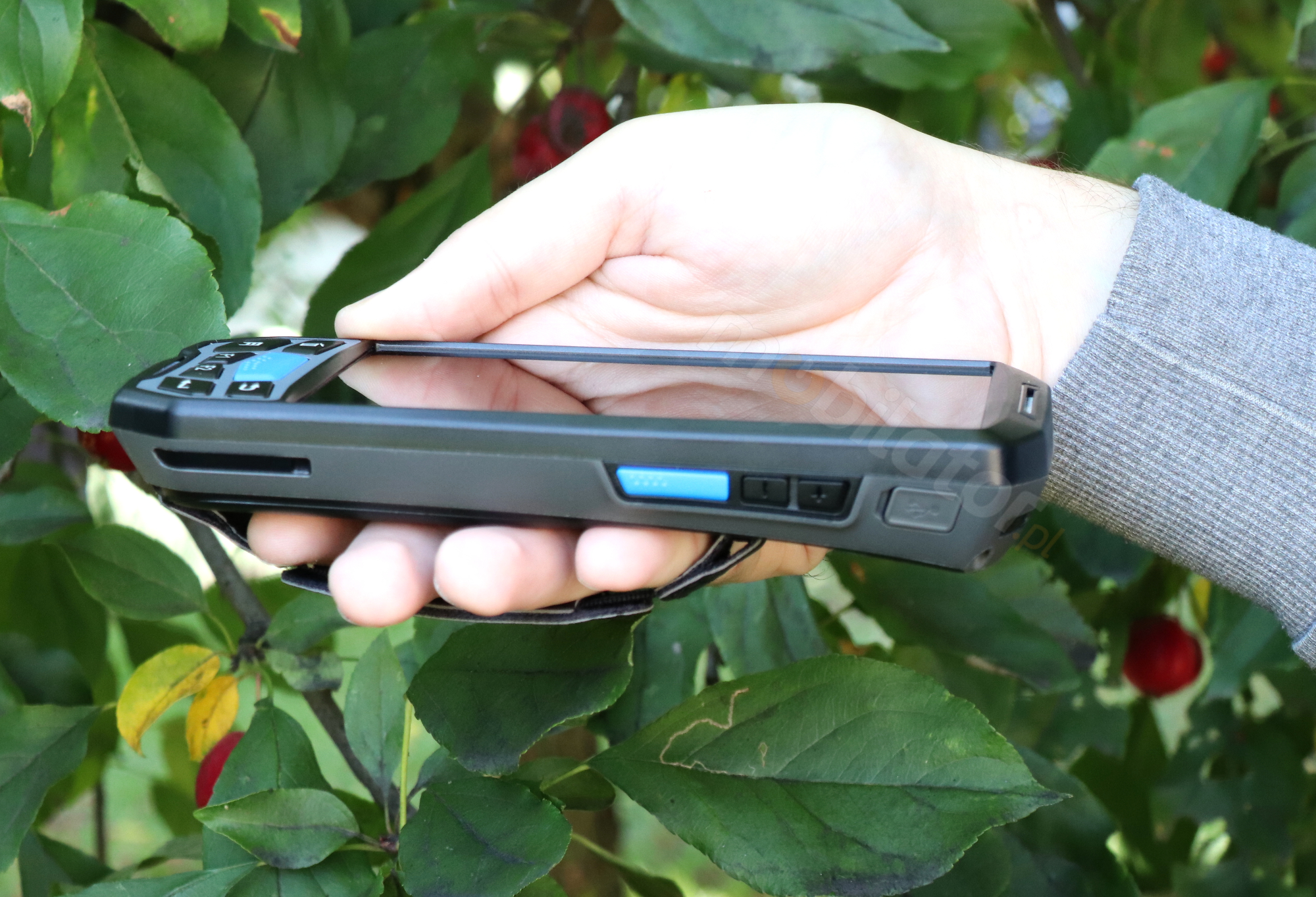

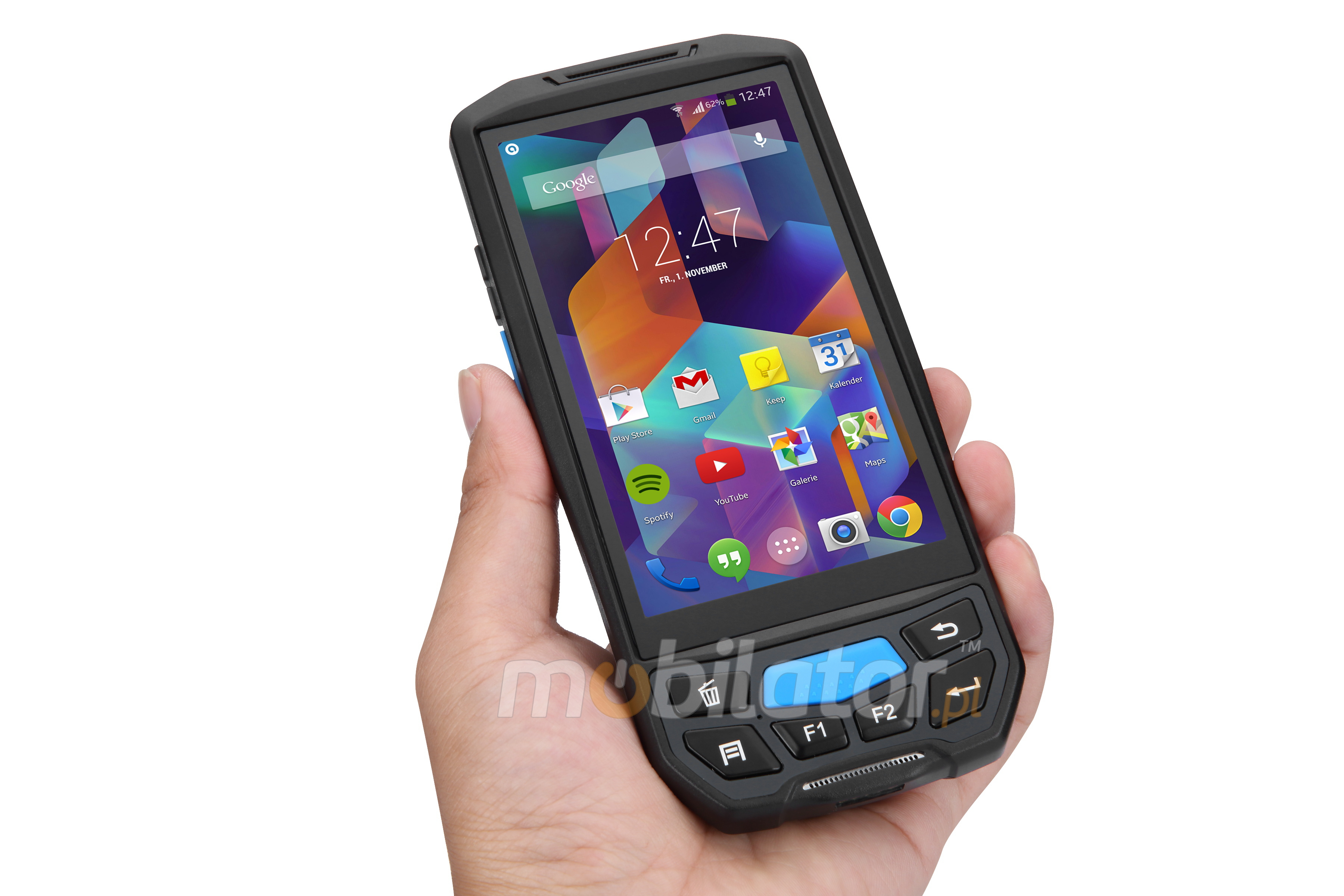

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad U90. The device weighs just 500g and its dimensions  (172 x 80 x 27mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MobiPad U90 is in a group of devices which enjoy great popularity in the European market in the industrial segment.

go top... do góry menu… menu

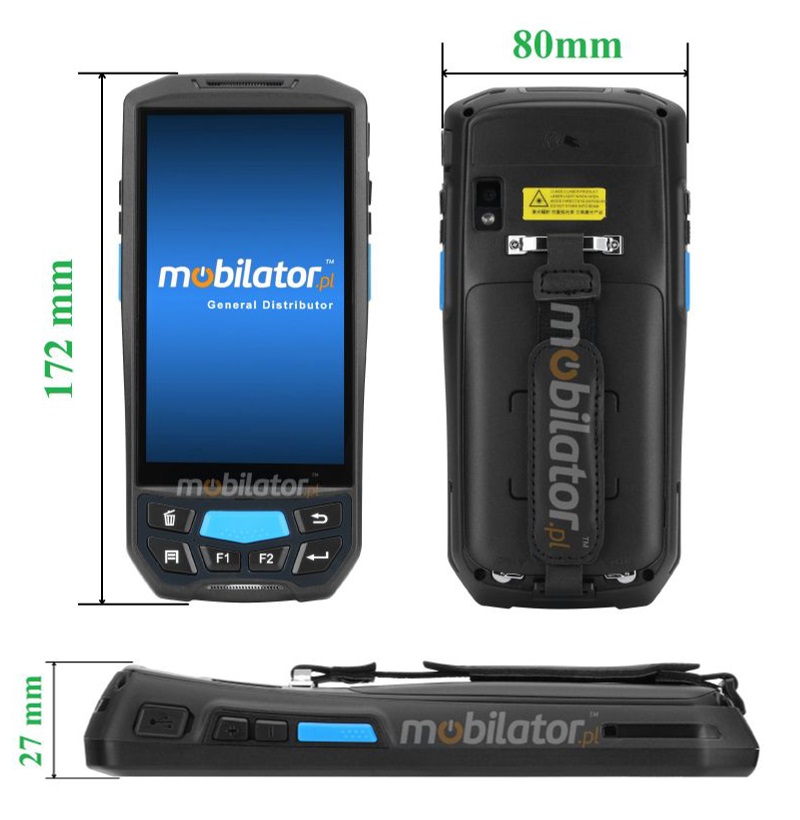

Dimensions 172 × 80 × 27mm
 Weight 500g
more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
