Industrial Fanless MiniPC IBOX-N2800

Data update: 2015-01-21

guarantee 1 year (opt.2/3)

Ask about the product


Tell a friend


Compare product

The product from the archive - production terminated
Znak akceptacji płatno?ci pl

Compare all versions

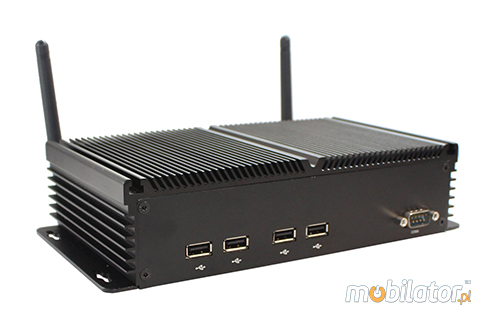

Przemysłowy Fanless MiniPC IBOX-N2800


Industrial Fanless

Fanless industrial PCs are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation. Small and reliable MiniPC use of heat-pipe technology and aluminum fans for passive cooling.

IBOX-N2800 is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

go topdo góry   menu… menu


Housing dimensions are 234 (W) x204 (L) x54 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 2.4 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

Using the latest technology Digital Engine (industrial fanless MiniPC) is designed for continuous multitasking operating with low power consumption. An important advantage is the effective combination of small size with considerable opportunities through the use of Intel's processor family, Intel chipset and DDR3 memory. Integrated Intel GMA3650 video and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio) - in Full HD quality. Disks offer free space from 32GB SSD to 256GB SSD (from 320GB to 1TB HDD).

Przemysłowy Fanless MiniPC IBOX-N2800

go topdo góry   menu… menu

Communication & Connectors

Integrated card - two Intel 1000M Lan RTL8111E (optional WiFi module) allows connection to the network. The computer is equipped with: one LAN ports, six COM ports (RS232), one VGA output, one LPT port, six USB 2.0 ports, one way audio, one microphone input and connectors built into the motherboard: two PowerOUT outputs, one audio output, one CPUFAN, one LVDS connector.

LVDS Interface
This is a fast digital interface that is used for many applications requiring: a high resistance to interference electromagnetic, low energy consumption at high data rates. LVDS is used in various applications and industries, including commercial and military applications

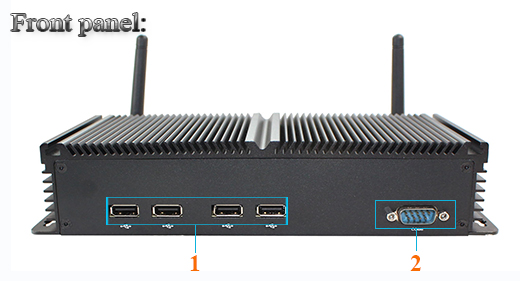

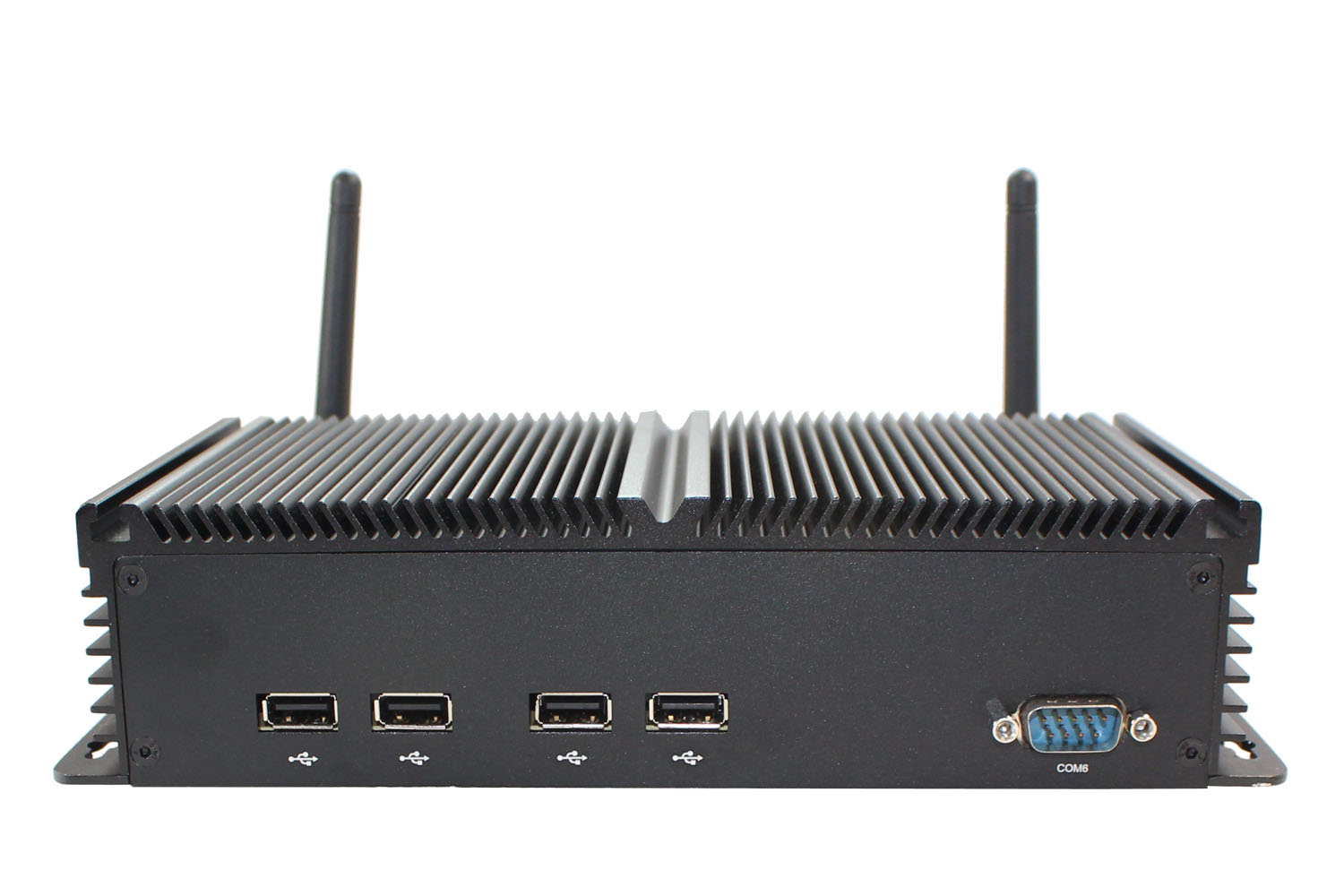

Przemysłowy Fanless MiniPC IBOX-N2800

1. 4x USB 2.0
2. COM(RS232)

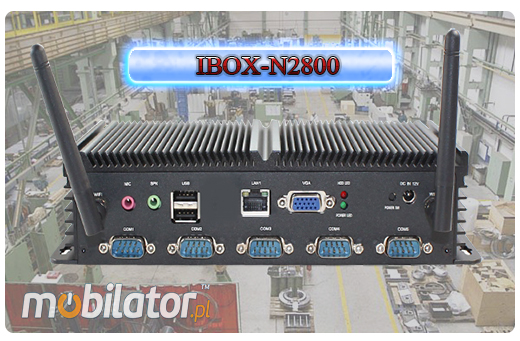

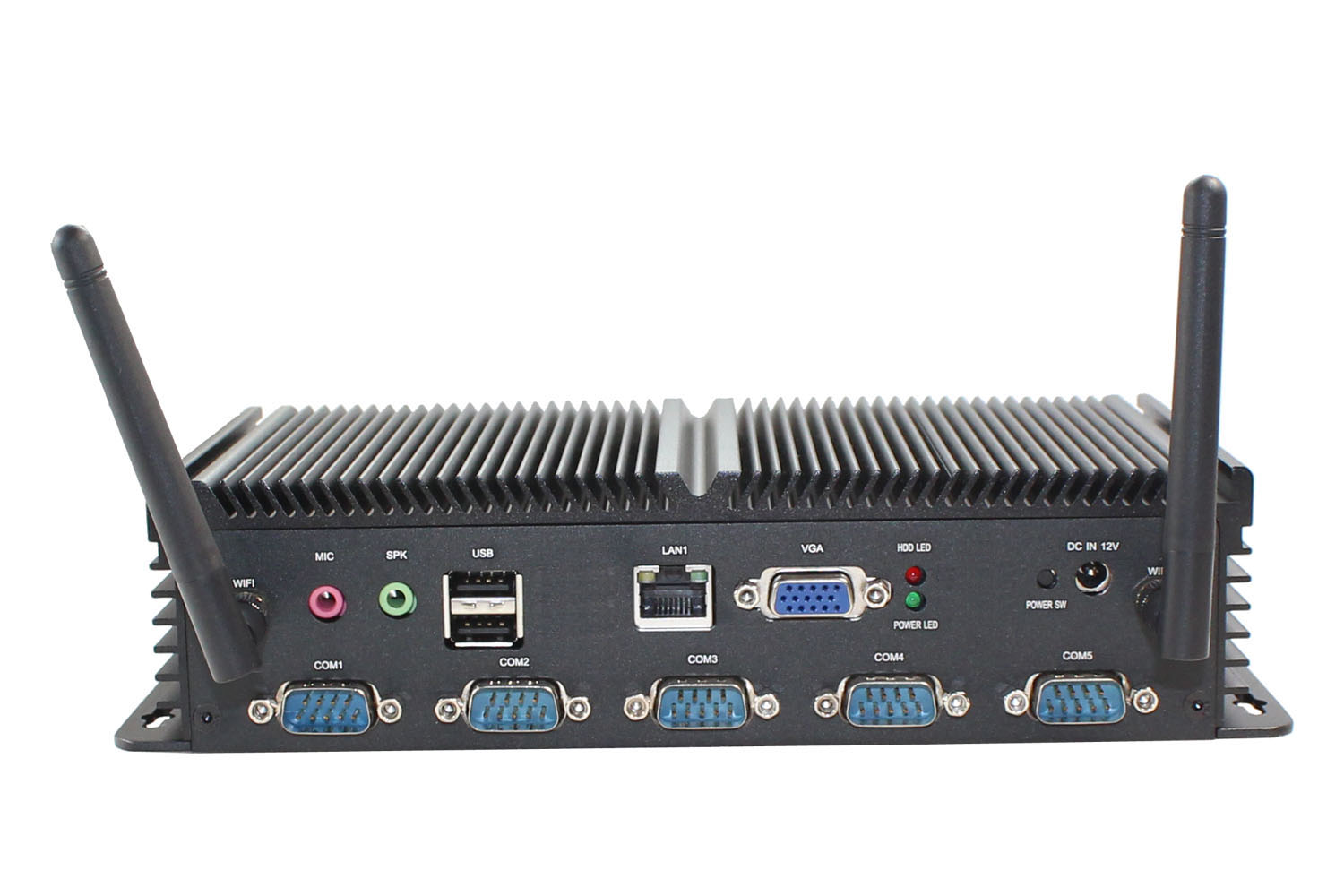

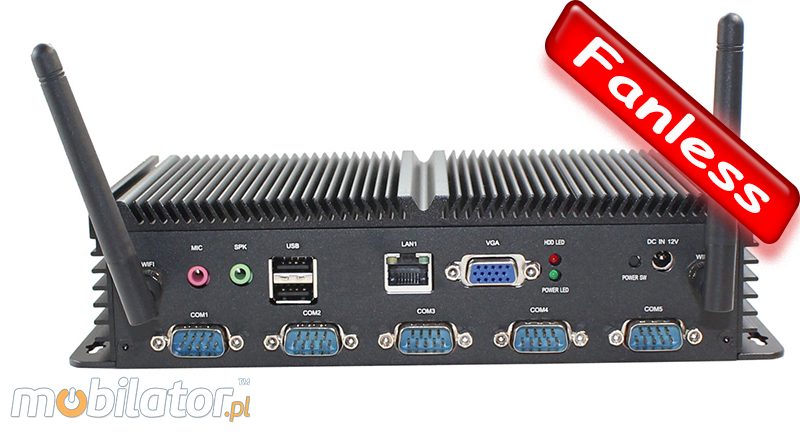

Przemysłowy Fanless MiniPC IBOXN2800

1. Audio/Mic   4. VGA
2. 2x USB 2.0
  5. DC-IN 12V
3. RJ-45
  6. 5x COM(RS232)

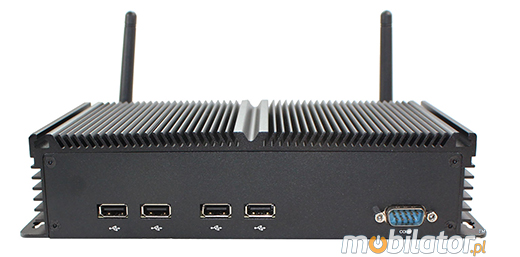

Przemysłowy fanless MiniPC IBOX-N2800
The industrial fanless MiniPC IBOX-N2800 uses a special method of cooling. This cooling takes place mainly by means of housing having a very large surface (longitudinal lamells, ribs) - for heat dissipation. Fan used inside the computer is designed to rapidly drain hot air from the CPU, allowing MiniPC to reach more efficiently and faster cooling.

go topdo góry   menu… menu


      Industrial MiniPC Series IBOX-N2800 are based on high-performance two-core processors and high-quality components. Mini computers are locked in small industrial housing which perfectly discharge heat from the device interior. Wide choice of IBOX models can give possibility to configure, enabling optimal selection of mini computer to multimedia applications and industrial applications. The biggest advantagesPrzemysłowy Fanless MiniPC IBOX-N2800 of these devices are: small size, performance and energy efficiency. An extra pair of brackets at the bottom of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model mini PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

Przemysłowy Fanless MiniPC IBOX-N2800


Areas of use of industrial MiniPC

Digital Engine

Przemysłowy Fanless MiniPC IBOX-N2800

Small, fanless computer can find various of commercial applications such as computer system for sale, for display informations about the products on monitors or ads on the big screens. With the help of handles combined with the housing there are many mounting possibilities - such as: in shops (at the cash register, at the back of monitors for LCD / LED), in factories halls, in the cars which are used for distribute different kind of products, etc., will certainly find application in all kinds of networks trade.
Przemysłowy fanless MiniPC IBOX-N2800
Przemysłowy Fanless MiniPC IBOX-N2800


Industrial fanless MiniPC IBOX-N2800 by up to six COM ports (RS232) can be used to connect multiple devices in the store or warehouse and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas. Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

Transport and cars

MiniPC fanless IBOX-N2800 can be used on transport market, in cars, through adapting him to operate with a supply 12V (optionally from 6V to 34V). Mini computer can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.
Przemysłowy Fanless MiniPC IBOX-N2800

Przemysłowy Fanless MiniPC IBOX-N2800

Versions available


D2550A D2550B N2800 N2800A N2800B D525
Intel Atom N2800 - - -
Intel Atom D2550  - - - -
Intel Atom D525 - - - - -
LVDS - - - -
GPIO - - - - -
LPT - -
1 x RJ-45
- -
2 x RJ-45 - -   -
1 x COM(RS232) - - - -
2 x COM(RS232) - - - - -
6 x COM(RS232) - - -

go topdo góry   menu… menu




   H: 54 mm

   L: 204 mm

   W: 234 mm

   Weight    2,4kg
   Intel Atom Dual Core N2800 (2x 1.86GHz)
   Intel NM10 express chipset
   RAM Memory
   2GB DDR3 (optional 4GB)
   Graphic Card
   Intel GMA3650
   Sound Card
   Realtek ALC662
   Intel RTL8111E 1000M Lan

   6x COM(RS232)

   1x wyjście 12V DC_JACK

   6x USB2.0

   1x RJ-45

   1x wyjście Audio

   1x Mic

   1x VGA

Przemysłowy Fanless MiniPC IBOX-N2800
