« Back    Home / UMPC - Ruggedized / Archives

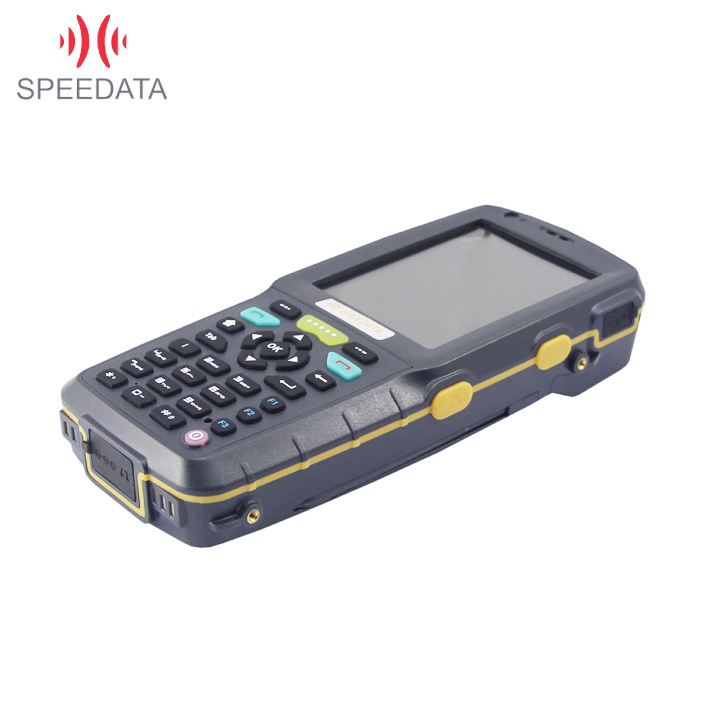

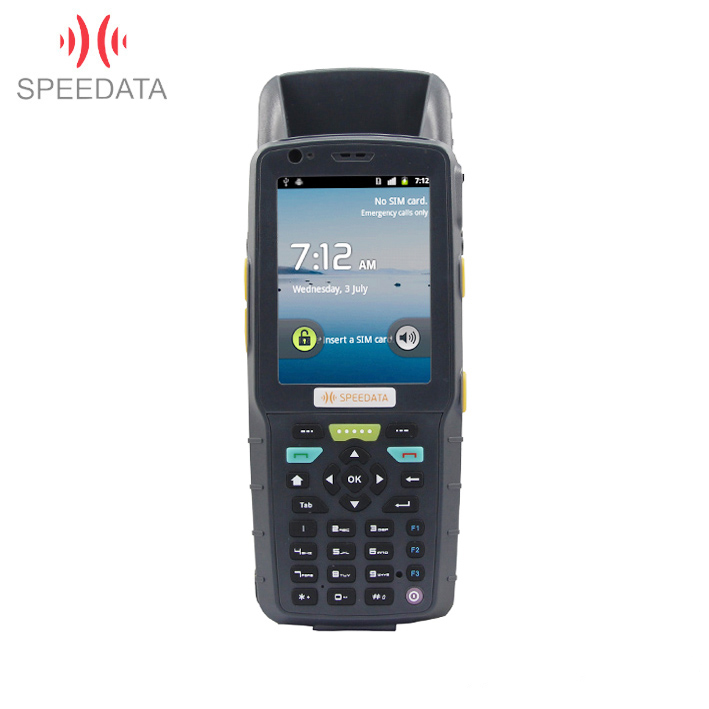

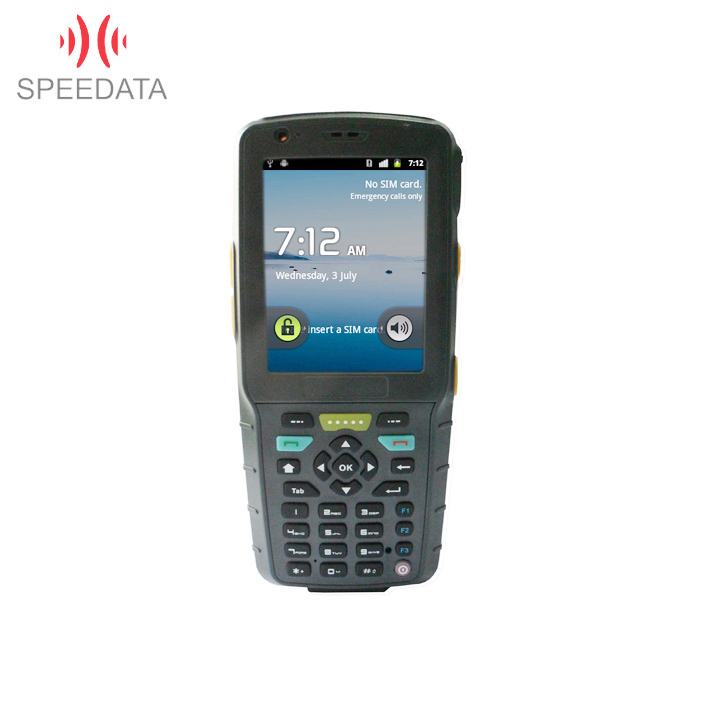

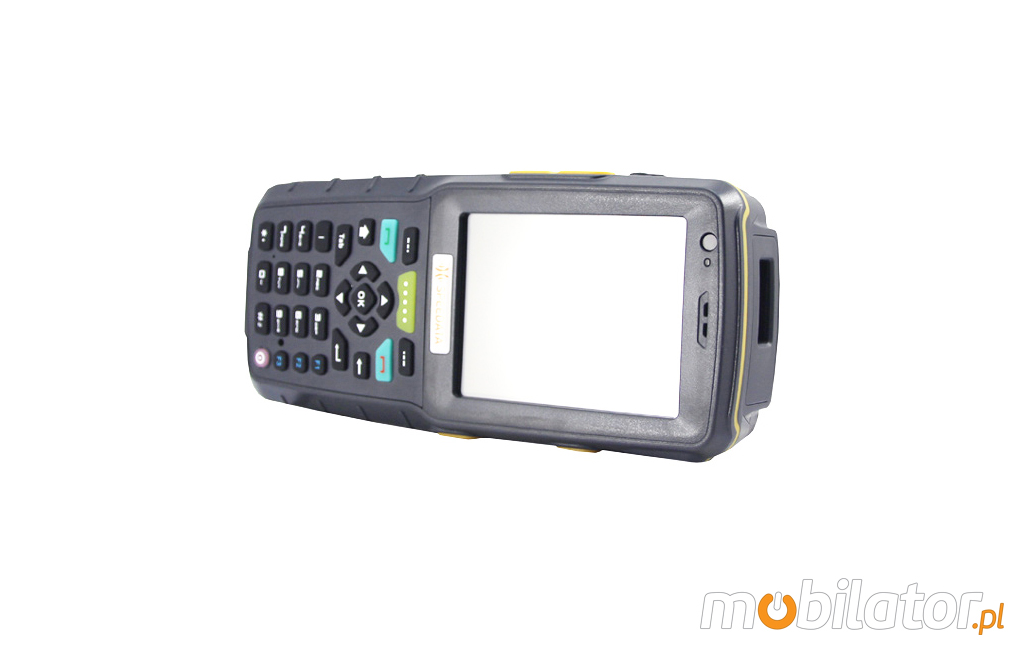

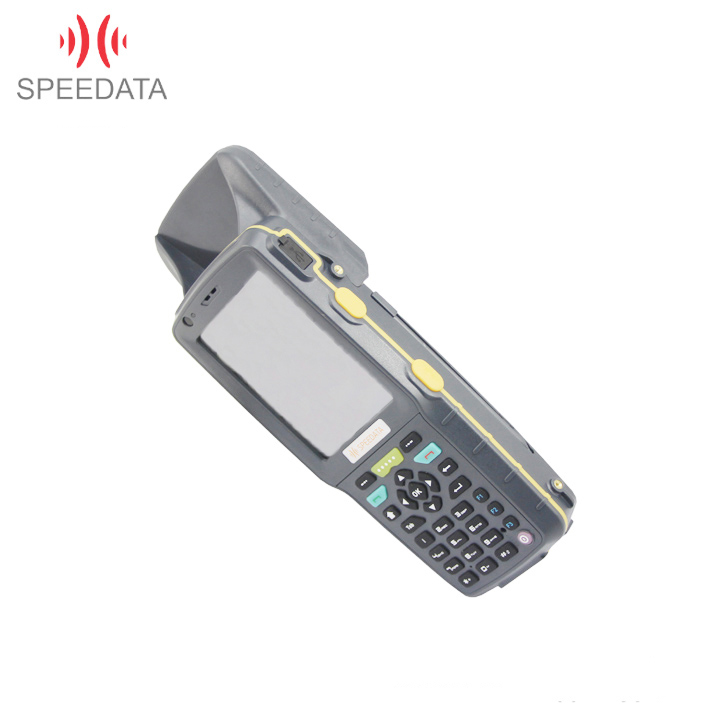

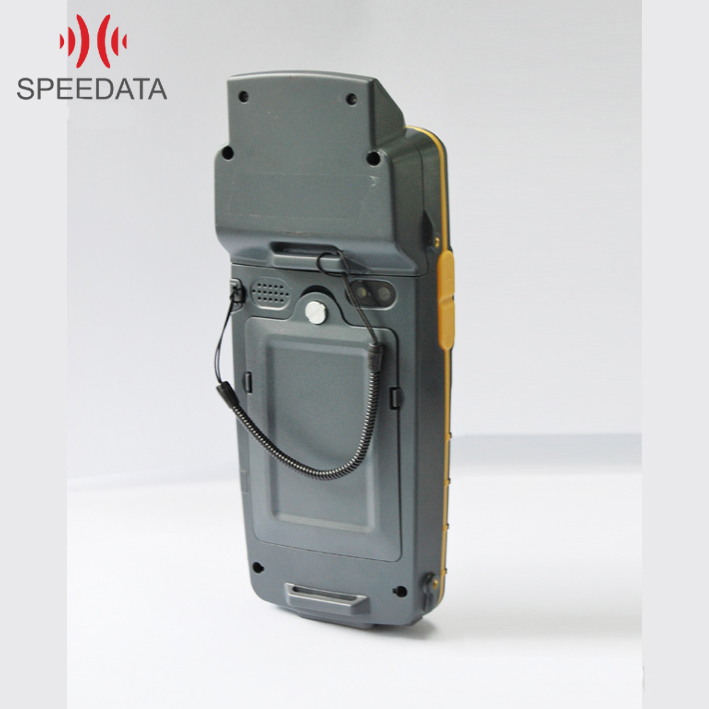

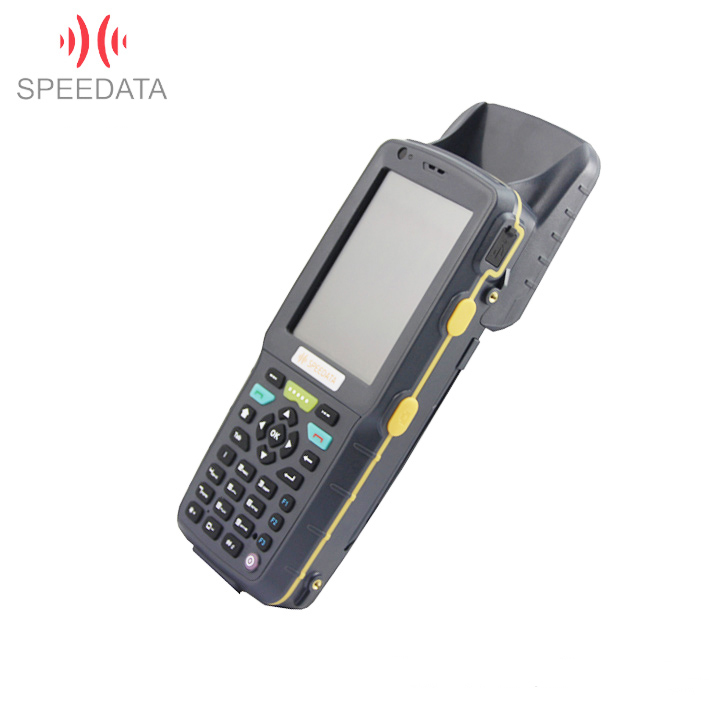

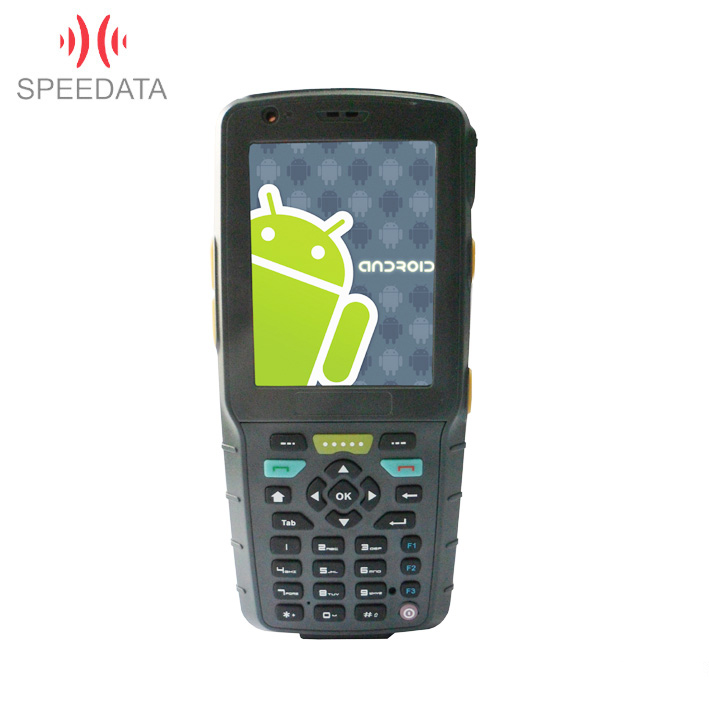

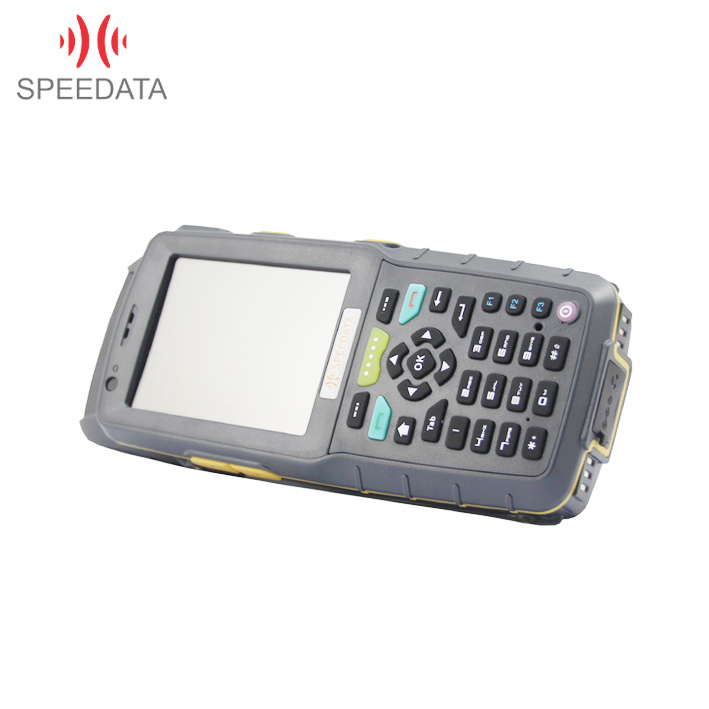

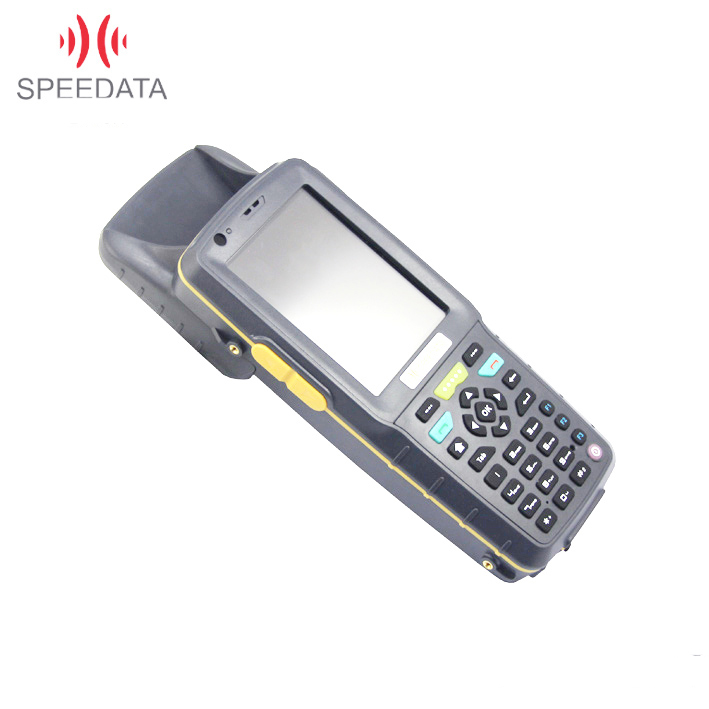

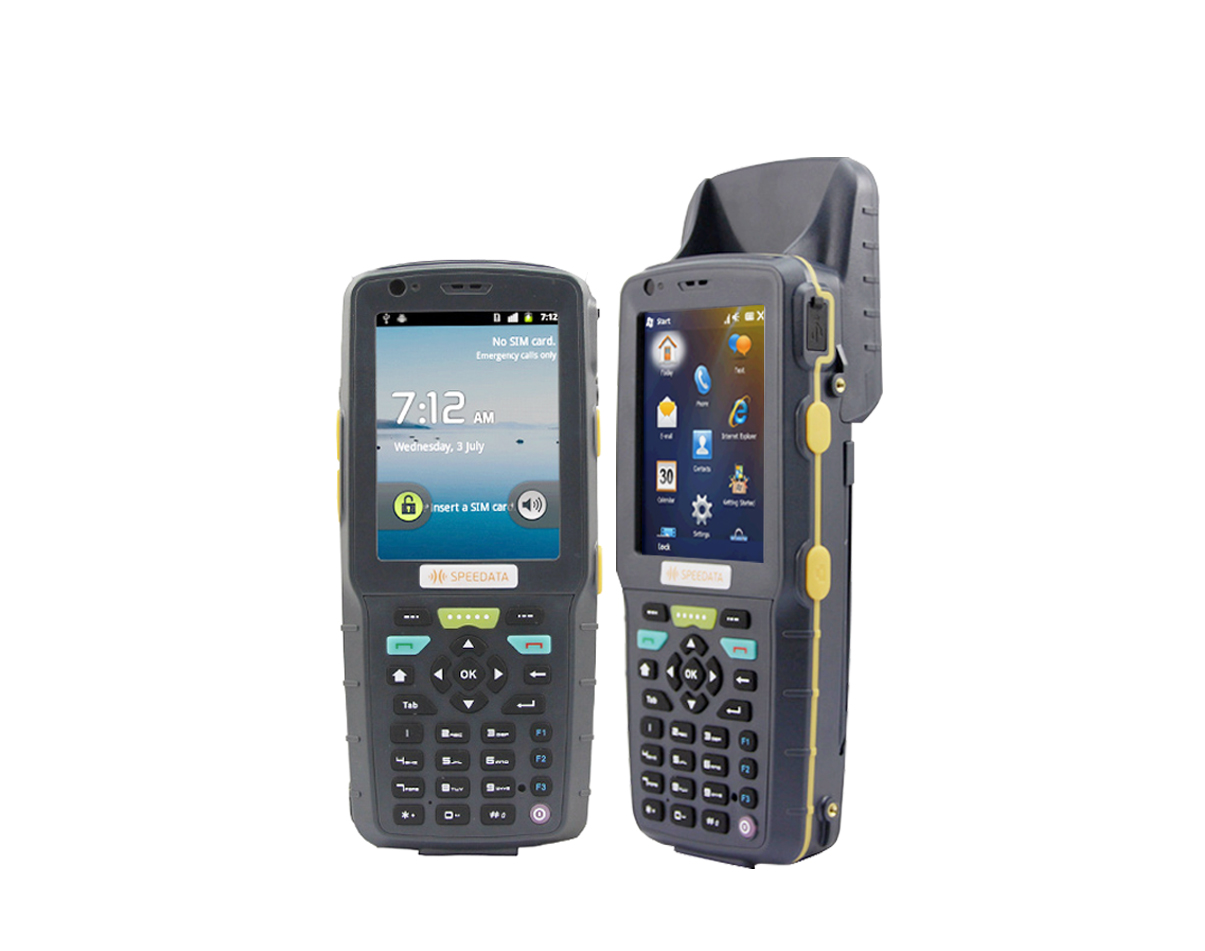

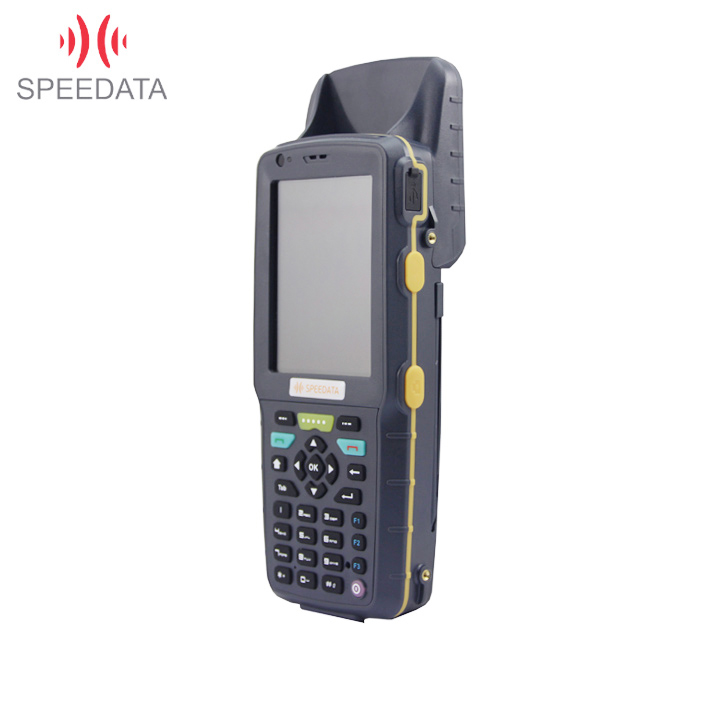

Rugged data collector Speedata TT35C-A v.1

Data update: 2016-11-09

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated
Znak akceptacji płatności pl

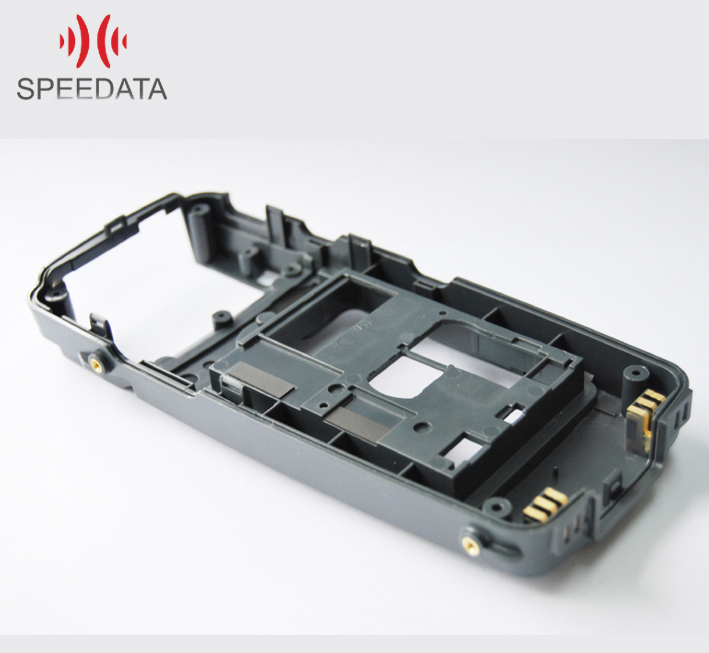

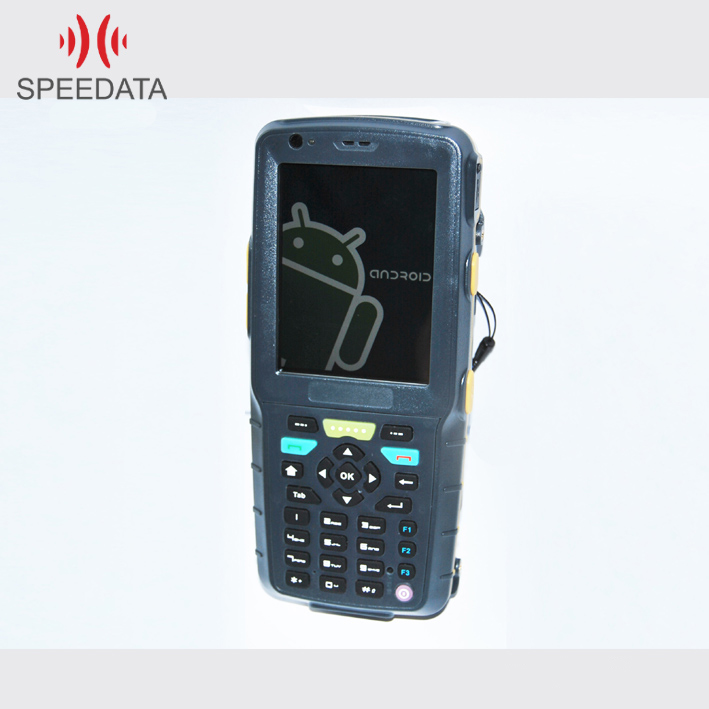

Speedata TT35 has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.



Description

speedata tt35 rs232 3g gps printer drukarka termiczna

 Processor  Texas Instruments 3715-A8 1Ghz
 Display  3.5" TFT LCD (640x480) 4 WIRE  - resistive (Sunlight Readable)
 RAM  512MB DDR
 ROM  512MB
 Connectors  Micro SD : USB HOST/RS232 : SIM
 GPS  Built-in (ublox 6010) : ublox LEA-6T (optional) : ublox LEA-6N (optional)
 Audio  AudioJack
 Camera  5Mpx
 Battery  4500mAh Li-Ion
 Keyboard  Front: 30 keys | Side: 4 keys | On-Screen
 Environment  Android 4.0 lub Windows Mobile 6.1/6.5
 Modules
 WiFi+Bluetooth : GPS (Standard) : GSM/3G : PSAM (optional)
 3G (factory)  Huawei MU609
   GSM 850/900/1800/1900MHz | GPRS, EDGE UMTS 850/900/1900/2100MHz HSPA
 Dimensions  182 x 82 x 36mm - 400g (with battery)
 Resistance  IP65

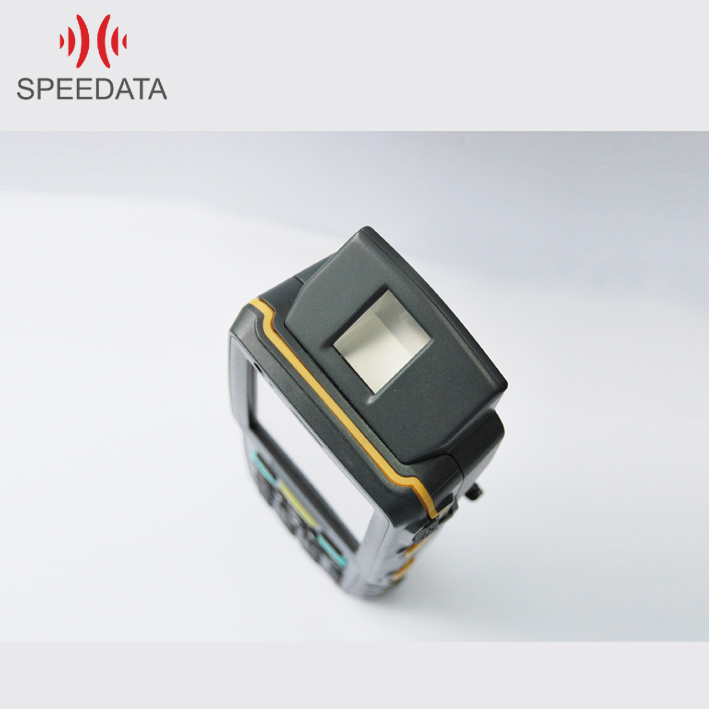

 Readers (optional)  Infrared meter reading |  Fingerprint | RFID HF | RFID LF | RFID UHF | 1D | 2D
 Warranty
 12 months (option 24 months)
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

Collecting and processing of data

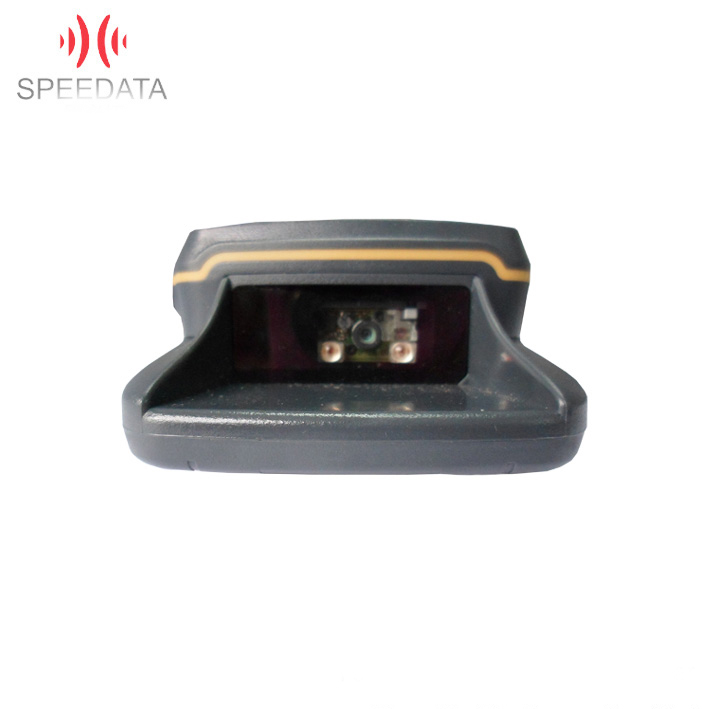

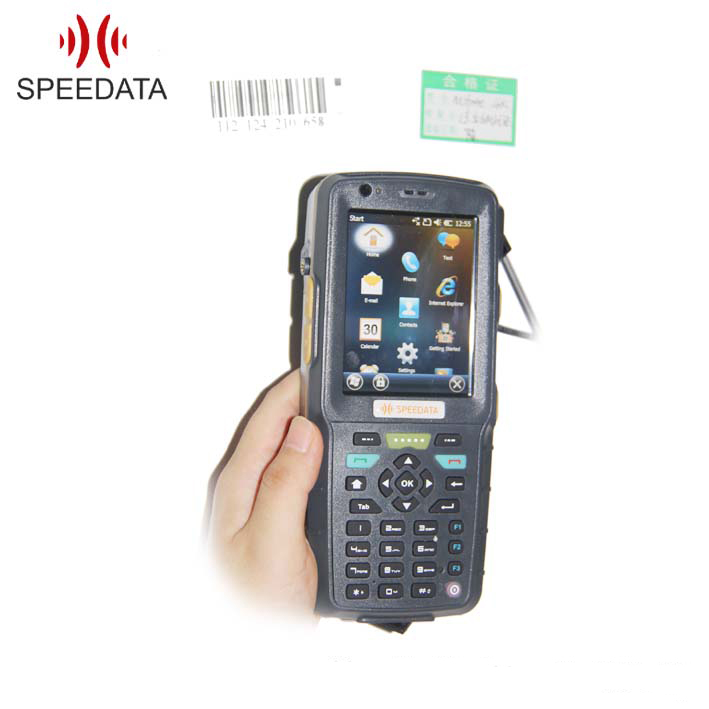

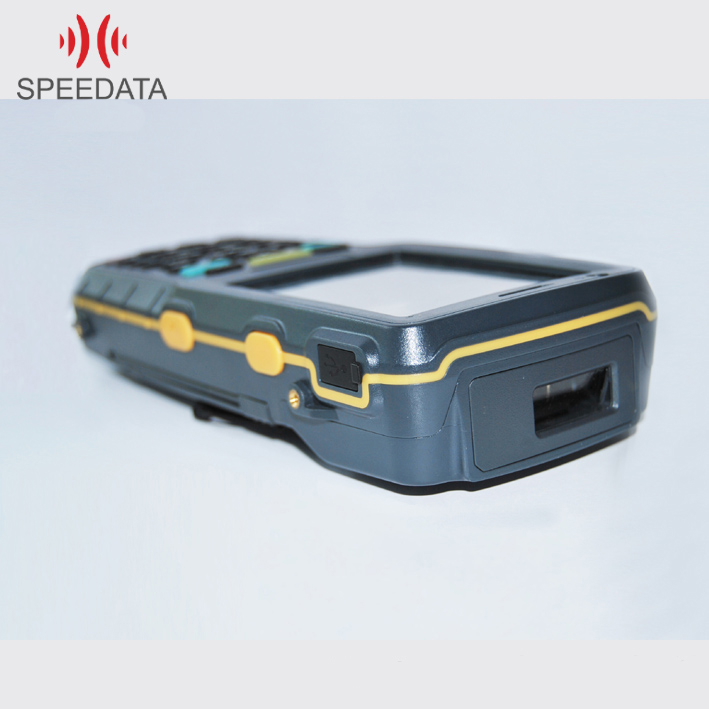

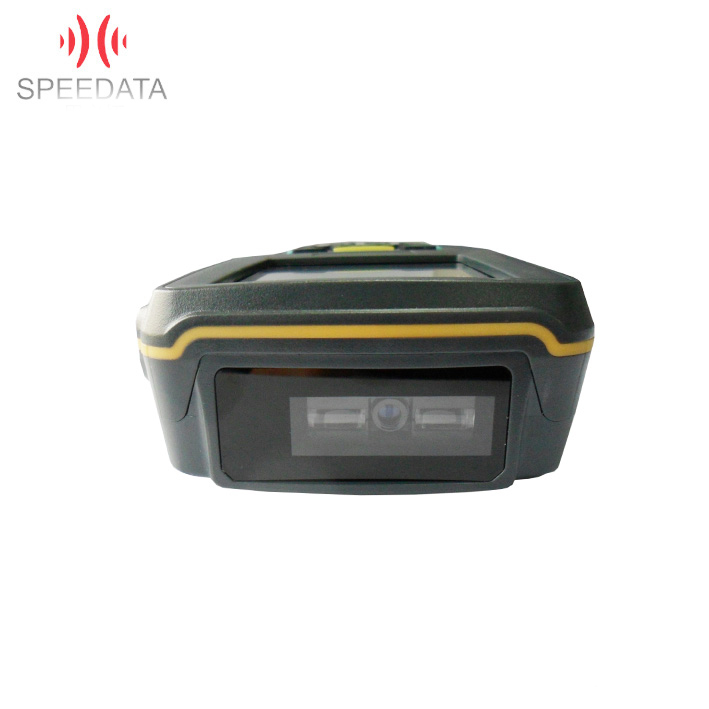

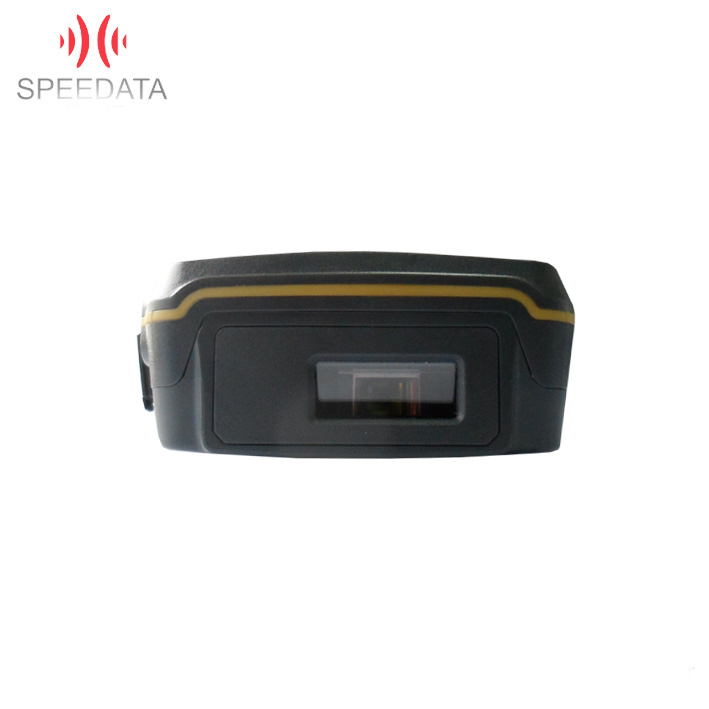

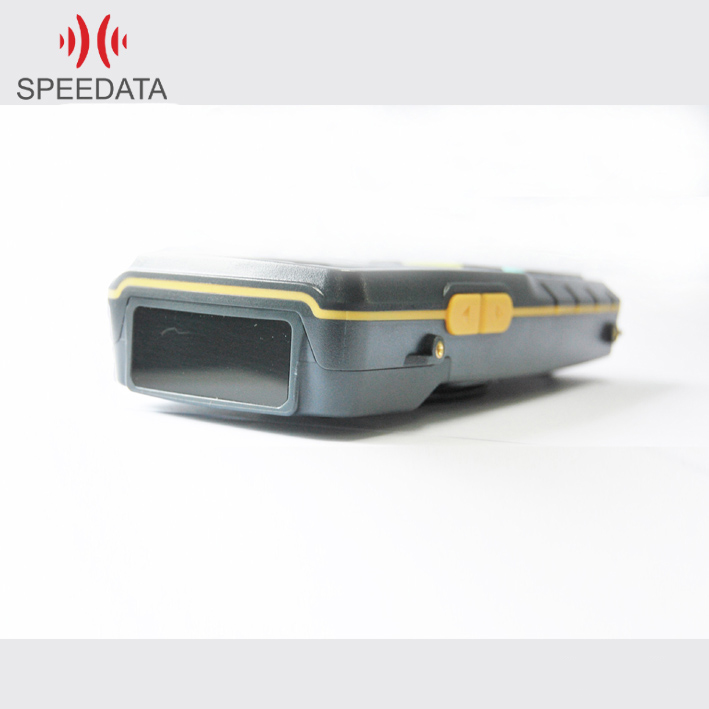

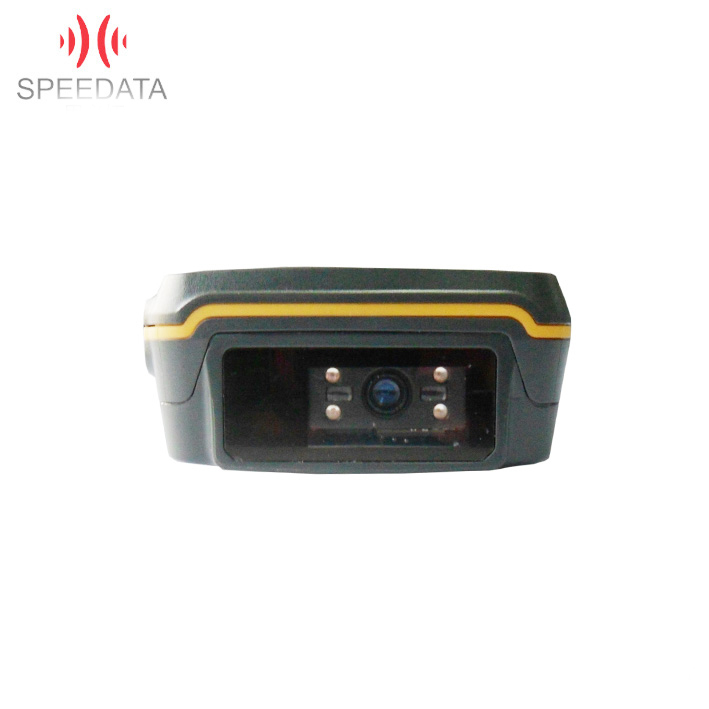

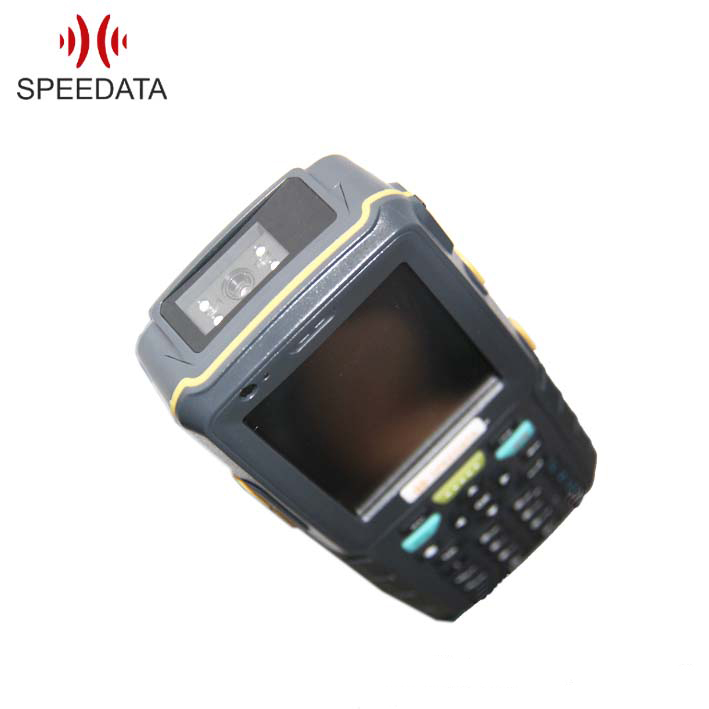

Barcode Scanner

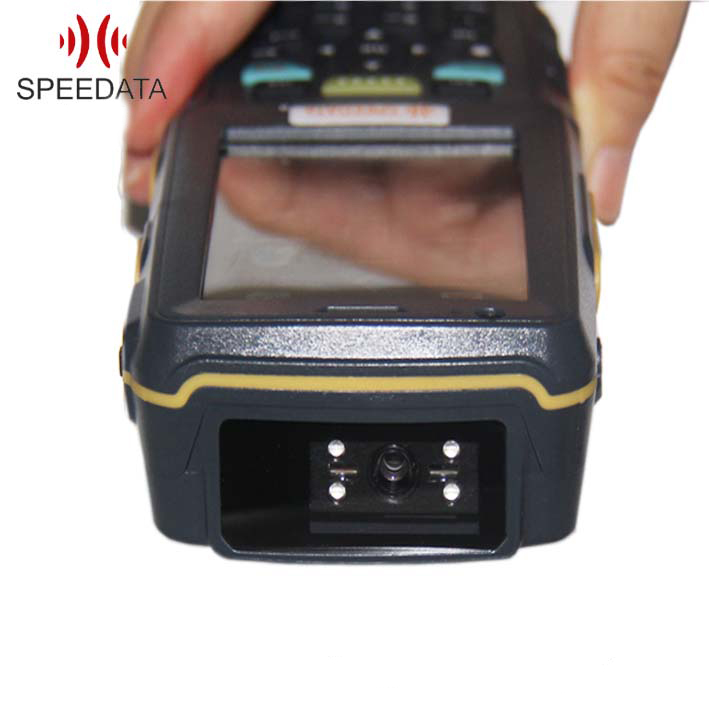

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

1D 1D / 2D
NEWLAND: EM1300 (CCD)
MOTOROLA: SE4500 (BI-DIRECTIONAL)
MOTOROLA: SE955 (LASER) NEWLAND: EM3000 (CMOS)

pda handheld kolektor danych 1d laser 2d cmos motorola honeywell newland

Far-Infrared Meter Reading (IPOR)

Rangefinder in the tablet industry TT35 proves you that ruler thing of the past. Built use the distance will allow you to easily and accurately measure the distance without having to rebuy an additional device.

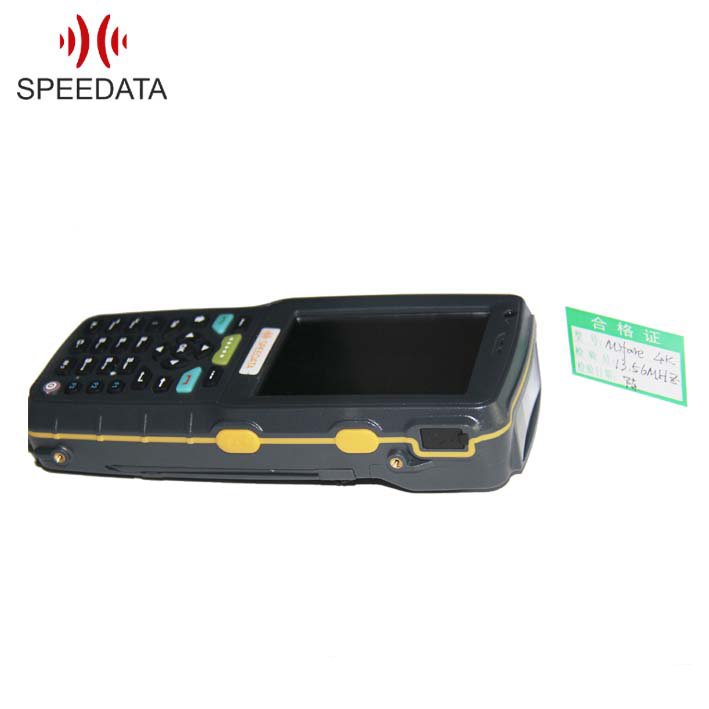

RFID

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

  RFID HF RFID HF + RFID LF1 RFID LF2 RFID UHF
Frequency 13.56Mhz 13.56Mhz
134.2khz
125khz 865-868Mhz
Reading distance
to 3 cm
3 cm
10 cm
10 cm
1 meter
Standards ISO14443 ISO14443
A/B
ISO11784/11785
  ISO18000-6C (EPC Gen2)
    ISO15693 FDX-B/HDX   ISO18000-6 A/B


speedata tt35 rfid 13.56 iso14443 iso 15693 rfid lf 134.2khz uhf

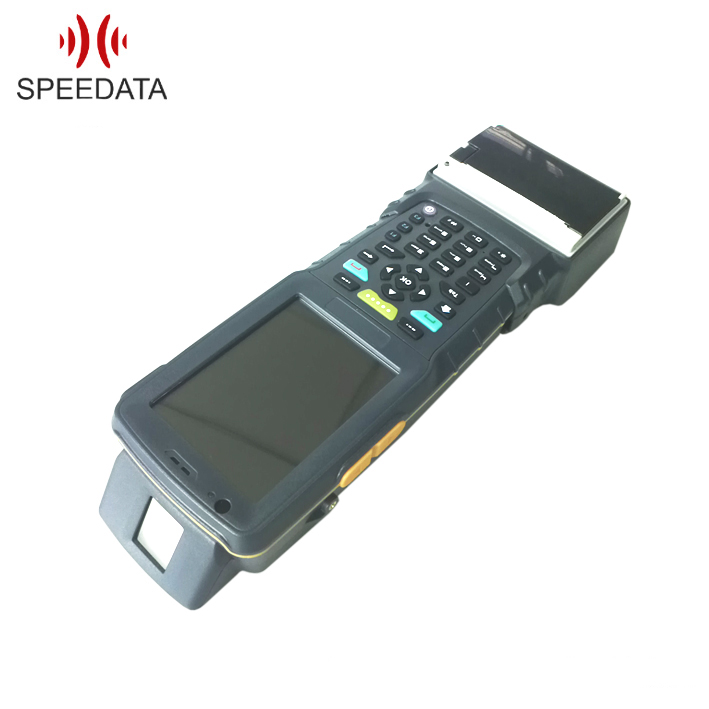

Thermal Printer

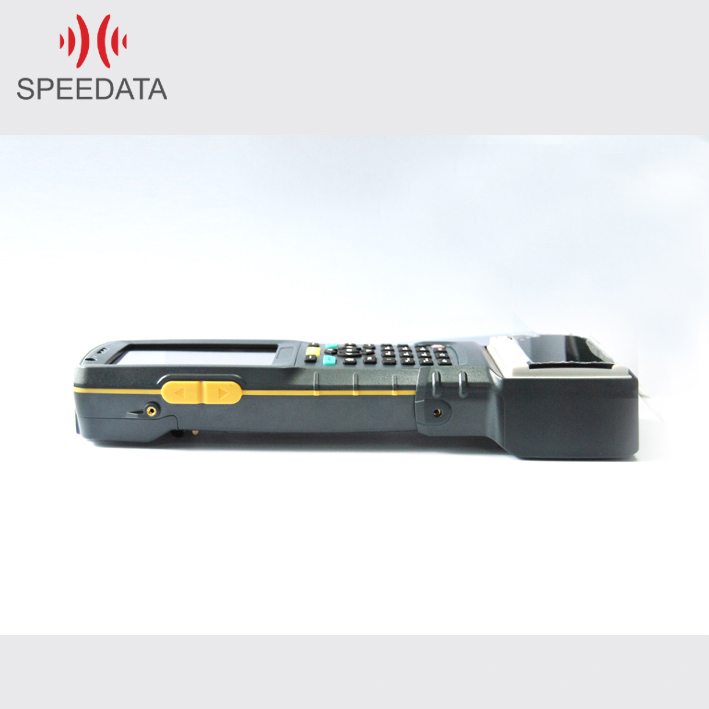

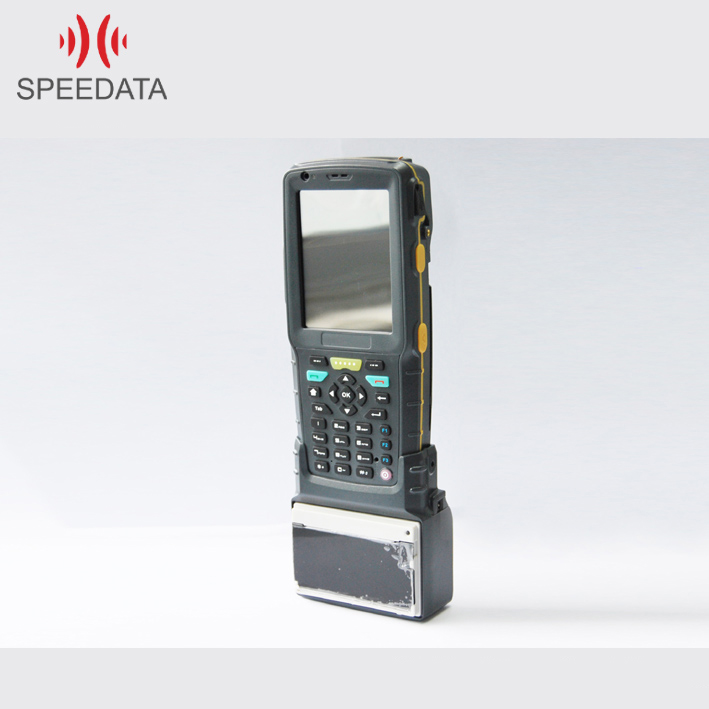

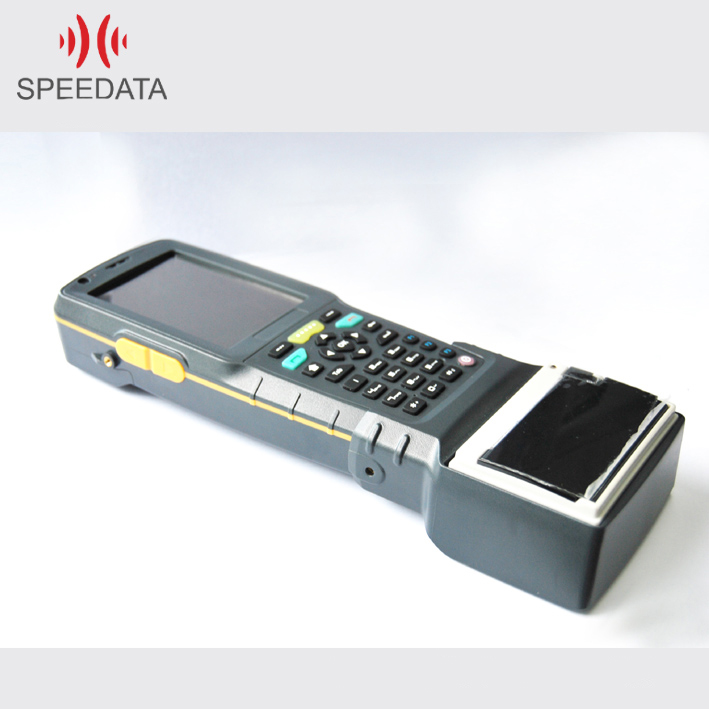

Speedata TT35 with built-in thermal printer is designed to work in the field, where it can be used to print receipts and receipts. A small number of moving parts and a robust design ensure trouble-free operation even in the harshest conditions. The use of thermal printing technology eliminates the need for expensive ink or toner. No matter how many pages will be printed pages - ink in the printer does not run out.

terminal płatniczy drukarka mobilna termiczna speedata kolektory danych

 Printing method
Direct thermal line printing
 Paper width
57mm
 Print width
48mm
 Resolution Ratio
8 dots/mm (384 dots/line)
 Life of printing head
6,000,000
 Printing speed
20mm/sec (when the utilization is 25%)
 Character size
8*16dots , 12*24dots
 Interface Serial RS232C/TTL
 Input power DC 5--8.5V ,15W
 Operating temperature
5℃--50℃
 Storage temperature
-20℃ -- 60℃
 Humidity  (operating)
10%--80%
 Humidity (storage)
10%--90%

go topdo góry menu… menu

Resistance

Applicable standards

Operating -20°C -- +50°C
Storage -40°C -- +75°C
Humidity 5% -- 95% non-condensation
Dust IP6x (dust)
Water IPx5 (water)
Drop Multiple drops to concrete 1.5m the entire operation range

go topdo góry menu… menu

speedata tt35 odporny na upadek ip65 przemysłowy kolektor danych

IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact, Protection from infiltration of dust

6

5

Protection from splashed water

go topdo góry menu… menu

Modules and Wireless Networks

ublox lea-6t ublox lea-6n blutetooth wifi b/g/n speedata tt35

With WCDMA module, you need only insert a SIM card in the special slot and can instantly connect to the Internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Also used in TT35 internal 3G module adjusts automatically to transfer and network coverage.

WIFI  802.11b/g/n  (Jorjin WG7310)
GPS  Built-in (ublox 6010)
optional  ublox LEA- 6T [Accuracy: 2-2.5m]
optional  ublox LEA- 6N [Accuracy: 2-4m]
Bluetooth  Bluetooth 2.1 + EDR - (Jorjin WG7310)
GSM/3G (optional)
 GSM 850/900/1800/1900MHz | GPRS, EDGE UMTS 850/900/1900/2100MHz HSPA

speedata tt35 handeld przemysłowy kolektor danych audiojack

go topdo góry menu… menu

Minimalism

Speedata TT35 weighs only 400g and its dimensions allow you to take it with them everywhere. With elegant performance and energy efficiency is on the forefront of this segment equipment and is very popular on the Polish market in the industrial segment.

 Dimensions 182*82*36mm
 Weight 400g (with battery)

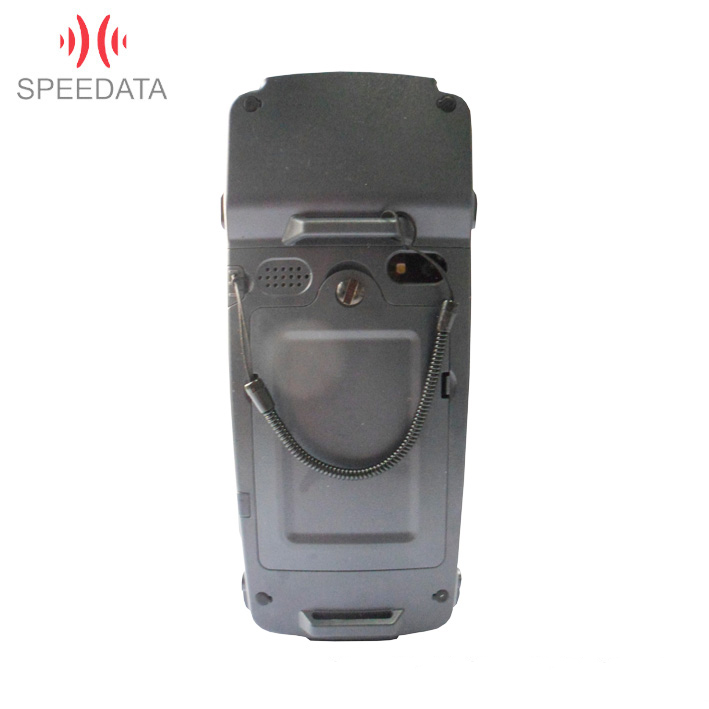

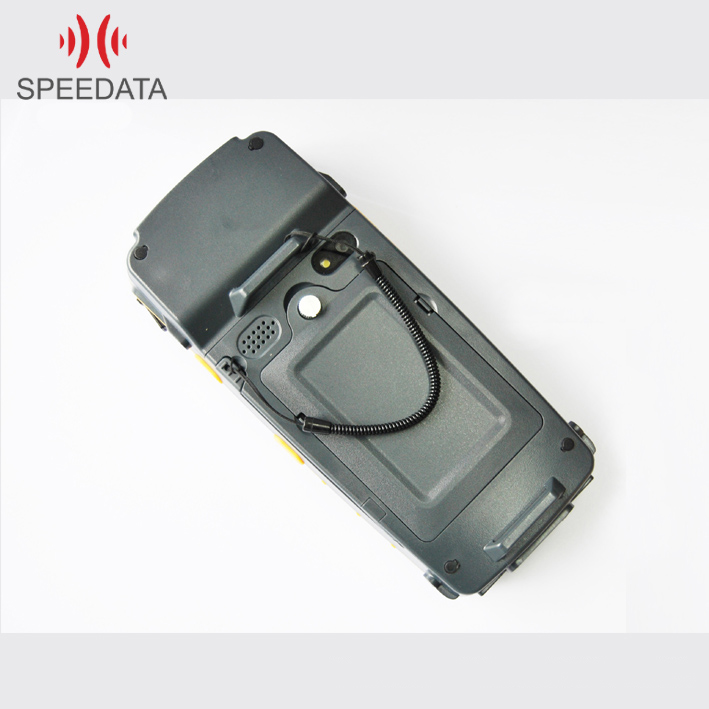

Quick change battery

With friendly construction equipment it is possible to quickly change the battery. This is useful when working in the field and difficult conditions, where there is no additional tools and the necessary time.

bateria mały przemysłowy kolektor danych speedata tt35

go topdo góry menu… menu



Available versions

Select a version tailored to your needs. Clicking on the number of hardware configurations will be redirected to the product of the parameters listed below. At the customer's request can be created configuration available in the offer. Detailed parameters are available in the "Technical data".


v.1 v.2 v.3 v.4 v.5 v.6 v.7 v.8 v.9 v.10 v.11 v.12 v.13 v.14 v.15 v.16
PSAM - -   - - - - - - - - - - - -
GSM/3G
RFID HF - - - - - - - - - - -
RFID HF+ - - - - - - - - - - - - -
RFID LF1 (134.2kHz)
- - - - - - - - - - - - - - -
RFID LF2 (125kHz)
- - - - - - - - - - - - - - -
RFID UHF
- - - - - - - - - - - - - - - -
1D (Motorola SE955) - - - - - - - - - - - - - - - -
1D (Newland EM1300) - - - - - - - - - - -
2D (Motorola SE4500SR)
- - - - - - - - - - - -
2D (Newland EM3000) - - - - - - - - - - - - - -
GPS (Standard)
- - - - - - - -
GPS - D6N - - - - - - - - - - - - -
GPS - D6T - - - - - - - - - - - - -
Thermal Printer
- - - - - - - - - - - - - -
Far-Infrared - - - - - - - - - - - - - -
Fingerprint - - - - - - - - - - - - - - - -




v.17 v.18 v.19 v.20 v.21 v.22 v.23 v.24 v.25 v.26 v.27 v.28 v.29 v.30 v.31 v.32
PSAM - -   - - - - - - - - - -
GSM/3G
RFID HF - - - - - - - - - - - - - - - -
RFID HF+ - - - - - - - - -
RFID LF1 (134.2kHz) - - - - - - - - - - - - -
RFID LF2 (125kHz) - - - - - - - - - - - -
RFID UHF
- - - - - - - - - - - -
1D (Motorola SE955) - - - - - - - -
1D (Newland EM1300) - - - - - - - - - - - - - - -
2D (Motorola SE4500SR) - - - - - - - - - - - - - -
2D (Newland EM3000) - - - - - - - - - - - - - - -
GPS (Standard)
- - -
GPS - D6N - - - - - - - - - - - - - -
GPS - D6T - - - - - - - - - - - - - - -
Thermal Printer
- - - - - - - - - - - -
Far-infrared - - - - - - - - - - - - - - -
Fingerprint - - - - - - - - - - - - - - - -


v.34 v.36 v.37 v.38 v.39 v.40 v.41 v.42 v.43 v.44 v.45 v.46 v.47 v.48 v.49
PSAM - - - - - - - - - - - - - - -
GSM/3G
RFID HF - - - - - - - - - - - - - -
RFID HF+ - - - - - -
RFID LF1 (134.2kHz) - - - - - - - - -
RFID LF2 (125kHz) - - - - - - - -
RFID UHF
- - - - - - - - - -
1D (Motorola SE955) - - - - - - - - - - - -
1D (Newland EM1300) - - - - - - - - - - - - - - -
2D (Motorola SE4500SR) - - - - - - - - - - - -
2D (Newland EM3000) - - - - - - - - - - - - -
GPS (Standard)
- - -
GPS - D6N - - - - - - - - - - - - - - -
GPS - D6T - - - - - - - - - - - -
Thermal Printer
- - - - - - - - - - - - - -
Far-Infrared - - - - - - - - - - - - - -
Fingerprint - - - - - - - - -

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
