Przemysłowy Panel Operatorski HMI 643H

Data update: 2018-02-16

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
PREV PRICE
Save
119.88 Net 130.77 Net 10.89 Net
147.45 Gross 160.85 Gross 13.40 Gross
Znak akceptacji płatno?ci pl



Porównaj wszystkie wersje

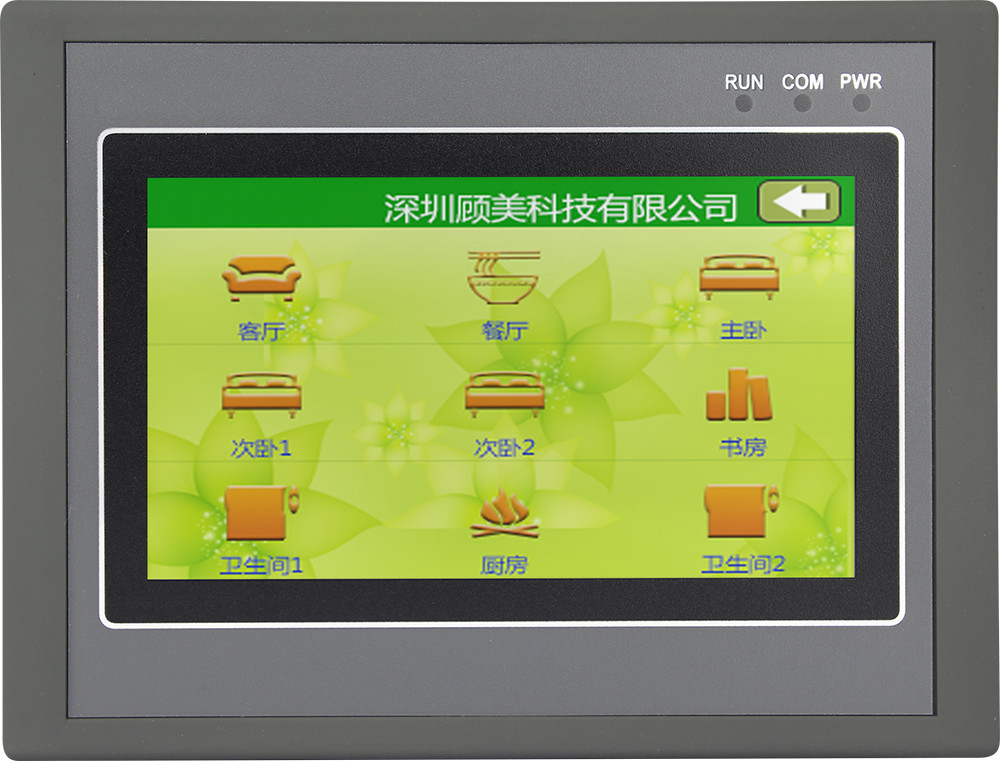

Control panel HMI operator panel Windows CE Modbus



Industrial operator panels also known as control panels are devices that control other electronical devices using convenient and intuitive touch interface. Thanks to its robust design, these devices are suitable for use even in harsh environments. Model 643H has a IP65 standard which classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures.




Processor ARM Cortex A9 640MHz
RAM 64MB
Flash memory 128MB
Connectors USB 2.0 | Micro USB | RS232 | RS485 | RJ-45 LAN (optional)
System operacyjny Windows CE 5.0
Communication protocols Modbus | Freeport (ASCII)  | Standard
Dimensions 134x102x30mm
Weight ~330g
Protection IP65

Check "Available versions" tab to see available configurations of this device. To get more information about this product click "Ask about the product" or use the Contact form.

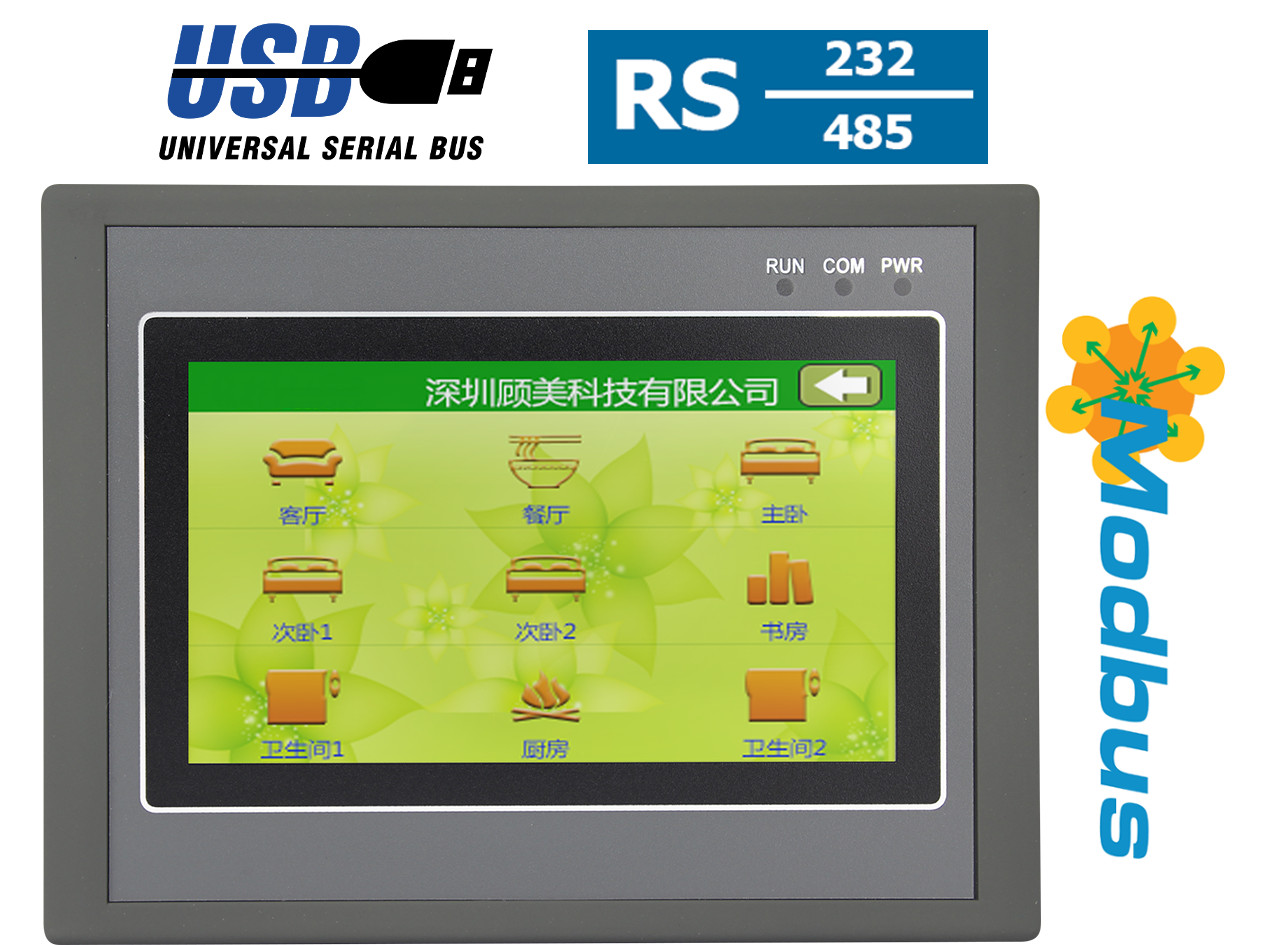

Control panel HMI operator panel Windows CE Modbus



Multitasking OS

HMI is equipped with an operating system from Windows CE family, which ensures maximum efficiency of the device and easily copes with multiple processes simultaneously. Convenient interface makes the operator panels as much intuitive as possible.

Efficient processor

An important advantage of the HMI 643H is a powerful combination of small size with considerable capabilities through the use of the processor family ARM Cortex A9 with 640MHz clock speed, which, combined with 64MB of RAM gives us a powerful, multi-purpose, quality device for a low price.

Small size

HMI 643H is equipped with a 4.2 inch (97mm x 56mm) screen and the overall size of its design is only 134mm x 102mm x 30mm, with a cutout size of 119mm x 93mm and its weight is only 300 grams. With such a small size it can be used in even if there is not much available space. In addition, HMI has the possiblility to mount it on a wall for the greatest convenience and ease of access.

Solid construction

HMI enclosure is made from a specialized blend of PC / ABS (polycarbonate / acrylonitrile-butadiene-styrene)providing a very high resistance to mechanical damage. With this construction it is ready for use even in extreme conditions such as heat, cold or vibration at any time. In addition, the front panel of the device has IP65 international standard, which confirms the water resistance and a complete protection against dust.

Low power consumption

Using the latest technology, HMI 643H is designed for continuous operation with low power consumption of less than 3W at 24V.





IP65 Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.



No protection 0 0 No protection
Protection against any large surface of the body, such as the back of a hand 1 1 Protection against vertically dripping water
Protection from object > 12mm, e.g. Fingers or similar objects 2 2 Protection against vertically dripping water when device is tilted at an angle up to 15 degrees
Protection from object > 2.5mm, e.g tools, thick wires, etc. 3 3 Protection against direct sprays of water when device is tilted at an angle up to 60 degrees
Protection from object > 1mm, e.g. most wires, slender screws, large ants etc. 4 4 Protection from sprays and splashing of water in all directions
Dust protected - Ingress of dust is almost entirely prevented. 5 5 Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction
Dust tight - No ingress of dust, complete protection against contact. 6 6 Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction
7 7 Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins
8 8 Protected from immersion in water with a depth of more than 1 meter

Work temperature -20℃ - 60℃
Storage temperature -20℃ - 70℃
Humidity 20% - 90% (non-condensing)
Dust resistance IP6x
Water resistance IPx5



Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".



  A8 720MHz A9 640MHz 64MB RAM 128MB RAM LAN connector Programming cable
643H
643HA
 643HA + LAN

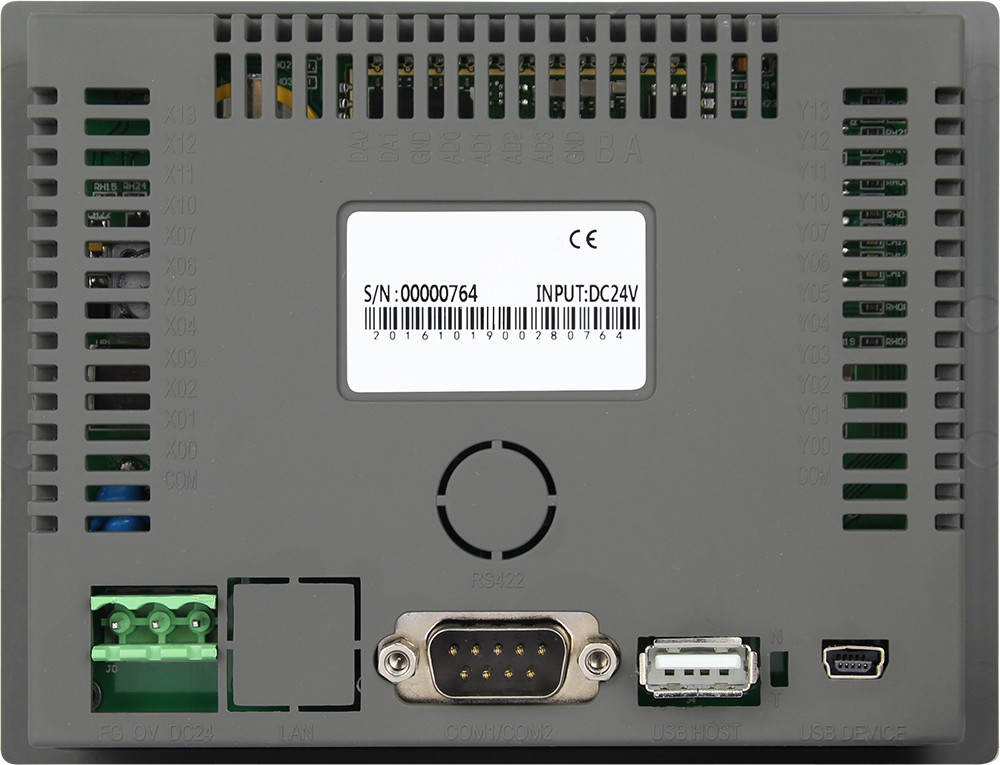

control panel HMI operator panel Windows CE Modbus



1. GND

2. DC 24V -

3. DC 24V +

4. RJ-45 LAN (opcja)

5. RS232/485

6. USB 2.0

7. Mini USB









Modbus

Modbus is a serial communications protocol initially for use with programmable logic controllers (PLCs). Simple and robust, it has since become a standard communication protocol, and it is now a commonly available means of connecting industrial electronic devices. Modbus enables communication among many devices connected to the same network, for example a system that measures temperature and humidity and communicates the results to a computer. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems.


Connector type Quantity
USB 2.0 1
RS232/485 1
DC 24V 1
Mini USB 1
LAN (optional) 1

Control panel HMI operator panel Windows CE Modbus

Smart Home



Thanks to its transparent and intuitive touch interface, the HMI device can be easily adapted to the Smart Home, this solution allows you to control functions such as music, heating and air conditioning, from one place. The ideal device for people who like to have everything at your fingertips.



Control panel HMI operator panel Windows CE Modbus

Warehouse



Industrial HMI operator panel can be used to connect multiple devices in the warehouse and make them easier to control. And its robust design is perfectly designed for the harsh conditions prevailing in these areas. Dust or dirt will not prevent this device from working, it will work flawlessly even in polluted environments.

Control panel HMI operator panel Windows CE Modbus

Industry



Thanks to the ease with which the operator panel HMI can be customized for specific tasks, it's widely used escpecially in industry. Thanks to its functionality and mediation between machines and man, HMI is the center management processes, giving you the ability to control devices and to respond to specific situations.



You can find more photos of this device in Gallery. Specification of the given version is available in the Technical data tab.

Control panel HMI operator panel Windows CE Modbus
