Industial PanelPC MobiBOX 15 v.1

Data update: 2018-05-30

guarantee 2 years (opt. 3)

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 dni workdays
CURRENT PRICE
PREV PRICE
Save
478.04 Net 496.71 Net 18.67 Net
587.99 Gross 610.95 Gross 22.96 Gross
Znak akceptacji płatno?ci pl



Porównaj wszystkie wersje



MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Industrial Panel PC

Industrial Panel PC are excelent in environments dominated by dust, dirt and moisture. They are ideal for applications that require quiet operation.

Description


MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

MTouch

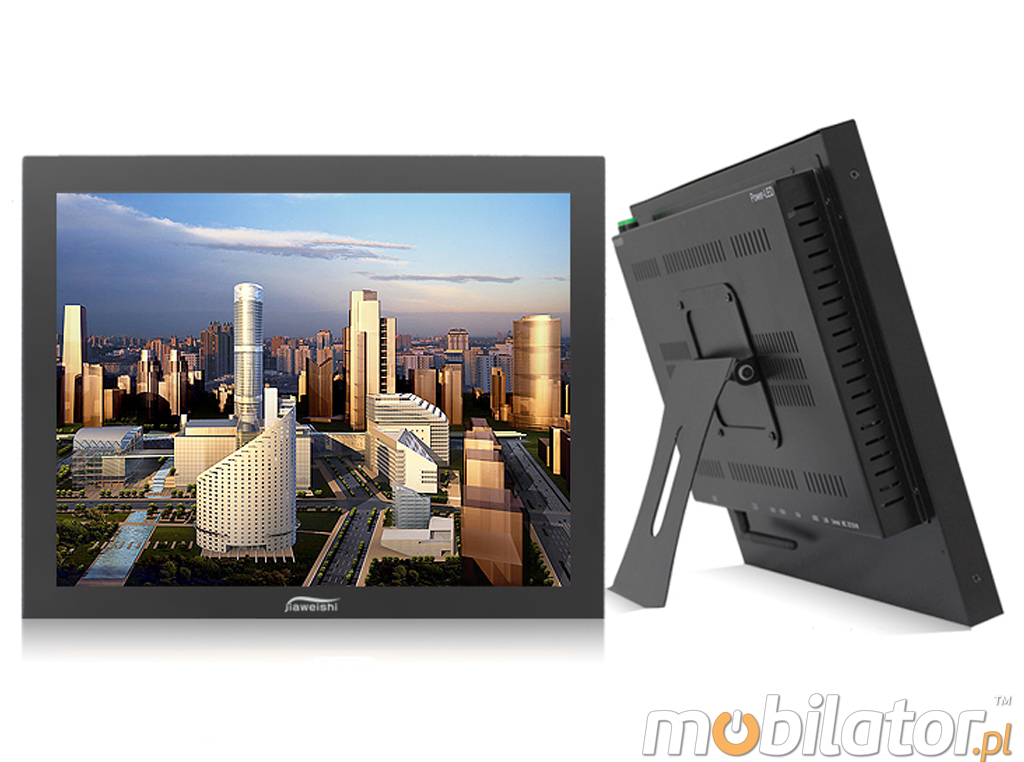

Industial PanelPC MobiBOX 15 v.1






MTouch

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

CPU: Intel® Celeron Procesor 1037U (2M Cache, 2 x 1.80 GHz) / Intel® Atom™  D2550 (1M Cache, 2 x 1.86 GHz) (optoin)


Memory: 2GB RAM


Disk: 32GB SSD /  HDD (optoin)


System: Windows 8.1/8 / Windows 7 / Windows XP / Linux


Screen: 15" / 1024x768 / 4:3 / 5 - Wire Resistive



Expansion cards:
2 x Mini PCI Express



Detailed specification of the configuration available in the "Technical data"


Using the latest technology Panel PC is designed for continuous multitasking operating with low power consumption (40 W). An important advantage is the effective combination of small size with considerable opportunities, through the use of Intel® Celeron processor family, Intel chipsets and DDR2 memory. Integrated Intel®HD Graphics video graphics card and audio Realtek ALC662 allow you to play a wide range of applications and media files (video, audio). Disks offer free space from 32GB SSD to 512GB SSD (320GB to 1TB HDD option).

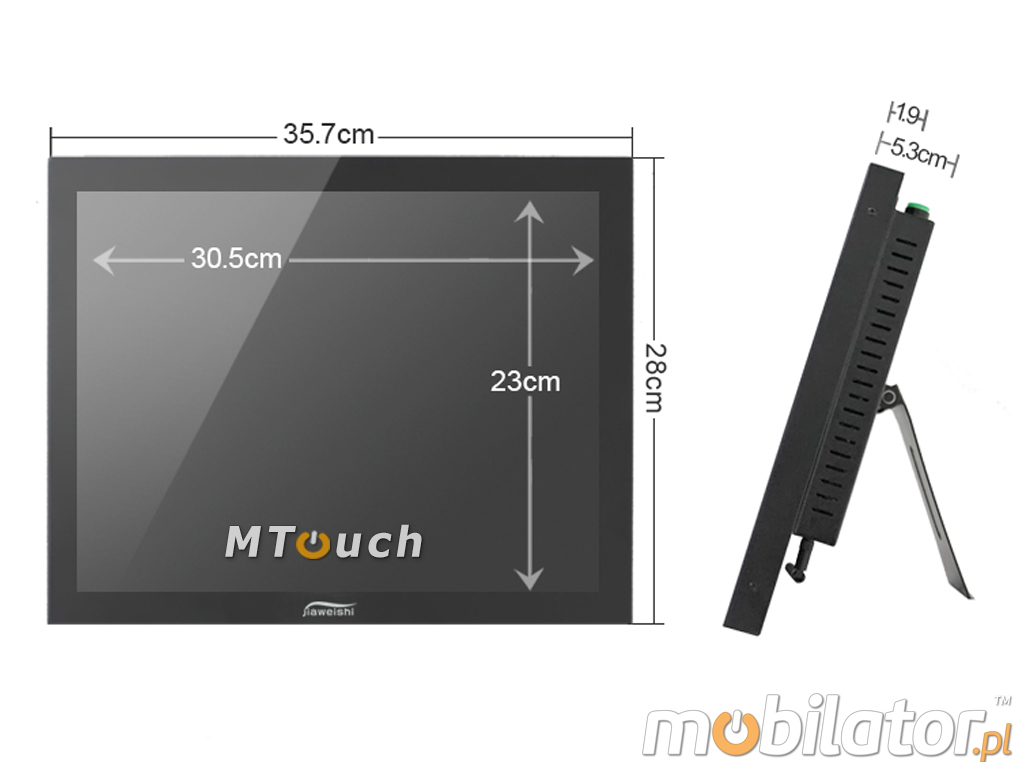

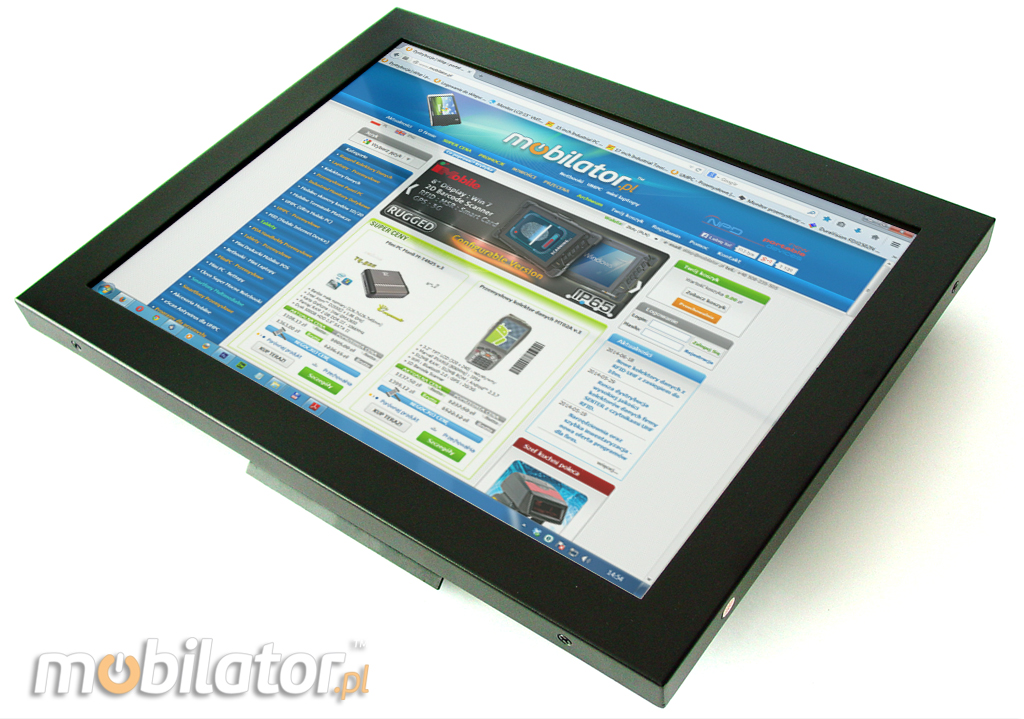

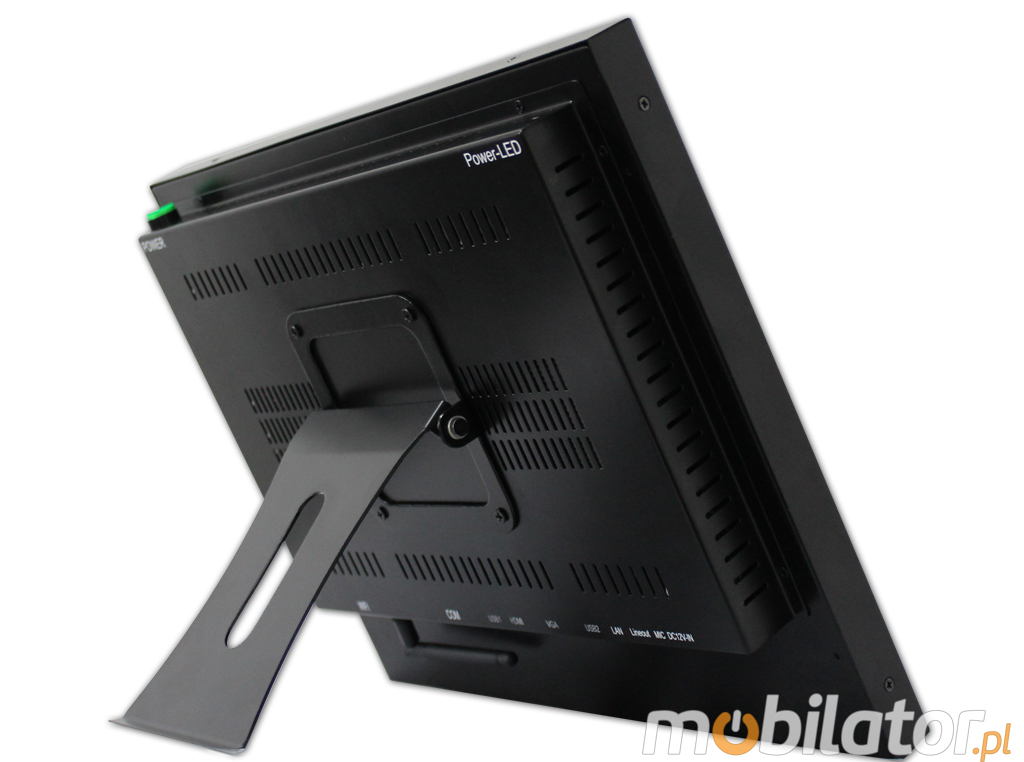

Dimensions:

Housing dimension are 357 (W) x 280 (L) x 53 (H) mm. Housing is made ​​of high quality aluminum what ensures a very high resistance to mechanical damages. This model with weight of only 8 kg is ready at any time for operation even in extreme conditions such as heat, cold, vibration.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

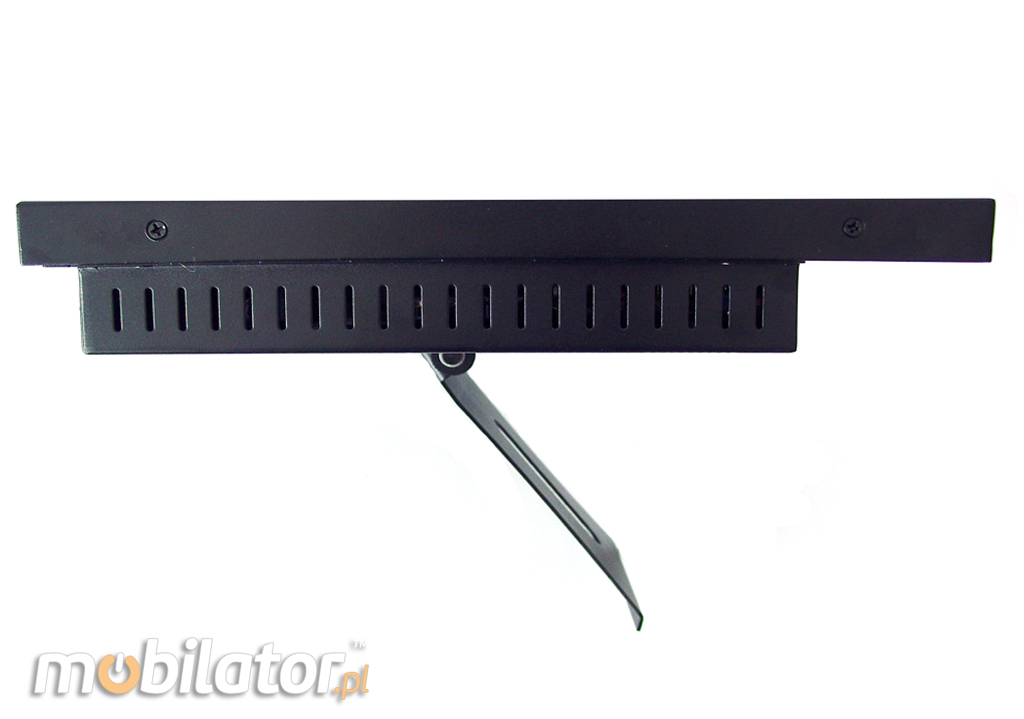

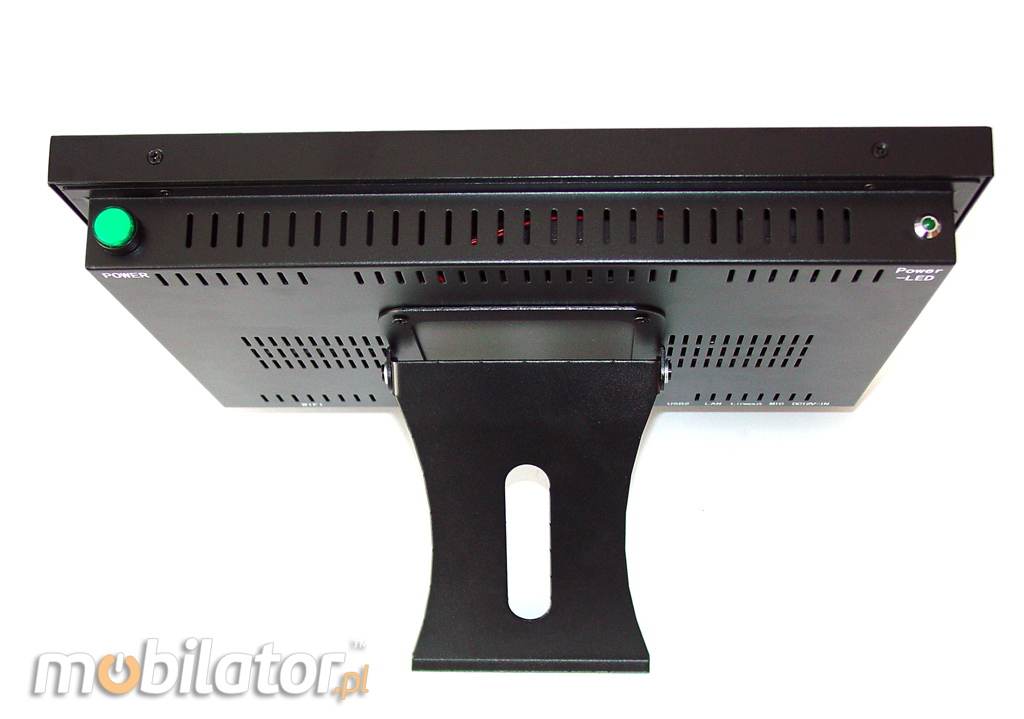

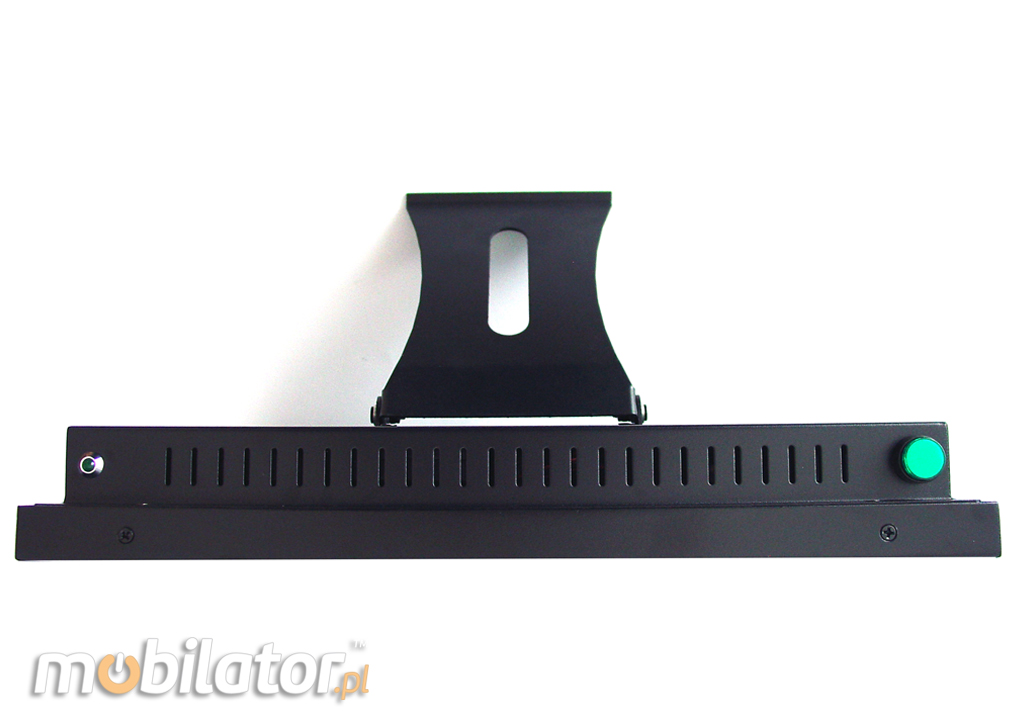

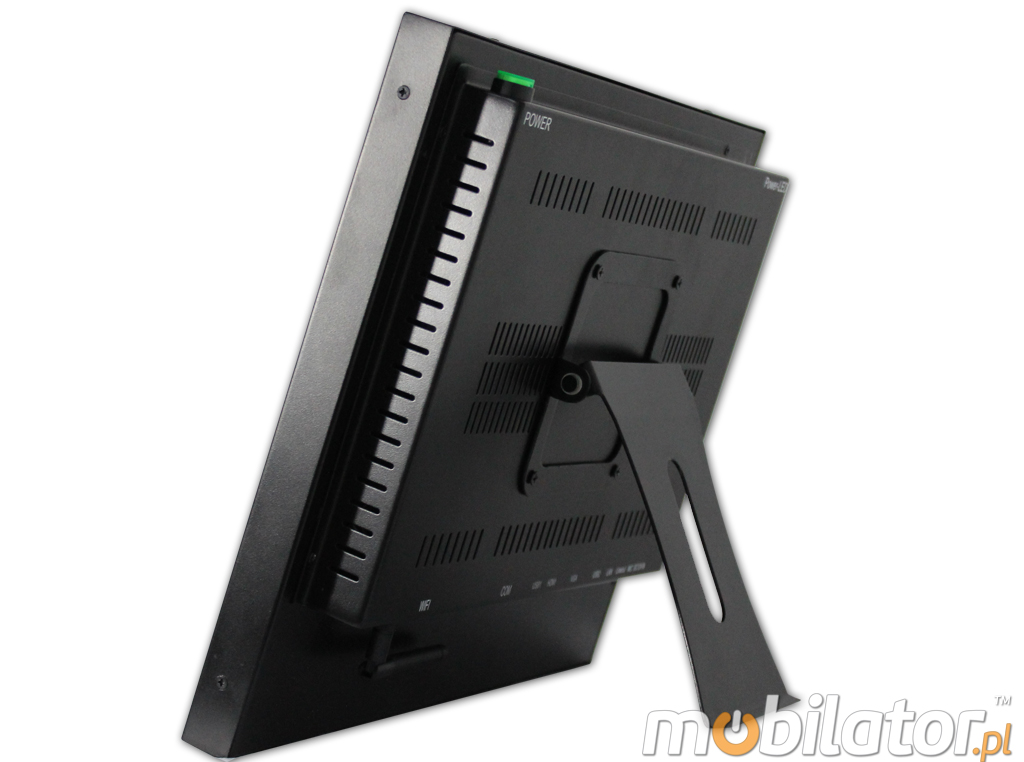

Cooling:

Industial PanelPC MobiBOX 15  is a series of devices for industrial applications requiring continuous operation - 24 hours, 7 days a week.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

The computer panel MobiBOX 15 uses a proven method of cooling. It takes place mainly through the fan mounted inside the enclosure. Making industrial Panel PC is faster and more efficiently cooled.
go top… do góry   menu… menu

Communication & Connections

Communication:

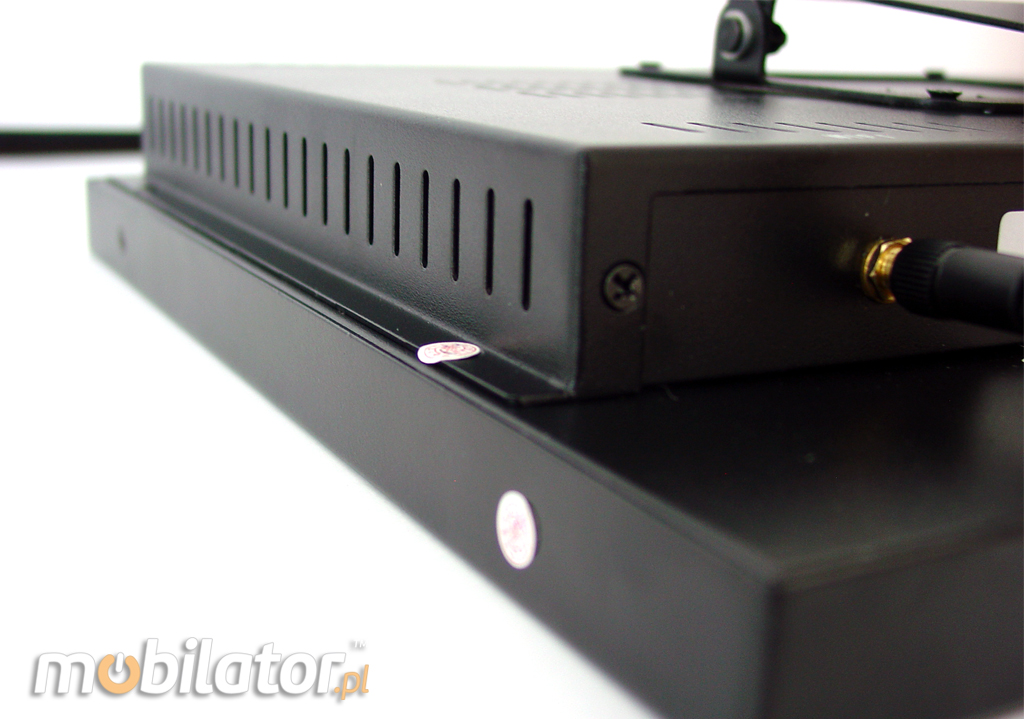

Industial PanelPC MobiBOX 15 standard has a system of wireless Wi-Fi communication. Optionally in other models are available also modules such as 3G.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

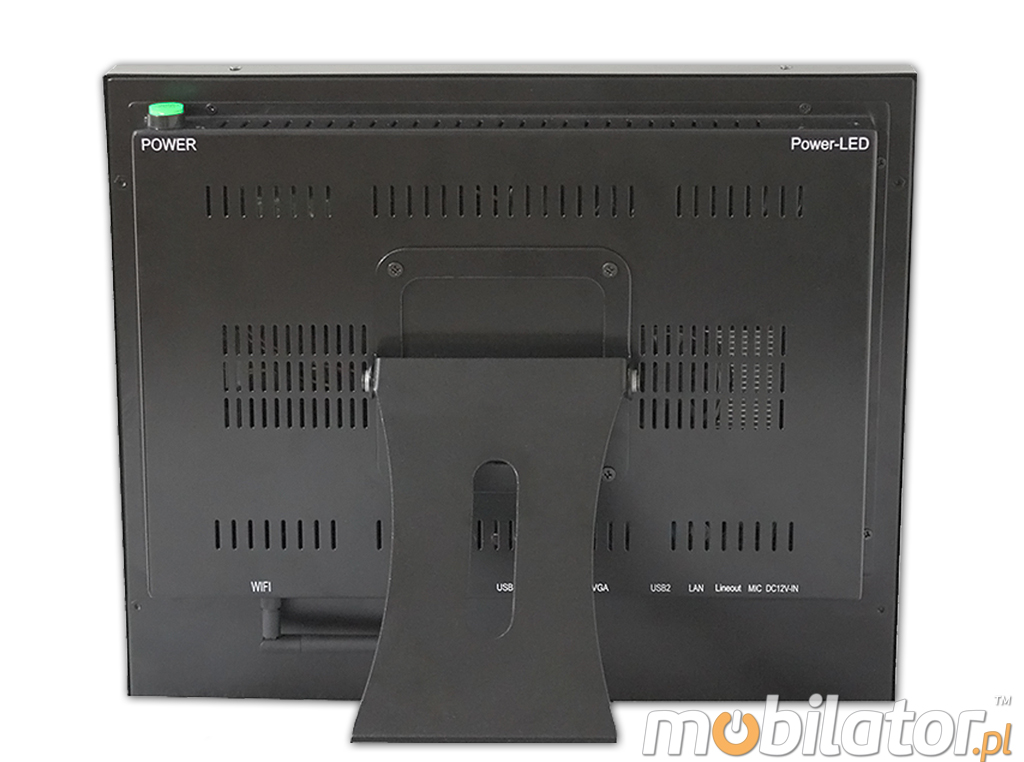

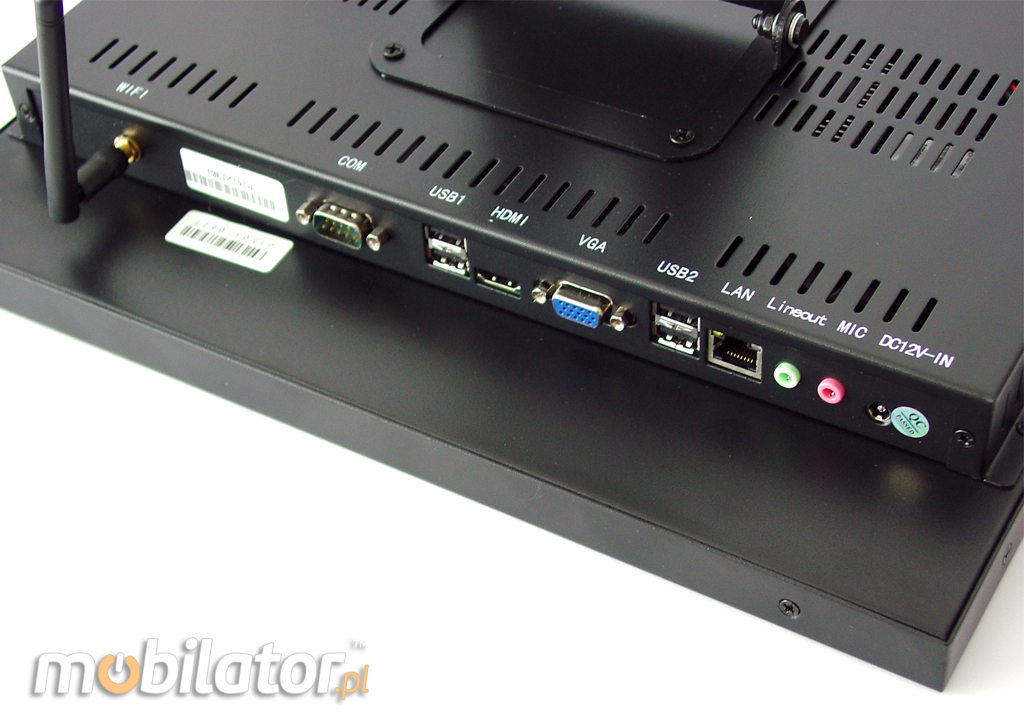

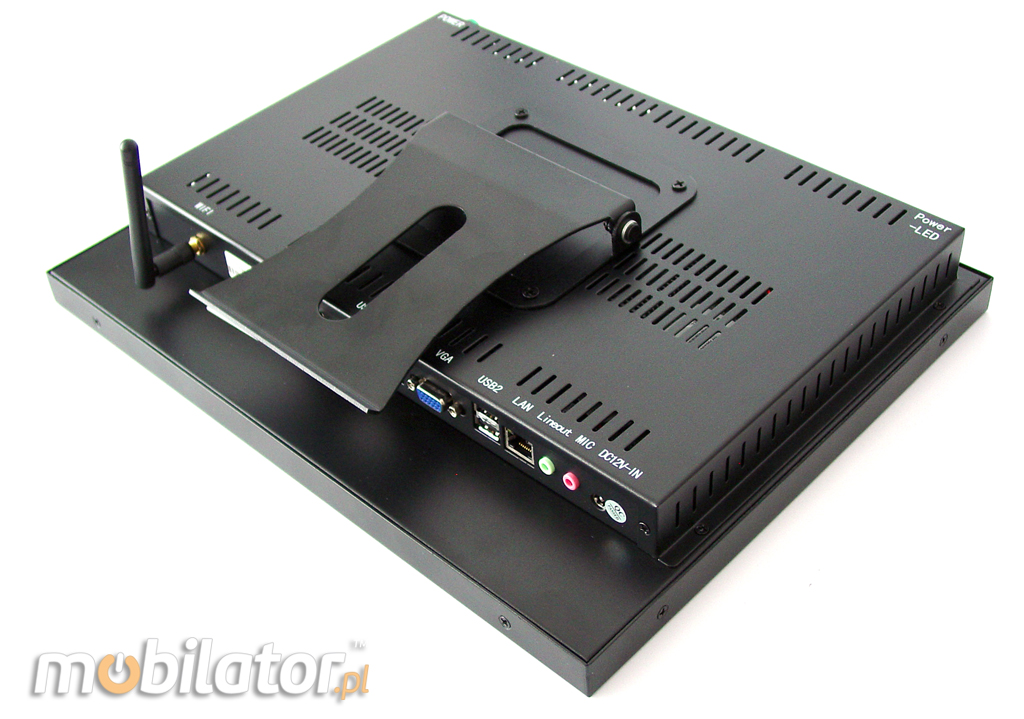

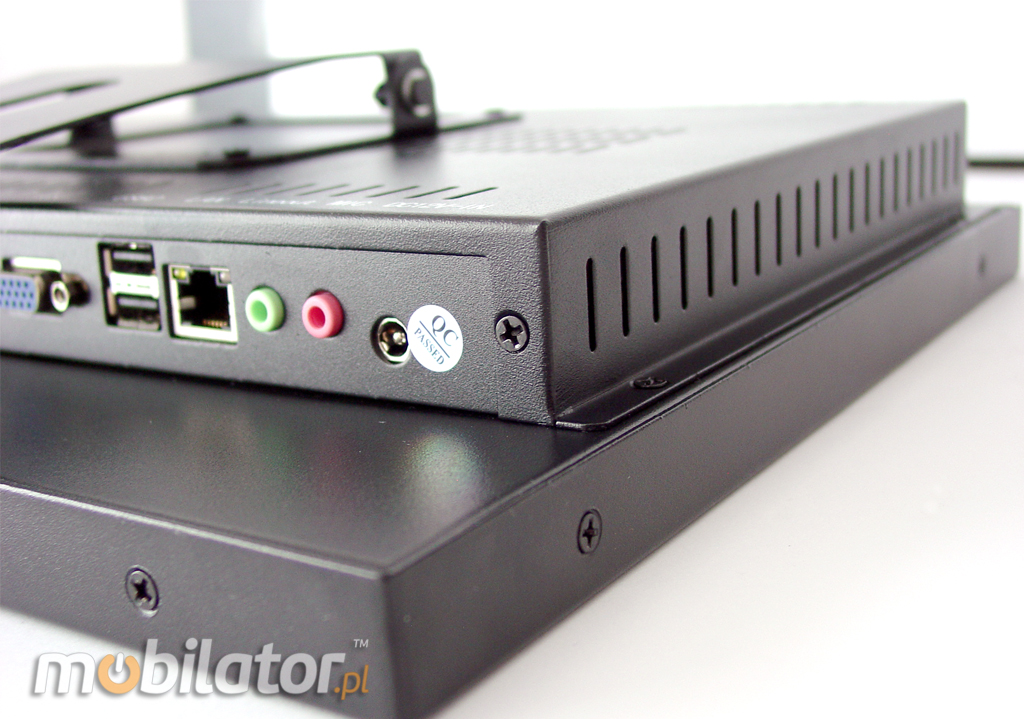

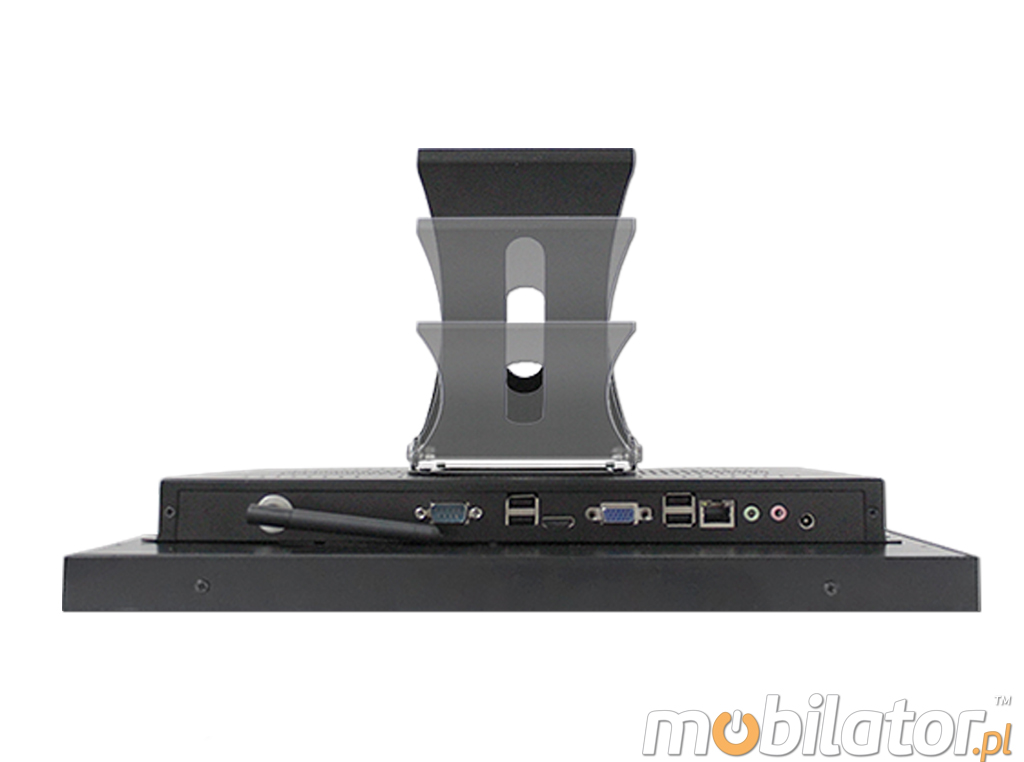

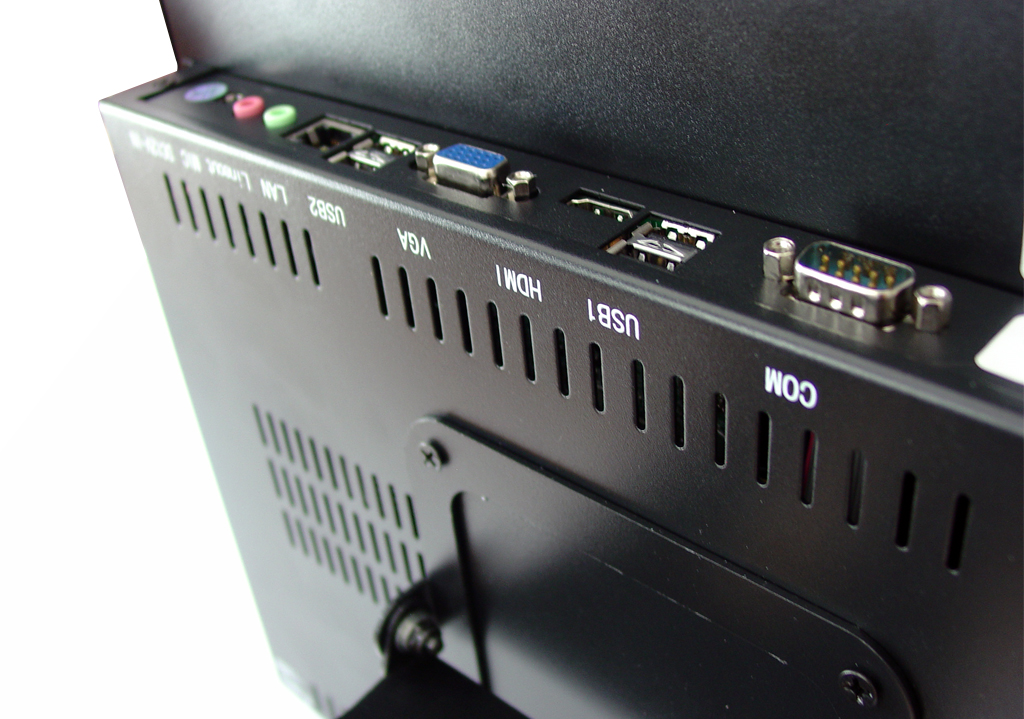

Connector:

Integrated IntelRTL8111E LAN 1xRJ 1000M-45, WiFi module allows you to connect the device to the network. The computer is equipped with: one LAN connector, one COM ports (RS232), one VGA, one HDMI output, four USB 2.0 ports, one audio out, one microphone input, and a power DC-in.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

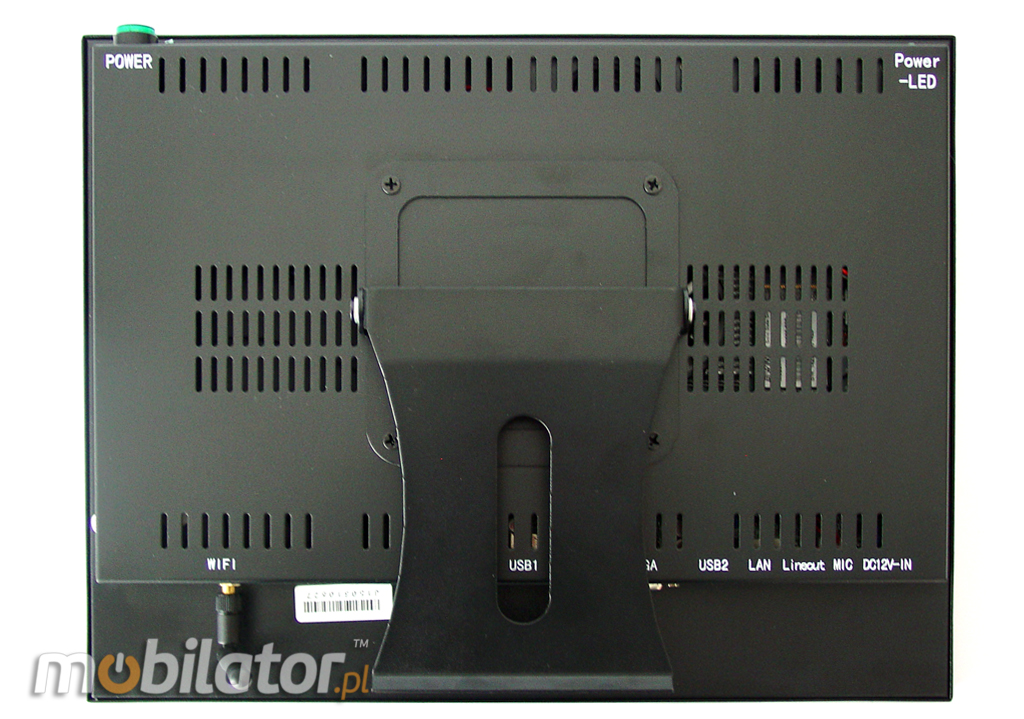

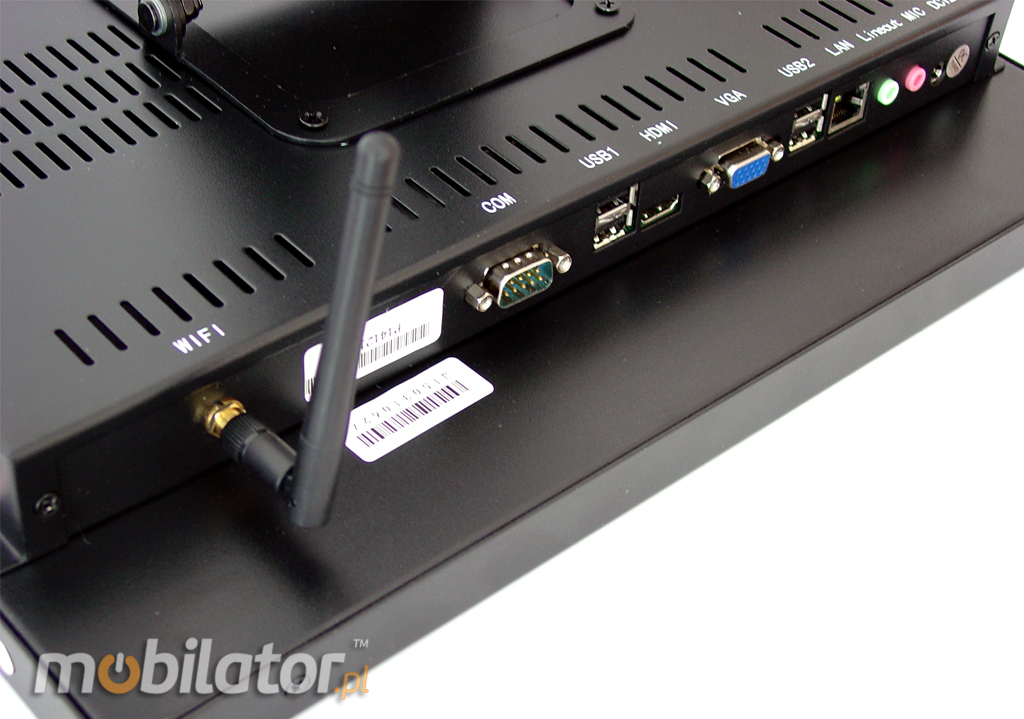

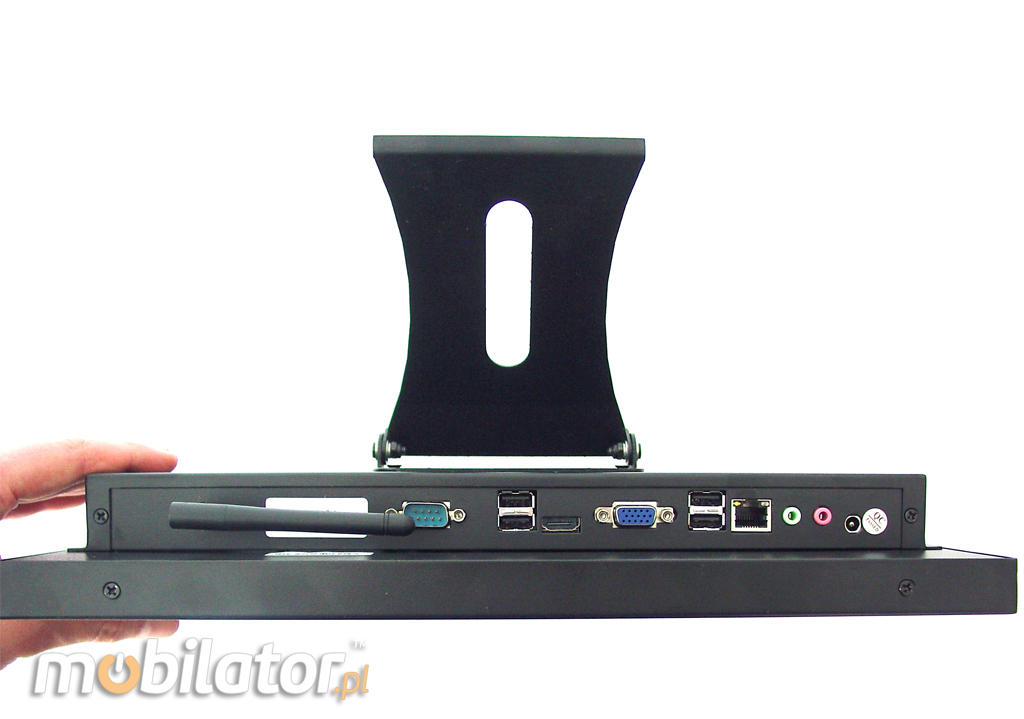

1. Antena WI-FI 5. VGA
9. Mic
2. COM (RS-232) 6. 2 x USB 2.0 10. DC-in
3. 2 x USB 2.0 7.  LAN (RJ 45)
4. HDMI 8. Audio

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

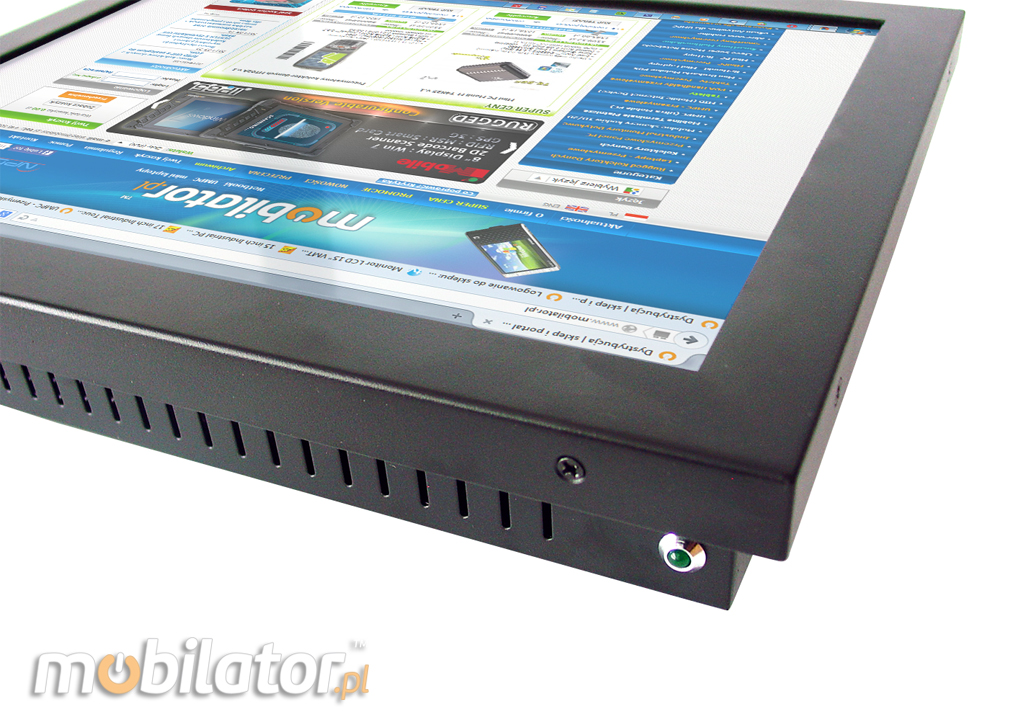

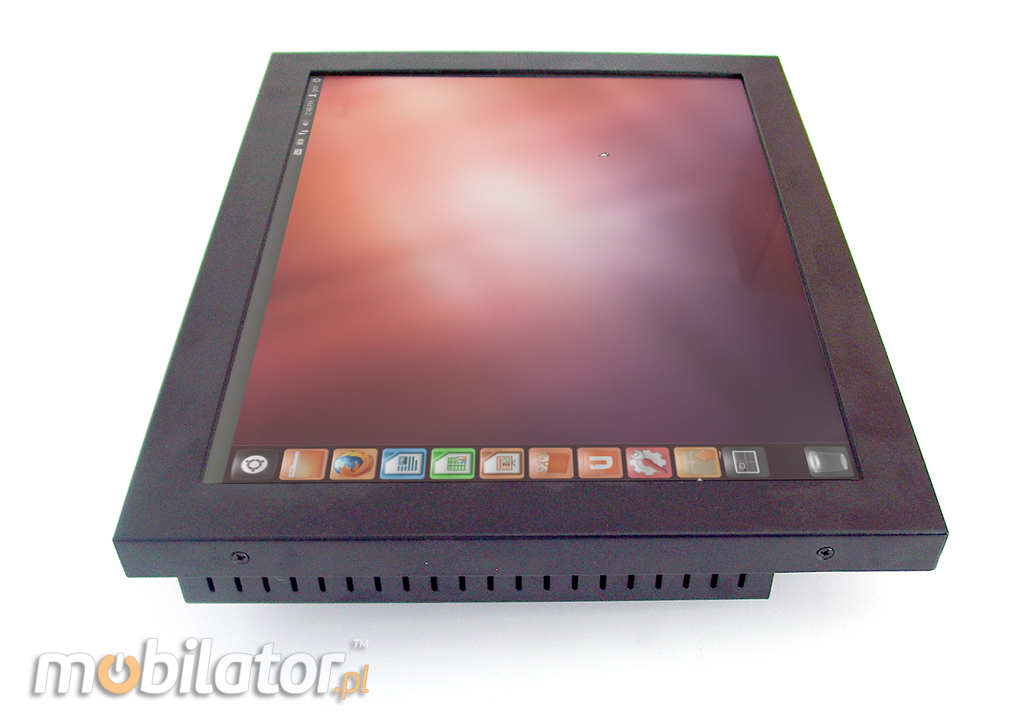

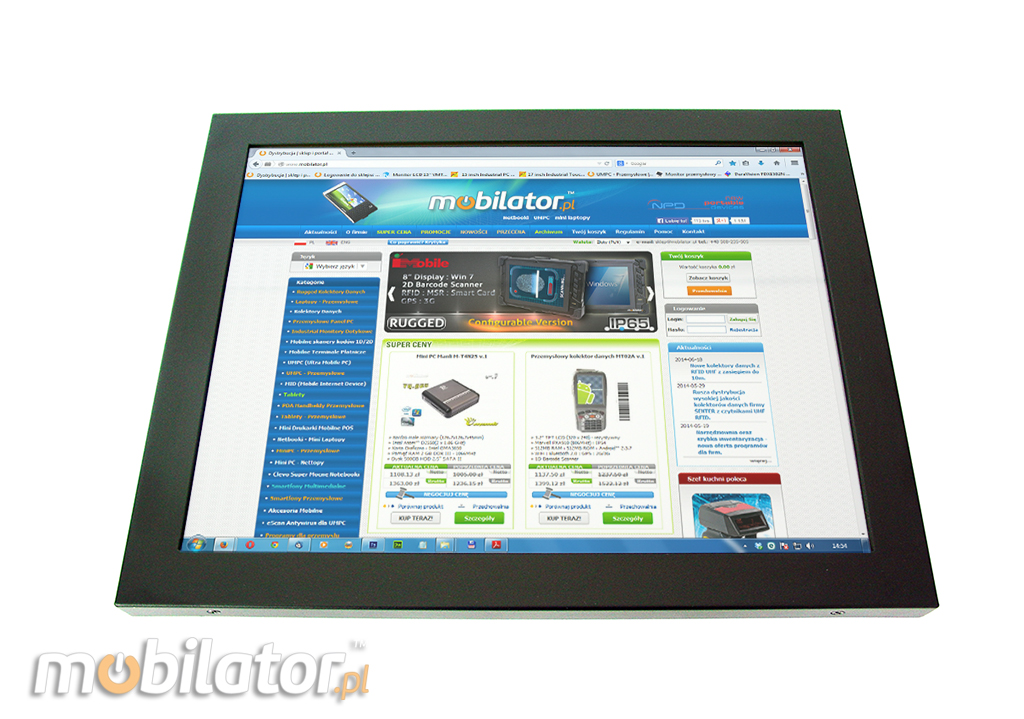

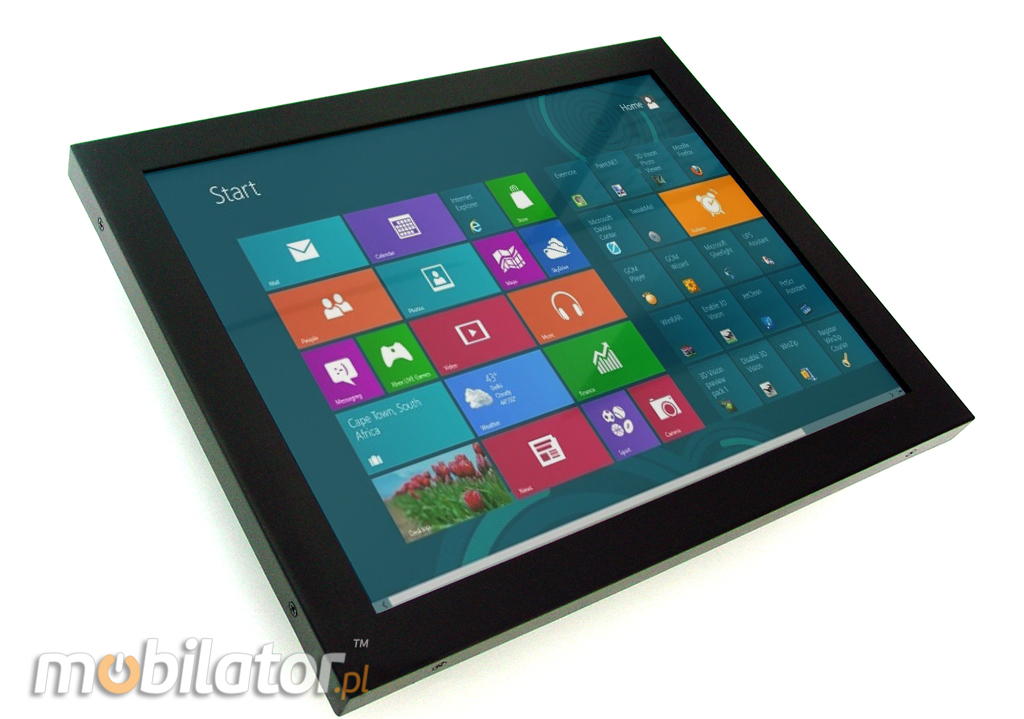

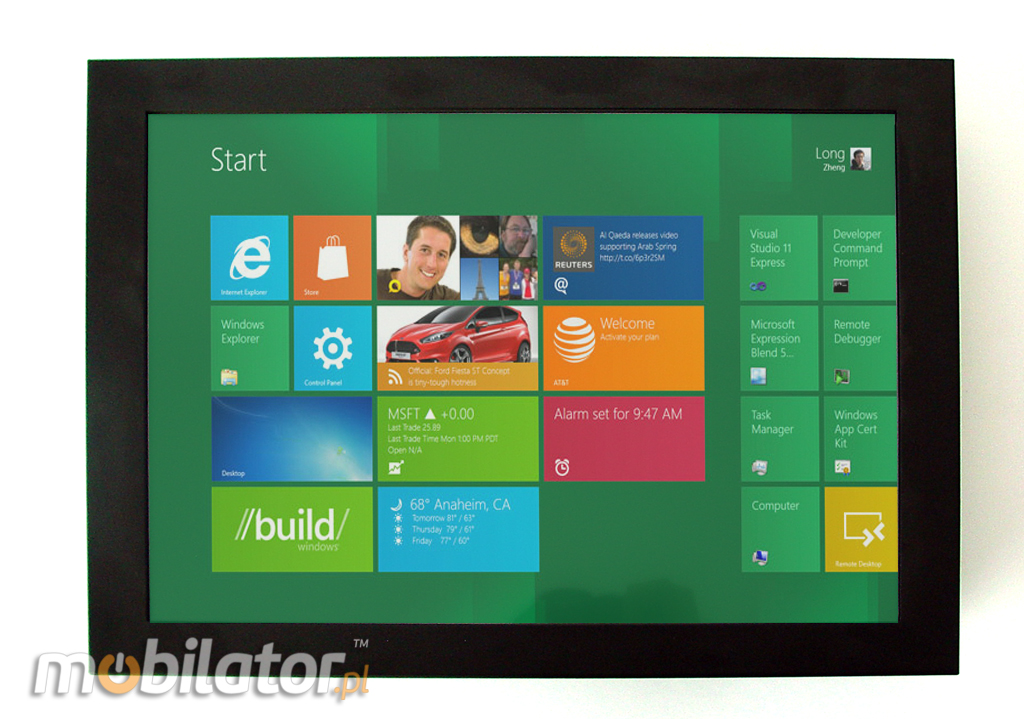

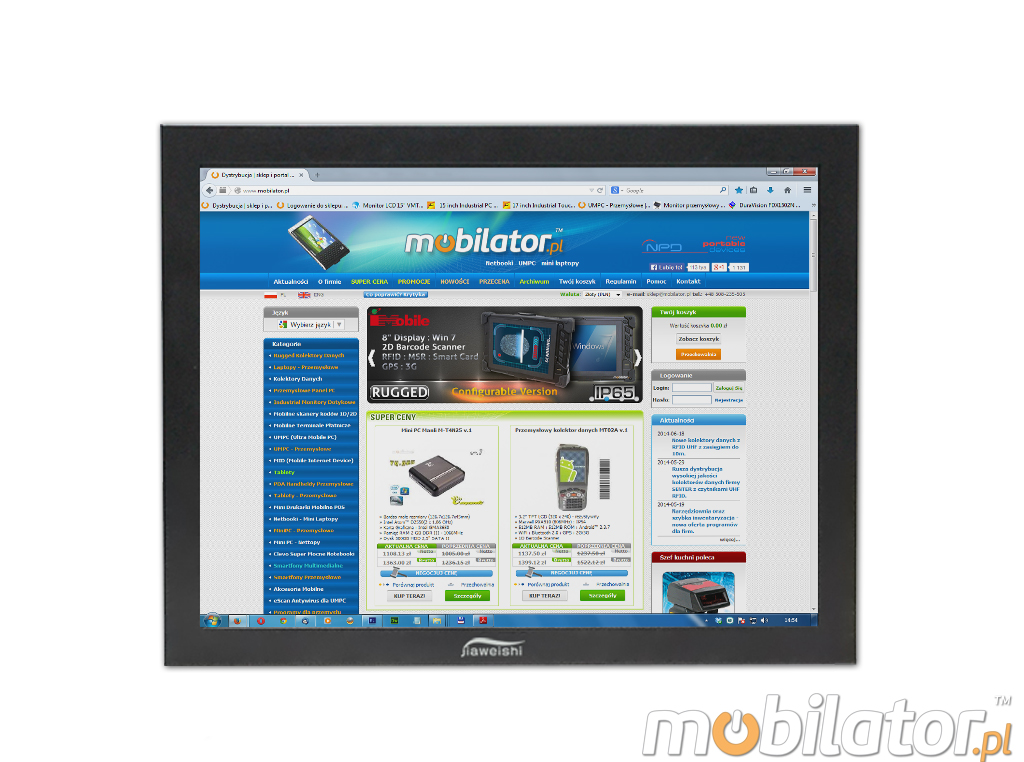

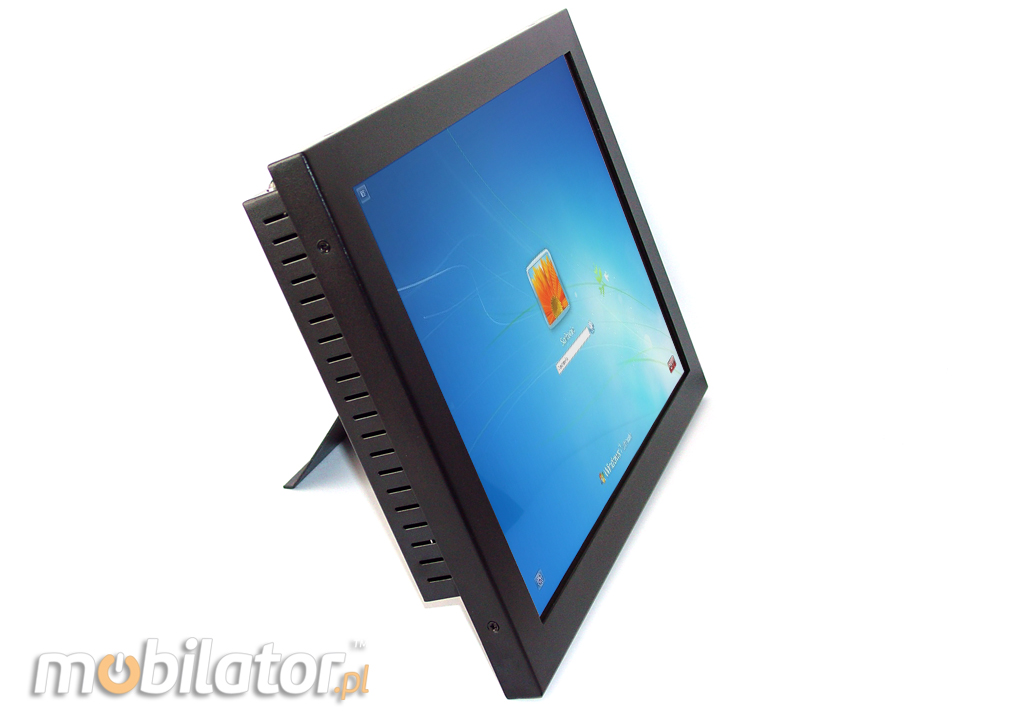

Screen

Industial PanelPC MobiBOX 15 has a water-resistant front panel and scratch resistant LED screen. With 1024x768 resolution and high brightness of 500 cd/m2, screen of "5 wire resistive" type with high sensitivity to touch, offers the user a clear picture and ease of use.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron



Resistive screen

A resistive touchscreen comprises of several layers, out of which the flexible plastic and glass layers are two important electrically resistive layers. The front surface of resistive touchscreen panel is a scratch-resistant plastic with coating of a conductive material (mostly Indium Tin Oxide, ITO), printed underside.  The second important layer is either made of glass or hard plastic and is also coated with ITO.  Both the layers face each other and are separated with a thin gap in between. An electrical resistance is created between both the layers in such a way that charge runs from top to bottom in one layer and side-to-side in another.  When a finger or stylus tip presses down on the outer surface, both the ITO films meet. It is the measure of the resistance of both the layers at point of contact, which leads to get an accurate measurement of the touch position. The accuracy also relies on the evenness of the coating of ITO on both the layers.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron
Resistive screen ensures good visibility, which falls quite firmly in the sun. This type of screen as opposed to a capacitive screen, allows you to use handwriting (stylus comes in handy here).

5-WIRE RESISTIVE SCREENS

The 5-wire Resistive Touch Screen is the preferred solution for applications requiring durability and reliability. Similar to the 4-wire technology, the 5-wire touch screen also consists of a conductive glass bottom layer and conductive top film layer. The fundamental difference between the two is, in the 5-wire construction, all the electrodes are on the bottom layer and the top layer acts as a voltage-measuring probe. With this structure, the touch screen may still work properly even when the top layer is slightly scratched or damaged. The result is an accurate, durable and reliable touch screen that offers a higher touch life.

Resistive screens are very durable and can be used in a variety of environments. This type of screen is recommended for demanding point-of-sale systems, restaurant systems, industrial controls, and other workplace applications.

Application

Industial PanelPC MobiBOX 15 is specifically designed for use in harsh industrial environments, as well as on the outside. Industrial front panel and aluminum housing protects the display from the outside against mechanical damage, drops of water, sand and dust. MobiBOX 15 is the best solution for extreme applications in dust or moisture.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

 Operating Temp
-10-60 °C
 Operating Humidity 0%-80%

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Industrial Panel PCs with MTouch companies are based on the efficient two-core processors and high-quality components.

Panel PCs are locked in small industrial housings that perfectly dissipate heat from the equipment interior. Wide range of panel models of industrial computers and the ability to change the configuration, allow for optimal selection panel PC for multimedia applications and industrial applications. The biggest advantages of these devices are performance and energy efficiency. By using the VESA mounting (optional) at the back of the enclosure increases the possibility of installation in all kinds of places and positions. Offered model Panel PC has been selectively chosen and configured specifically to the requirements of Digital Signage systems, gaming machines, amusement machines, information kiosks and industrial automation systems.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Areas of use of industrial panel computers.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Trade

Panel PC can be widely used in commerce, eg to control the sales system, displaying information about the products on monitors. With the VESA mount housing, there are many mounting possibilities in shops (at the cash register),  factory floor or in the car, etc. Certainly it can be applied in all kinds of commercial networks.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron
MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

Magazine

Industrial Panel PC through COM port (RS232) can be used to connect multiple devices in the warehouse (store) and make them easier to control. Its durable housing is perfectly designed for the harsh conditions prevailing in these areas.  Any dust or dirt does not impede him in his work, will work without any problems even in high concentrations of dust and in polluted environments.

 Transport & Automotive

Panel PC can be used on transport market, in cars, through adapting him to operate with a supply 12V. Industrial Panel PC can be used in cars, buses, trams, taxis, trains, and even airplanes. Thanks to its functions is suitable for all vehicles in which the restriction is a small space to mount additional hardware.

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron

go top… do góry   menu… menu

Versions


                                    MobiBOX 15 v.1
MobiBOX 15 v.2
MobiBOX 15 v.2.1
Intel® Celeron™ 1037U
Wi-Fi
3G
- - -
Memory: 2GB RAM
-
Memory: 4GB RAM
- -
Disk: 32 GB SSD
- -

Disk: 500 GB HDD

or 64 GB SSD (option)

-
Intel® Atom™  D2550 (option)

Wi-Fi
3G
- - -
Memory: 2GB RAM
-
Memory: 4GB RAM
- -
Disk: 32 GB SSD
- -

Disk: 500 GB HDD

or 64 GB SSD (option)

-

go top… do góry   menu… menu

Specifications


   Display

   Screen: 15"

   Resolution: 1024 x 768

   Type: 5 - Wire Resistive
   Resistance IP

   -

   Communication

   Wi-FI

   3G (option)

   Dimensions





   Height:  280 mm

   Width: 53 mm

   Length: 357 mm

   Weight    8 kg
   Processor    Intel® Celeron™ Procesor 1037U
   Chipset
   Intel NM70 express chipset
   Memory RAM
   2GB (optional up to 4GB)
   Graphics Card
   Intel® HD Graphics
   Sound Card
   Realtek ALC662
   Network Card
   Intel RTL8111E 1000M Lan
   Ports & interfaces

   1 x COM(RS232)

   4 x USB 2.0

   1 x HDMI

   1 x VGA

   1 x LAN RJ45

   1 x Audio

   1 x Mic

   1 x DC-in

MTouch Industrial Przemysłowy PanelPC MobiBOX 15 v.1  Komputer panelowy Panel PC  Przemysłowy komputer panelowy Ekran rezystancyjny 5 wire resistive wyświetlacz 15 cali mobilator.pl New Portable Devices Windows RS-232 COM VGA HDMI Intel Celeron
