Industrial tablet Winmate Winmate M700D (WIN 7)

Industrial tablet Winmate Winmate M700D (WIN 7)

Data update: 2018-04-19

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



m700d winmate tablet przemys³owy windows 7 android



Founded in 1996 in Taiwan, the company Winmate achieved an excellent reputation as a manufacturer of industrial LCD displays and laptops. Due to the high position of the products in the high-tech, have won many awards in tests conducted around the world.


Description

tablet przemys³owy sim aero windows 7 m700d

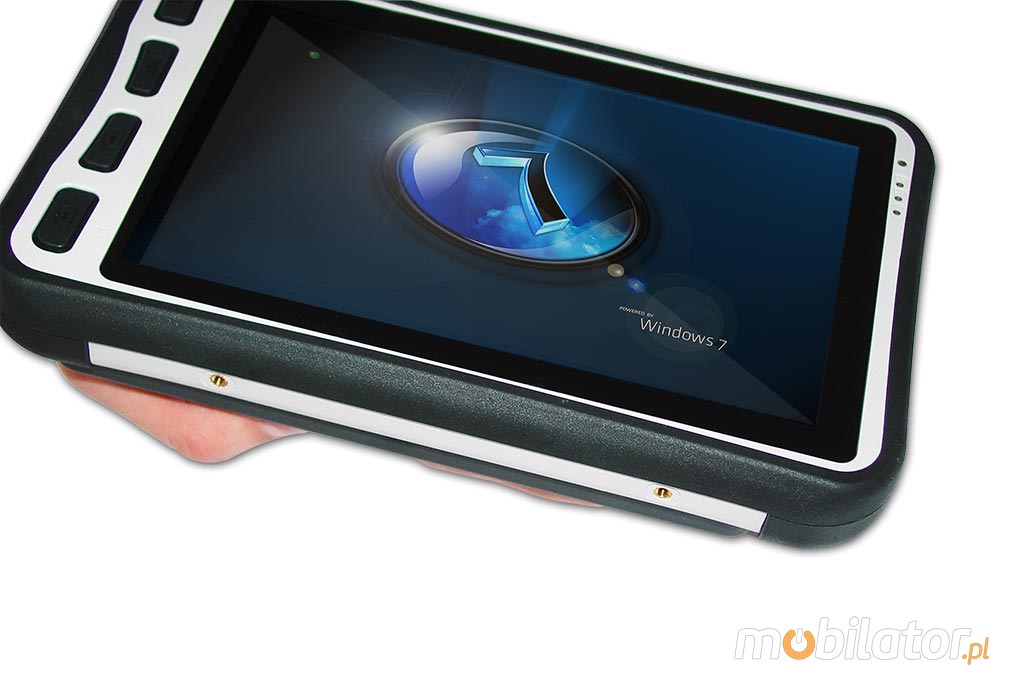

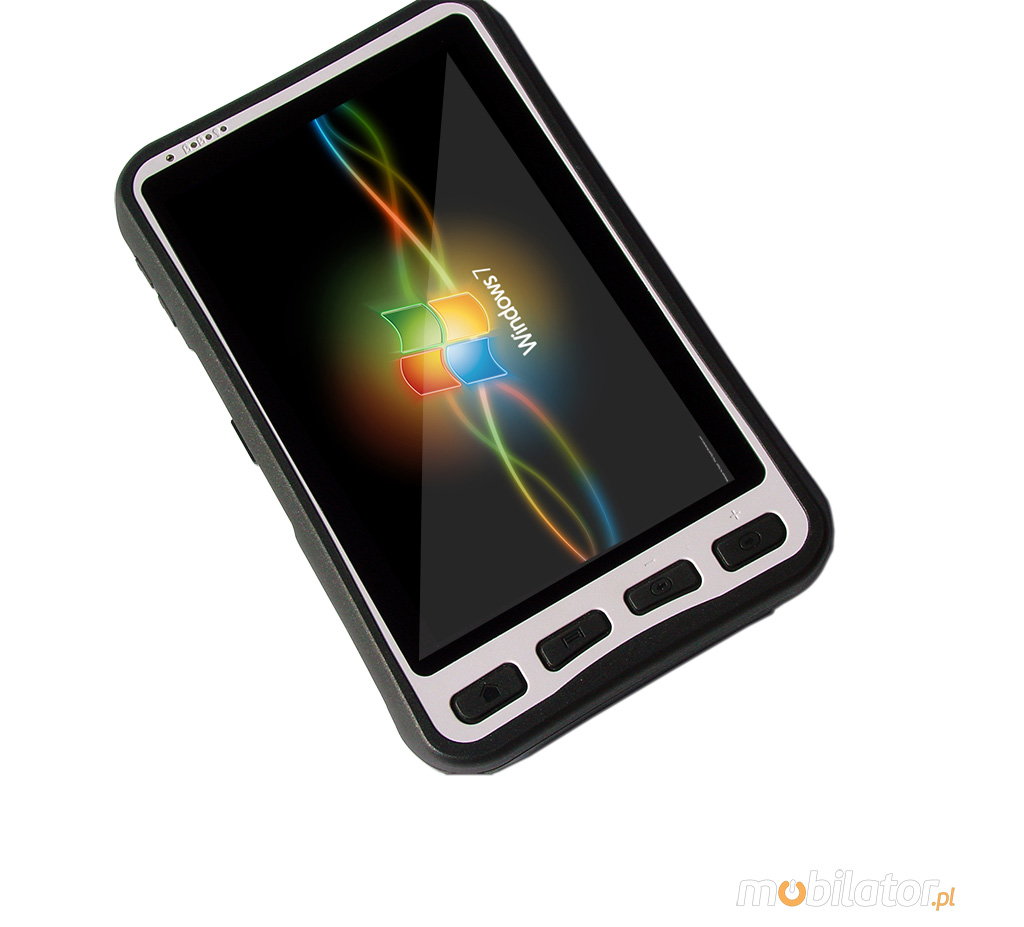

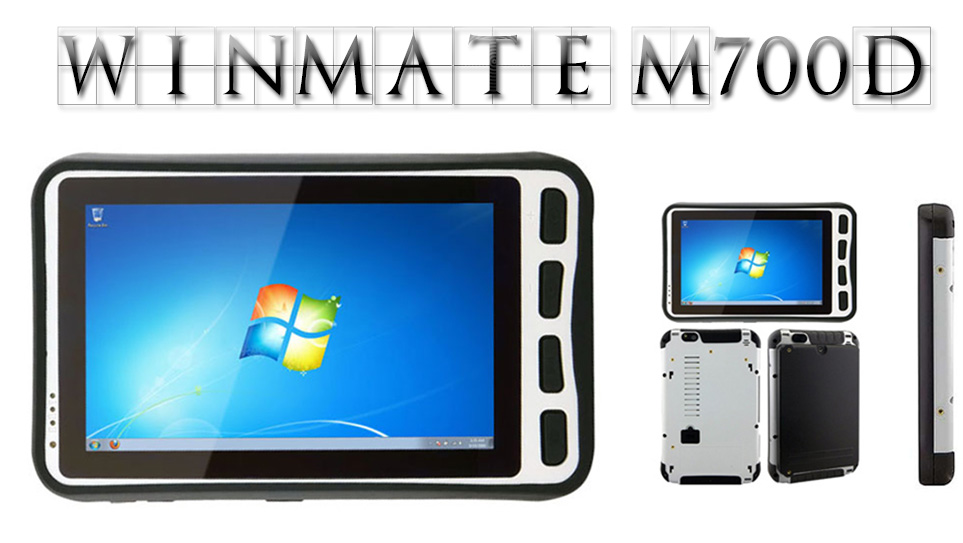

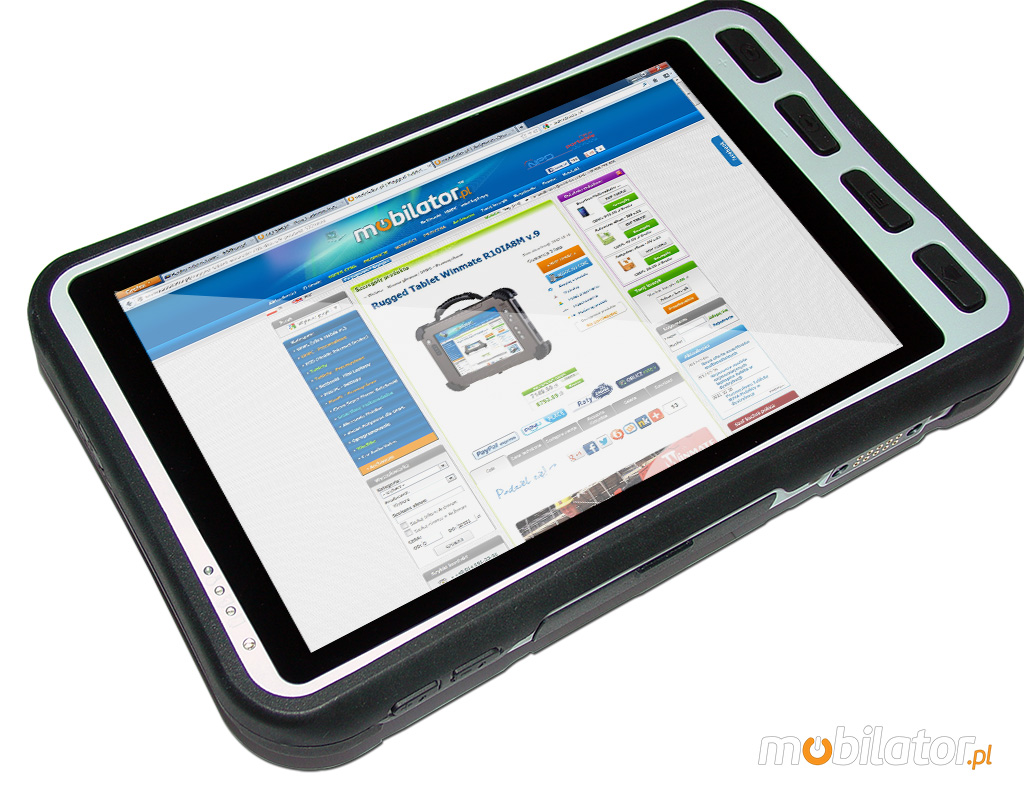

Winmate M700D is unrivaled in the market, ultra-modern tablet that meets very strict industry standards. Very rich furnishings, combined with affordable prices make it the perfect solution where we require high performance, versatility and strength equipment.

Specifications Winmate M700D
 CPU Intel® Atom™ Processor N2600 1.6 GHz
Standard/Max RAM
 2 GB DDR3 SDRAM (max. 4 GB)
Disk 32GB SSD (max. 128 GB SSD)
Operating System
 Windows 7 Embedded

Efficient processor
winmate m700d dual 1.6tablet-przemyslowy m700d szybki

Intel® Atom™ Dual N2600
(1M Cache, 1.6 GHz)
Dual-Core Intel ® Atom ™ N2600 is one of the fastest mobile processors for tablets, netbooks and nettops. . The fast processor allows for smooth operation of the device at all times.

Tablet is equipped with the Intel NM10 chipset and 2GB memory DDR3 SODIMM RAM, expandable to 4GB.

winmate m700d wydajny tablet przemys³owy windows 7 embedded android

Super fast SSD

The use of SSD 32GB (max - 128GB), for which we can install the system and most used applications. This approach leads to a super-fast operation of your computer. The rate of operations performed on the applications installed SSDs can increase up to 50%.

Minimalism

lekki tablet przemys³owy winmate m700d

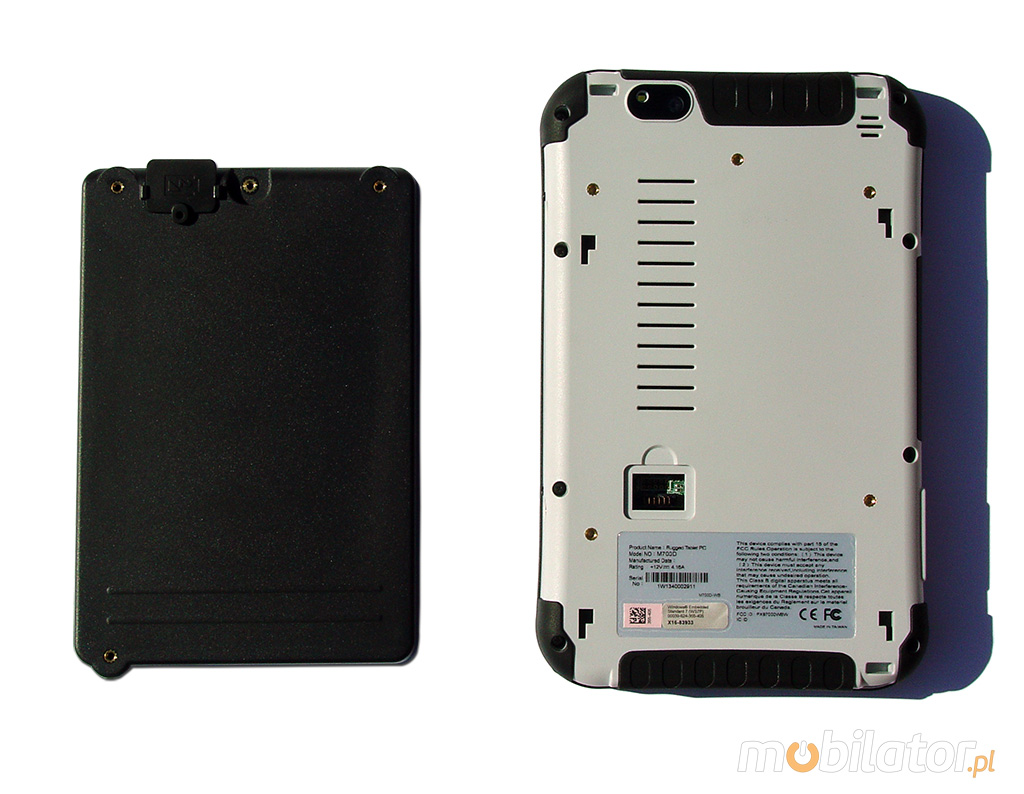

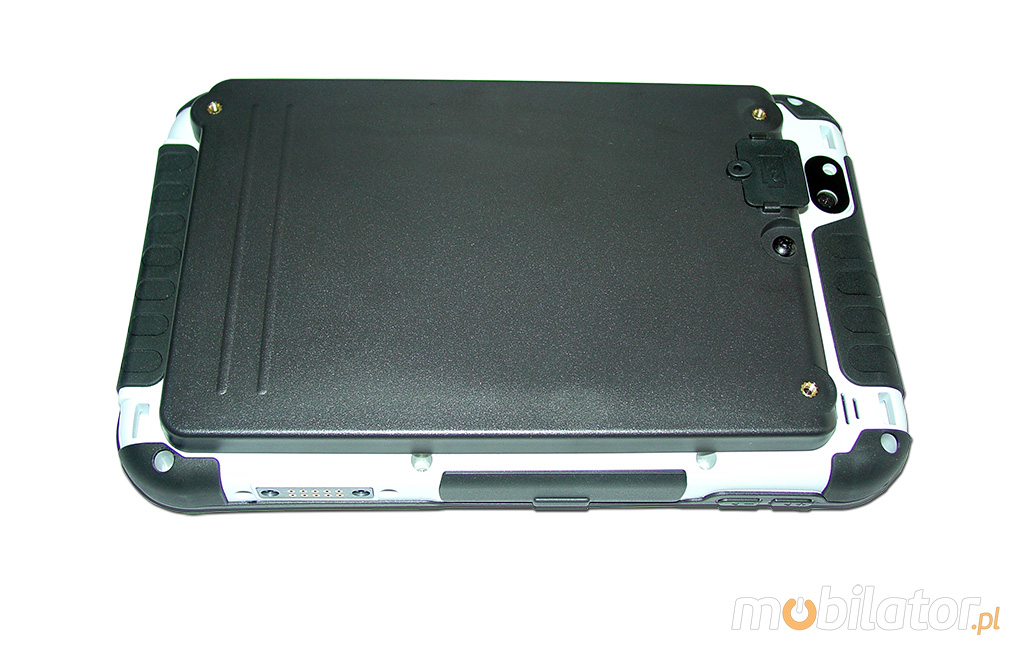

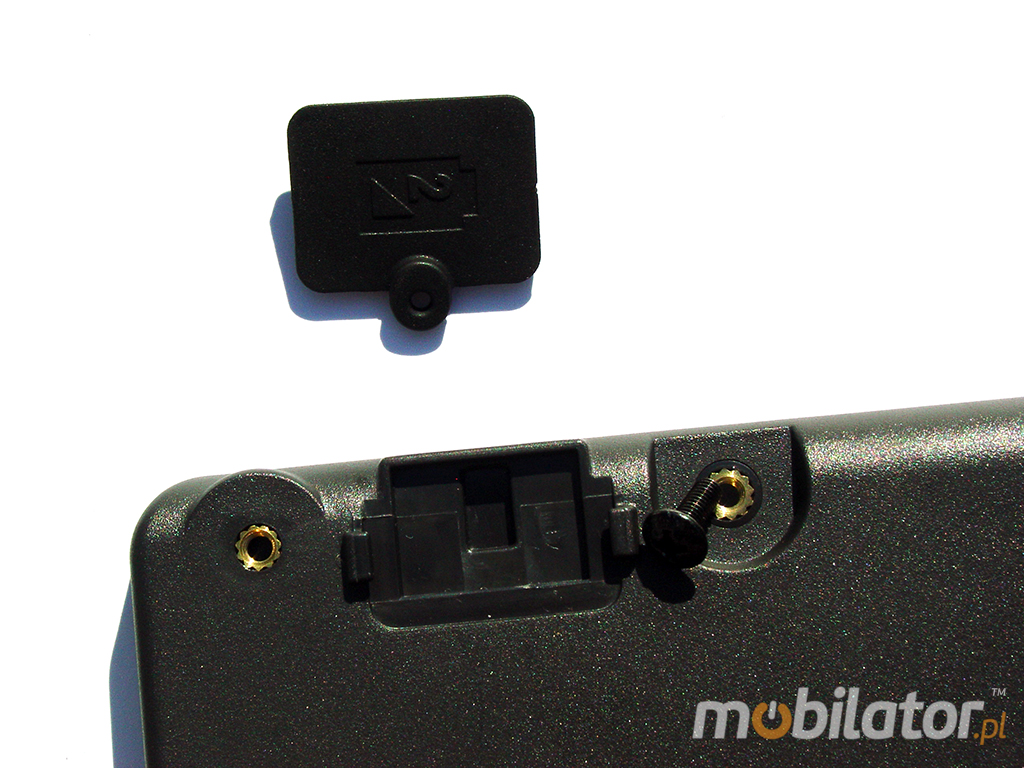

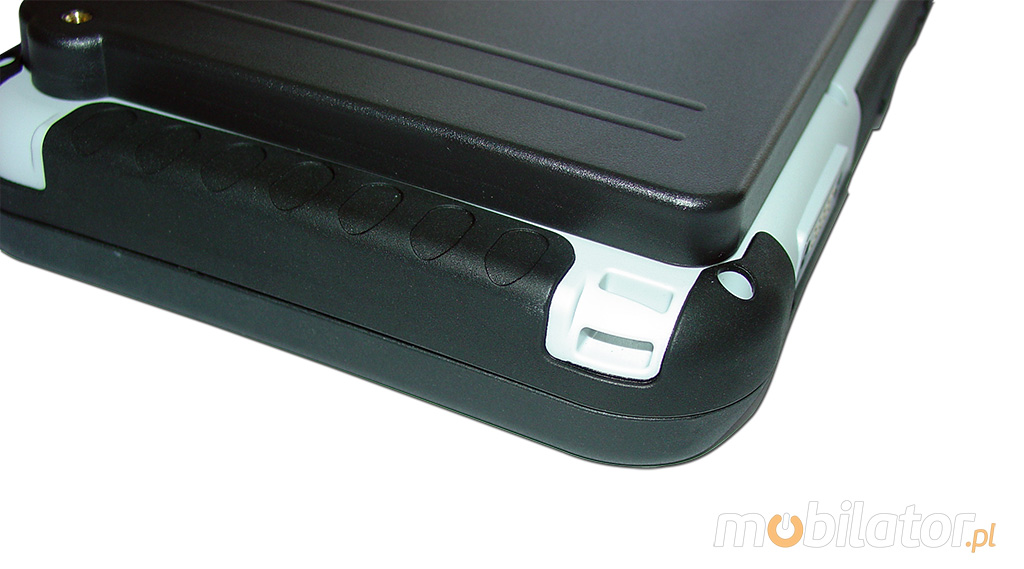

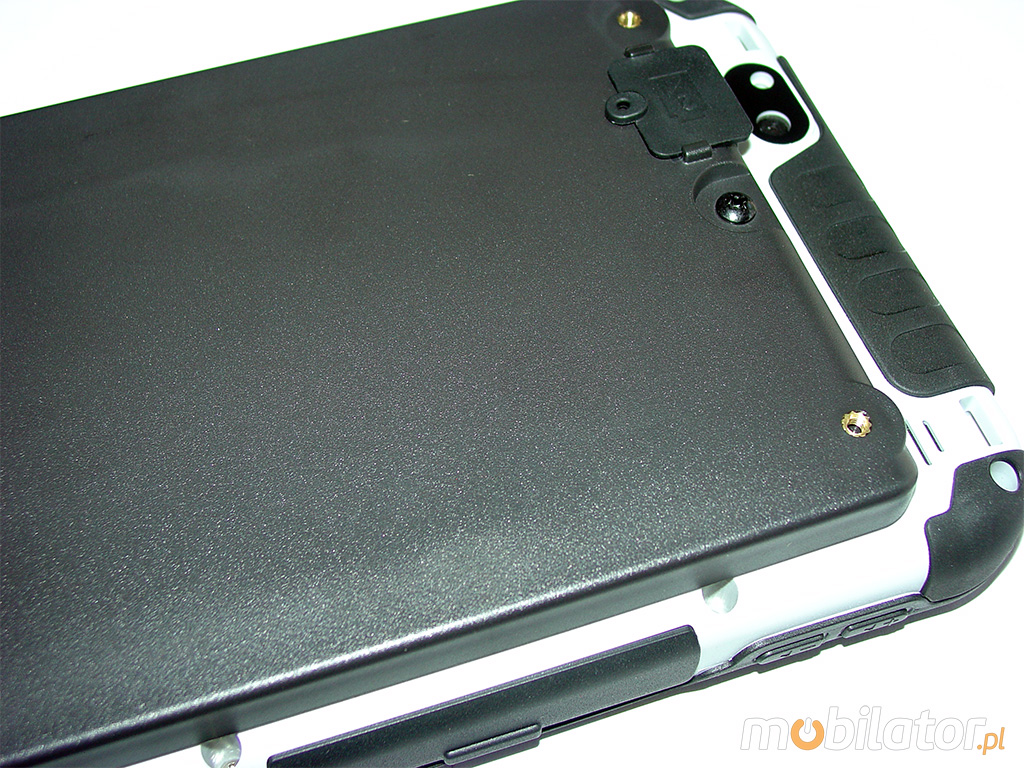

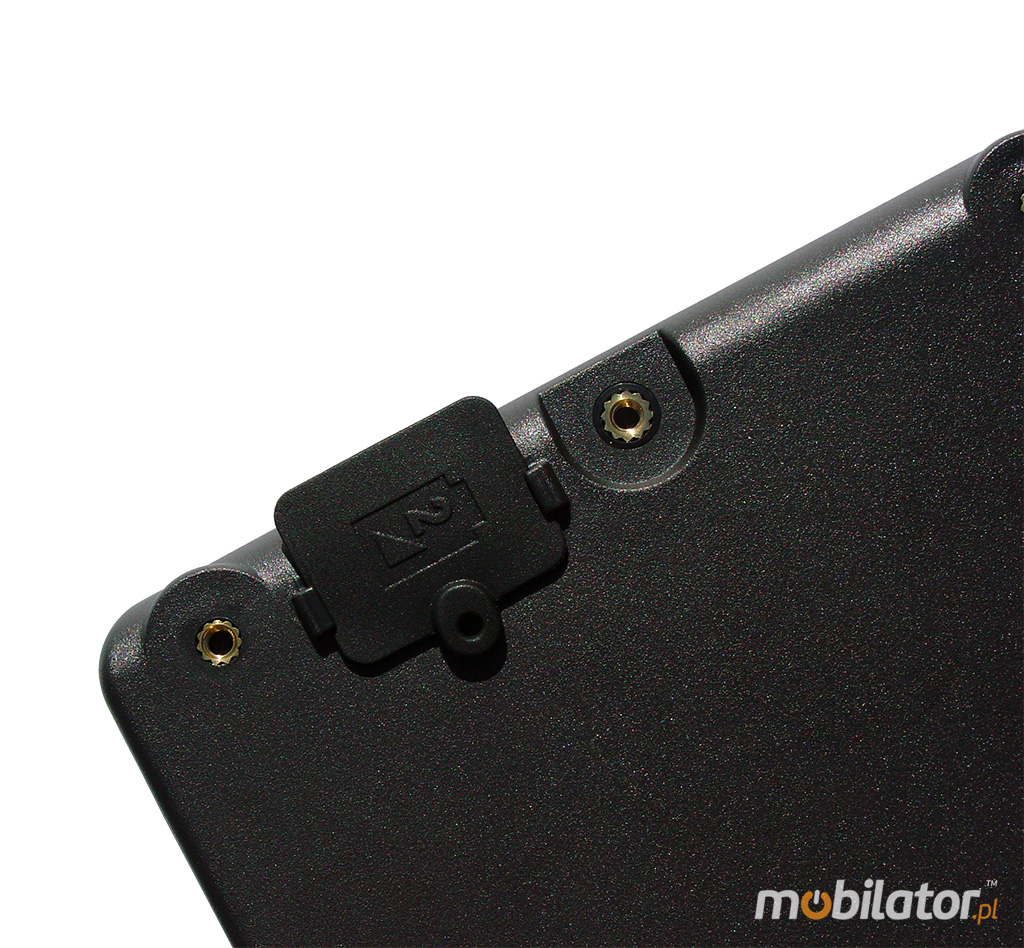

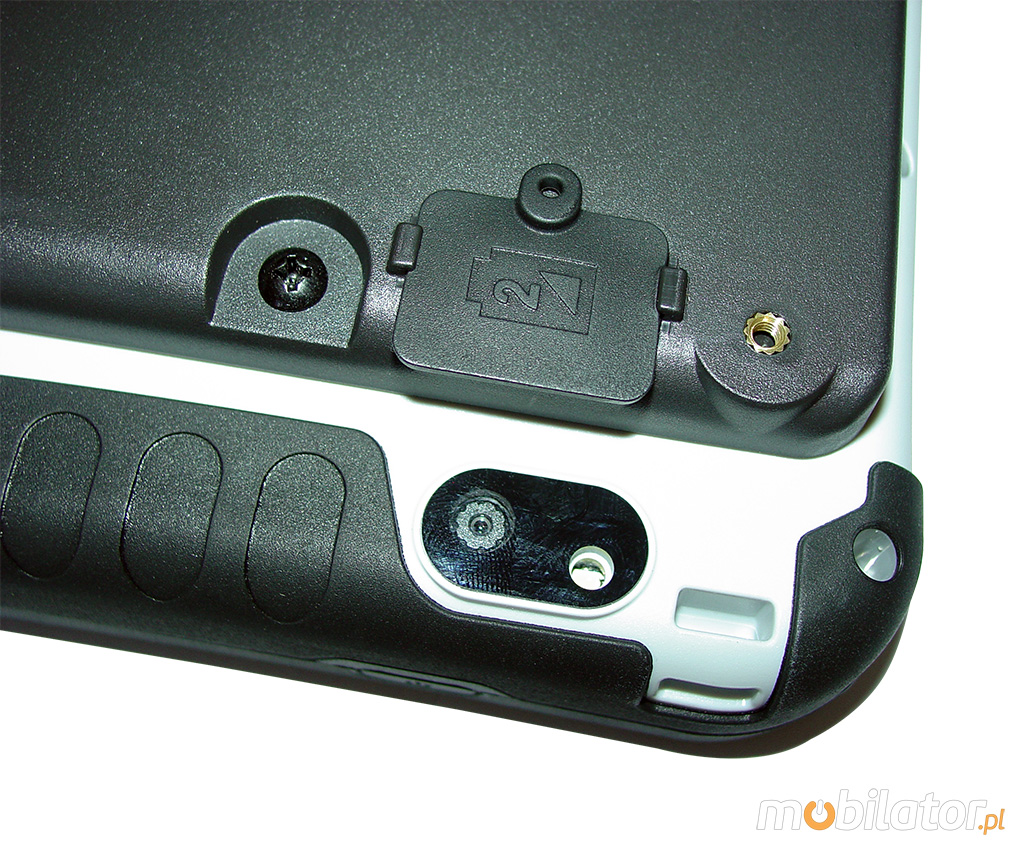

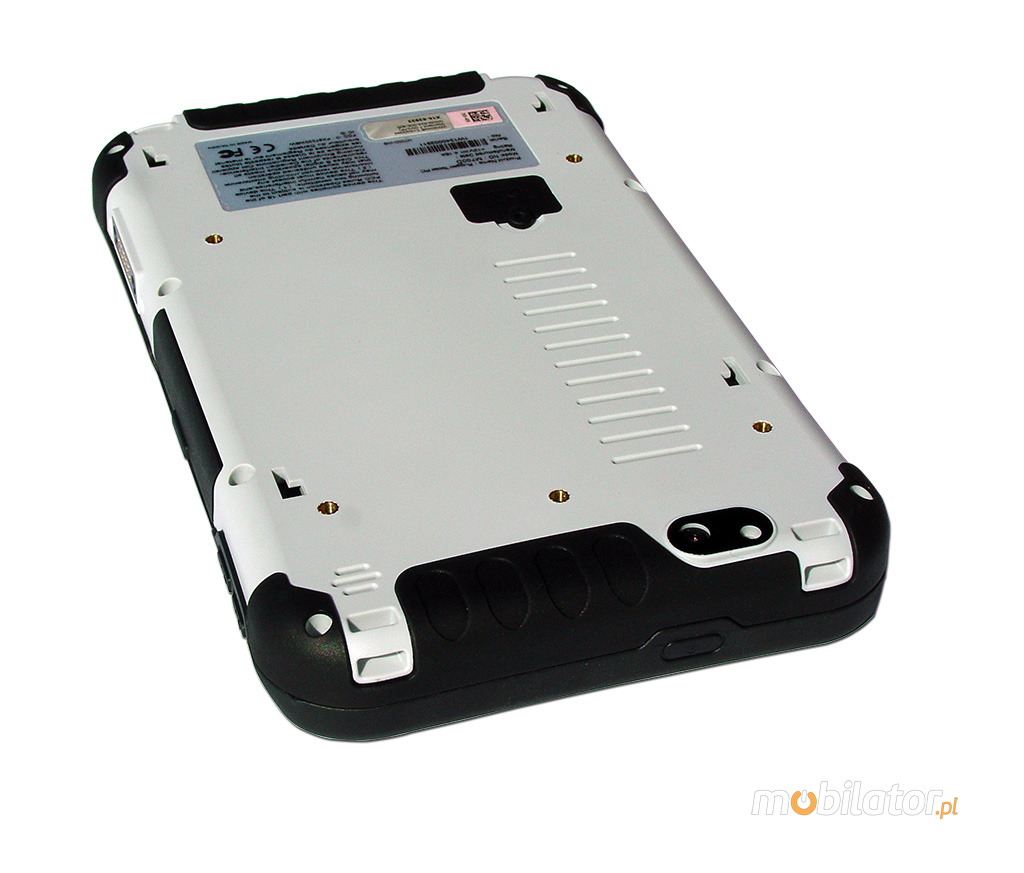

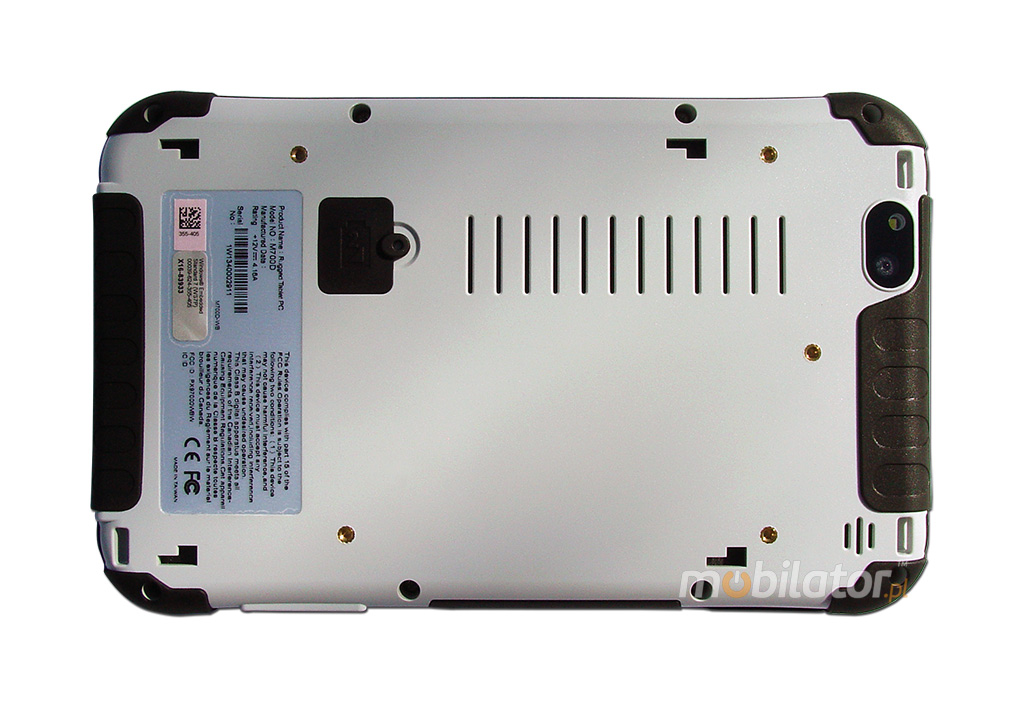

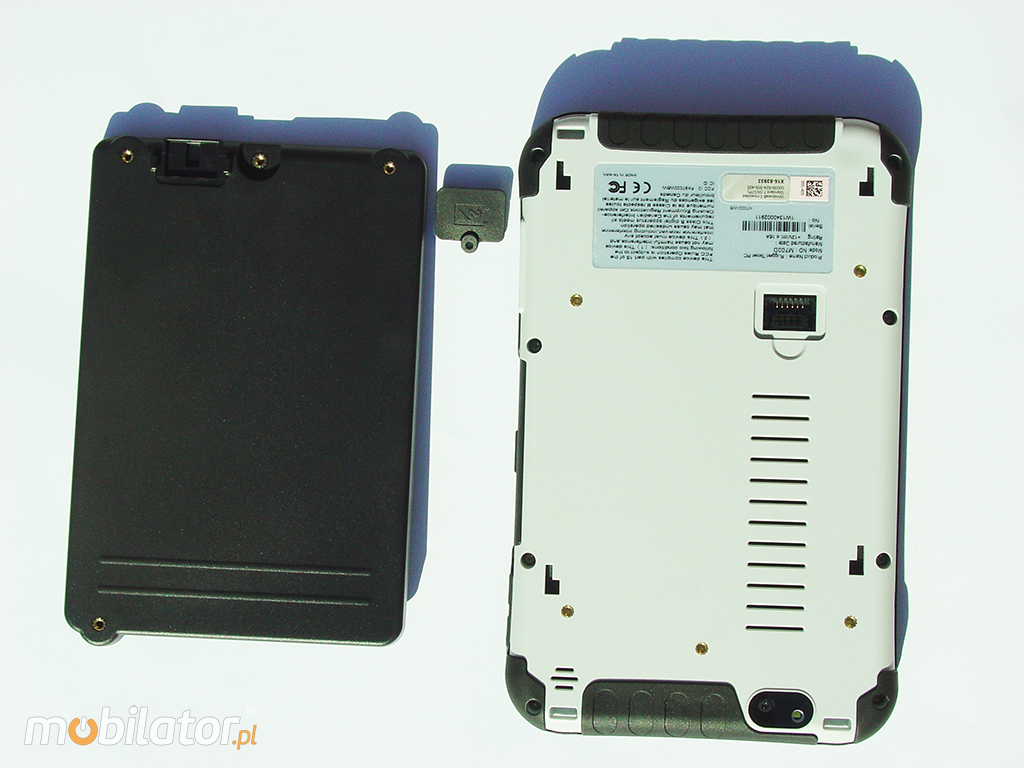

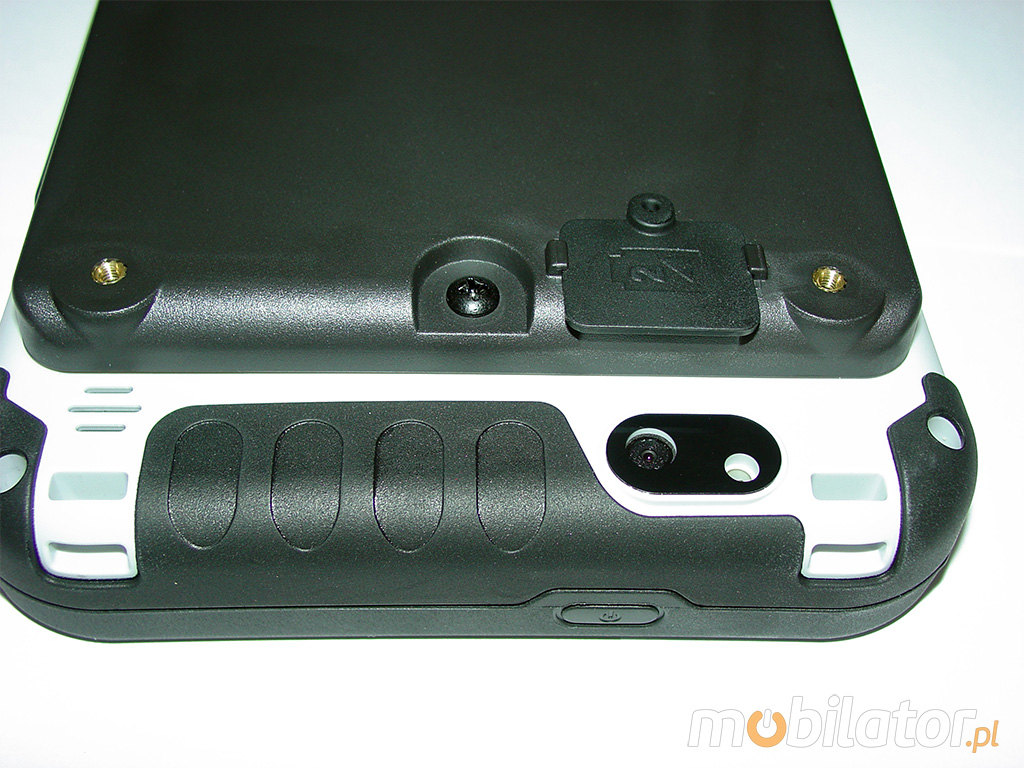

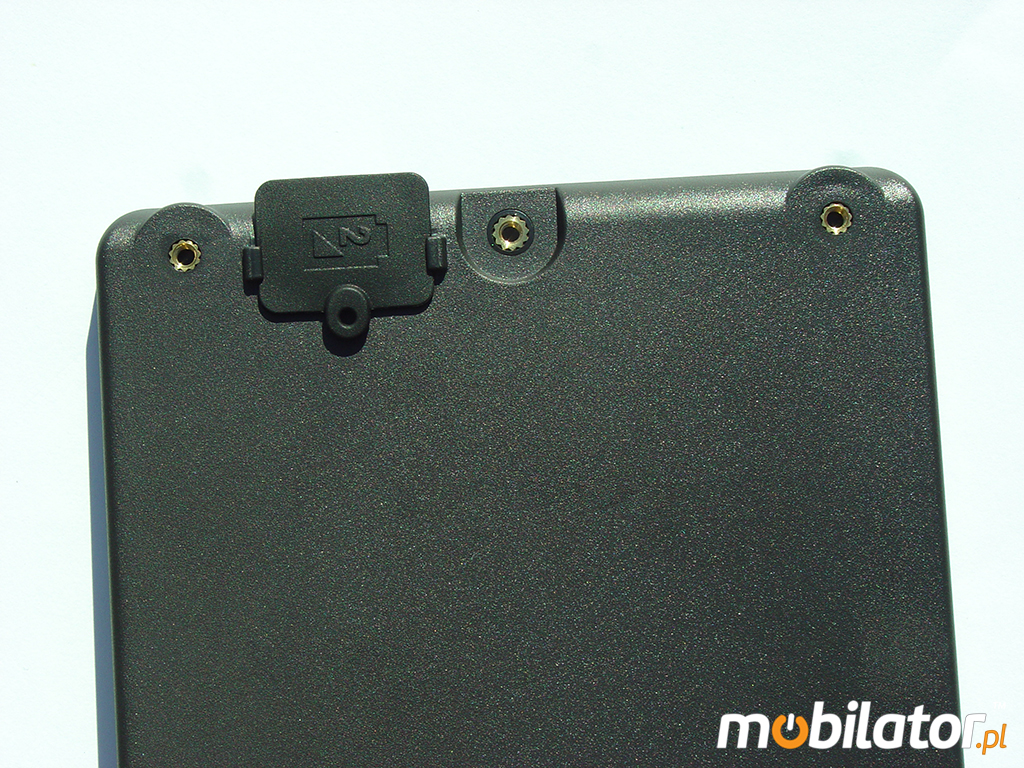

The device weighs just 770g which is undoubtedly a great advantage considering met industry standards. The manufacturer has provided a possibility to replace the battery for backup. If you decide to purchase a second, expand your art, then using both get a total of up to 8 hours of operation. The standard battery capacity is 2270 mAh, and 5200 mAh extra.

ma³y winmate m700d

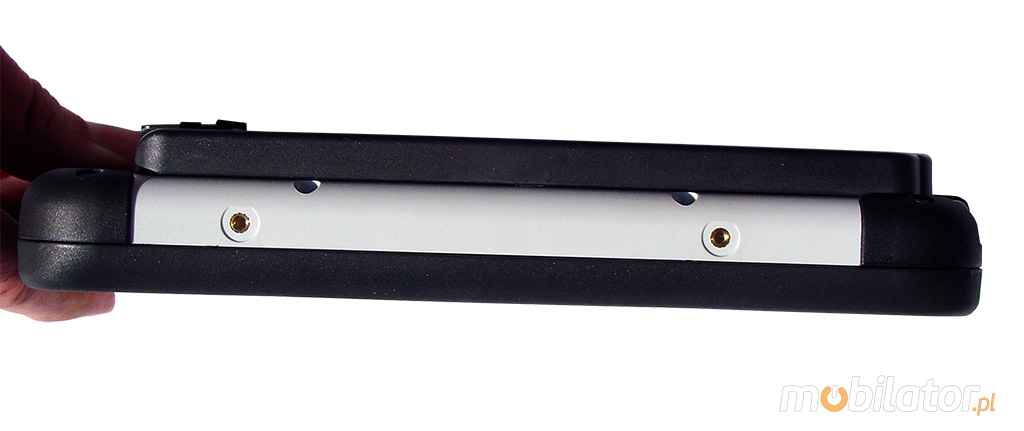

Dimensions 212.4mm x 132.8mm x 26mm (Standard)
Weight
 770g

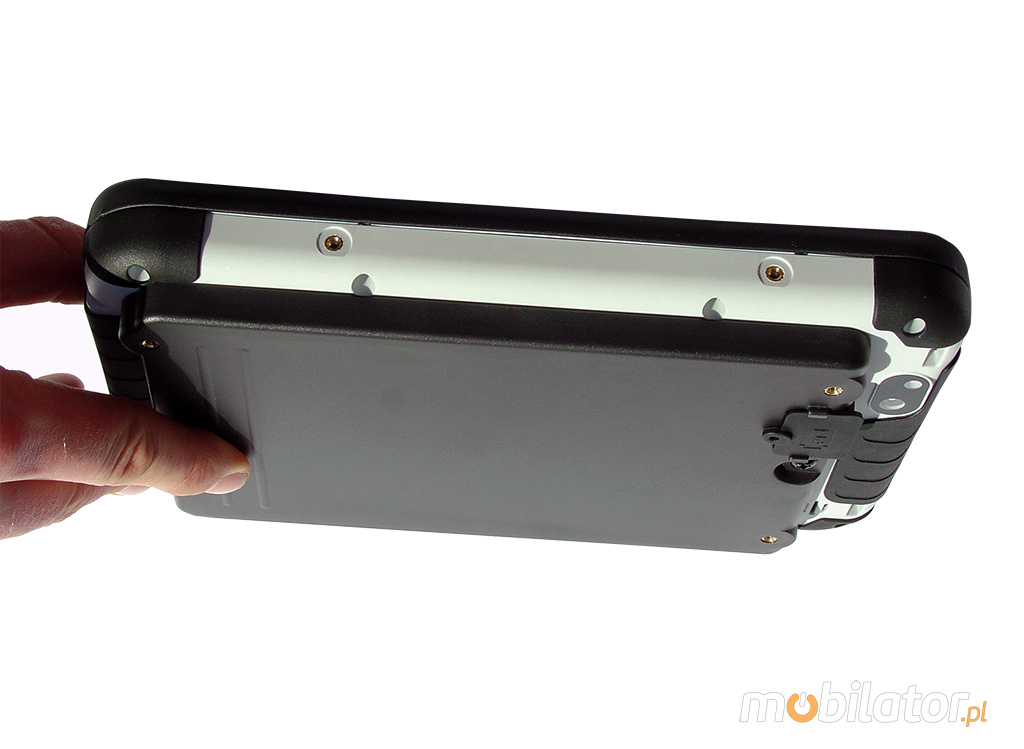

1060g (with additional battery)
Battery Li-Po 2270mAh (Standard)

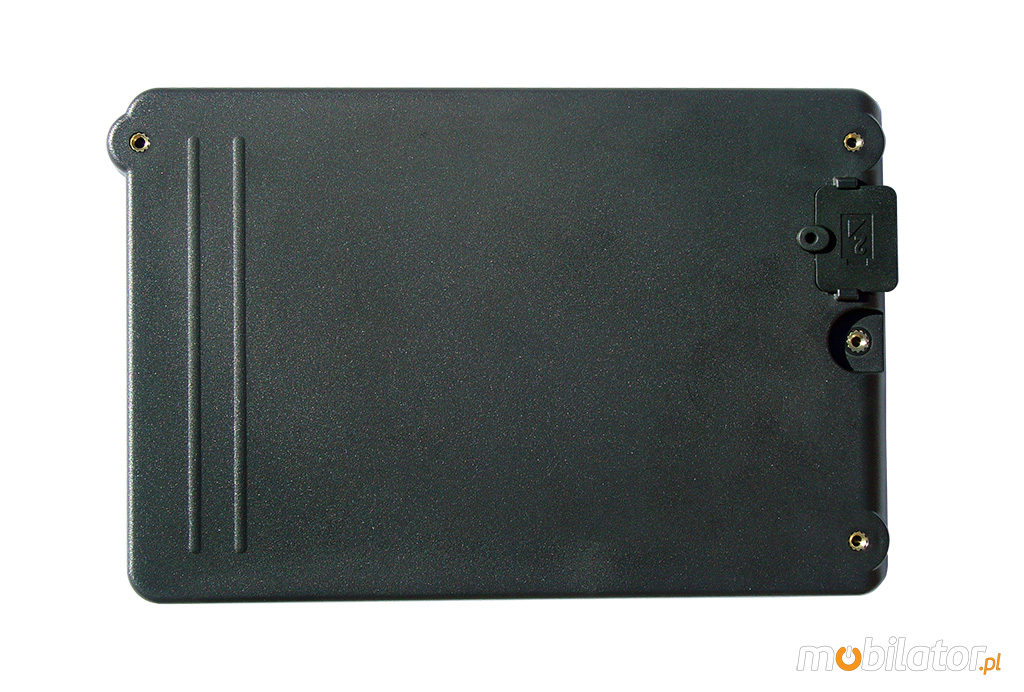

Li-Po 5200mAh (Additional - option)
Working time
 2 hours (7 hours with additional battery)
Power consumption
 11.5W

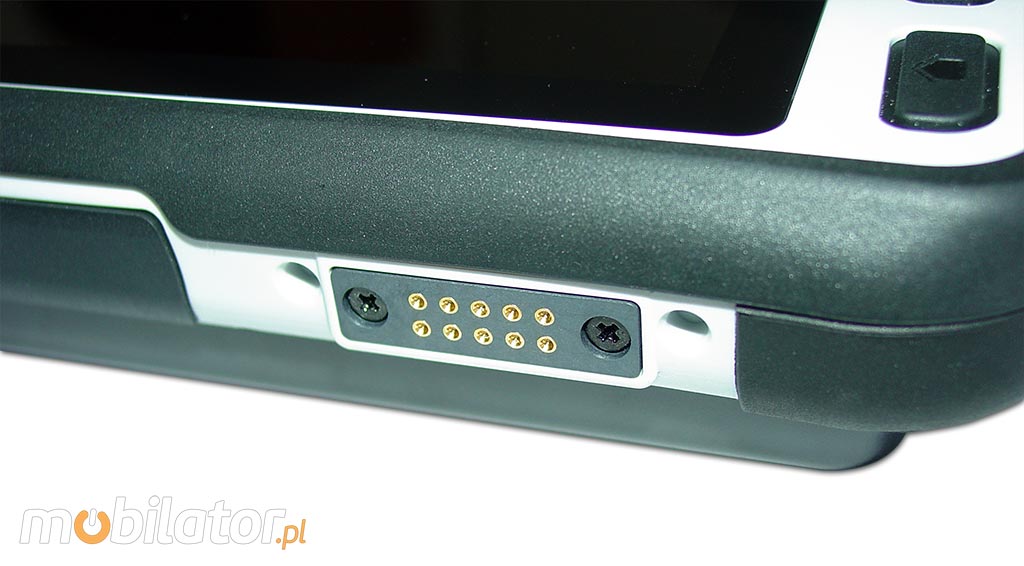

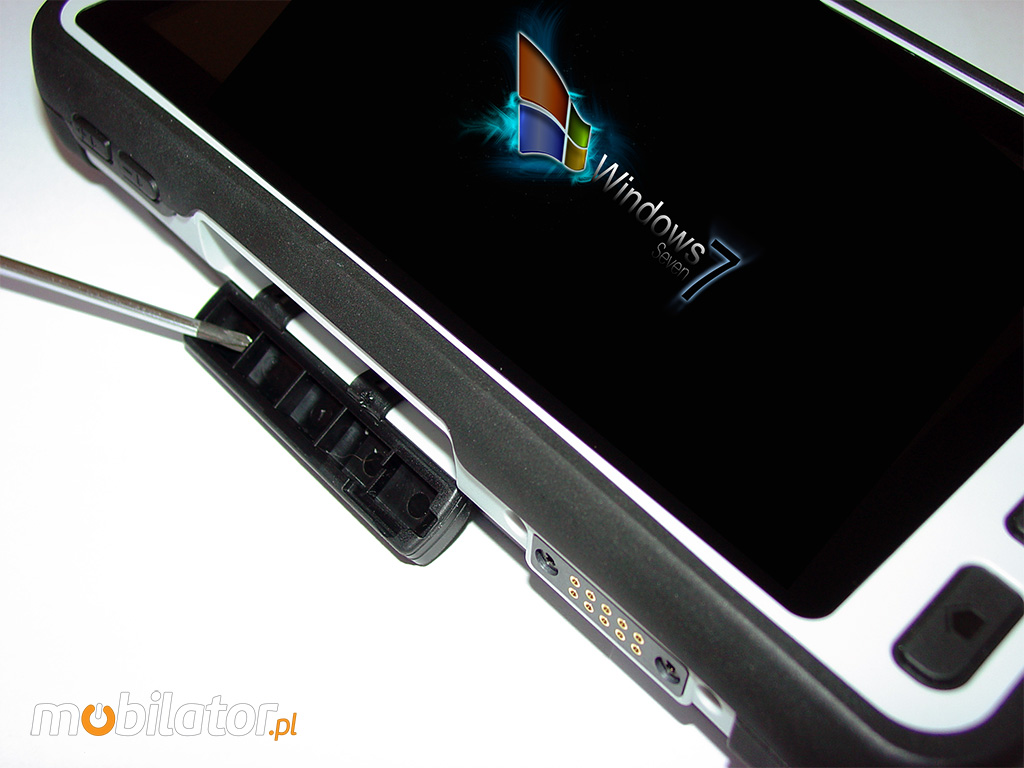

Connectors

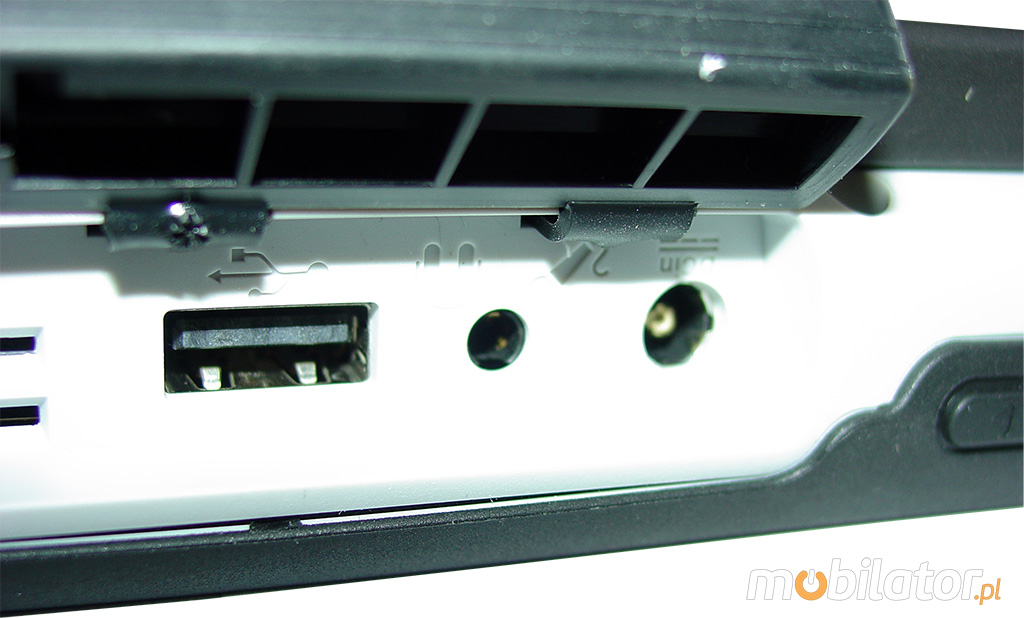

 1x USB2.0 / 1x Headset jack / 1x 2.5Ø 12V DCin 1x SIM Card slot 1x Micro SD slot
go top… do góry menu… menu

Functionality
tablet usb sim winmate m700d

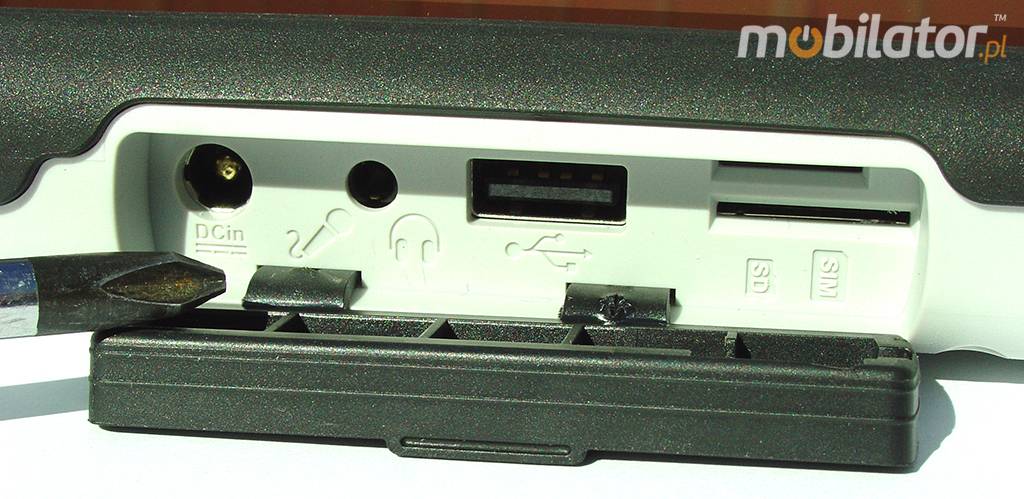

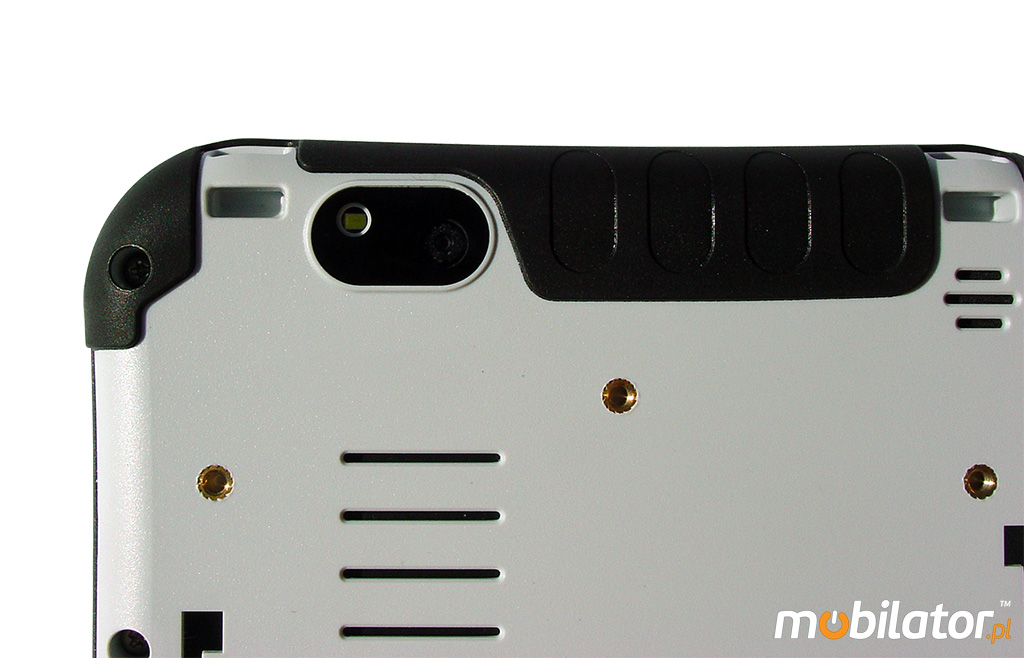

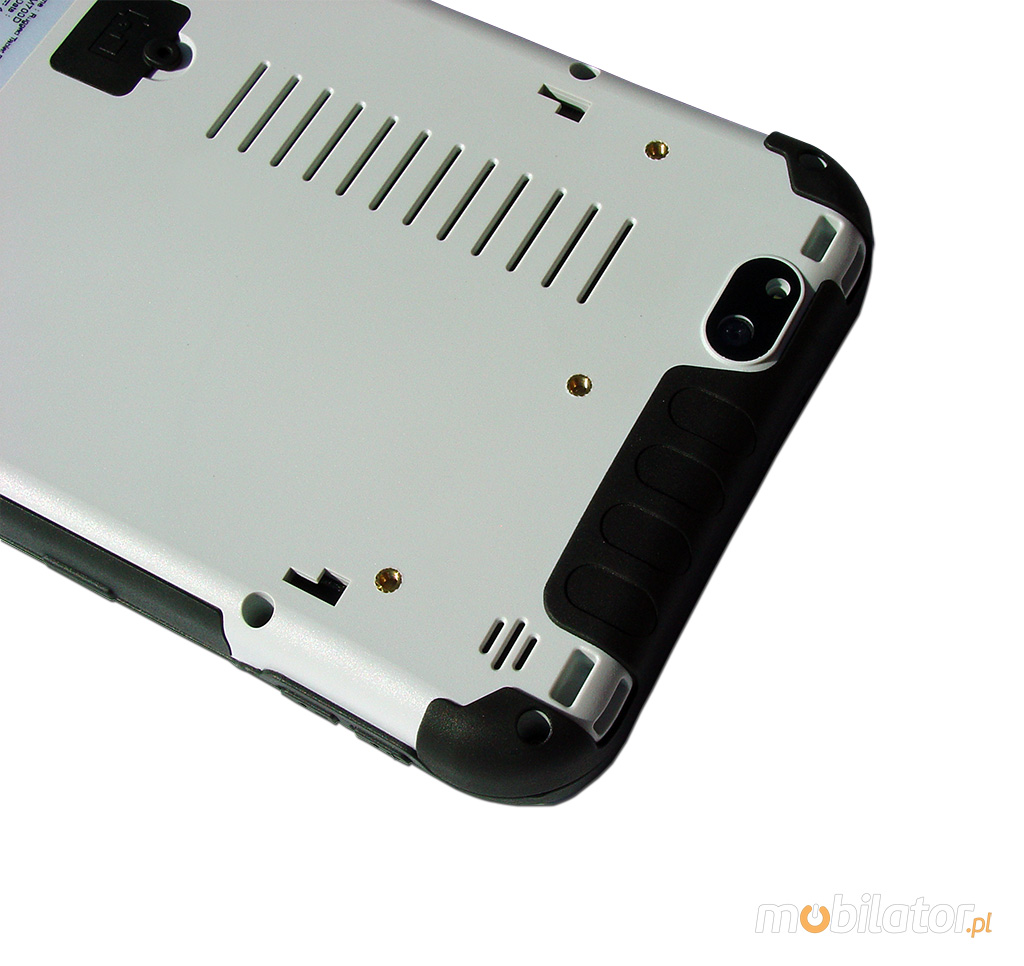

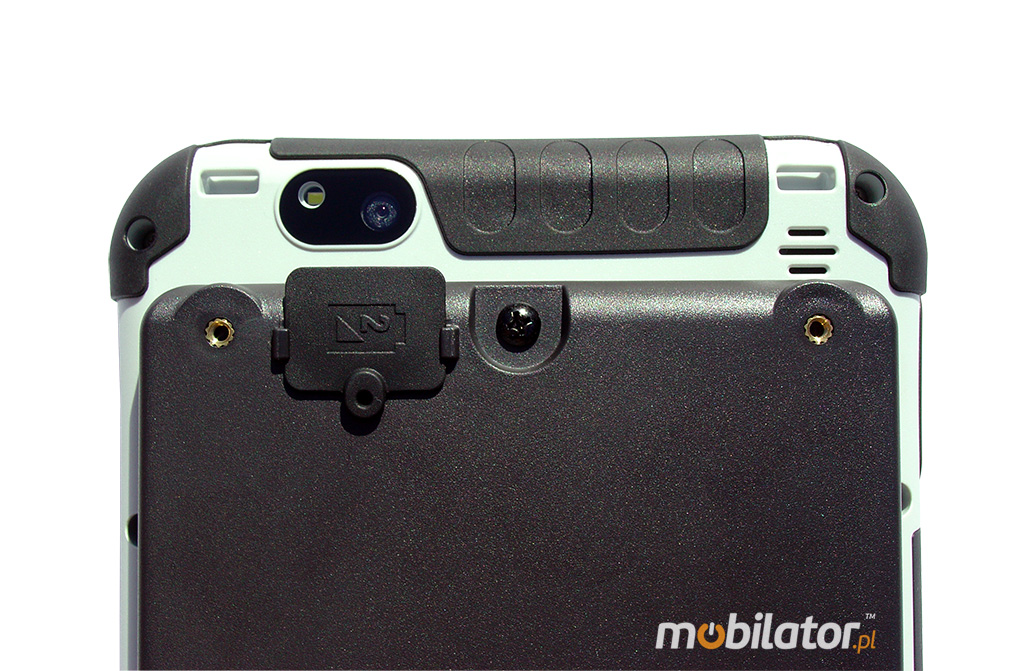

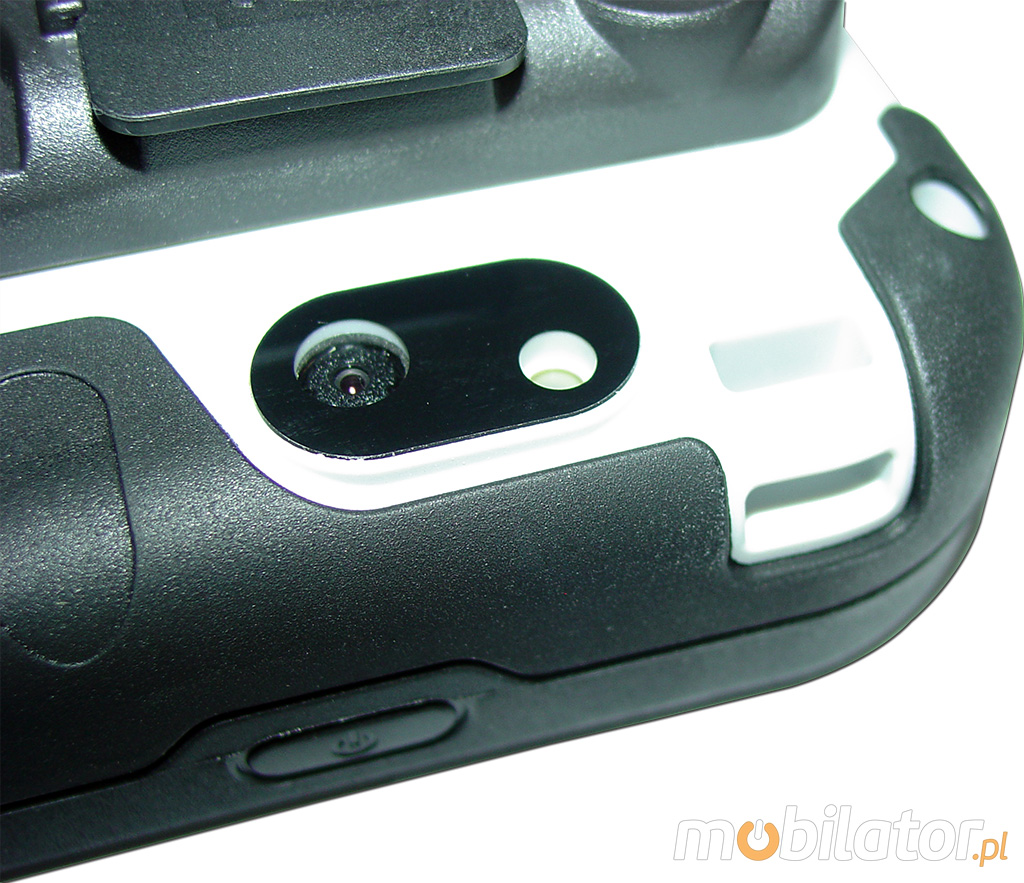

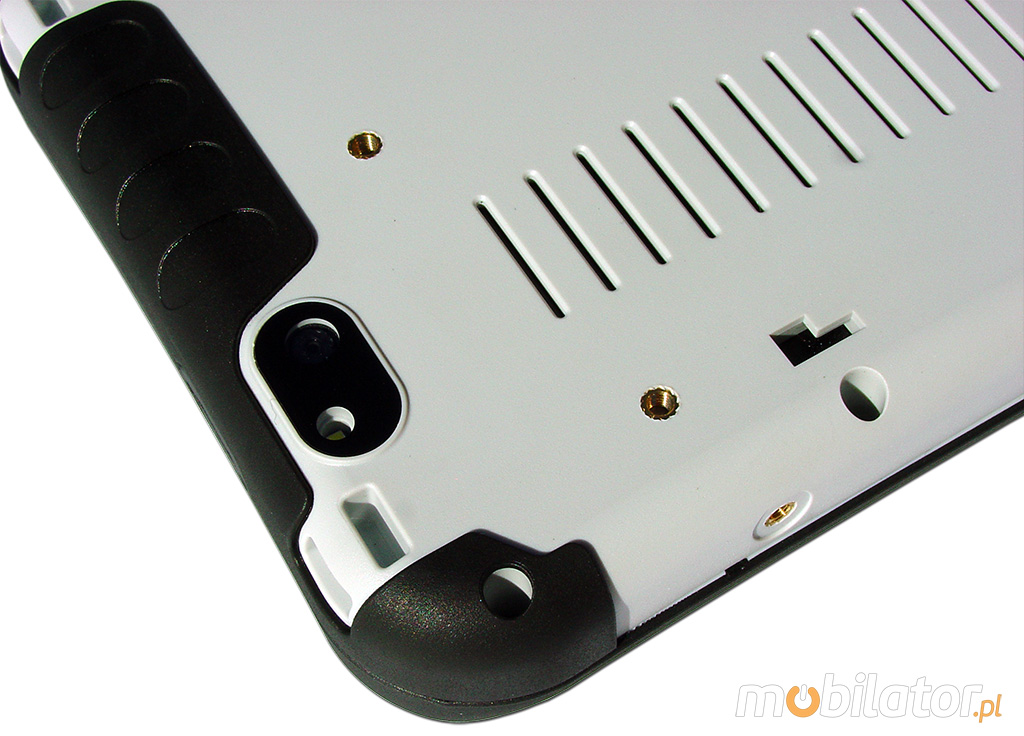

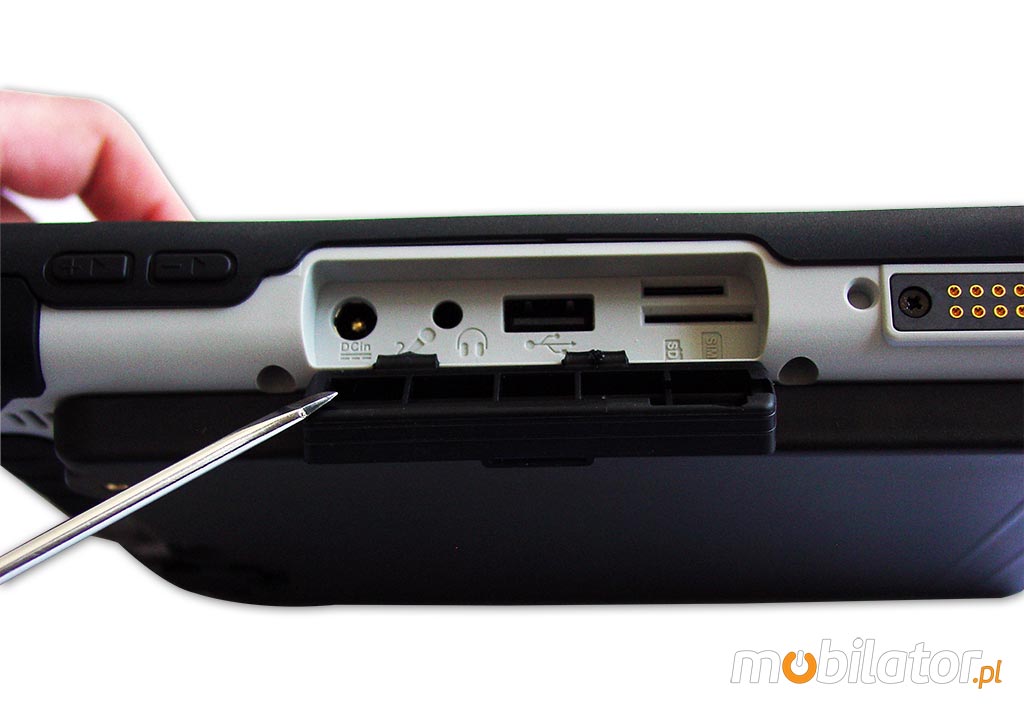

M700D tablet is equipped with one USB 2.0 port, microSD card reader and audio output mini-jack. The possibility of recording enables integrated 2Mpx camera with autofocus. To facilitate use of the device the user can define tasks for the selected keys were located on the right side of the unit (hotkey).

winmate m700d gps wifi wcdma

Modules and Wireless Networks

WiFi WLAN 802.11 2.4GHz  a/b/g/n
Bluetooth 4.0
3G HSPA/UMTS/GPRS/WCDMA/GSM - (Opcja)
GPS High performance positioning engine. Support - 50 channels.
GPS L1 Frequency , C/A Code. SBAS: WAAS/EGNOS/MSAS



wifi bgn winmate m700d

go top… do góry menu… menu

Protection Standards

logo baner mobilator rugged industrial umpc mid winmate m700dThe following is a top-level introduction to US Military standard MIL-STD-810, used to define the testing methodology for, and results required for acceptance of, rugged equipment.



MIL-STD-810 is a series of performance and manufacturing guidelines set by the US Department of Defense for military and commercial equipment and applications. These guidelines specify allowable parts and environmental condition ranges in which a device must be able to operate to meet compliance.



MIL-STD-810 is a generally accepted standard of ruggedisation testing and compliance for mobile computers and equipment.

The MIL-STD-810 test method is used to generate confidence in the environmental worthiness and overall durability of ‘material system’ design. The testing process follows guidelines, which include program documentation, program roles, test standards, and laboratory test method guidelines for all categories.

The laboratory test methods are broken down into 24 categories and thereafter procedures (specific tests or levels) appropriate to the environment in which the equipment is expected to be used. The compliance test categories are shown overleaf.

Applicable standards and tests carried out
Operating temperature
 -10°C -- +50°C MIL-STD-810F
Storage temperature
 -20°C -- +70°C MIL-STD-810F
Relative Humadity
 95% @ 40°C MIL-STD-810F
Dust Protection
 IP6x (dust) -
Water Protection
 IPx5 (water) -
Vibration - MIL-STD-810F  Method 514.5
Dropt Test
 - MIL-STD-810F
Method 516.5

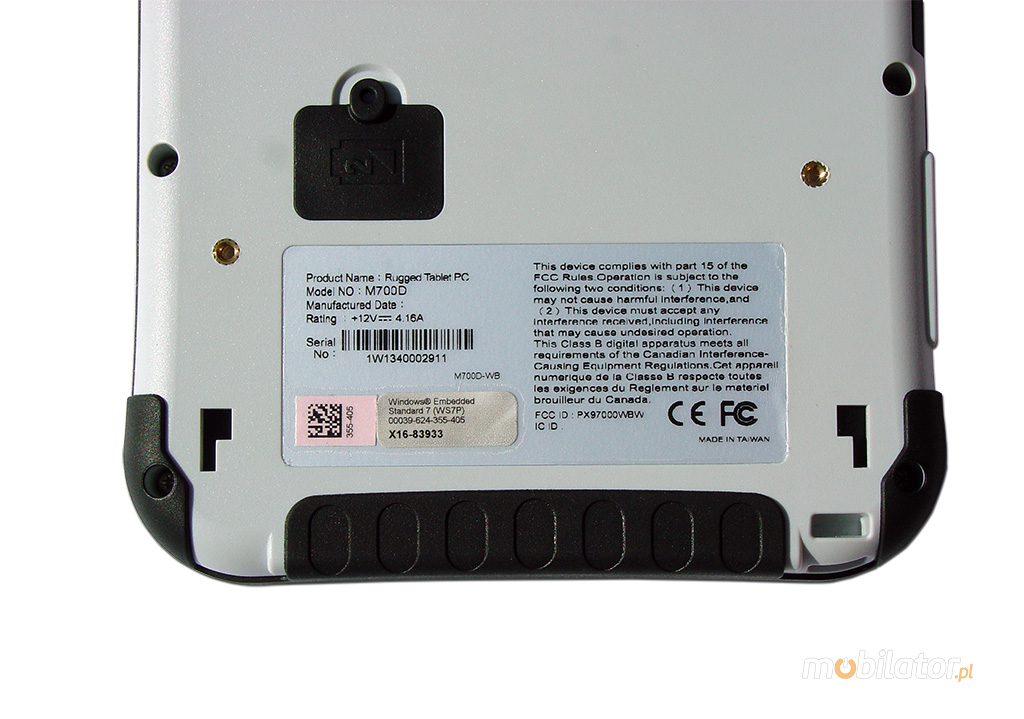

Regulatory CE / FCC Class B

umpc, tablet, rugged, semi rugged, full rugged, tablet przemys³owy, tablet wojskowy, komputery medyczne, UMPC, MID, HSDPA, 3G, GPS, TABLET Z GSM, komputer do autodiagnostyki, komputer do przemys³u,go top… do góry menu… menu

tablet diagnostyka firma wcdma gsm 7 cali winmate m700d

Resistance IP65

 IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust.  The second digit is a degree of protection against water.

norma ip65 tablet przemys³owy winmate m700dThe first digit in the range 0 to 6 the resistance to dust and the other in the range 0 to 8 the resistance of the water.

  • number 6 of the first index (protection against the penetration of foreign bodies - dust, limited ingress)
  • number 5 of the second index (protection against penetration - WATER BEFORE jet from any direction)

go top… do góry menu… menu
The first digit [x]
Protection against solid objects		   The second digits [y]
Protection against liquids
No special protection
0

0
No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1

Protection from dripping water
Protection from object not greater than 12mm in diamete
2

2
Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3
Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4
Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5
Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6
Protection against heavy seas, or powerful jets of water


7
Protection against immersion


8
Protection against complete, continuous submersion in water



zlacza winmate m700d hotkey





more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...
