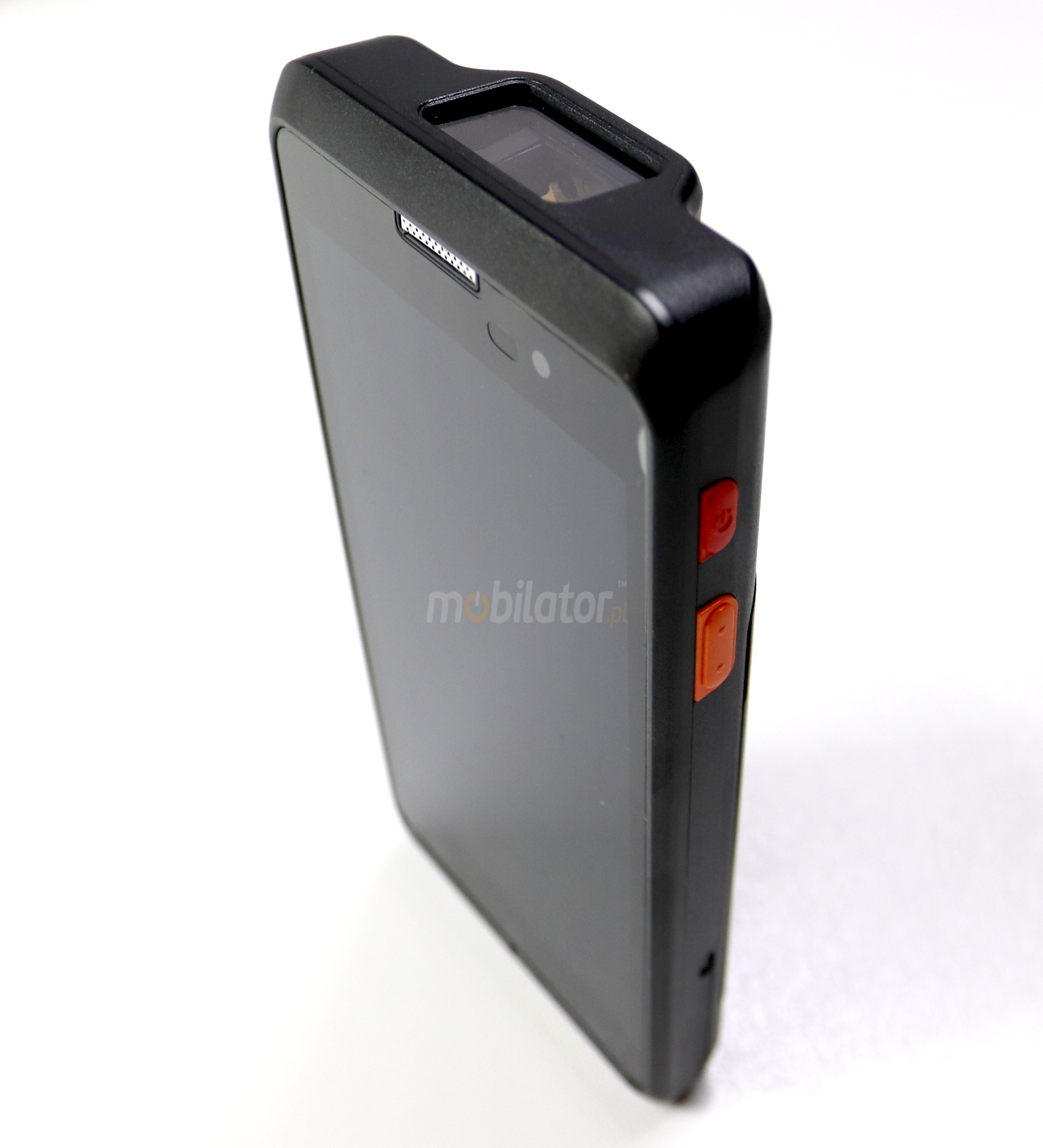

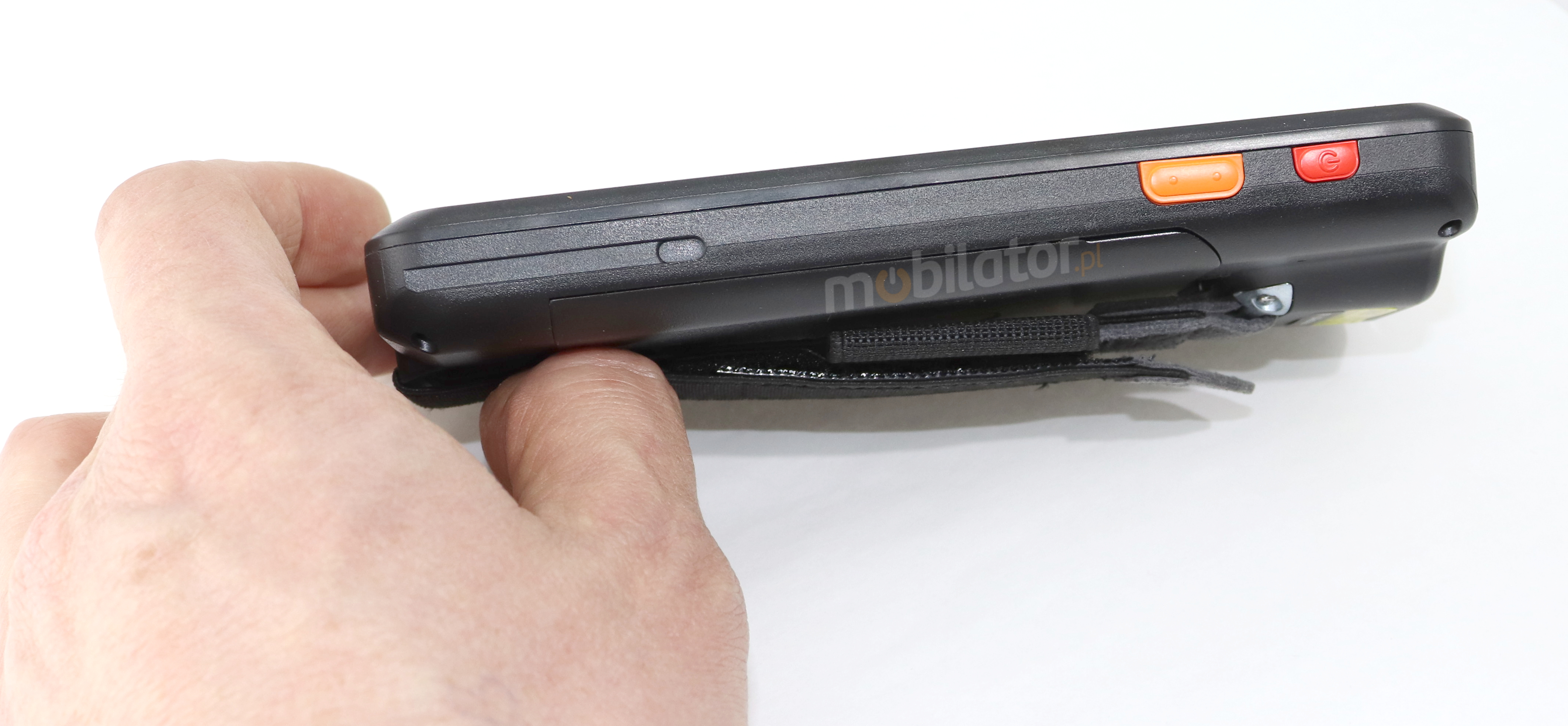

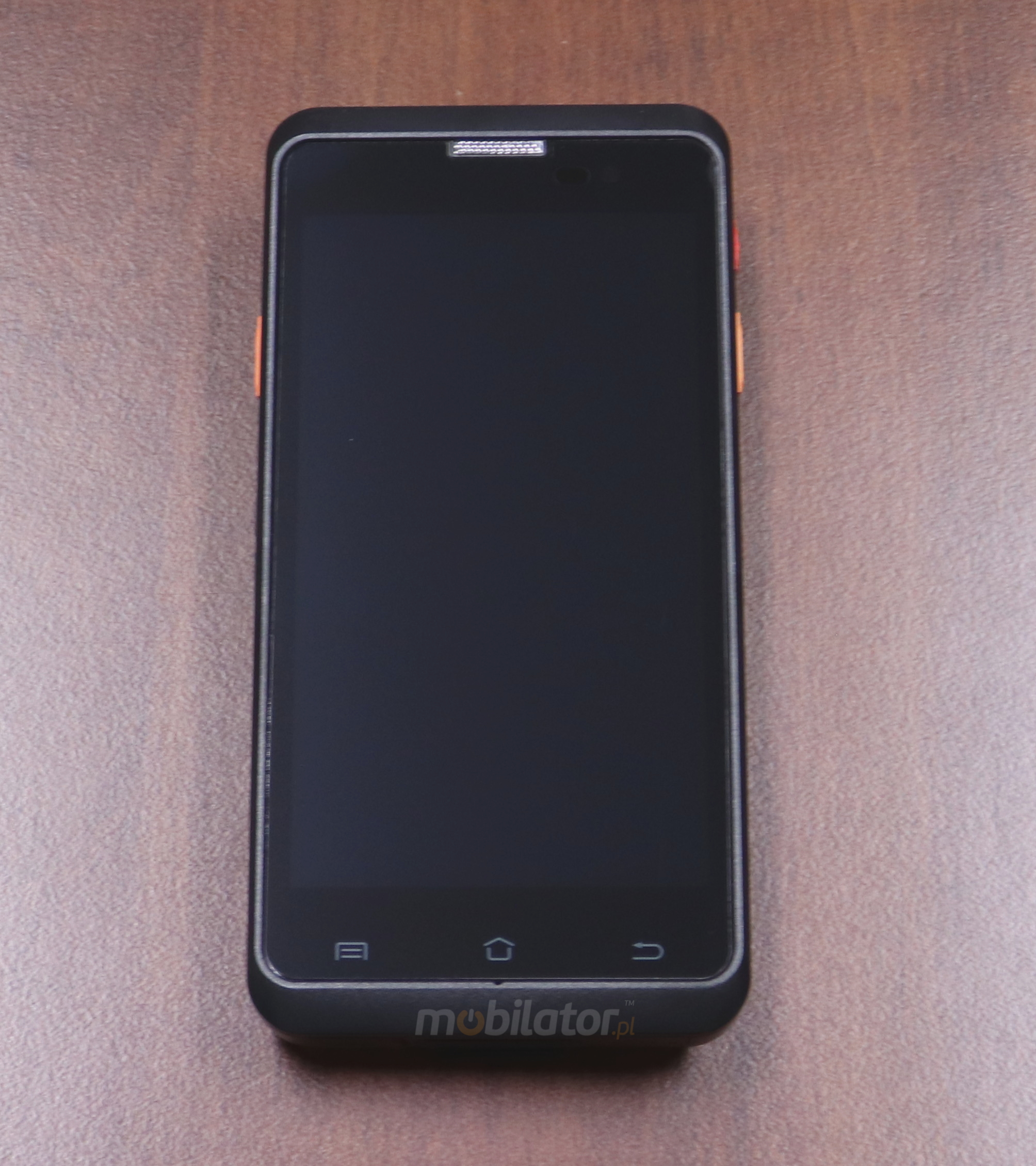

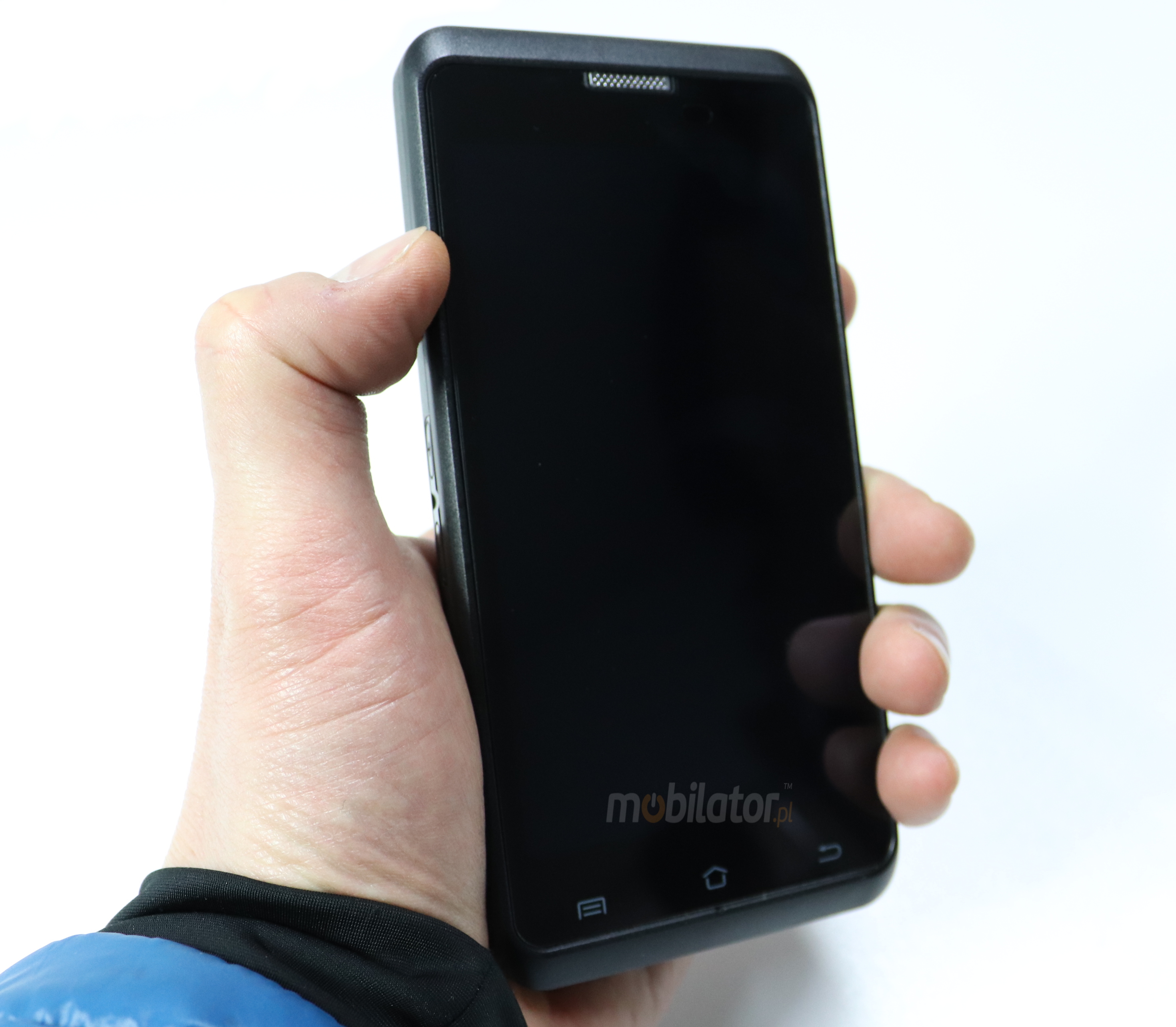

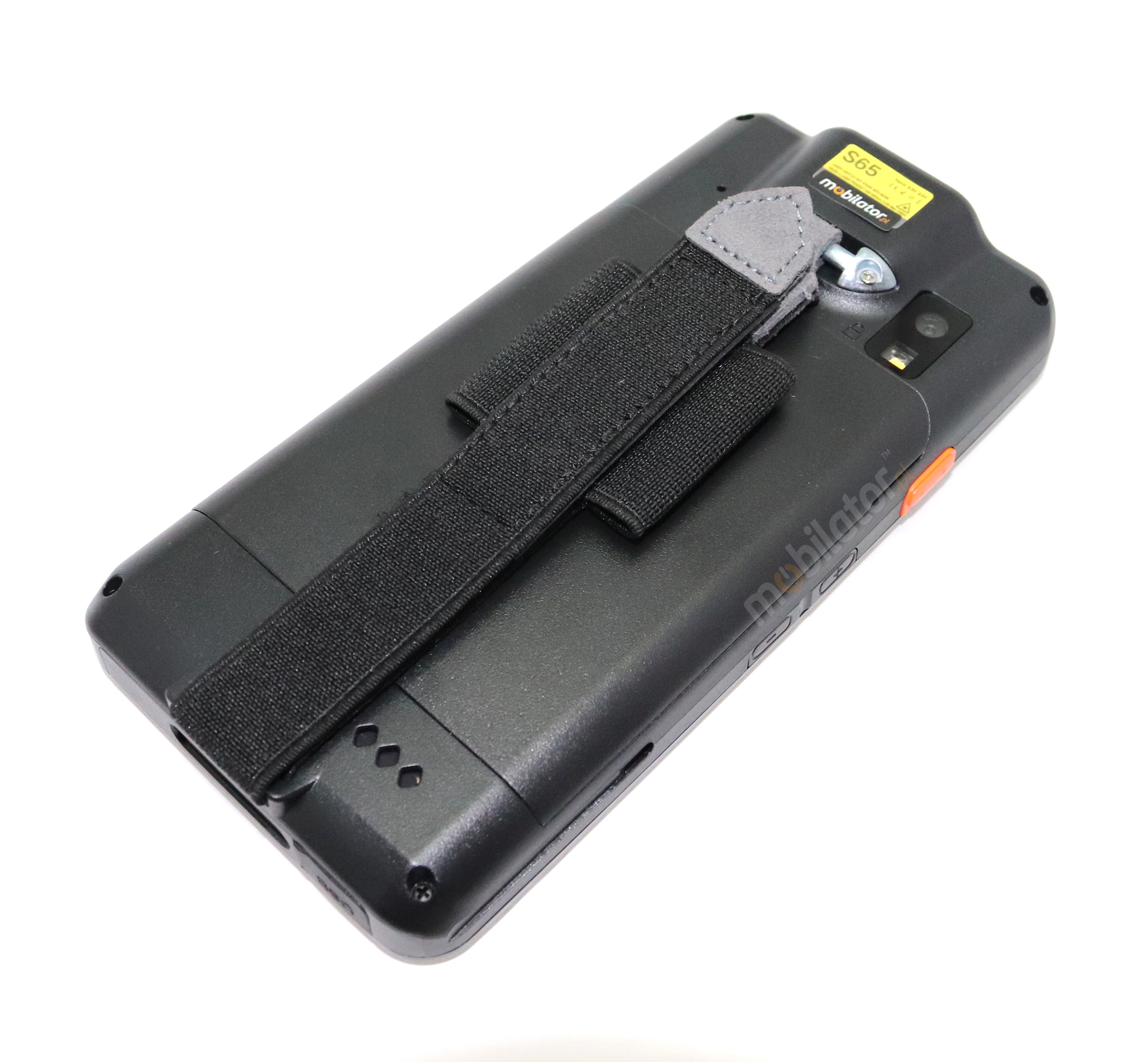

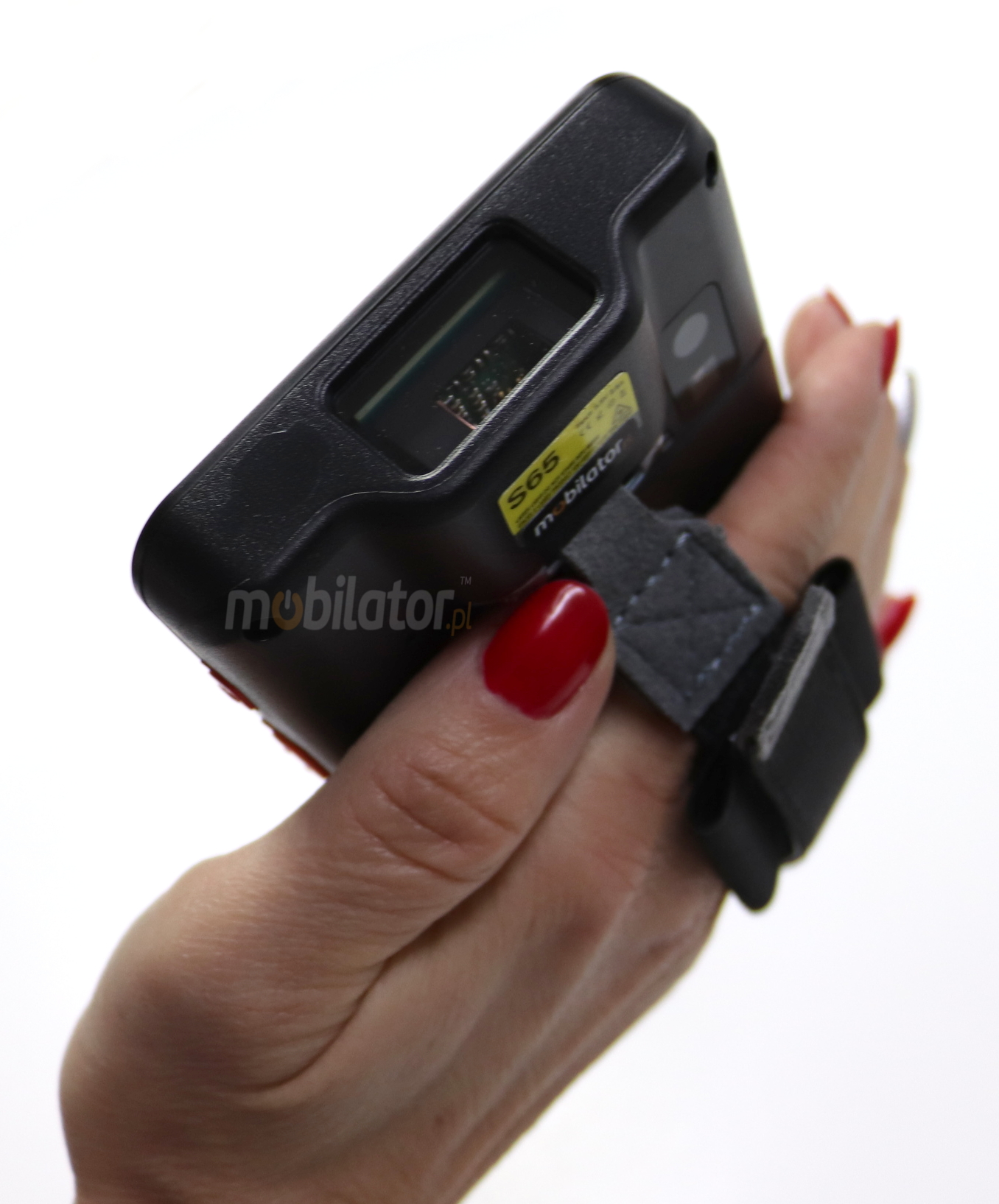

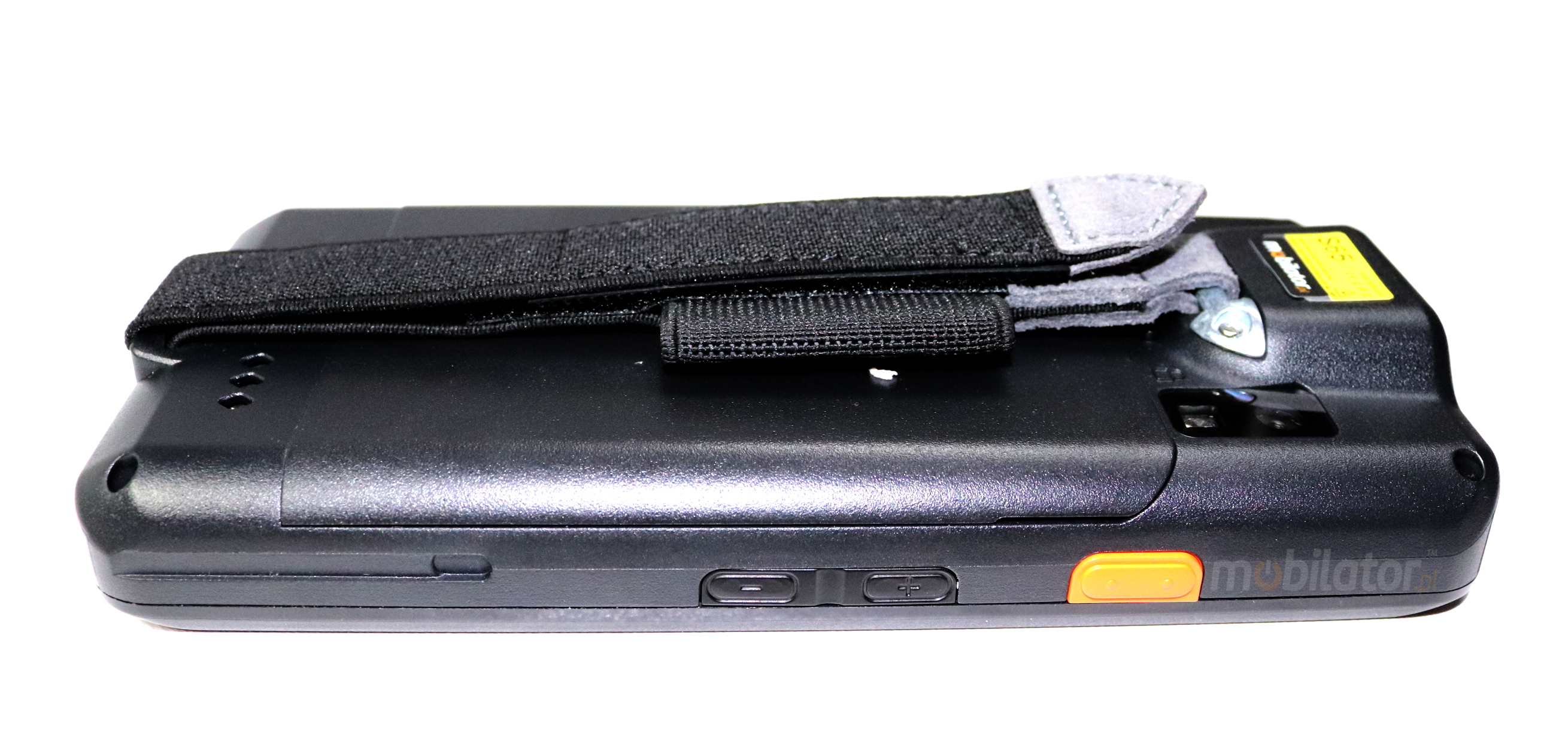

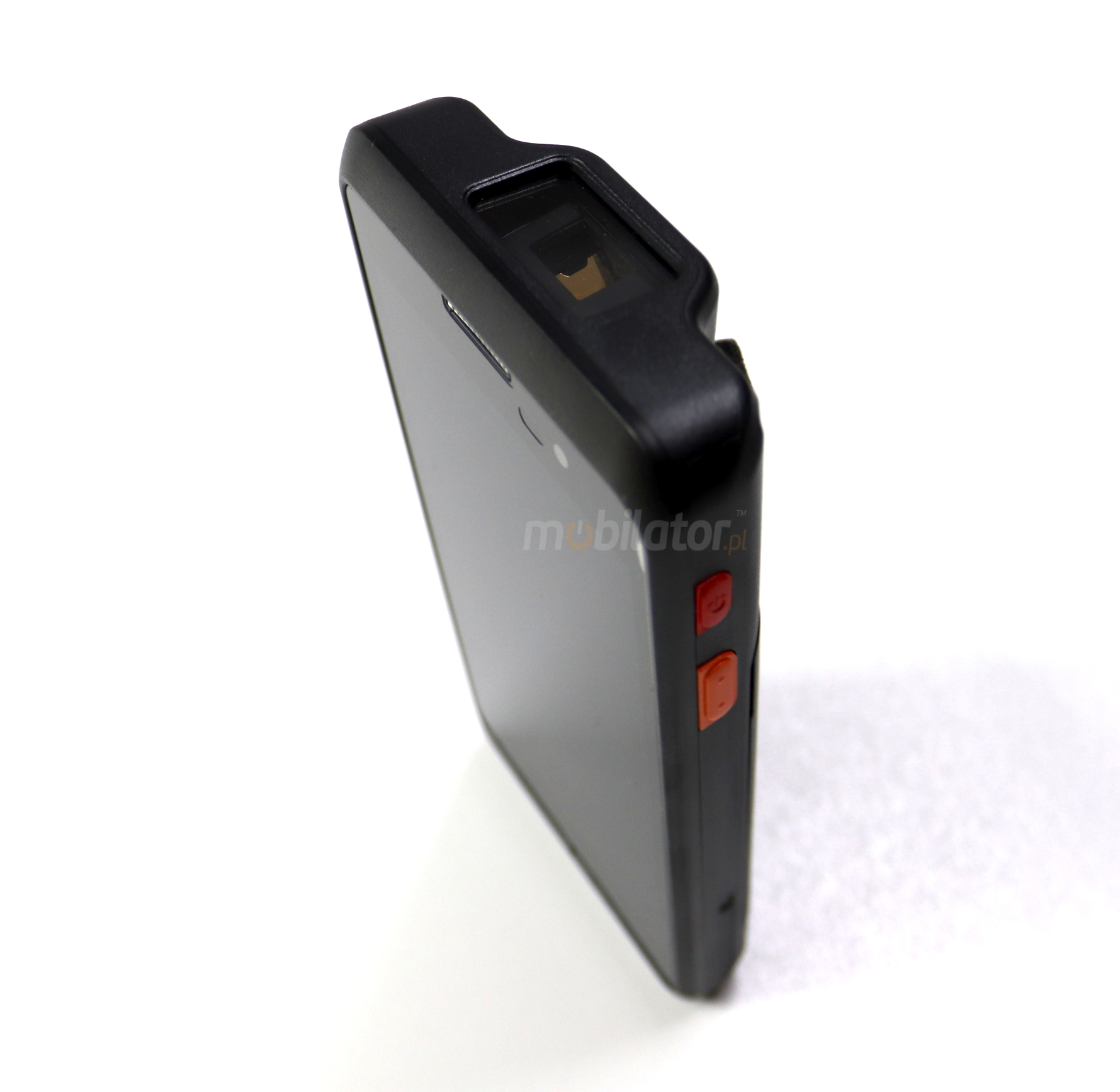

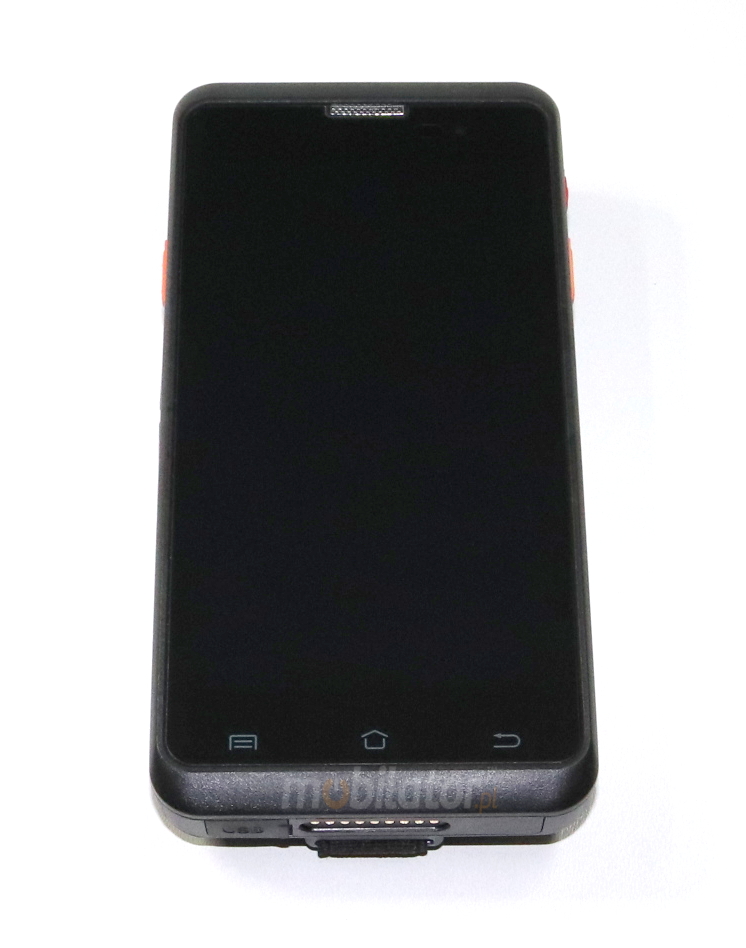

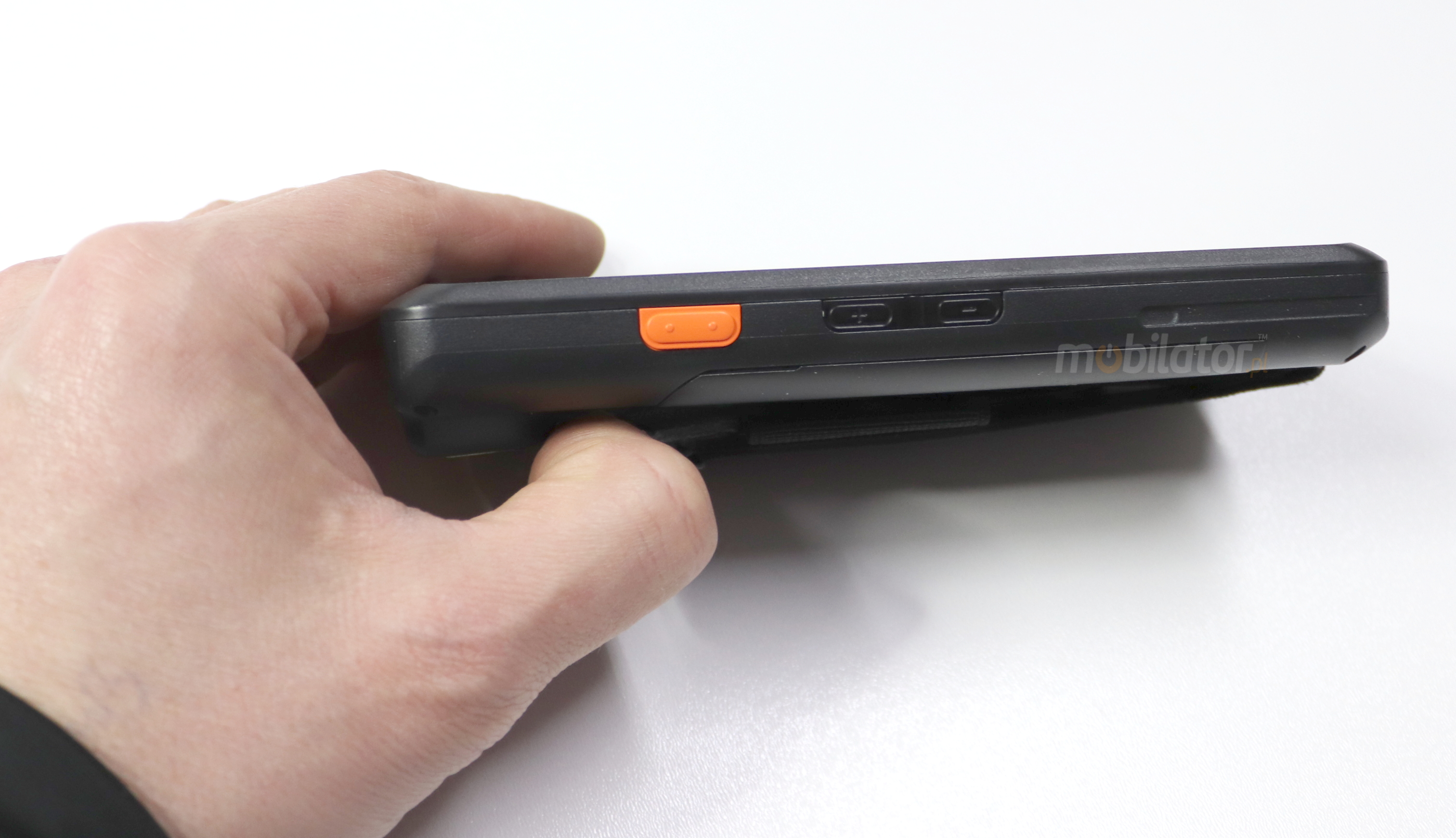

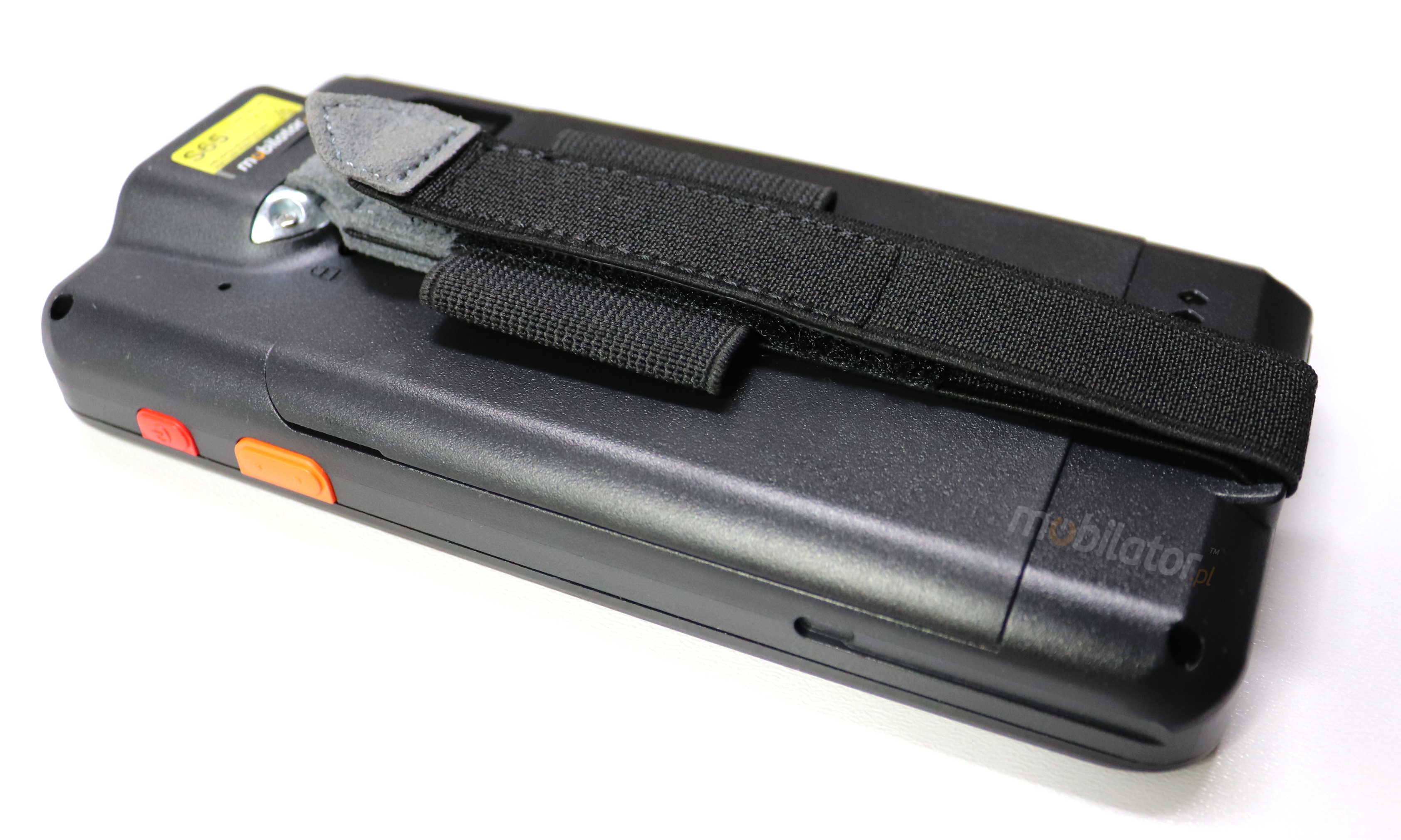

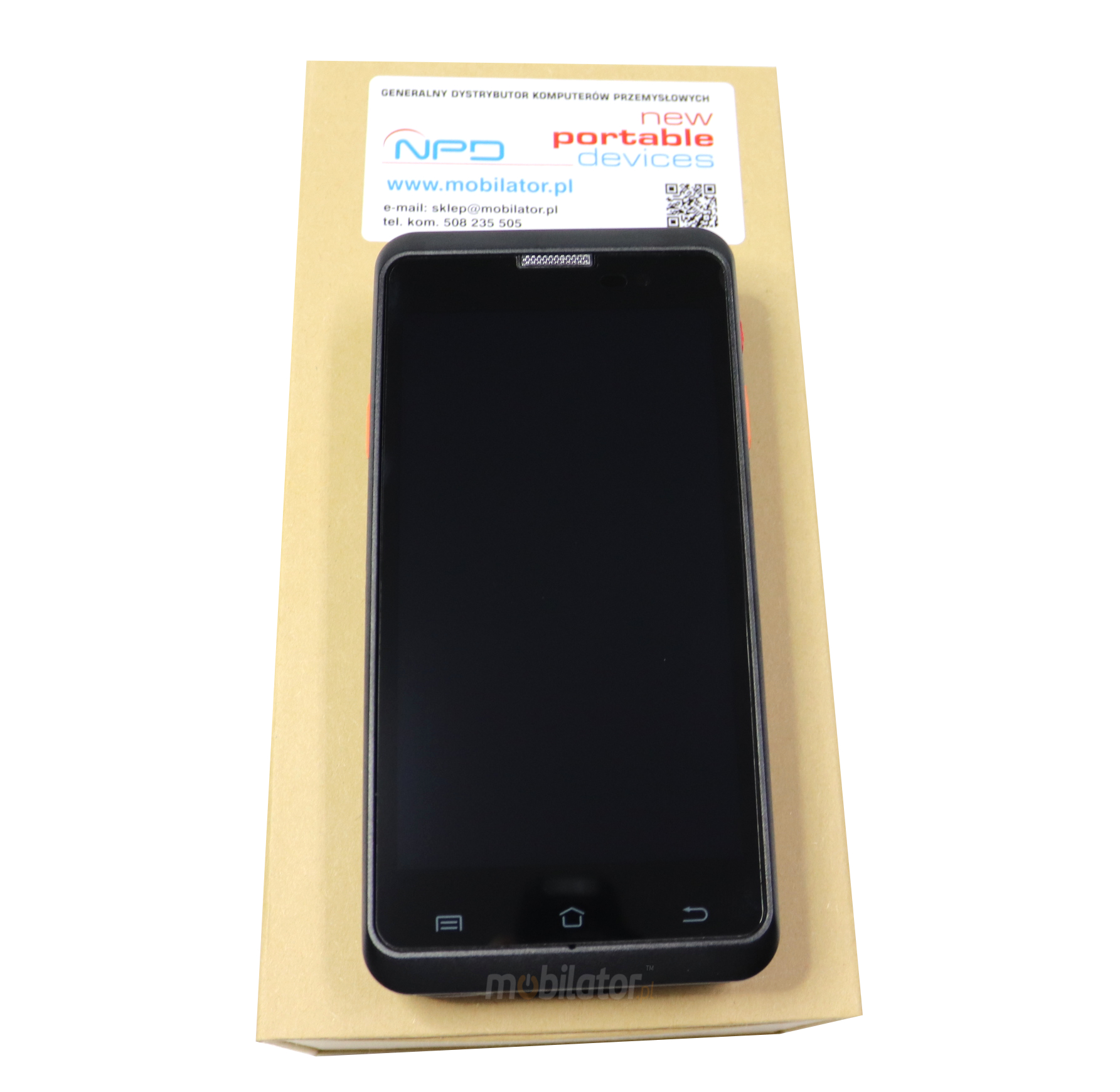

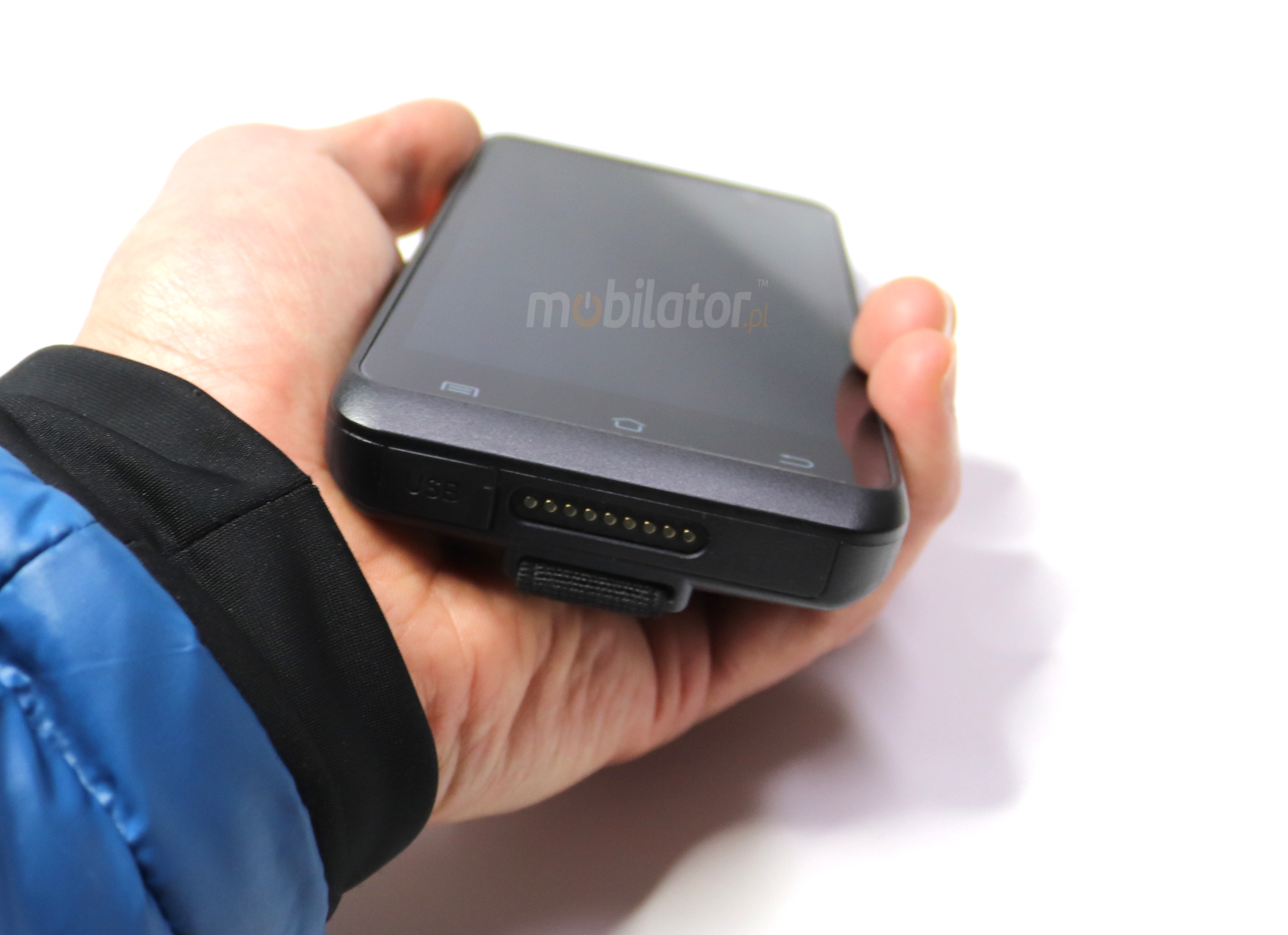

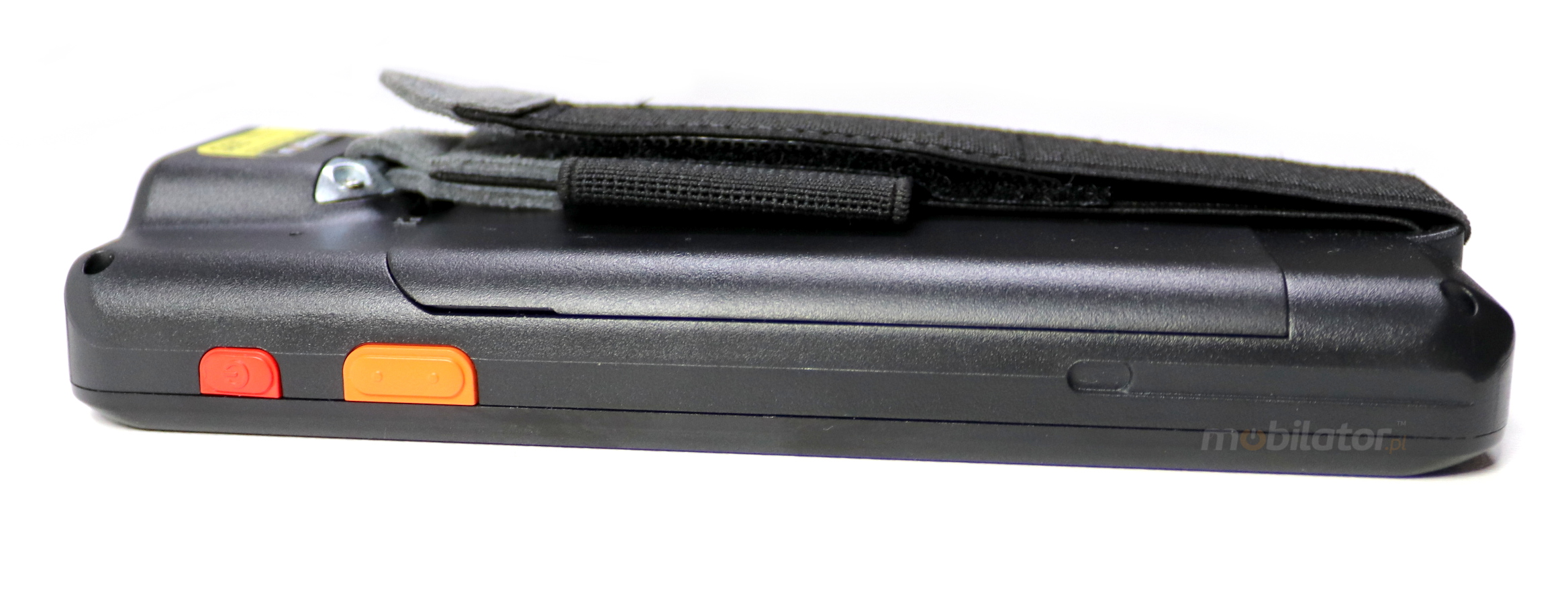

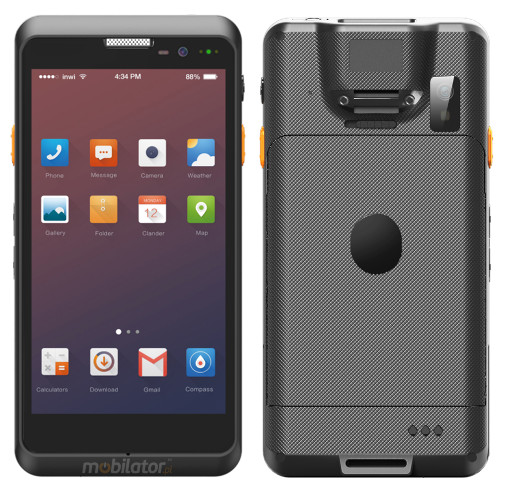

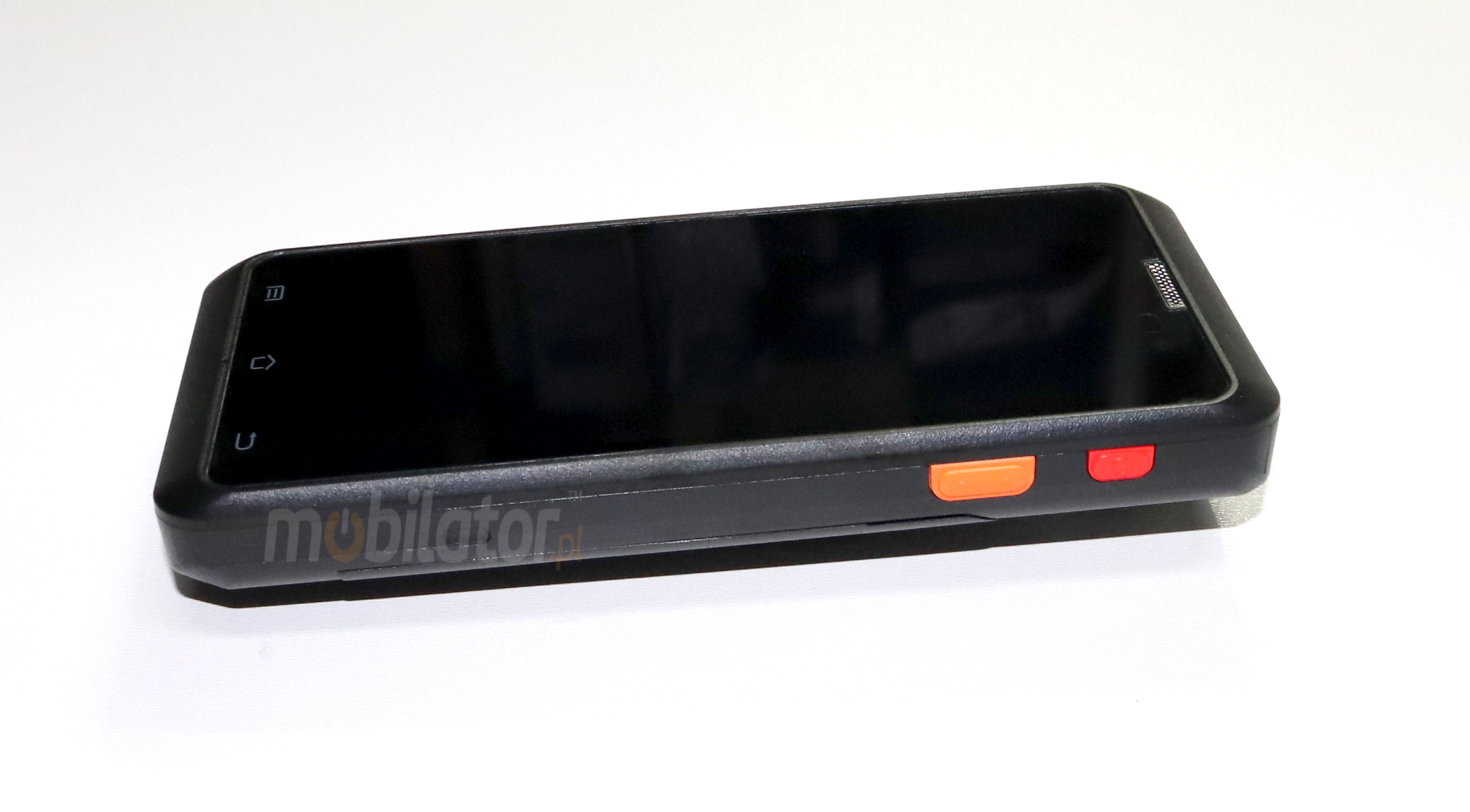

Industrial rugged data collector with barcode scanner MobiPad S560 2D

Data update: 2022-04-28

guarantee 1 year (opt.2)

BUY NOW

Negotiate price

Ask about the product

Tell a friend

Warehouse

Compare product

Product availability

14 - 20 workdays

CURRENT PRICE
406.74 €	Net
500.30 €	Gross

Compare all versions

Description
The collection and processing of data
Use of a device
Resistance
Modules and Wireless Networks
Minimalism

Industrial rugged data collector with barcode scanner MobiPad S560 2D has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP65 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.

Description

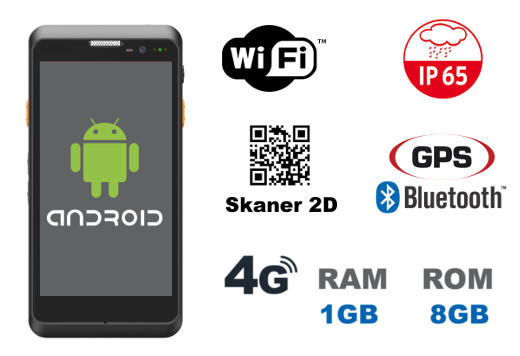

Industrial rugged data collector with scanner 1D/2D MobiPad S560 Android 5.1 WiFi Bluetooth

Display	5" (1280x720) LED \| capacitive \| Gorilla Glass 3
Processor	MediaTek MT6753 1.3GHz Octa-core
RAM memory	1GB
Flash Memory	8GB
Camera	Rearł: 13 Mpx AutoFocus + Flash
Operating System	Android 5.1
Battery	3.8V, 3800mAh Li-Ion
I/O Ports	1x MicroUSB, 1x MicroSD, 1x SIM, 1x Audio, 1x Microphone(option), 1x PSAM(option)
Audio	Speaker
Modules	WWAN \| WiFi \| Bluetooth 4.0 \| GPS \| NFC
GPS	High precision GPS - support A-GPS and BeiDou

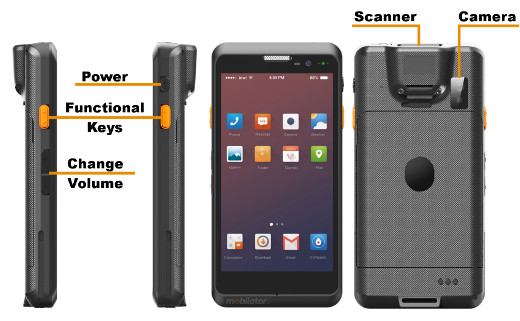

Keyboard	On screen + functional keys
Readers(optional)	1D (Laser) Honeywell 4313 \| 2D Honeywell 6603
Dimensions and Weight	154 × 76 × 19mm \| 280g
Certificates	IP65, CCC, RoHS, CE, FCC, ISO9001

Select a version for each other

Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".

	v.1	v.2
1D Scanner Honeywell 4313		-
2D Scanner Honeywell 6603	-
Reading 1D barcodes
Reading 2D barcodes	-

go top… menu…

Use of device

Data collector MobiPad S560 can be used for projects like: supermarket cashless payment, inventory management and logistics tracking. Device will be also good option to business data management and other services.

Operating temperature: -10 ° C ~ 50°C

Operating Humidity: 5% ~ 95%

go top… menu…

The collection and processing of data

Industrial rugged data collector with scanner 1D/2D MobiPad S560 Android 5.1 WiFi Bluetooth

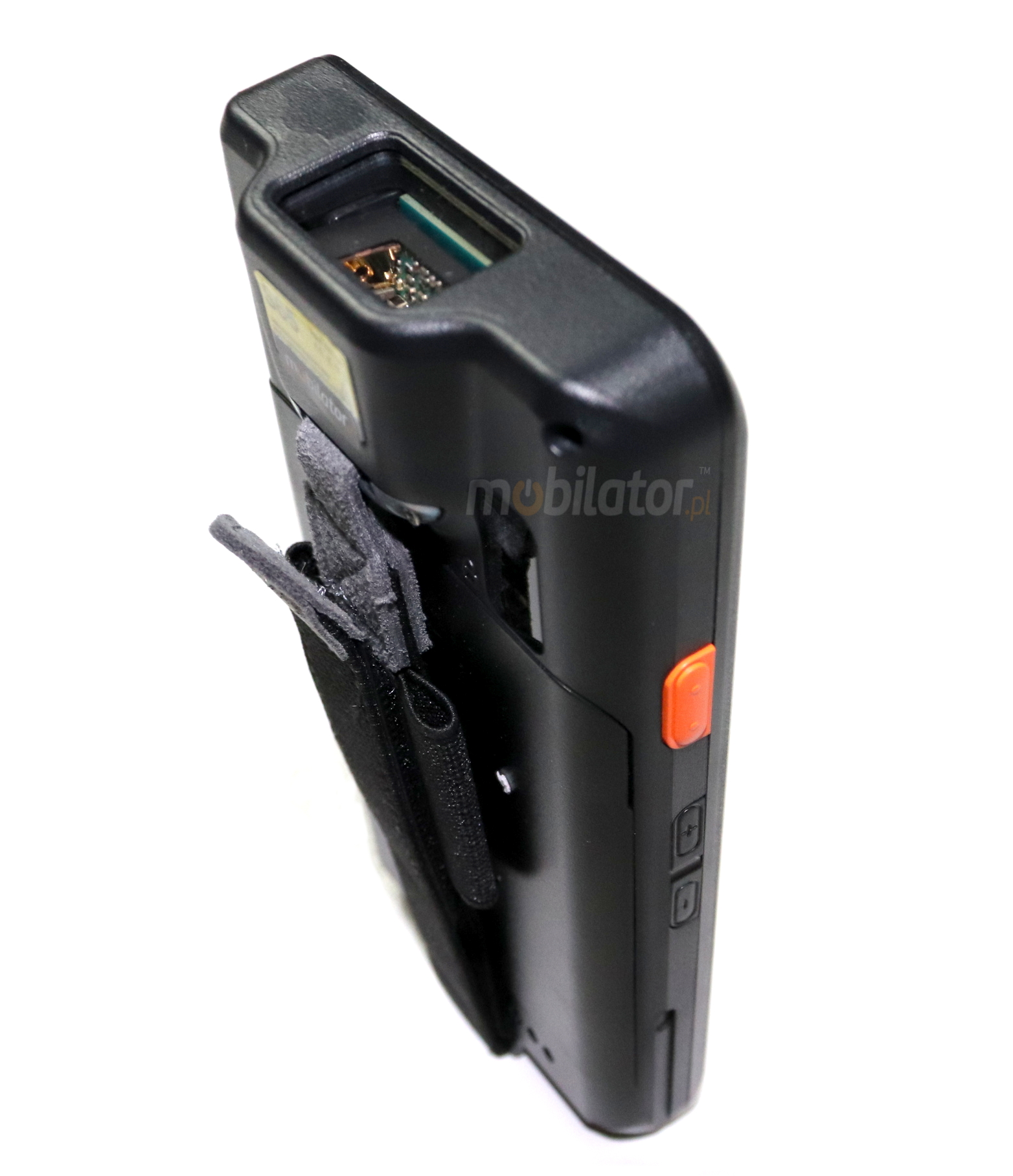

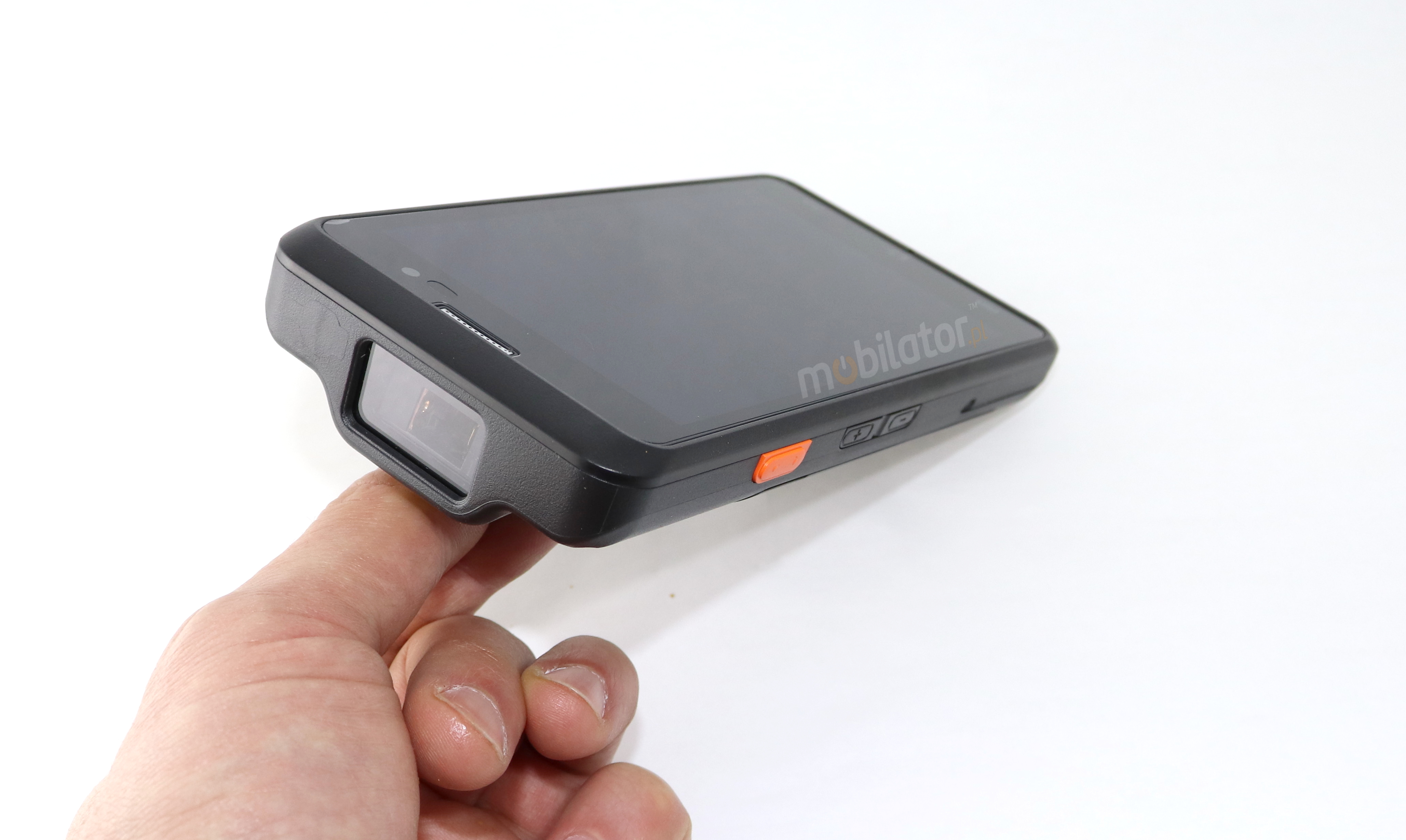

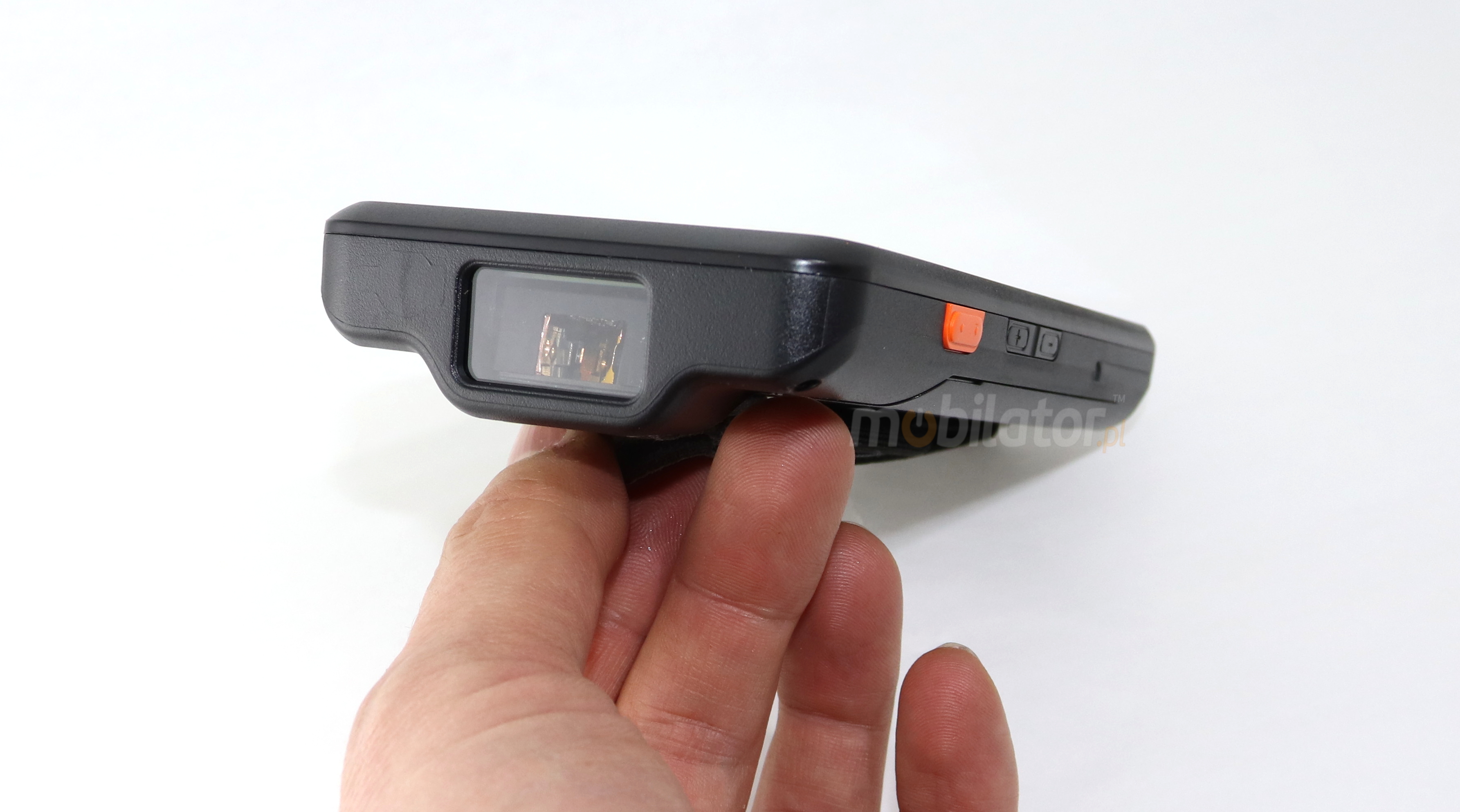

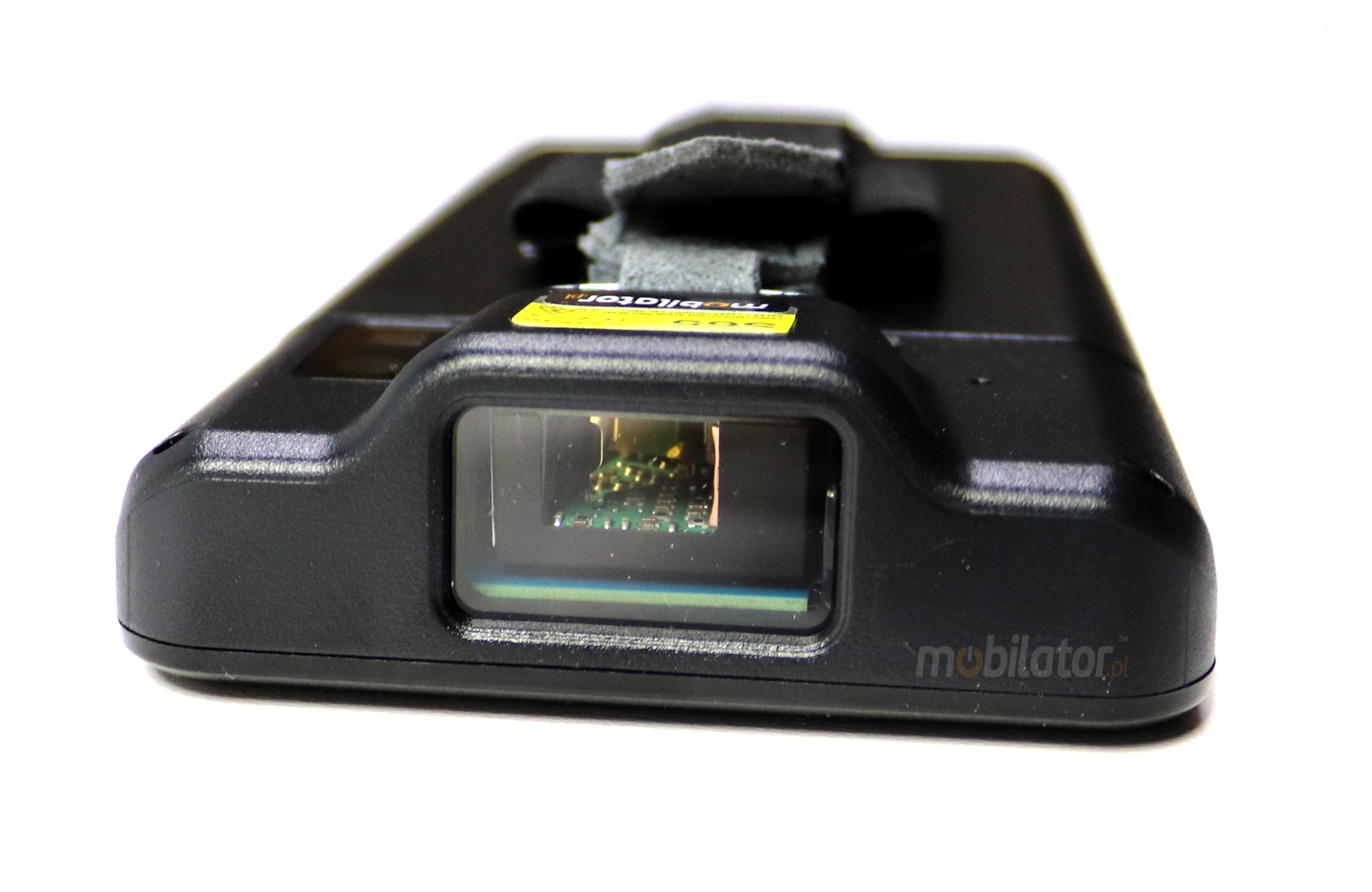

Barcode Scanner

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

Near Field Communication (NFC)

Industrial rugged data collector with scanner 1D/2D MobiPad S560 Android 5.1 WiFi Bluetooth

Its a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of 1-5 cm or less. NFC devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.

	NFC
Frequency	13.56 MHz
Reading distance	from 1 to 5 cm
Supported standards	ISO 14443 A/B
	ISO 15693

go top... menu…

Resitance

Applicable standards

Operating	-10°C -- +50°C
Storage	-20°C -- +70°C
Humidity	5% - 95%
Dust	IP6x (dust)
Water	IPx5 (water)
Drop	1.5m

go top... menu…

Industrial rugged data collector with scanner 1D/2D MobiPad S560 Android 5.1 WiFi Bluetooth

go top... menu…

Modules and Wireless Networks

Industrial rugged data collector with scanner 1D/2D MobiPad S560 Android 5.1 WiFi Bluetooth

When device is equipped with the WCDMA module, you need only insert a SIM card in the special slot and you are able instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal module used in MobiPad S560 devices are used in contactless payment systems, similar to those used in credit cards and electronic ticket smartcards and allow mobile payment to replace/supplement these systems. NFC is used for social networking, for sharing contacts, photos, videos or files.

WiFi	802.11 a/b/g/n
GPS	High precision GPS, support A-GPS and Beidou
Bluetooth	Bluetooth v4.0
WWAN	GSM/EDGE/GPRS/CDMA/TD-SCDMA/WCDMA/CDMA2000/TD-LTE/TDD-LTE/FDD-LTE

go top... menu…

Minimalism

Industrial rugged data collector with scanner 1D/2D MobiPad S560 Android 5.1 WiFi Bluetooth You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad S560. The device weighs just 280g and its dimensions (154 x 76 x 19mm) allow you to take this device everywhere. Professional performance and energy efficiency makes, that MobiPad S560 is in a group of devices which enjoy great popularity in the European market in the industrial segment.

Dimensions	154 × 76 × 19mm
Weight	280g

go top... menu…

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

Compare all versions

Durability:	------
Humidity:	5 - 95%
Waterproof:	IP65
Weight:
Temperature:	Operating temperature: -10°C -- +50°C Storage temperature: -20°C -- +70°C
Shock:	IP65
Vibration:	IP65
Drop:	1.5 meters
Sand and dust:	IP65
1D barcode scanner (reader):	none (available in other configuration)
2D barcode scanner (reader):	2D Honeywell 6603
RFID scanner (reader):	NFC (13.56MHz) ISO 14443A/B, ISO 15693
Magnetic card reader (MSR):	-----
Microchip card reader:	-----
Docking station connector:	No
VESA standard – holders and mounts support:	-----
COM port:	Nie
Dispaly:	5 "(1280x720) LCD - capacitive\| high resolution
Brightness:	300 lux
Contrast:	-----
Touch screen:	Yes
Graphics card:	ARM Mali-T720
Swivel Hinge:	-----
VGA out:	No
TV Out:	-----
TV Tuner:	-----
Processor:	MediaTek MT6753 1.3GHz Octa-core
Chipset:	-----
BIOS:	-----
Memory:	1GB
Hard Drive:	-----
Flash Memory:	8GB
Battery:	3.8V 3800mAh Li-Ion
Working time on battery:	~ 8 hours
HotSwap battery:	-----
Fast battery replacement ability:	Yes
Size:	153.6 ×75.8 ×18.6mm- 280g
Casing material:	high quality plastic and rubber
Fanless casing:	Yes
Operating System:	Android 5.1
LAN:	No
WLAN:	IEEE 802.11 a/b/g/n
Bluetooth:	Bluetooth 4.0
WAN:	4G: TDD-LTE: Band 38, 39, 40, 41, FDD-LTE: Band 1, 3 3G: WCDMA Band 1, CDMA&EVDO: Rev.A 800Mhz, TD-SCDMA: 900/1800Mhz 2G: GSM 900/1800Mhz
GPS:	High precision GPS, support A-GPS and BeiDou
Flash Card Reader:	microSD
CD/DVD:	-----
Camera:	Front: 5 Rear: 13Mpx + Flash + Autofocus
Audio:	Built-in Speaker
Seciurity:	IP65 \| Gorilla Glass 3
In/Out:	1x microUSB Type C, 1 x Micro SD, 1 x SIM, 1x PSAM(option), 1x AudioJack (option)
Keyboard:	On-screen + function keys
Additional Navigation Devices :	-----
Color:	Black
Optional accessories:	-----
Other:	-----
