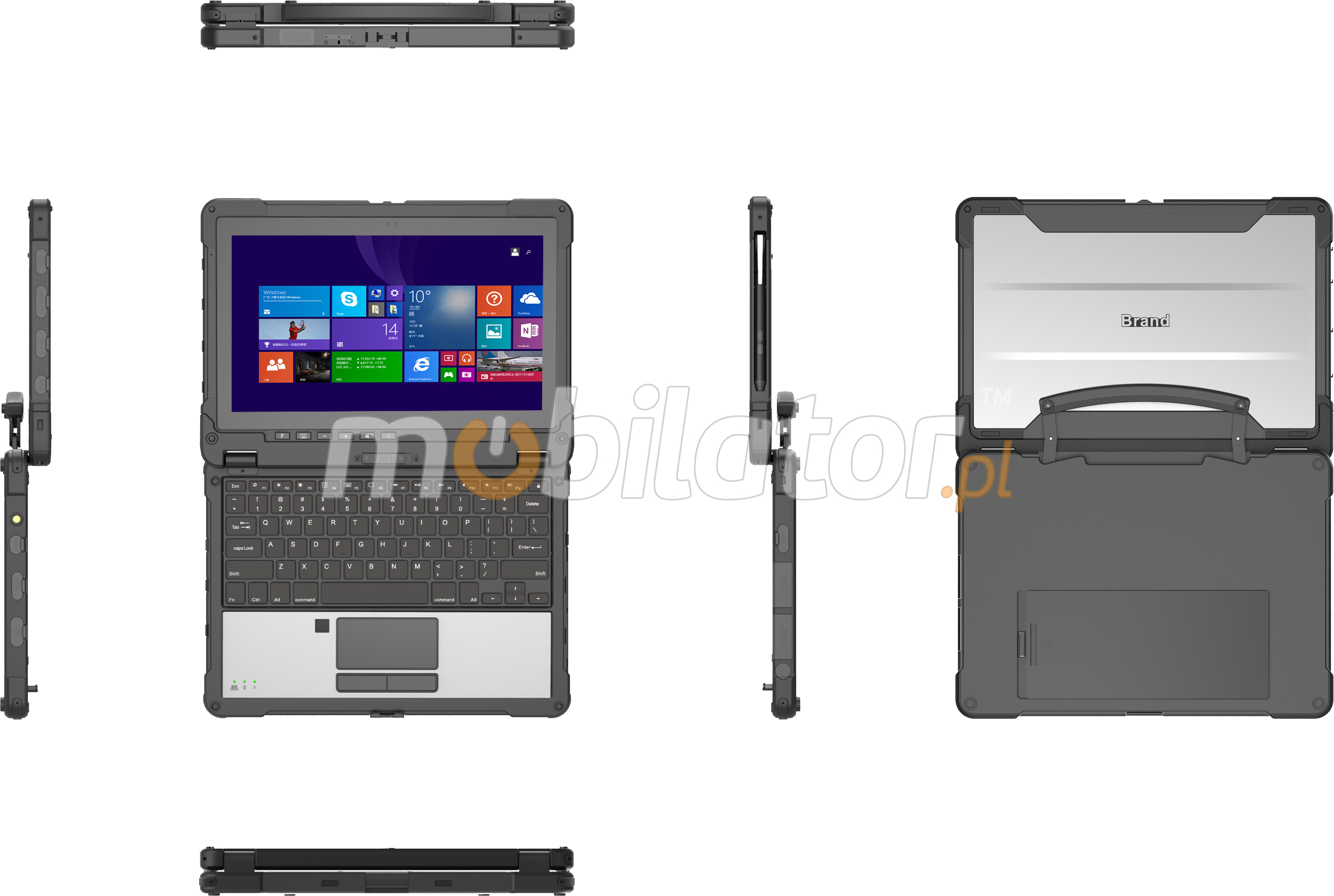

Robust Dust-proof industrial laptop Emdoor X11 High 4G LTE

Data update: 2019-03-28

guarantee 1 year (opt.2)

Ask about the product


Tell a friend


Compare product

The product from the archive - production terminated

Compare all versions

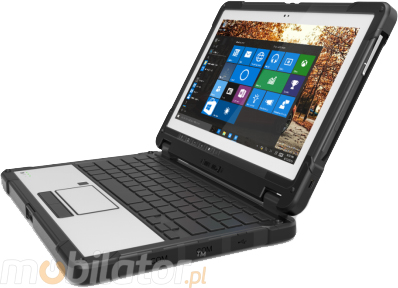

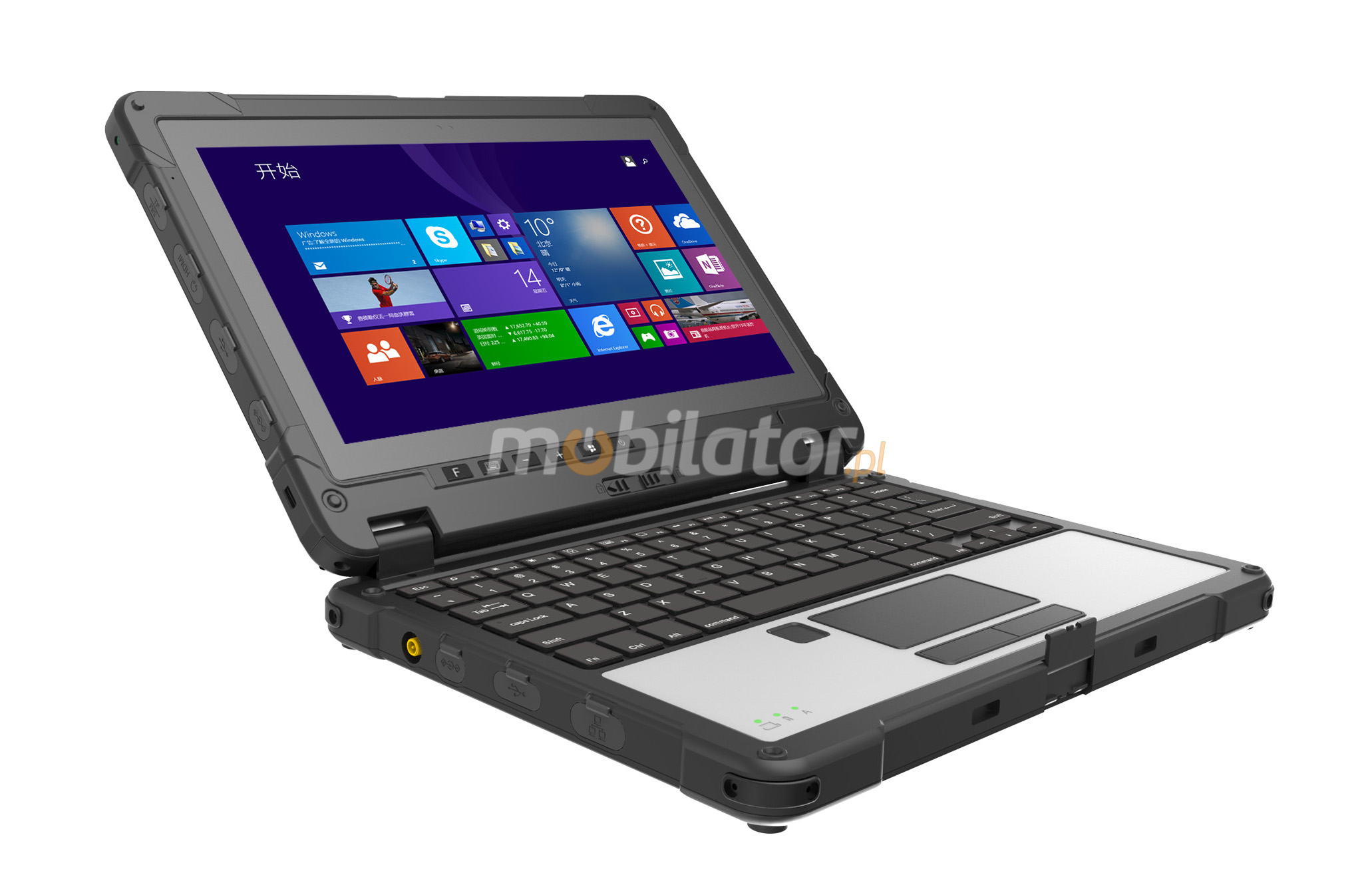

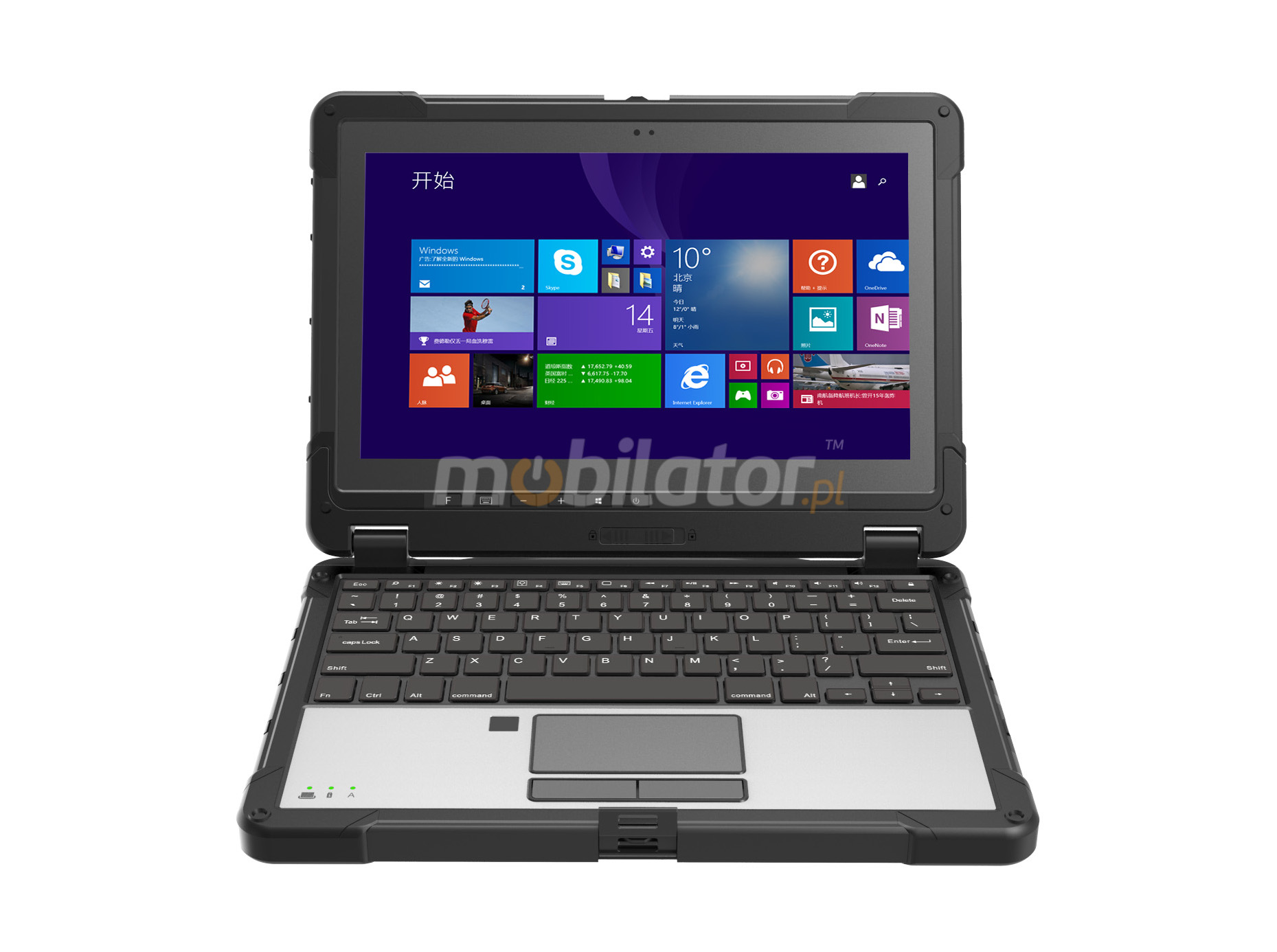

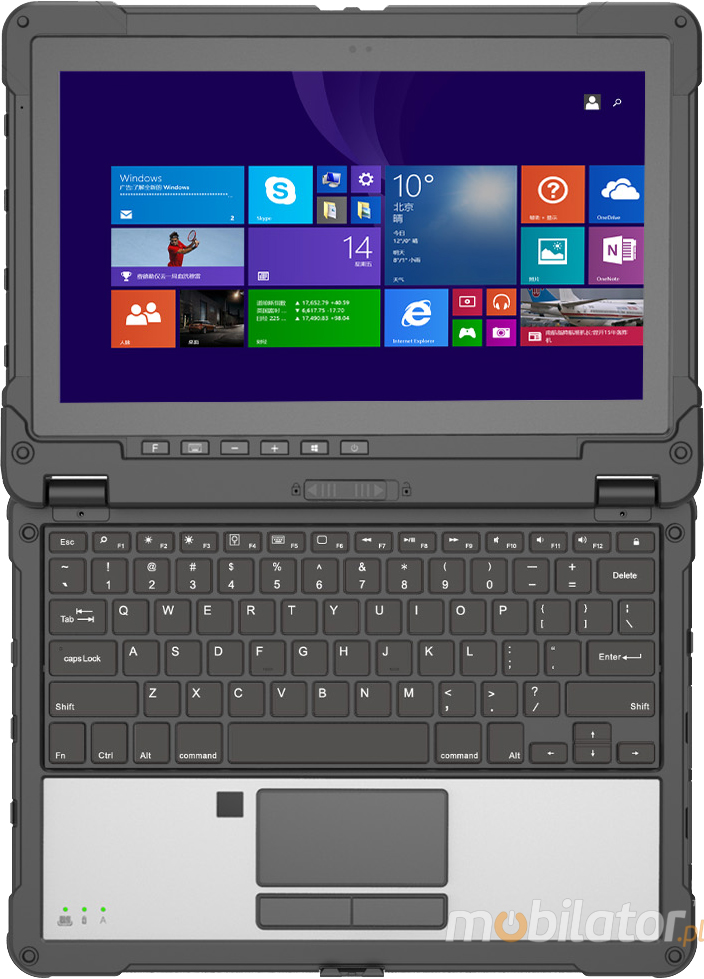

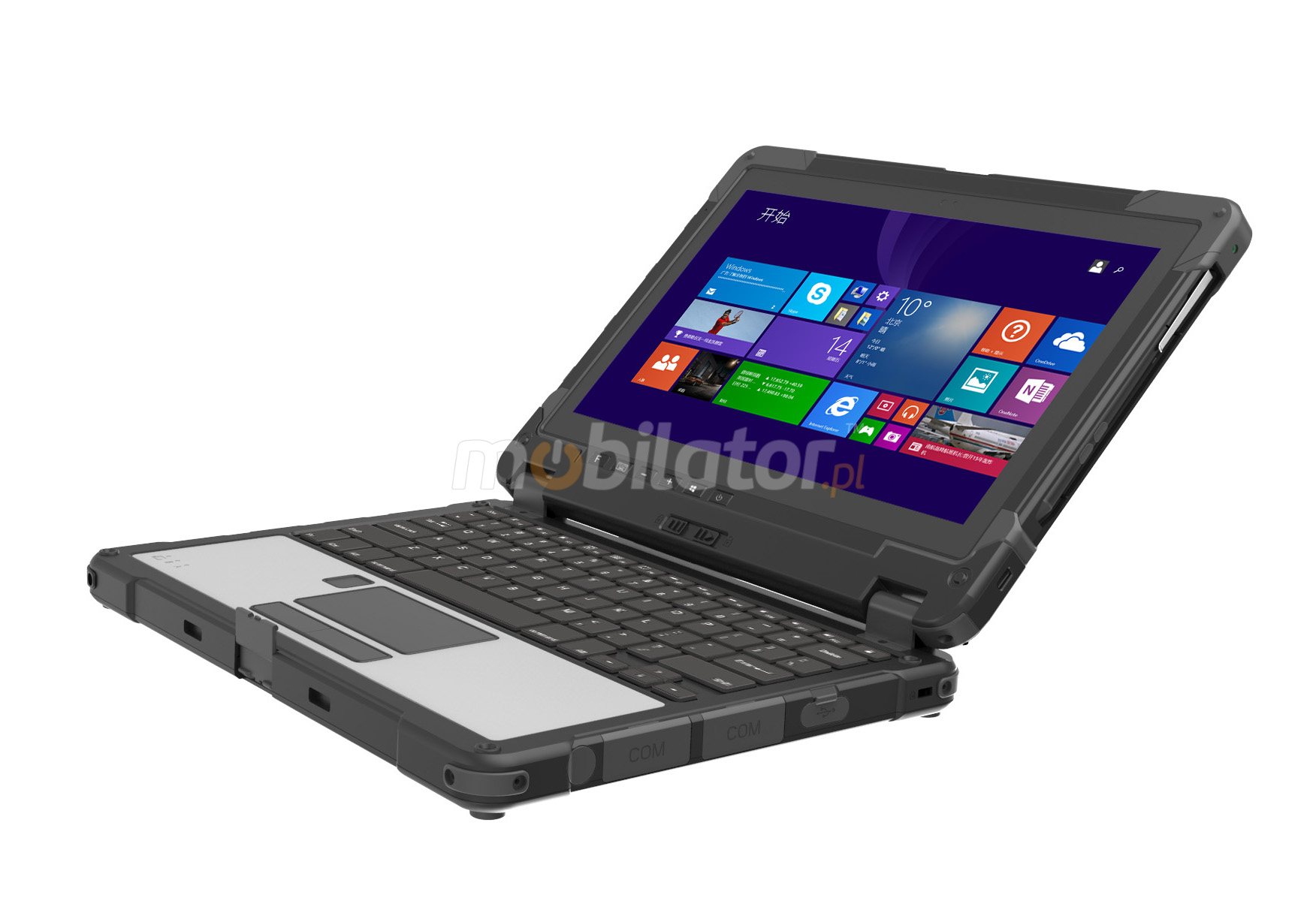

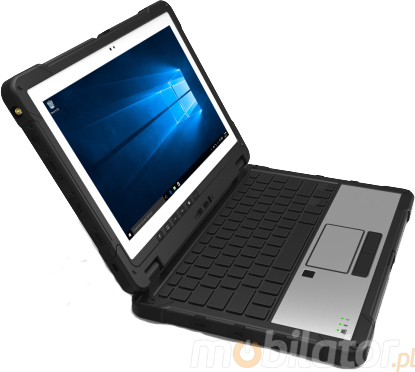

The dustproof shockproof industrial laptop Emdoor X11 is a new proposition for an 11.6 - inch computer that works with Windows 10 Home or Professional. It is a "2 in 1" device because the laptop has a detachable keyboard and can be used as an industrial tablet. The laptop has a specially designed, reinforced structure, adapted to work in difficult environmental conditions, such as, for example, in production halls, where there is a lot of dust. The device works perfectly not only in typical industrial conditions, but also has a wide application in normal home conditions.




windows 10 laptop tablet industrial military resistant waterproof dustproof


The Emdoor X11 industrial tablet is powered by the latest Intel® Atom™ Z8350/Z8300 quad-core processor, which delivers superior performance, low power consumption and long battery life. The processor makes the device run very smoothly and without problems it is done in everyday work. The tablet works with the Windows® 10 operating system to meet the growing demands of industrial and more.

 Processor  Intel® Core™ M3-7Y30 (2x 1GHz)
 Graphics  Intel® HD Graphics 515
 Display  11.6” (1920*1080)
Display Type
 LED | Gorilla Glass 3 | Capacitive (10-points) | Scratch resistant
 Brightness  350nits
 Drive  128GB SSD (option) | 256GB SSD
 Connectors  USB 3.0 | Audio | HDMI C | Micro SD | SIM | RS232 | RS485 | RJ-45 | 2x USB 2.0
 Audio  Speaker 0.8W/8Ω | Audio Jack
 Camera  Front: 2Mpx
   Back: 8Mpx (USB)
 Battery (tablet)
  7.4V 5000mAh
 Battery (keyboard)   7.4V 6300mAh (optional)
 Buttons  Power | Volume +/- | Windows Home | Scan | System keyboard
 System (optional)  Windows 10 Pro with Bing | Windows 10 Home with Bing
 Modules (factory)
 802.11 a/b/g/n | Bluetooth 4.1 (BLE) | GSM/3G | GPS | 4G LTE
 Weight and dimensions
 305 x 205 x 16.5mm - 3140g
 Resistance  IP65
 Readers (optional)
 1D/2D Scanner
 Sensors (factory)  G-Sensor, e-compass, gyroscope
 12 months
Check the "Available Versions" tab for the version of your device. For additional information on the device, click on "Ask a product" or go to the contact form.

windows 10 laptop tablet industrial military resistant waterproof dustproof


Choose a version that suits your needs

Choose the version that fits your needs and needs. By clicking on the hardware configuration number you will be redirected to the product with the parameters listed below. Any additional configuration is valued at customer's request. Detailed parameters are available in the "Technical Data" tab.



Porównaj wszystkie wersje


  v.1 v.2 v.3 v.4 v.5 v.6 v.7 v.8
2D Honeywell


up… do góry menu… menu

Barcode scanner

Barcode reader (optional)

A bar code reader enables you to read, decode and send data to a computer written in a bar code. With dynamic scanning capabilities and a large reading range, the data collector gets the data accurately, helping to increase speed and productivity. You can quickly launch the scanner because of the simplified installation procedure and intuitive, convenient construction of the scanner to work is very easy.

  scanner 1D scanner 2D motorola
 Model scanner Motorola SE655
Motorola SE4710
 Scanner type
 Type of matrix


windows 10 laptop tablet industrial military resistant waterproof dustproof

up… do góry menu… menu


Resistance and strength

The standard of resistance, that is the strength of the tablet

Emdoor X11 is designed for use in a variety of environments. Resistance to shocks, vibrations, falls and work over a wide temperature range makes the tablet able to be used in both industrial and military environments. IP67 is fully water and dust resistant. The enclosure can be cleaned with water to reduce the spread of infection. for medical use.

windows 10 laptop tablet industrial military resistant waterproof dustproof



 Working temperature
-20°C -- +60°C
 Tempetarure of rest
-30C -- +70°C
 Dust IP6x
 Water IPx5
 Humidity 95% non-condensig
 Drop 1m



Robustness is one of the most important factors to consider when choosing a mobile solution, so EMDOOR ensures that its fully durable devices work even after falling to concrete or used in harsh environmental conditions such as heat and cold, dust and rain. The rigorous testing that passes the EMDOOR products ensures that our customers receive products that meet the highest standards of durability and reliability. EMDOOR guarantees compliance with the most stringent standard in the field - MIL-STD 810G according to which its products are tested. This standard, established by the US military, is the most widely used international standard.

covers a wide range of tests used to measure equipment reliability:
Hight temperature: MIL-STD 810G Metoda 501.5
This procedure determines the computer performance test during exposure at high temperatures. This test differs from the standard tests in that the performance of the computer is judged under elevated ambient temperatures.

Low Temperature: MIL-STD 810G Metoda 502.5
This procedure determines the computer performance test during exposure at low temperatures. Such tests differ from standard tests in that the performance of the computer is judged under low ambient temperatures.

Temperature change: MIL-STD 810G Metoda 503.5
Testing for temperature changes is to determine if the computer components can withstand the sudden changes in the surrounding temperature and do not cause any damage or deterioration.

There are two objectives in this study: whether the tested object can still be safely operated and meets operational requirements when exposed to sudden changes in ambient temperature.

Rain: MIL-STD 810G Metoda 506.5
Rainfall testing is conducted to determine rain and wind resistance.

Drop: MIL-STD 810G Metoda 516.6
Free fall tests (shocks) are performed to ensure that the equipment is able to withstand relatively rare, non-repeated shocks and vibrations occurring during loading, transport and collisions.

The standard test requires 26 falls from 1 m per plywood.


 Shock 10Hz - 500Hz
 Drop 1.2m

Rugged battery ensures long-term operation

The high quality Lithium-Polymer battery provides a very long operating time under severe temperature conditions. With the Emdoor X11 you can work outdoors at temperatures as low as -20 ° C and in temperatures up to 60 ° C.

up… do góry menu… menu



windows 10 laptop tablet industrial military resistant waterproof dustproof


Resistance - IP65

IP classes are the classification of the different degrees of protection of electrical equipment that are provided by the enclosures of these devices in accordance with PN-92 / E-08106. The number after the "IP" is actually two digits. The first means protection against the access of people and animals to dangerous parts and protection against pollution, such as dust. It is mainly about the access of foreign objects to the interior of the device. The second digit is the degree of protection against water.

Total dust protection.


Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.

up… do góry menu… menu

Modues and wireless networks

With the 4G that the user inserts the SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and configure connections to mobile networks. In addition, the internal 3G module adapts automatically to the transfer and network coverage. Built-in speaker and microphone for voice calls.


 WIFI  802.11 a/b/g/n/ac
 Bluetooth  Bluetooth 4.1 (BLE)
GSM/GPRS/EDGE Band(850&900&1800&1900 MHZ), WCDMA Band(850&900&1900&2100MHz), HSDPA 21Mbps, HSUPA 5.76 Mbps
 4G  LTE: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20


emdoor mobipad em-i86h mini hdmi

up… do góry menu… menu



hdmi microusb oth skaner kodow kreskowych zlacze dokowania przyciski funkcyjne i86H emdoor


Access to real-time information is very important for mobile users. The Emdoor X11 offers a number of modules (3G, 4G LTE, GPS, WiFi, Bluetooth) that allow users to connect in the way that best suits their needs. With a built-in rear 5 megapixel camera, users can take high quality pictures and videos. The X11 can also use a front 2-megapixel camera for video and video recording.

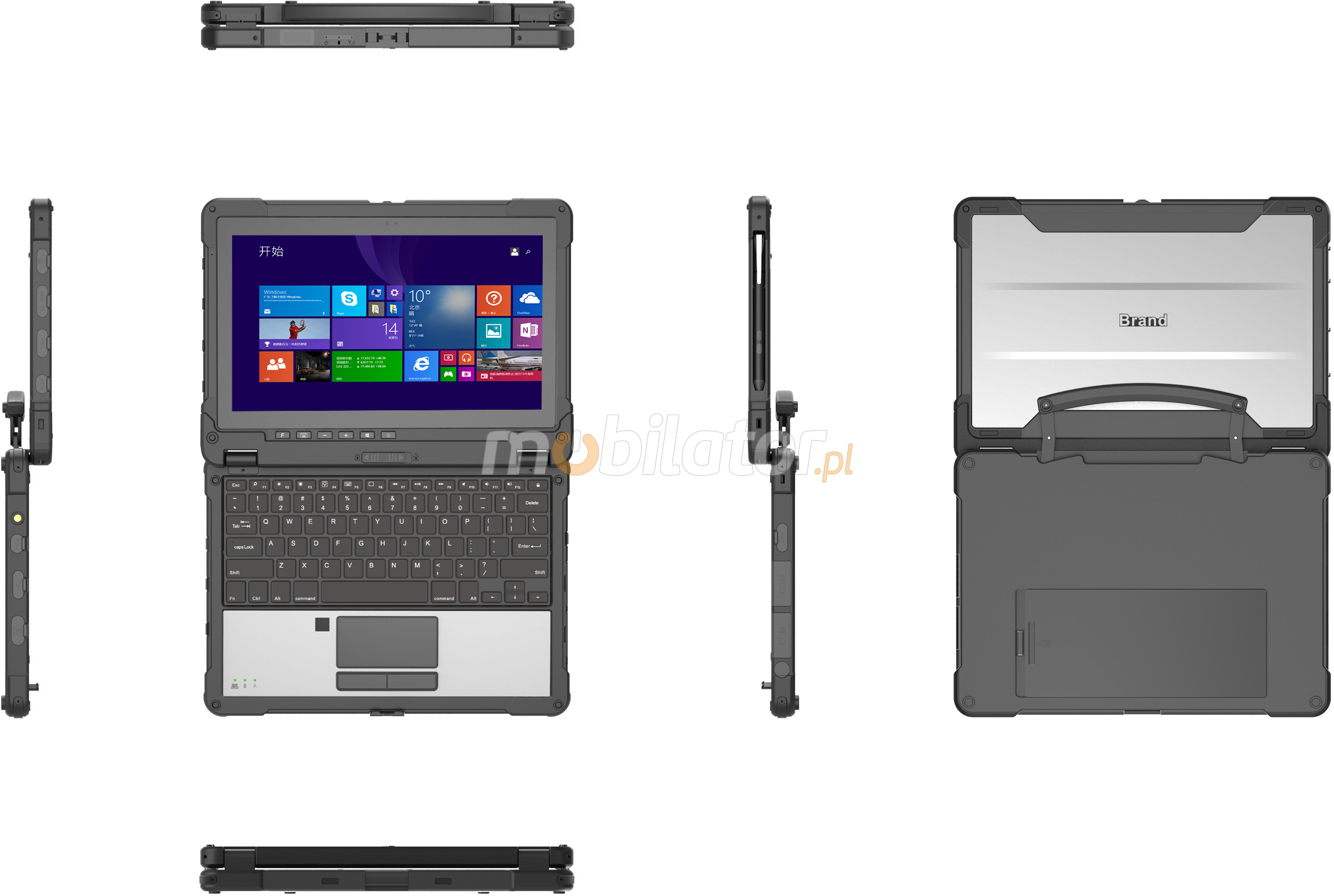

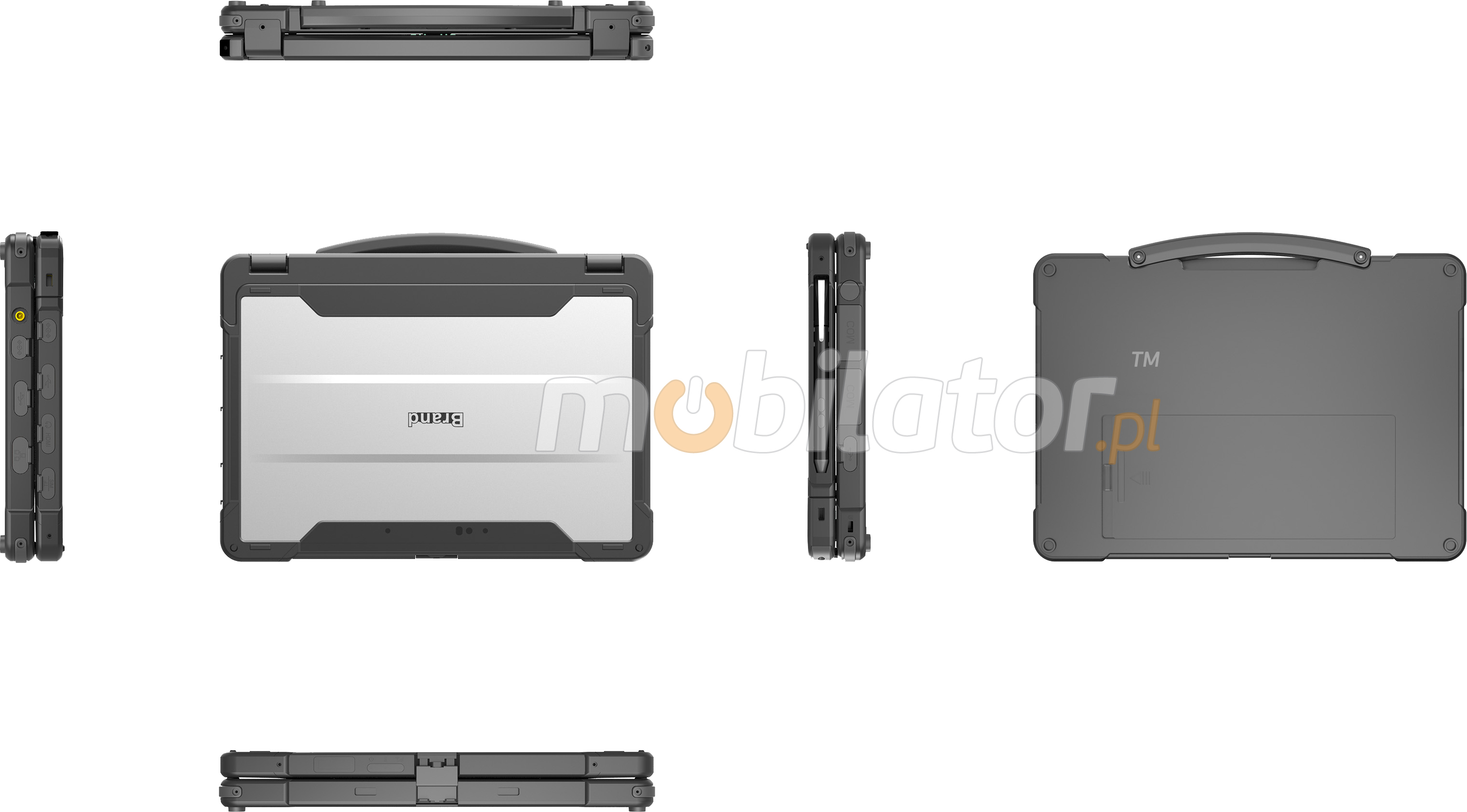

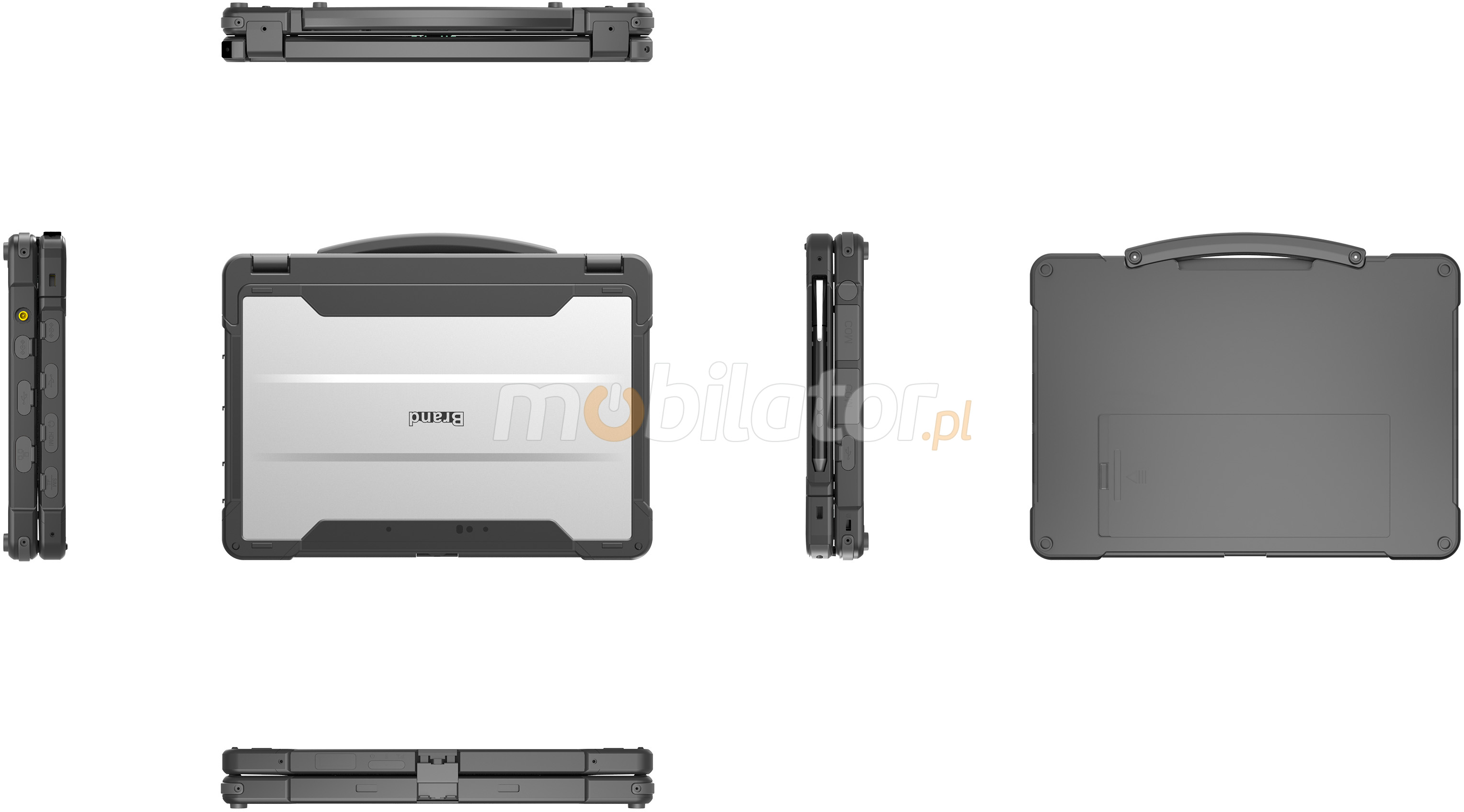

 Size 305 x 205 x 16.5mm
 Weight 3140g

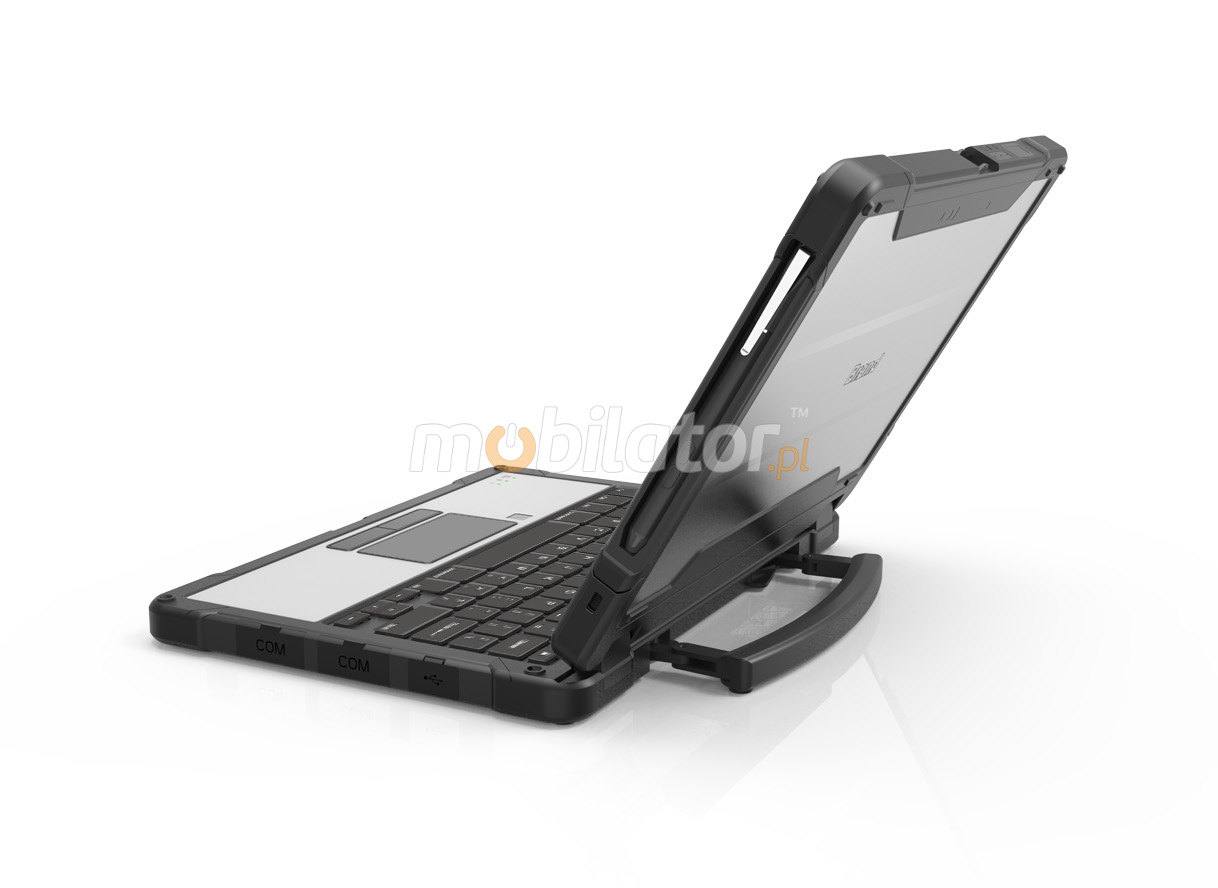

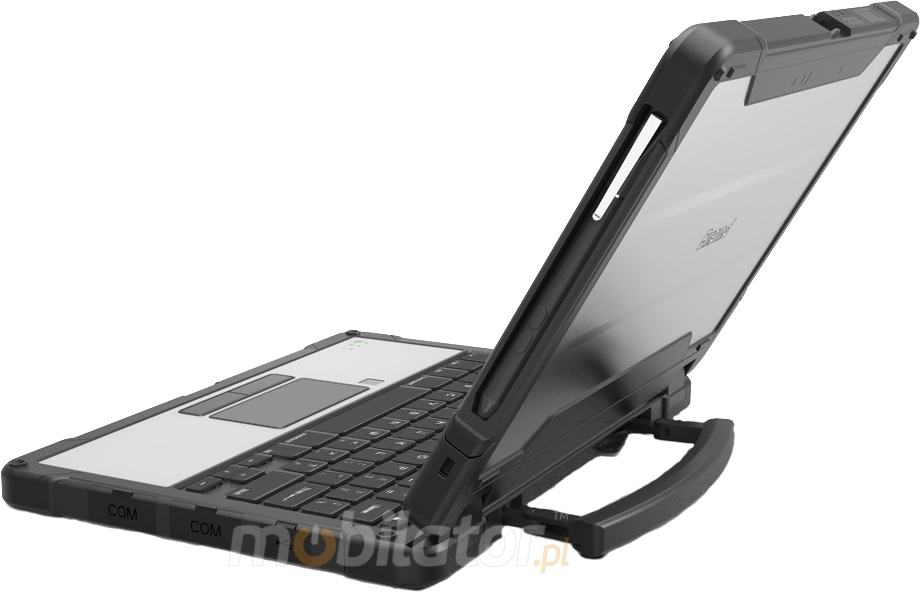

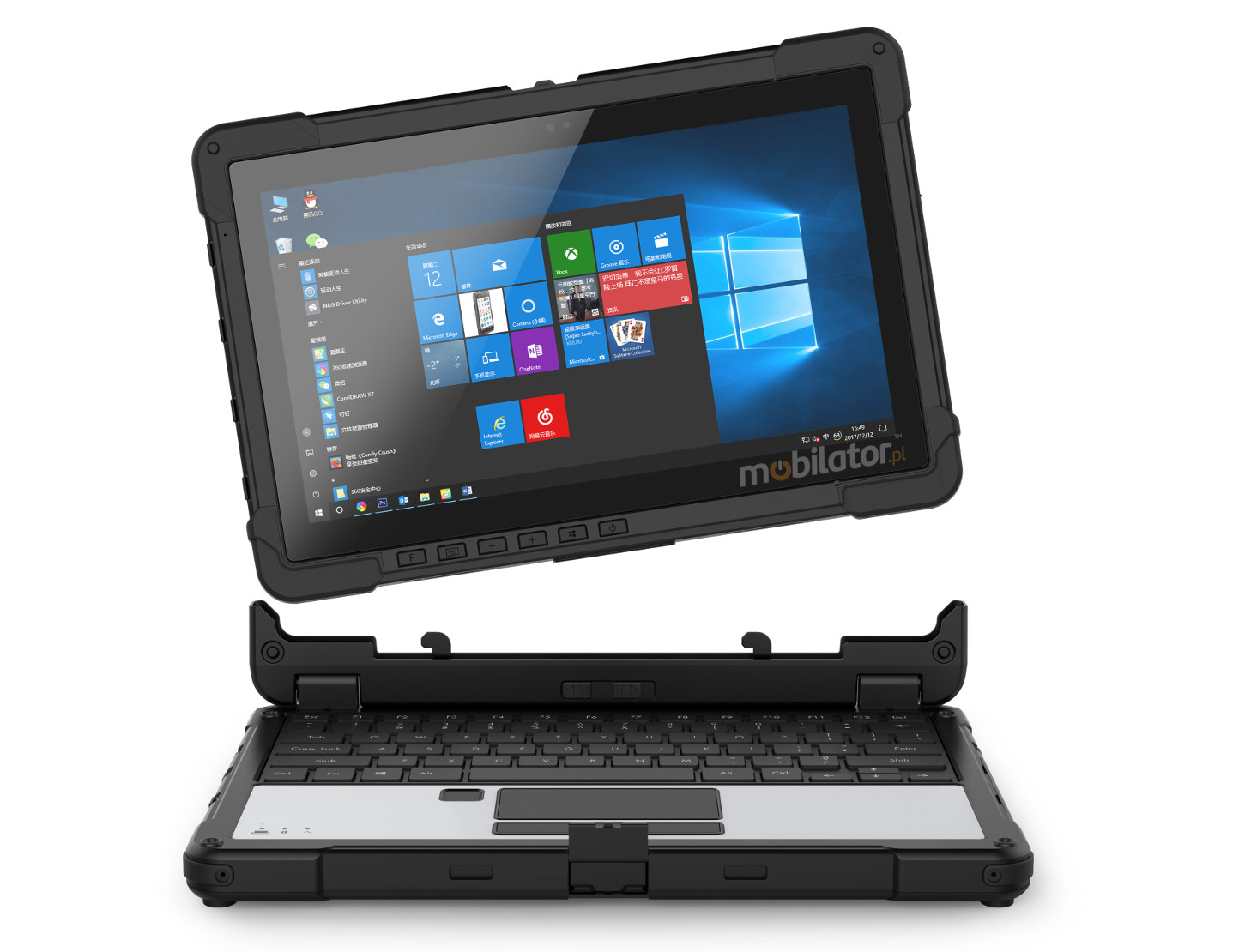

Removable keyboard

The Emdoor X11 industrial laptop offers the perfect balance between mobility and comfort of use thanks to the possibility of detaching the keyboard, which allows you to easily and quickly convert your laptop into a convenient, portable tablet with a touch screen. Thanks to this solution, X11 can be used in any place at any time.


up… do góry menu… menu

more photos in the "Gallery"...

the specification of the version is available in the tab "Technical data" ...
