Rugged Handheld Winmate E430M-BRG
|
|
The product from the archive - production terminated
|
Compare all versions
|
|
Founded in 1996, Winmate has achieved a fine reputation as a developer and manufacturer of rugged computers and industry panel LCD. Due to our product positioning in the high-tech and niche market, we have won many honors in computer product evaluation conducted throughout the world.
|
|
Winmate PCs are ideal gadget for mobile professionals. They enable you to take notes quickly and work in close spaces. Rugged Tablet PCs provide even more benefits for mobile professionals. E430 is fully rugged and is certified for both military and industrial ruggedization standards.
|
 Integrated GPS (SiRF based) solutnion, LCD (touchscreen and digitizer). In addition, IP54 certified design case, helps to ensure that the E430 will stand up to the most rigorous environments.
|
|
Guarantee
Winmate corporation give 2 years standard guarantee. Optional possibility 1 year or 3 years.
|
|
|
Communications
Winmate supports the state of art wireless network feature. It basically supports the wireless LAN 802.11 b/g/n, Bluetooth has built-in option GPS and optional 3G HSDPA module. The great expansion of WiFi technologies to wireless connect to the Internet both in professional and domestic settings through the public or private hot-spots, make your E430 an inseparable resource for your daily activities. You can enjoy the use of various wireless networks and wireless Internet to your heart's content with UMPC E430 at any time and place where the wireless Internet environment is established.
|
|
|
Processor and chipset
WInmate is supported Arm 11 650MHz processor, thanks to what it is unsually energy-saving, keeping near this large efficiency of work.
|
|
Display
E430 ships standard with a transflective sunlight viewable 4.3" LED 800x480 screen, ideal for high ambient light conditions standard 270 nits and Contrast 800:1. A built-in touch screen allows finger-touch inputs directly on the screen or the use of stylus pen for data input capability.
|
|
 Winmate E430 can be equipped with additional readers for data collection. In optional can be integrated 1D barcode reader. Winmate E430 PDA also received two internal cameras: front 2MP to communication and rear 5MP to anddocumentation photographic collection.
|
|
The E430, industrial rugged PDA is ideal solution for Government; industrial/commercial customers who are interested in the ability to work in rough environments yet maintain productivity without the risk of data or performance losses.
|
|
|
Public Health Services
With Winmate 4.3" Handheld, doctors are able to quickly tracking patients medical records ordiagnostic information with barcode reader without going back and forth between offices andwards. The compact size of 4.3" Handheld makes medical workers easier to carrying light-weightcomputer around and increasing work efficiency.
|
|
High Mountain Engineering
For high mount engineering which requires multi-functional devices for all kinds of harsh environments, 4.3" Handheld assists engineers to utilize digital compass to determine directionas well as altimeter to estimate altitute. In addition, the digital camera with auxiliary LED backlightallows them to take photos during night time or dim environments.
|
|
|
|
Warehousing
In warehousing industry, users are able to obtain product and inventory information by using
4.3" Handheld and transfer data back to the office with built-in 3G and WLAN.
|
|
Mining Industry
Miners are frequently requested to work in high-temperature and inconvenient place. 4.3" Handheld optimizes all functions in a wide range of temperature from 0°C to 50°C. Furthermore with digital compass helps miners determine the right direction under ground.
|
|
|
|
Public Safety And Security
In public safety industry, workers perform their works efficiently with the design of MIL-STD-810F and IP54 of 4.3" Handheld under harsh environments. Through 3G communication, workers can constantly report working status to office. Ensuring service level of public institution.
|
 The following is a top-level introduction to US Military standard MIL-STD-810, used to define the testing methodology for, and results required for acceptance of, rugged equipment.
MIL-STD-810 is a series of performance and manufacturing guidelines set by the US Department of Defense for military and commercial equipment and applications. These guidelines specify allowable parts and environmental condition ranges in which a device must be able to operate to meet compliance.
MIL-STD-810 is a generally accepted standard of ruggedisation testing and compliance for mobile computers and equipment.
The MIL-STD-810 test method is used to generate confidence in the environmental worthiness and overall durability of ‘material system’ design. The testing process follows guidelines, which include program documentation, program roles, test standards, and laboratory test method guidelines for all categories.
The laboratory test methods are broken down into 24 categories and thereafter procedures (specific tests or levels) appropriate to the environment in which the equipment is expected to be used. The compliance test categories are shown overleaf.
|
Compare all versions
| Durability: |
MIL-STD 810F |
| Humidity: |
95% non-condensation |
| Waterproof: |
IP 54 |
| Weight: |
|
| Temperature: |
Operating temperature: 0°C - 50°C, Storage temperature: -10°C - 60°C |
| Shock: |
MIL-STD 810F Metod 516.5 |
| Vibration: |
MIL-STD 810F Metod 514.5 |
| Drop: |
MIL-STD 810F Metod 516.5 |
| Sand and dust: |
IP 54 |
| 1D barcode scanner (reader): |
Yes |
| 2D barcode scanner (reader): |
Yes |
| RFID scanner (reader): |
No |
| Magnetic card reader (MSR): |
No |
| Microchip card reader: |
No |
| Docking station connector: |
No |
| VESA standard – holders and mounts support: |
No |
| COM port: |
No |
| Dispaly: |
4.3'' (800x480) LED |
| Brightness: |
270nit |
| Contrast: |
800:1 |
| Touch screen: |
Yes - Touch Capacitive |
| Graphics card: |
-------- |
| Swivel Hinge: |
No |
| VGA out: |
No |
| TV Out: |
No |
| TV Tuner: |
No |
| Processor: |
ARM 11 650MHz |
| Chipset: |
-------- |
| BIOS: |
-------- |
| Memory: |
512MB |
| Hard Drive: |
512 MB Flash |
| Flash Memory: |
|
| Battery: |
Li-Ion 2400mAh, adapter 5V/1A |
| Working time on battery: |
up to 8h |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
No |
| Size: |
81.82 x 182.52 x 20.90 mm / 233g |
| Casing material: |
plastic |
| Fanless casing: |
Yes |
| Operating System: |
Yes - Android 2.3 |
| LAN: |
No |
| WLAN: |
Yes - WiFi b/g/n |
| Bluetooth: |
Yes - (2.1+ EDR) |
| WAN: |
Yes - 3G |
| GPS: |
Yes |
| Flash Card Reader: |
Yes - micro SD up to 32GB |
| CD/DVD: |
No |
| Camera: |
Yes - 2MPx front and 5Mpix rar |
| Audio: |
1.2W - Mono |
| Seciurity: |
Gum case |
| In/Out: |
1x micro USB (typ B), 1x audio output |
| Keyboard: |
No |
| Additional Navigation Devices : |
No |
| Color: |
black-yellow |
| Optional accessories: |

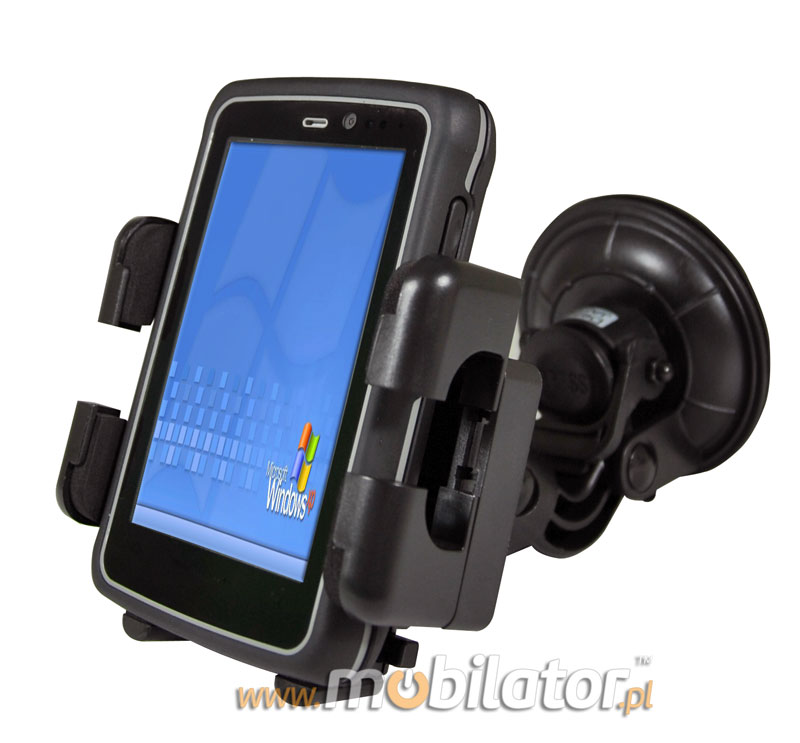

Car holder, Car charger, Module 3G |
| Other: |
Optional warranty up to 3 years, Barcode reader 2D |
