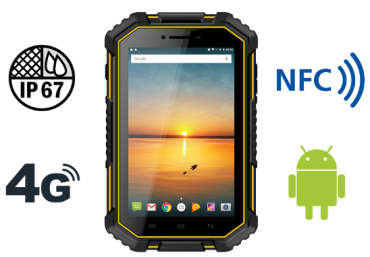

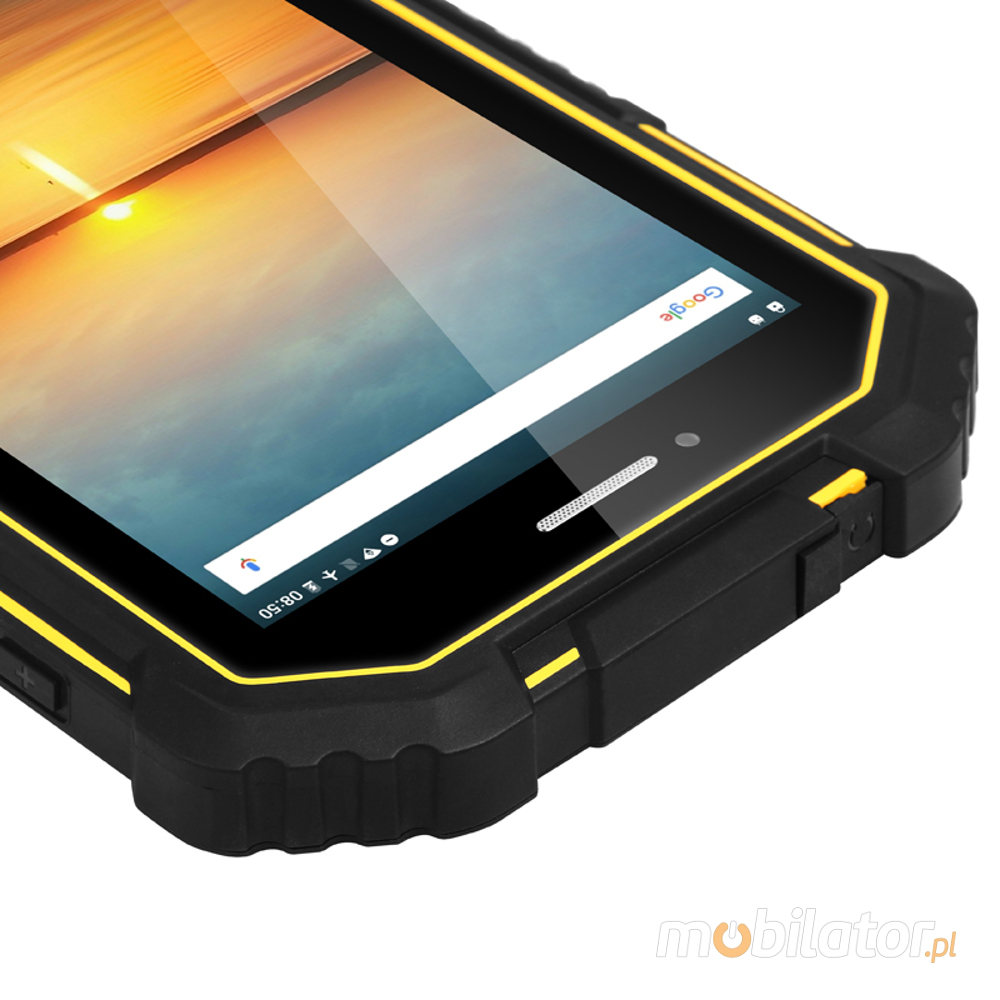

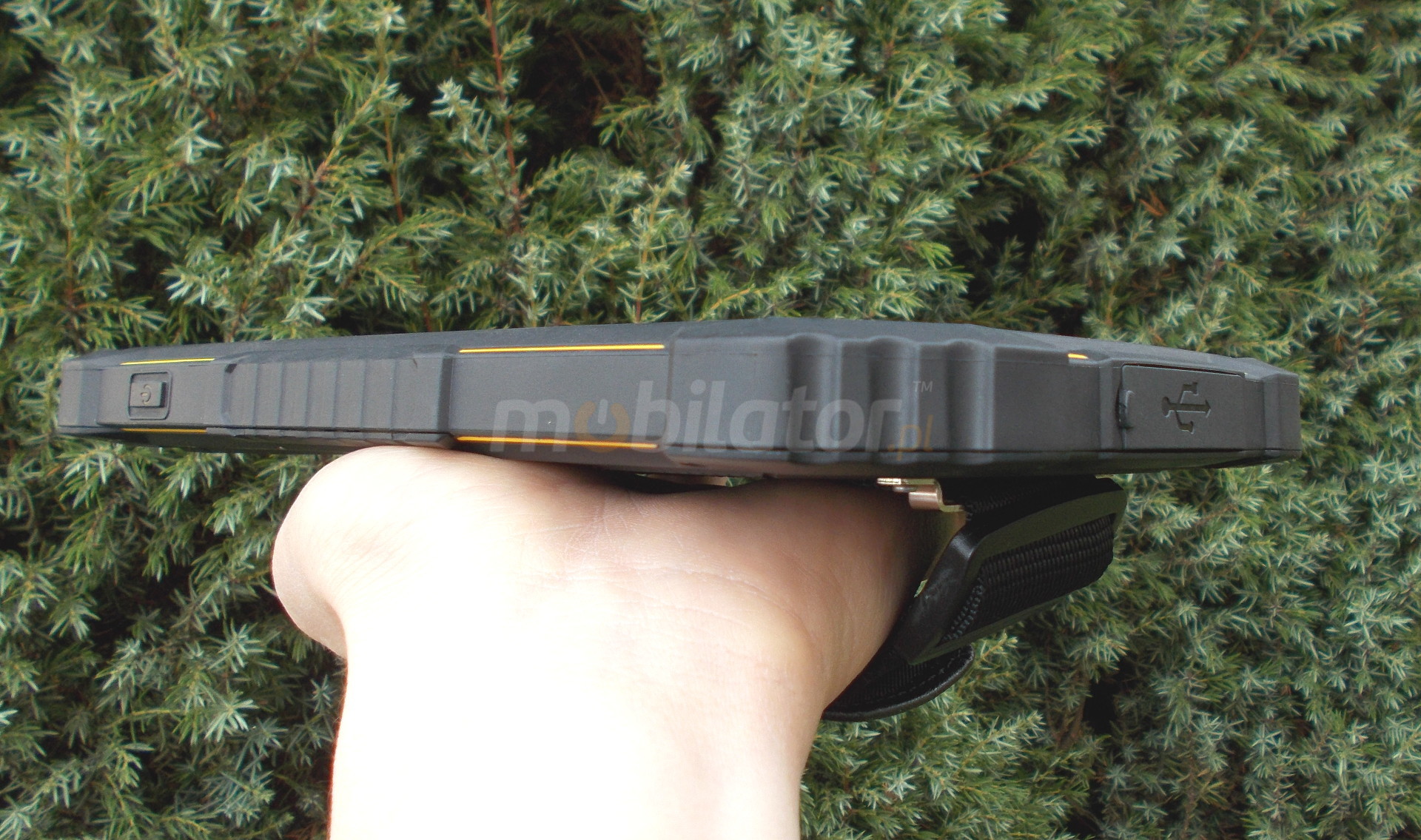

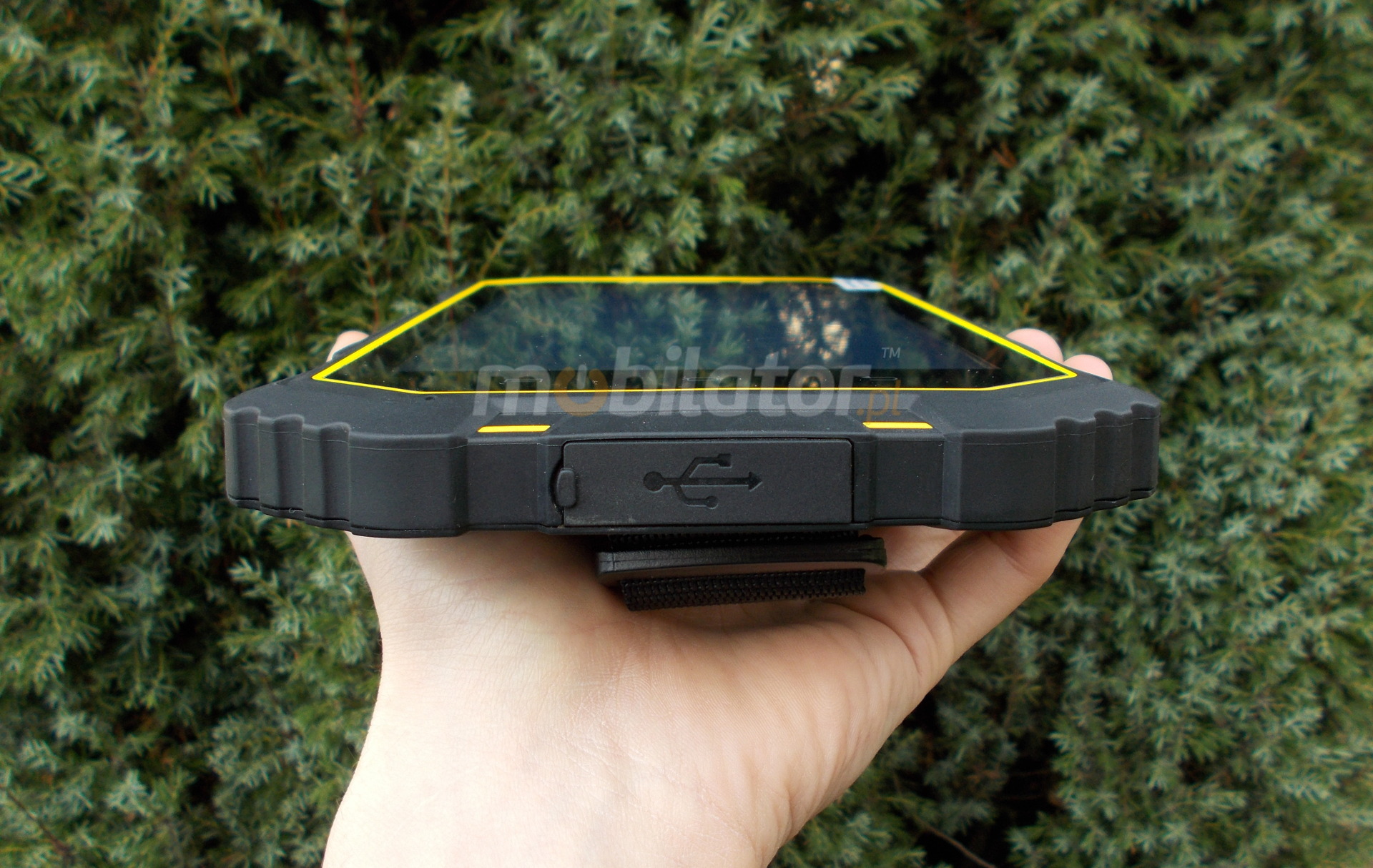

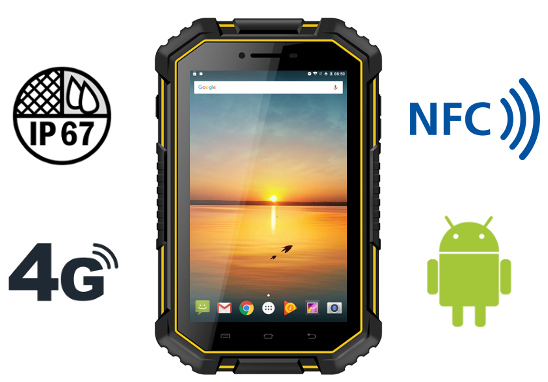

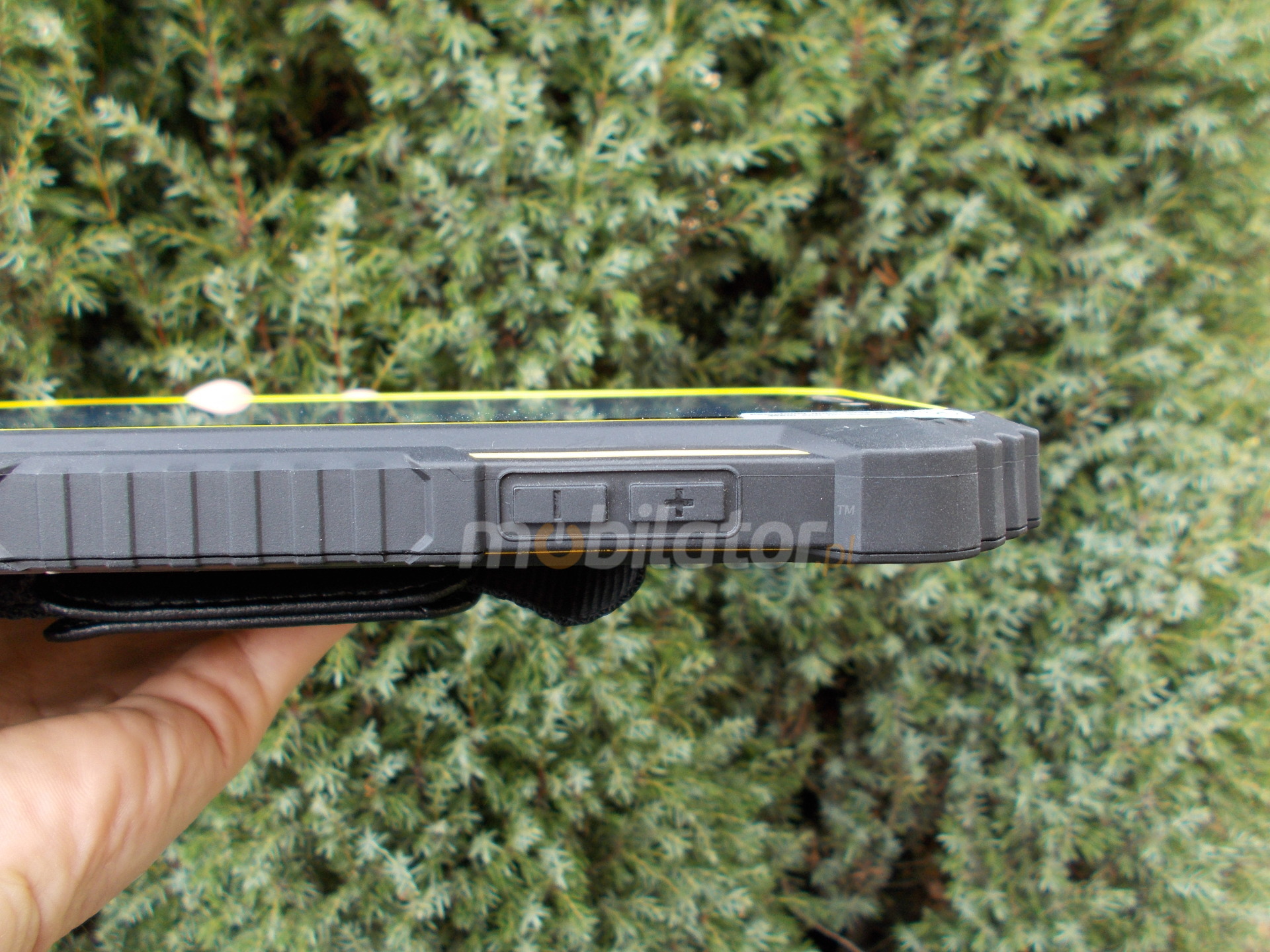

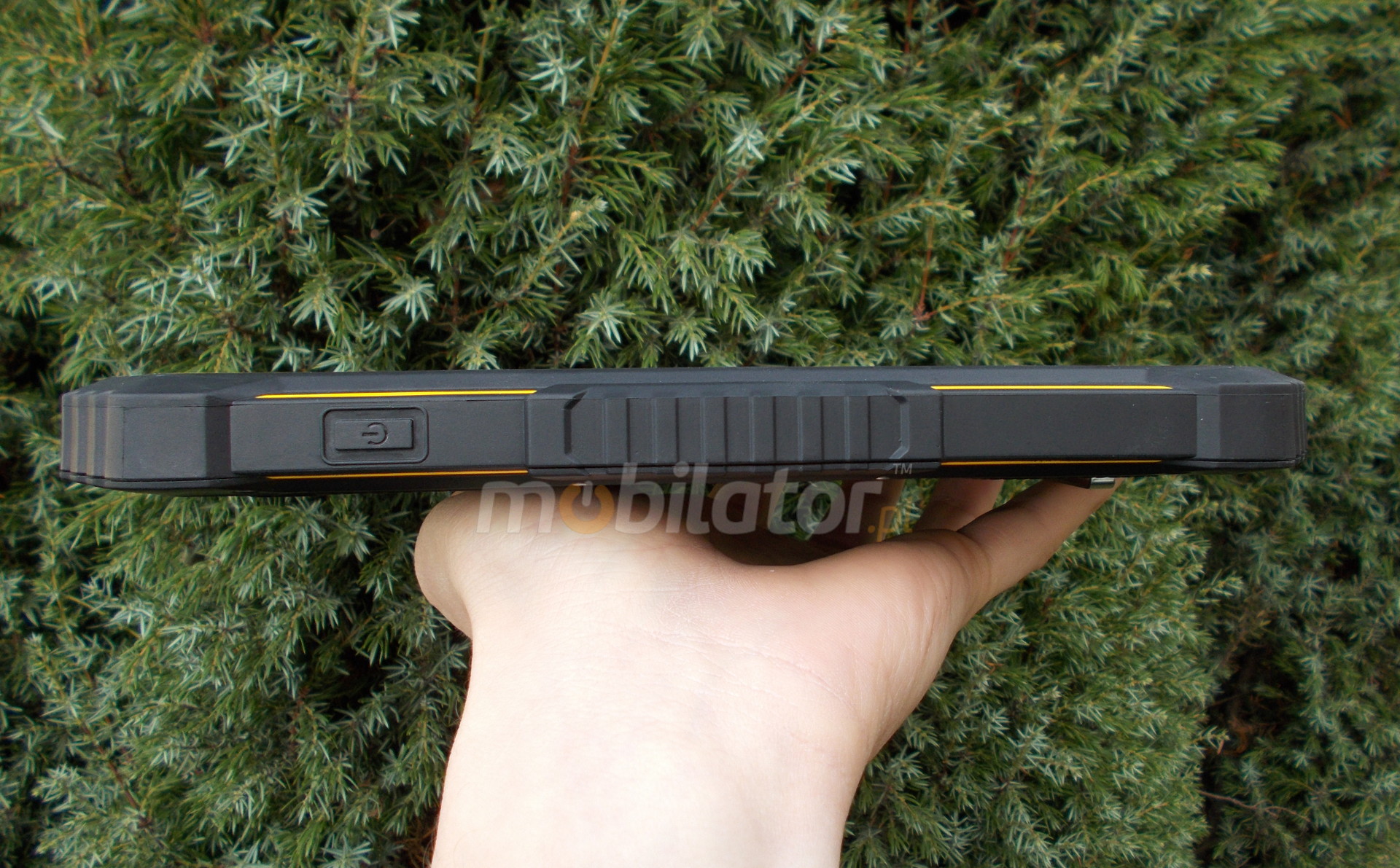

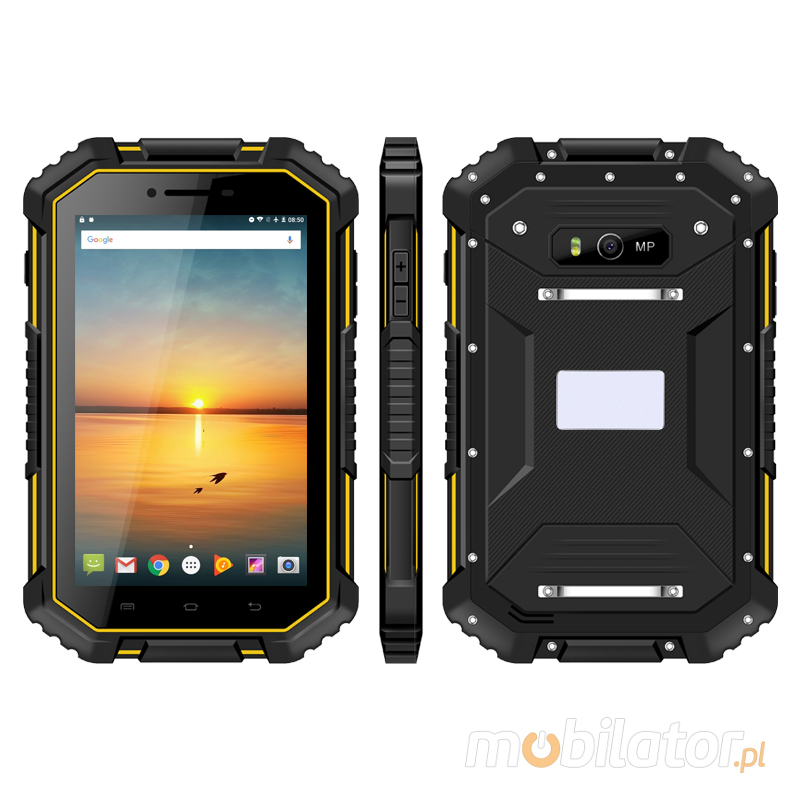

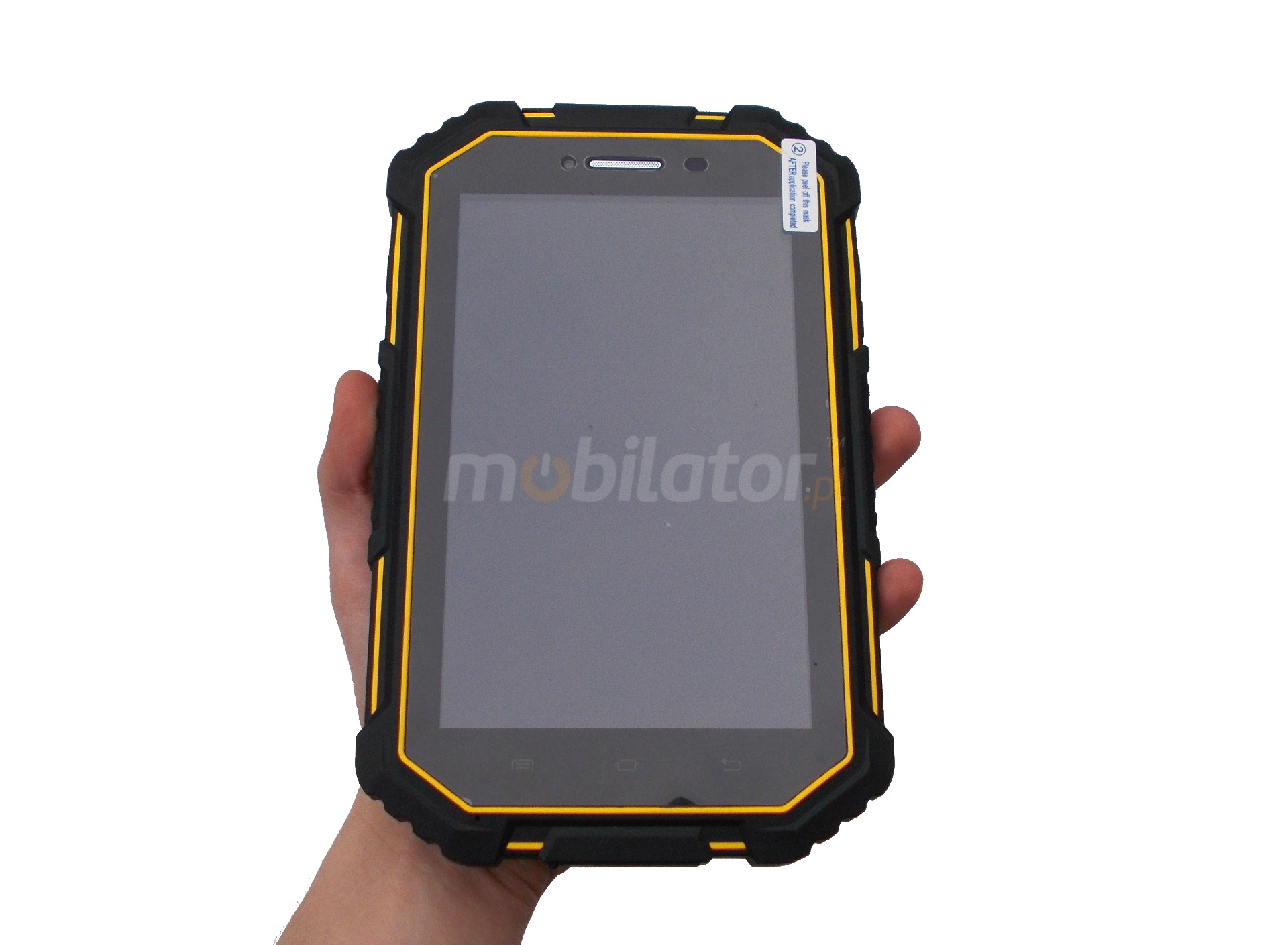

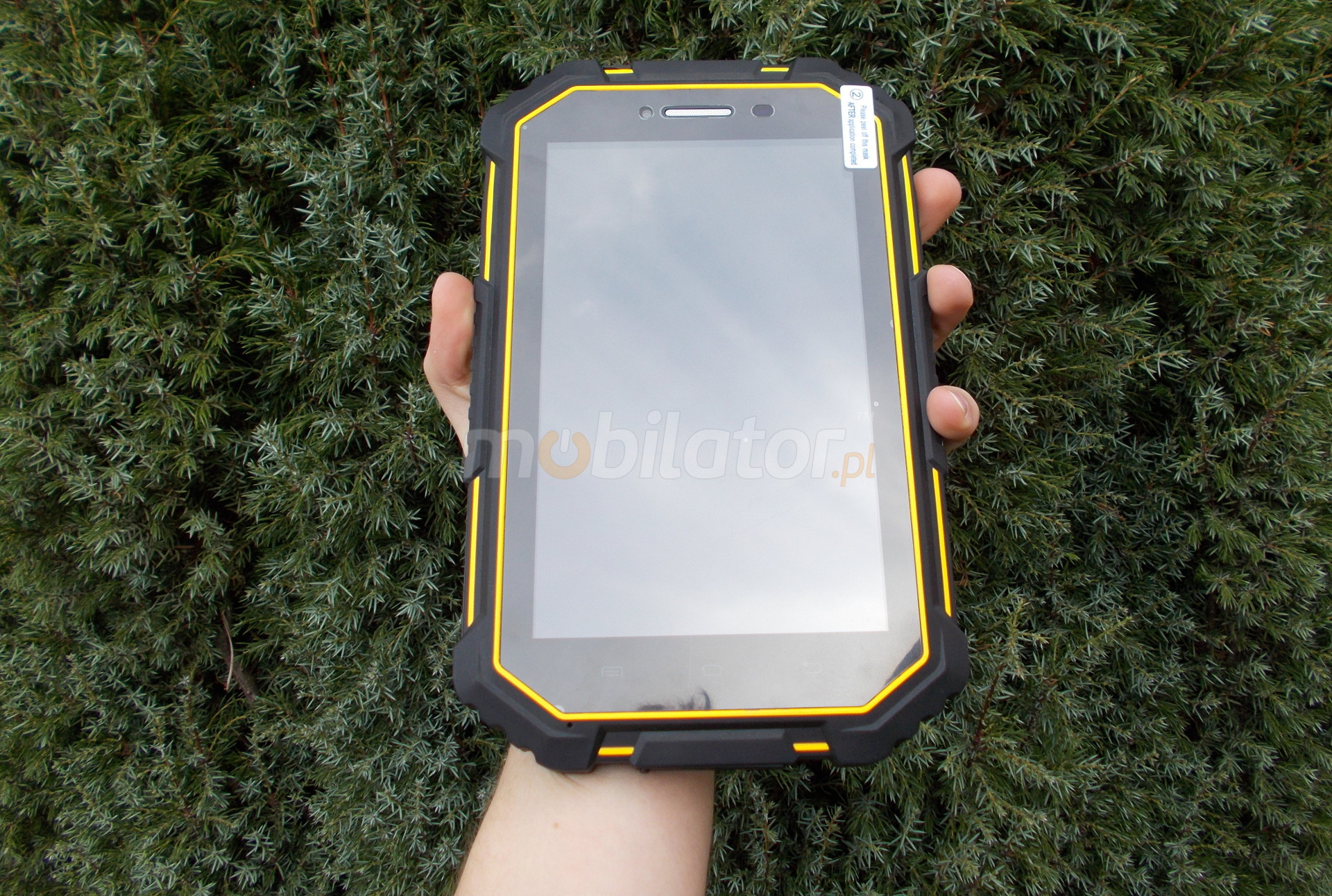

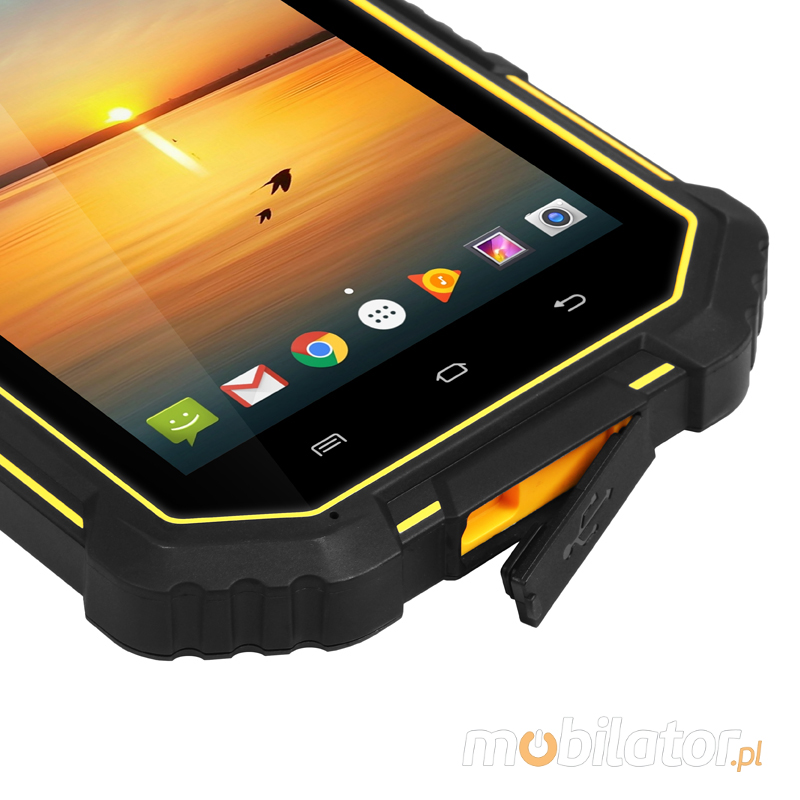

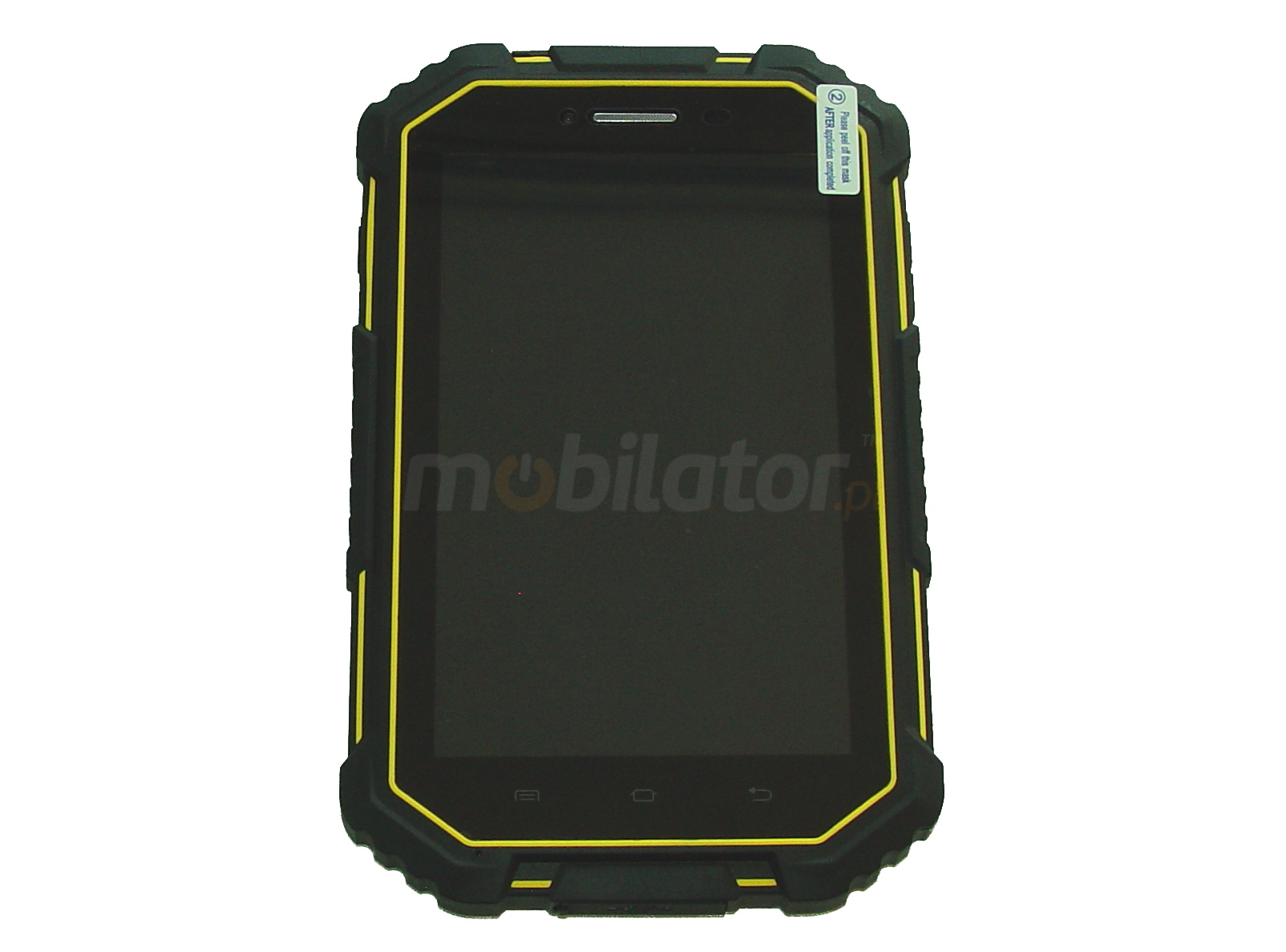

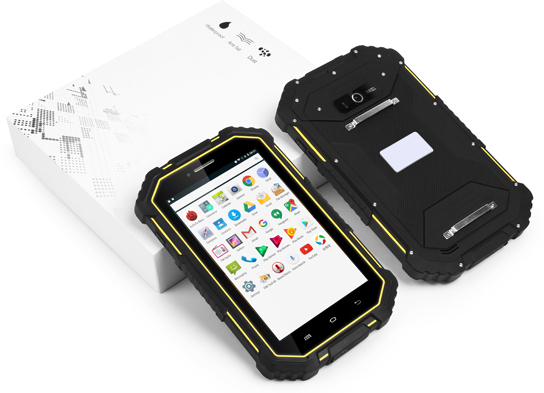

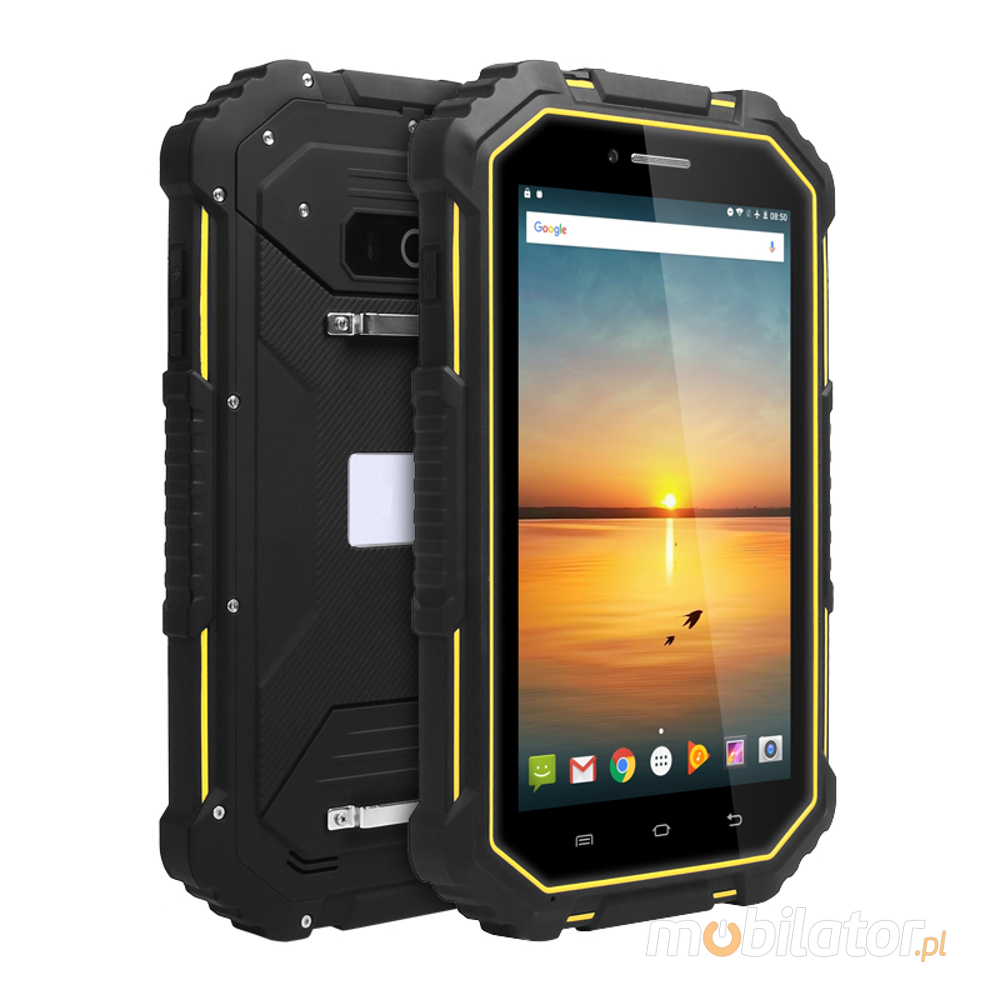

Industrial tablet MobiPad 2HV has a specially designed, reinforced structure, adapted to harsh environmental conditions. Similarly, as the equipment produced for the military, meets the requirements of IP67 norm. Thanks to its structure is resistant to dust and water. The device is proper for use in the home and industry.
.jpg)
Specification
|
Processor |
MTK6735 64-bit Quad Core 1.3GHz |
|
RAM |
2GB |
|
Flash memory |
16GB |
|

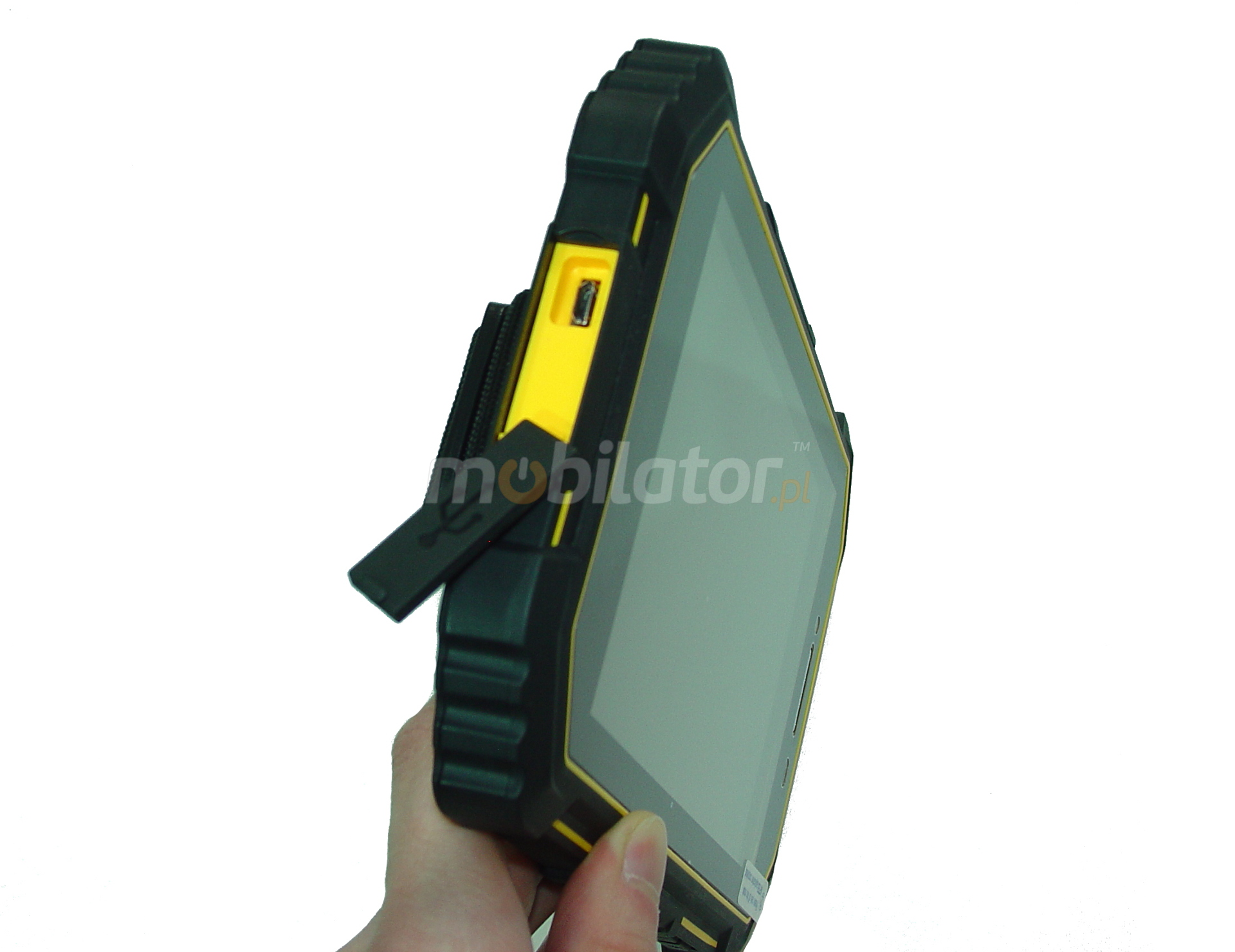

Connectors |

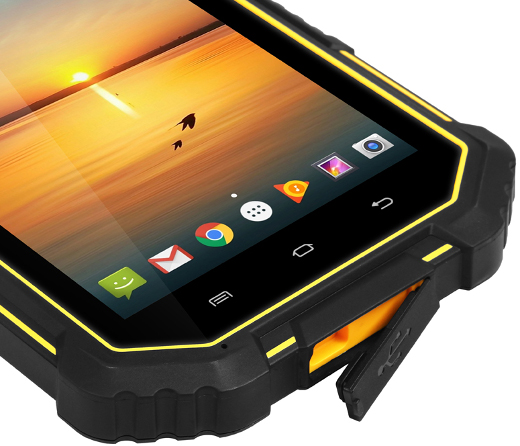

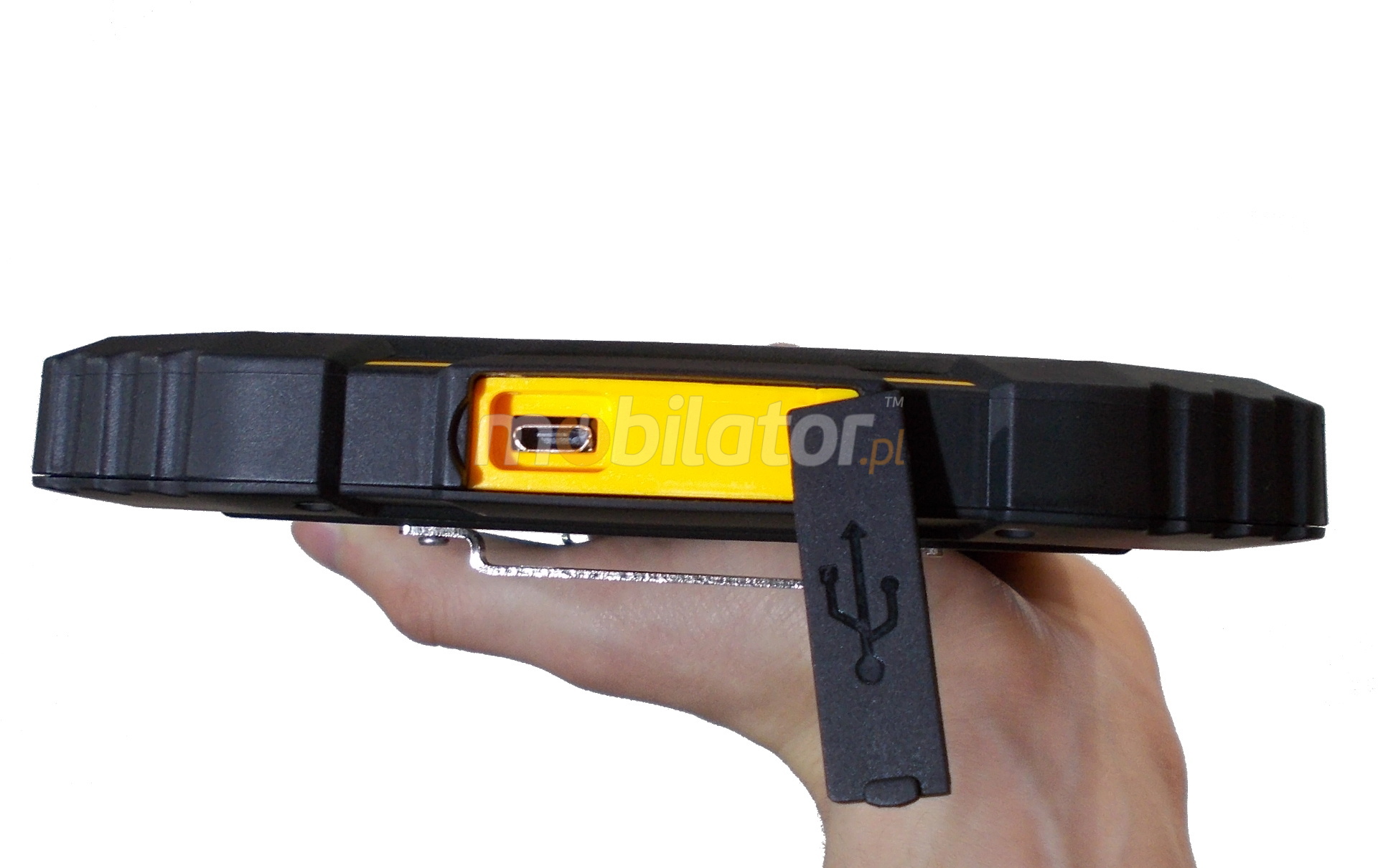

SIM | Micro SIM | Micro SD | Micro USB |
|
Display |

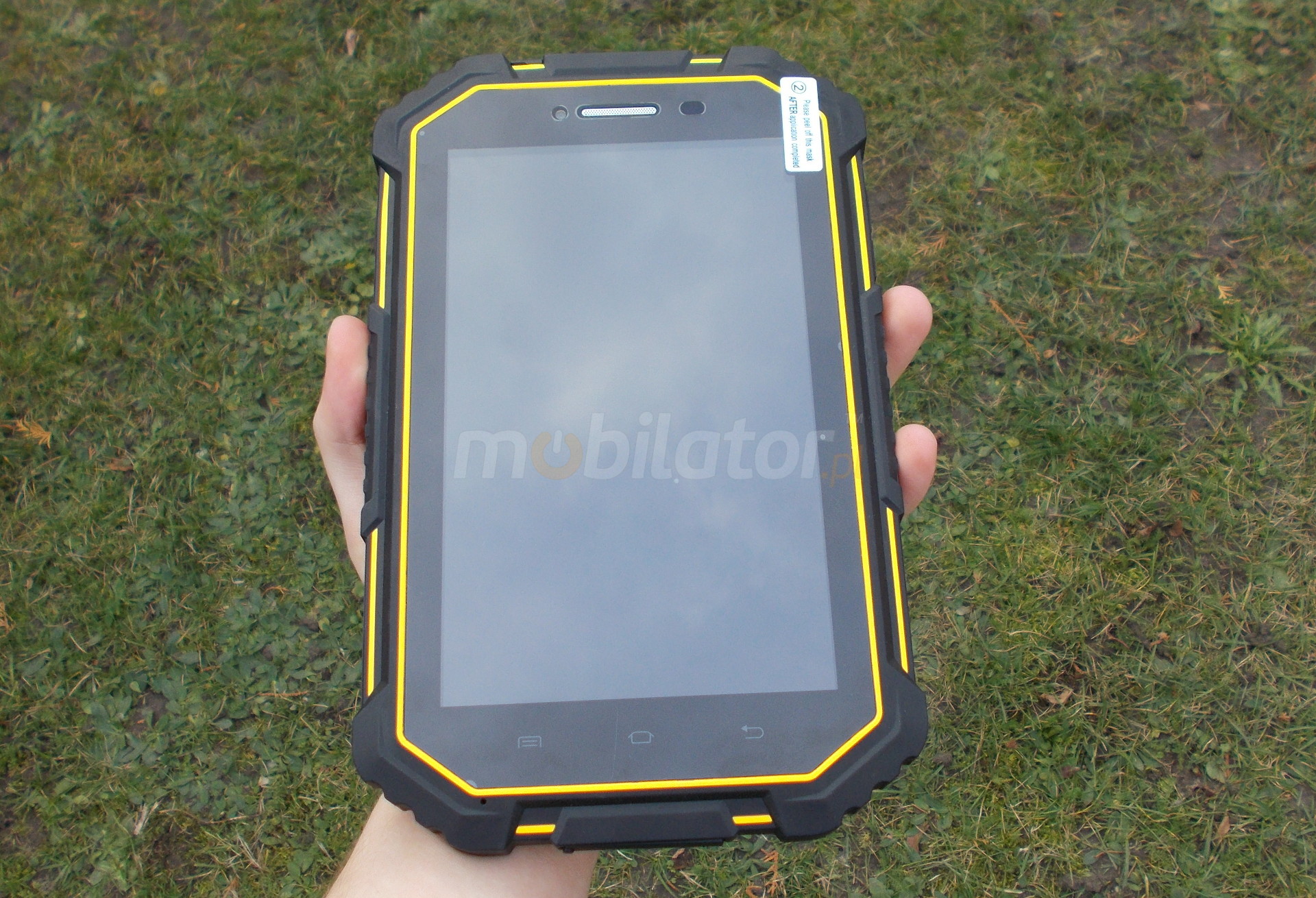

7.0 HD (1280 x 800px) |
|
GPS |
GPS + A-GPS |
|
Audio |
Built-in speaker and microphone |
|
Battery |
7000mAh Polymer Lithium |
|
Keyboard |
On-Screen |
|
Operating system |
Android 6.0 Marshmallow |
|
Modules |
Bluetooth | Wi-Fi | GPS/A-GPS | 2G/3G/4G |
|
Readers (optional) |
NFC |
|
Dimensions |
215.56mm x 135.8mm x 18.9mm |
|
Weight |
555g |
|
Resistance |
IP67 |

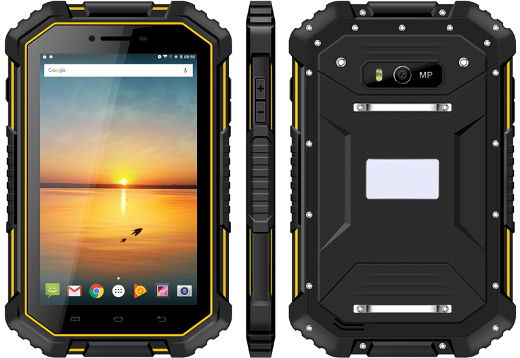

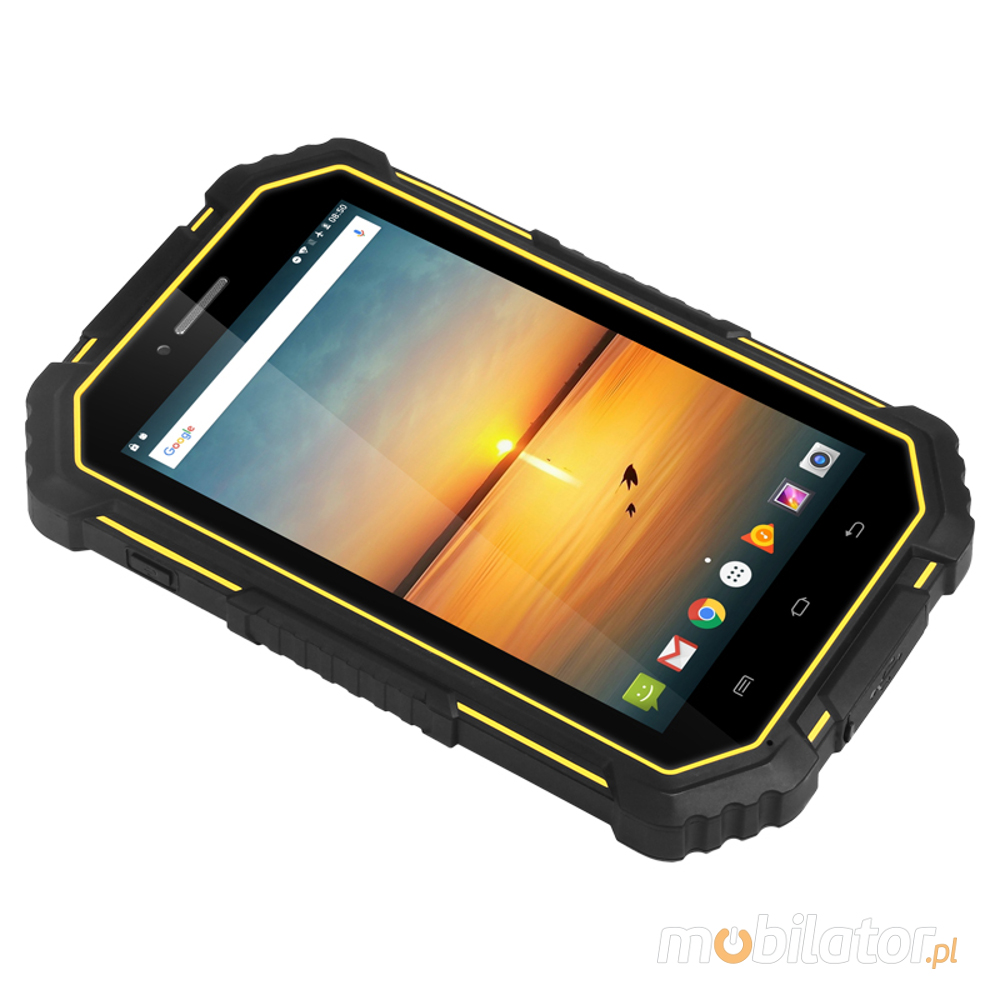

MobiPad 2HV is offered with the latest MTK6735 processor to ensure the highest performance, low power consumption and long battery life. The data collector works with Android 6.0 operating system to meet the growing requirements in industrial applications.
.jpg)
Select the version dedicated to yourself
Select a version tailored to your needs. Clicking on the hardware number configurations will redirect you to the product with parameters listed below. At the customer's request can be created configurations which are not available in the offer. Detailed parameters are available in the "Technical Data".
The collection and processing of data
back to top…
menu…
NFC

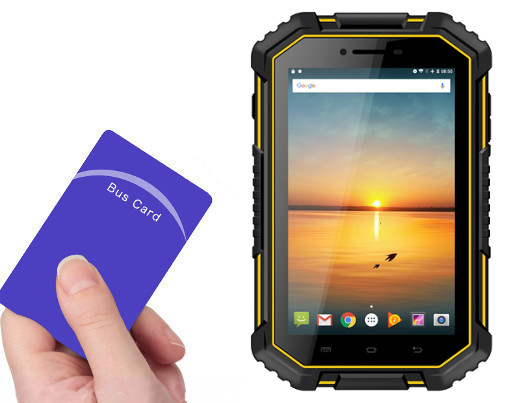

Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.
|
Frequency |
13.56MHz |
|
Protocols |
ISO/IEC 14443 |
|
Read distance |
~5cm |
Resistance
back to top… menu…
|
Work temperature |
-20℃ to 55℃ |
|
Storage temperature |
-20℃ to 75℃ |
|
Humidity |
0% - 70% (non-condensing) |
|
Dust resistance |
IPx6 |
|
Water resistance |
IPx7 |
|
Drop resistance |
1.2m |
Resistance IP67
IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.
|
No protection |
0 |
 |
0 |
No protection |
|
Protection against any large surface of the body, such as the back of a hand |
1 |
 |
1 |
Protection against vertically dripping water |
|
Protection from object > 12mm, e.g. Fingers or similar objects |
2 |
 |
2 |
Protection against vertically dripping water when device is tilted at an angle up to 15 degrees |
|
Protection from object > 2.5mm, e.g tools, thick wires, etc. |
3 |
 |
3 |
Protection against direct sprays of water when device is tilted at an angle up to 60 degrees |
|
Protection from object > 1mm, e.g. most wires, slender screws, large ants etc. |
4 |
 |
4 |
Protection from sprays and splashing of water in all directions |
|
Dust protected - Ingress of dust is almost entirely prevented. |
5 |
 |
5 |
Protection from low pressure water projected from a nozzle with a 6.3mm diameter opening in any direction |
|
Dust tight - No ingress of dust, complete protection against contact. |
6 |
 |
6 |
Protection from water projected in powerful jets from a nozzle with a 12.5mm diameter opening in any direction |
|
— |
7 |
.gif) |
7 |
Protected from immersion in water with a depth of up to 1 meter (or 3.2ft) for up to 30 mins |
|
— |
8 |
|
8 |
Protected from immersion in water with a depth of more than 1 meter |
Modules and wireless networks
back to top… menu…

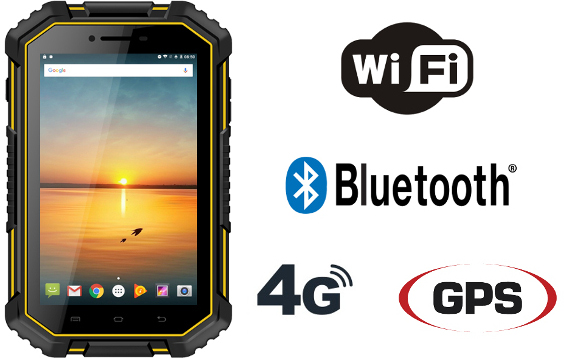

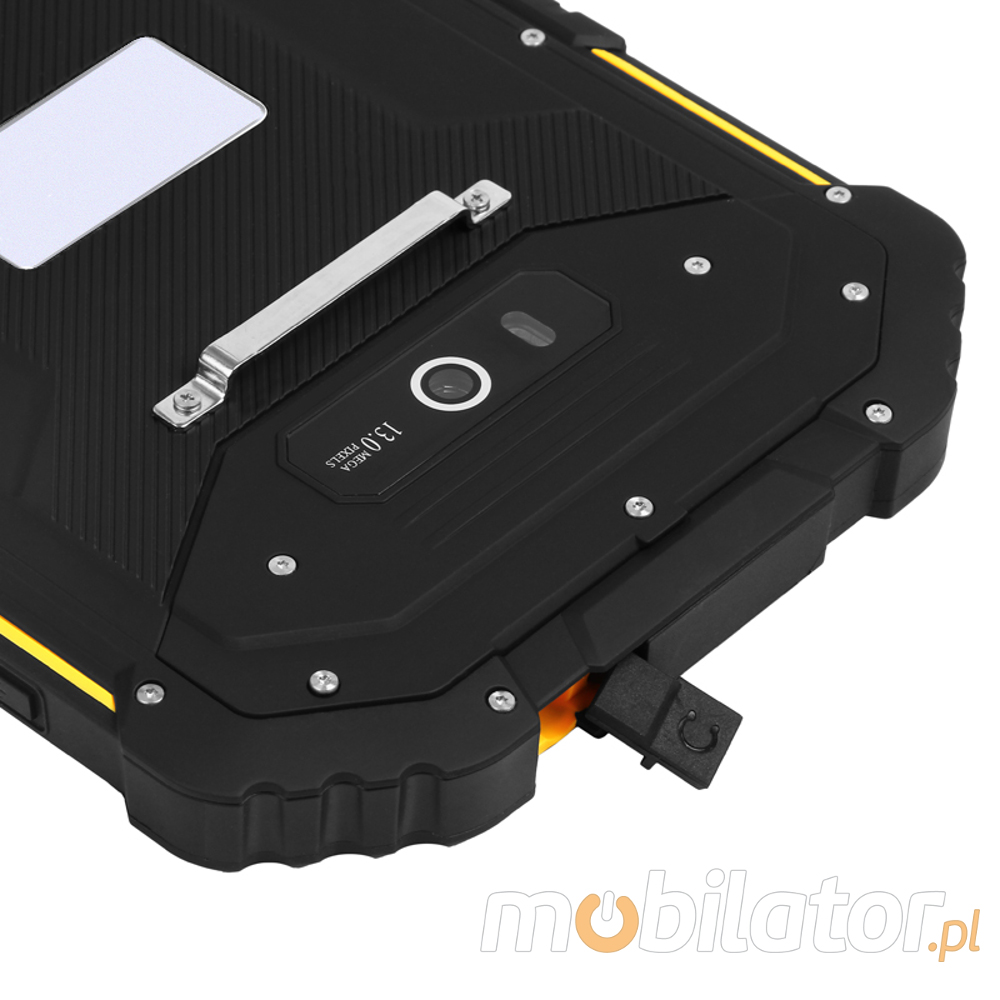

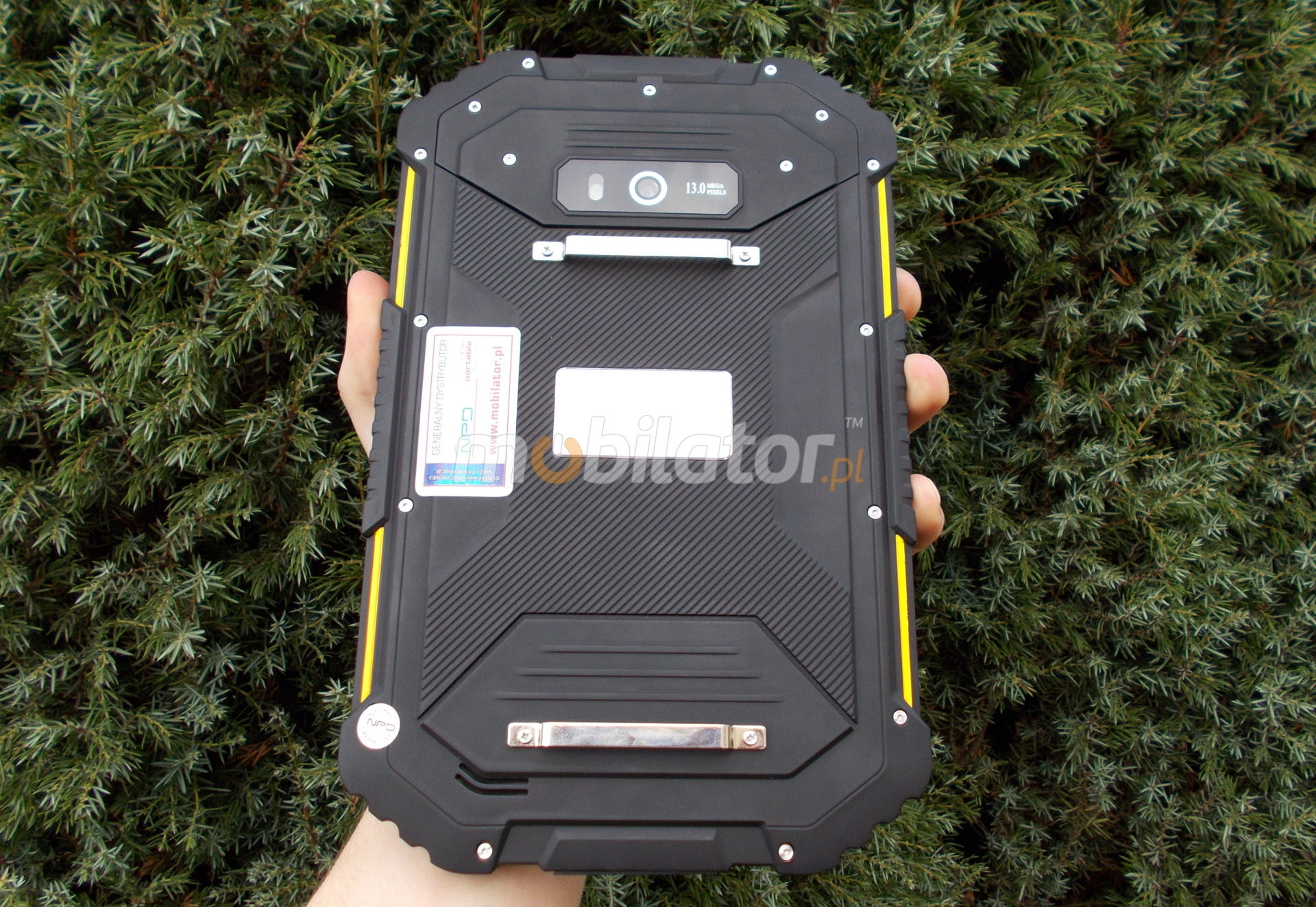

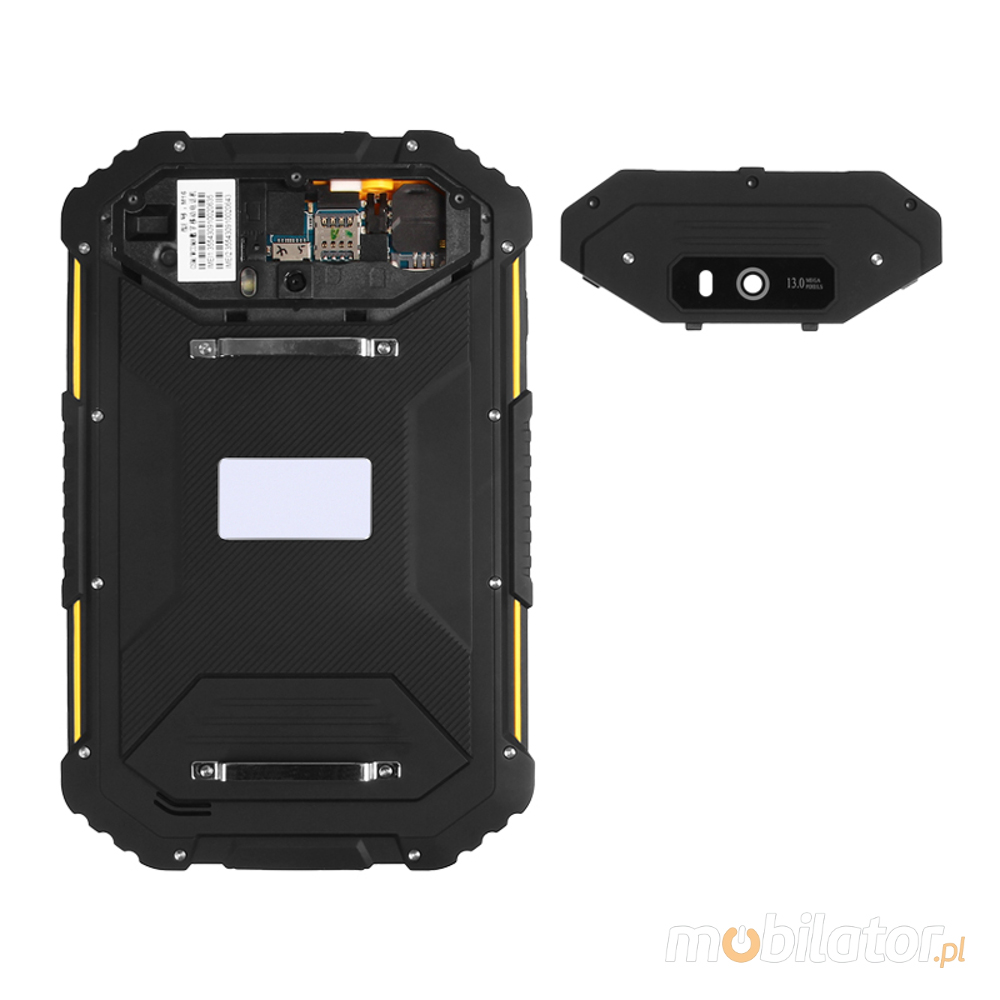

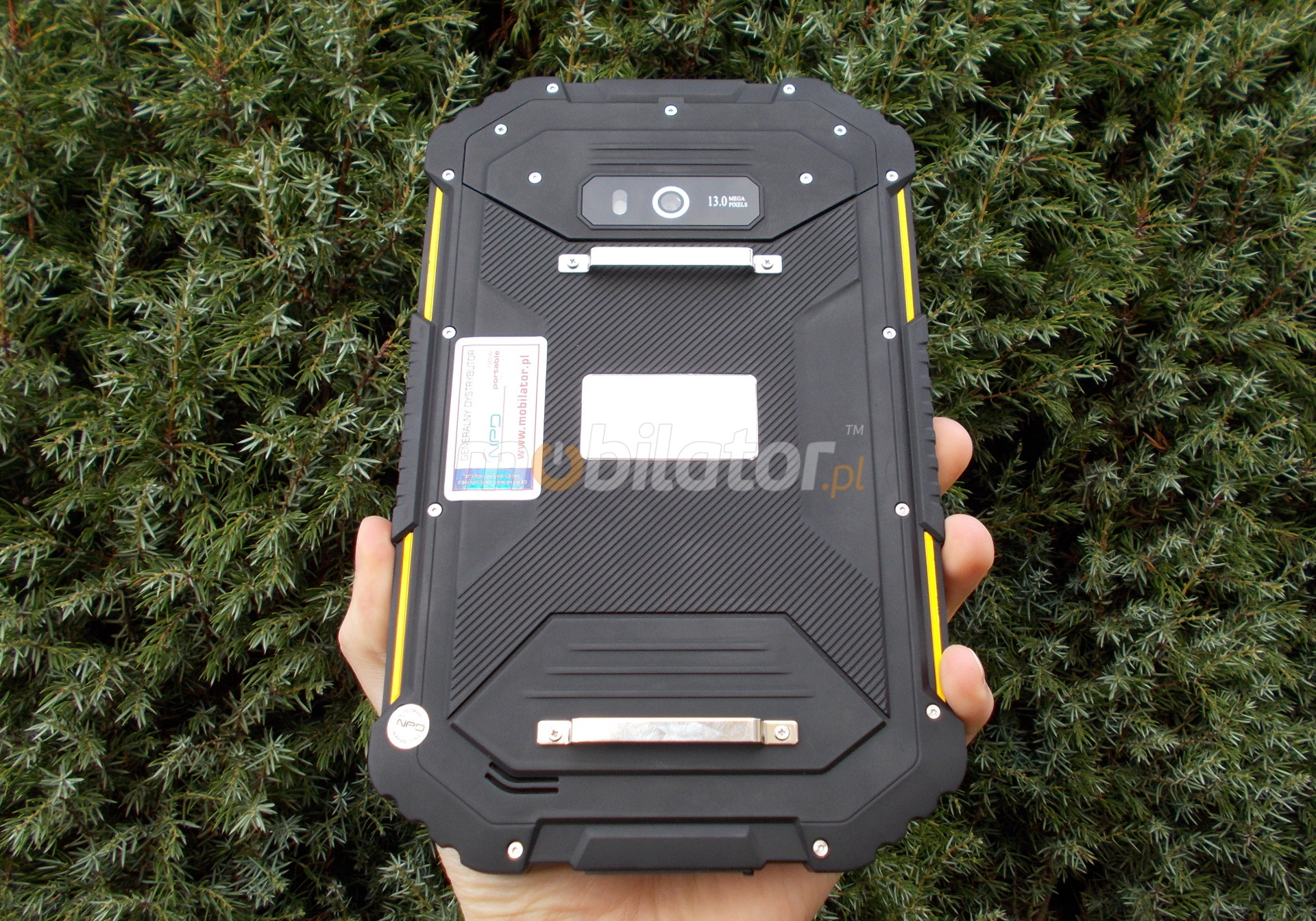

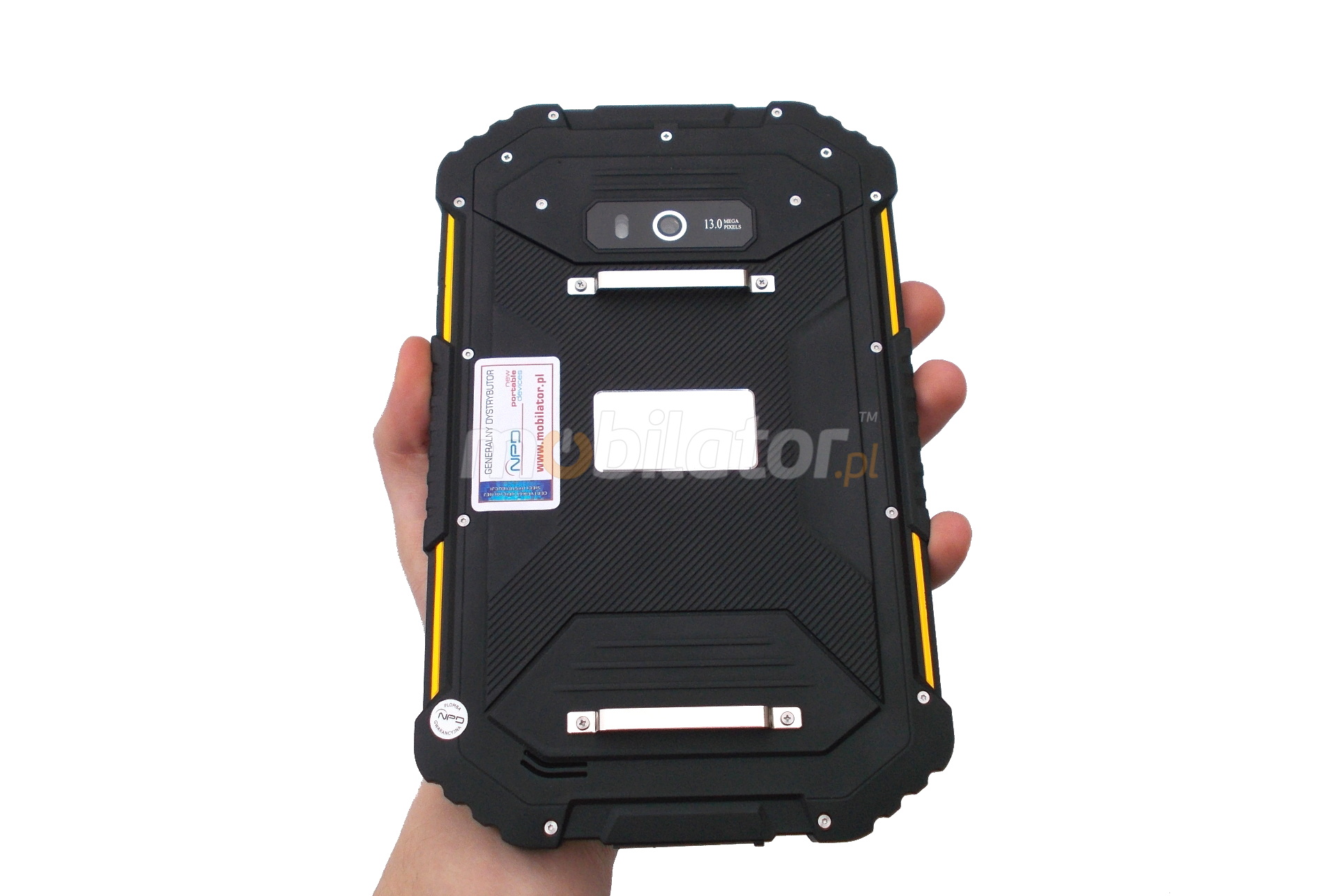

Real-time data access to the right information is very important to mobile users. MobiPad 2HV offers 4G, GPS, WiFi 802.11 a/b/g/n and Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 13 Mega Pixels camera on rear side, users can instantly capture photos, videos or documents.
The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

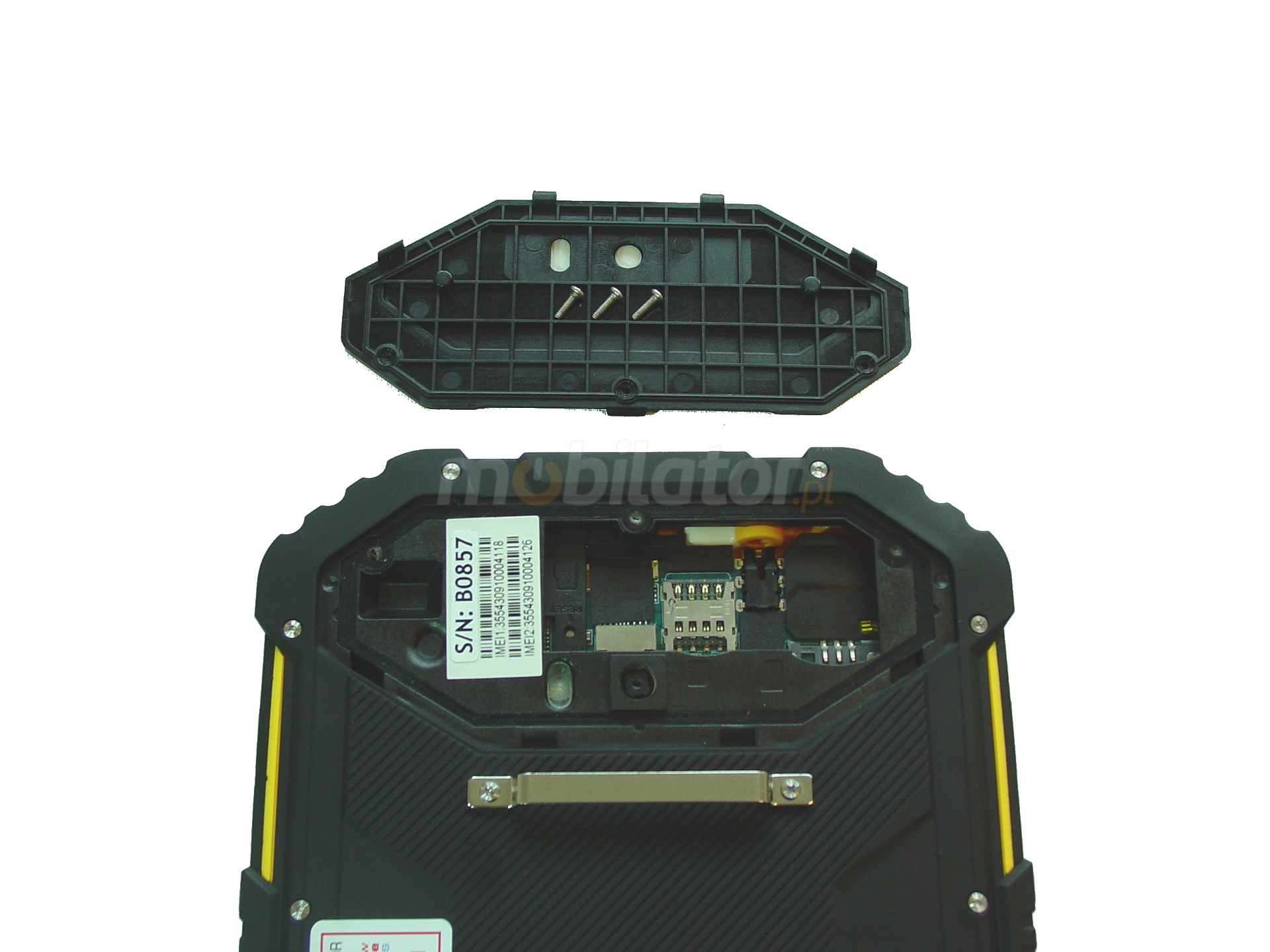

Thanks to the WCDMA module, you only need to insert a SIM card in the slot and you are able to instantly connect to the internet. Integrated software allows you to automatically detect and configure connections to mobile networks. Internal 4G module used in MobiPad 2HV adjusts automatically to transfer and network coverage.
|
Wi-Fi |
802.11 a/b/g/n |
|
GPS |
GPS + A-GPS |
|
Bluetooth |
Bluetooth v4.0 |
|
WWAN |
4G: FDD-LTE B1/B3/B7/B8/B20
3G: WCDMA 900/1800/2100MHz
2G: GSM:850/900/1800/1900MHz |
|
Phone calls |
Yes |
Application
back to top… menu…

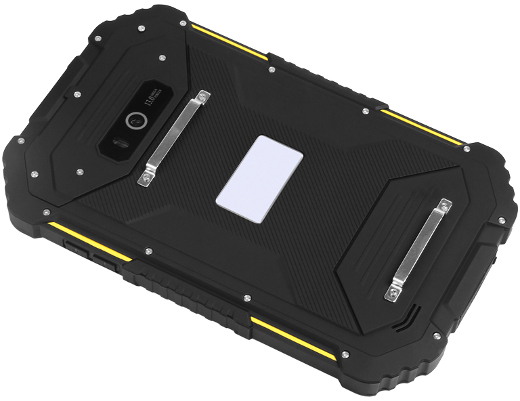

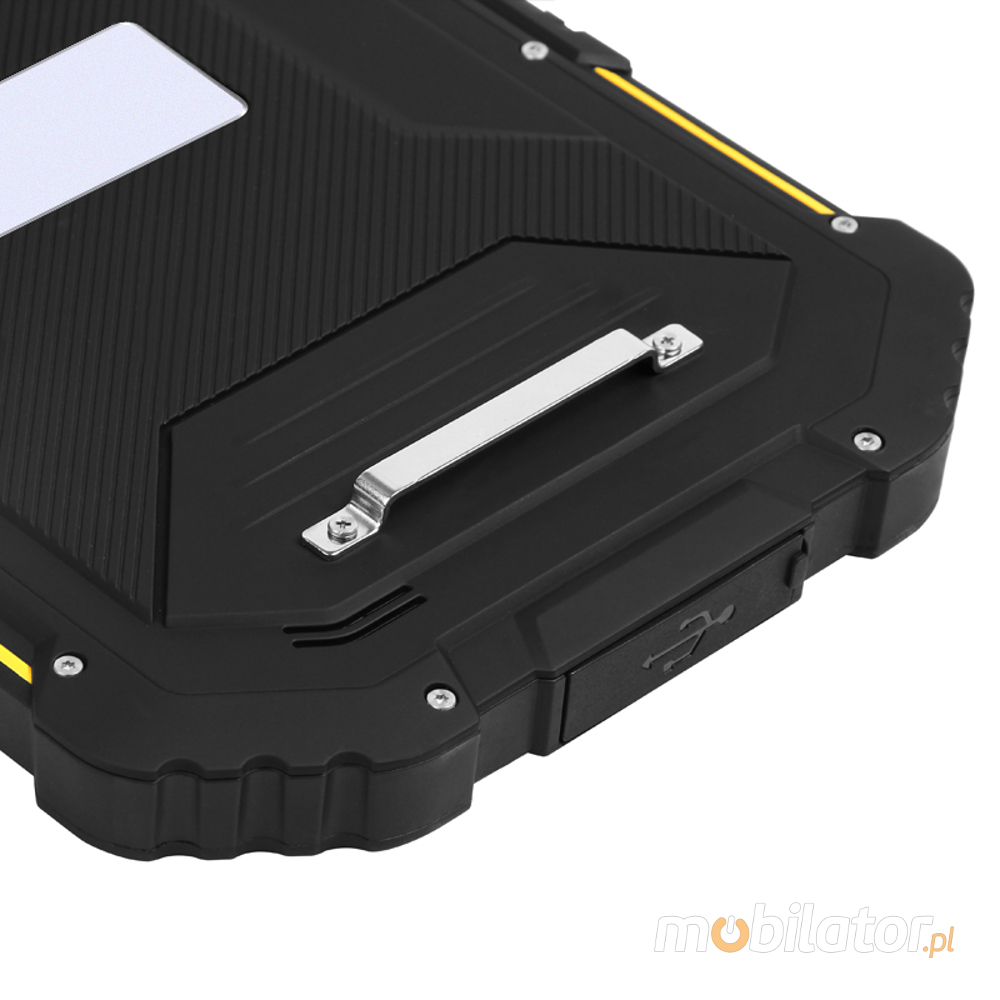

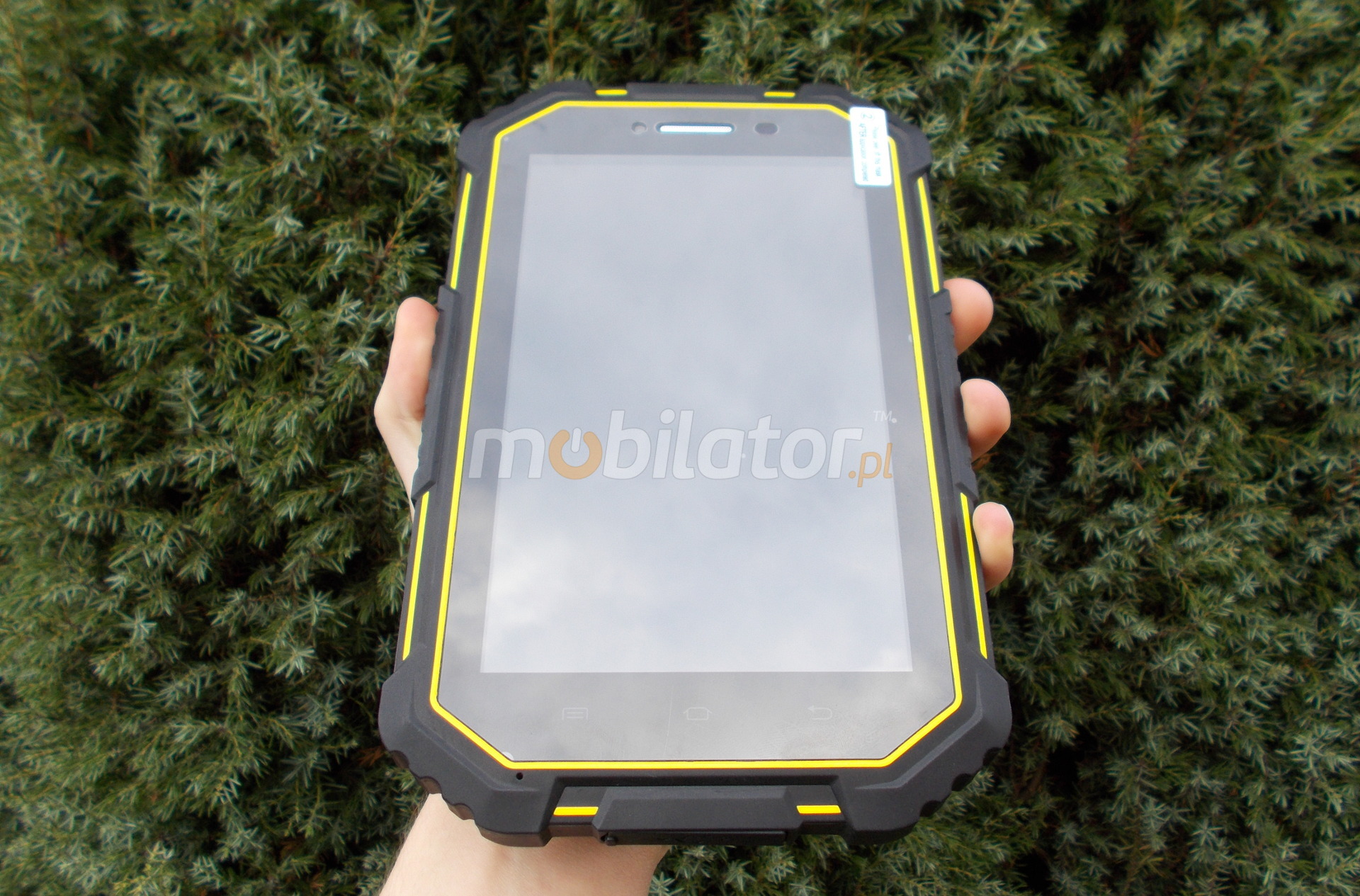

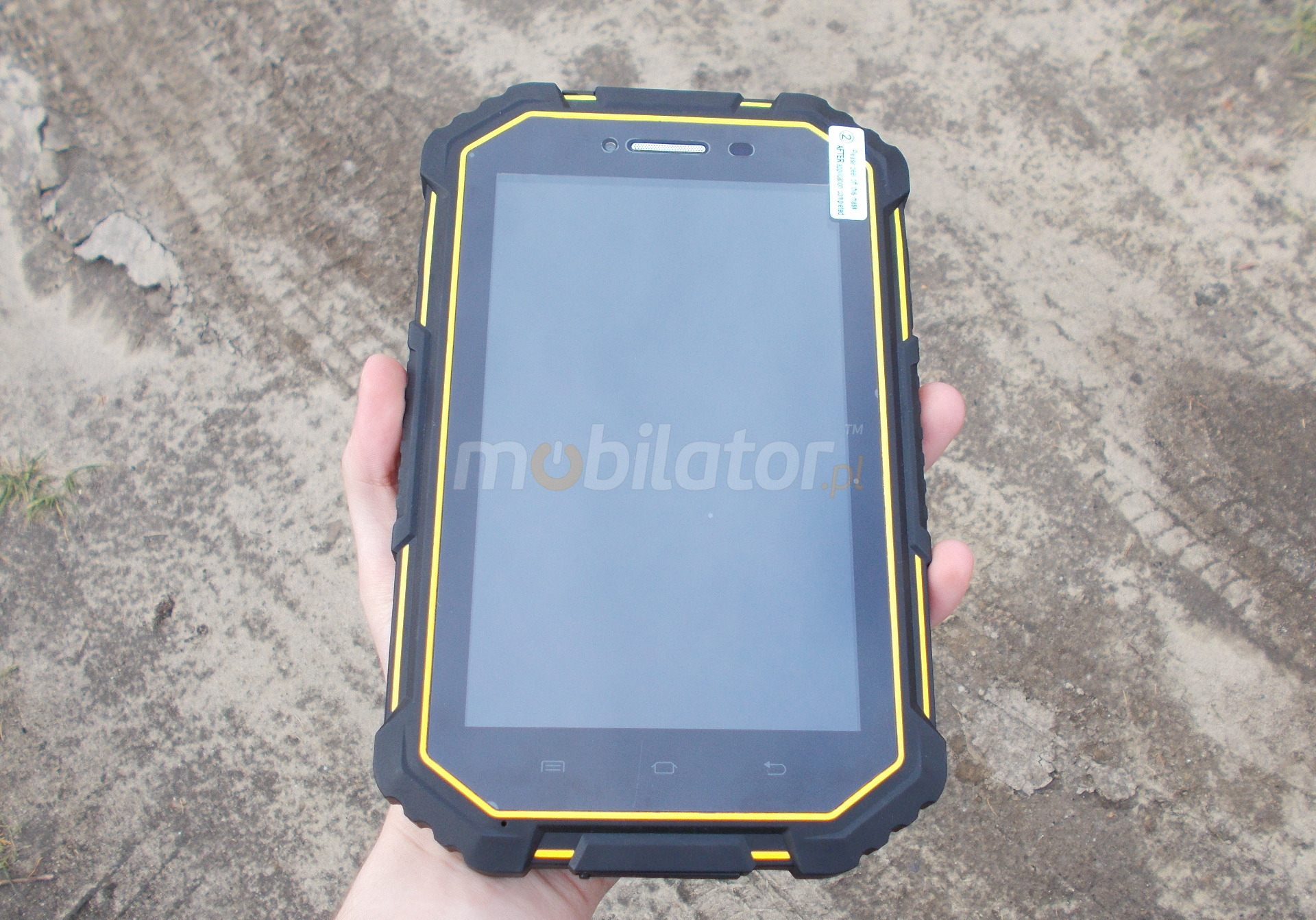

Industrial data collector MobiPad 2HV is specifically designed for use in harsh industrial environments, as well as on the outside. Resistant plastic housing protects the display from the outside against mechanical damage, drops of water, sand and dust. MobiPad 2HV is the best solution in conditions where there is dust or moisture.
Data collectors in the form of tablets and smartphones, thanks to its functionality and the ability to install in them a number of modules have been used in almost all fields of industry and not only. Collectors equipped with barcode scanners and RFID are primarily used in warehouses where, thanks to them, time-consuming activities will no longer be a problem. In turn, NFC readers can be used in both the smaller and larger stores as a payment card reader, making the payment becomes fast and convenient as never before.
Minimalism and comfort
back to top… menu…

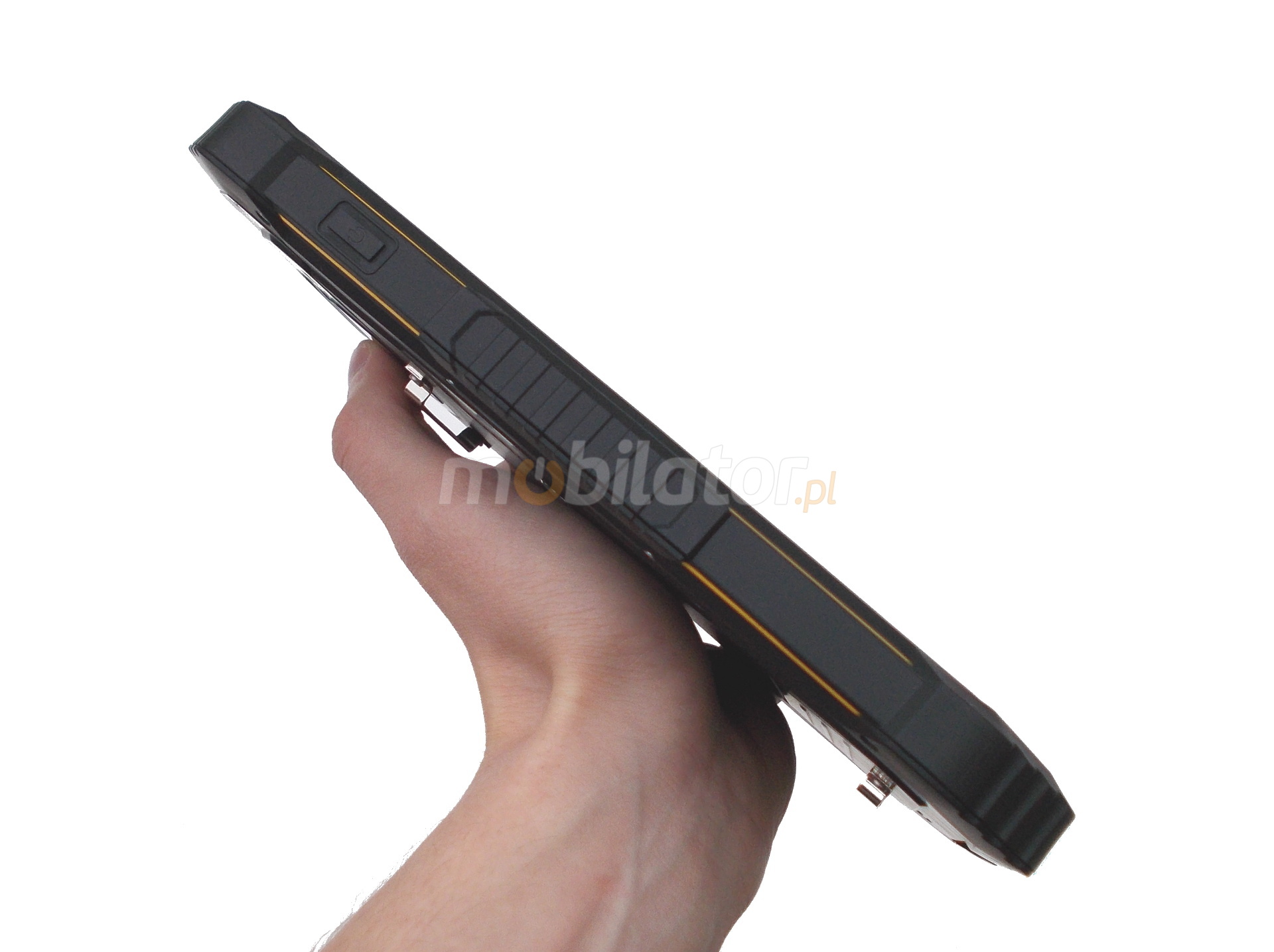

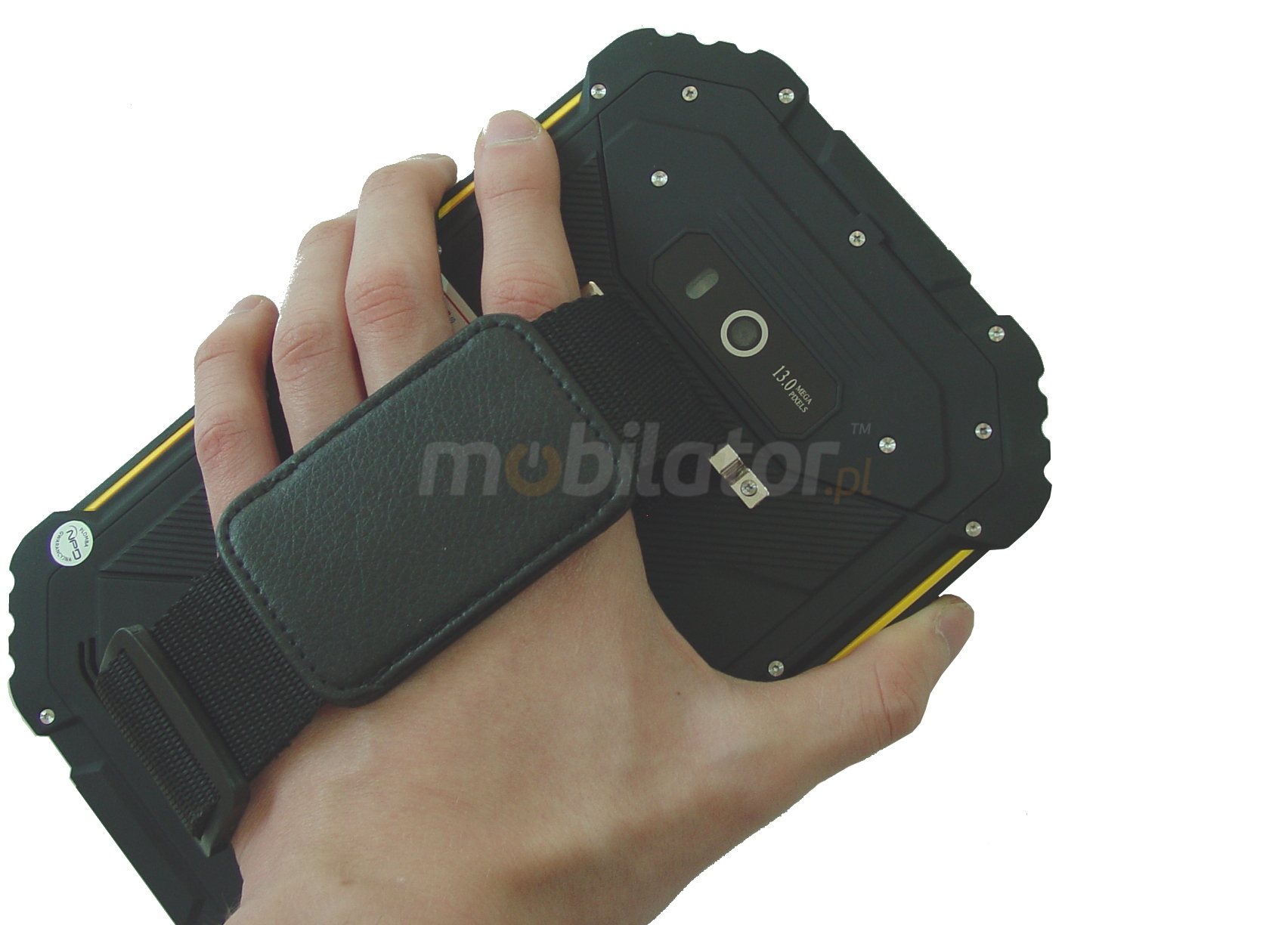

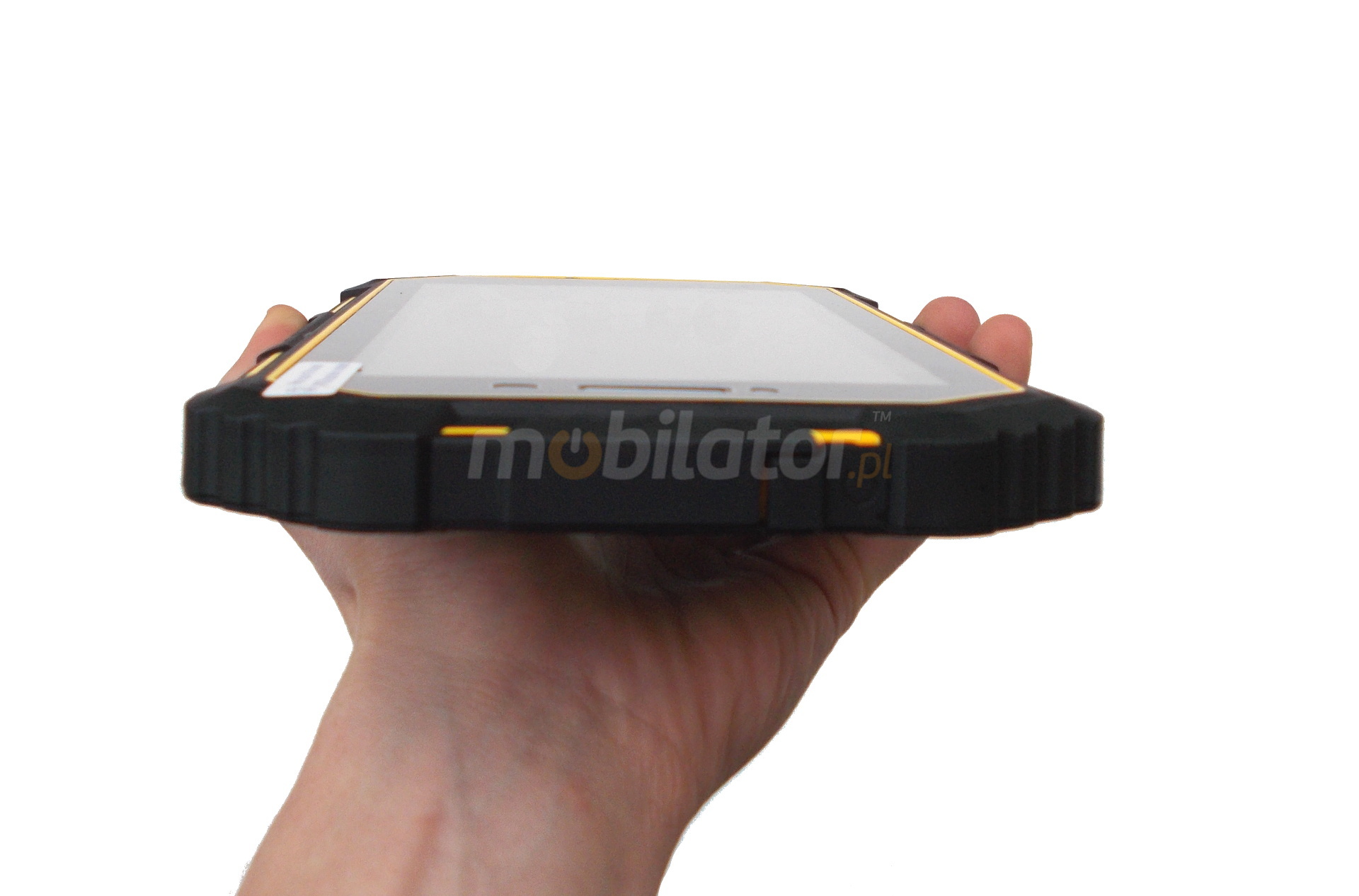

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, this problem disappears forever with MobiPad 2HV. The device weighs just 555g and its dimensions (215.56mm x 135.8mm x 18.9mm) allow you to take this device everywhere.
