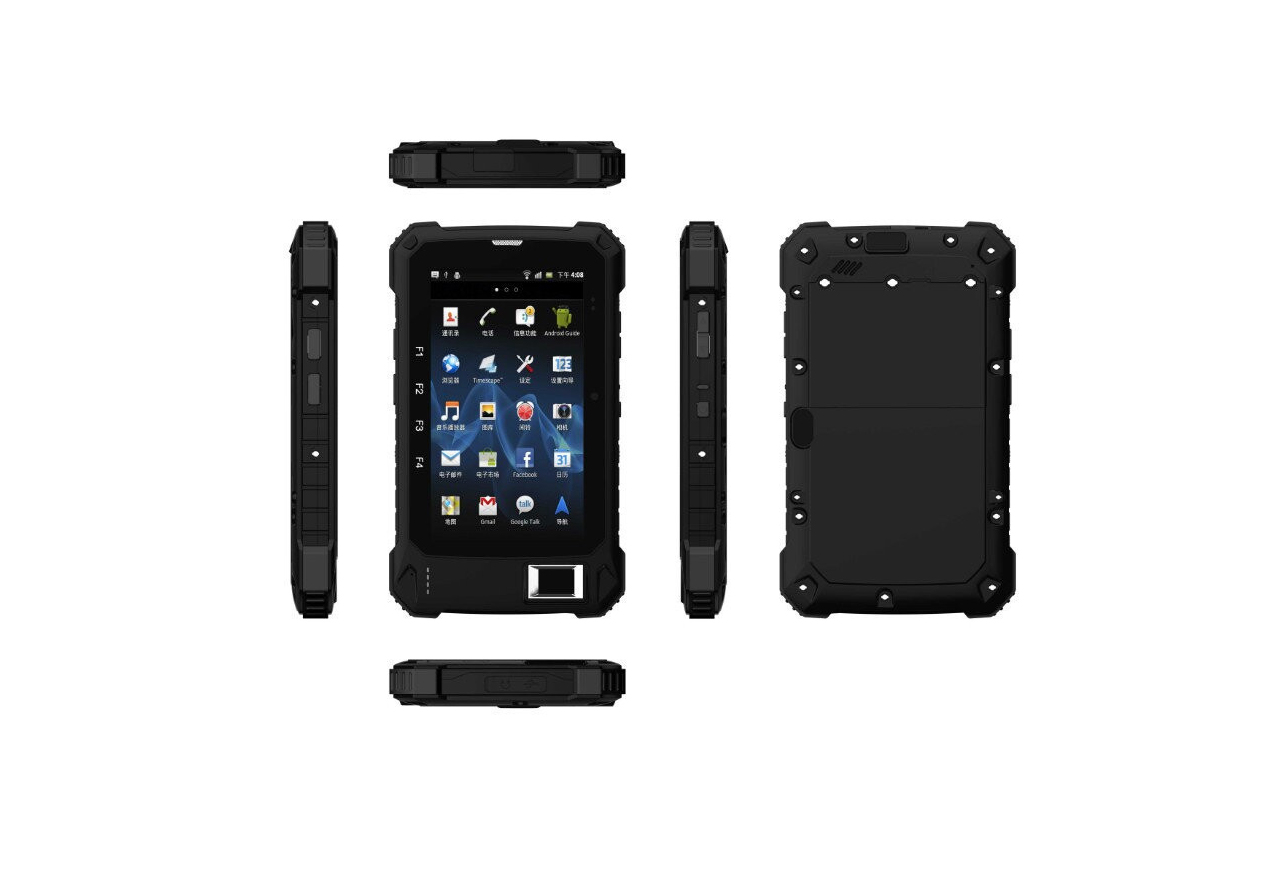

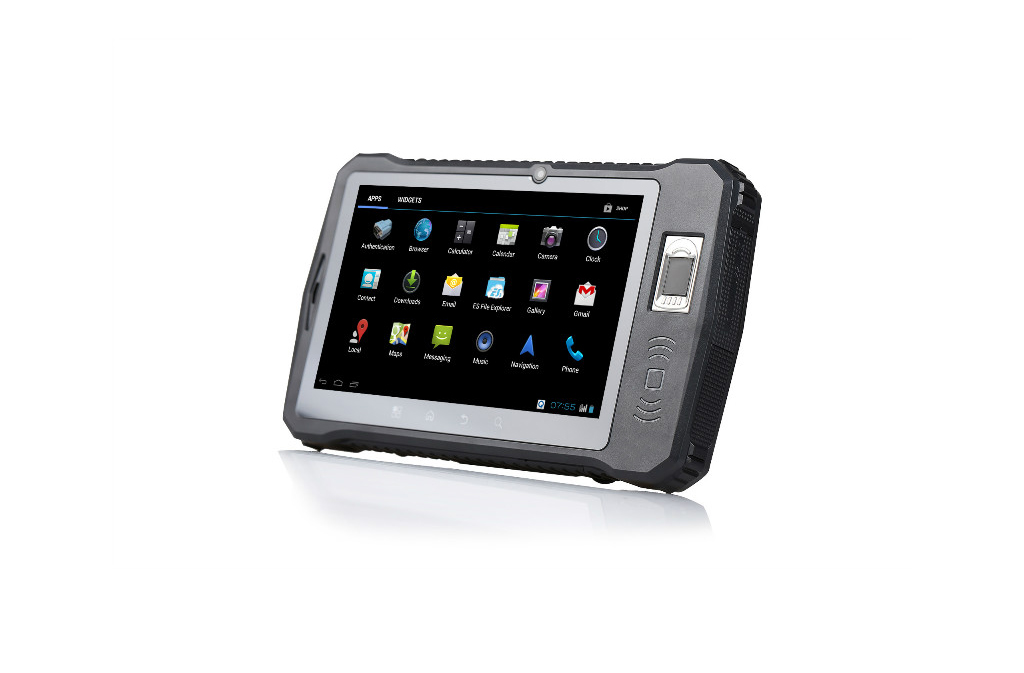

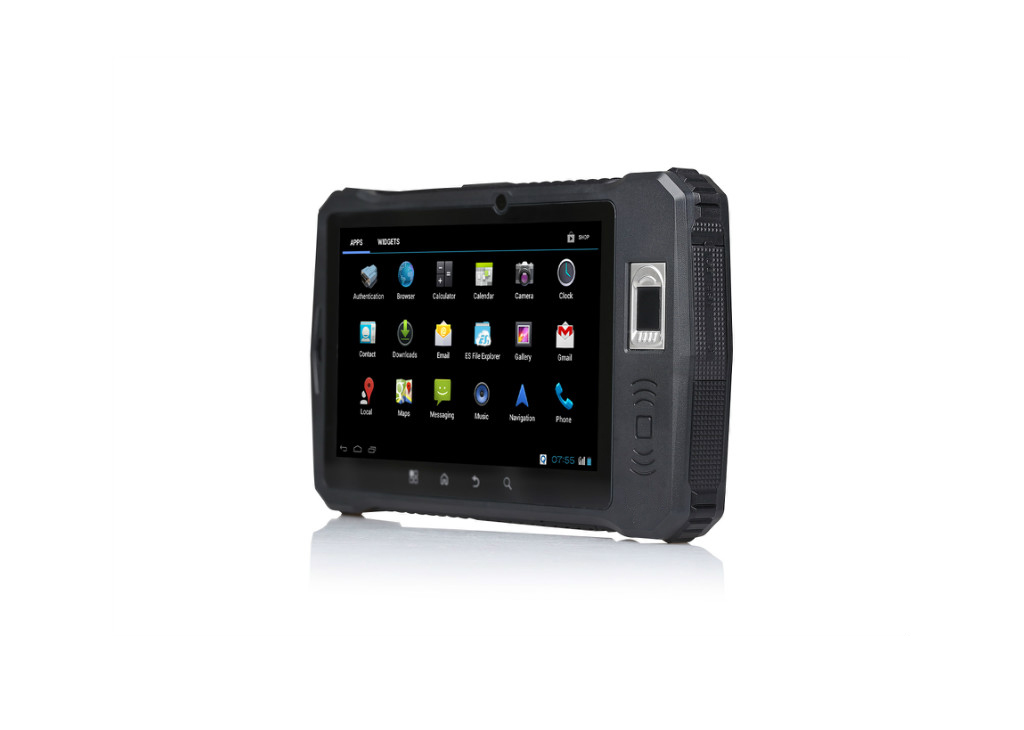

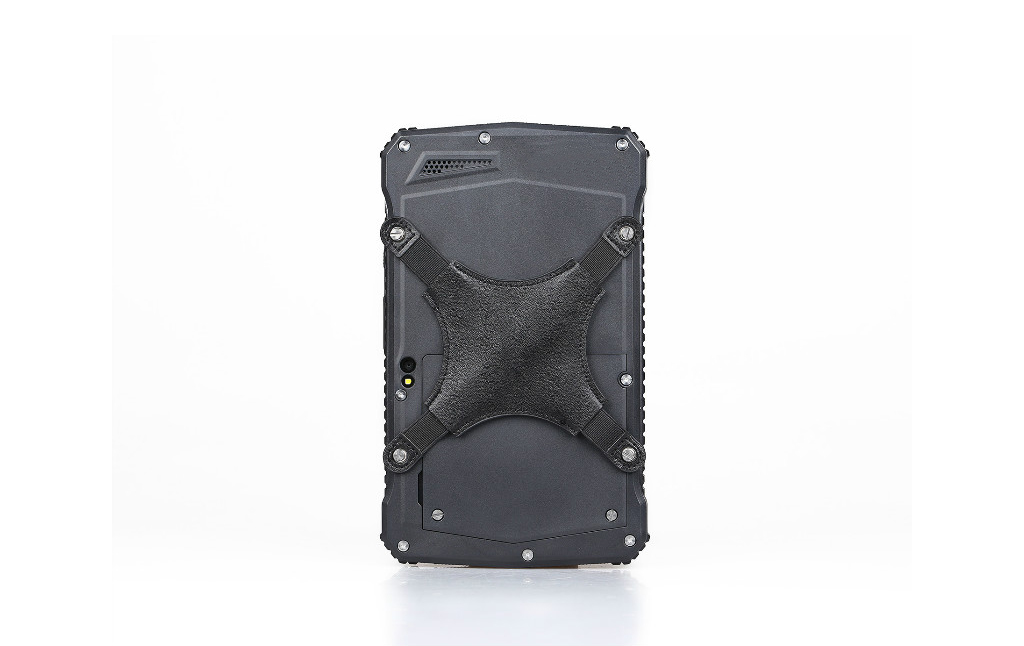

Rugged Tablet MobiPad W96 v.3

Rugged Tablet MobiPad W96 v.3

Data update: 2016-01-05

guarantee 1 year (opt.2)

Ask about the product

Print

Tell a friend

Warehouse

Compare product

The product from the archive - production terminated



Compare all versions




MobiPad W96 adopts the combination of platformization and modular function design concept. It not only has intelligent operation platform, but also has modular functions with flexible configuration. So it can satisfy the customized requirements from different customer.


Description

mobipad w96 rfid hf lf tablet przemys³owy ze skanerem

 Processor  MTK8382 Quad Core (4x - 1.3GHz)
 Graphics  Mali 400MP
 Display  7” (1280x720) IPS
 Type of display
  Capacitive
 Brightness  350nits
 Contrast  900:1
 RAM  1GB LPDDR2
 ROM  8GB EMCP

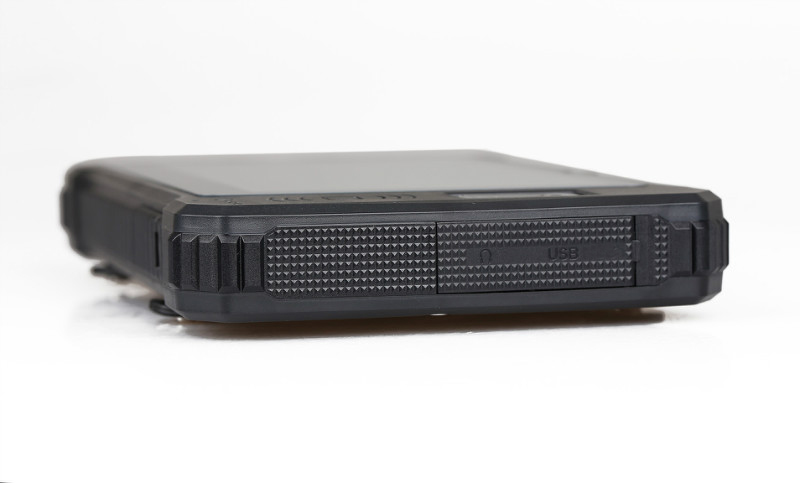

 Connectors (factory)  MicroUSB (OTG) | Port MicroSD | Port SIM | Audio Jack
 GPS (factory)  Standard (GPS/EPO/A-GPS)
 Audio  Built-in Microphone | Speaker | Receiver | Audio Jack
 Camera (FRONT)
  2MPx
 CAMERA (REAR)
  8MPx + Autofocus + Flash
 Keyboard  On-Sreen + Functional keys
   Home | Menu | Return | ON/OFF | Volume | Scanner Trigger | Camera Switch
 Battery  Li-Poly 7600mAh

 Standby mode - 700h
   Operating mode (depend of usage) - 11h
 System  Android 4.4
 Modules (factory)  802.11 a/b/g/n | Bluetooth 4.0  | 2G/3G (GSM/WCDMA) | GPS
 Weight
  222 x 130 x 27.5mm | 660g
 Resistance  IP65
 Sensors (factory)  Gravity Sensor | E-Compass | Proximity Sensor
 Certificates  IP65
 Warranty  12 months
Refer to the "Technical Data" that possibility is a version of the device. To gain additional information about the product click on the "Request for information" or go to the contact form.

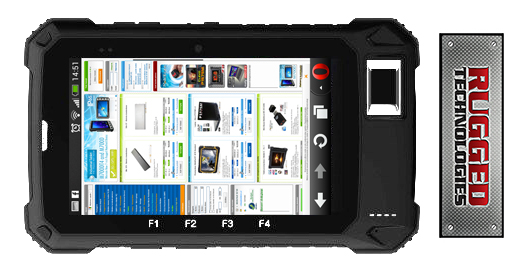

magazyn tablet firma przemyslowy rugged mobipad w96 android

Select a version for yourself

Refer to the "Technical Data" overlap - what possibility have subsequent versions of the devices. To gain additional information about the product click on the "Ask about the product" or go to the contact form.


v.1
 v.2 v.3 v.4
1D/2D - - -
RFID LF
 - - -
RFID HF
 - - -

go top… do góry menu… menu

Resistance

kolektor danych tablet przemyslowy ze skanerem mobipad w96
 Operating
 -30°C -- +70°C
 Storage -40°C -- +80°C
 Humidity
 90% non-condensing
 Dust IP6x (dust)
 Water IPx5 (water)
 Drop  3,93ft./1.2m

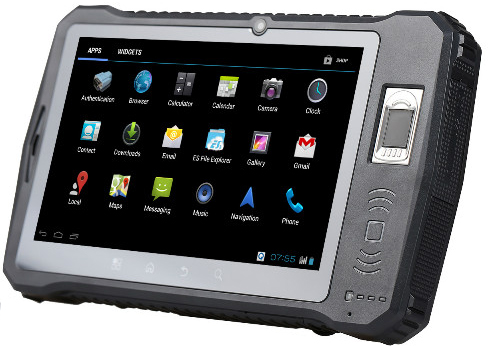

tablet ze skanerem rfid mobipaod w96

Resistance

IP stands for Ingress Protection and is essentially a rating system developed by the International Electrotechnical Commission or the IEC. The system is now being used to classify different degrees of protection against intrusion or immersion. The IP rating is usually followed by two digits. The first indicates the level of dust-resistance, the second water resistance. Dust-resistance levels goes from 0 up to 6 while water-resistance goes from 0 to 8.

Complete protectionm against contact. Protection from infiltration of dust.
6

5
Protection against immersion


go top… do góry menu… menu

The collection and processing of data

Barcode Scanner

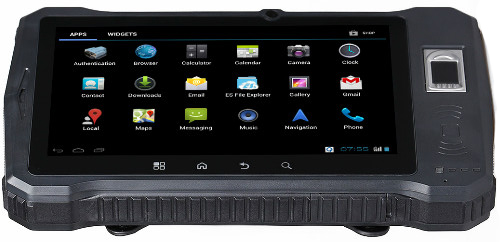

IP65 tablet wodoodporny pyloodporny

Barcode Reader allows you to read, decode and transfer stored data in barcode to your computer. Thanks to dynamic scanning method and the large range of reading, data collector is capable to carefully collecting data, which helps to increase the rate and efficiency of work. Simplified installation procedure, convenient and intuitive design allow to start scanner work very easy and quickly.

Type of scanner
 1D/2D (CMOS)
Model LVSCAN™ LV3080
2D Supports codes
 PDF417、QR Code (QR1/2, Micro)、Data Matrix (ECC200,ECC000,050,080,100,140) Code128、UCC/EAN-128、AIM 128、EAN-8、EAN-13、ISBN/ISSN、UPC-E、UPC-A、Interleaved
1D Supports codes 2 of 5、ITF-6、ITF-14、Matrix 2 of 5、Industrial 25、Standard 25、Code39、Codabar、Code 93、Code 11、Plessey、MSI-Plessey、GS1-DataBarTM(RSS) (RSS-14、RSS-Limited、RSS-Expand)

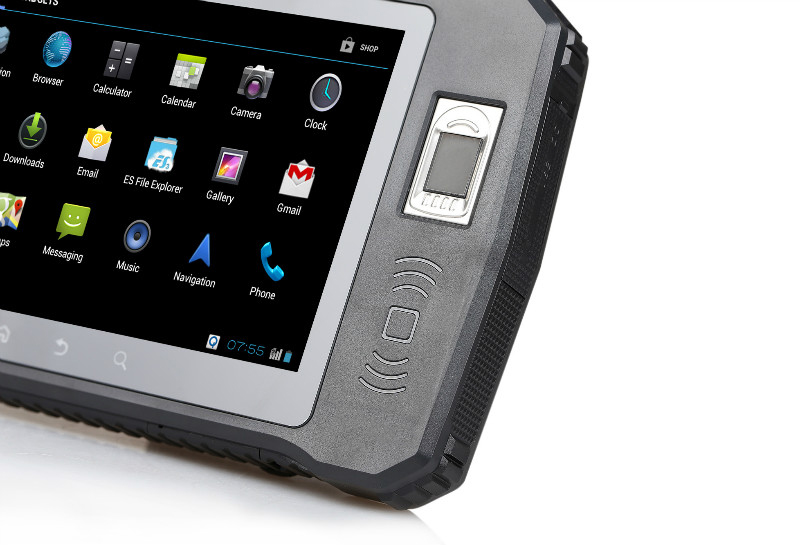

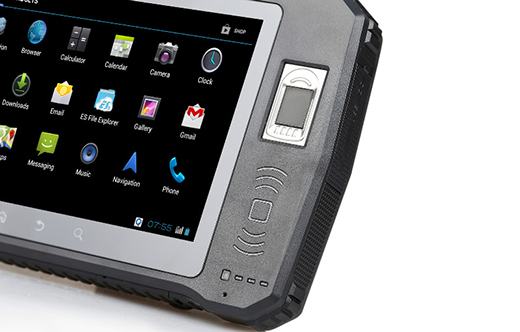

RFID

IP65 tablet wodoodporny pyloodporny

RFID (Radio-Frequency Identification) is a technology used to identify objects and control flow of  products. The Read information from special tags that are attached to the objects followed by radio. Depending on the type of tag the amount of stored information is changing as well as the maximum distance at which data can be read.

  RFID HF
 RFID LF
 Frequency 13.56 MHz 125khz
 Reading distance
 to 3cm
 from 3cm to 5cm
 Standard ISO/IEC 15693 EM/TK 4100/4200
  ISO 14443 A/B


go top… do góry menu… menu

Modules and Wireless Networks

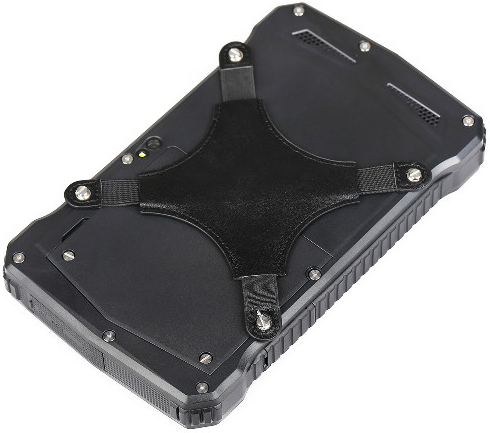

3g 2g mobipad w96 modem

With HSDPA module, you need only insert a SIM card into a special slot and can immediately connect to the Internet. Integrated software allows you to automatically recognize and customize mobile networks. Also used in internal W96 WCDMA module adapts automatically to transfer and network coverage.

 WIFI  802.11 a/b/g/n
 GPS (Standard)
 Standard
 Bluetooth Bluetooth 4.0 Class 2 (A2DP/HFP)
 2G/3G
 (2G) 850/900/1800/1900MHz | (3G)  850/1900/2100MHz
  The ability to make voice call

mobipad w96 przyciski funkcyjne tablet

The latest WiFi wireless module operating in 802.11n provides a very fast and secure communication with the AP tablet such as a router, providing a fast and convenient web browsing, smooth playback of HD video.

go top… do góry menu… menu

Minimalism and comfort

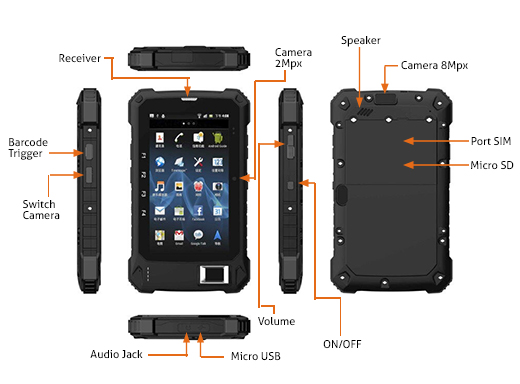

zlacza otg tablet przemyslowy 7 cali

Will put your old laptop into a briefcase, backpack or travel bag with Senter problem disappears forever, as it weighs only 660g and its dimensions (22 x 13 x 27cm) allow to carry it with you everywhere. With exquisite workmanship and energy efficient it is in the forefront of devices in this segment and is hit on the Europe market in the industrial segment.

 Dimensions 222mm x 130mm x 27.5mm
 Weight 660g

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...



Compare all versions
