Rugged waterproof Industrial data collector ANDROID with IP67 standard - MobiPad CTX-505 v.3

Rugged waterproof Industrial data collector ANDROID with IP67 standard - MobiPad CTX-505 v.3

Data update: 2018-11-09

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
364.19
Net
447.95
Gross



Compare all versions

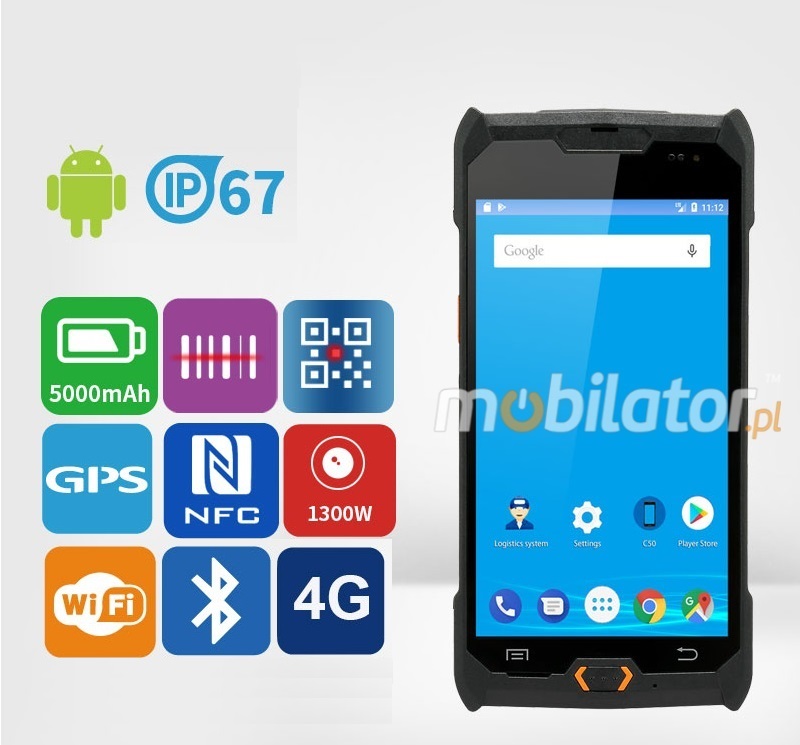

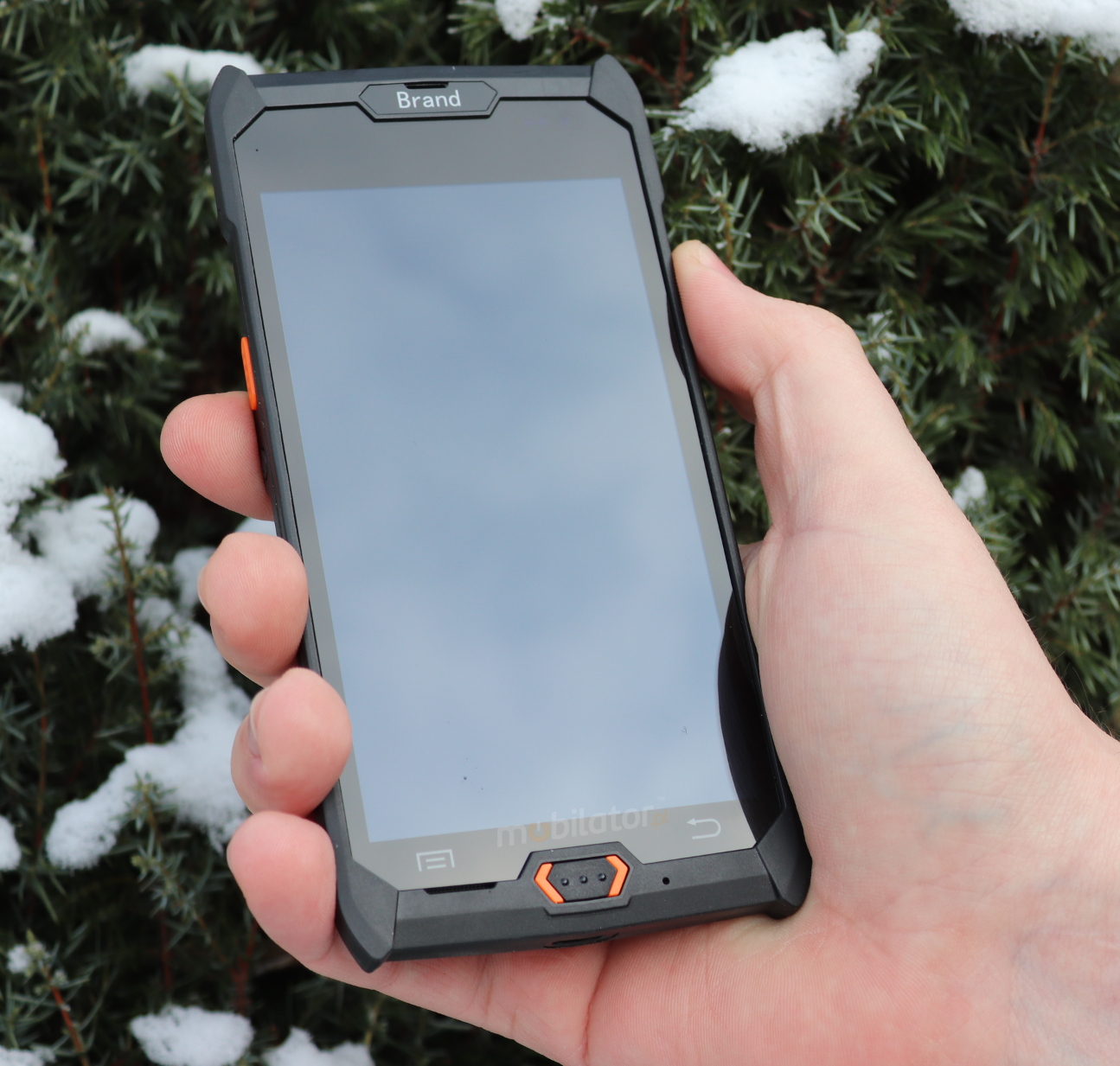

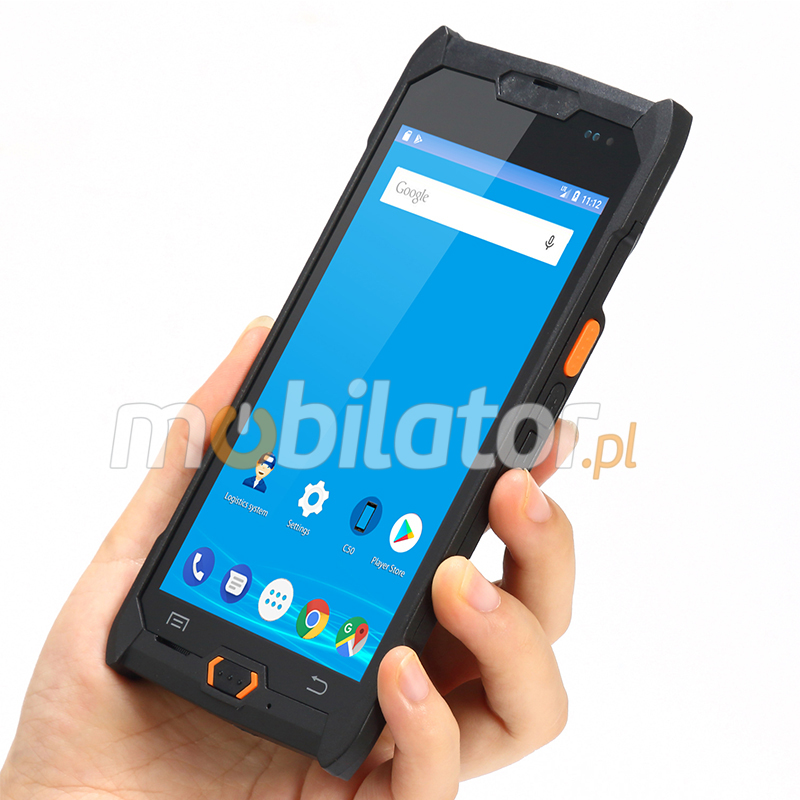

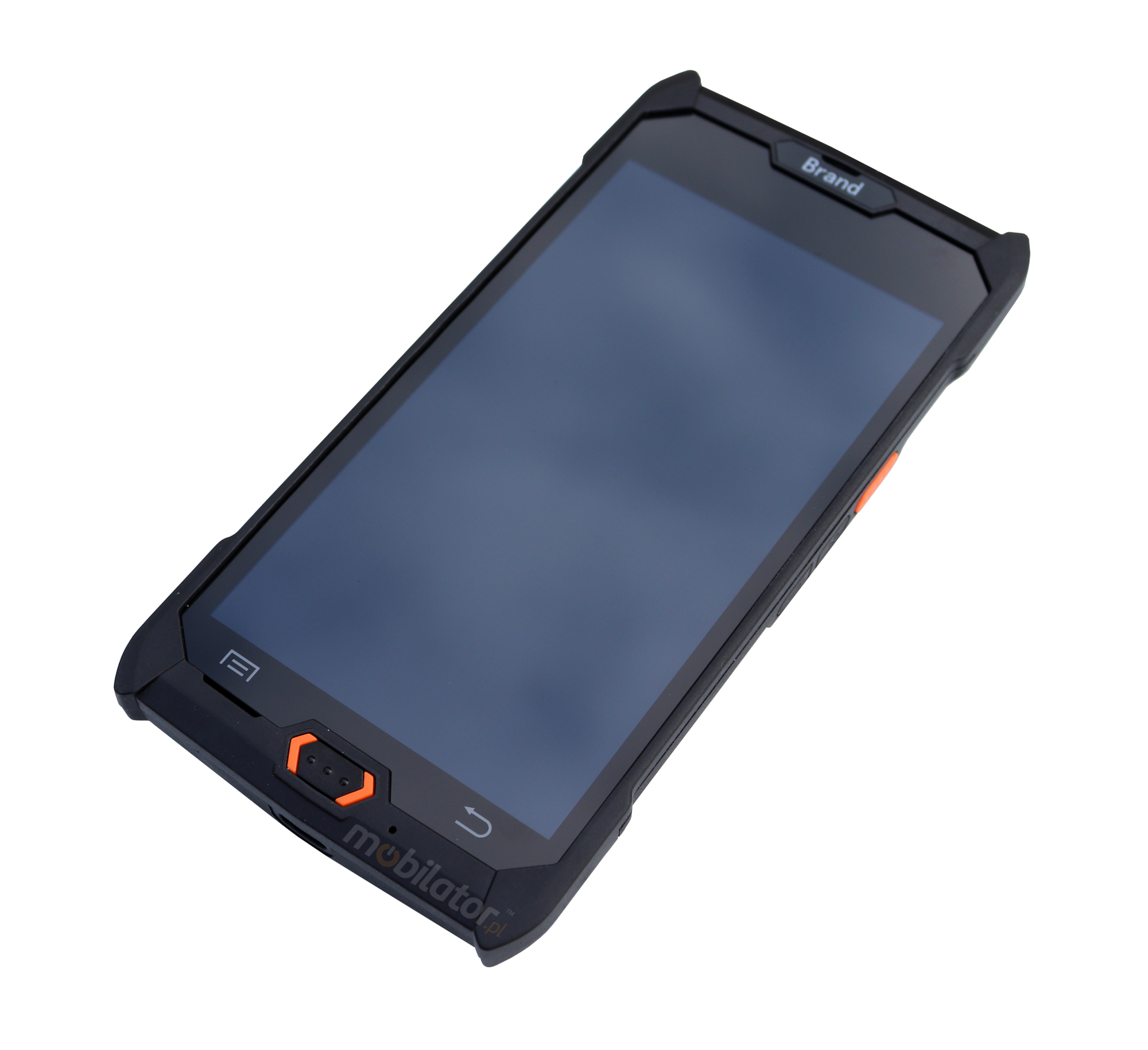

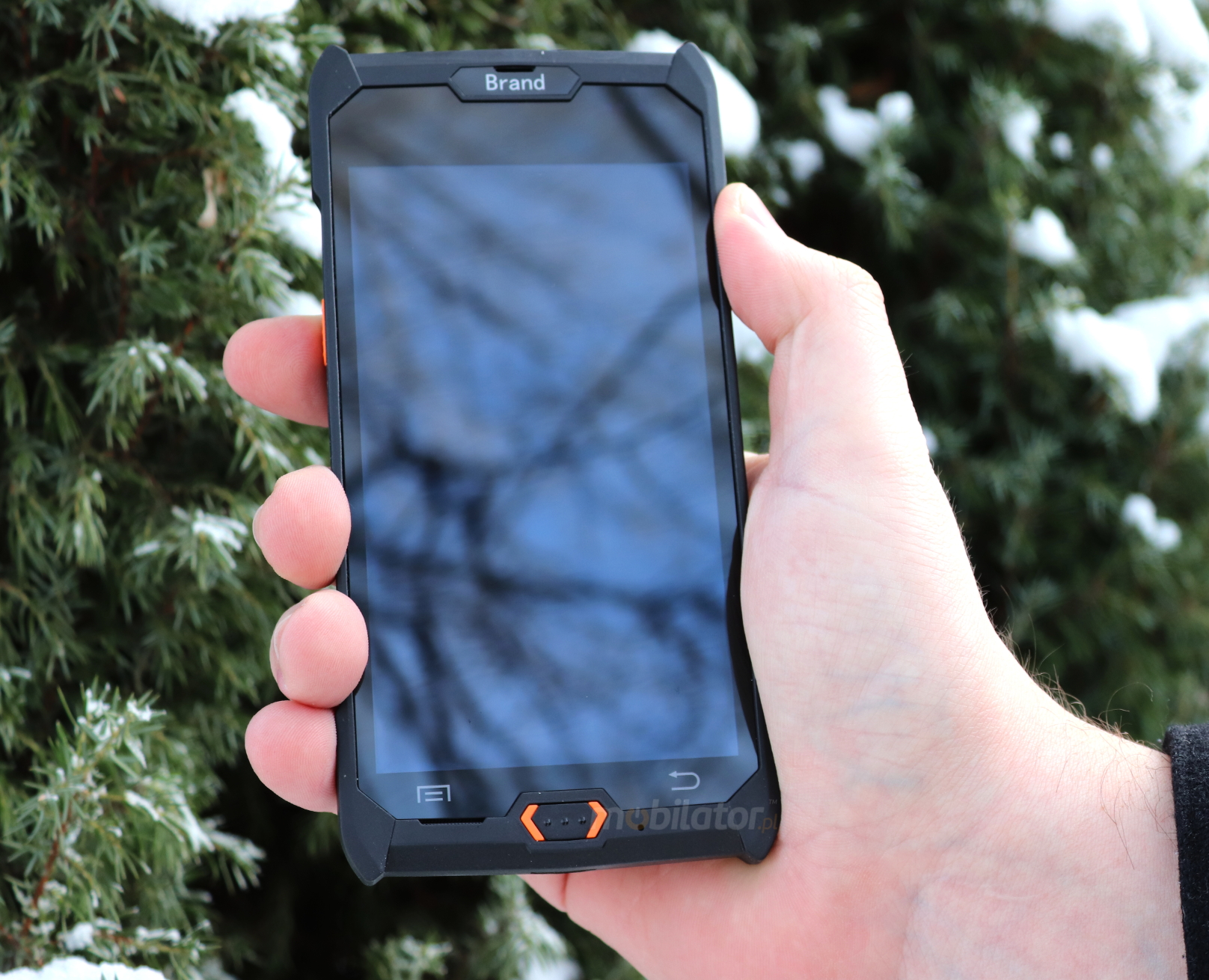

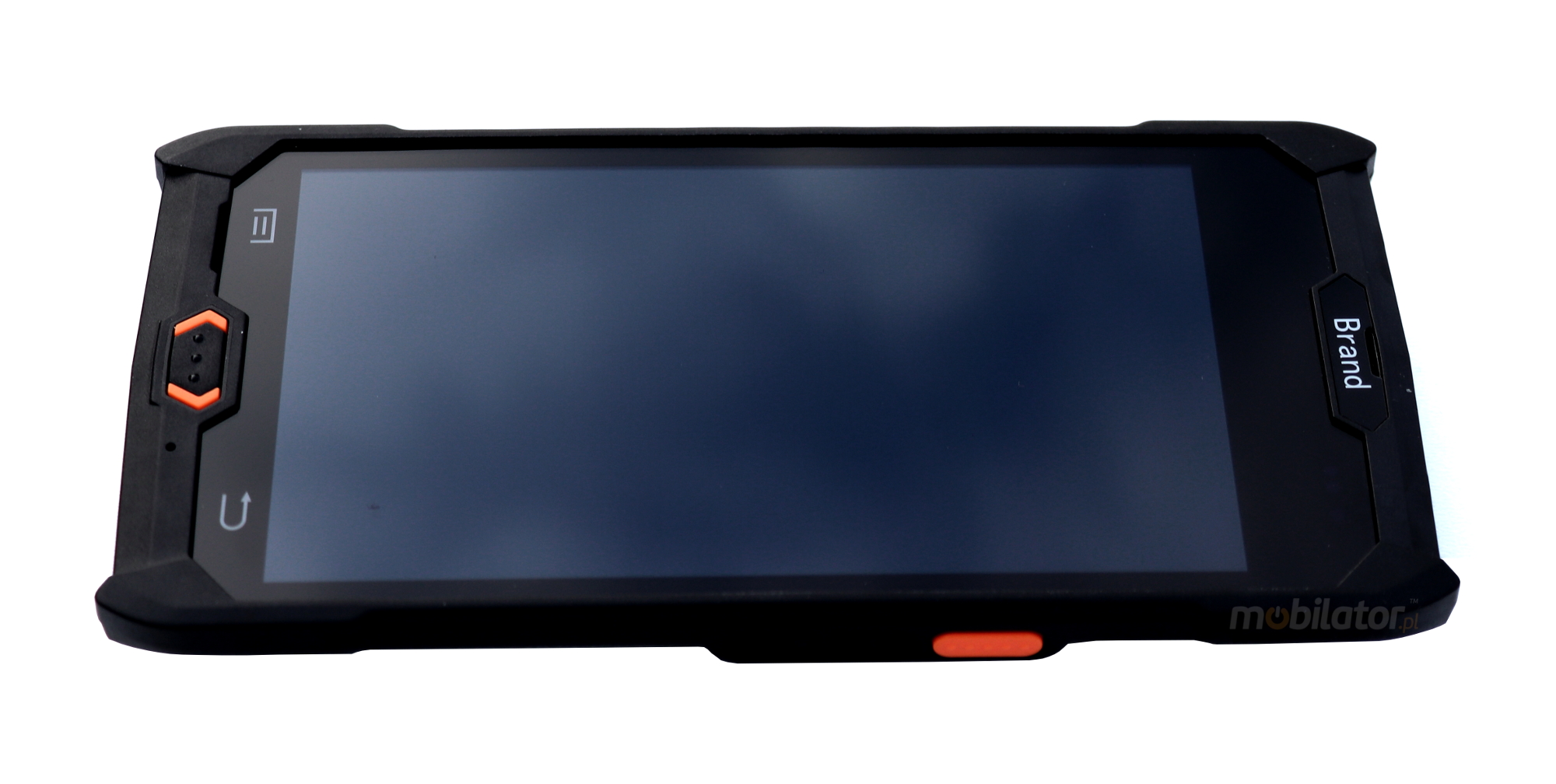

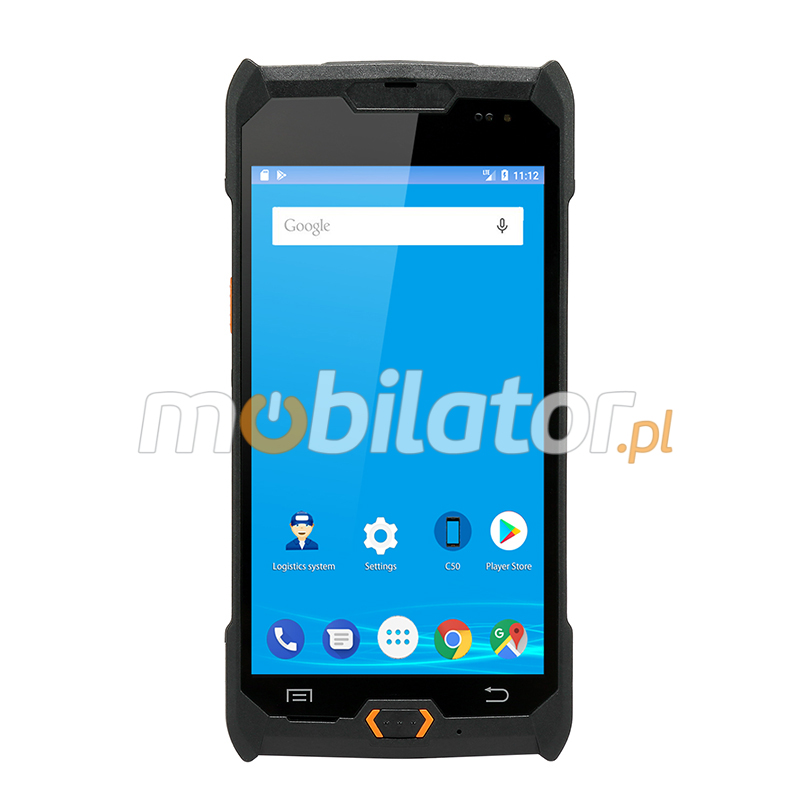

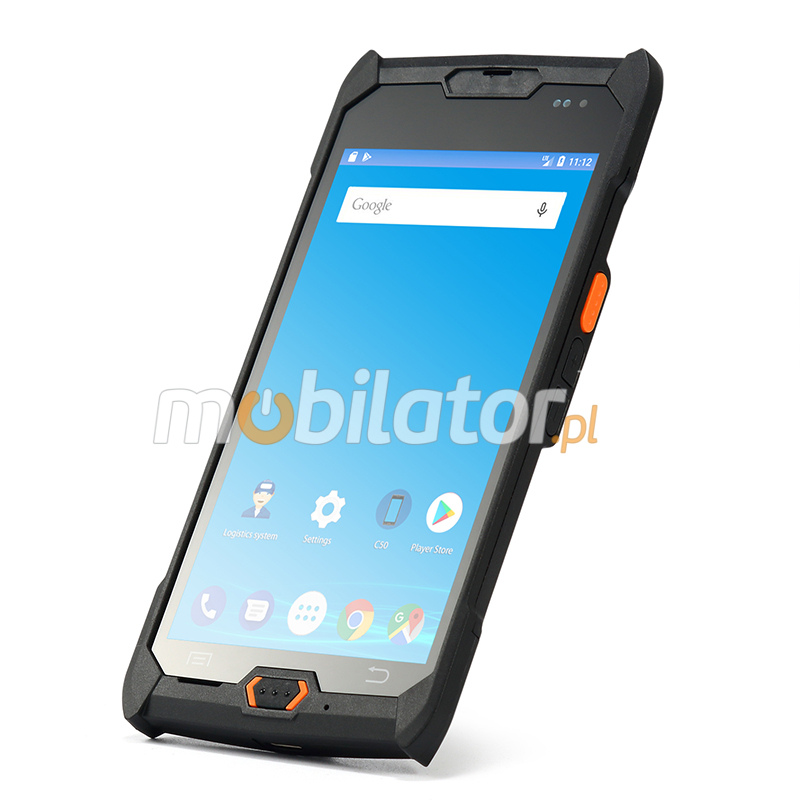

Industrial waterproof  MobiPad CTX-505, its 5 inch  data collector  adapted to work in harsh environment. Device passed specialist tests and obtain high norms of durable and resistant like IP67 and drop up to 1.5m.




Description

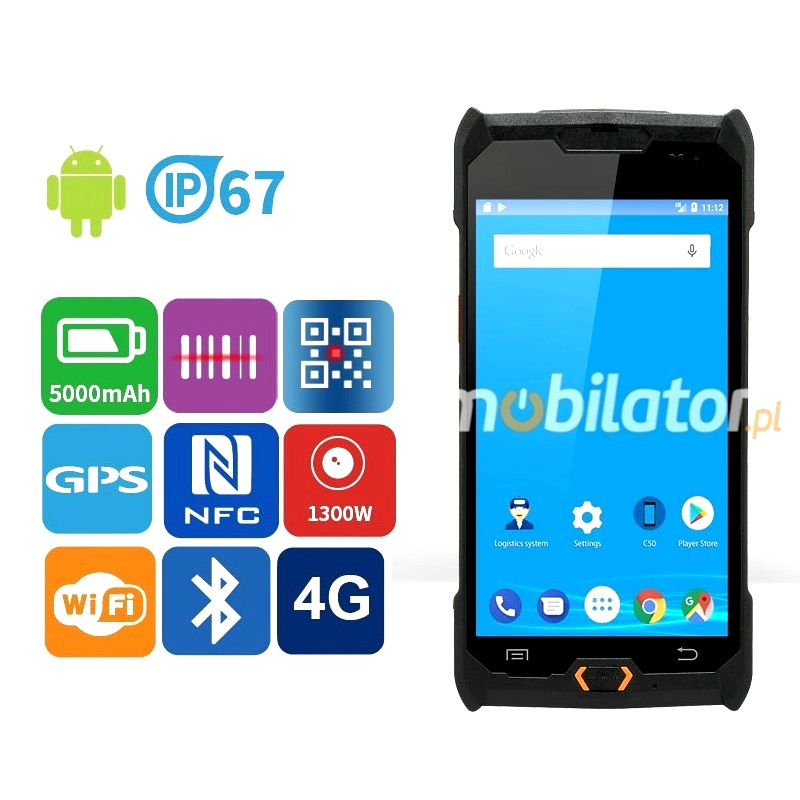

industrial data collector MobiPad CTX-505 IP67 Android 6.0 GPS Bluetooth mobilator.pl Aparat Gorilla Glass3

 Processor  Cortex Quad-Core 1.3 GHz

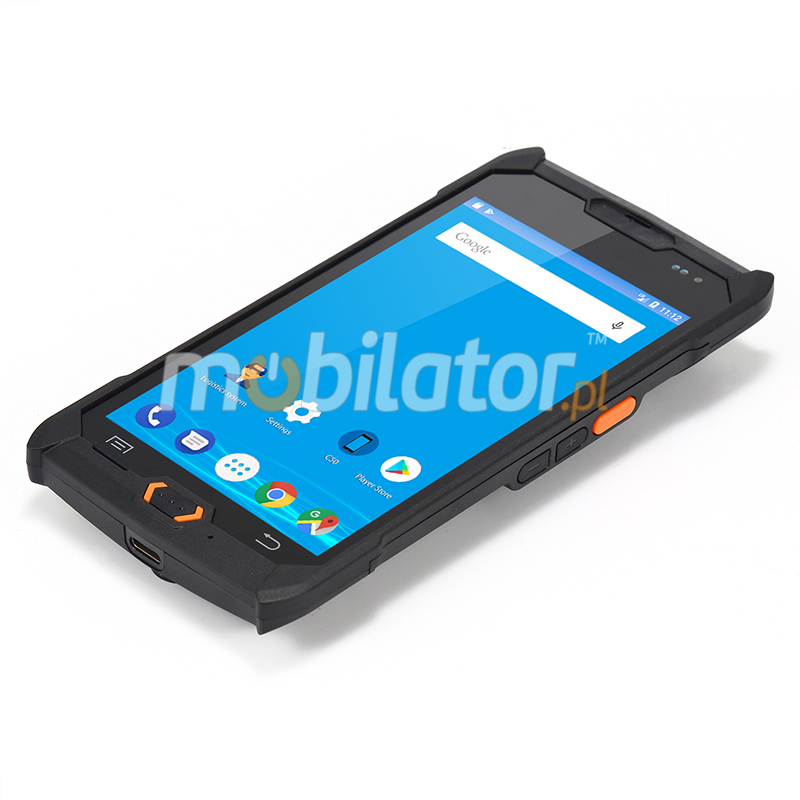

 Display  5" (720x1280) IPS |  Gorilla Glass 3 | Capacitive
 RAM Memory
 1GB
 Flash Memory
 8GB

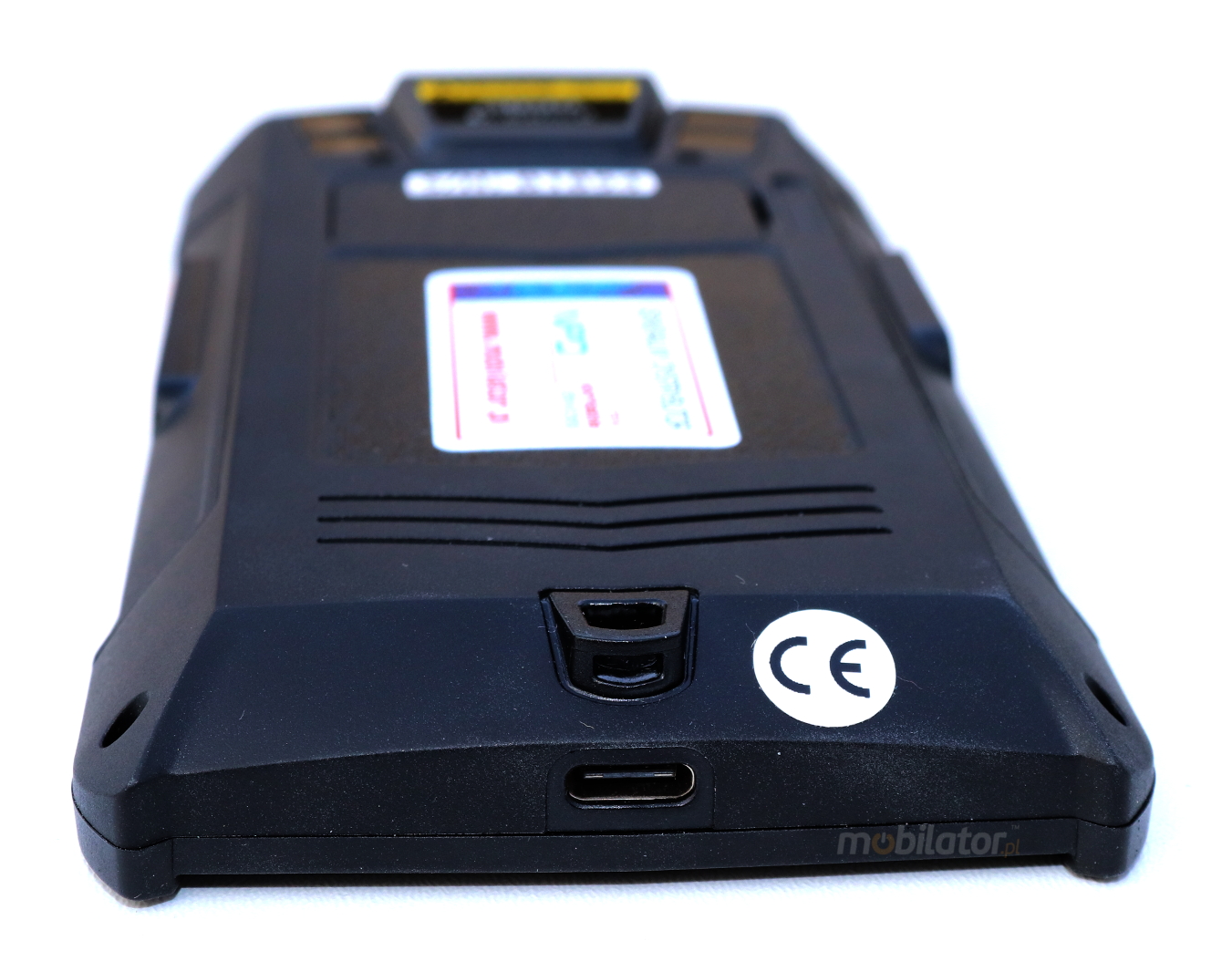

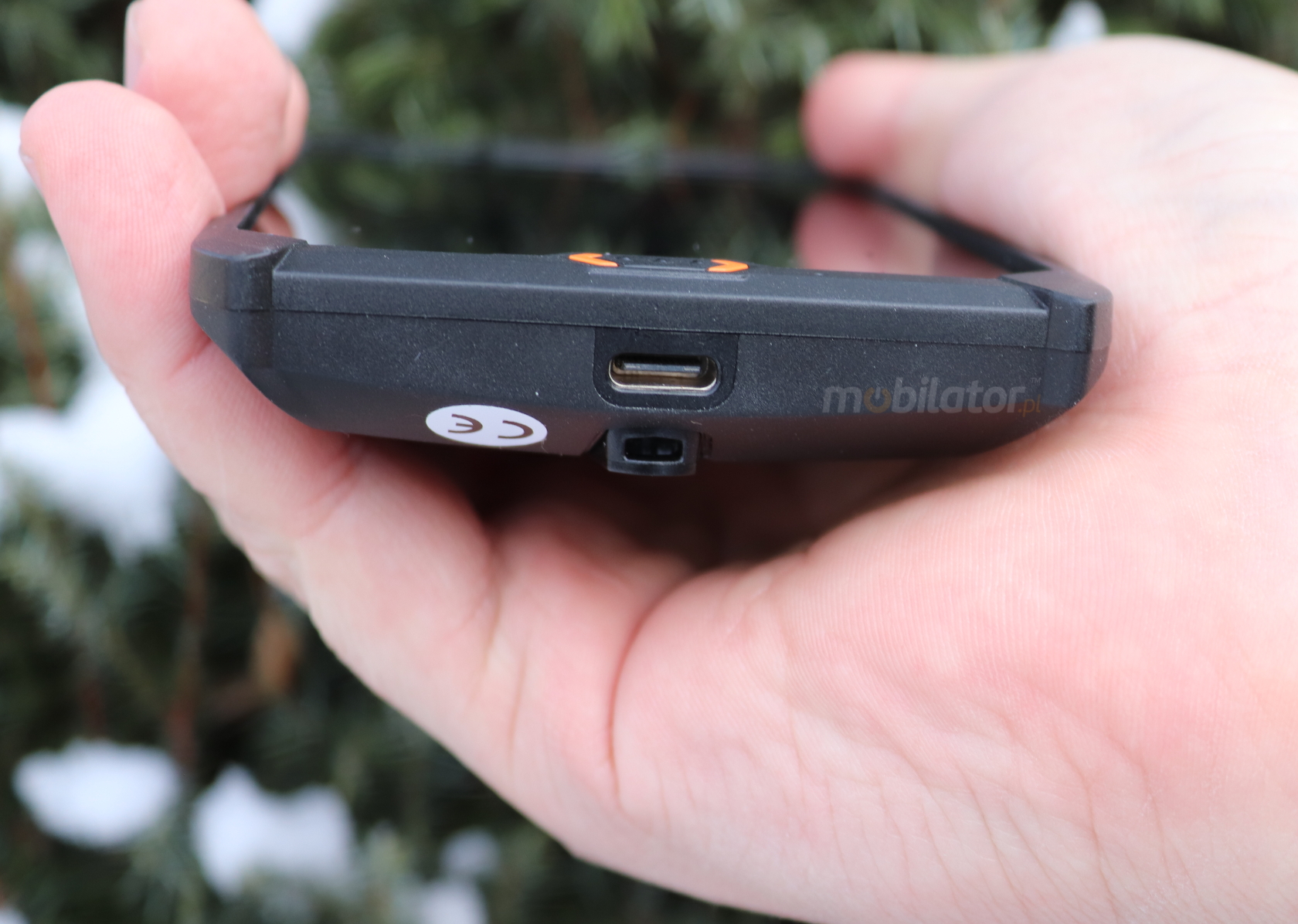

 Connectors  USB-Type C | Micro SD(TF) | 2x Nano SIM
 GPS  GPS
 Audio  AudioJack | Speaker | Microphone
 Camera  Rear: 13Mpx (Auto-Focus)
 Battery 5000mAh Li-Ion
 Keyboard On-Screen + functional buttons
 Environment  Android 6.0
 Modules
 4G | WiFi | Bluetooth 4.0 | GPS  | NFC
 Weight and Dimensions
 250g |153mm*76mm*17mm
 Resistance  IP67
  Readers

1D (Laser) Honeywell N4313 - optional

2D (CMOS) Honeywell N3680

industrial data collector MobiPad CTX-505 IP67 Android 6.0 GPS Bluetooth mobilator.pl Aparat Gorilla Glass3

The collection and processing of data



MobiPad MP-HTK38 1D Laser barcode scanner 1D skaner 1D/2D Motorola

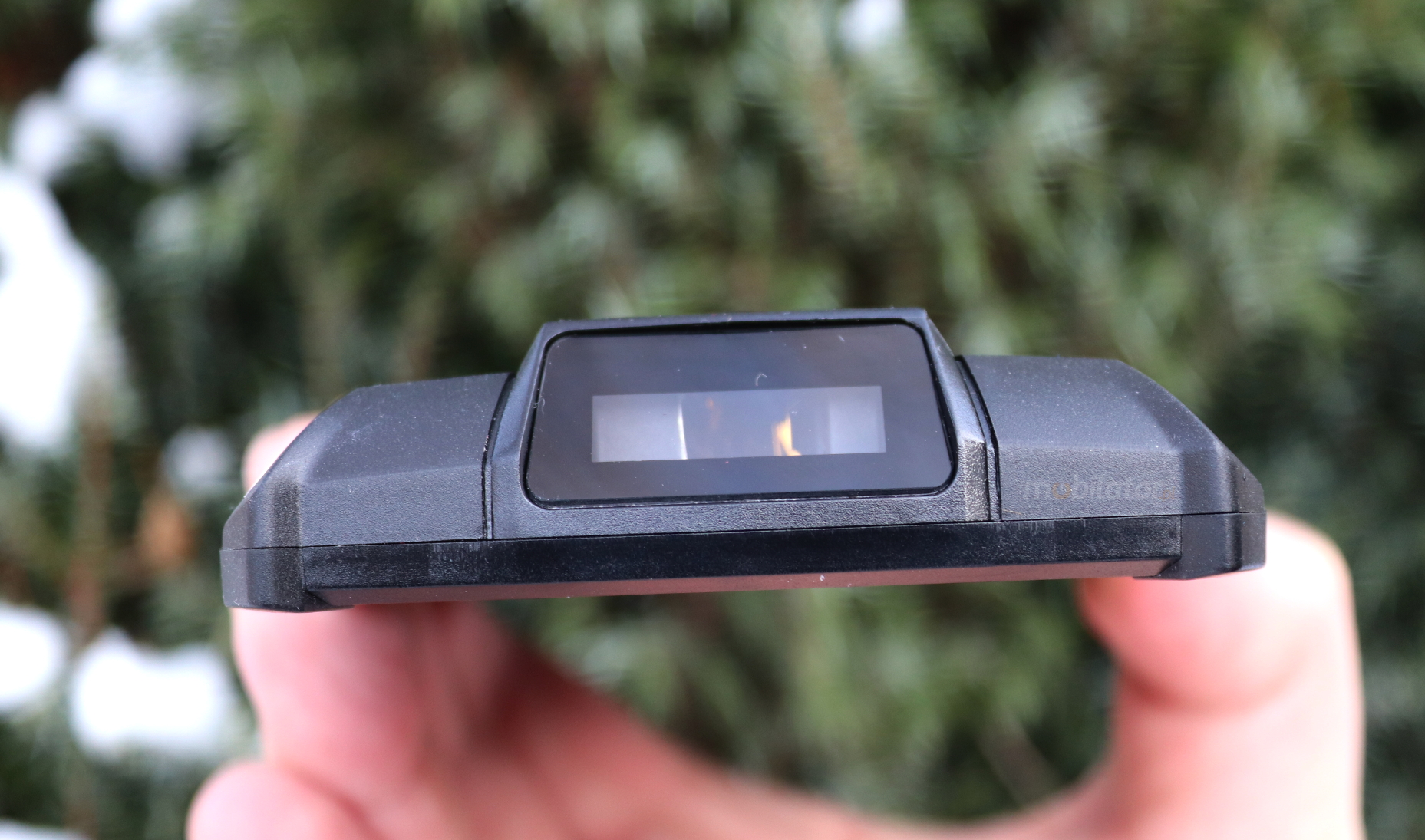

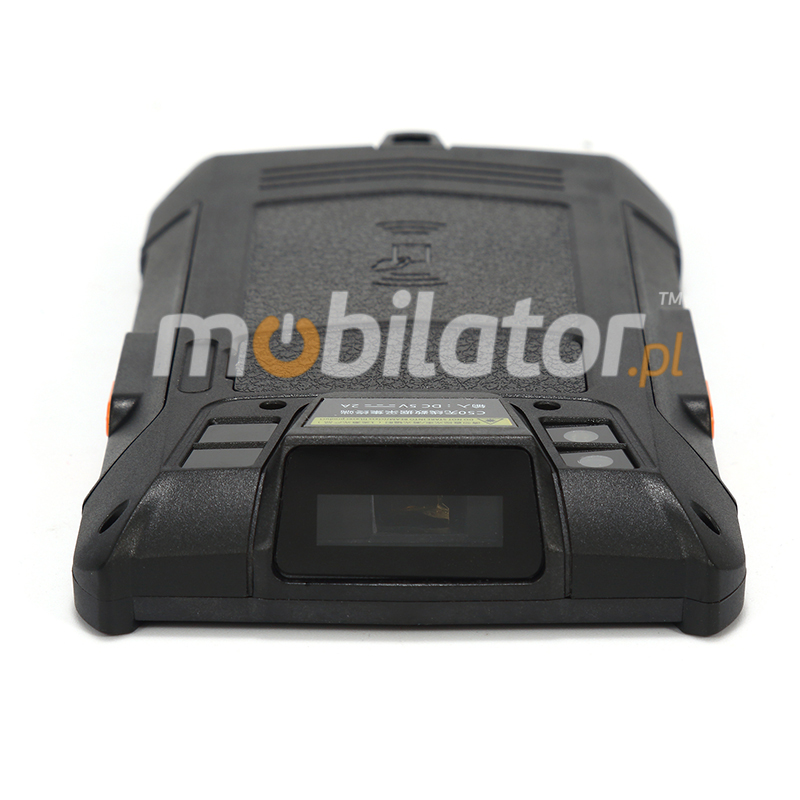

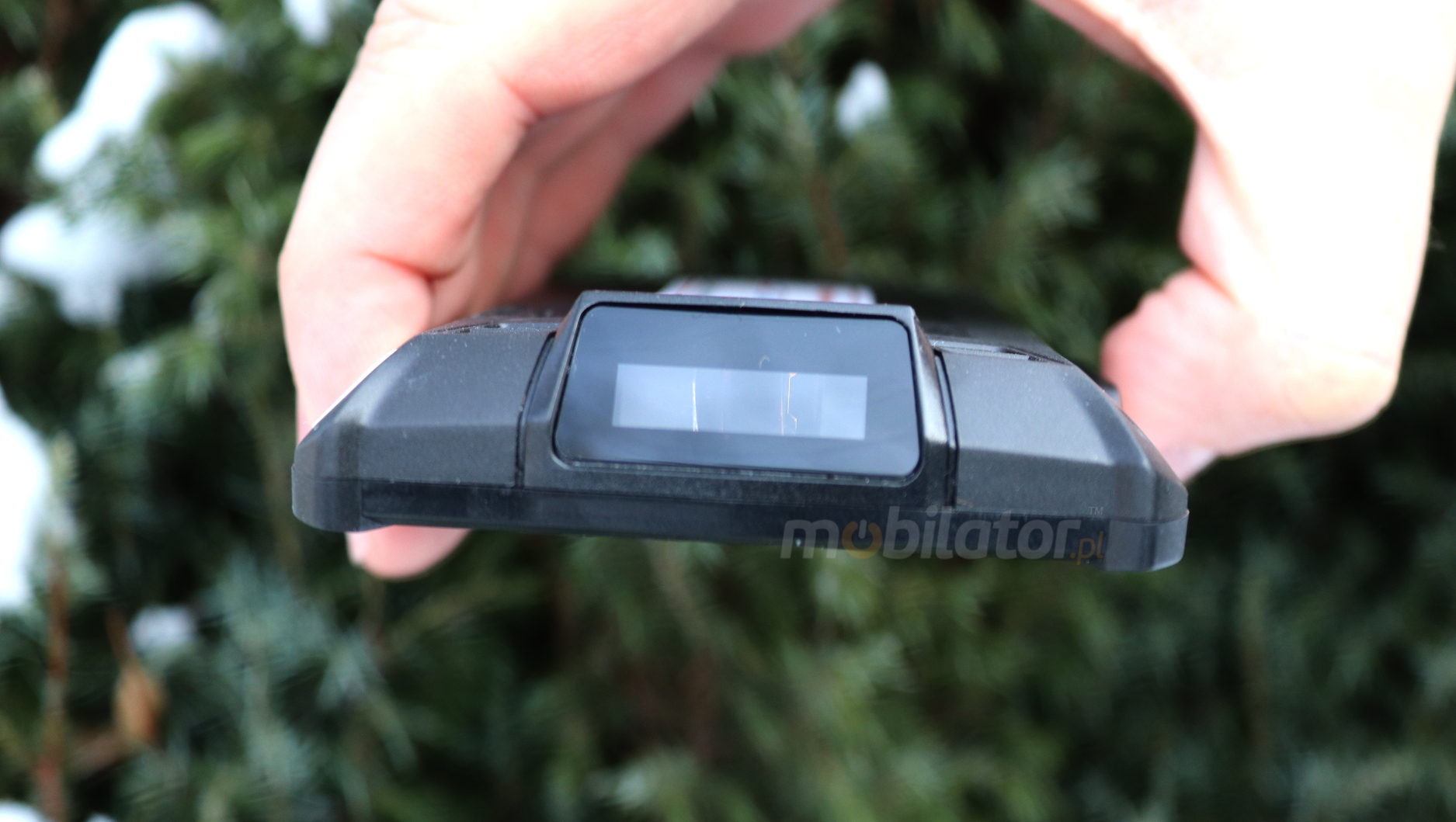

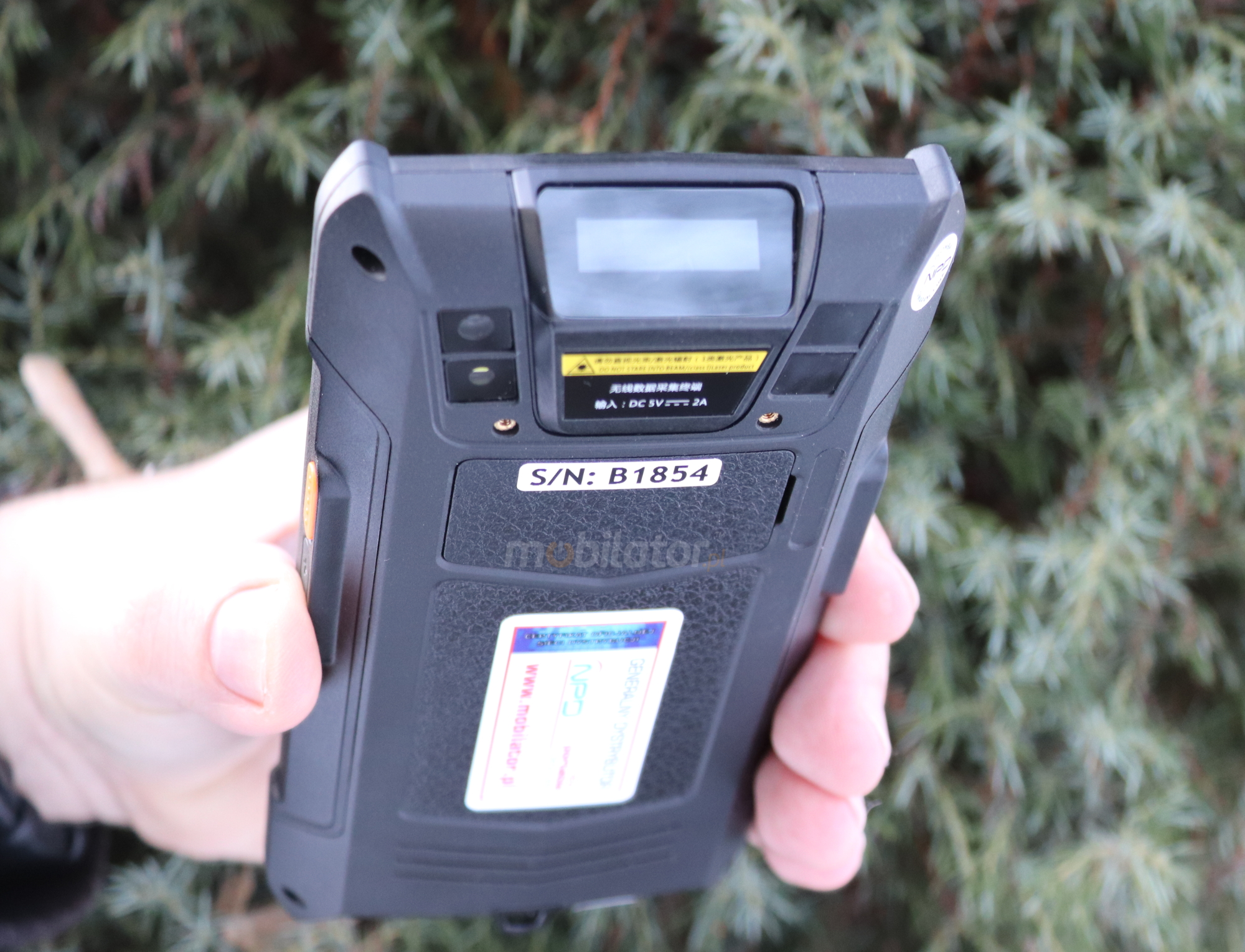

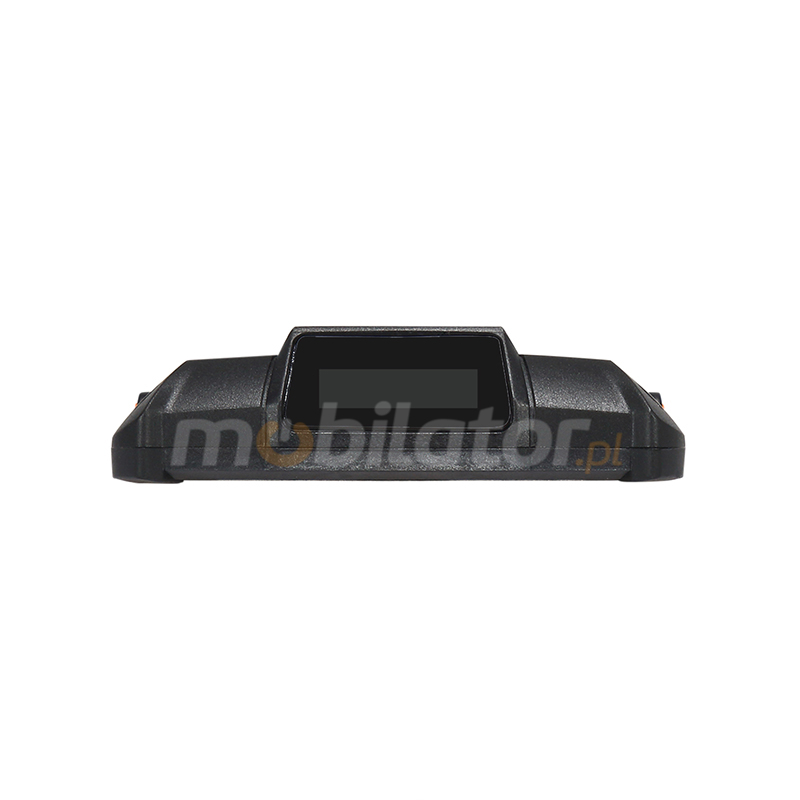

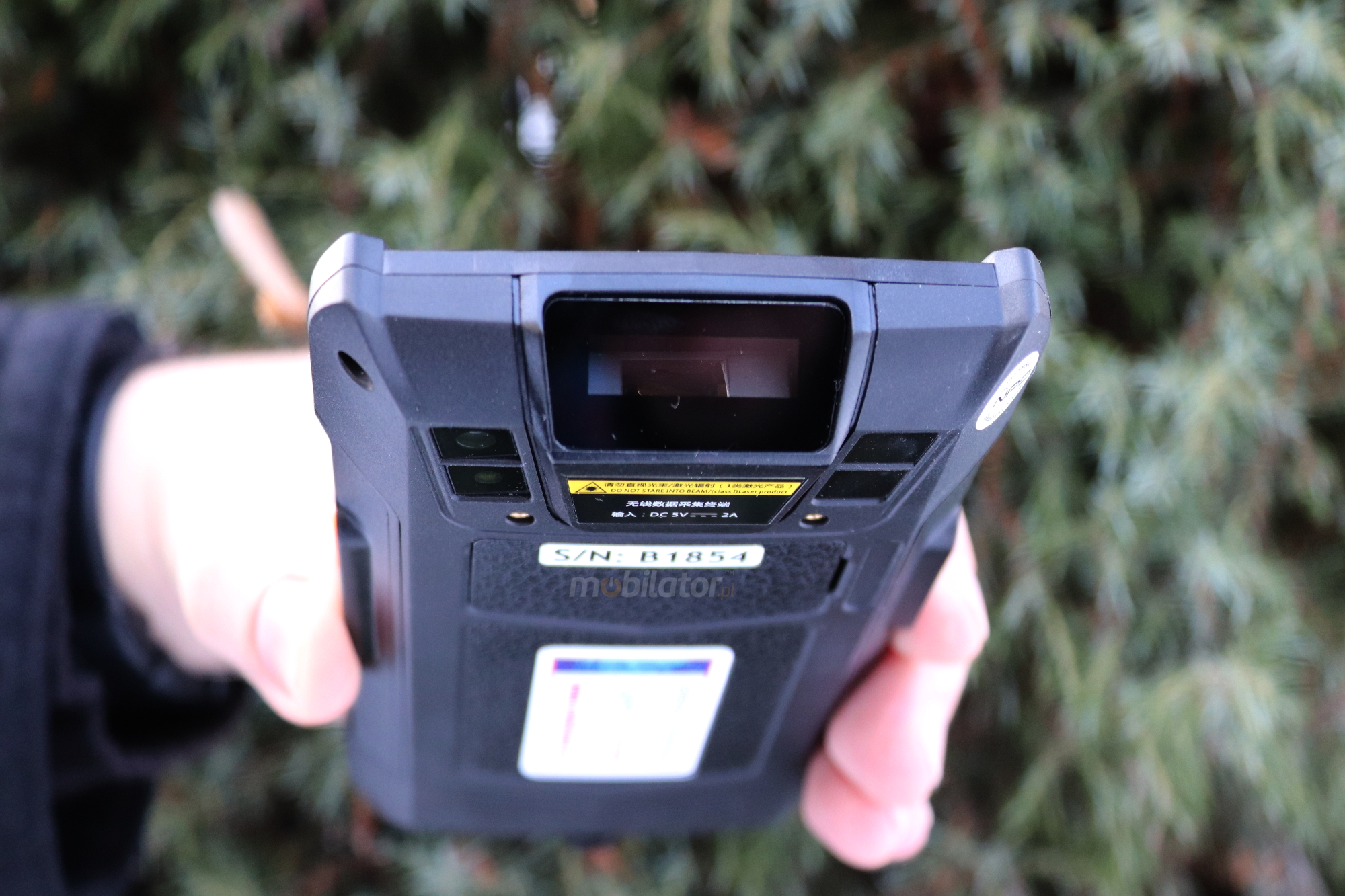

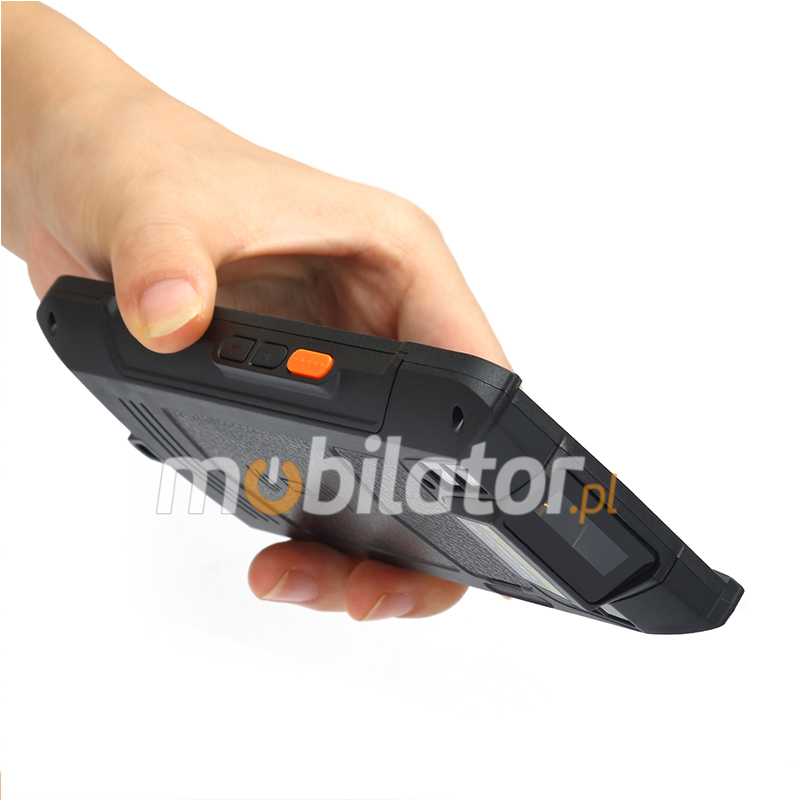

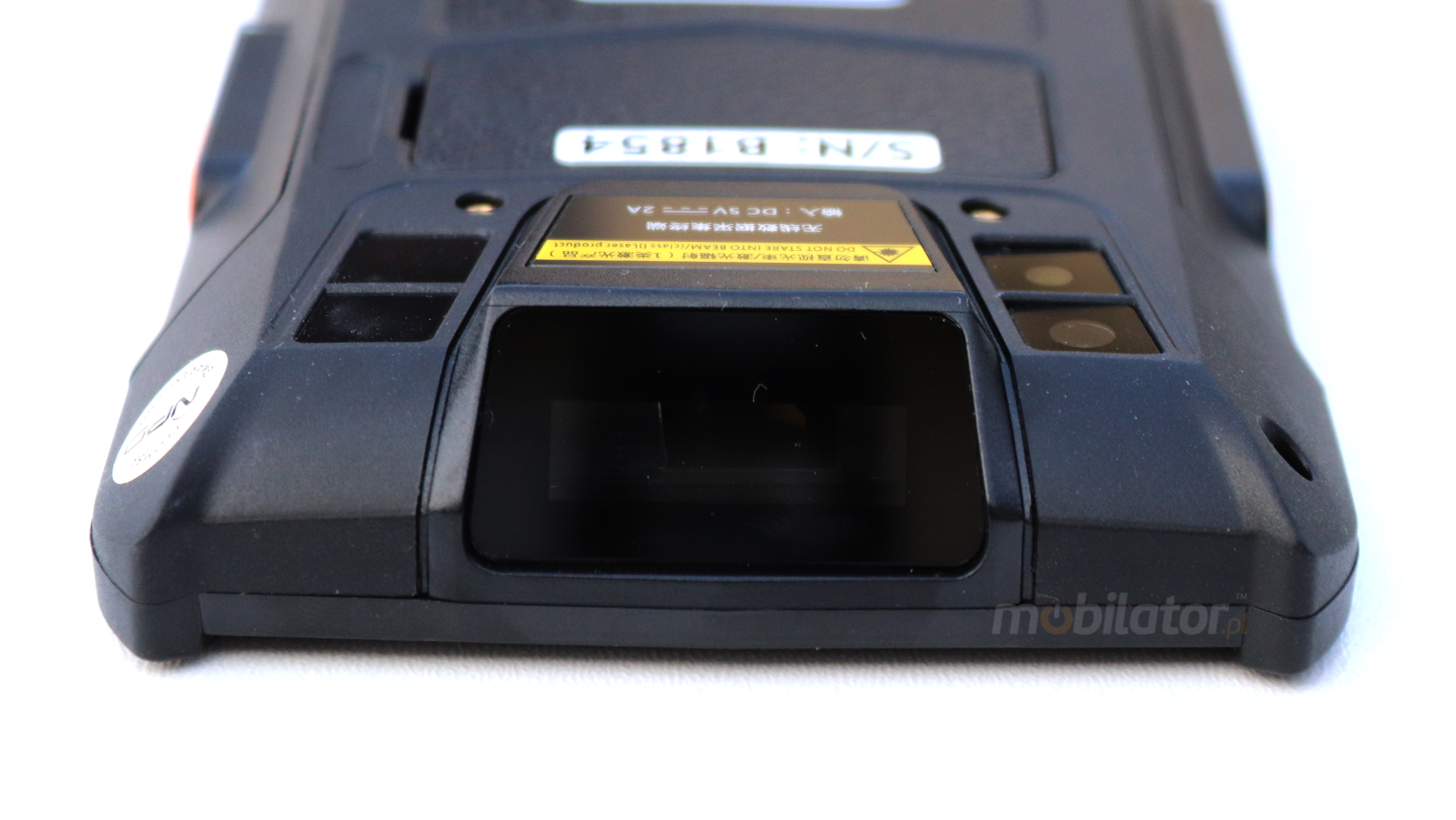

Barcode scanner, its one of the basic industrial modules increase effinency of work in places where barcodes are using. Thanks technology development modern readers are more efficent and precise. In waterproof industrial MP CTX-505 data collector can be mount barcode scanners like:



1D (Laser) Honeywell N4313

  2D (CMOS) Honeywell N3680




NFC (Near Field Communication), its a wireless communication standard that allows to data transfers up to several centimeters. This technology is slowly becoming a standard and appears in a growing number of devices, expecially mobile.



Reading distance from 3 to 5 cm
Frequency 13.56 MHz
Supported card standard Mifare
Supported standards ISO14443A | ISO15693
go up…do góry menu… menu

Resistance and durability

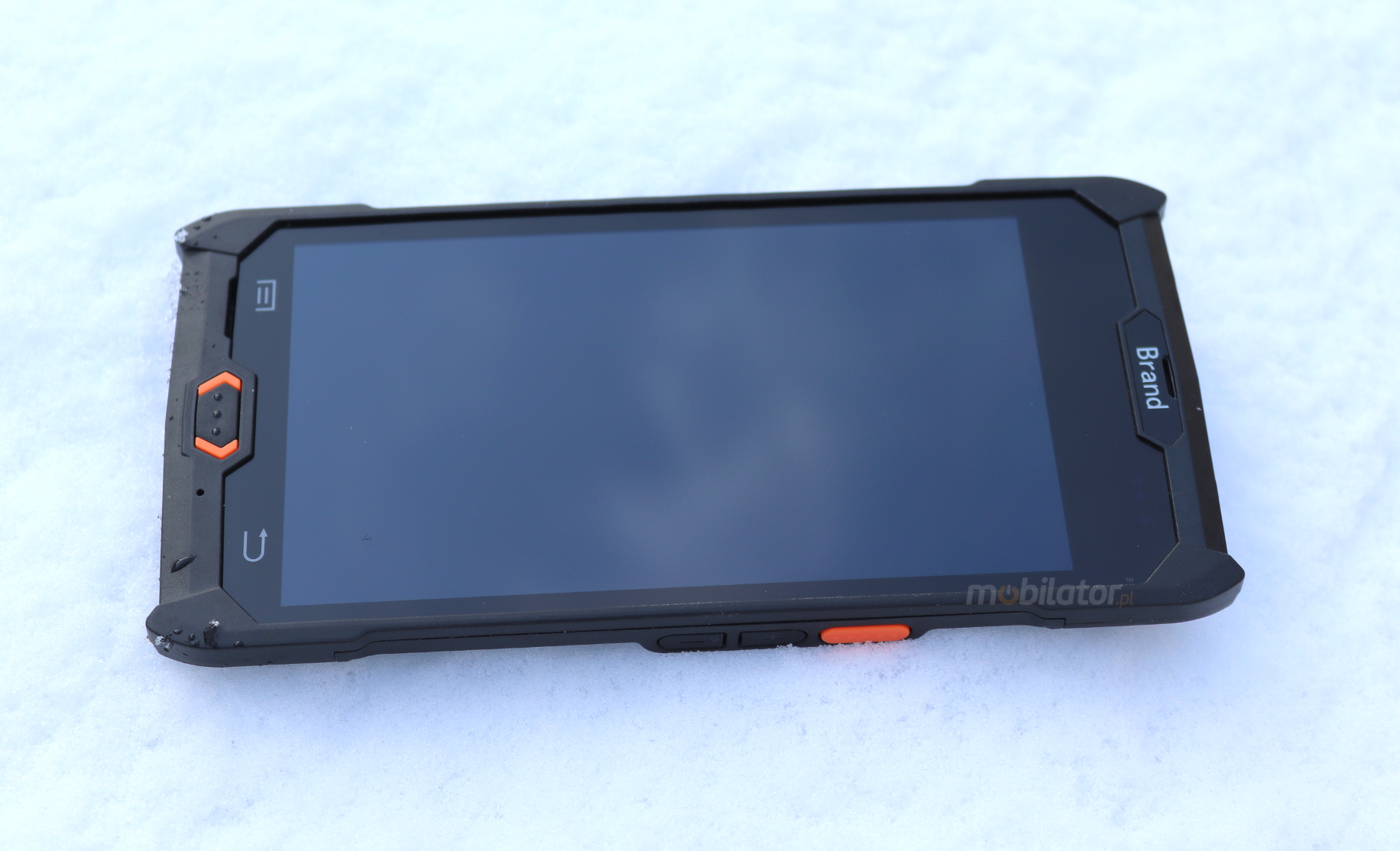

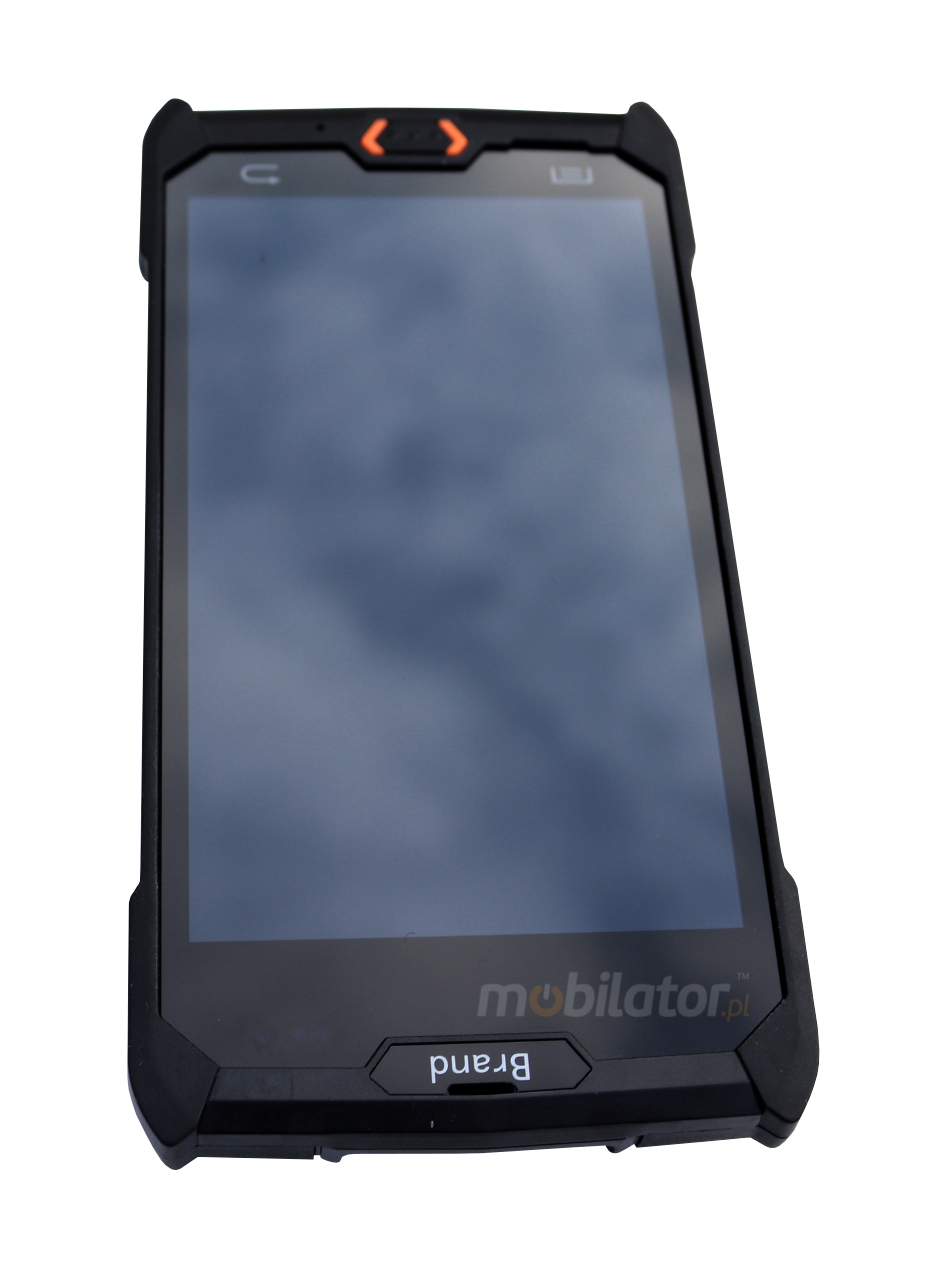

One of the important element which strengthens construction of  the shockproof MP-CTX-505 data collector is hardened glass GorillaGlass3 providing better protection of display. This solution makes that screen is less susceptible for scratch and tension relative to normal glass.




IP67 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm  consist of two digitals. First means the level of dust resistance, second to water.

Full specification of IP norms.

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids

No special protection

0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water



Data collector MobiPad CTX-505 passed extremal tests exploring device's durability to environmental factors like temperature, humidity, vibration and drop.

 Operate -10°C -- +50°C
 Storage -20°C -- +70°C
 Humidity 5% - 95%  | no condensation
 Dust IP6x (dust)
 Water IPx7 (water)
 Drop 5ft/1.5m

go up…do góry menu… menu



Modules and Wireless Networks

industrial data collector MobiPad CTX-505 IP67 Android 6.0 GPS Bluetooth mobilator.pl Aparat Gorilla Glass3

Dustproof data collector MobiPad CTX-505 might be equipped with a number of wired and wireless data transferable comonents and accurate location. In standard device has WiFi and Bluetooth for easy data transfer and high accuracy GPS to determine your possition. Additional build-in 4G module(after set SIM card to slot) making possible to wireless connection to Internet. Additonal speaker and microphone allows you to make voice calls.

4G

4G/3G/GPRS

GSM:850/ 900/ 1800/ 1900, WCDMA:B1/ B2/ B4/ B5/ B8
FDD-LTE:B1/ B2/ B3/ B4/ B5/ B7/ B8/ B20/ B28
TDD-LTE:B38/ B39/ B40/ B41

The ability to make voice calls

GPS  Yes
Bluetooth  Bluetooth 4.0
WiFi Dual-band 802.11 a/b/g/n 2.4G oraz 5G
Camera
Rear: 13Mpx (Auto-Focus)

go up…do góry menu… menu



Functionality

industrial data collector MobiPad CTX-505 IP67 Android 6.0 GPS Bluetooth mobilator.pl Aparat Gorilla Glass3

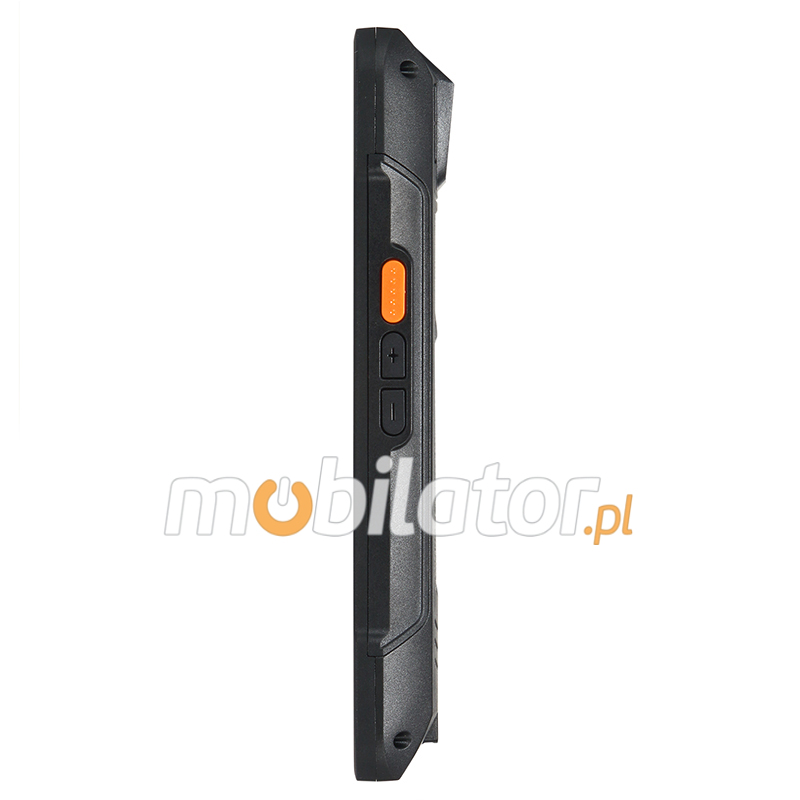

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad CTX-505. The device weighs just 250g and its dimensions  (153 x 76 x 17mm) allow you to take this device everywhere.

 Dimensions 153 × 76 × 17mm
 Weight 250g


Application



Trade and Services



Sales representatives often offer more produtcs so its difficult to have all of them with You. In this  situation thanks rugged data collector all products, their prices, availability and apperance can be present by mobile vendor.





Architecture



Hard conditions on the construction site its a nightmare for miost devices. High pollination an other adverse environmental factors make it almost impossible for them to work. This does not apply to the industrial data collector MobiPad CTX-505, which thanks rugged rates can handle them in extreme conditions.



Industry



It's another area where CTX-505 will take full advantage of its potential. High level of humidity, temperature fluctations, water and dust will not interfere with his work. Extremely durable makes that data collector can be use in places with hard conditions, for example in cold room and sawmill.



Warehouse





Efficient and functional data collection device are the basis of all modern warehouses. Installed barcode scanner in MobiPad CTX-505 data collector is one of the best readers used today allowing You to conveniently and quick scan your assortment.





go up…do góry menu… menu



Available versions




Porównaj wszystkie wersje



  v.1 v.2 v.3 v.4 v.5 v.6
1GB RAM
2GB RAM
8GB ROM
16GB ROM
1D Honeywell N4313
2D Honeywell N3680
NFC 13.56 MHz
