Rugged Waterproof Industrial Data Collector MobiPad MP-HTK38n v.0.0

Data update: 2018-02-26

guarantee 1 year

BUY NOW

Negotiate price

Ask about the product

Print

Tell a friend

Warehouse

Compare product

Product availability
14 - 20 workdays
CURRENT PRICE
304.73
Net
374.81
Gross
Znak akceptacji płatno?ci pl



Compare all versions





Porównaj wszystkie wersje

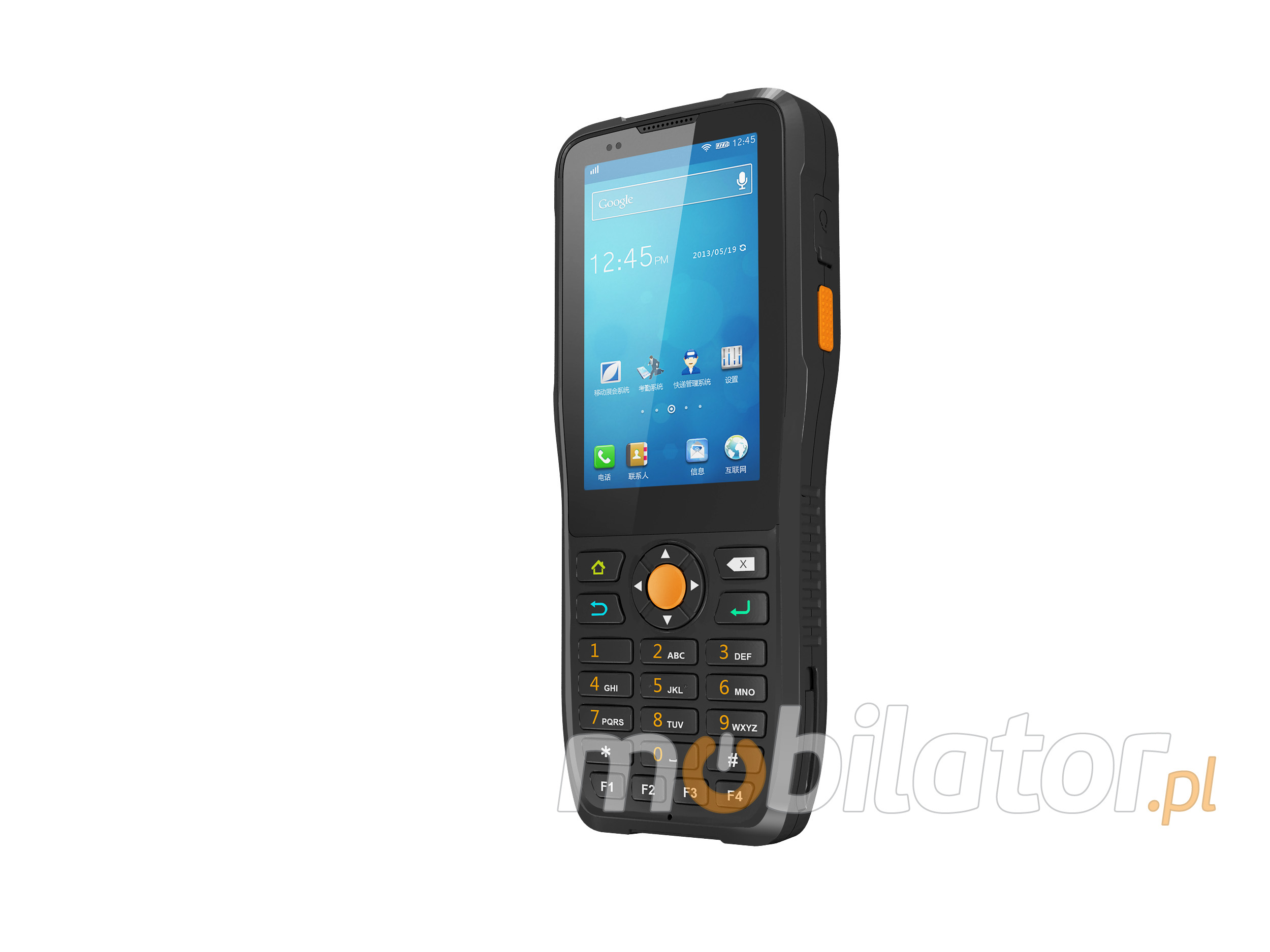

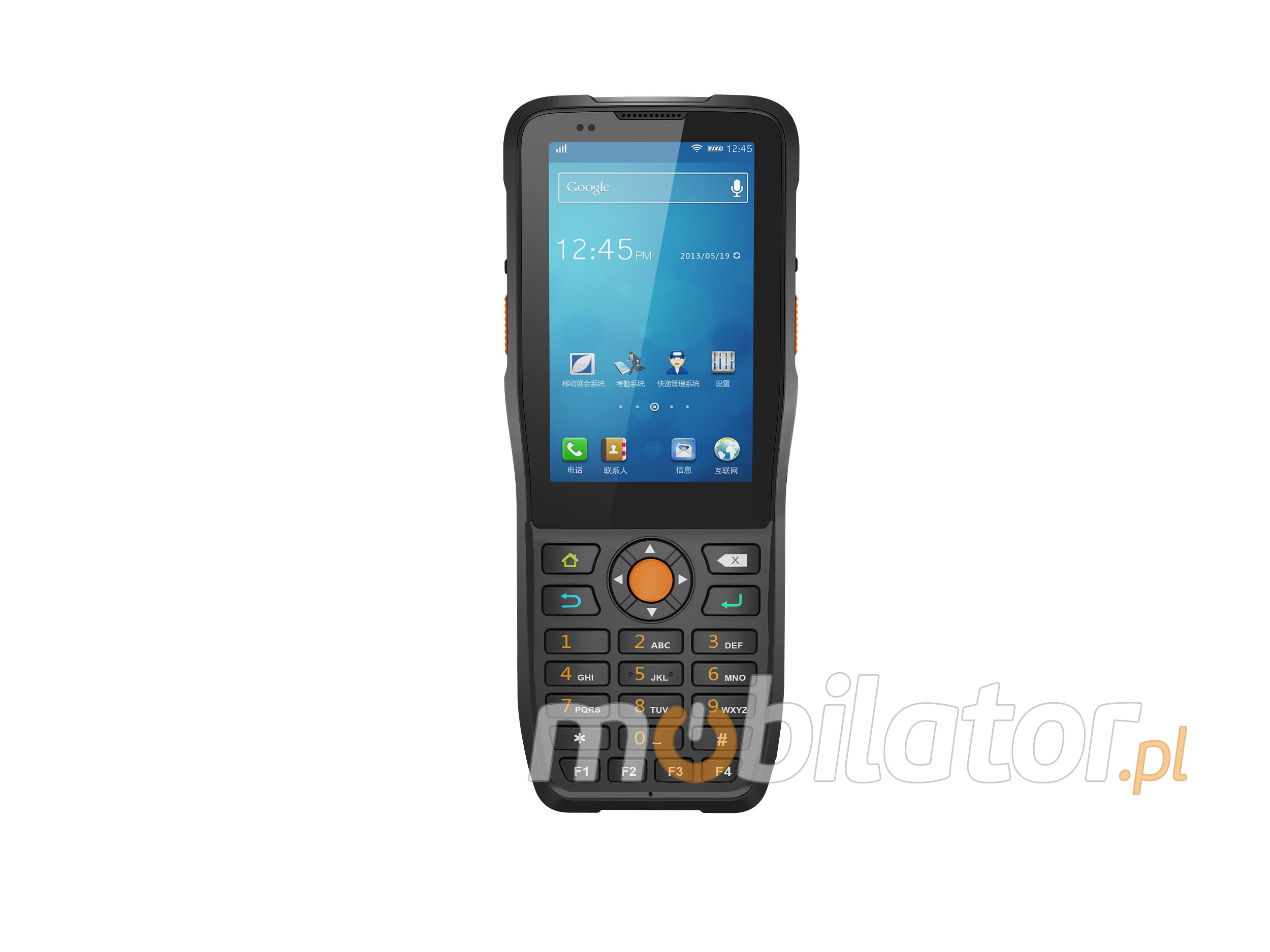

Industrial waterproof  MobiPad MP-HTK38n, its 3,5 inch  data collector  adapted to work in harsh environment. Device passed specialist tests and obtain high norms of durable and resistant like IP65 and drop up to 1.5m.




Description

mobipad MP-HTK38n data collector waterproof dustproof

 Processor  MTK MT6755M Octa-Core 1.8 GHz
 Display  3,5" (480x800) IPS |  Gorilla Glass 3 | Capacitive
 RAM Memory
 2GB
 Flash Memory
 16GB

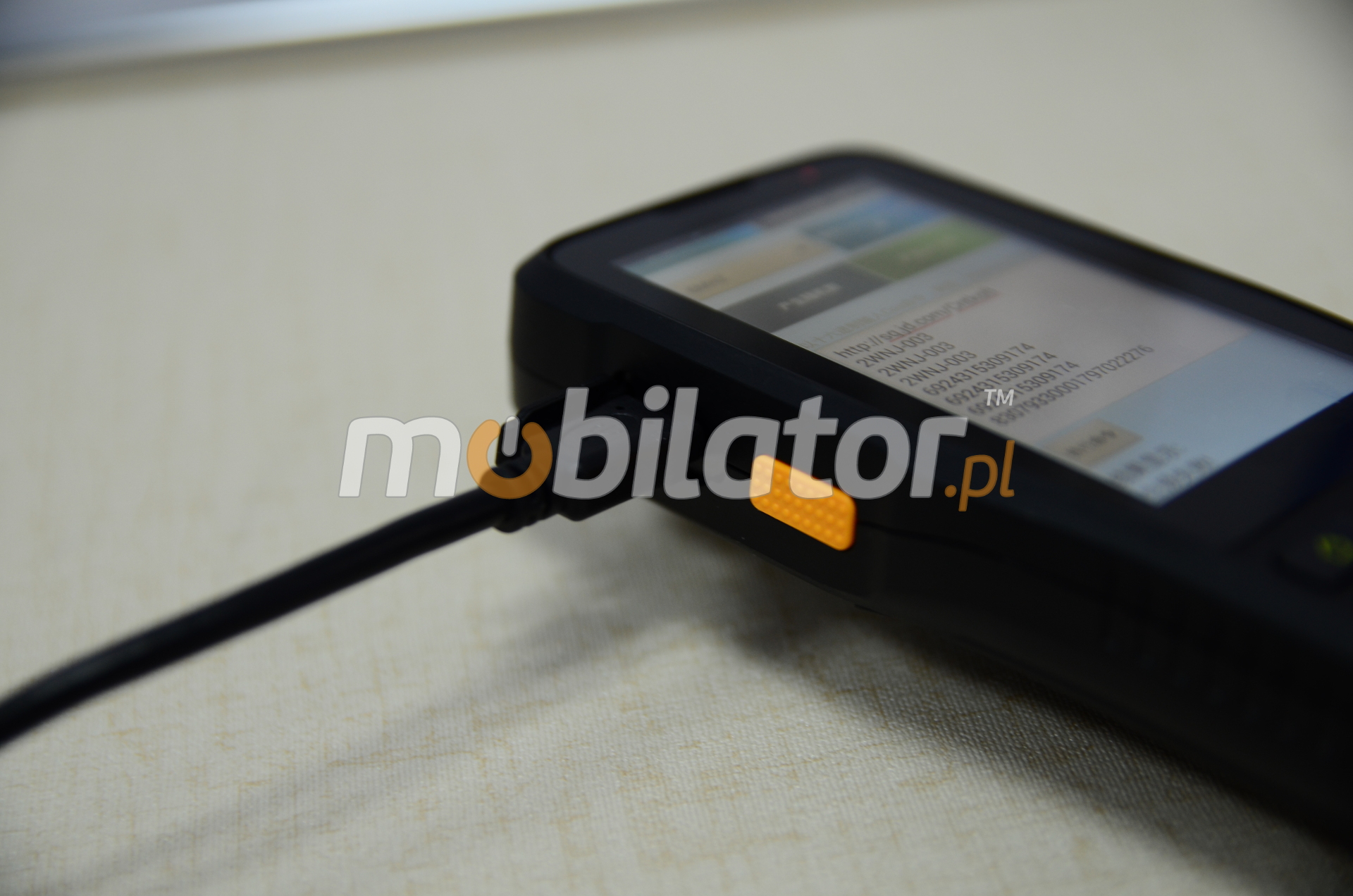

 Connectors  microUSB | Micro SD | SIM
 GPS  GPS

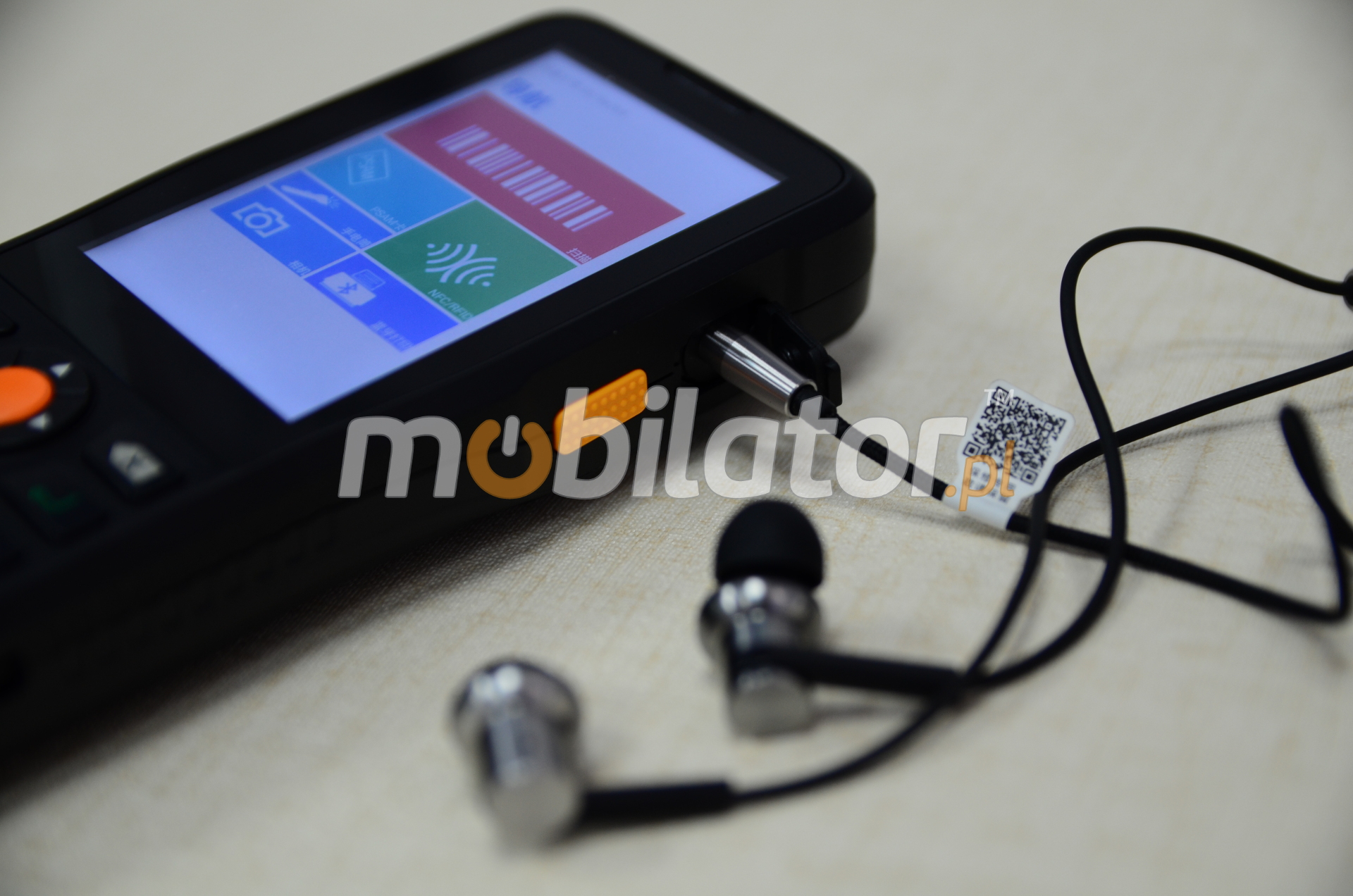

 Audio  AudioJack | Speaker | Microphone
 Camera  Rear: 8Mpx (Auto-Focus + LED Flash)  - factory
 Battery  3.8V, 4000mAh Li-Ion

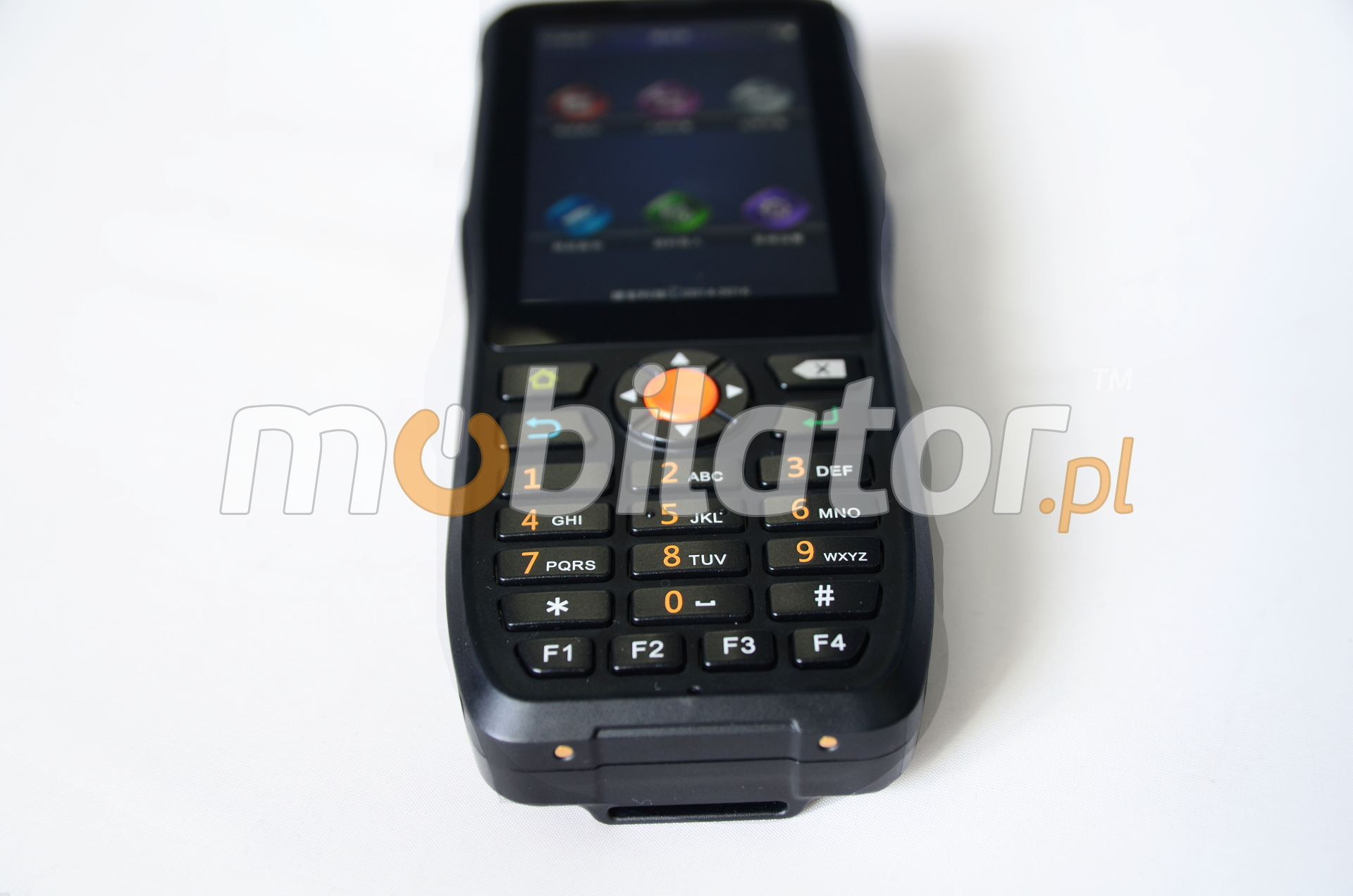

 Keyboard  Numeric (+function keys) + On-Screen
 Environment  Android 6.0
 Modules
 4G | WiFi | Bluetooth 4.0 | GPS  | NFC - optional
 Weight and Dimensions
 260g |166mm*68mm*28mm
 Resistance  IP65
  Readers

1D (Laser) Honeywell N4313 - optional

1D (Laser) Motorola Symbol SE955 - optional

2D (CMOS) Honeywell N3680 - optional

2D (CMOS) Motorola SE4710 - optional





To produce rugged data collector used high quality materials. Inside of device mounted professional modules and components makes that device is not only durable but also very efficient.

waterproof industrial data collector mobipad mp-htk38n mobilator.pl gps bluetooth camera wifi

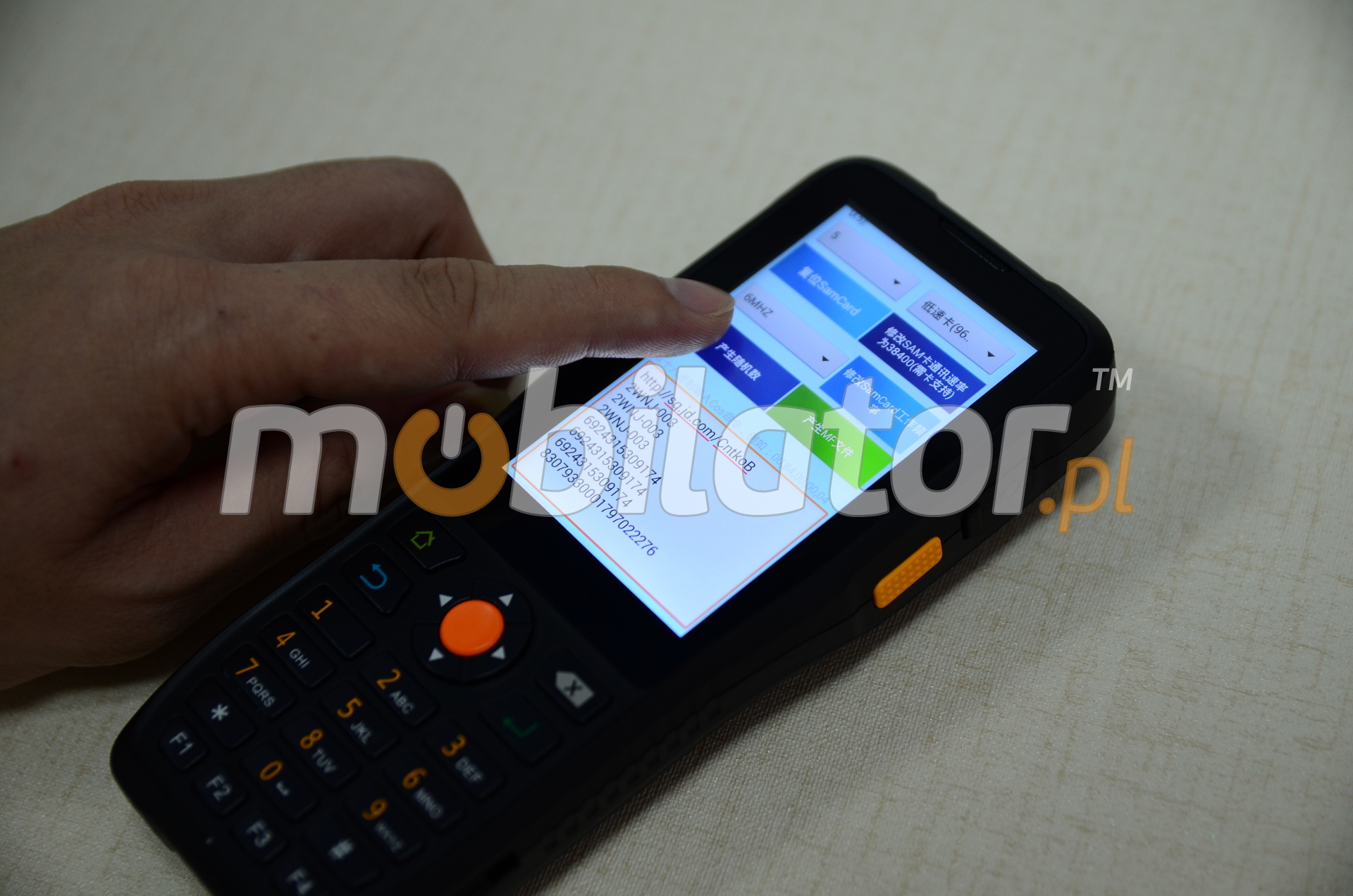

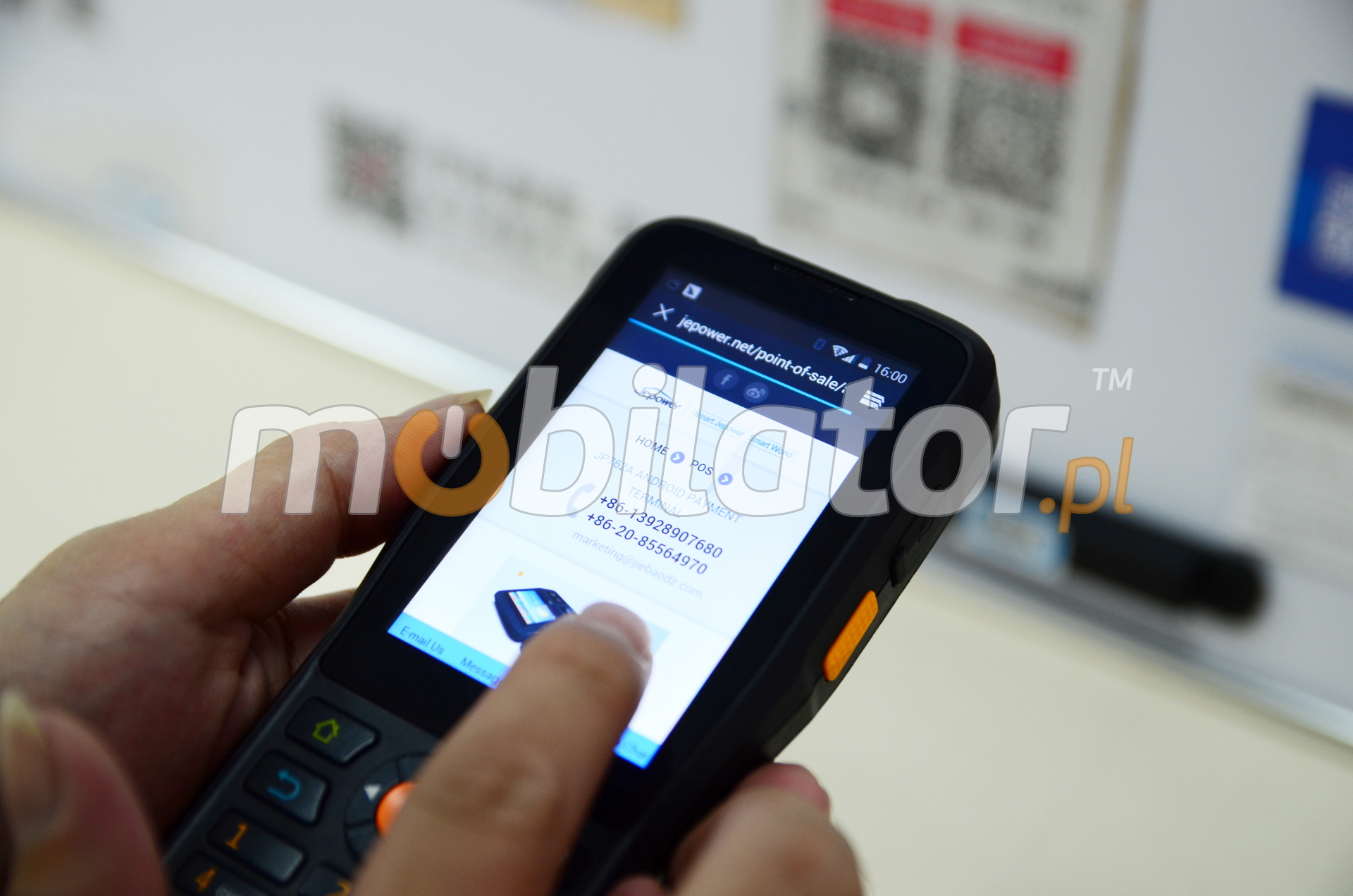

3,5 inch IPS display with resolution 480 x 800 pixels show high quality image, making possible to comfortable work for eyes. To ensure better protection, screen is secure by hardened glass pane GorillaGlass3. Thanks this solution display becomes resistant against scratch and tension.

go up…do góry menu… menu

The collection and processing of data

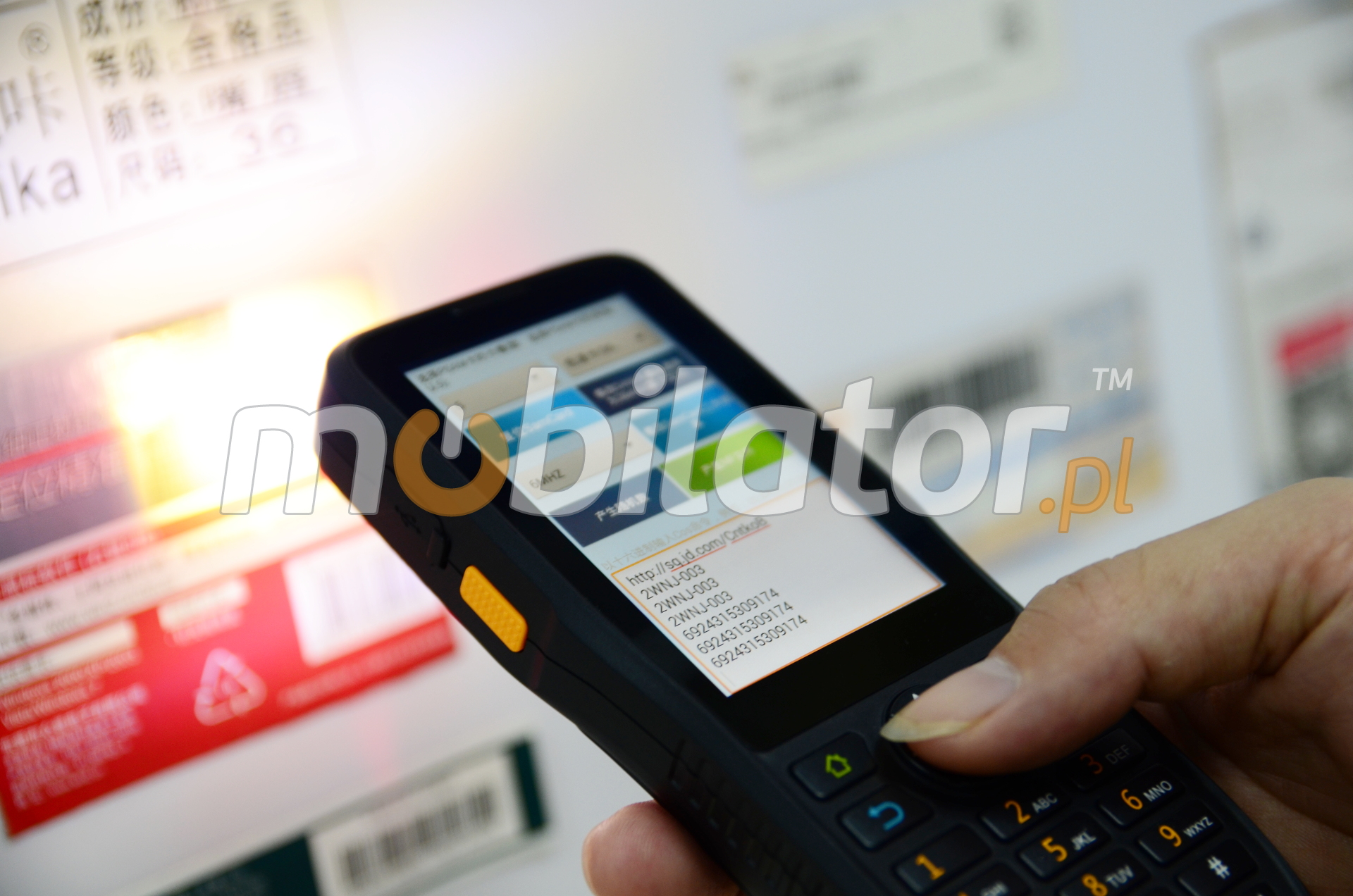

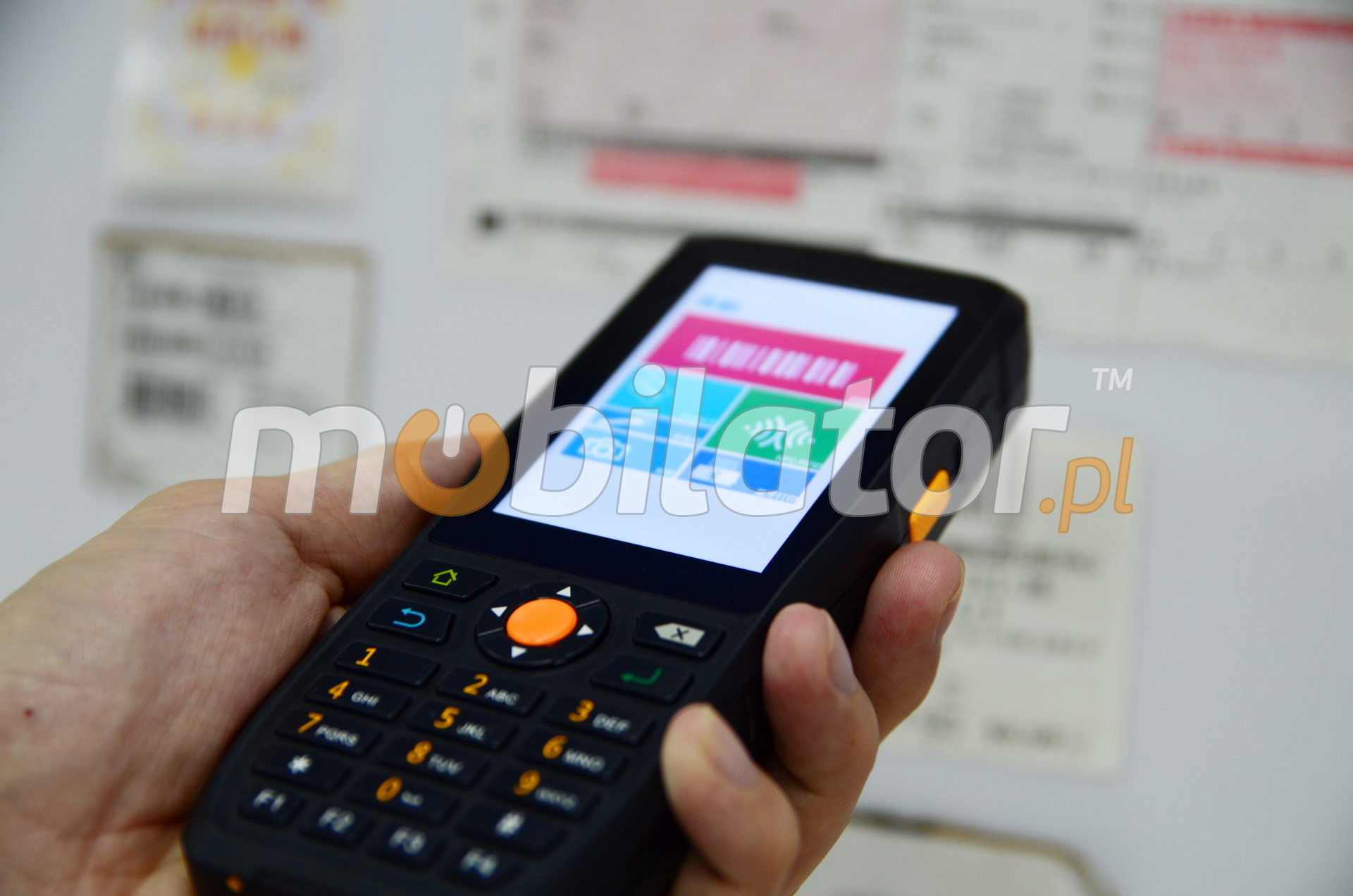

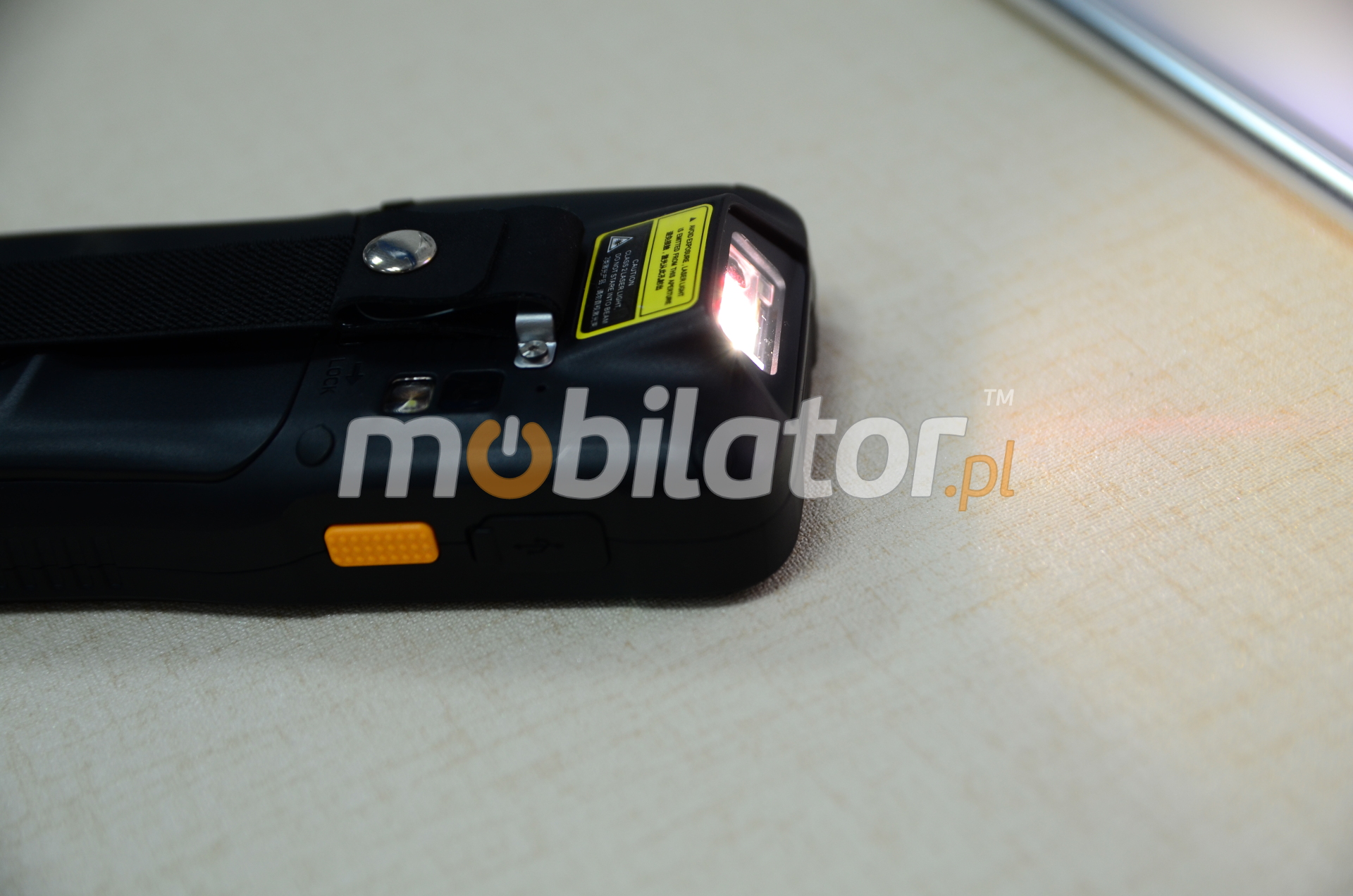

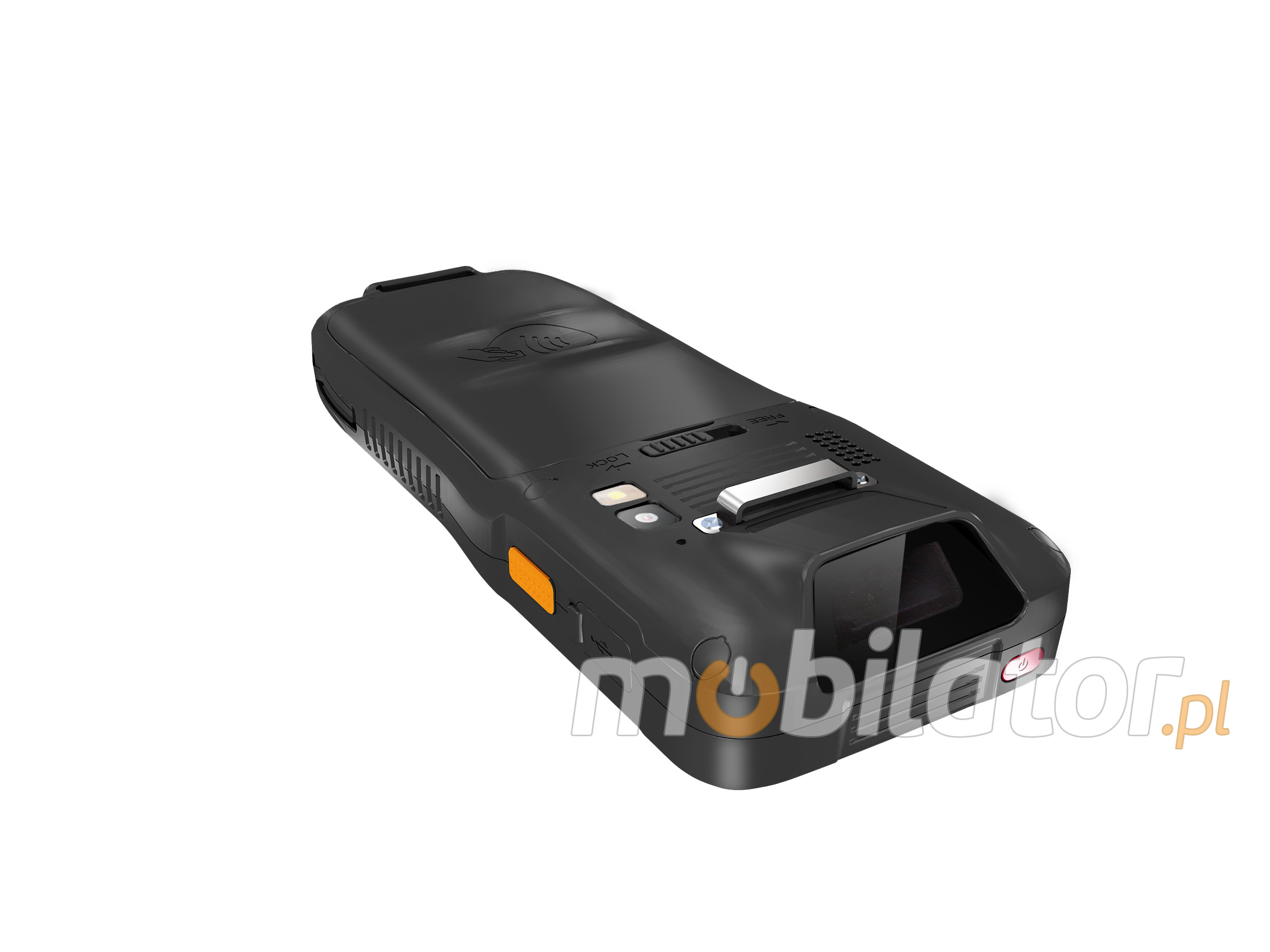

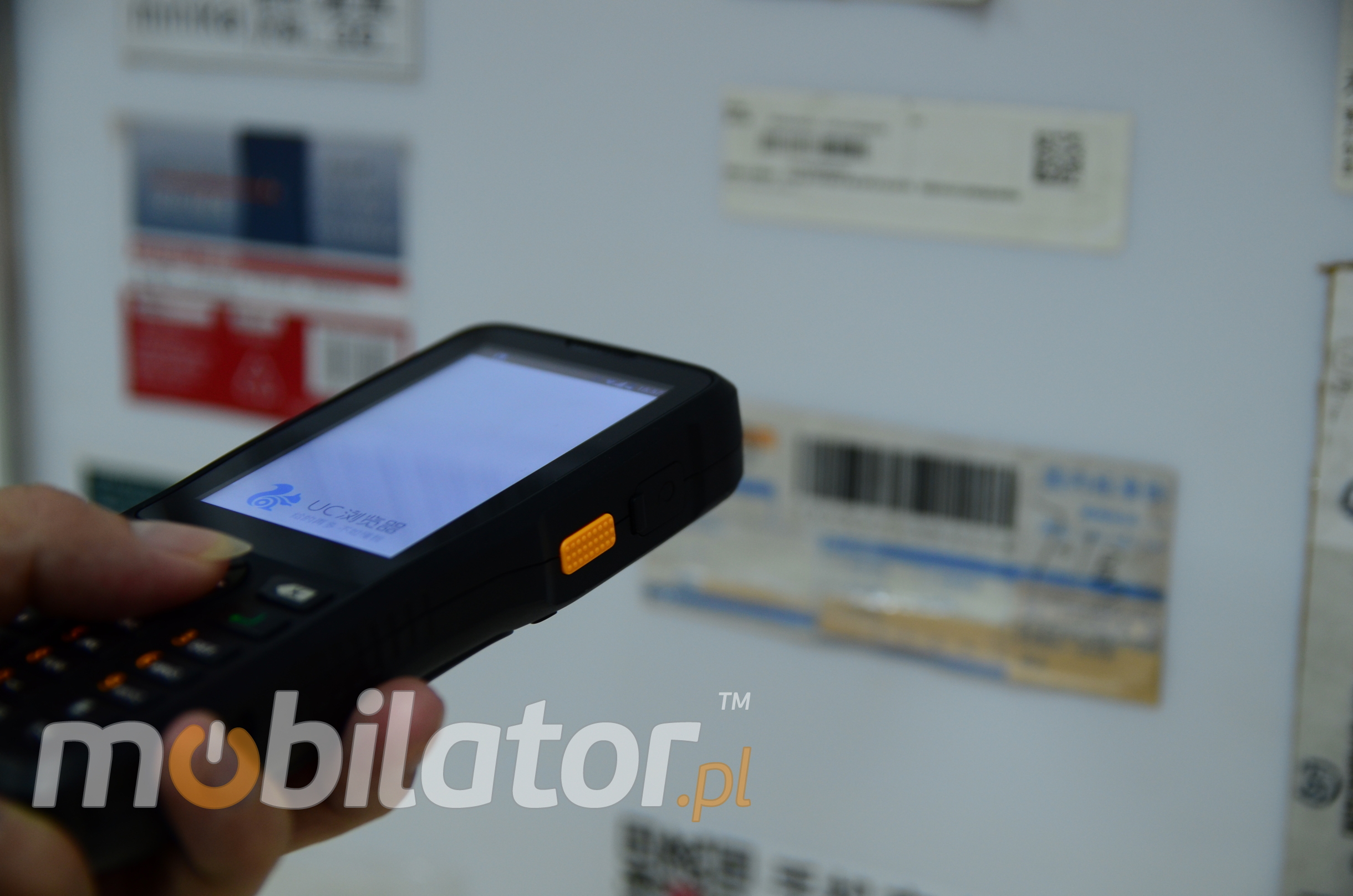

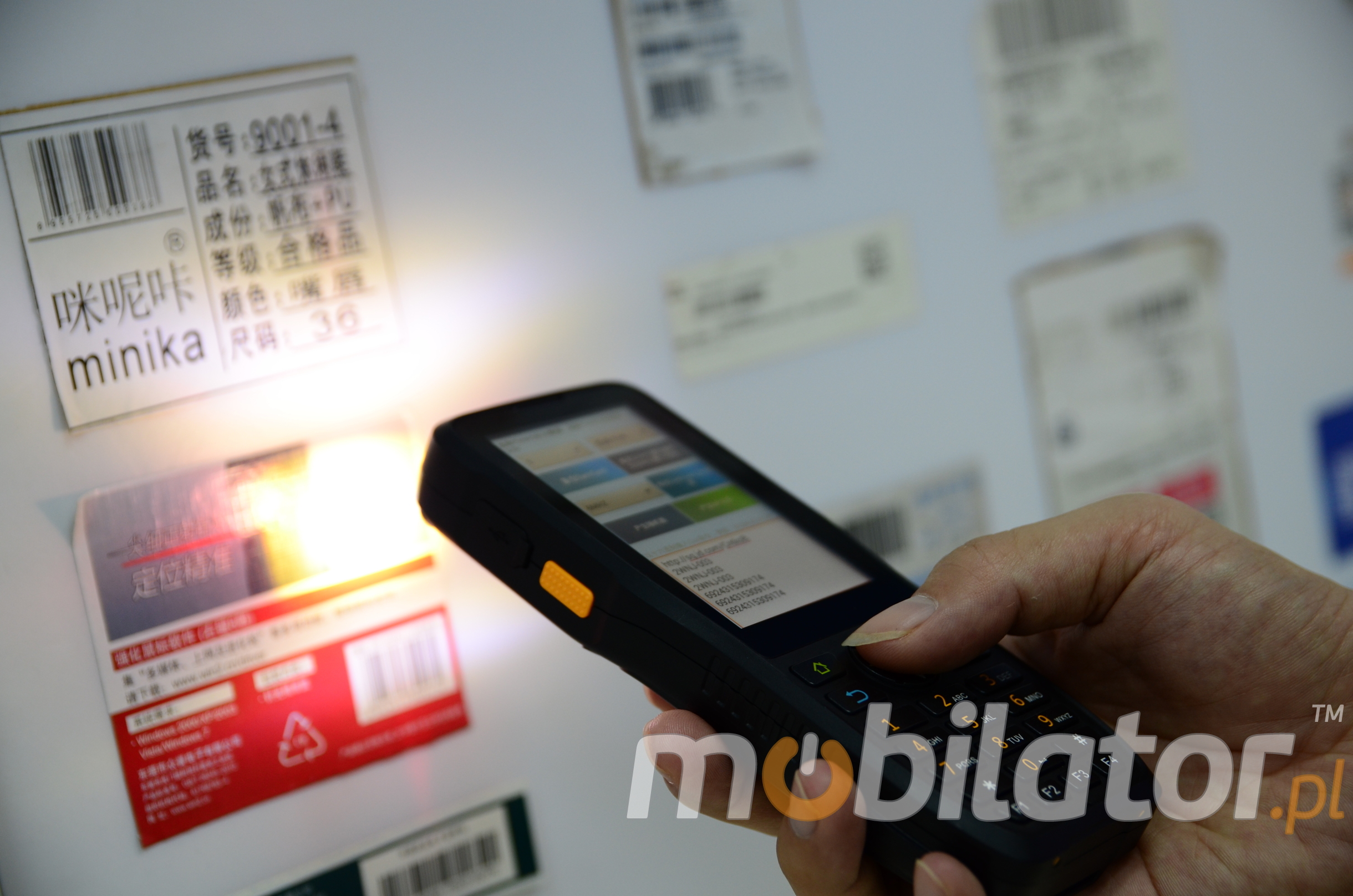

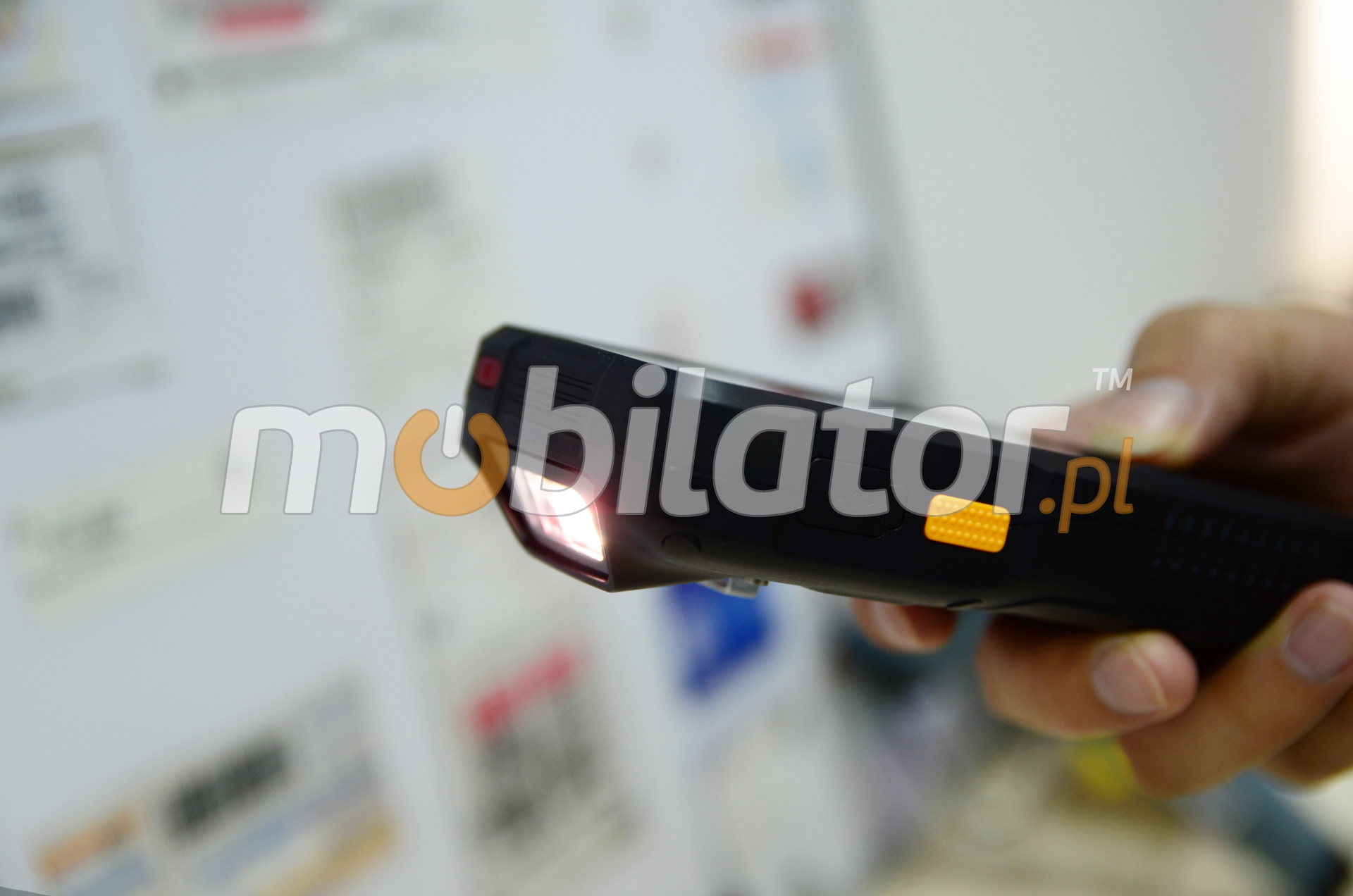

MobiPad MP-HTK38 1D Laser barcode scanner 1D skaner 1D/2D Motorola

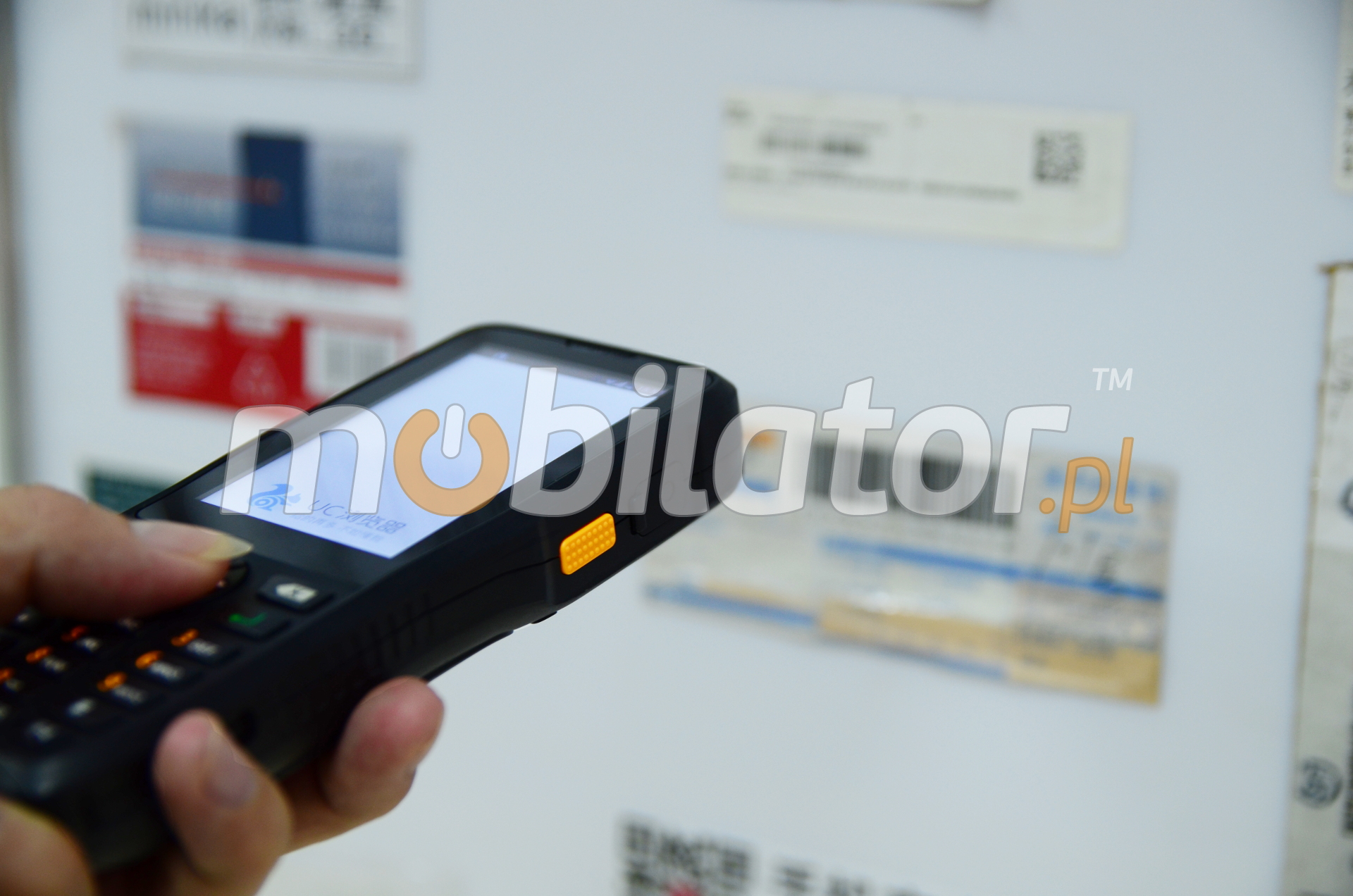

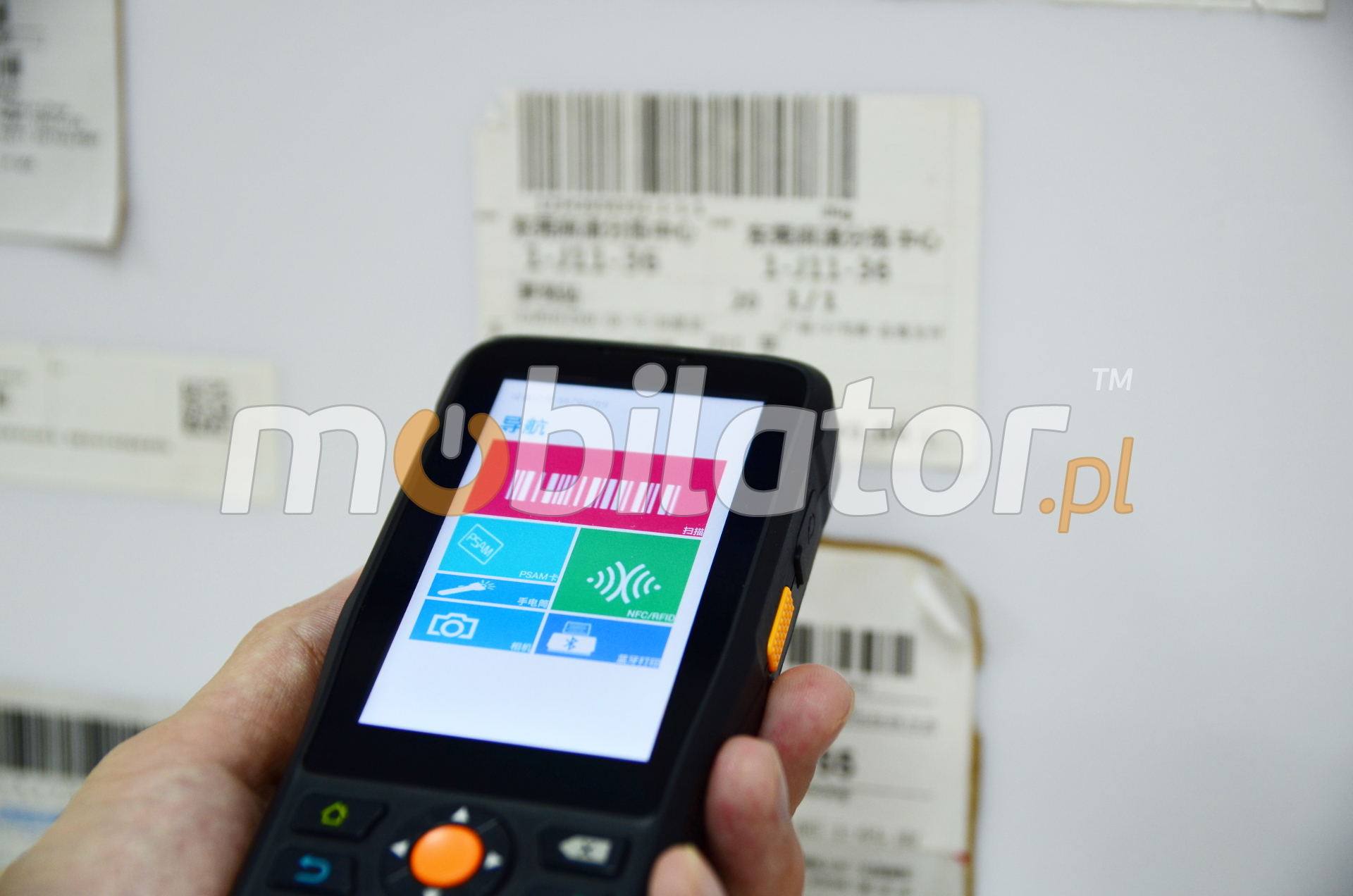

Barcode scanner, its one of the basic industrial modules increase effinency of work in places where barcodes are using. Thanks technology development modern readers are more efficent and precise. In waterproof industrial MP-HTK38n data collector can be mount barcode scanners like:



1D (Laser) Honeywell N4313

1D (Laser) Motorola Symbol SE955

  2D (CMOS) Honeywell N3680

2D (CMOS) Motorola SE4710




NFC (Near Field Communication), its a wireless communication standard that allows to data transfers up to several centimeters. This technology is slowly becoming a standard and appears in a growing number of devices, expecially mobile.



Reading distance from 3 to 5 cm
Frequency 13.56 MHz
Supported card standard Mifare
Supported standards ISO14443A | ISO15693
go up…do góry menu… menu

Resistance and durability

One of the important element which strengthens construction of  the shockproof MP-HTK38n data collector is hardened glass GorillaGlass3 providing better protection of display. This solution makes that screen is less susceptible for scratch and tension relative to normal glass.

IP65 ip65 norma odporności odporny wytrzymały pyłoszczelny wodoszczelny


IP65 norm is granted to devices which pass series of specialist tests exploring their durability for dust and water. IP norm  consist of two digitals. First means the level of dust resistance, second to water.

Full specification of IP norms.

The first digit [x]
Protection against solid objects
  The second digits [y]
Protection against liquids

No special protection

0

0

No waterproofing
Protection from solid objects greater than 50mm in diameter
1

1


Protection from dripping water

Protection from object not greater than 12mm in diamete
2

2

Protection from vertically dripping water (tilted up to 15°)
Protection from object not greater than 2,5mm in diameter
3

3

Protection from sprayed water (tilted up to 60°)
Protection from object not greater than 1mm in diameter
4

4

Protection from splashed water
Complete protection against contact, Protection against dust deposit
5

5

Protection from water projected from a nozzle
Complete protectionm against contact, Protection from infiltration of dust
6

6

Protection against heavy seas, or powerful jets of water


7

Protection against immersion


8

Protection against complete, continuous submersion in water

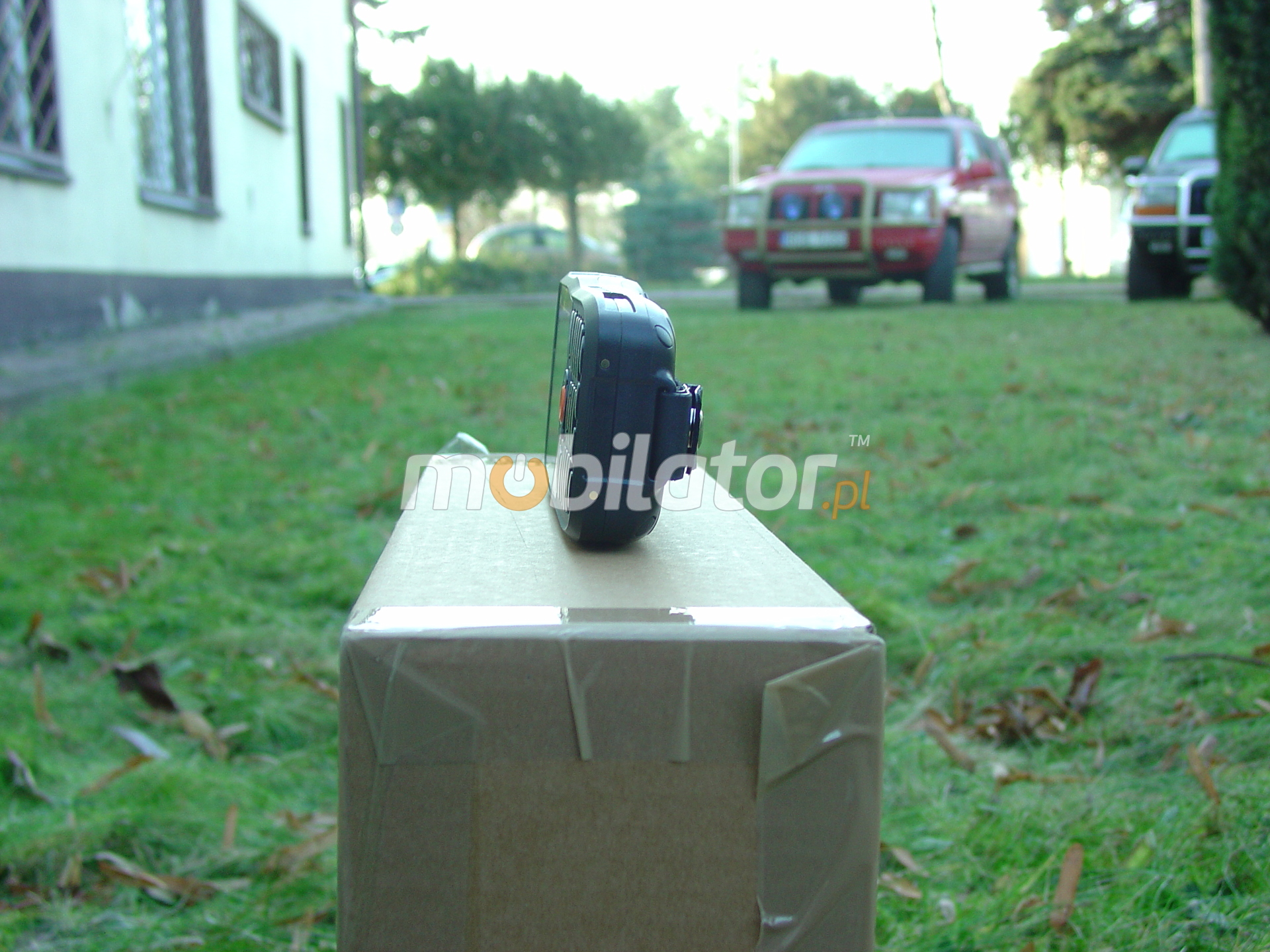

Data collector MobiPad MP-HTK38n passed extremal tests exploring device's durability to environmental factors like temperature, humidity, vibration and drop.

 Operate -10°C -- +50°C
 Storage -20°C -- +70°C
 Humidity 5% - 95%  | no condensation
 Dust IP6x (dust)
 Water IPx5 (water)
 Drop 5ft/1.5m

go up…do góry menu… menu



Modules and Wireless Networks

waterproof industrial data collector mobipad mp-htk38n mobilator.pl gps bluetooth 4.0 camera wifi

Dustproof data collector MobiPad MP-HTK38n might be equipped with a number of wired and wireless data transferable comonents and accurate location. In standard device has WiFi and Bluetooth for easy data transfer and high accuracy GPS to determine your possition. Additional build-in 4G module(after set SIM card to slot) making possible to wireless connection to Internet. Additonal speaker and microphone allows you to make voice calls.

4G

4G/3G/GPRS

GSM:850/ 900/ 1800/ 1900, WCDMA:B1/ B2/ B4/ B5/ B8
FDD-LTE:B1/ B2/ B3/ B4/ B5/ B7/ B8/ B20/ B28
TDD-LTE:B38/ B39/ B40/ B41

The ability to make voice calls

GPS  Yes
Bluetooth  Bluetooth 4.0
WiFi Dual-band 802.11 b/g/n 2.4G oraz 5G
Camera
Rear: 8Mpx (Auto-Focus + LED Flash) - factory

go up…do góry menu… menu



Functionality

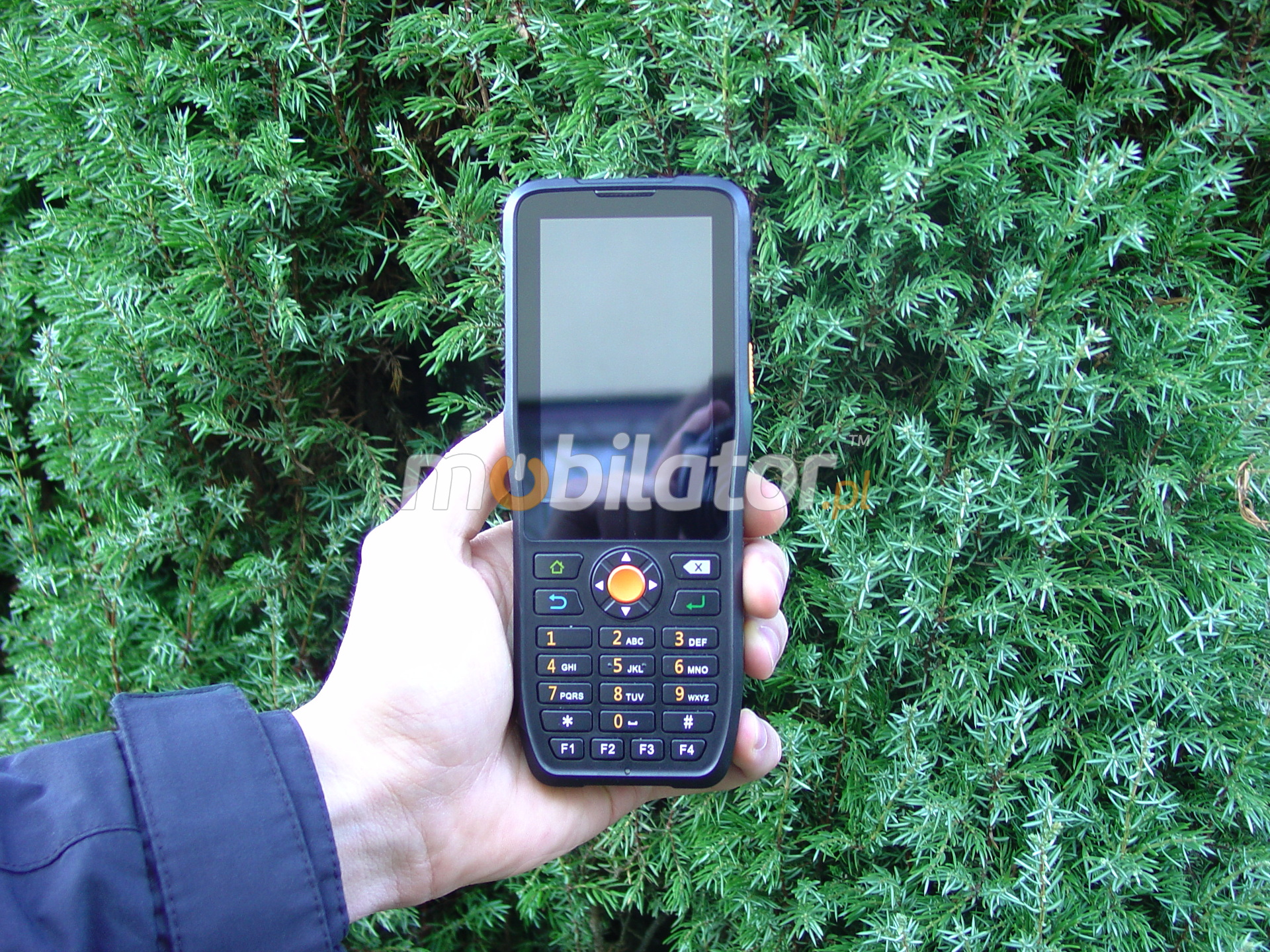

waterproof industrial data collector mobipad mp-htk38n mobilator.pl gps bluetooth camera wifi gorilla glass

You no longer need to worry about whether you will put your device into a briefcase, backpack or travel bag, the problem disappears forever when you have MobiPad MP-HTK38n. The device weighs just 260g and its dimensions  (166 x 68 x 28mm) allow you to take this device everywhere.

 Dimensions 166 × 68 × 28mm
 Weight 260g

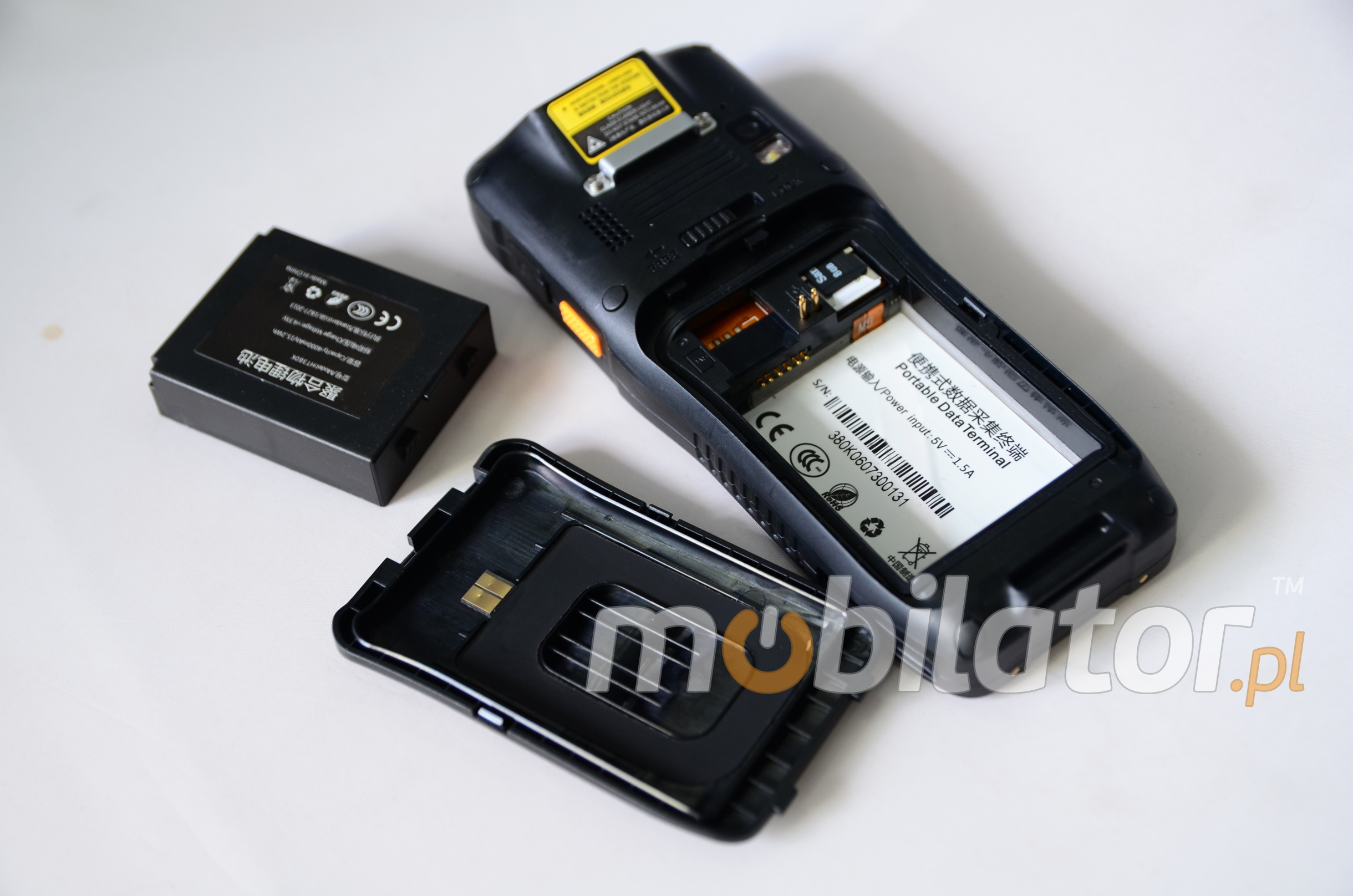

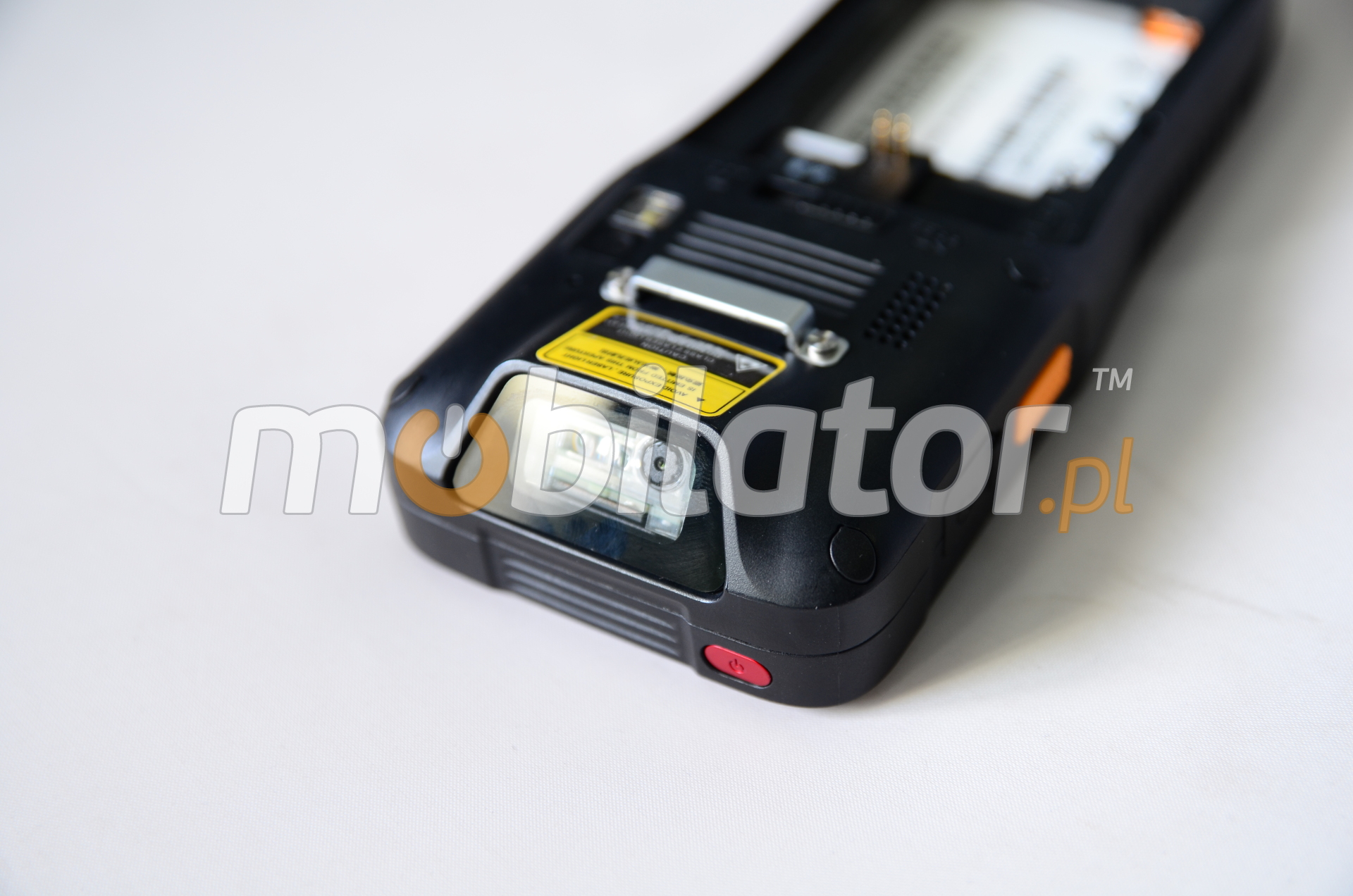

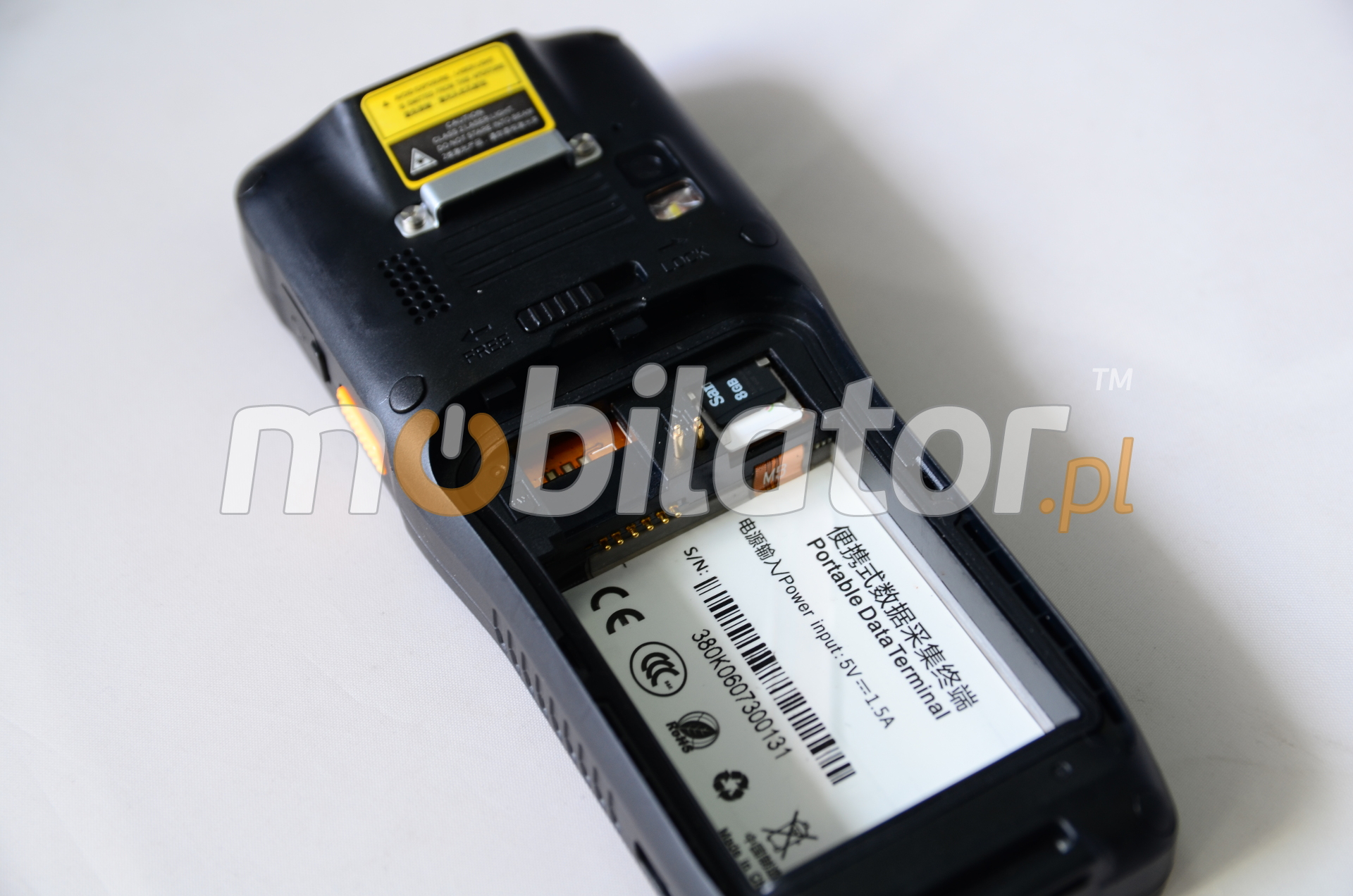

Quick change battery

Friendly design allows for fast replacement of the battery. This is useful when you working in the field with difficult conditions, where there is no additional power sources and the time is very important.

MobiPad MP-HTK38n 1D Laser 1d laser MobiPad MP-HTK38n wifi fast replacement battery 2D scanner motorola honeywell

go up…do góry menu… menu





Application



Trade and Services



Sales representatives often offer more produtcs so its difficult to have all of them with You. In this  situation thanks rugged data collector all products, their prices, availability and apperance can be present by mobile vendor.





Architecture



Hard conditions on the construction site its a nightmare for miost devices. High pollination an other adverse environmental factors make it almost impossible for them to work. This does not apply to the industrial data collector MobiPad MP-HTK38n, which thanks rugged rates can handle them in extreme conditions.



Industry



It's another area where MP-HTK38n will take full advantage of its potential. High level of humidity, temperature fluctations, water and dust will not interfere with his work. Extremely durable makes that data collector can be use in places with hard conditions, for example in cold room and sawmill.



Warehouse





Efficient and functional data collection device are the basis of all modern warehouses. Installed barcode scanner in MobiPad MP-HTK38n data collector is one of the best readers used today allowing You to conveniently and quick scan your assortment.





go up…do góry menu… menu


Additional equipment

waterproof industrial data collector mobipad mp-htk38n mobilator.pl gps bluetooth camera wifi

We offer a number of additional enhancement accessories for the MP-HTK38n data collector to further enhance iits functionality and comfort of work. Below You find list with all available accessories. Point the mouse at the picture and click it to move to the product's description.



Docking station

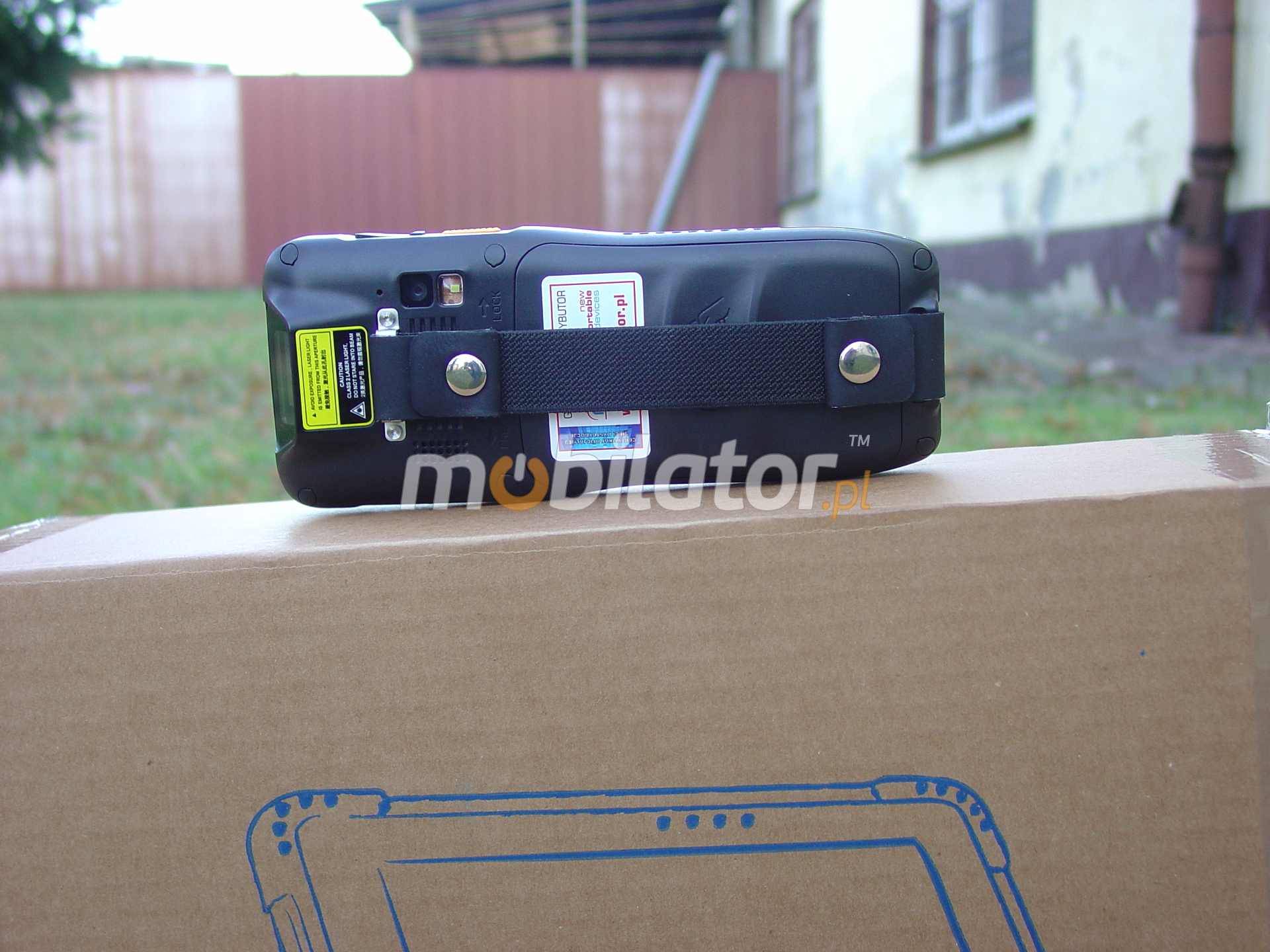

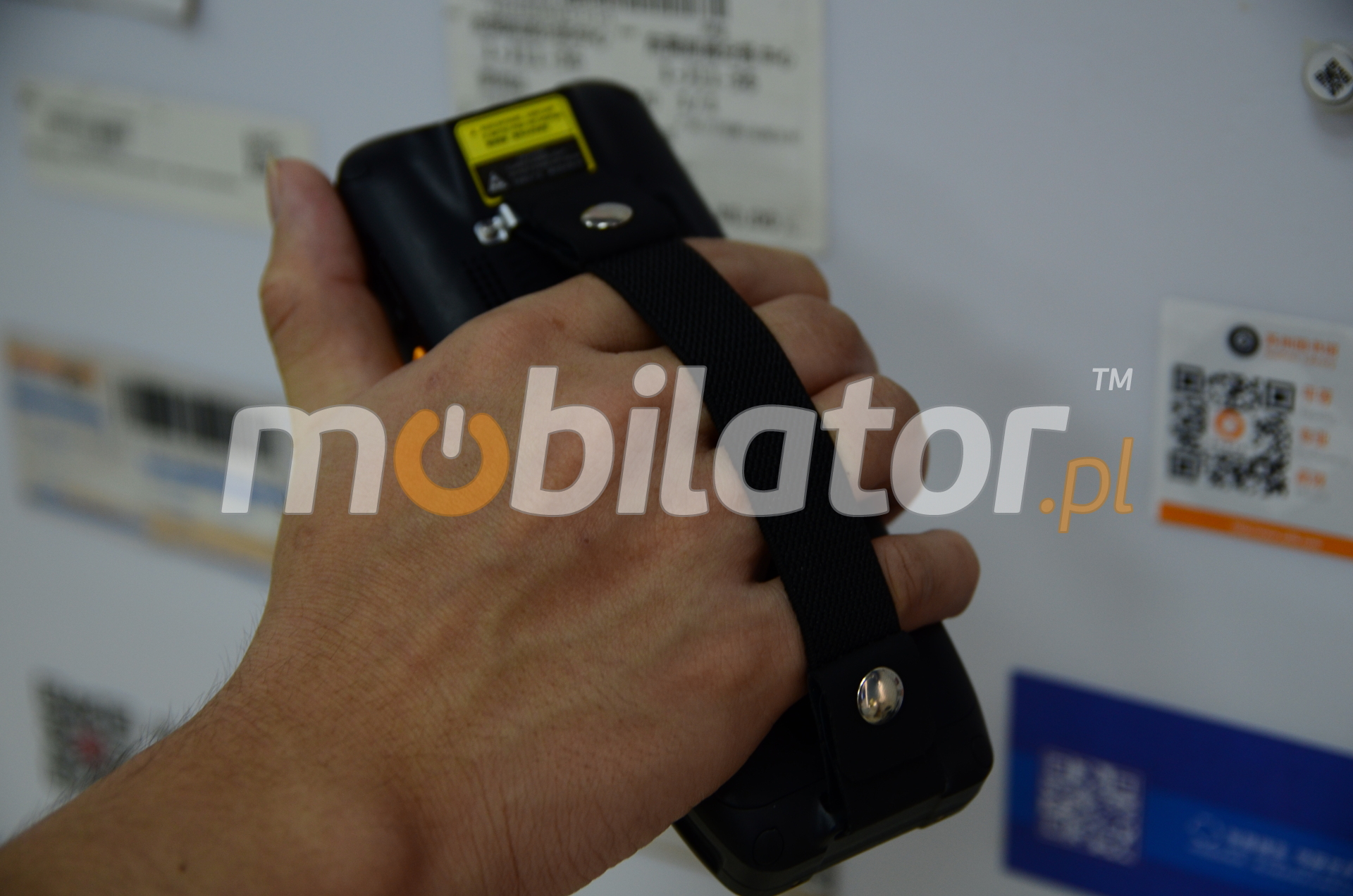

Wrist strap*

waterproof industrial data collector mobipad mp-htk38n mobilator.pl docking station

waterproof industrial data collector mobipad mp-htk38n mobilator.pl wrist strap

Battery*

waterproof industrial data collector mobipad mp-htk38n mobilator.pl battery

more photos in the "Photo Gallery" ...

specification of this version is available in the "Technical data" ...

*product does not contain any elements in the kit,

except products marked with star...
