Rugged Tablet MobiPad MPW8802 v.7
|
|
The product from the archive - production terminated
|
MobiPad MPW8802 is a new proposal 8 - inch tablet works with Windows 10. The tablet has a specially designed, reinforced structure, adapted for use in harsh environmental conditions. The device works great when in the home and industrial use.
|
|
MobiPad MPW8802 is offered with the latest quad-core Intel® Atom ™ processor Z3735F to ensure the highest performance, low power consumption and long battery life. The tablet works with Windows 10 operating system to meet the growing requirements in industrial applications.
|
Processor |
Intel® Atom™ Processor Z3735F (QUAD CORE 1.33 - 1.83GHz) |
|
Graphics |
Intel HD Graphic
|
|
Display |
8” (1280*800) |
Type of display
|
IPS | Capacitive
|
LED
|
Power |
|
Brightness |
300nits |
|
RAM |
2GB DDR3 |
|
ROM |
32GB eMMc
|
|
Connectors |

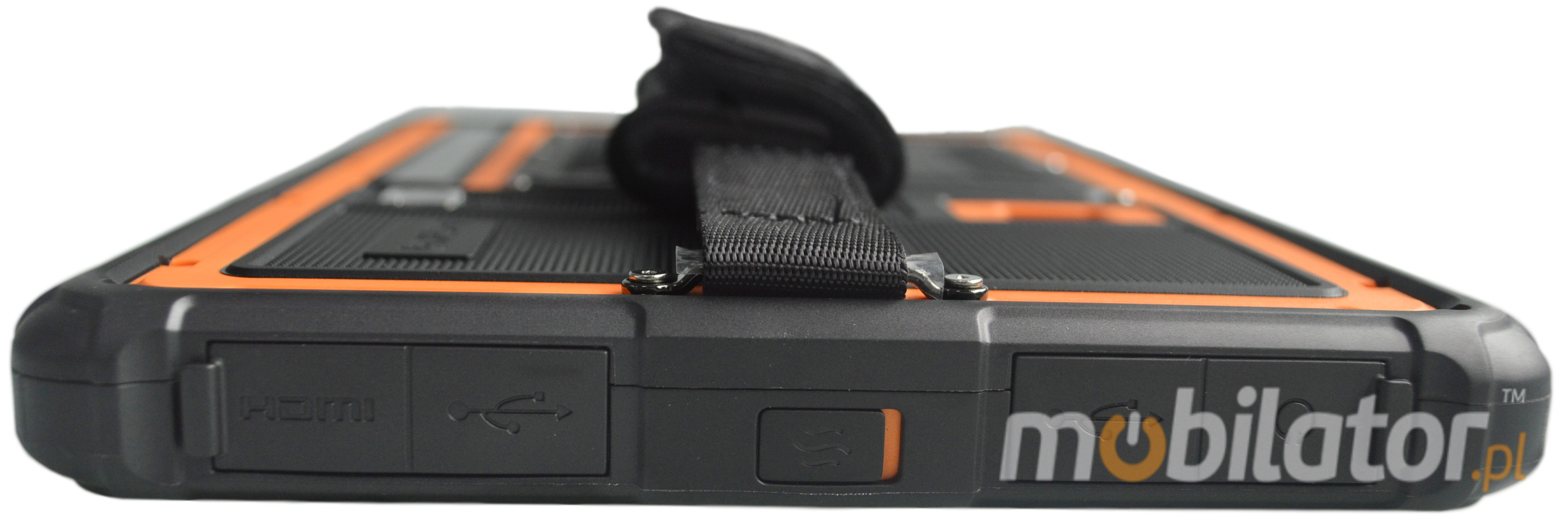

micro HDMI | SIM card slot | USB 2.0 | micro USB (OTG) | Docking port
|
|
GPS (optional) |
No (avaible in other versions) |
|
Audio |
Built-in MIC | Speaker 1.0W | Audio Jack
|
|
Camera |
FRONT: 2Mpx |
|
|
REAR: 5Mpx
|
|
Battery |
Lithium 3.8V 5000mAh |
|
Keyboard |
on-Screen | Functional keys
|
|
Volume + | Volume - | Power
|
|
System (factory) |
Windows 10 |
Modules (factory)
|
802.11 b/g/n | Bluetooth 4.0 | 3G | GPS
|
|
Modules (optional) |
GSM/4G (depends of version)
|
|
Dimensions |
230.9*155.6*21mm - 800g (with battery) |
|
Resistance |
IP65 |
Sensors (optional)
|
2D Scanner(also in version v.6) | NFC(only in v.5 version)
|
|
Sensors (factory) |
G-Sensor |
Warranty
|
12 months |
|
|
|

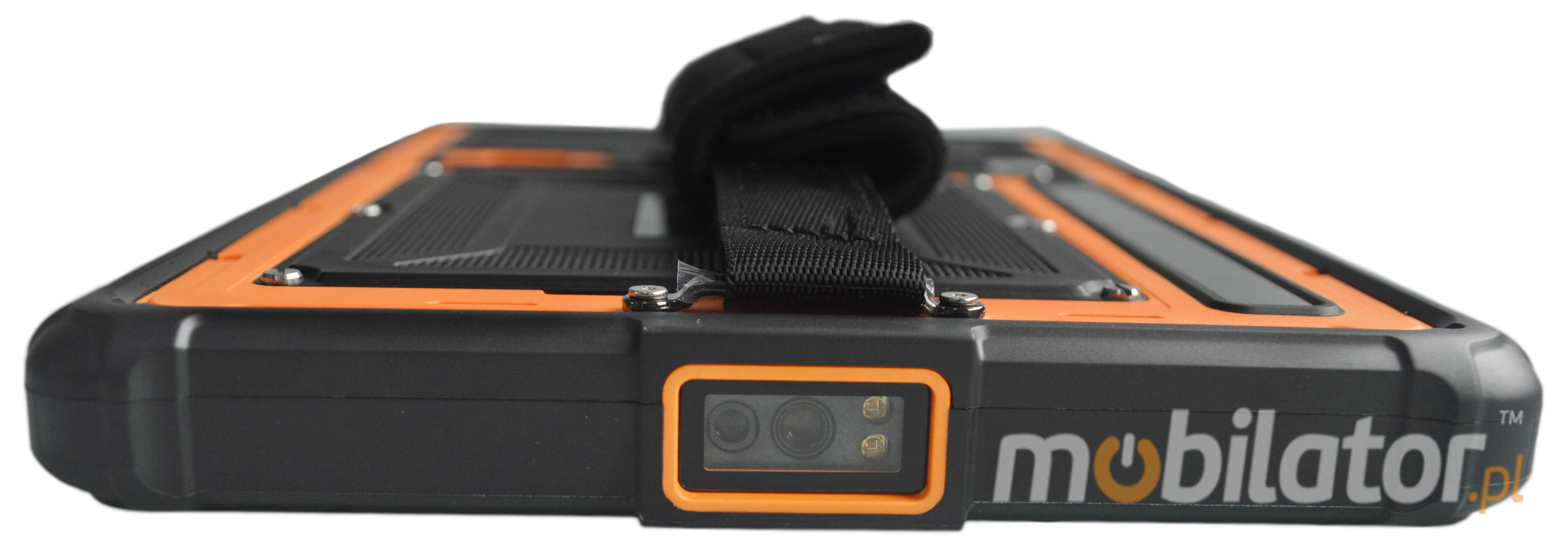

Barcode Scanner (also in version v.6)
Quick and accurate identification of the object relieves the warehouseman and does not create a bottleneck in logistics processes. 2D barcode reader allows you to read, decode and send to your data stored in the bar code.With dynamic scanning capabilities and wide range of reading MobiPad device and MPW8802 quickly and accurately retrieves the data, which helps to increase the rate and efficiency.
|
Model |
Newland NLS-EM3096 |
Type of scanner
|
1D/2D |
Display type
|
CMOS |
|
|

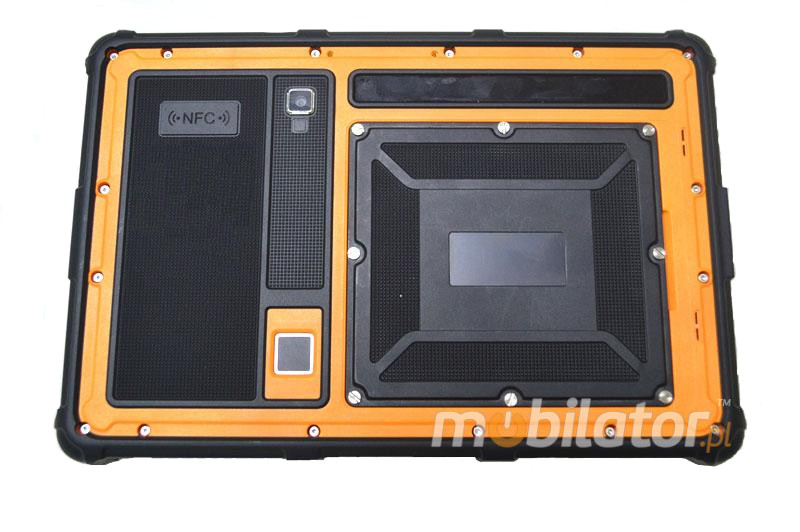

NFC (only in v.5 version)
Near field communication (NFC) is a set of ideas and technology that enables smartphones and other devices to establish radio communication with each other by touching the devices together or bringing them into proximity to a distance of typically 10 cm (3.9 in) or less.
|
|
NFC |
|
Frequency |
13.56 MHz |
Supported standards
|
ISO/IEC 14443 A/B/B' |
|
ISO/IEC 18092 |
|
|
ISO/IEC 21481 |
go top...  menu…
|
|
|
Standards
In terms of device ruggedness, the MPW8802 can withstand a 3-foot drop, and with IP65 sealing. The tablet can operate in temperature range of -10° to 50°C, optimized for most industrial deployments. MPW8802 is a sharp looking, sturdy and powerful device that can hold up well against use in harsh environment with its industrial grade rugged design.
.jpg)
Operating temperature
|
-10°C -- +50°C |
Storage temperature
|
-20C -- +60°C |
|
Dust |
IP6x
|
|
Water |
IPx5
|
|
Humidity |
95% non-condensing
|
|
Drop |
1.0m
|
The battery at its best
High quality Lithium battery provides a long operating life under severe temperature conditions. With MobiPad MPW8802 you can easily work out at temperatures as low as -10 ° C.
go top... menu…
IP65
IP Degrees is a classification of different levels of protection of electrical equipment That Are provided by enclosures of these devices According to PN-92/E-08106. A number after the "IP" is really two digits. The first is protection of human and animal access to hazardous parts and protection against contaminants, dry as dust. The second digit is a degree of protection against water.
|
Complete protectionm against contact, protection from infiltration of dust. |
|
6 |
 |
5
|
|
Protection from splashed water |
go top... menu…
|
|
|
|
Thanks 3G module user immediately can connect with Internet inserting SIM card to slot. Integrated software allows to automatically recognize and configure connections with mobile networks.
|
WIFI |
802.11 b/g/n |
|
GPS (factory) |
Yes |
|
Bluetooth |
Bluetooth 4.0
|
3G (optional)
|
GSM(900 / 1800) WCDMA( 900/2100MHZ) |
|
4G (optional) |
（LTE FDD/LTE | TDD/WCDMA/TD-SCDMA/GSM） |
go top... menu…
|
|
|
|
Real-time data access to the right information is very important to mobile users. MPW8802 offers 3G/4G, GPS, WiFi 802.11 b/g/n, Bluetooth 4.0 which enable users to get connect in the way that best suits their needs. With built-in 5.0 Mega Pixels camera on rear side, users can capture photos, videos, documents instantly, or utilize the front 2.0 Mega Pixel camera for application such as user self video recording, or video communication.
|
|
Dimensions |
230.9*155.6*21mm |
|
Weight |
800g (with battery) |
go top... menu…
*more photos in the "Photo Gallery" ...
*specification of this version is available in the "Technical data" ...
*license of Windows operating system it's not icluded in price...
*wrist strap it's not included in set...
|
| Durability: |
IP65 |
| Humidity: |
95% non-condensing |
| Waterproof: |
IP6x |
| Weight: |
|
| Temperature: |
Operating: -10°C -- +50°C
Storage temperature: -20°C -- +60°C |
| Shock: |
----- |
| Vibration: |
----- |
| Drop: |
1.0m |
| Sand and dust: |
IPx5 |
| 1D barcode scanner (reader): |
----- |
| 2D barcode scanner (reader): |
1D/2D Newland NLS-EM3096 |
| RFID scanner (reader): |
No |
| Magnetic card reader (MSR): |
No |
| Microchip card reader: |
----- |
| Docking station connector: |
Yes - (10pin) Pogo Pin |
| VESA standard – holders and mounts support: |
No |
| COM port: |
No |
| Dispaly: |
8” (1280*800)
IPS |
| Brightness: |
300nits |
| Contrast: |
----- |
| Touch screen: |
Yes - capacitive |
| Graphics card: |
Intel HD Graphic |
| Swivel Hinge: |
----- |
| VGA out: |
----- |
| TV Out: |
----- |
| TV Tuner: |
----- |
| Processor: |
Intel® Atom™ Processor Z3735F (QUAD CORE 1.33 - 1.83GHz) |
| Chipset: |
----- |
| BIOS: |
----- |
| Memory: |
2GB DDR3 |
| Hard Drive: |
32GB eMMc |
| Flash Memory: |
|
| Battery: |
Lithium 3.8V 500mAh |
| Working time on battery: |
5-6 hours (depending on usage) |
| HotSwap battery: |
No |
| Fast battery replacement ability: |
Yes |
| Size: |
230.9*155.6*21mm– 800g (with battery) |
| Casing material: |
----- |
| Fanless casing: |
Yes |
| Operating System: |
Winows 10 |
| LAN: |
----- |
| WLAN: |
802.11 b/g/n |
| Bluetooth: |
Bluetooth 4.0 |
| WAN: |
GSM 900/1800MHZ, WCDMA 900/2100MHZ
|
| GPS: |
Yes |
| Flash Card Reader: |
Micro-SD Card Reader |
| CD/DVD: |
----- |
| Camera: |
FRONT: 2Mpx
REAR: 5Mpx |
| Audio: |
Built-in Microphone | Speaker 1.0W | Audio Jack |
| Seciurity: |
IP65 |
| In/Out: |
1x - mini HDMI
1x - Micro-SD Reader
1x - USB 2.0
1x - micro USB (OTG)

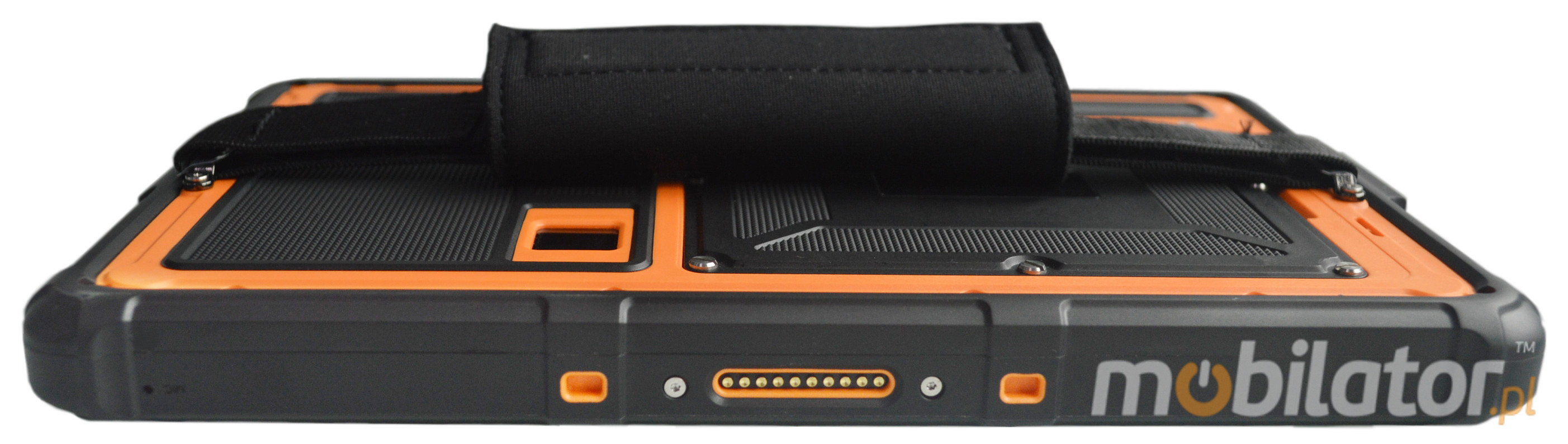

1x - Docking port - (10pin) Pogo Pin
1x - Audio Jack |
| Keyboard: |
on-Screen | Function keys
Volume + | Volume - | Power | Home |
| Additional Navigation Devices : |
----- |
| Color: |
----- |
| Optional accessories: |
Wrist Strap |
| Other: |
G-Sensor |
